$164.99
Ex Tax: $164.99
  • Stock: In Stock
  • Model: EB0041466
  • SKU: EB0041466
Precise details:
If you need the PortaPack H1, please buy Product ID: EB0041696
HackRF One Black version Product ID: EB0041456
TXCO: Product ID EB000453

Common problem:

Q. The computer cannot find the machine. / USB is not recognized.
A: Requires firmware installation. If the firmware still does not work after you install the firmware, you can reflash the firmware.

Other files:

Specifications:

- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)

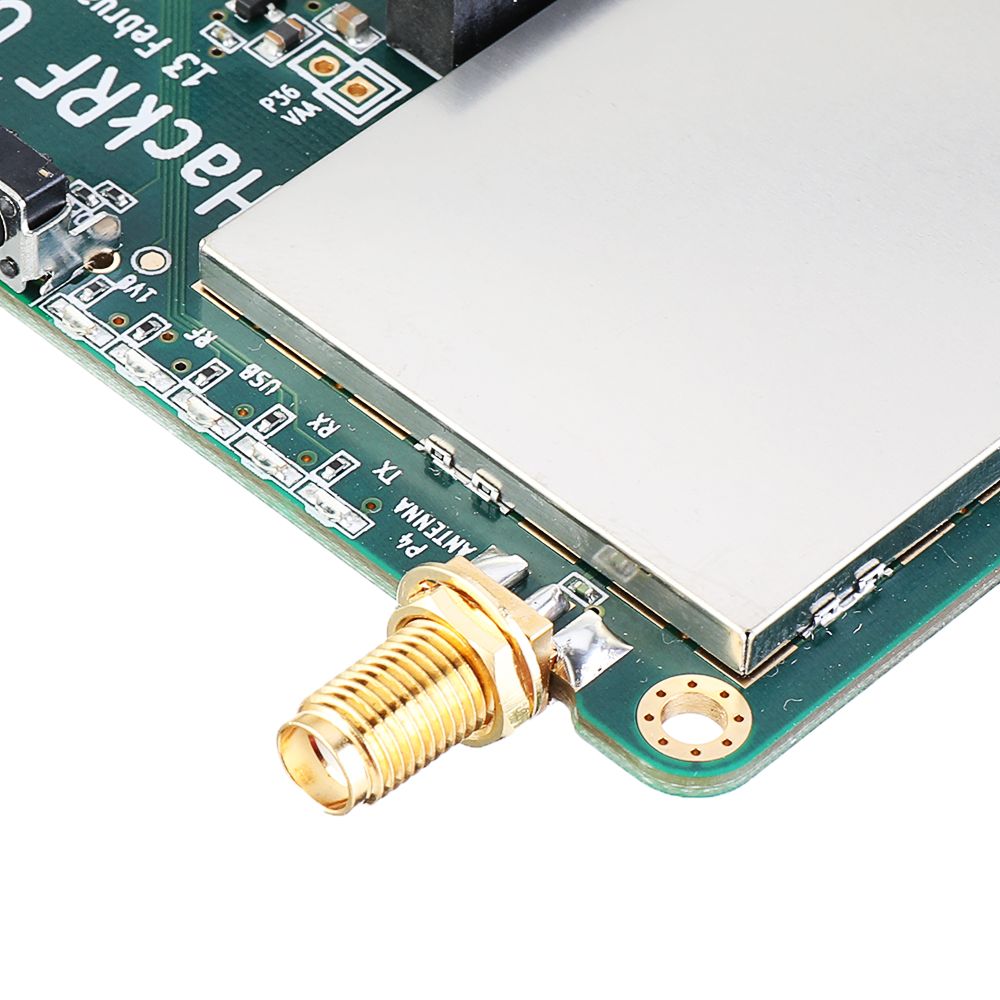

- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open-source hardware

Parameters:

- Frequency band: 1MHz-6Ghz
- Data bandwidth: 20MHz
- Sampling accuracy ( ADC/DAC) : 8BIT
- Sampling speed ( ADC/DAC): 20Mbps
- Interface: USB2.0
- Open-source
- Maximum transmitting power: 10dbm
- 64QAM transmitting EVM: 1.5%
- Complex sampling bandwidth: 20Mhz

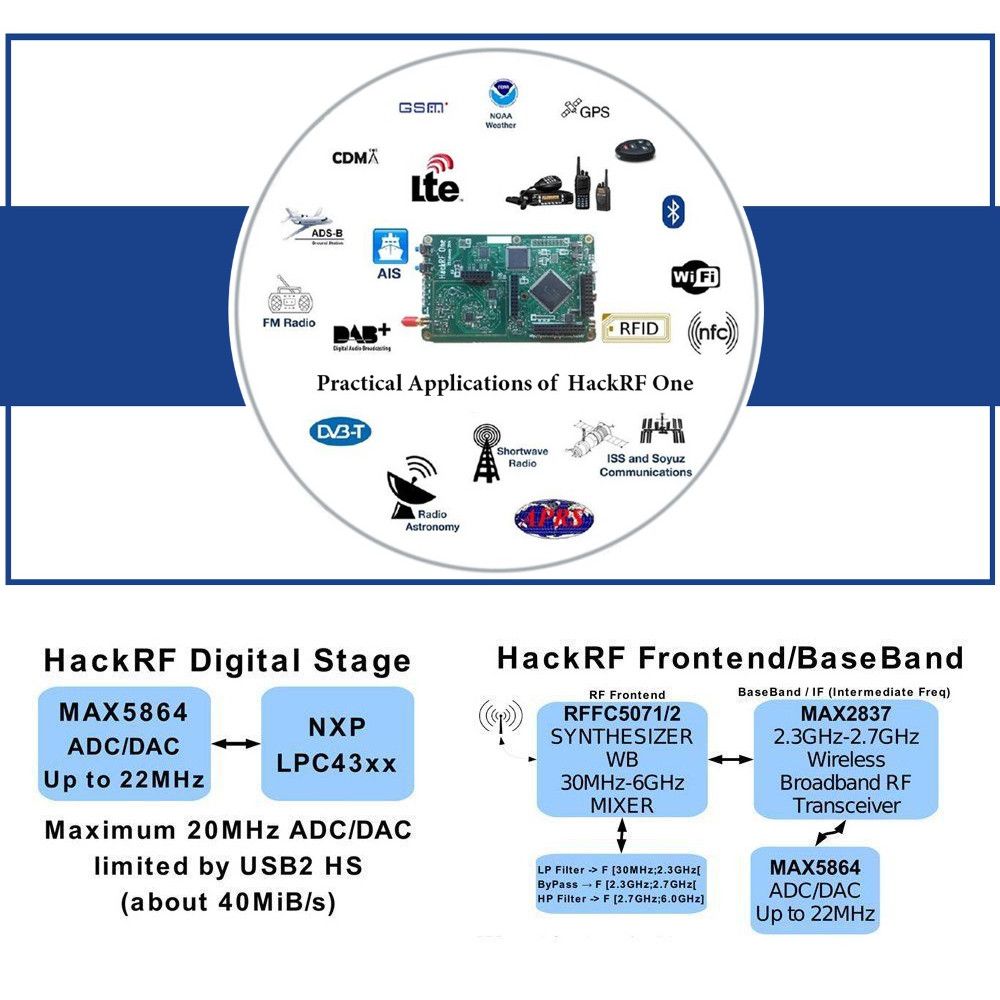

Hardware:

- Mixer RFFC5072: 80MHz-4200MHz
- Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz
- Processor LPC4330: Main frequency 204MHz
- Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

Package includes:

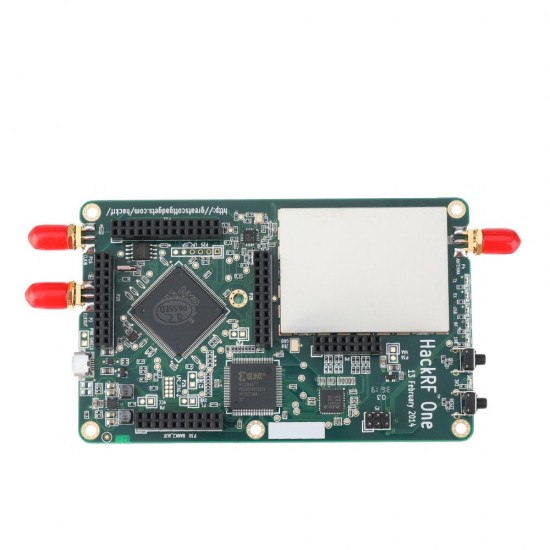

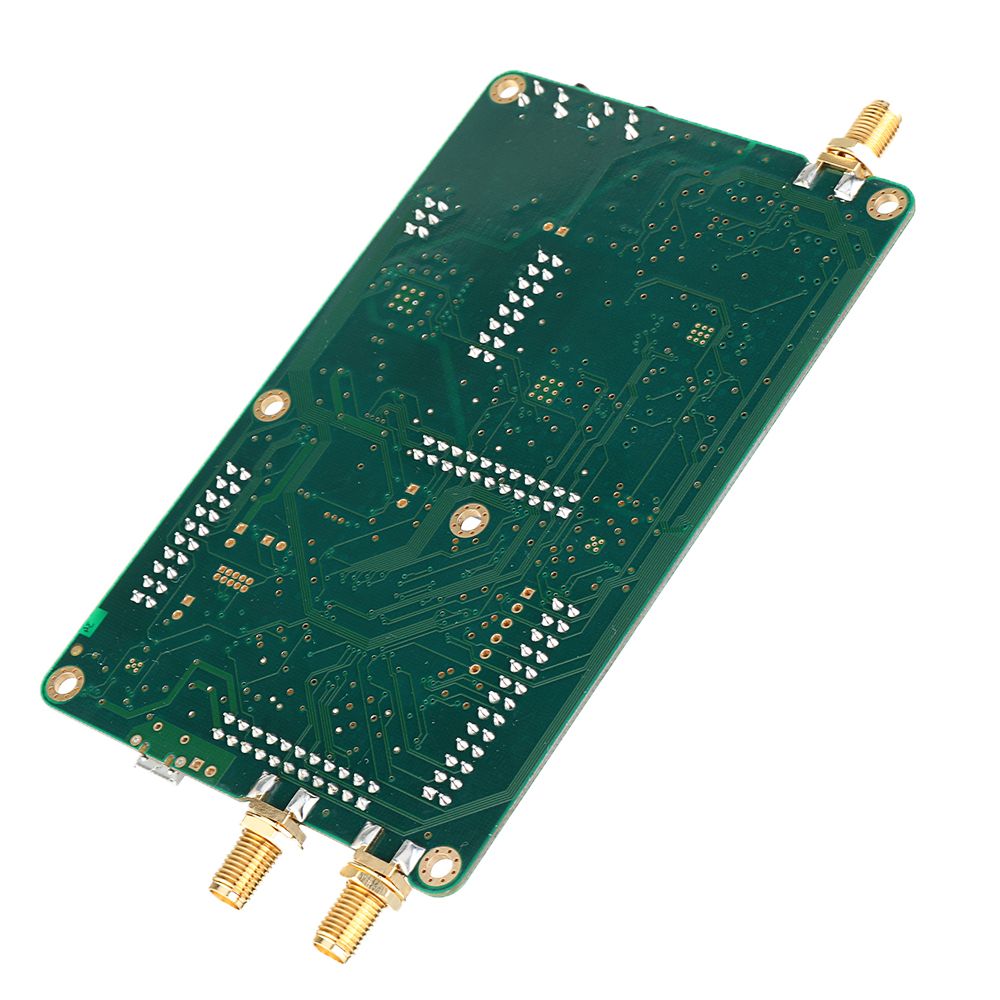

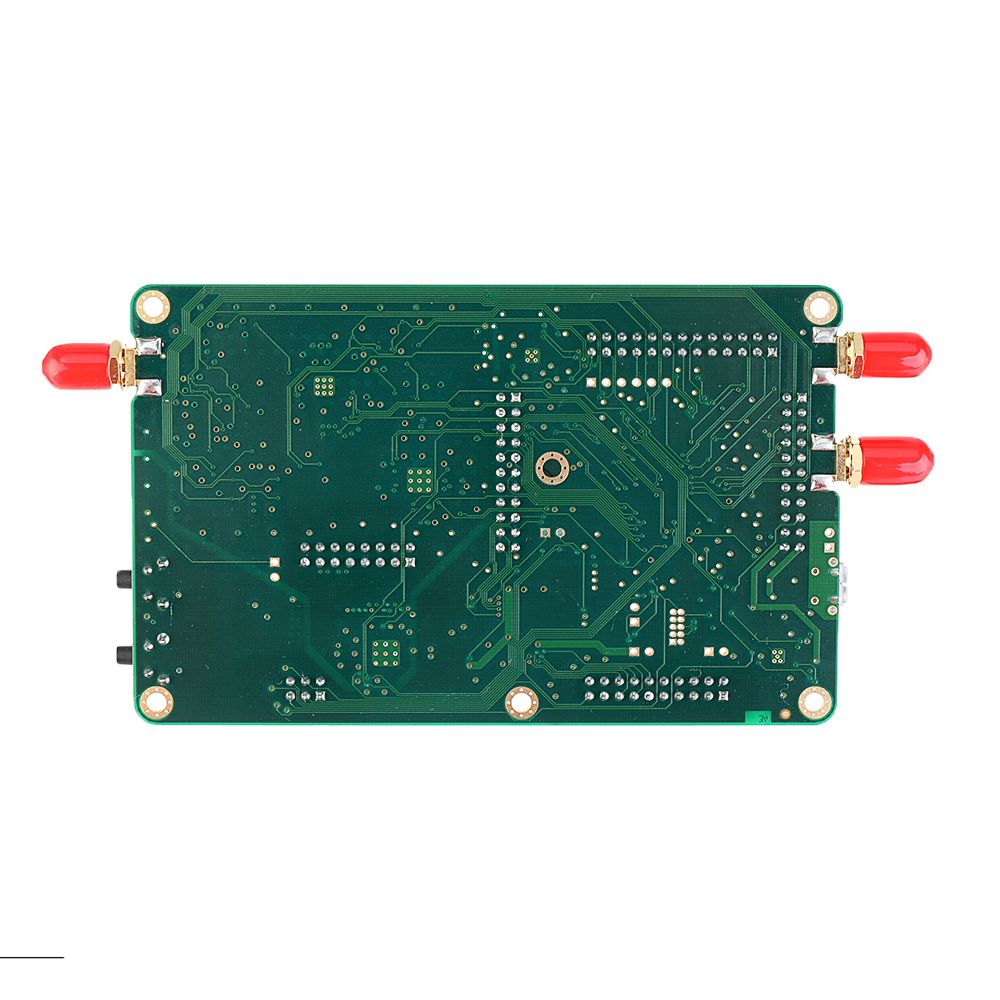

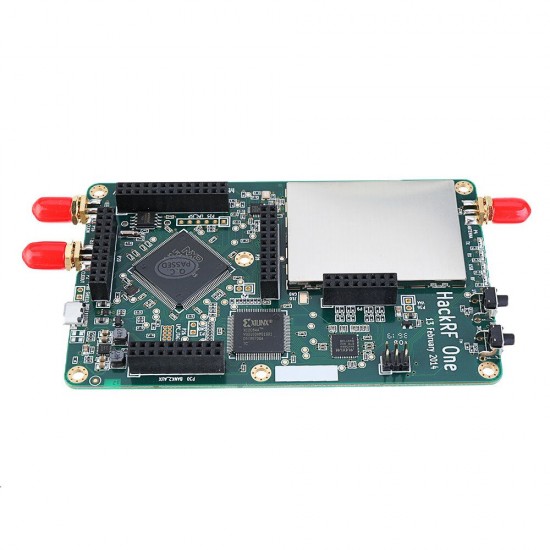

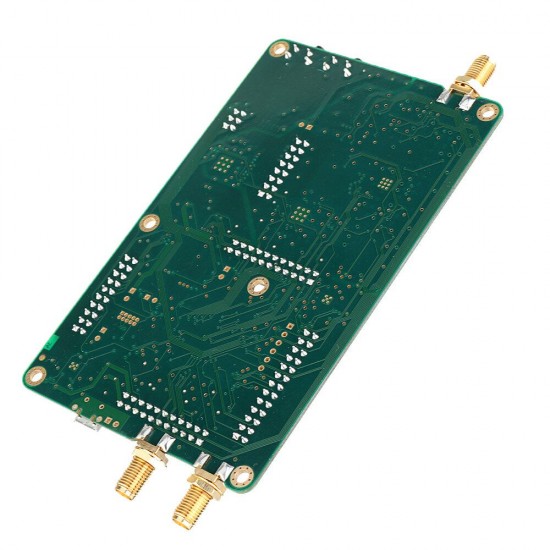

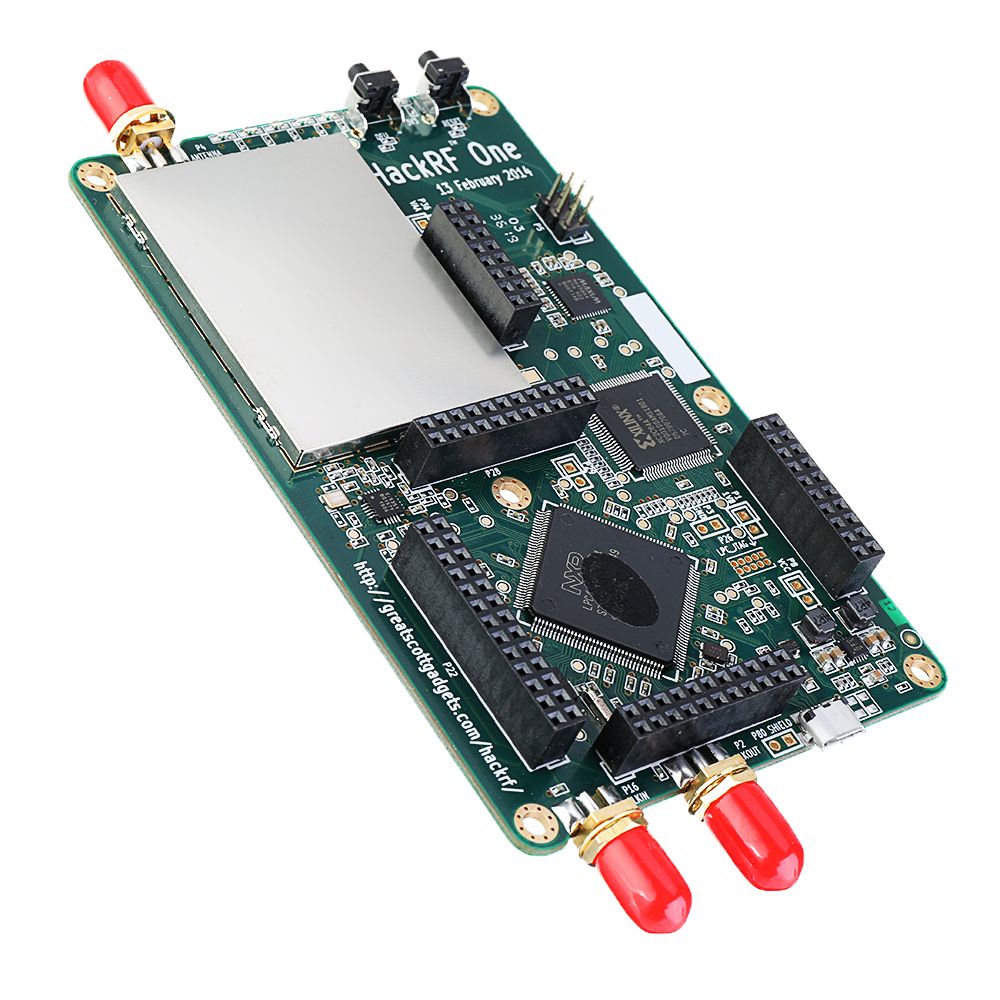

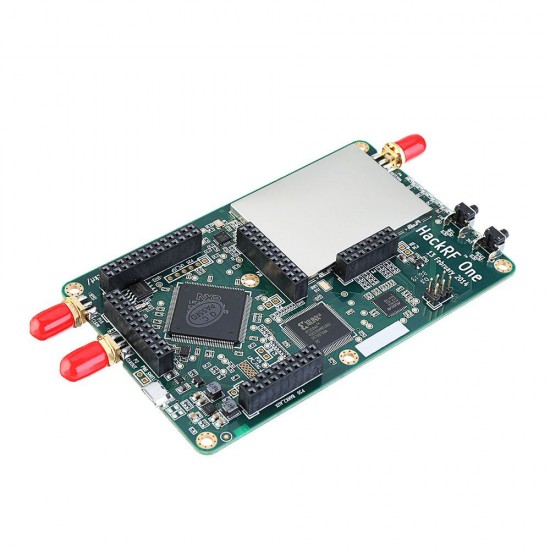

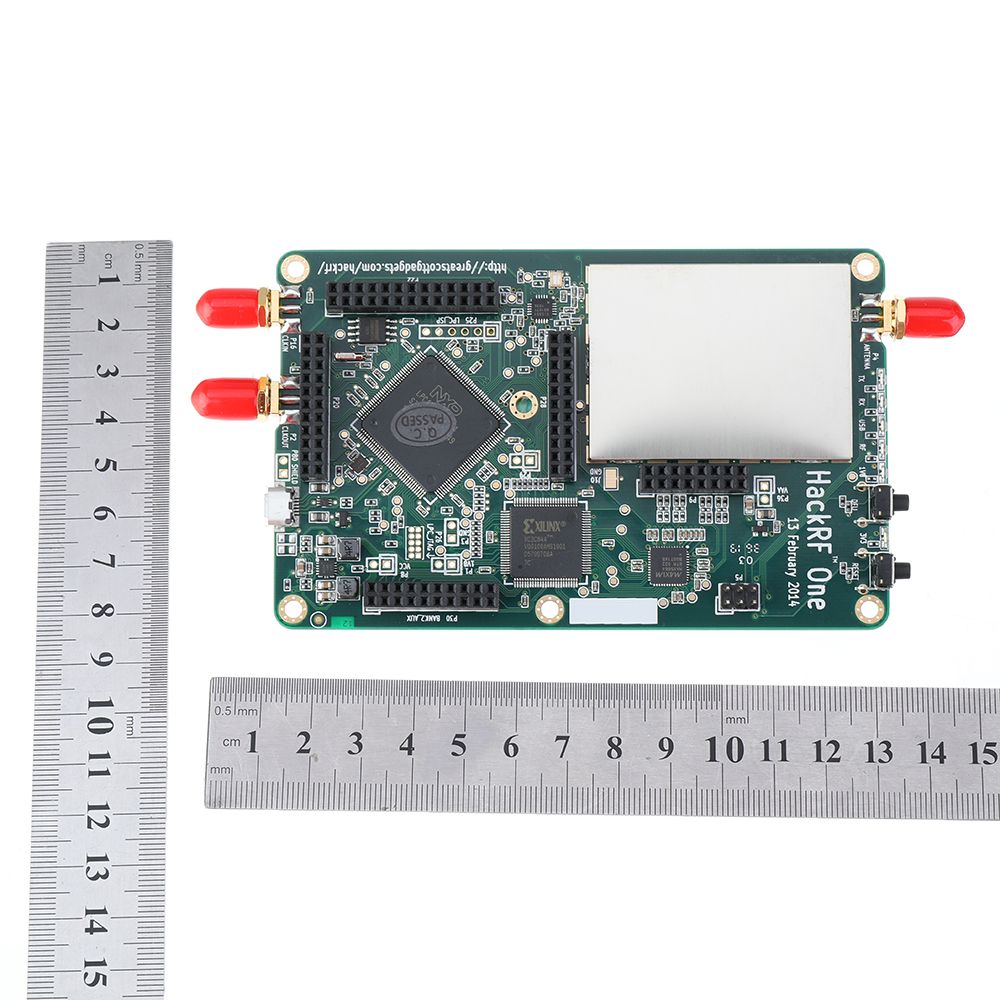

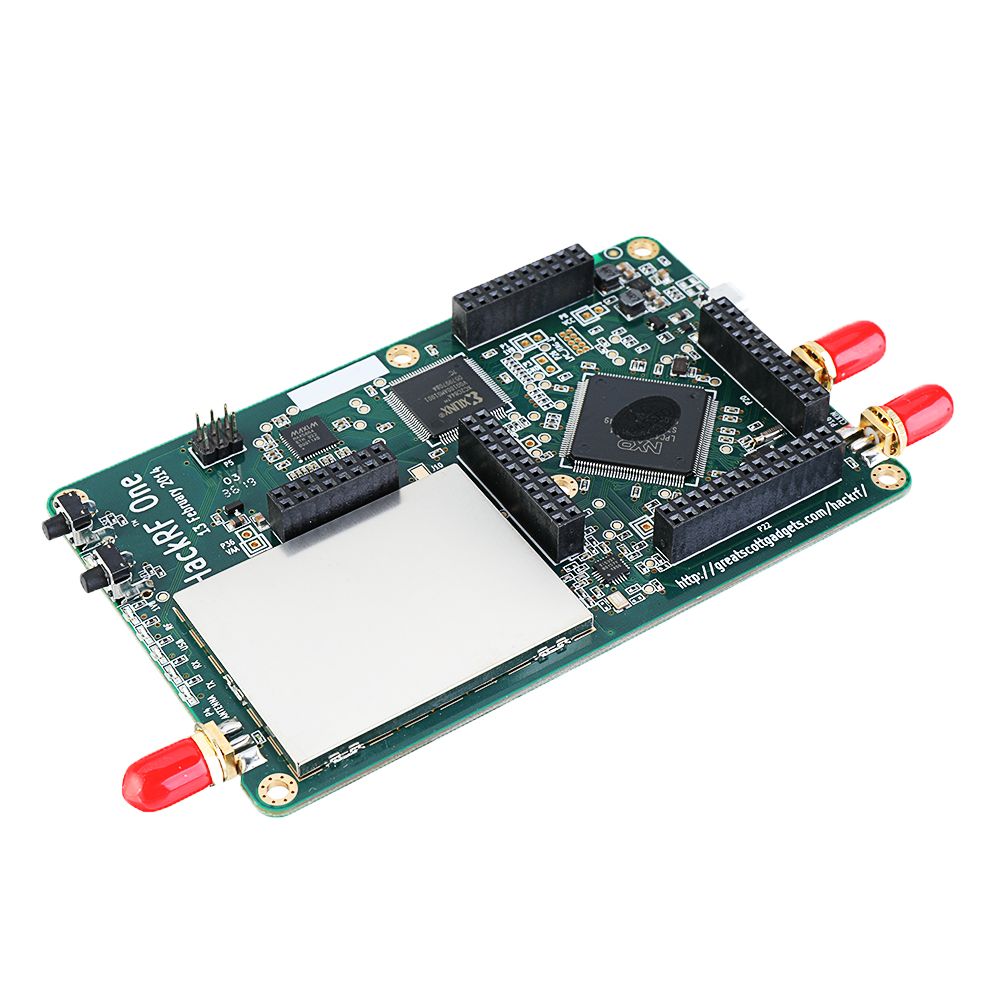

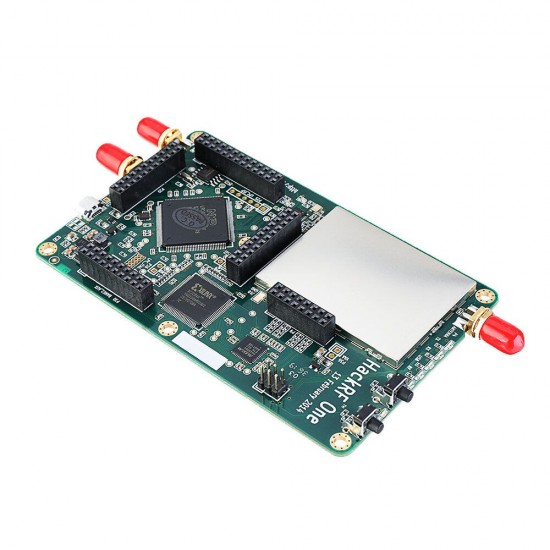

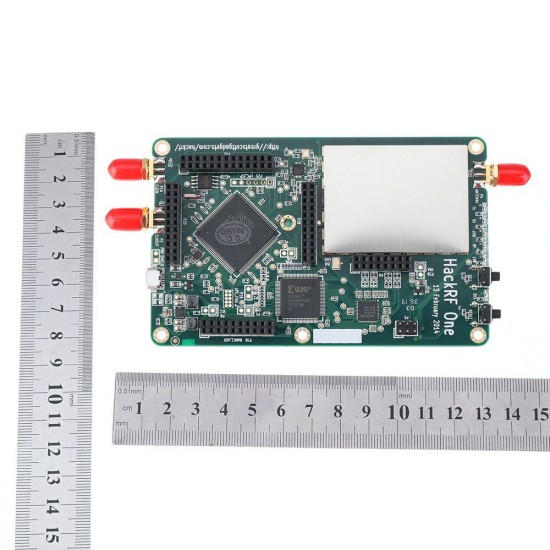

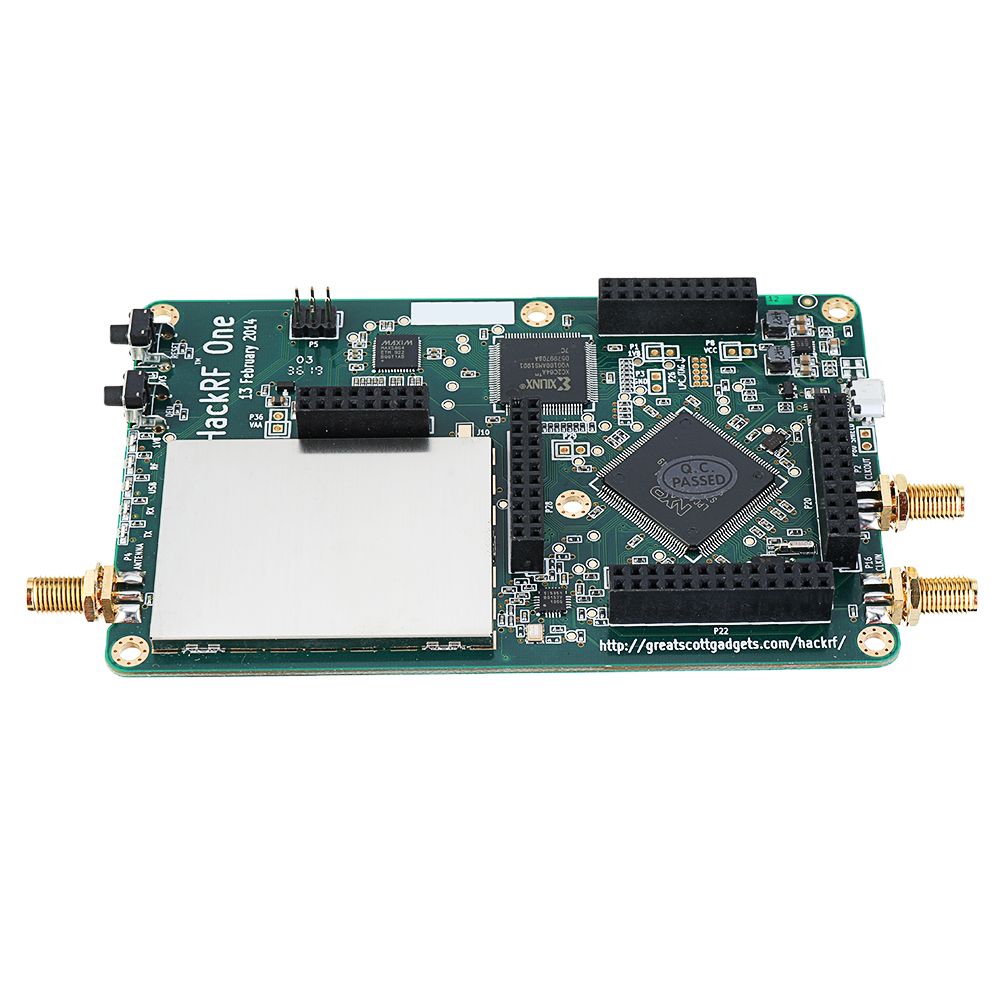

1 x HackRF One board
1  x USB Cable
