One 1MHz to 6GHz Radio Platform Development Board Software-Defined RTL SDR Demoboard Kit Dongle Receiver Ham Radio

Brand:Renhotec

Voltage: 5V(USB)

Precise details>>

Precise details:

Common problem:

Q. The computer cannot find the machine. / USB is not recognized.

A: Requires firmware installation. If the firmware still does not work after you install the firmware, you can reflash the firmware.

Firmware: https://www.renhotecic.com/image/download/rar/20200116013405PortapackFirmwareTool.rar

Other files:

/

Feature:

HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next-generation radio technologies, HackRF One is an open-source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

Specifications:

- 1MHz to 6 GHz operating frequency

- Half-duplex transceiver

- Up to 20 million samples per second

- 8-bit quadrature samples (8-bit I and 8-bit Q)

- Compatible with GNU Radio, SDR#, and more

- Software-configurable RX and TX gain and baseband filter

- Software-controlled antenna port power (50 mA at 3.3 V)

- SMA female antenna connector

- SMA female clock input and output for synchronization

- Convenient buttons for programming

- Internal pin headers for expansion

- Hi-Speed USB 2.0

- USB-powered

- Open-source hardware

Parameters:

- Frequency band: 1MHz-6Ghz

- Data bandwidth: 20MHz

- Sampling accuracy ( ADC/DAC) : 8BIT

- Sampling speed ( ADC/DAC): 20Mbps

- Interface: USB2.0

- Open-source

- Maximum transmitting power: 10dbm

- 64QAM transmitting EVM: 1.5%

- Complex sampling bandwidth: 20Mhz

Hardware:

- Mixer RFFC5072: 80MHz-4200MHz

- Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz

- Processor LPC4330: Main frequency 204MHz

- Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

Package includes: (Optional)

XR-027:

1 x HackRF Development Board Only

XR-028:

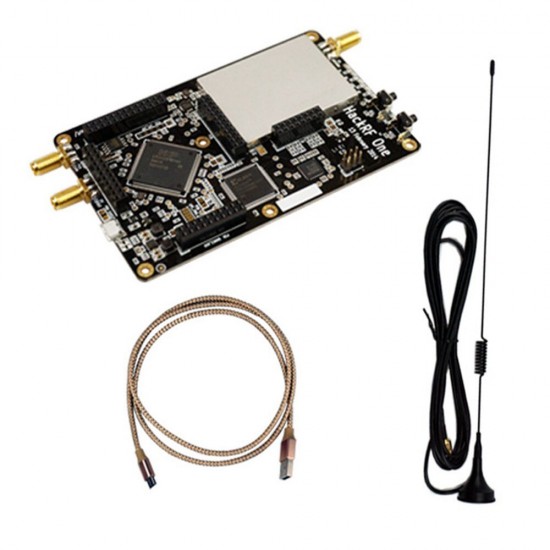

1 x HackRF Development Board

1 x USB Cable

1 x UHF Antenna (40Mhz-6GHz)

XR-029:

1 x HackRF One board with Acrylic Shell

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x USB Cable

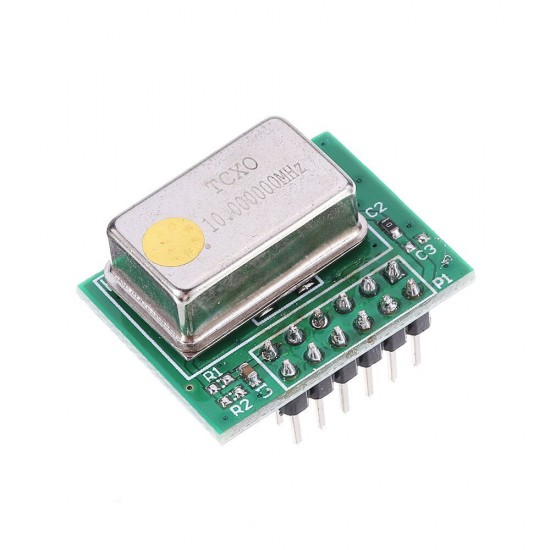

1 x TCXO clock 0.1PPM

XR-030:

1 x HackRF One board with Aluminum Shell

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x USB Cable

1 x TCXO clock 0.1PPM

XR-031:

1 x HackRF One board with Aluminum Shell

1 x USB Cable

1 x TCXO clock 0.1PPM

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x GSM/3G/4G 35DBI Antenna
1 x GSM/2G/3G/4G/WIFI 700-960MHz&1710-2700MHz 5DBI Antenna

Common problem:

Q. The computer cannot find the machine. / USB is not recognized.

A: Requires firmware installation. If the firmware still does not work after you install the firmware, you can reflash the firmware.

Firmware: https://www.renhotecic.com/image/download/rar/20200116013405PortapackFirmwareTool.rar

Other files:

/

Feature:

Specifications:

- 1MHz to 6 GHz operating frequency

- Half-duplex transceiver

- Up to 20 million samples per second

- 8-bit quadrature samples (8-bit I and 8-bit Q)

- Compatible with GNU Radio, SDR#, and more

- Software-configurable RX and TX gain and baseband filter

- Software-controlled antenna port power (50 mA at 3.3 V)

- SMA female antenna connector

- SMA female clock input and output for synchronization

- Convenient buttons for programming

- Internal pin headers for expansion

- Hi-Speed USB 2.0

- USB-powered

- Open-source hardware

Parameters:

- Frequency band: 1MHz-6Ghz

- Data bandwidth: 20MHz

- Sampling accuracy ( ADC/DAC) : 8BIT

- Sampling speed ( ADC/DAC): 20Mbps

- Interface: USB2.0

- Open-source

- Maximum transmitting power: 10dbm

- 64QAM transmitting EVM: 1.5%

- Complex sampling bandwidth: 20Mhz

Hardware:

- Mixer RFFC5072: 80MHz-4200MHz

- Wireless bandwidth RF transceiver MAX2837: 2.3Ghz-2.7Ghz

- Processor LPC4330: Main frequency 204MHz

- Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

Package includes: (Optional)

XR-027:

1 x HackRF Development Board Only

XR-028:

1 x HackRF Development Board

1 x USB Cable

1 x UHF Antenna (40Mhz-6GHz)

XR-029:

1 x HackRF One board with Acrylic Shell

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x USB Cable

1 x TCXO clock 0.1PPM

XR-030:

1 x HackRF One board with Aluminum Shell

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x USB Cable

1 x TCXO clock 0.1PPM

XR-031:

1 x HackRF One board with Aluminum Shell

1 x USB Cable

1 x TCXO clock 0.1PPM

1 x UHF Antenna (40Mhz-6GHz)
1 x UHF/VHF Antenna

1 x GSM/3G/4G 35DBI Antenna
1 x GSM/2G/3G/4G/WIFI 700-960MHz&1710-2700MHz 5DBI Antenna
