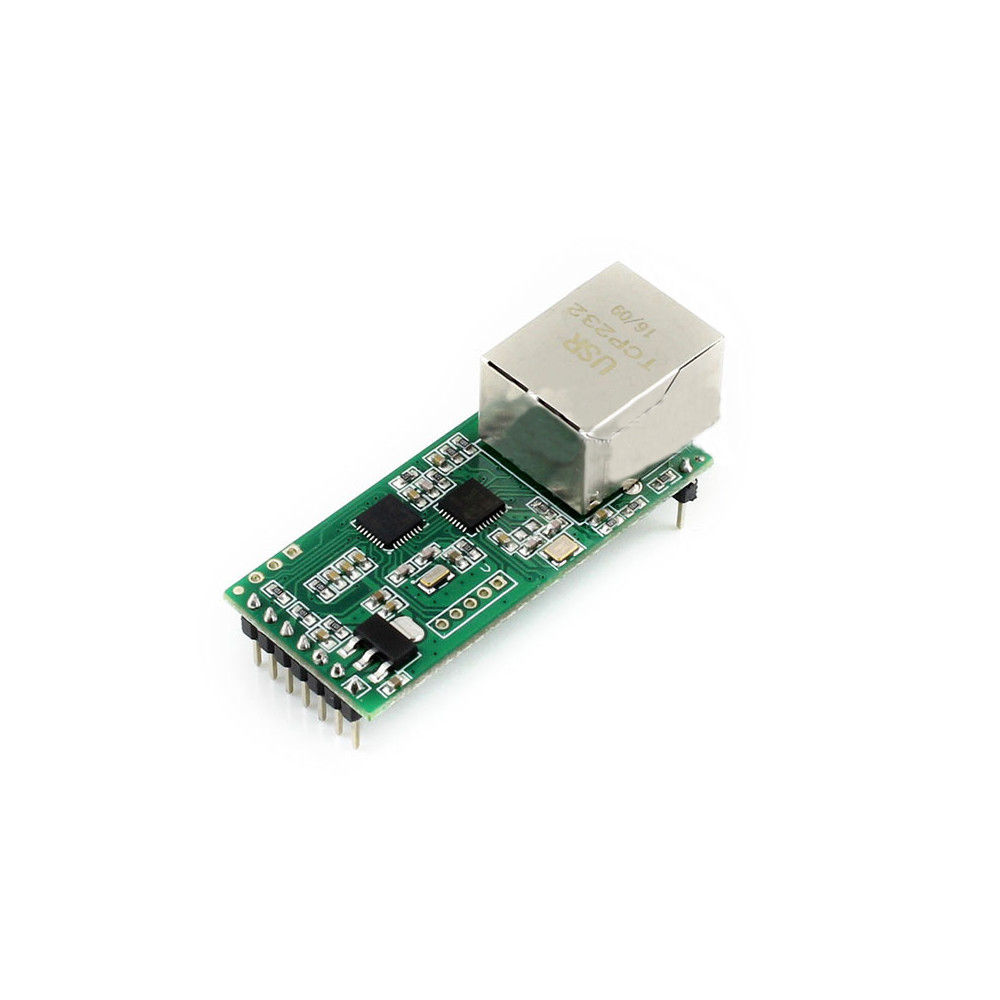

Ethernet to Serial Port UART TTL to Ethernet Network Module RJ45 Network Port

Based on 0 reviews. - Write a review

$23.99

Ex Tax: $23.99

Stock: In Stock
Model: EB0051001
SKU: EB0051001

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Adopt M0 series 32-bit ARM processor, with fast running speed and high efficiency

Support 10/100M Ethernet interface, support Auto-MDI/MDIX (Cross-connect direct network cable arbitrary connection, automatic switching)

After the network is disconnected, the connection is automatically disconnected to ensure that the entire network establishes a reliable TCP connection

Support timeout restart (no data restart) function, the restart time can be customized

Flexible serial data frame setting to meet users' various subcontracting needs

The serial port baud rate can be set from 600bps to 460800bps, supports five kinds of verification: None, Odd, Even, Mark, Space

Support custom heartbeat packet mechanism to ensure a true and reliable connection

Support custom registration package mechanism to detect connection status, also can be used as custom packet header, MAC address can be used as registration package

Support custom web page function, convenient for users to customize module web page content

Supports RFC2217-like protocol, which can communicate with devices with variable serial port parameters (baud rate, data bits, etc.)

Support DNS domain name resolution function, can customize DNS server address

Support DHCP function, can automatically obtain IP, or can customize static IP

Support the function of upgrading firmware via network, which is more convenient

Support to restore factory settings through software and hardware

Factory-programmed specific MAC, customizable MAC address

Working mode optional TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client

Support protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client

Support web page, AT command, serial port protocol, network protocol setting parameters, provide setting protocol, customers can integrate into their own software

Provide software: module configuration software, TCP/UDP test tool, virtual serial port software, etc.

Provide programming examples: upper computer programming examples (socket), VB, C++, Android, iOS, etc.

Parameter:

Protection: Built-in 1.5KV electromagnetic isolation

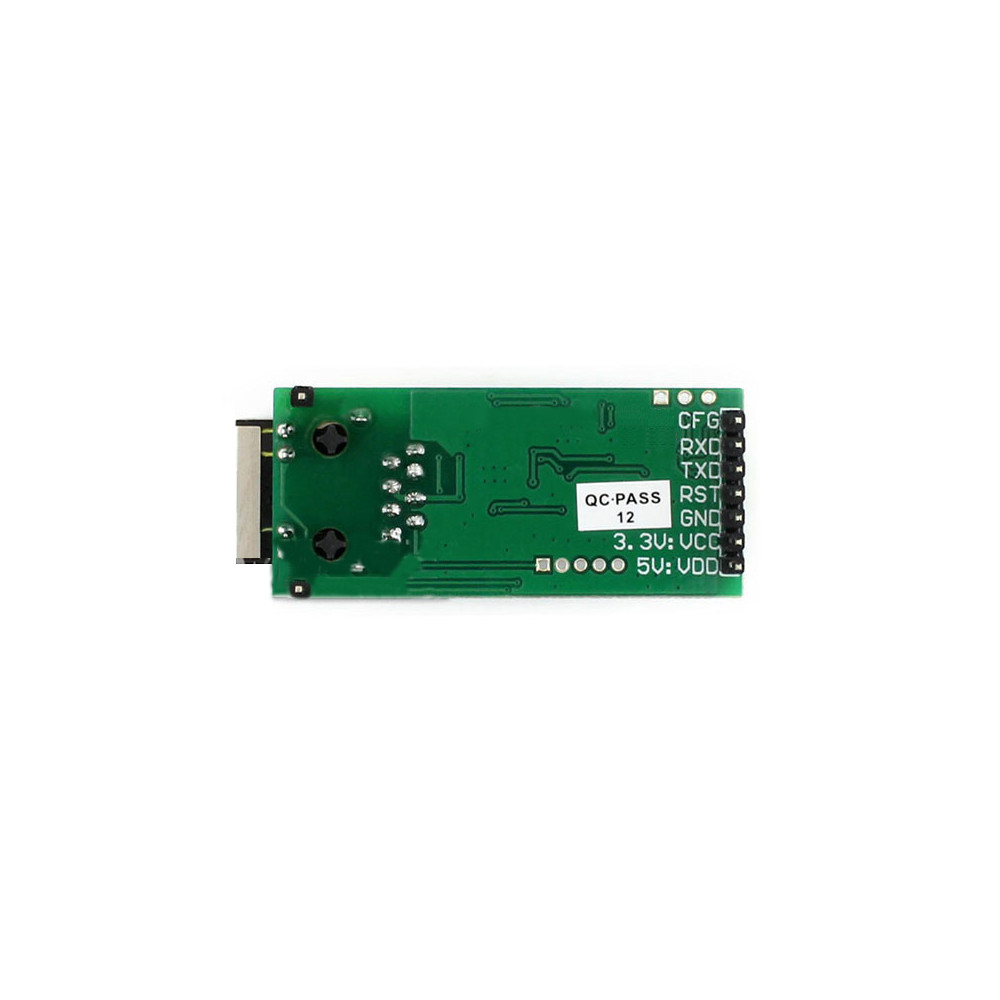

Interface: 3.3V TTL (2.54mm pitch header)

Input voltage: 3.3V DC or 5V DC (different power supply pins, choose one)

Working current: 150mA (aver)/160mA (max)

Working temperature: -25~75°C

Power consumption: <1W

Storage environment: -40~105°C, 5~95%RH

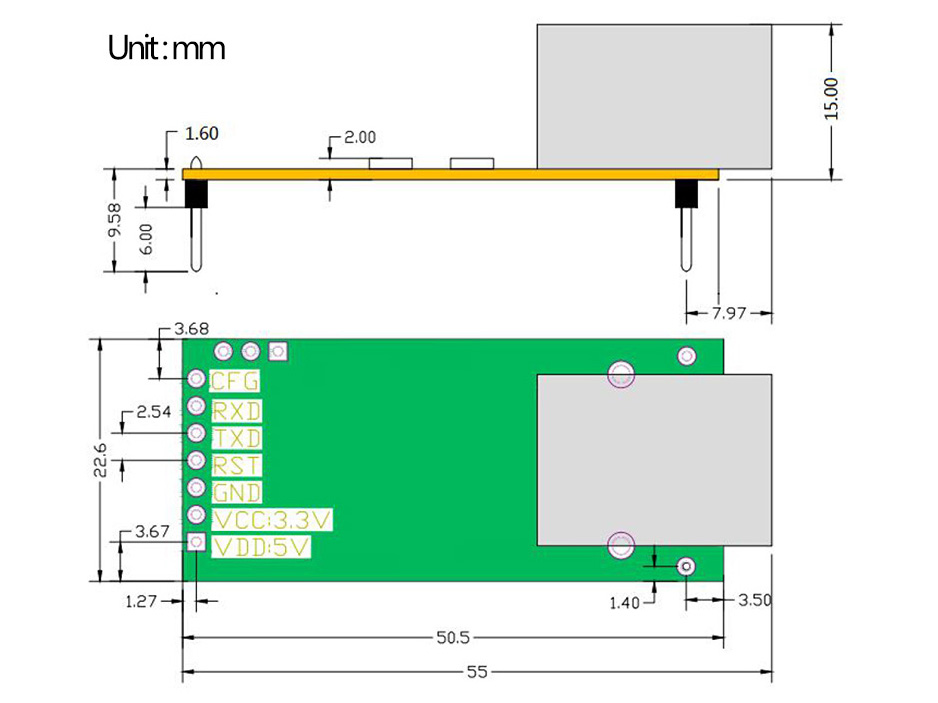

Dimensions: 50.5 x 22.6 x 15 (mm)

PK item	UART TO ETH (this item)	RS485 TO ETH (Product ID EB0041428)	RS232/485 TO ETH (Product ID EB0041445)
Microcontroller	Cortex-M0	Cortex-M0	Cortex-M4 (Main frequency up to 120MHz)
Ethernet port	RJ45 (10/100Mbps adaptive)
	Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
	Cache: send 6Kbyte, receive 4Kbyte		Cache: send 16Kbyte, receive 16Kbyte
Serial interface	UART	RS485	RS232+RS485 (can work simultaneously)
	Baud rate: 600bps~460.8Kbps	Baud rate: 600bps~230.4Kbps
	Hardware streaming: not supported		Hardware streaming: supported
	Data bits: 5, 6, 7, 8
	Stop bits: 1, 2
	Check digit: None, Even, Odd, Space, Mark
	Cache: receive 800byte		Cache: send 2Kbyte, receive 2Kbyte
	Framing mechanism: 4 bytes packing time, byte length 400		Framing mechanism: 4 bytes packing time, byte length 1460, can be customized
Special function	Custom heartbeat package, custom registration package, custom web page, RFC2217-like protocol, KeepAlive mechanism, timeout restart, short connection, network upgrade firmware
	/	/	Modbus gateway, Websocket (web page to serial port)
Operating mode	TCP Server, TCP Client,UDP Server,UDP Client,HTTPD Client
Support Client	Under TCP Server, the number of connected clients can be customized (1~16)		Under TCP Server, support two sockets, each socket can connect 8 clients
Configuration method	Built-in web page, host computer setting software, serial port commands
Interface protection	Power supply: anti-reverse connection, ESD protection, anti-surge
	Network port: 1.5KV electromagnetic isolation protection
	/	RS485: ESD protection, anti-static 2KV, 2.2KΩ pull-up resistor
	/	/	Lightning protection, overcurrent protection
Supply voltage	3.3V/5V	5~7V	5~36V
Working current	150mA@5V	110mA@5V	86.5mA@5V
Operating temperature	Working temperature: -25～75℃		Working temperature: -40～85℃
	Storage temperature: -40～105℃
Product Size	50.5mm × 22.6mm × 15mm	70mm × 63.6mm × 25mm	82.8mm × 85.7mm × 25mm

Package includes:

1 x Ethernet Network Module

Wavesharereg-Ethernet-to-Serial-Port-UART-TTL-to-Ethernet-Network-Module-RJ45-Network-Port-1700100
