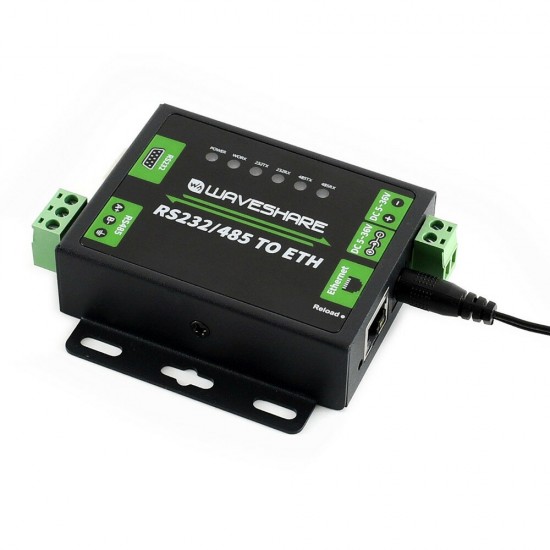

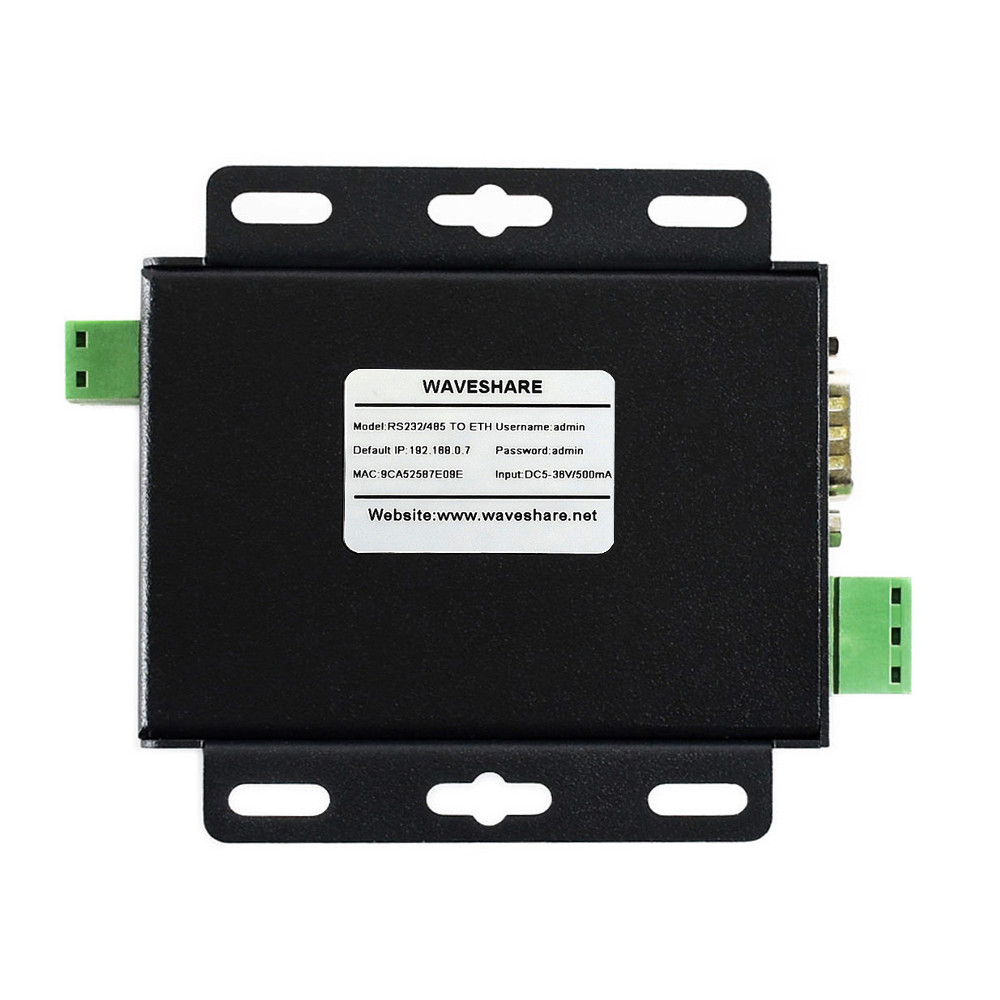

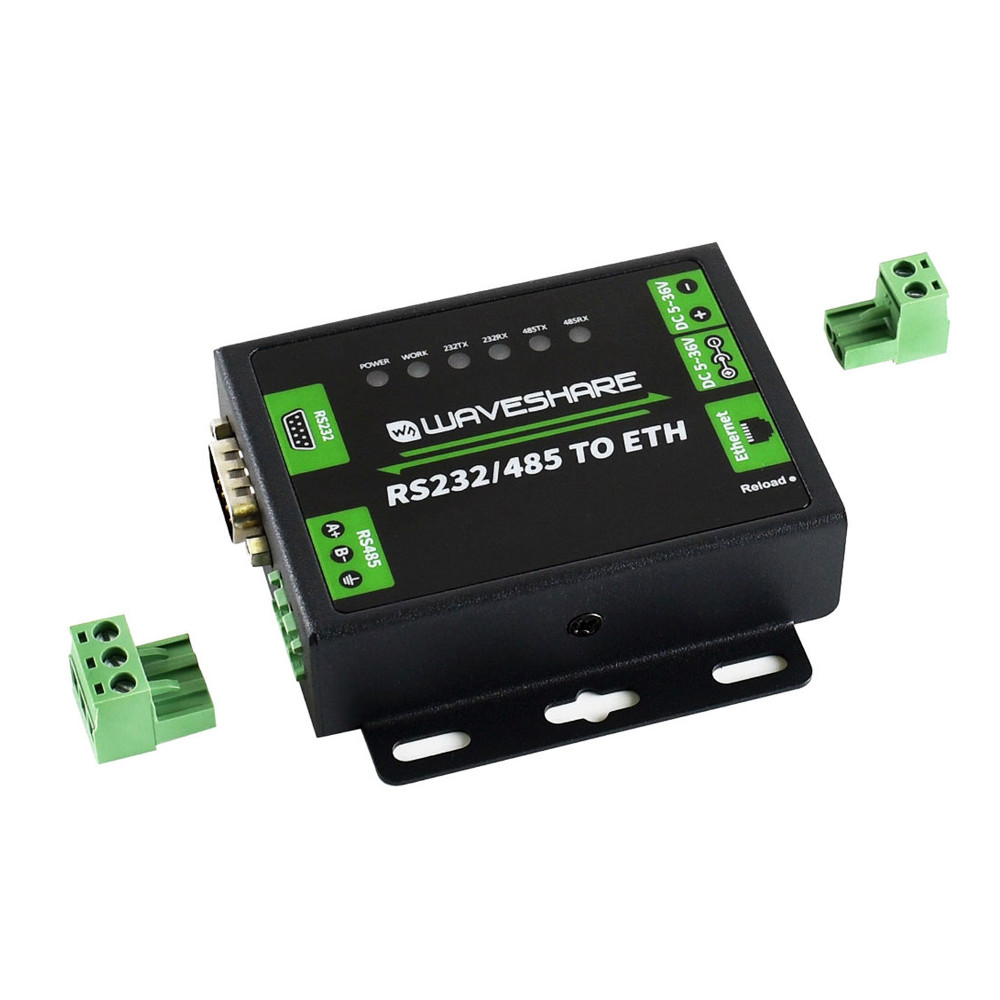

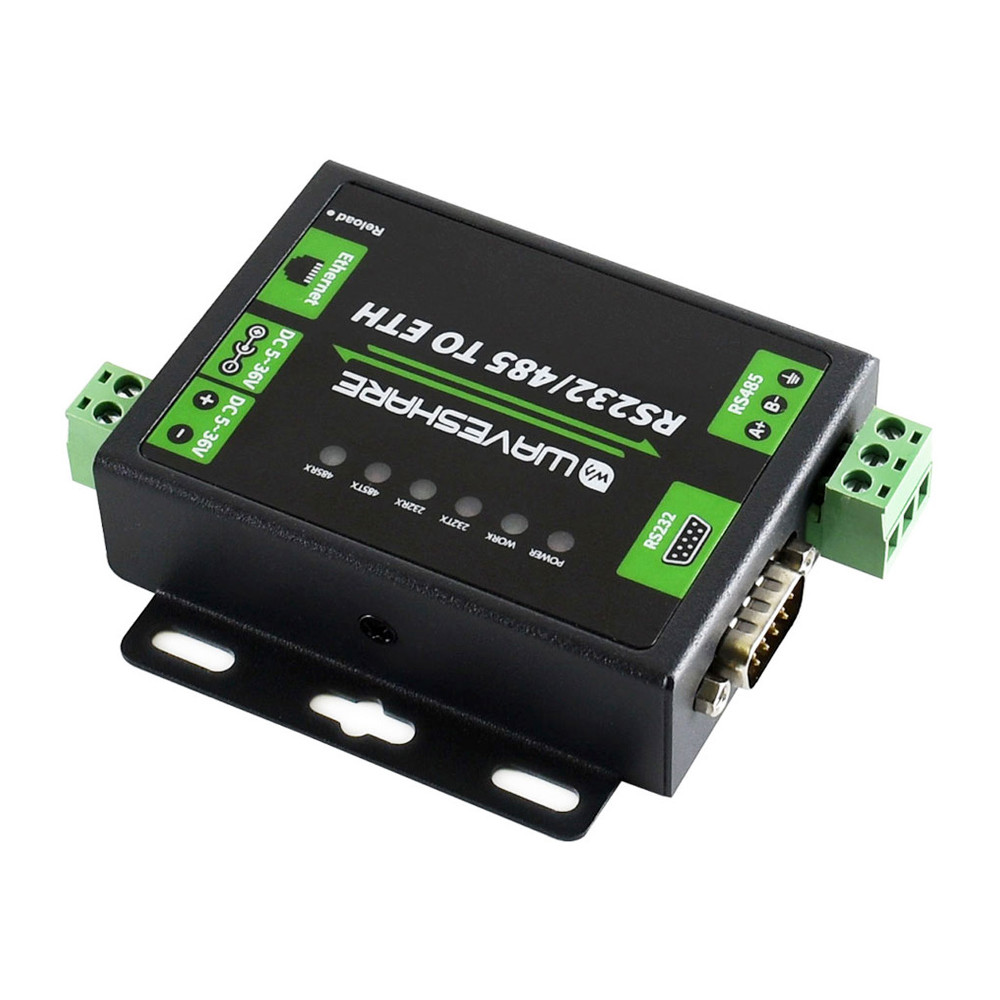

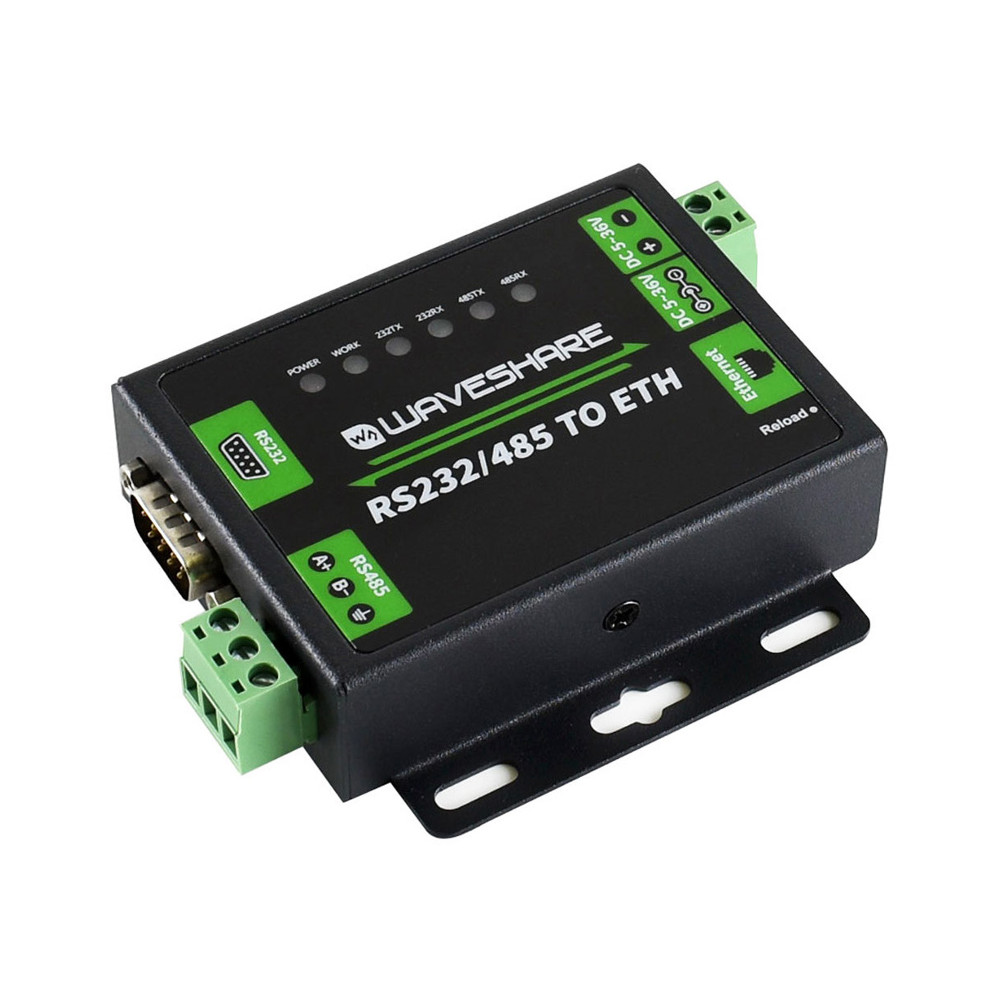

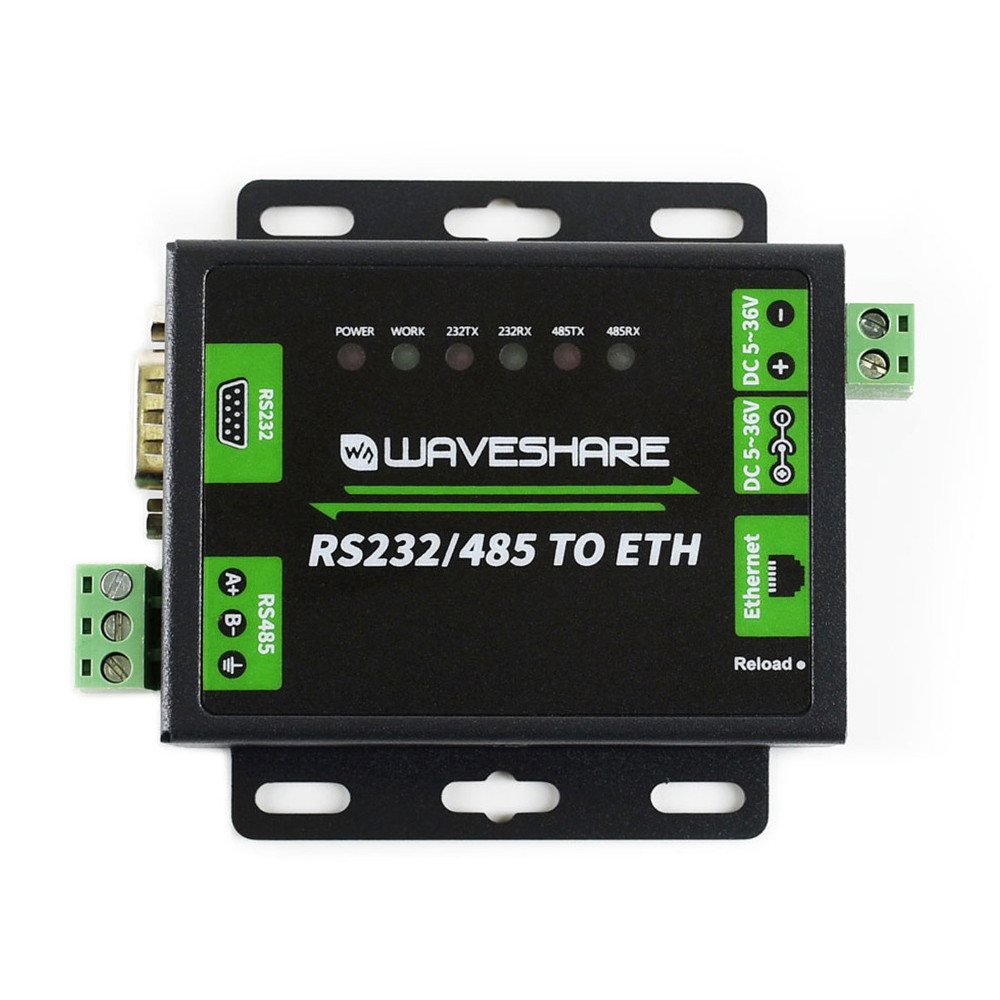

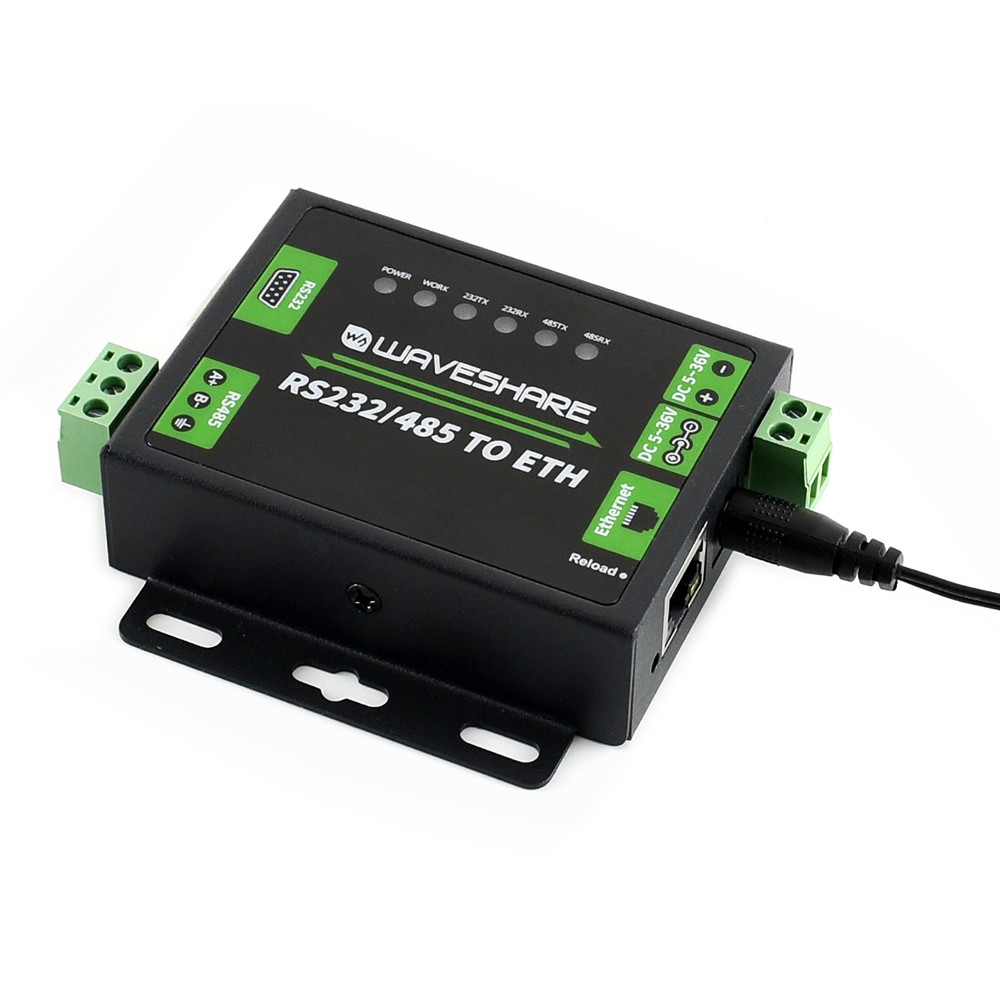

Dual Serial Port Ethernet Bidirectional Transparent Transmission RS232/485 to Network Module RJ45 RS232/485 TO ETH

Based on 0 reviews. - Write a review

$52.99

Ex Tax: $52.99

Stock: In Stock
Model: EB0041445
SKU: EB0041445

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Documents:

USER MANUAL

Code

Software

Features:

Using M4 series 32-bit ARM processor, the main frequency is up to 120MHz, the running speed is fast, stable and reliable

Support 10/100M Ethernet interface, support Auto-MDI/MDIX (Cross-connect direct network cable arbitrary connection, automatic switching)

Support RS232 and RS485 interfaces, the two interfaces can work independently at the same time, without affecting each other

Support to set the communication baud rate (600bps~230.4Kbps), support None, Odd, Even, Mark and Space five kinds of verification

Onboard multiple function indicator lights, convenient to check the module communication and running status

Working mode optional TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (support GET and POST)

Support Modbus gateway function, more convenient for industrial use

Support Websocket function, can realize two-way transparent transmission with RS232, RS485 port directly through webpage

Support web page, AT command, serial port protocol and network protocol setting parameters, provide setting protocol, customers can integrate into their own software

Support custom heartbeat packet mechanism to ensure the connection is true and reliable, and can also be used to actively capture sensor data

Support custom registration package mechanism, automatically send a predetermined registration package as a logo after establishing a connection, which is convenient to distinguish different devices

Support custom web page function, convenient for users to customize module web page content

Supports RFC2217-like protocol, which can communicate with devices with variable serial port parameters (baud rate, data bits, etc.)

Support KeepAlive mechanism, can quickly detect abnormal network interruption, and disconnect and reconnect

Support timeout restart (no data restart) function to ensure long-term stable communication, and can customize restart time

Support DNS domain name resolution function, can customize DNS server address

Support DHCP function, can automatically obtain IP, can also customize static IP

Support the function of upgrading firmware through the network, making maintenance more convenient

Support to restore factory settings through software and hardware

Factory-programmed specificMAC, customizable MACaddress

Provide software: module configuration software, TCP/UDP test tool, virtual serial port software, etc.

Provide programming examples: host computer programming examples (socket), VB, C++, Android, iOS, etc.

Parameter:

Ethernet:

Ethernet interface: 4-pin RJ45

Communication rate: 10/100Mbps

Interface protection: with 2KV electromagnetic isolation

Network protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket

Send cache: 16Kbyte

Receive buffer: 16Kbyte

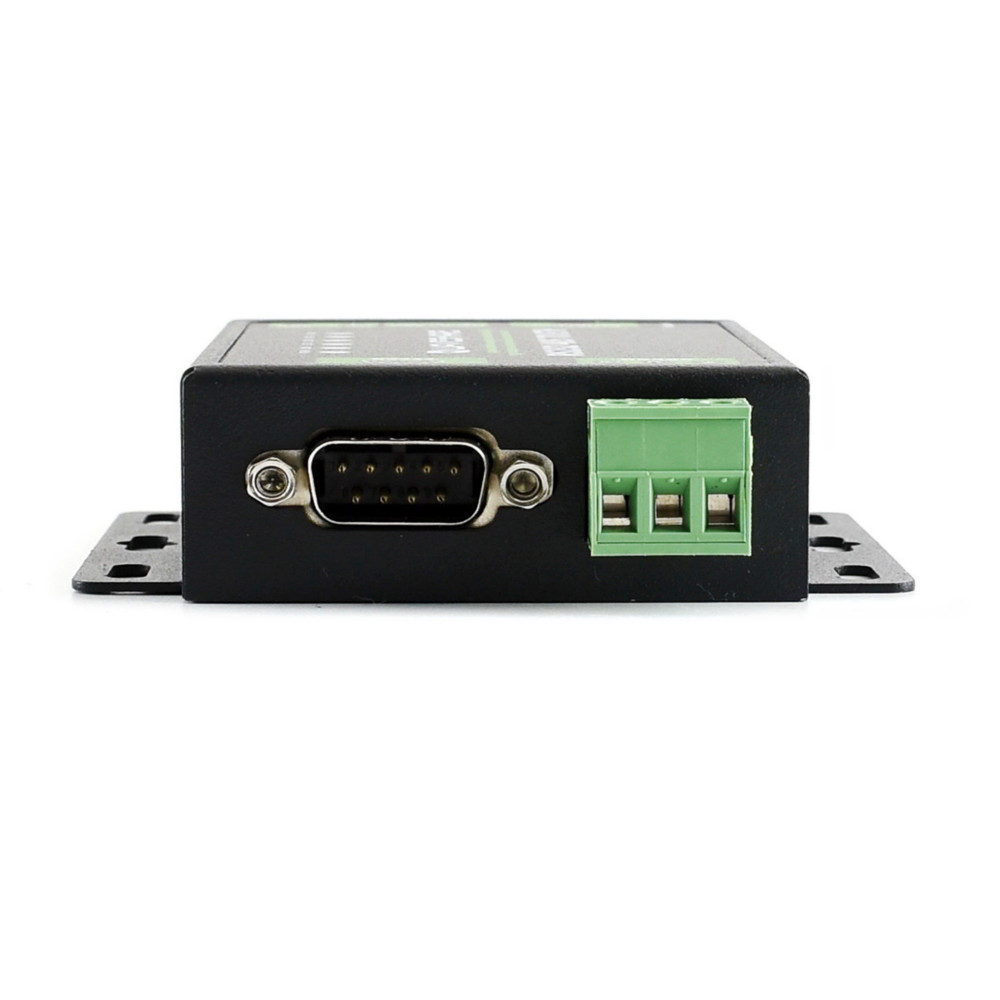

RS485/RS232:

Interface form: data bits: 5bit, 6bit, 7bit, 8bit

RS485: terminal block (A+, B-, GND)

RS232: DB9 pin male

Stop bit: 1, 2

Calibration position: None, Odd, Even, Mark, Space

Baud rate: 600bps~230.4Kbps

Send cache: 2Kbyte

Receive buffer: 2Kbyte

Hardware flow control: RTS/CTS

Interface protection:

RS485: Anti-static 2KV, light protection, anti-surge, anti-overcurrent, ESD protection

RS485 pull-up and pull-down resistance: 2.2KΩ

power supply:

Power supply voltage: 5.0~36.0V (recommended 5V)

Working current: 86.5mA (@5V)

Total power consumption: <1W

Interface protection: anti-reverse connection, ESD protection, anti-surge

working environment:

Working temperature: -40~85°C

Storage temperature: -40~105°C

PK item	UART TO ETH	RS485 TO ETH (Contact Us'>EB0041428)	RS232/485 TO ETH (This item)
Microcontroller	Cortex-M0	Cortex-M0	Cortex-M4 (Main frequency up to 120MHz)
Ethernet port	RJ45 (10/100Mbps adaptive)
	Protocol: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
	Cache: send 6Kbyte, receive 4Kbyte		Cache: send 16Kbyte, receive 16Kbyte
Serial interface	UART	RS485	RS232+RS485 (can work simultaneously)
	Baud rate: 600bps~460.8Kbps	Baud rate: 600bps~230.4Kbps
	Hardware streaming: not supported		Hardware streaming: supported
	Data bits: 5, 6, 7, 8
	Stop bits: 1, 2
	Check digit: None, Even, Odd, Space, Mark
	Cache: receive 800byte		Cache: send 2Kbyte, receive 2Kbyte
	Framing mechanism: 4 bytes packing time, byte length 400		Framing mechanism: 4 bytes packing time, byte length 1460, can be customized
Special function	Custom heartbeat package, custom registration package, custom web page, RFC2217-like protocol, KeepAlive mechanism, timeout restart, short connection, network upgrade firmware
	/	/	Modbus gateway, Websocket (web page to serial port)
Operating mode	TCP Server, TCP Client,UDP Server,UDP Client,HTTPD Client
Support Client	Under TCP Server, the number of connected clients can be customized (1~16)		Under TCP Server, support two sockets, each socket can connect 8 clients
Configuration method	Built-in web page, host computer setting software, serial port commands
Interface protection	Power supply: anti-reverse connection, ESD protection, anti-surge
	Network port: 1.5KV electromagnetic isolation protection
	/	RS485: ESD protection, anti-static 2KV, 2.2KΩ pull-up resistor
	/	/	Light protection, overcurrent protection
Supply voltage	3.3V/5V	5~7V	5~36V
Working current	150mA@5V	110mA@5V	86.5mA@5V
Operating temperature	Working temperature: -25～75℃		Working temperature: -40～85℃
	Storage temperature: -40～105℃

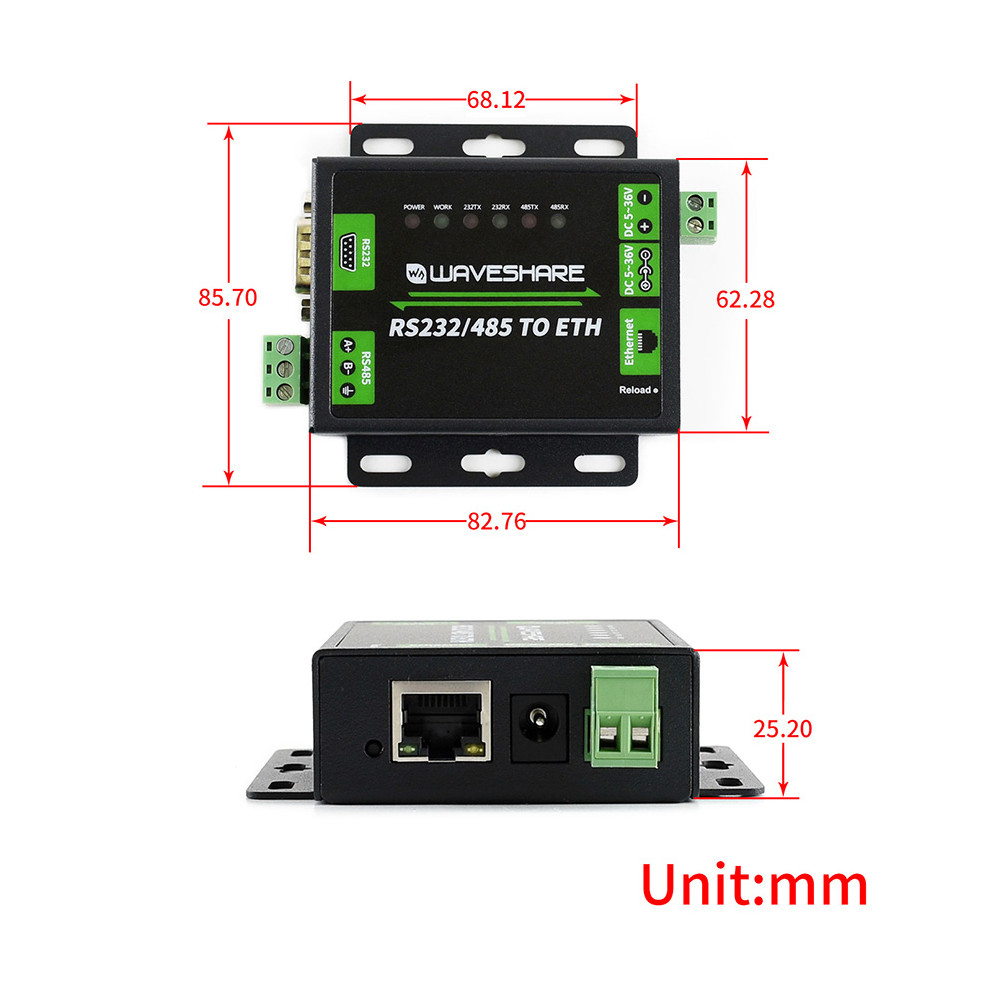

Product Size	50.5mm × 22.6mm × 15mm	70mm × 63.6mm × 25mm	82.8mm × 85.7mm × 25mm

Package includes:

1 x RS232/485 TO ETH

1 x 5V power adapter (US plug)

1 x network cable

1 x male to female serial cable

1 x female to female serial cable
