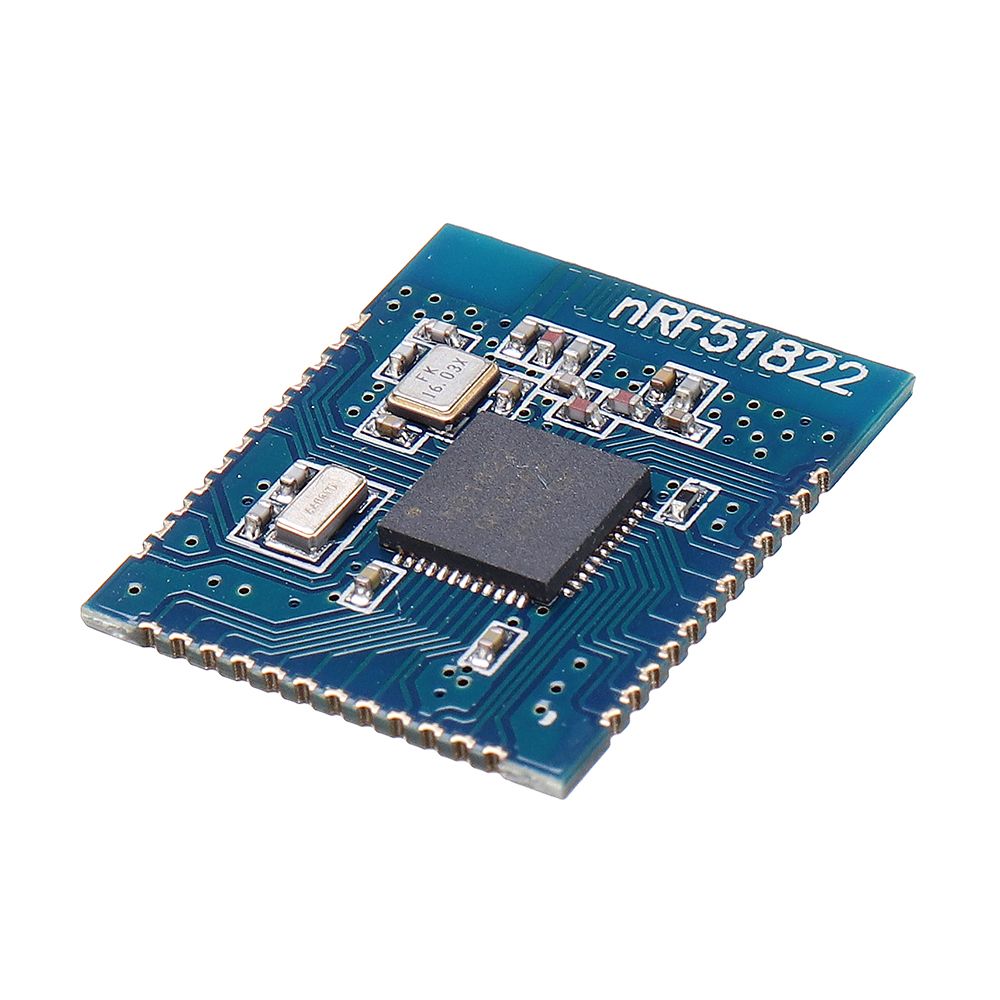

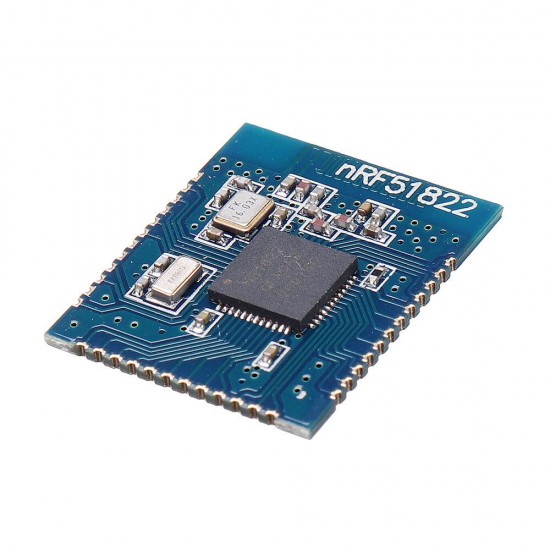

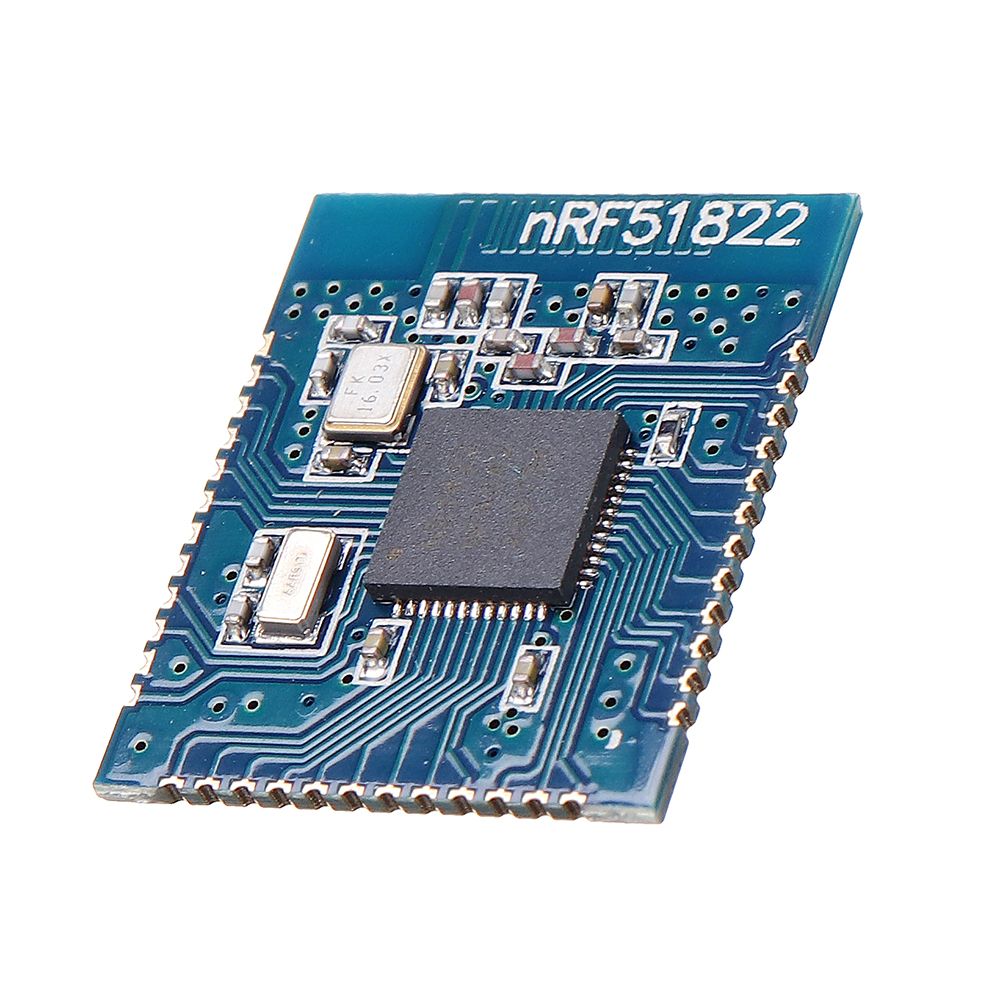

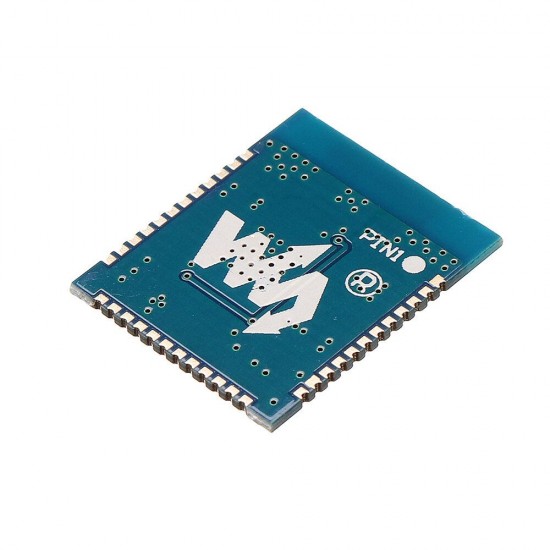

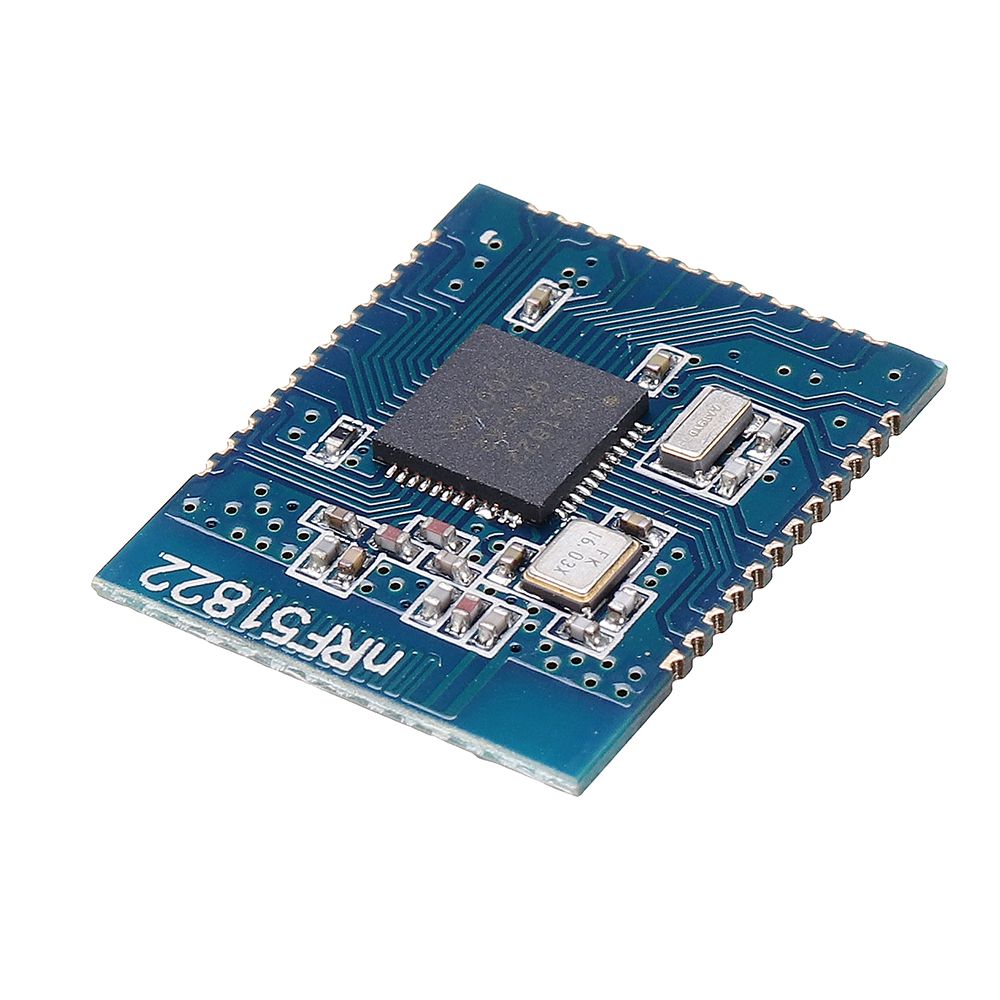

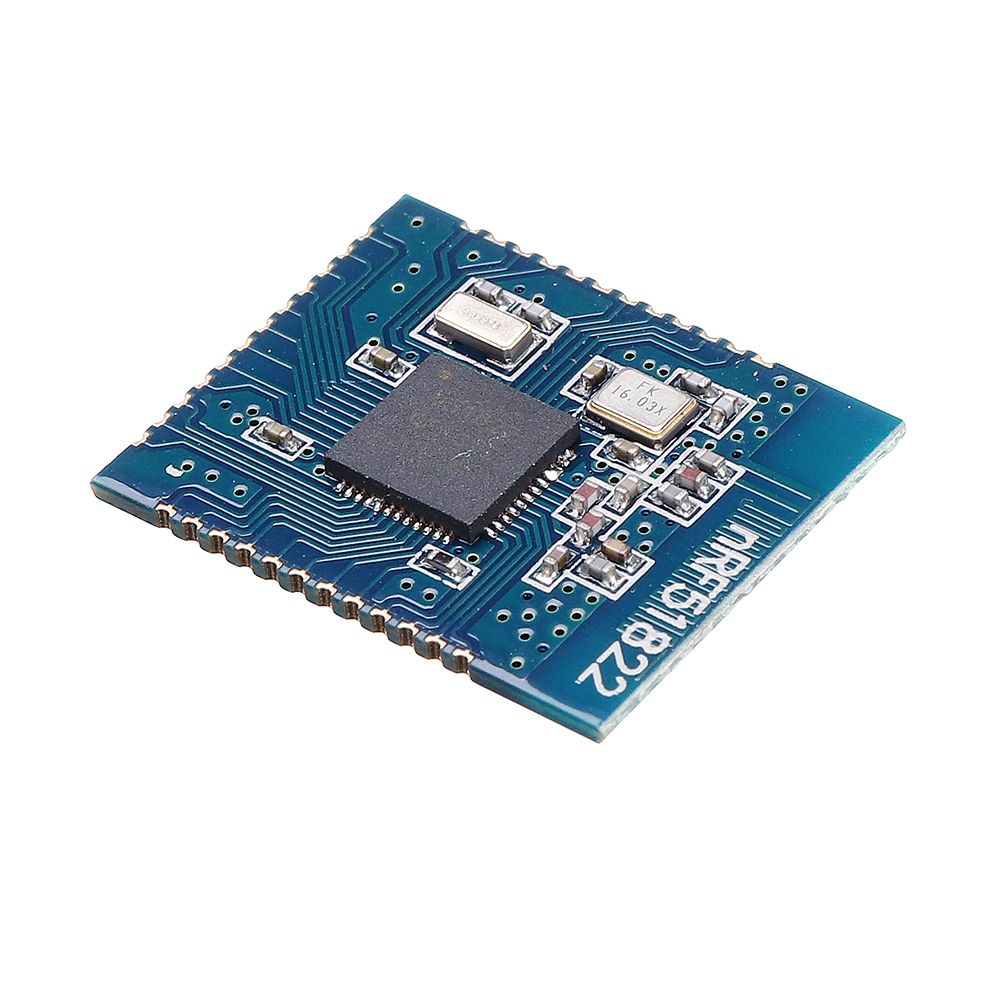

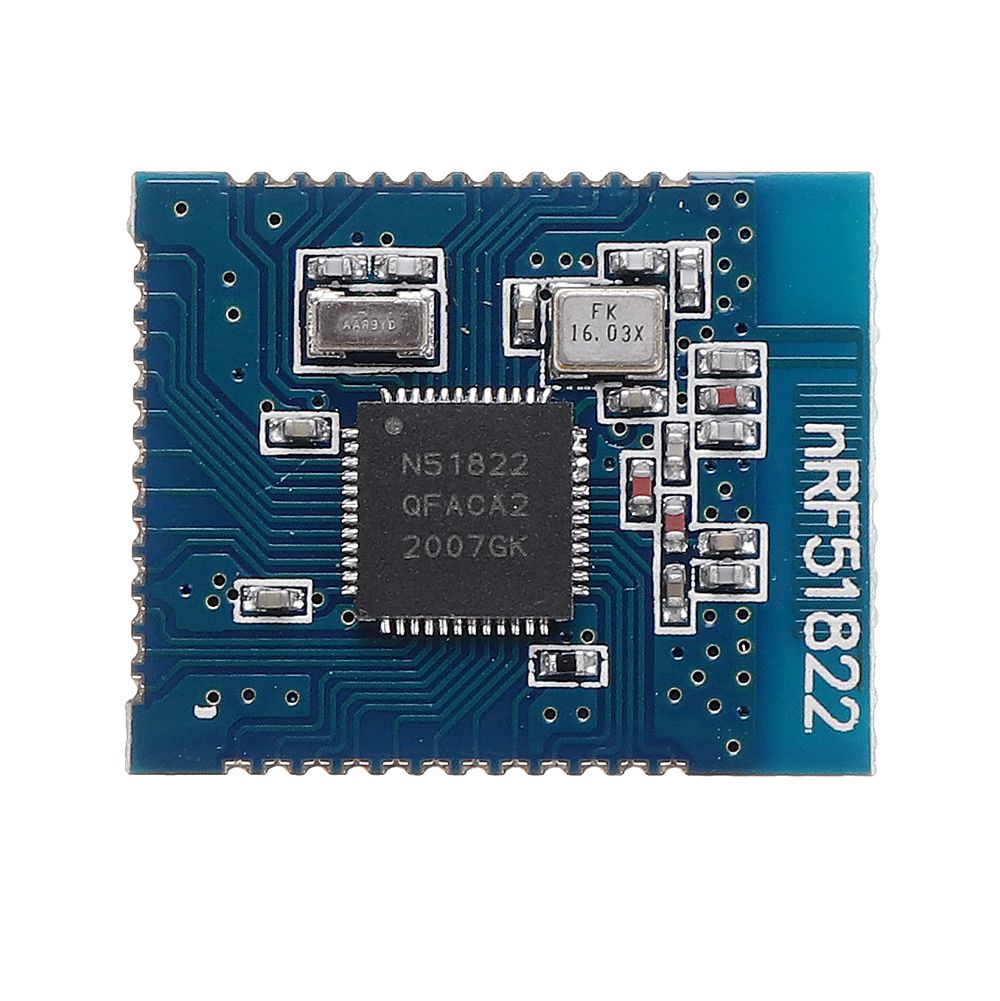

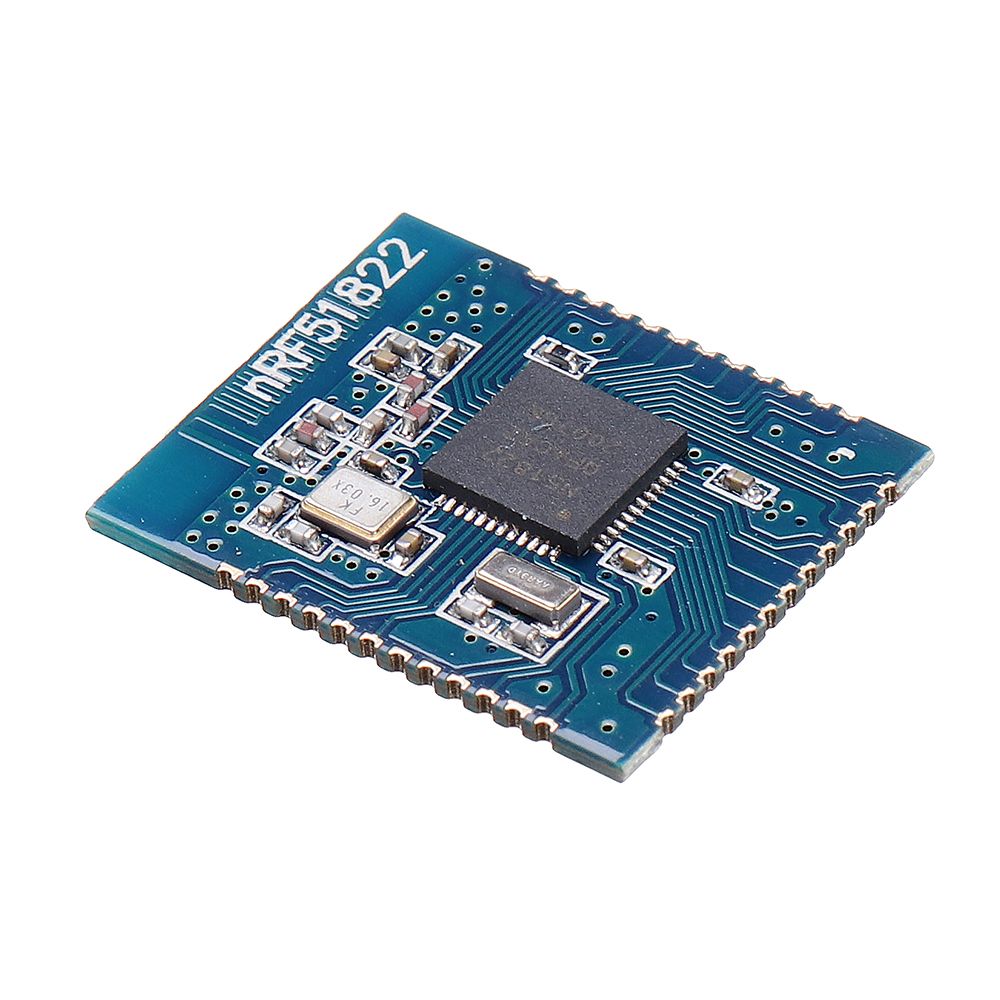

bluetooth 4.0 nRF51822 Module BLE4.0 Development Board 2.4G SMD Small Size

Based on 0 reviews. - Write a review

$13.99

Ex Tax: $13.99

Stock: In Stock
Model: EB0042930
SKU: EB0042930

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Build-in Bluetooth: Yes

Precise details>>

Parameter:

Main control chip: nRF51822

Communication distance: 30m (condition: open area / 1M rate)

Working frequency band: 2.4GHz

Working voltage: 2.0V ~ 3.6V

Temperature range: -40℃ ~ 85℃

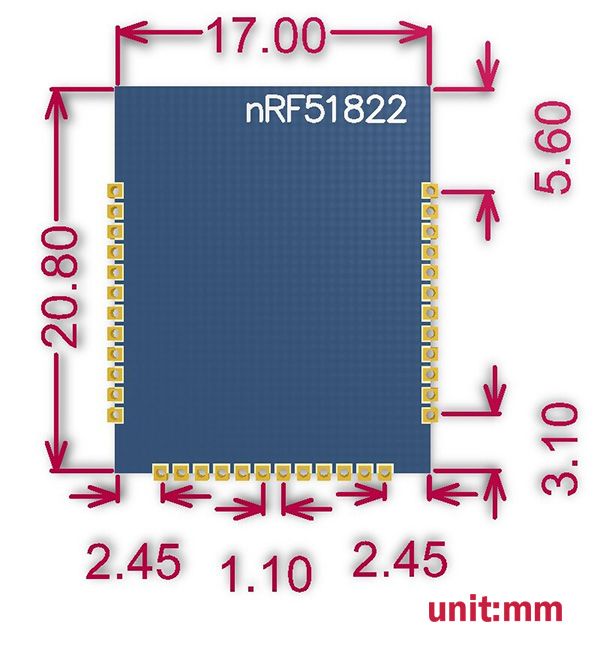

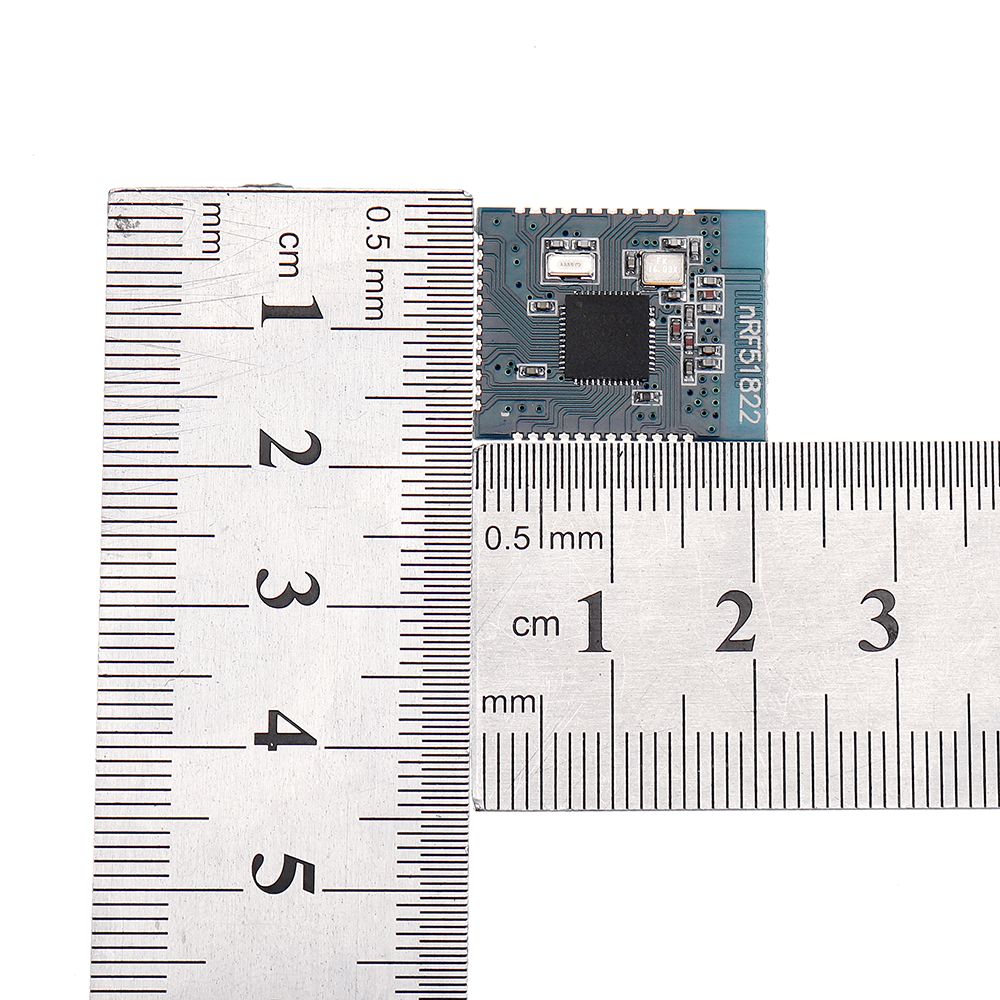

Dimensions: 17.0mm x 20.8mm (PCB)

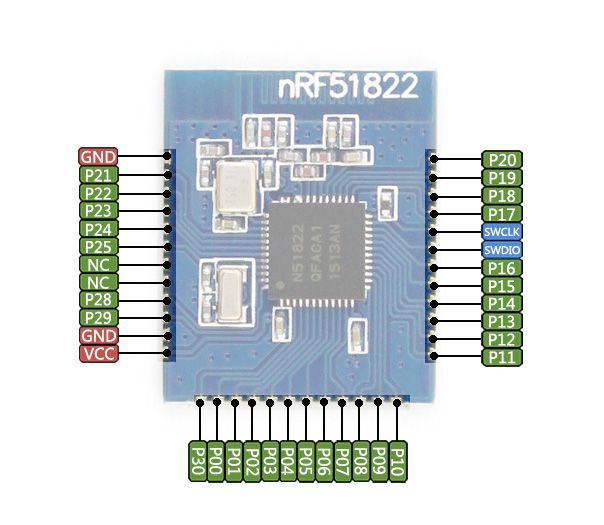

Interface: All I/O interfaces except P0.26 and P0.27

Antenna: Onboard antenna

Application:

Wearable device

Bluetooth Smart Application

Mobile phone peripherals

RF smart radio frequency tag

Smart home appliances

industrial control

data collection system

nRF51822 Introduction:

nRF51822 is a multi-protocol single-chip solution for ultra-low power wireless applications (ULP wirelesss applications).

It integrates Nordic's first-class wireless transmitter, and supports Bluetooth(R) low energy and a dedicated 2.4GHz protocol stack.

The basic situation is:

2.4GHZ multi-protocol radio frequency

32-bit ARM Cortex M0 processor

128-bit AES hardware encryption processor

256kB flash / 32kB RAM

Programmable peripheral interface PPI

Full-featured digital interface: SPI / I2C / UART

10-bit ADC

Programmable output power: +4dBm to -20dBm

Application development and protocol stack are completely independent

Fully compatible with NRF24L series

Pin compatible with NRF51xxx series

Global independent power management

Operating voltage range (1.8 V ~ 3.6 V)

Documents:

Schematic: Click here to open

Sample tutorial: Click here to open: http://www.waveshare.net/w/upload/4/42/NRF51822-code.7z

Package includes:

1 x nRF51822 Module

Wavesharereg-bluetooth-40-nRF51822-Module-BLE40-Development-Board-24G-SMD-Small-Size-1701946
