ZL-7801C 100-240VAC Digital Thermometer Hygrometer Temperature Humidity Meter for Incubator Automatic Incubator Incubator
- Stock: In Stock
- Model: EB005992
- SKU: EB005992

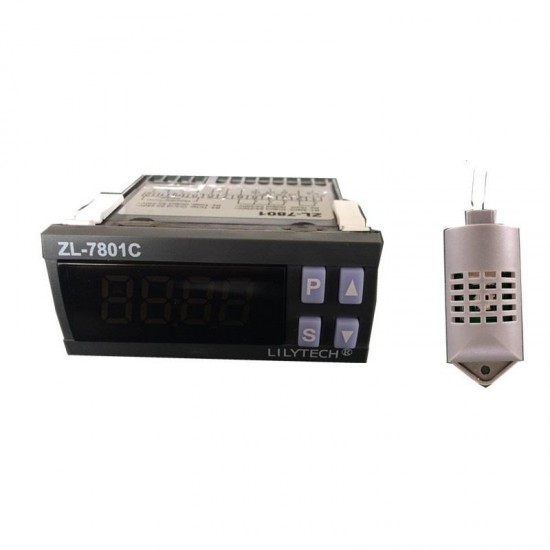

ZL7801C 100-240VAC Humidity and temperature Controller For Incubator
Features:
ZL7801C is an intelligent temperature and humidity controller. Compact design, IP65 level front panel protection, convenient operation and easy installation. Suitable for control of incubator, climate chamber, warehouse, and so on.

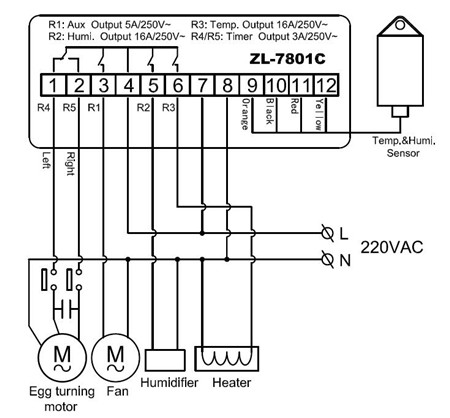

Main Function
- heating control (R3)
- Dehumidify control/ Humidify control (R2)
- humidity load (R2) delay protection
- Timer 1 control (R4 R5) (egg left-turning, egg right-turning)
- Timer 2 control (R1) (Ventilation/Over temperature)
- Temperature and humidity limit protection
- Temperature and humidity measurement and display
- Temperature and humidity calibration
- Sensor failure warning
Size Specification
- Front panel dimension: 78* 34.5mm
- Drilling template: 71* 29mm
- Whole machines dimension: 78* 34.5* 71mm
- Length of sensor(s): 2m (including the sensor probe)
Technical Specification
- Power supply: AC100 -240V 50HZ/60HZ
- Input signal: One humidity and temperature sensor, wire length 1 meter
- Output load: R1 5A/250Vac, R2 R3 16A/250Vac, R4 R5 3A/250Vac (Resistive load)
- Setting range: Humidity 0-100RH, step 0.1%; temperature -20-120°C, step 0.1°
- Absolute accuracy: Temperature 1%; humidity 3%(under temperature 20~60℃)
- Working environment: -20-45°C, 10-90RH without dew
- Protection level: IP65 (front panel)
- Case: PC + ABS Fire Proo
- Protection Degree: IP65 (front panel)

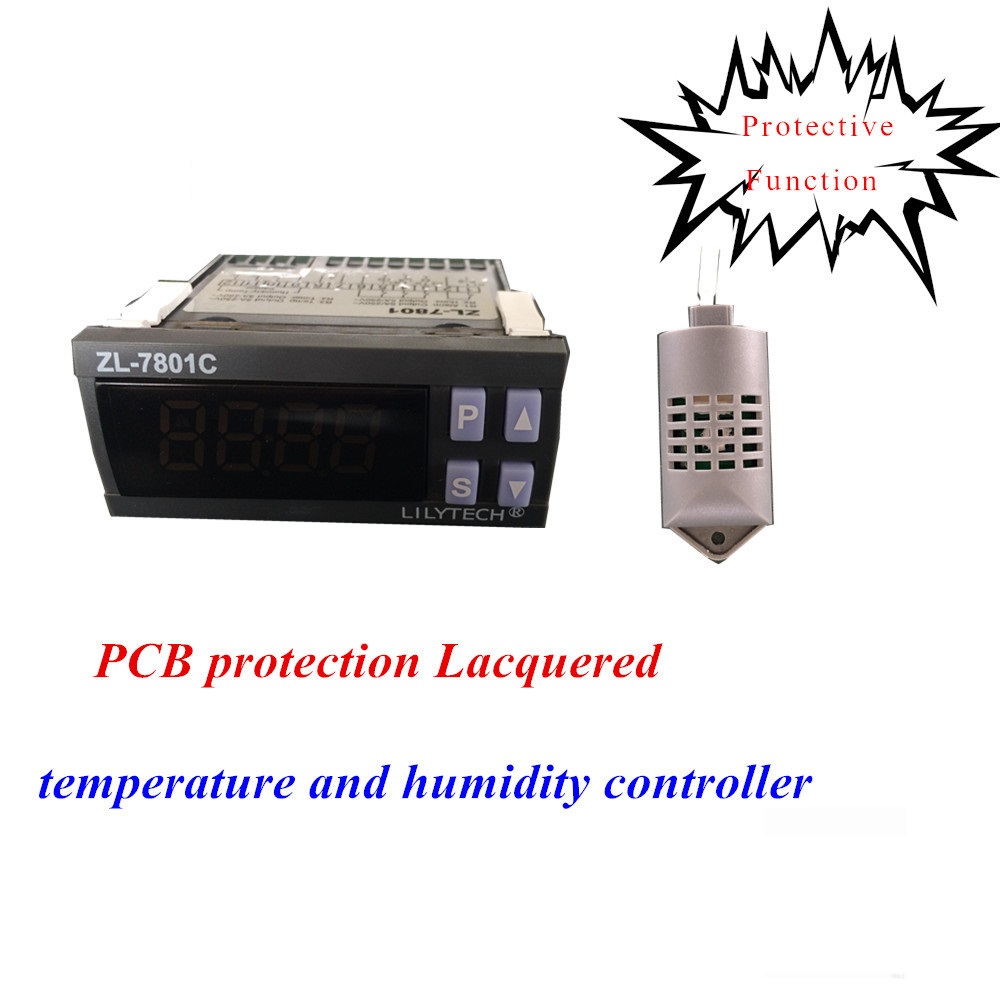

- PCB Lacquered protection
Package includes:
1 x ZL7801C Humidity and temperature Controller

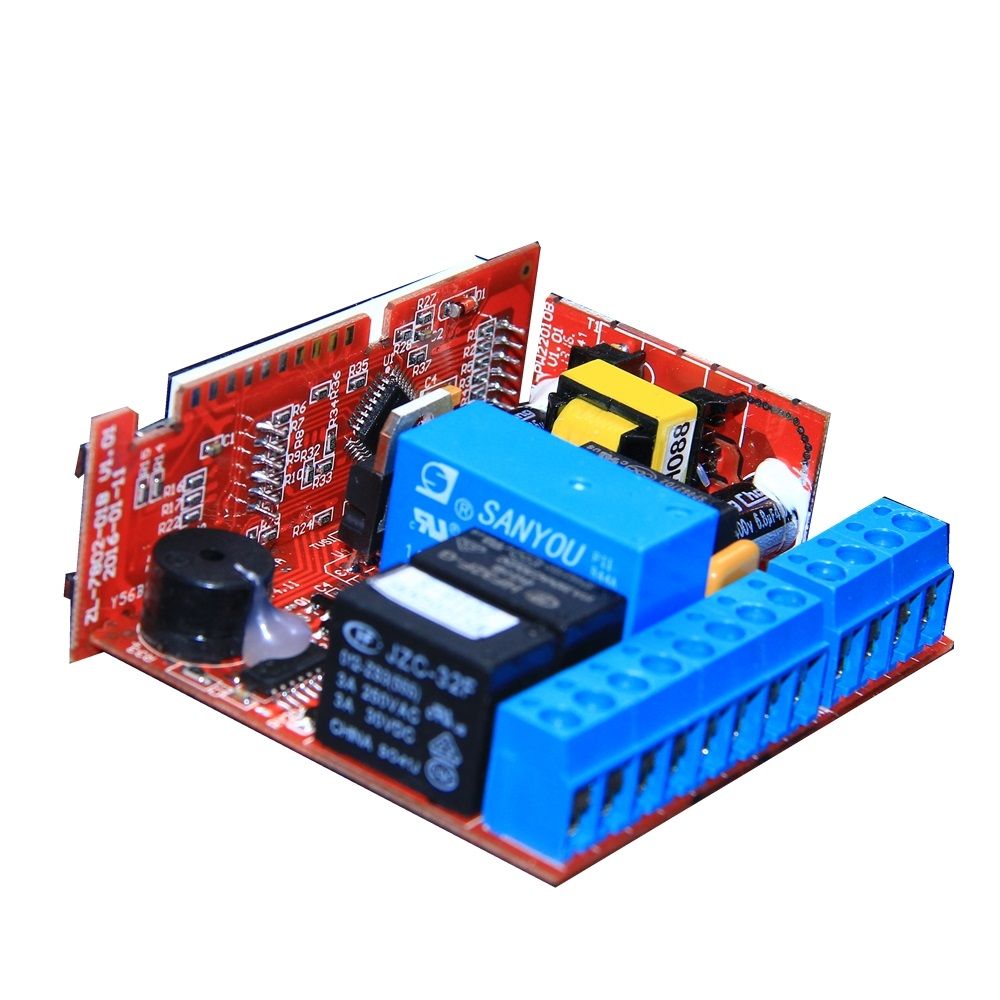

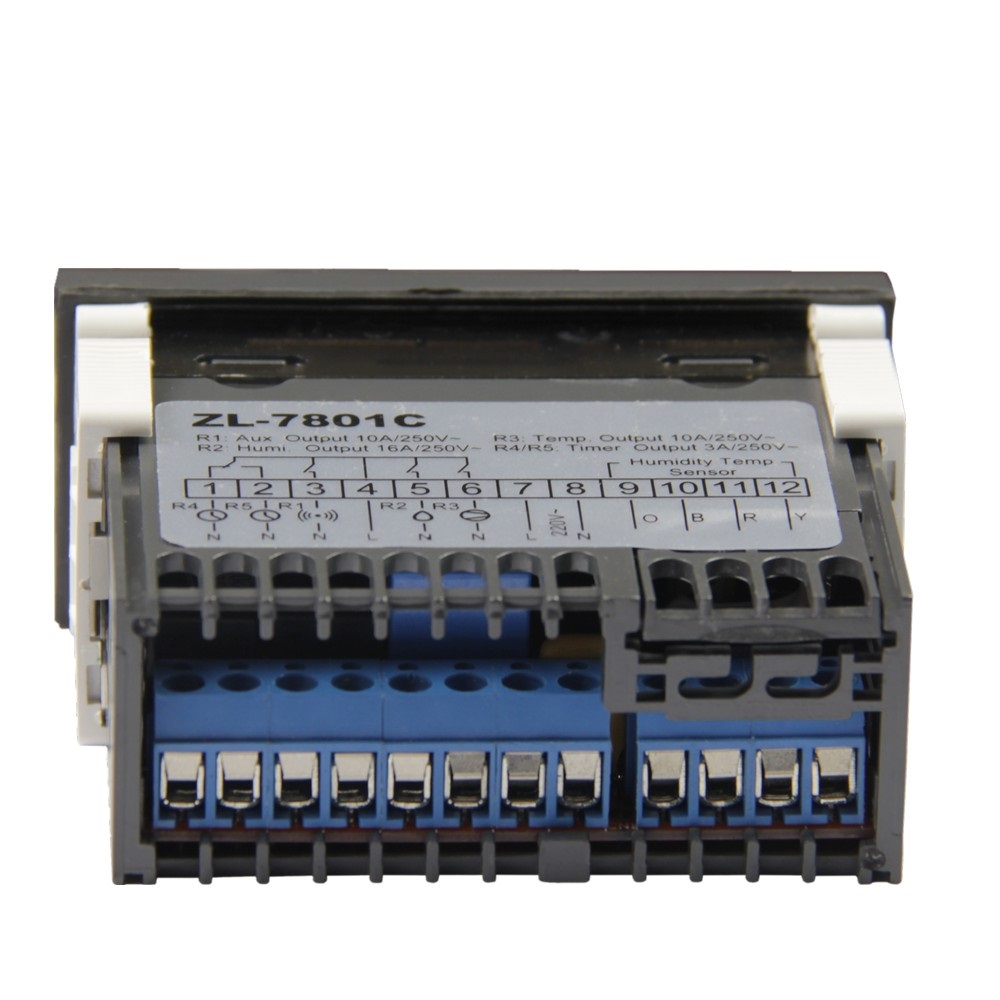

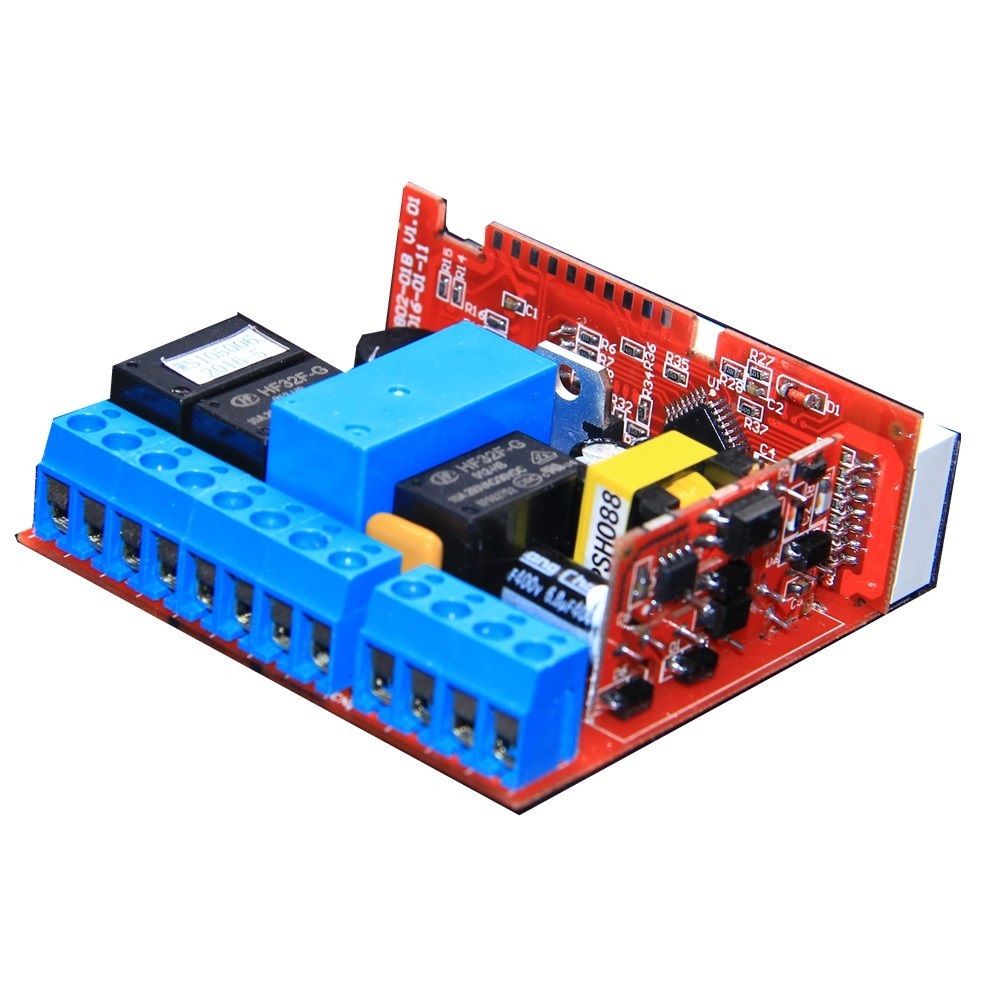

Details pictures:
