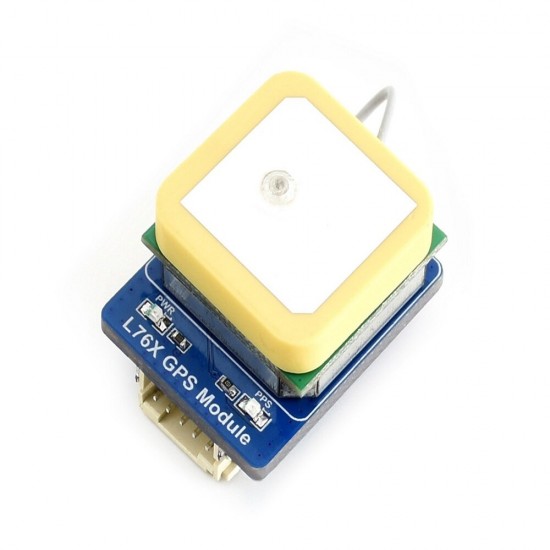

L76X Positioning Module GNSS / GPS / BDS / QZSS Serial Communication Module Wireless Module for Raspberry Pi

Based on 0 reviews. - Write a review

$29.99

Ex Tax: $29.99

Stock: In Stock
Model: EB000494
SKU: EB000494

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

GNSS parameters:

Signal frequency band: GPS L1(1575.42mhz), BD2 B1 (1561.098mhz)

Number of channels: 33 tracking channels, 99 capture channels and 210 PRN channels

C/A code

SBA: WAAS, EGNOS, MSAS, GAGAN

Horizontal positioning accuracy:

Autonomous positioning: <2.5mCEP

First positioning time @ -130dbm (EASY™ function enabled) :

Cold start: <15s

Warm start: <5s

Hot start: <1s

Sensitivity:

Capture: - 148 DBM

Tracking: - 163 DBM

Recapture: -160dbm

Dynamic performance:

Altitude (Max) : 18000m

Speed (Max) : 515m/s

Acceleration (Max) : 4G

Other parameters:

Communication interface: UART

Serial port baud rate: 4800~115200bps (default: 9600bps)

Update rate: 1Hz (default), 10Hz (Max)

Communication protocol: NMEA 0183, PMTK

Power supply voltage: 5V / 3.3v

Operating current: 11mA

Operating temperature: -40℃ ~ 85℃

Product size: 32.5mm x 25.5mm

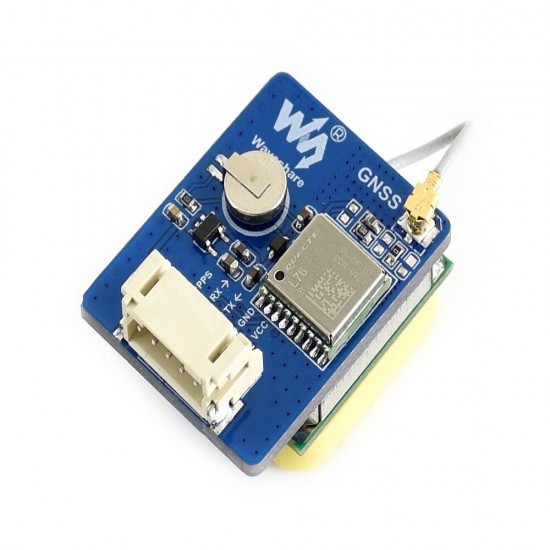

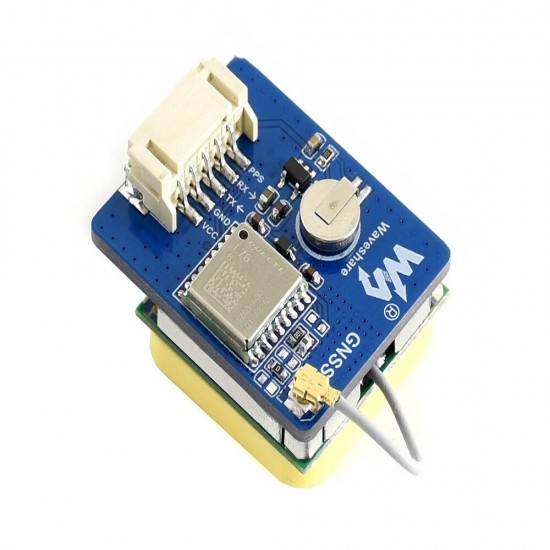

Device description:

1. L76B module

2. Rt9193-33 power chip

3.Rechargeable MS621FE trim battery, used for power down to save data and hot start

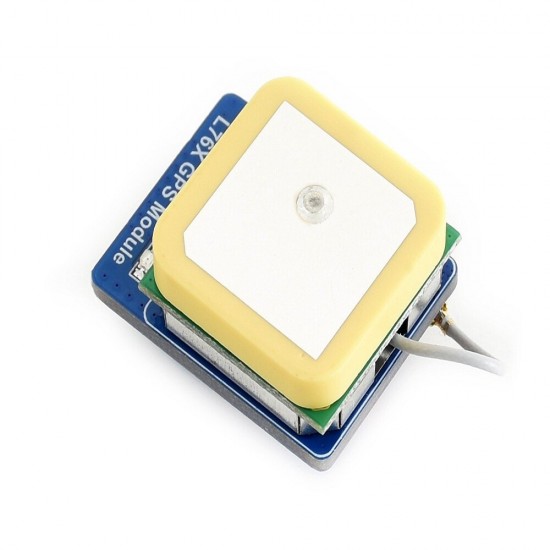

4.Active ceramic antenna

5. GPS status indicator

6. Power indicator

Introduction to interface:

7. PH2.0 5PIN connector

8.GNSS antenna interface
