Water Flow Sensor Flow Meter Switch Meter Counter Hall Sensor 0.3-6L/min

Based on 0 reviews. - Write a review

$4.99

Ex Tax: $4.99

Stock: In Stock
Model: EB006291
SKU: EB006291

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

Water flow sensor is mainly composed of plastic valve body, flow of rotor components and hall sensor.

It is installed in the water heater inlet, used to detect water flow, when the water through flow rotor components.

Magnetic rotor rotation and speed changes with the flow, hall sensor output pulse accordingly.

Signal feedback to the controller by the controller to judge the size of the water flow, adjust and control.

Features:

1.This product appearance is light and agile, small volume, easy to install.

2. Internal set with stainless steel shaft, impeller, wear forever.

3. Sealing ring, the force of the structure under never leak.

4. Hall element, USES the German import and encapsulated with potting glue, prevent water, never aging.

5. All raw materials meet ROHS testing standards.

Specification:

YF - S201 frequency: F = 7.5 * Q (L/Min)

error: ±2%

voltage: 3.5-24 VDC

Current should not exceed 10 ma.

4380 pulse output flow through a litre.

The frequency calculation = constant flow rate (L/min) 7.5 * unit time (in seconds).

Working range: 0.3-6 L/min

Use notice:

It is forbidden to severe impact and chemical erosion.

It is forbidden to throw or collision.

Vertical installation, to no more than 5 degrees.

Medium temperature should not be more than 120 c.

Second, the output waveform: square wave

Installation Method:

1 Red IN connect the anode

2 Yellow OUT signal output line

3 Black GND connect the cathode

Package included:

1 x Water Flow Sensor

Detail Pictures:

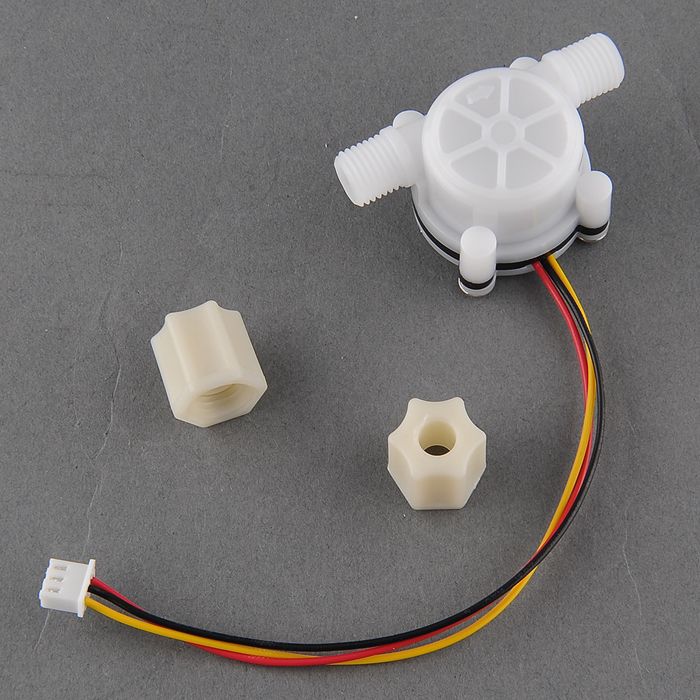

Water-Flow-Sensor-Flow-Meter-Switch-Meter-Counter-Hall-Sensor-03-6Lmin-1100517
