UV-6D 2-way Radio UHF CTSCC DCS Walkie Talkie Outdoor Mini Portable Transmitter

Based on 0 reviews. - Write a review

$29.47

Ex Tax: $29.47

Stock: In Stock
Model: EB0024850
SKU: EB0024850

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

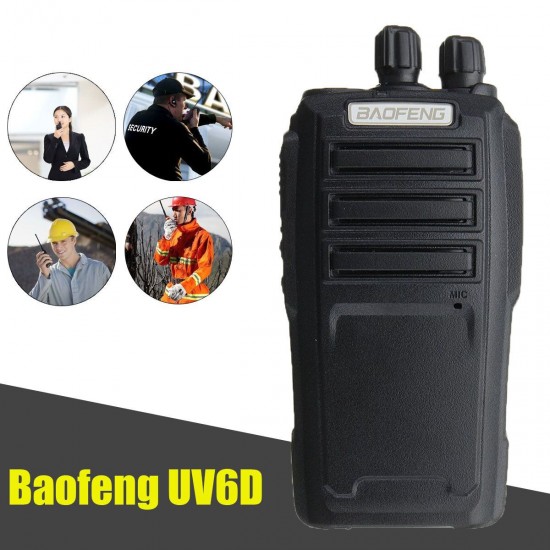

-Applicable to property management, exhibition security, hotels, guesthouses, outdoor adventure, Zijia You, schools and other places.

-The main function:

-Dual channel waiting, channel replication (cable copy), voice transmission.

-Call end tone, relay forwarding confirmation, channel frequency broadcast, high / low power switch.

-Monitor channel, scan, radio (FM), alarm function, relay forwarding signal 1750HZ.

-Medium / English conversion, PTTID send mode (must be set by writing software), busy lock.

-DTMF side tone (must be set by writing software), battery voltage detection.

-Power saving function (set by PC software), sub-audio QT / digital sub-audio DQT.

Specifications:

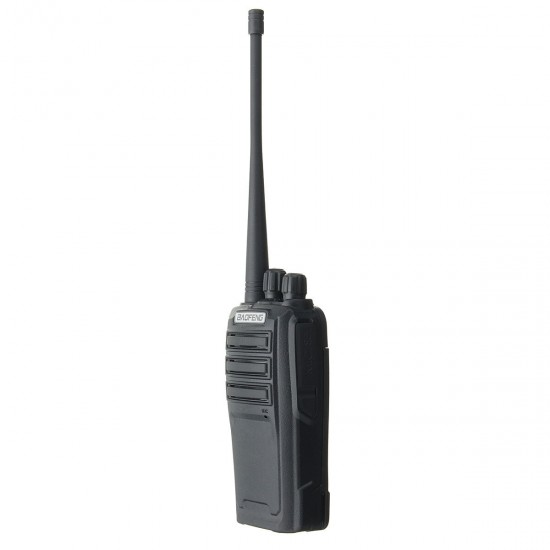

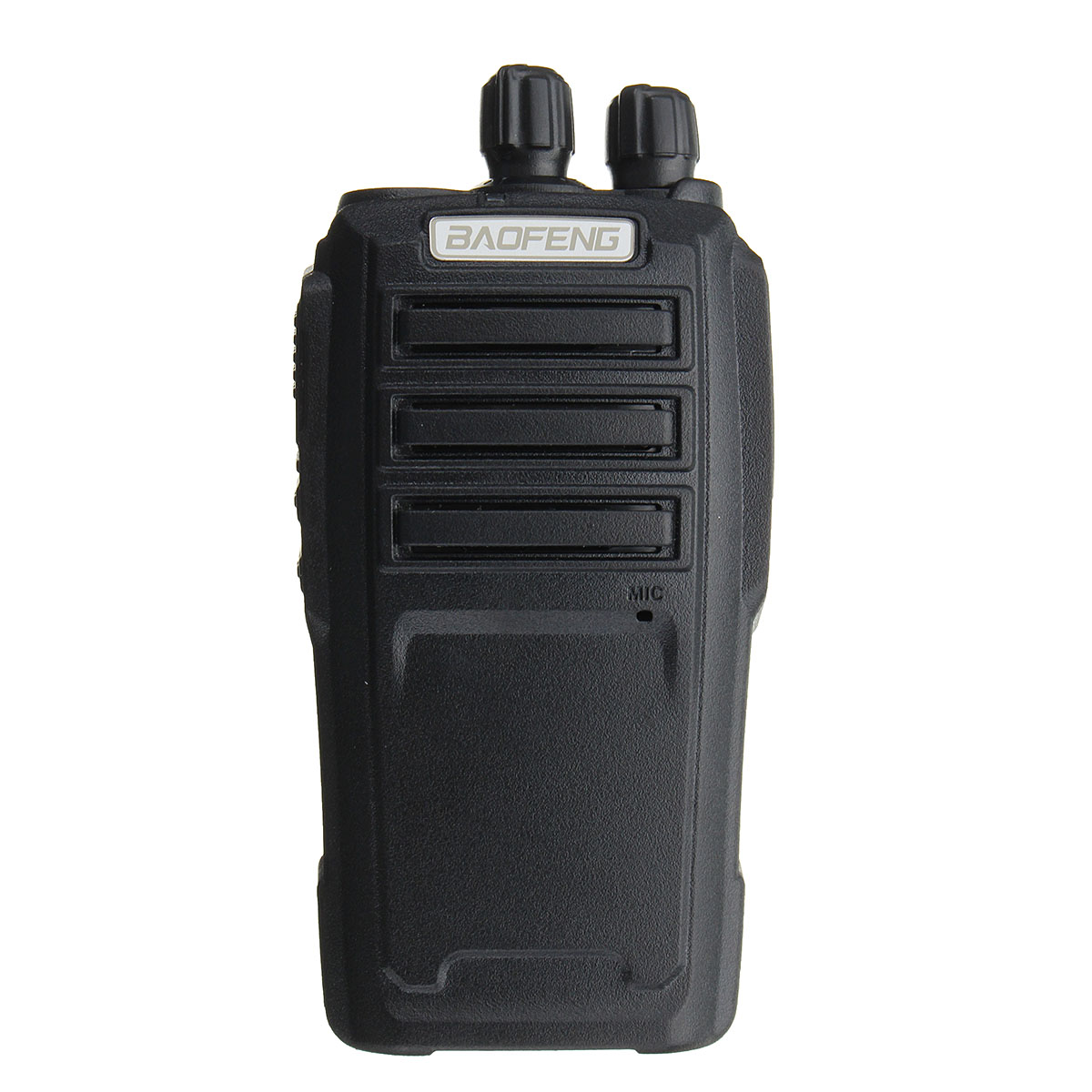

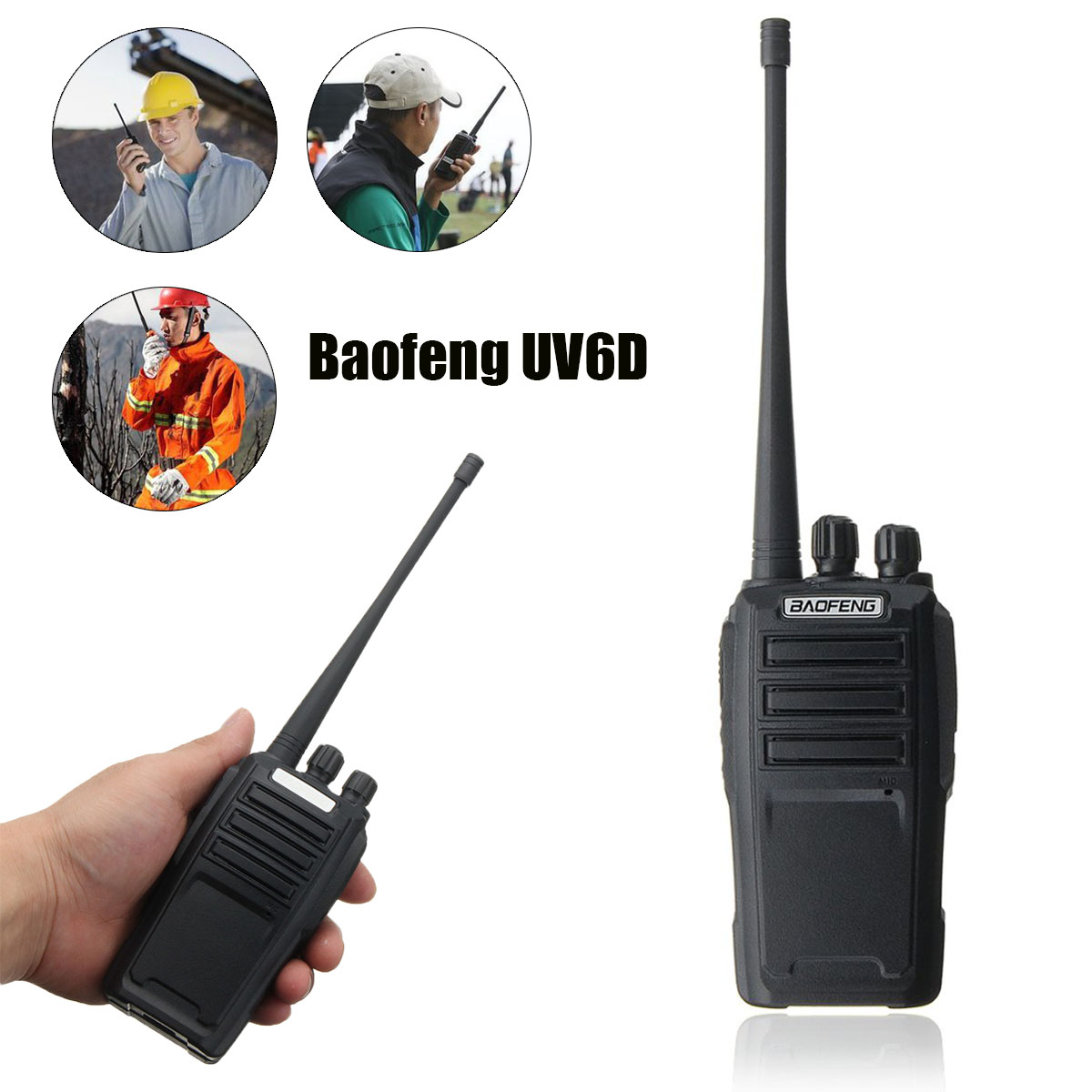

Product name: Baofeng UV-6D walkie-talkie

Color: Black

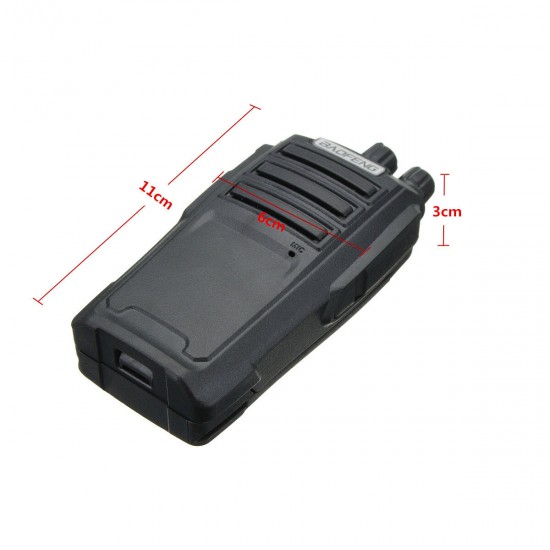

Size: Approx. 11 x 6x3cm/4.33" x 2.36" x 1.18"

Frequency range: 400-470 (MHz)

RF output power: 8 (W)

Theoretical communication distance: 3-6 (km)

Rate range: UHF 400-480NHz

Storage channel: 128 groups

Step: 2.5 / 6.25 / 10 / 12.5 / 20 / 25KHz

Working voltage: DC7.4 V (rechargeable lithium battery)

Working mode: the same frequency single or different frequency simplex

Antenna impedance: 50

Output power: 8W / 1W

Modulation: F3E

Maximum frequency deviation (width / narrow band): ≤ 5KHz / ≤2.5KHz

Spurious power: ≤ 7.5uW

Adjacent channel power: ≤-65dB (/ - 60dB

Signal to noise ratio (width / width): 45dB (W) / 42dB (N)

Sub-audio / digital sub-audio partial (wide / narrow band): 0.7 ± 0.1KHz / 0.4 ± 0.1KHz

Modulation sensitivity: 8-12mV

Emission current: <1.5A

Sensitivity: ≤0.20uV

Audio power: 1W

Audio distortion: ≤5%

Intermodulation (width / narrow): ≥ 65dB / ≥ 60dB

Adjacent channel selectivity (width / narrow): ≥ 65dB / ≥ 60dB Receiving current: ≤ 380mA

Clutter suppression: ≥ 60dB

Weight: 536g

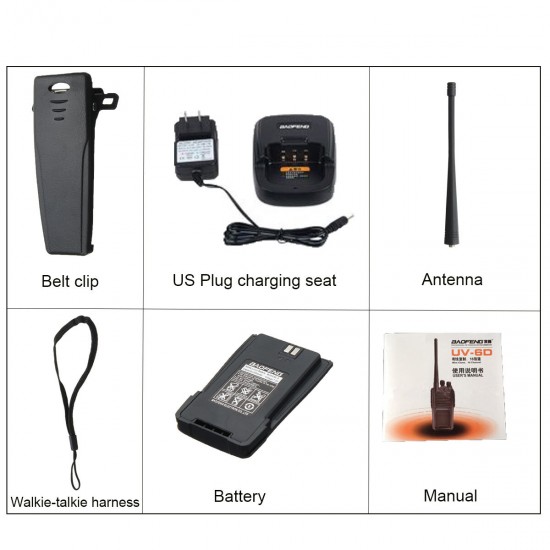

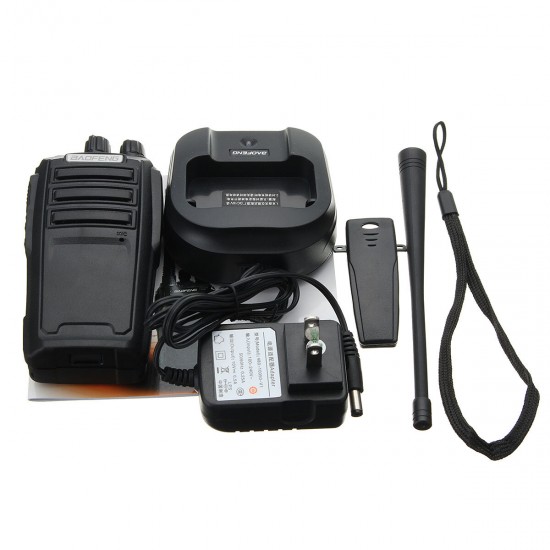

Package Included:

1 x Baofeng UV6D walkie-talkie

1 x Antenna

1 x Walkie-talkie harness

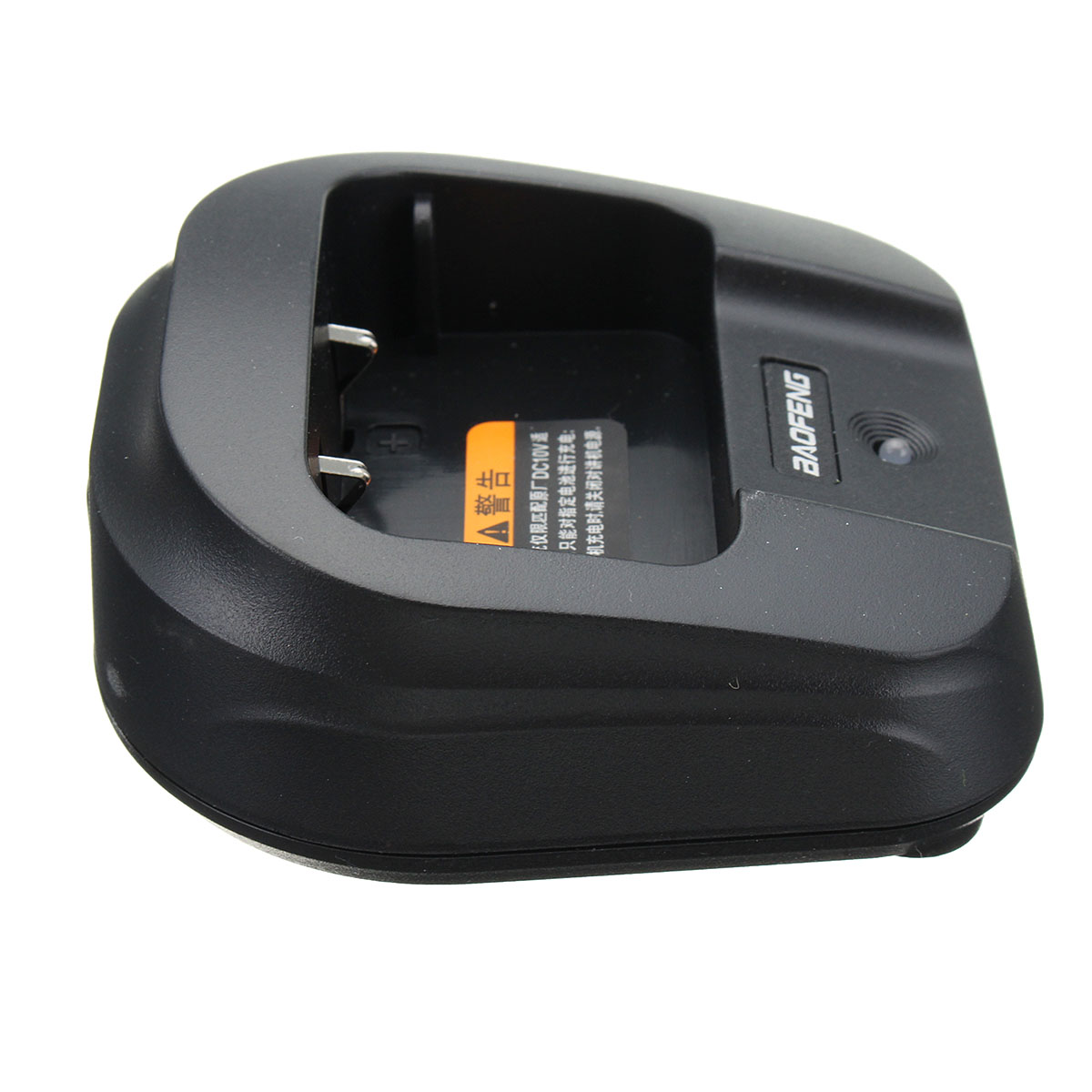

1 x US Plug charging seat

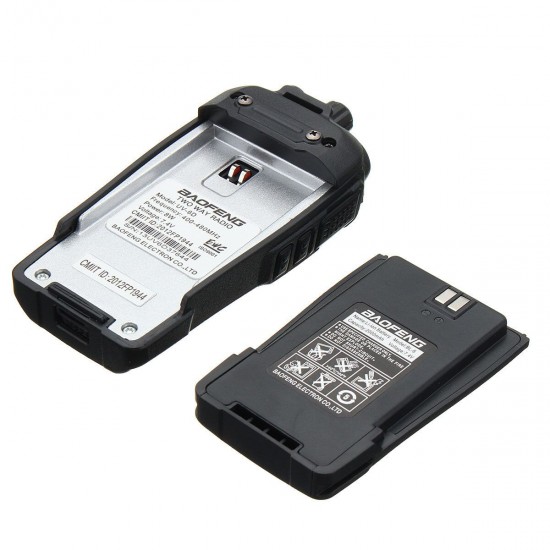

1 x Battery

1 x Belt clip

1 x Manual

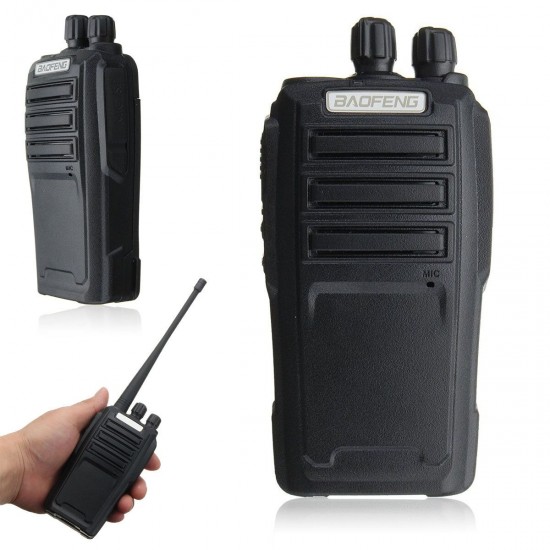

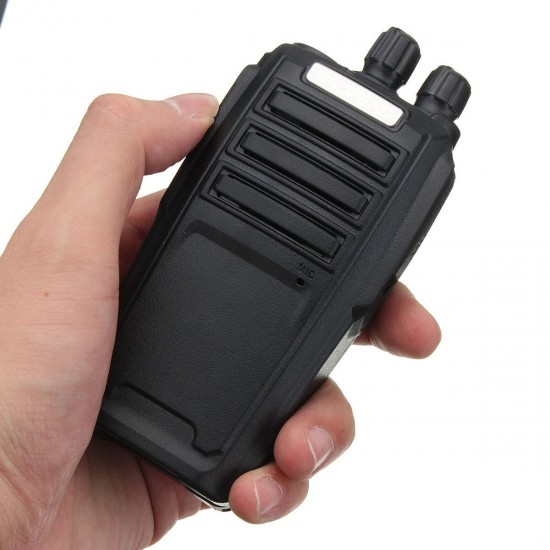

Detail Pictures:

UV-6D-2-way-Radio-UHF-CTSCC-DCS-Walkie-Talkie-Outdoor-Mini-Portable-Transmitter-1205143
