WZ5005E Step Down Power Supply Module Buck Voltage Converter DC-DC 8A 250W 5A Programmable with 1.44in TFT LCD Display

Based on 0 reviews. - Write a review

$25.99

Ex Tax: $25.99

Stock: In Stock
Model: EB0043637
SKU: EB0043637

Available Options

Type

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

A:Normol Version B:USB Version C:RS485 version

>>>Manual: Click here to open<<< （Software download here）

1.Description:

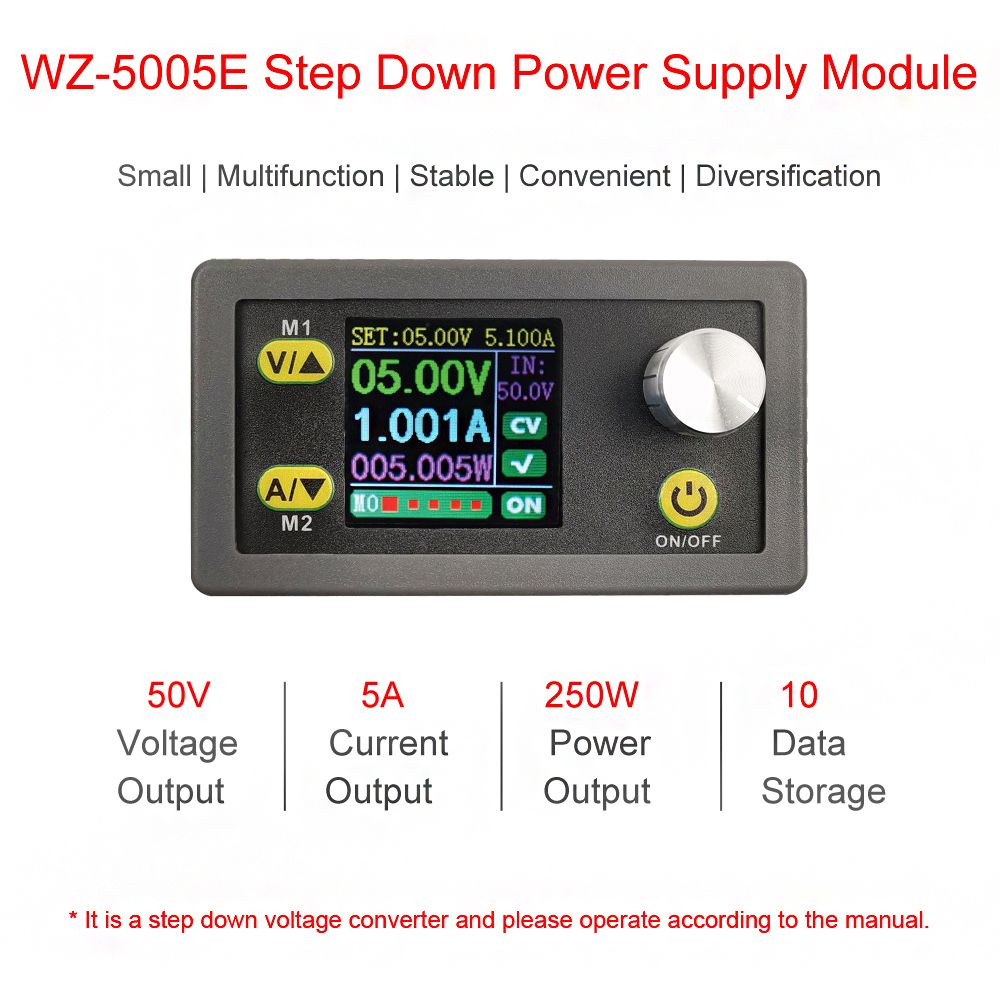

WZ-5005E is a multi-function Step Down Power Supply Module.Its main function is to output voltage as a constant voltage constant current source. It can be used to test the discharge time and discharge capacitance of the input voltage.

It uses a 1.44-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-50.00V adjustable and the output current is adjustable from 0-5.000A.

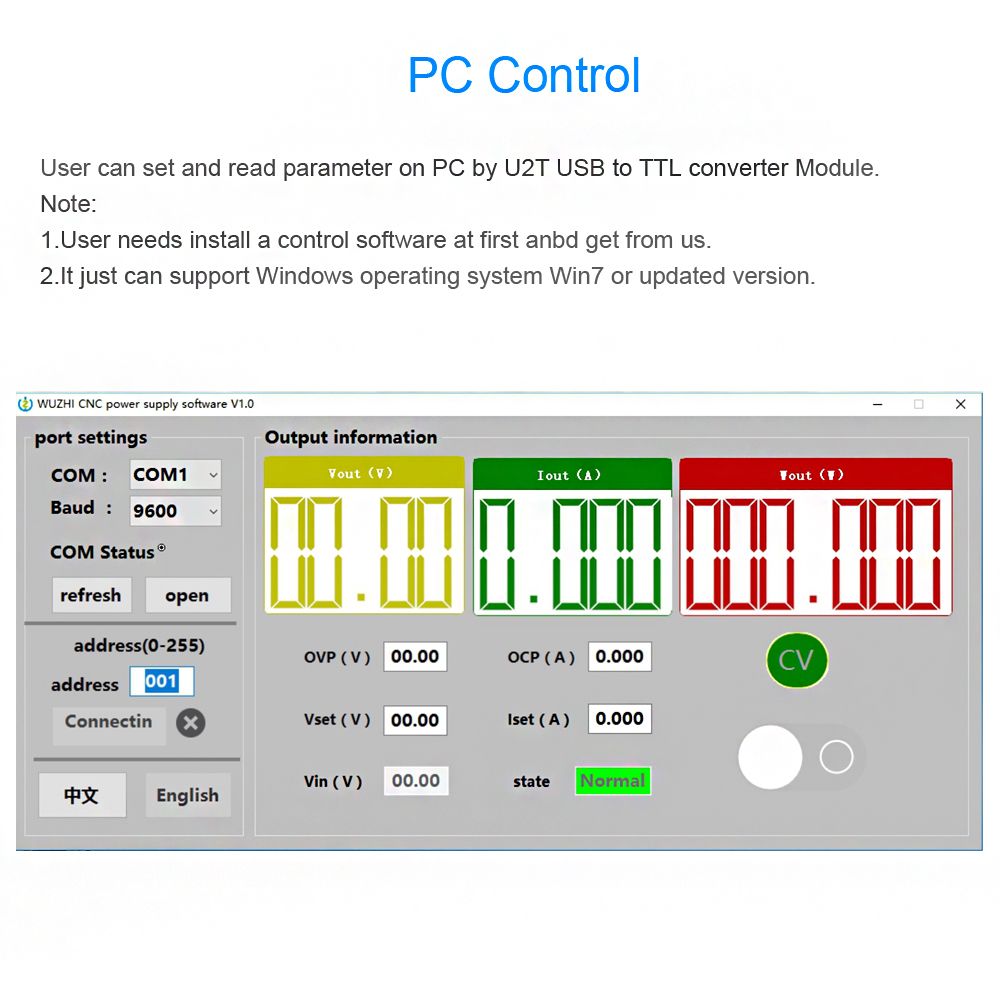

This version supports read data and set parameter on PC.Users can realize remote setting and reading data.

2.Features:

1>.Constant Voltage Constant Current output

2>.1.44in High-definition LCD screen display

3>.250W High power output

4>.50V high voltage output

5>.5A maximum current output

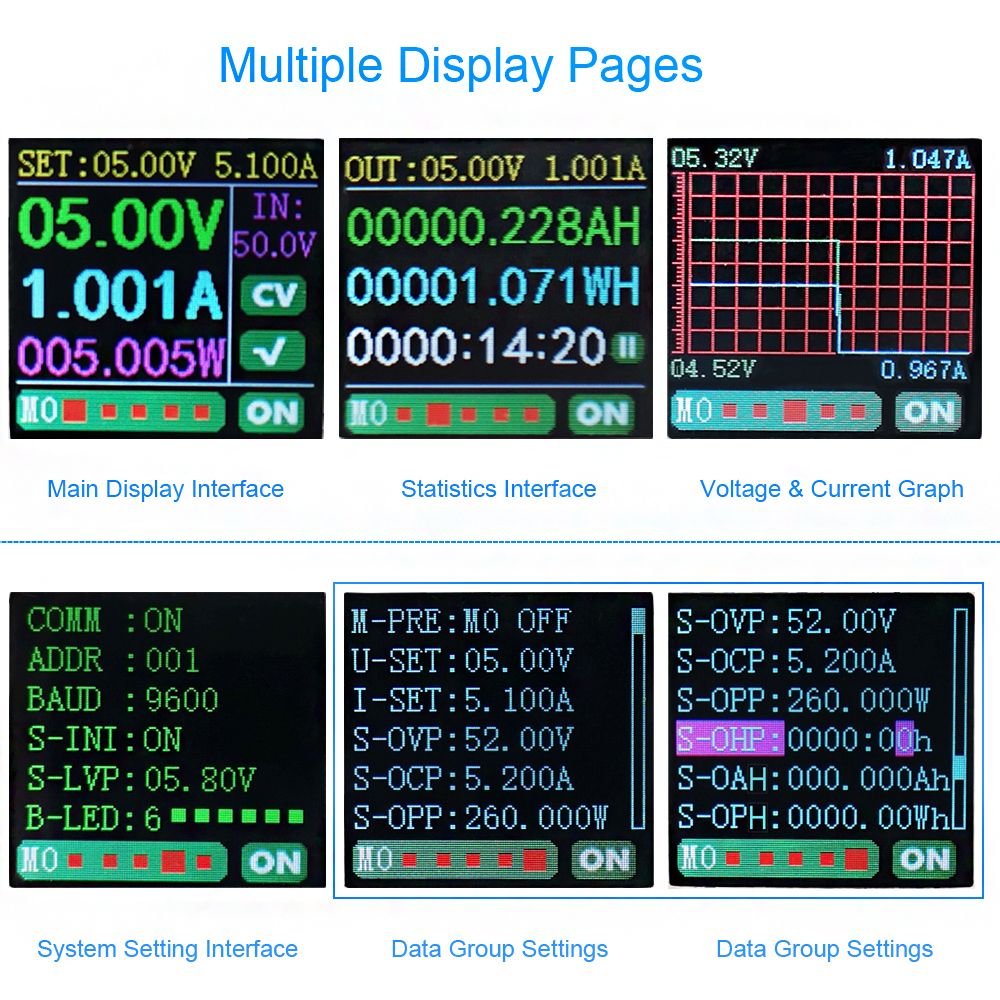

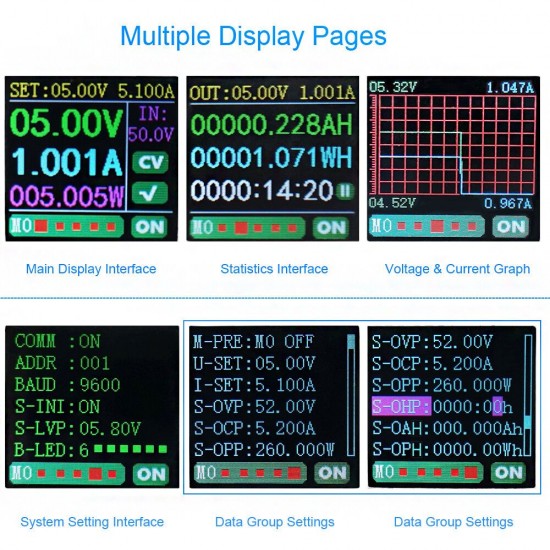

6>.Multiple display pages

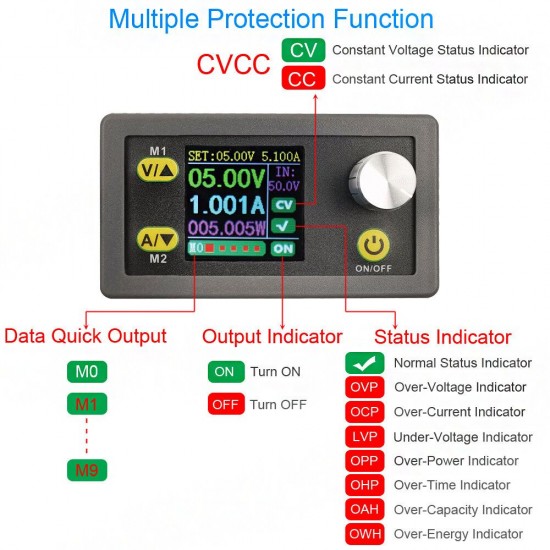

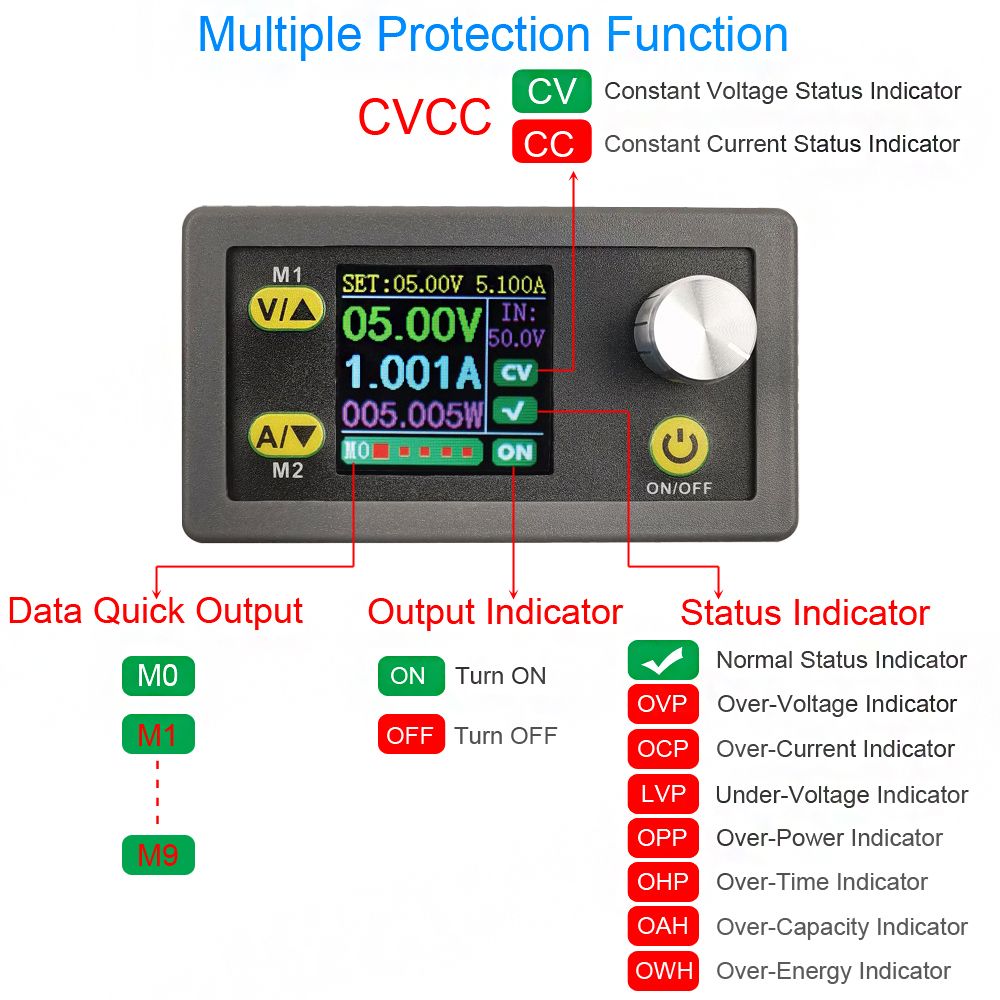

7>.Support over-voltage protection

8>.Support over-current protection

9>.Support over power protection

10>.Support under voltage protection

11>.Support input reverse protection

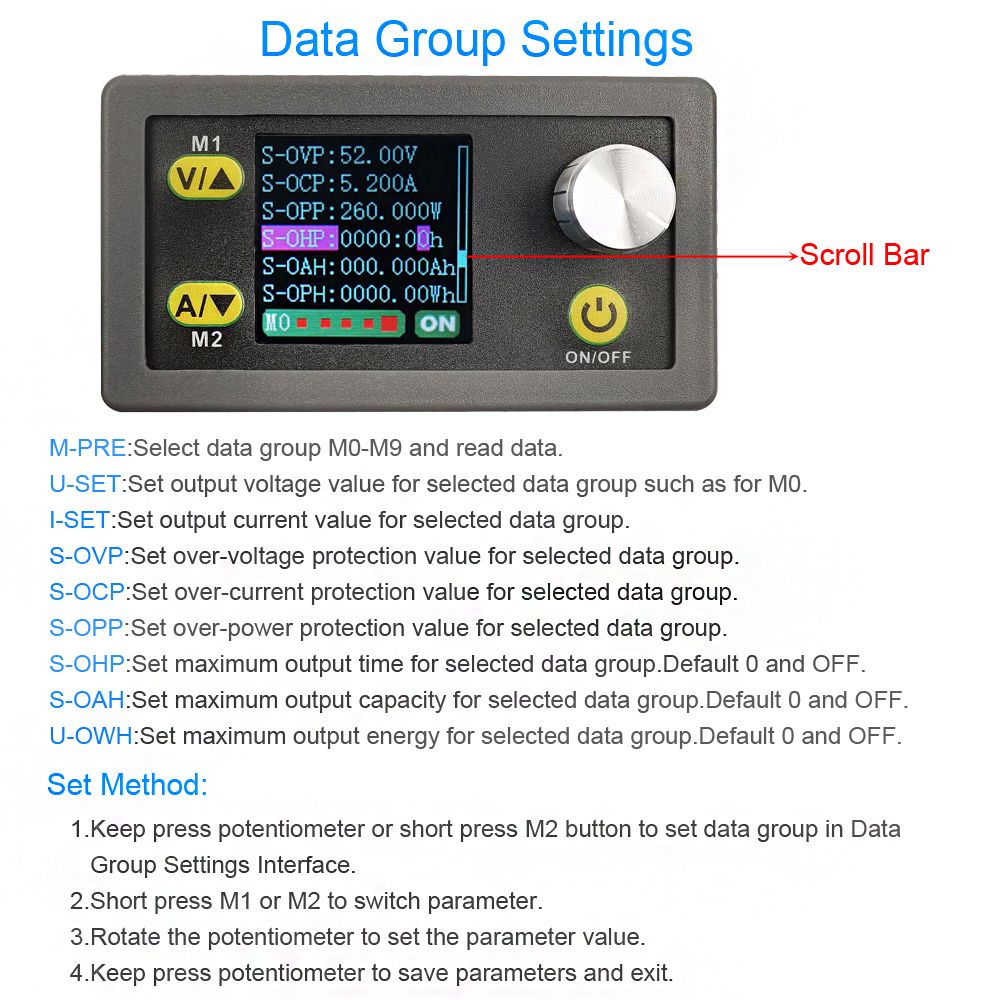

12>.Support 10 sets of data storage function

13>.Parameter super high display resolution

14>.Support over time protection

15>.Support over capacity protection

16>.Support over energy protection

17>.Multiple parameters are displayed simultaneously

18>.Support power-down memory function

19>.Backlight brightness can be set

20>.Exquisite shell

21>.Support PC set and read parameters

3.Parameters:

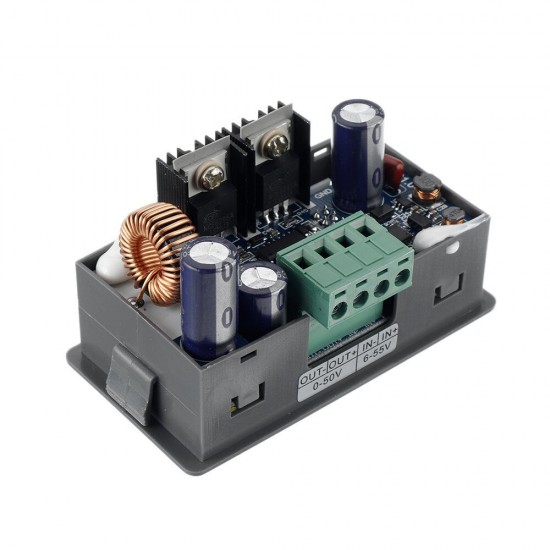

1>.Product name:WZ-5005E Step Down Power Supply Module

2>.Model:WZ-5005E

3>.Input voltage:DC 6.0V~55.0V

4>.Input voltage resolution:0.01V

5>.Output voltage:DC 0.0V-50.0V

6>.Output voltage resolution:0.01V

7>.Output current:0.000A~5.000A

8>.Output Current resolution:0.001A

9>.Output power:0.0W~250.0W

10>.Input voltage precision:+/-1%

11>.Output voltage precision:+/-0.3%

12>.Output current precision:+/-0.5%

13>.Output ripple value:150mW(Peak)

14>.Statistics output time:00:00:00~9999:59:59h

15>.Statistics output energy range:0~99999.999Wh

16>.Statistics output capacity range:0~99999.999Ah

17>.Capacity statistical error:+/-2%

18>.Screen brightness level:0~6

19>.Display:1.44inch TFT LCD

20>.Work Temperature:-10℃~40℃

21>.Work Humidity:0%~95%RH

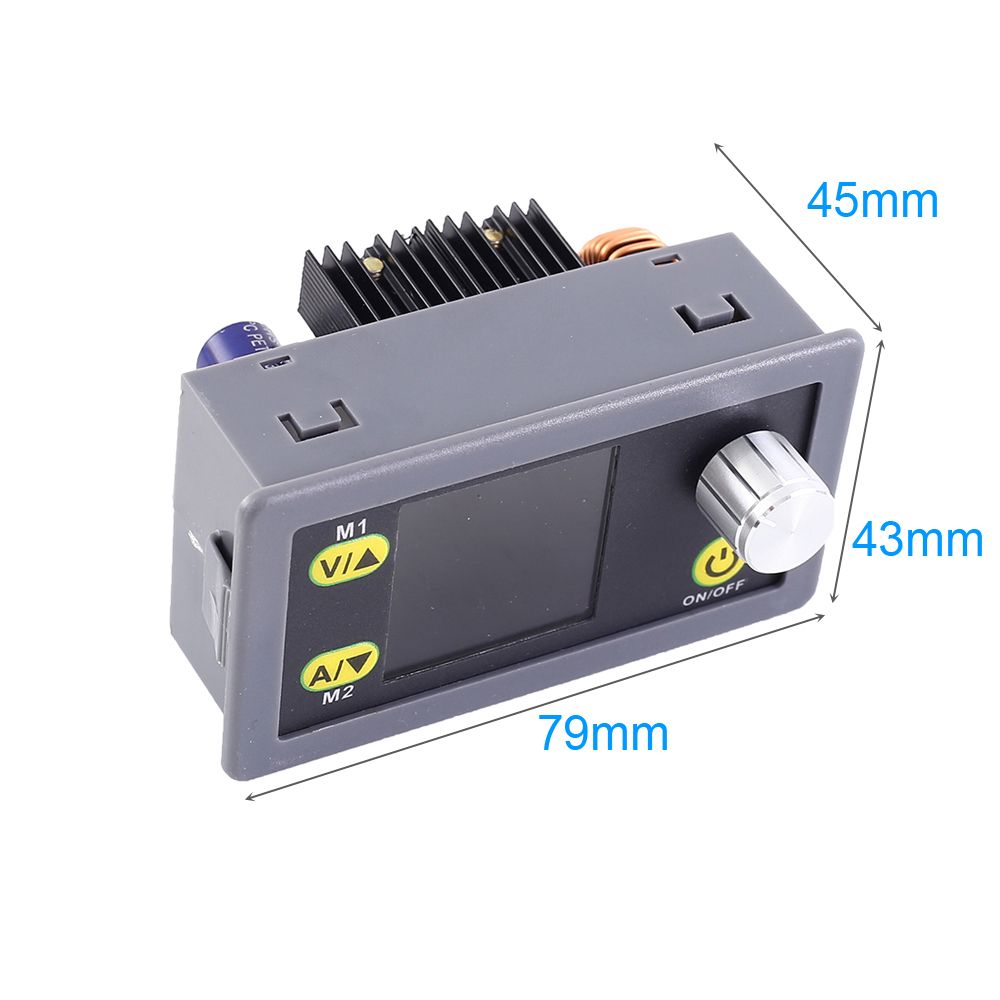

22>.WZ-5005E Size:79*43*56mm

23>.U2T Size:40*24*10mm

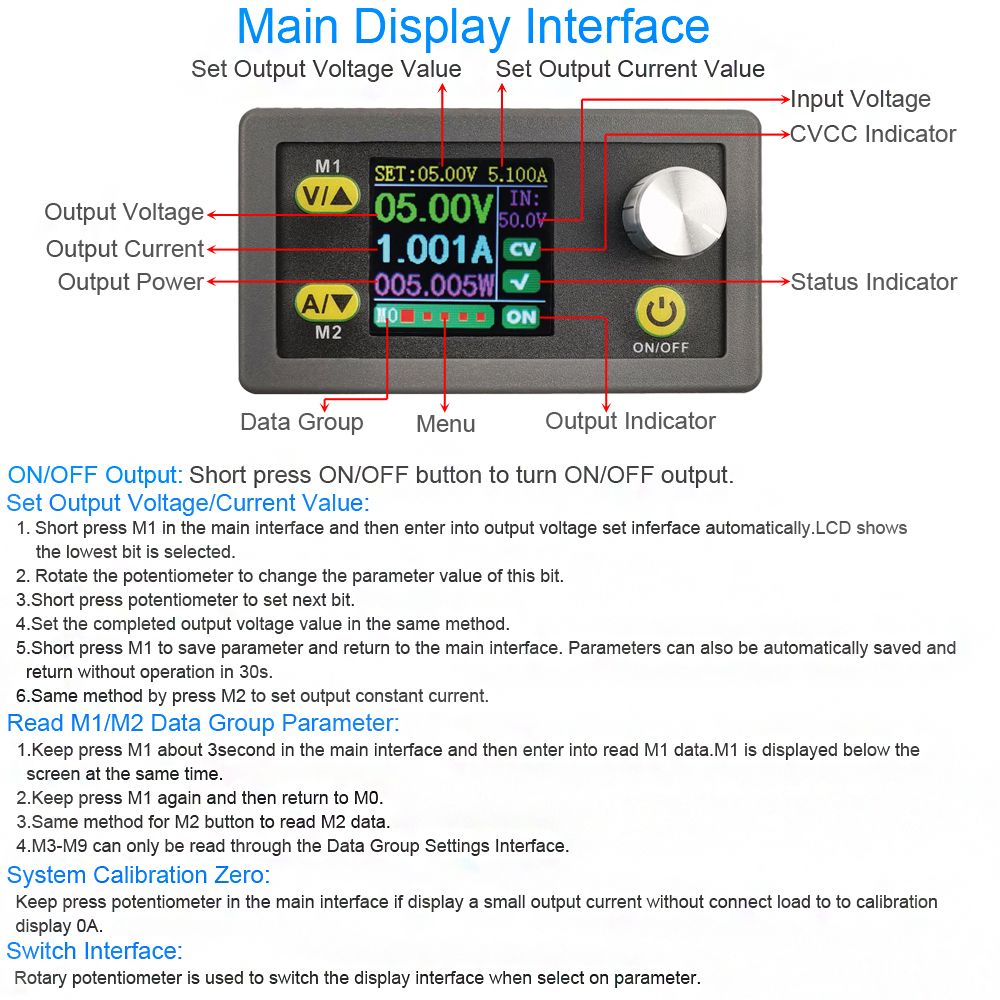

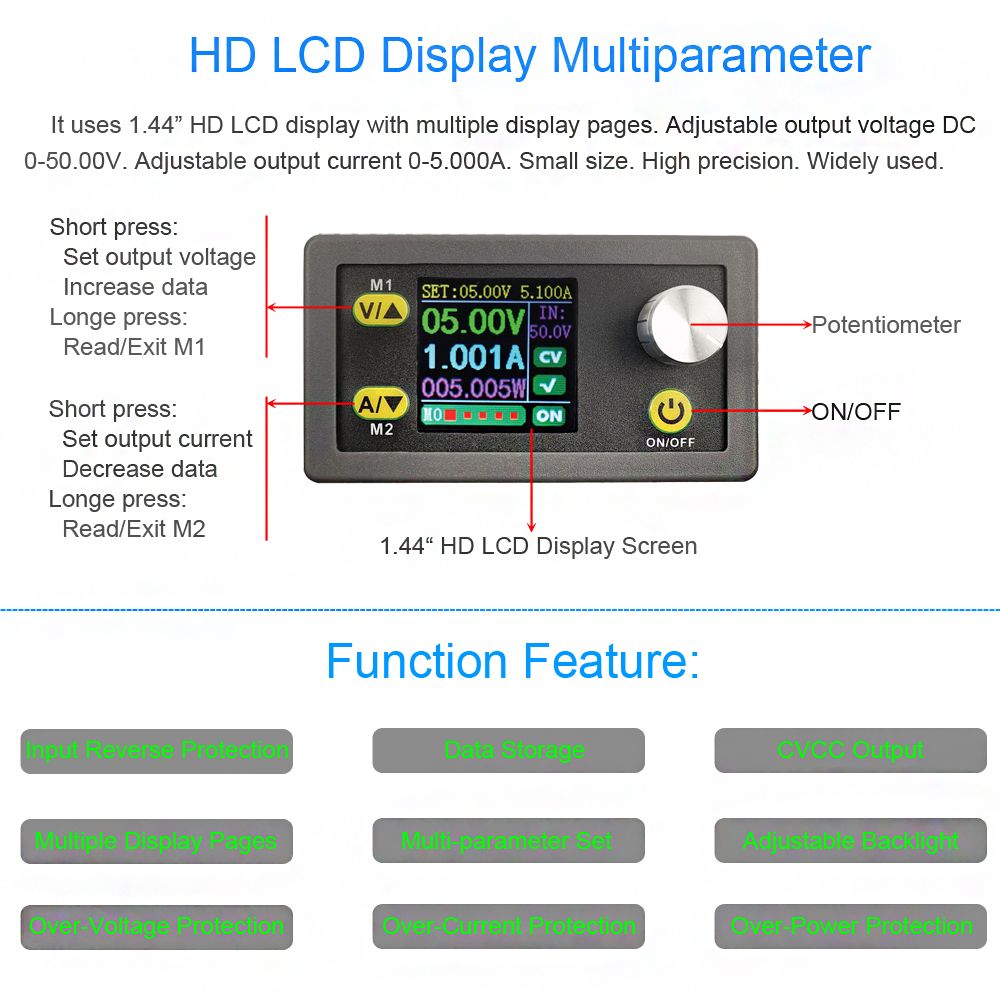

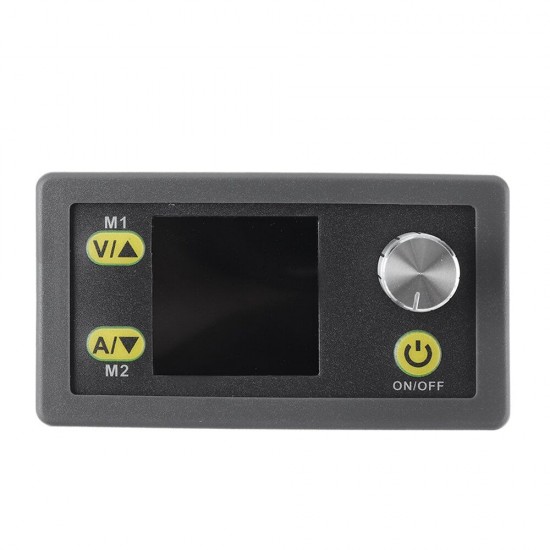

4.Button Description:

1>.Long press means need keep press button more than 3second.

2>.M1 button: Short press to set output voltage value or used as increase button. Long press is used to read M1 data group or exit.

3>.M2 button: Short press to set constant current output value or used as decrease button. Long press is used to read M2 data group or exit.

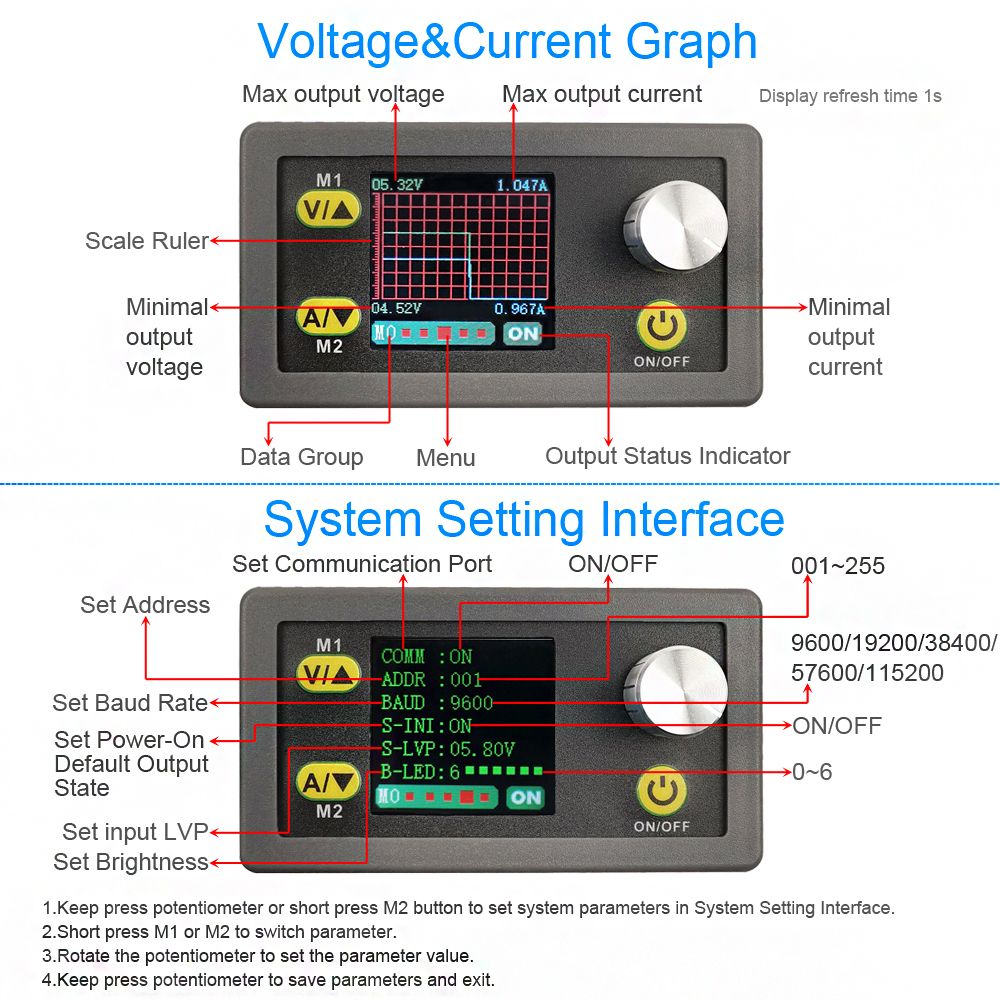

4>.Potentiometer: Short press to switch display interface at normal display mode.Long press has different function at different display interface. Please read the more detailed instructions below.

5>.ON/OFF button: Short press to turn ON/OFF output.

5.Use steps:

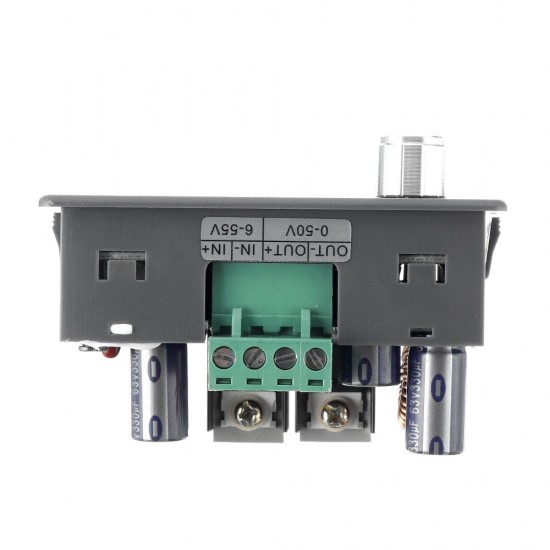

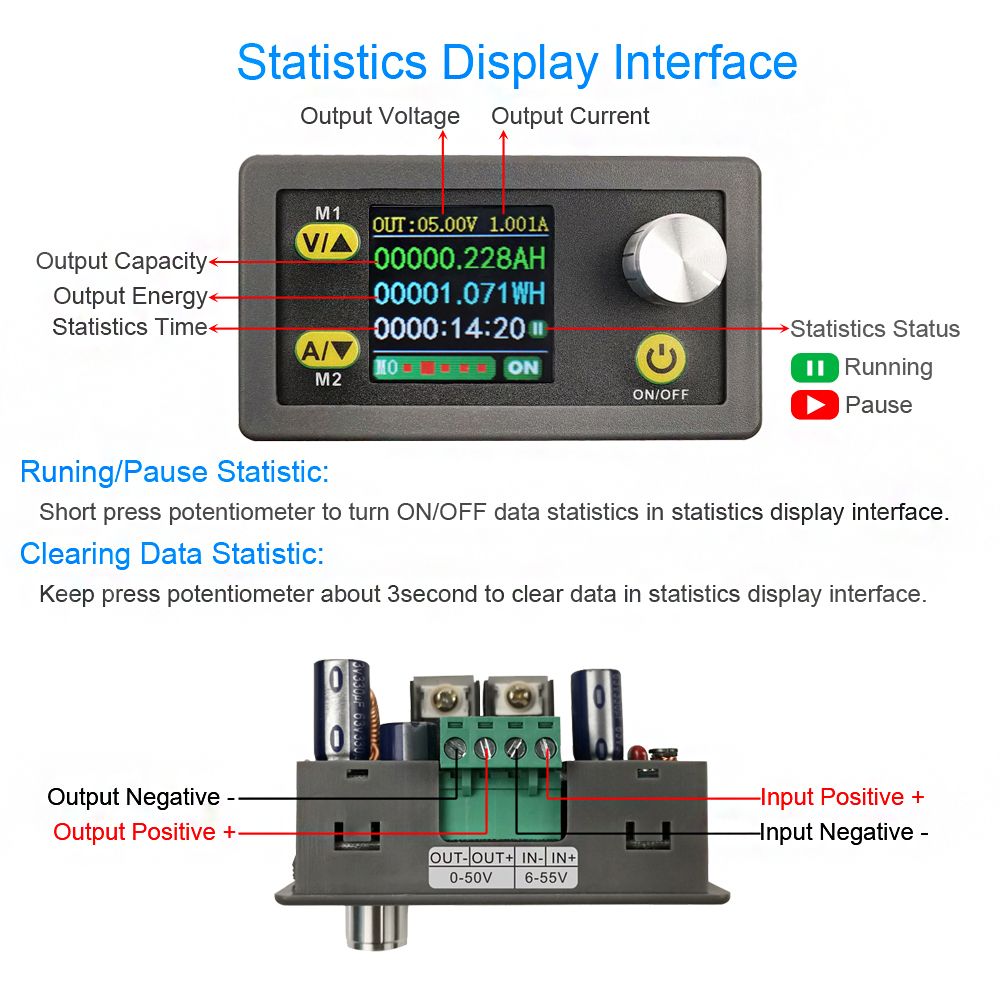

1>.Connect right work voltage from IN+ and IN-.

2>.Short press M1 or M2 button to set output voltage and output constant current.

3>.Remove work power supply.

4>.Connect load at output terminal.

5>.Re-power ON and use this item.

6.Application:

1>.Ordinary power supply

2>.Battery charger

3>.LED drive power

4>.Instrument voltage display

5>.Test meter

6>.Circuit test

7>.Power conversion

7.Note:

1>.It is a DC power module,So it can not connect to AC power.

2>.Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.

3>.It only works on Windows but can not for Mac and others.

4>.Please make sure input power is more than load power.

5>.Please step down output power if module is hot.

6>.Please read use manual and description before use.

8.Package Included:

Normol Version:

1 x WZ-5005E Step Down Power Supply Module

1 x 35cm XH2.54-4P Cable

2 x M3+4mm Screw

2 x M3 Nut

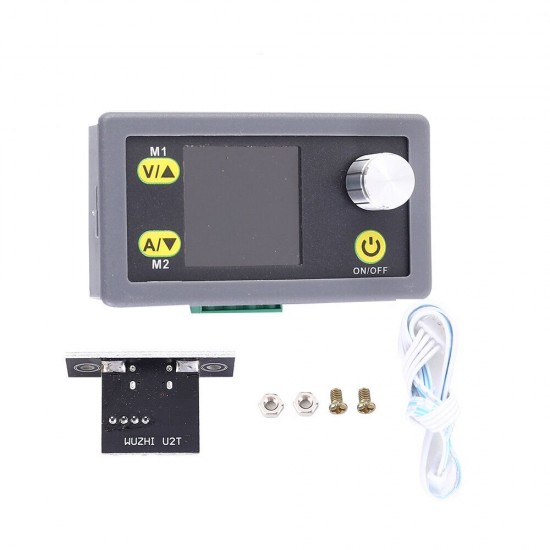

USB Version:

1 x WZ-U2T USB to TTL Converter Module

1 x WZ-5005E Step Down Power Supply Module

1 x 35cm XH2.54-4P Cable

2 x M3+4mm Screw

2 x M3 Nut

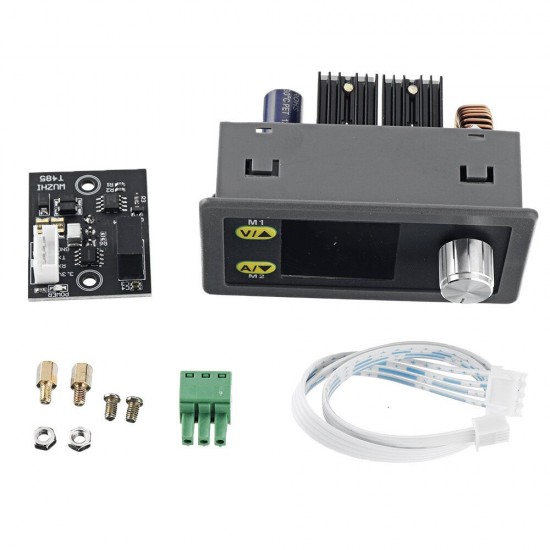

RS485 Version:

1 x RS485 Converter Module

1 x WZ-5005E Step Down Power Supply Module

1 x 35cm XH2.54-4P Cable

2 x M3+4mm Screw

2 x M3 Nut
