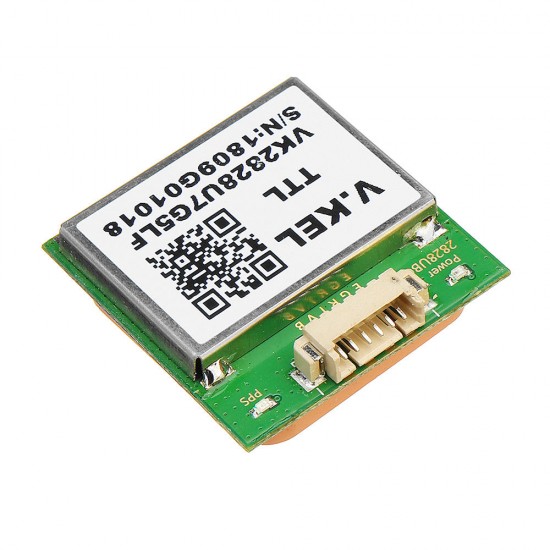

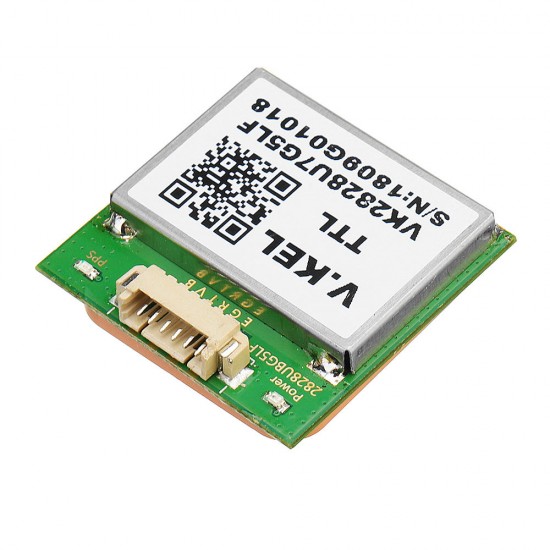

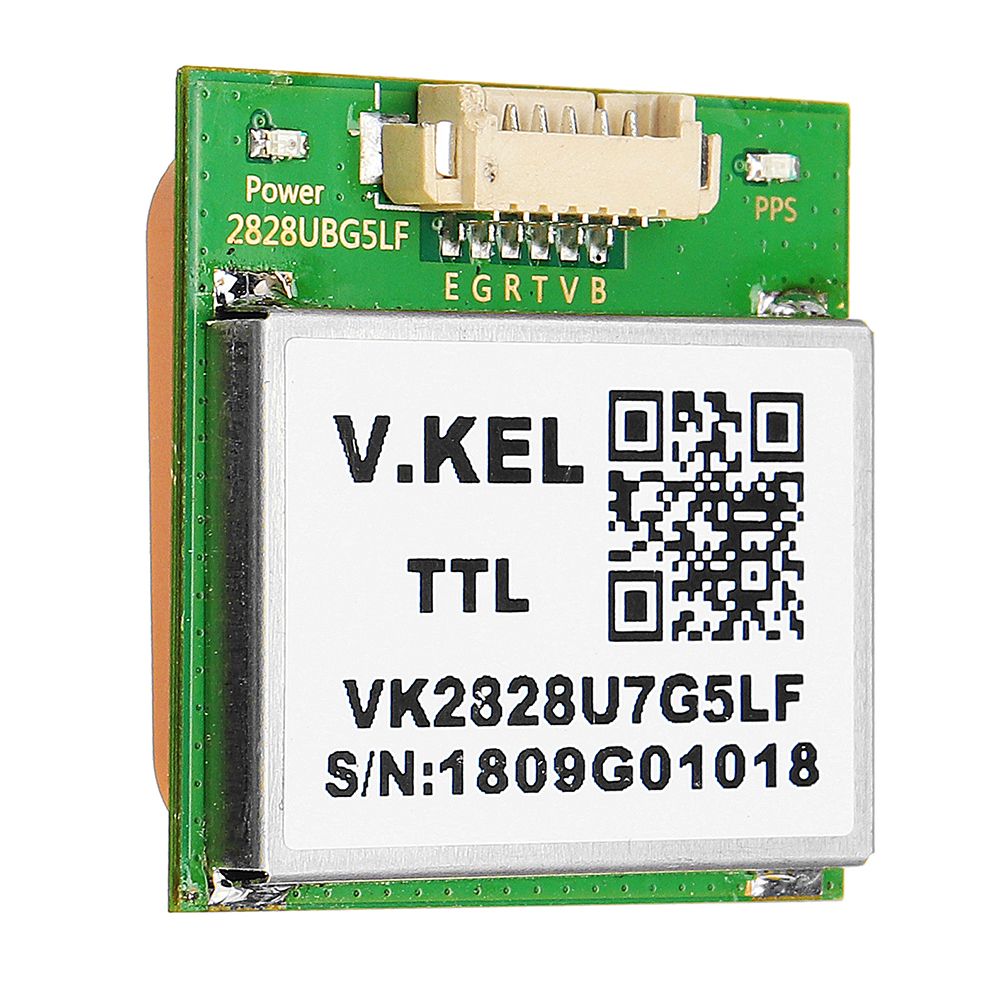

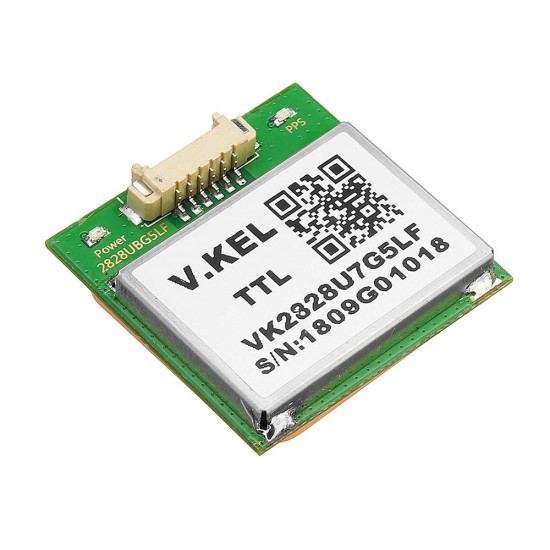

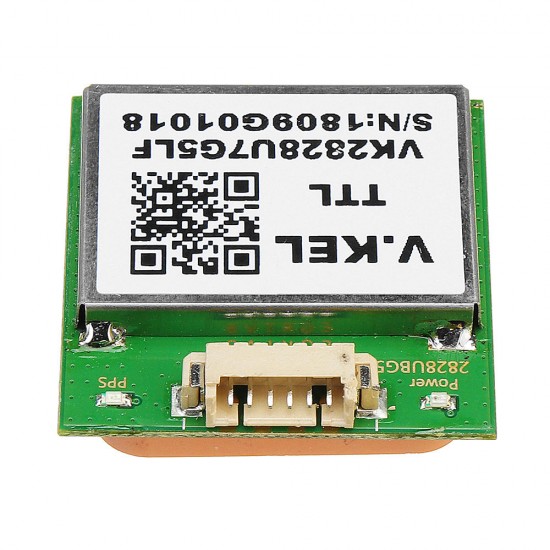

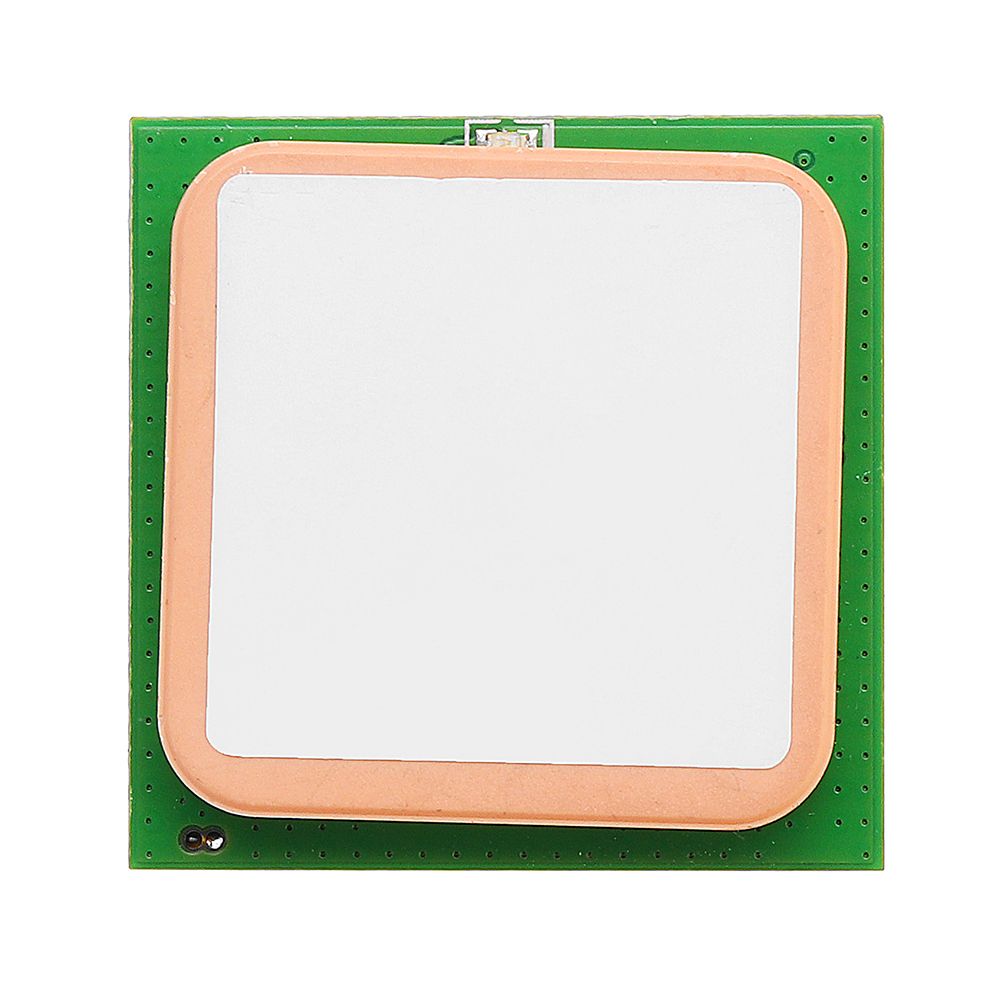

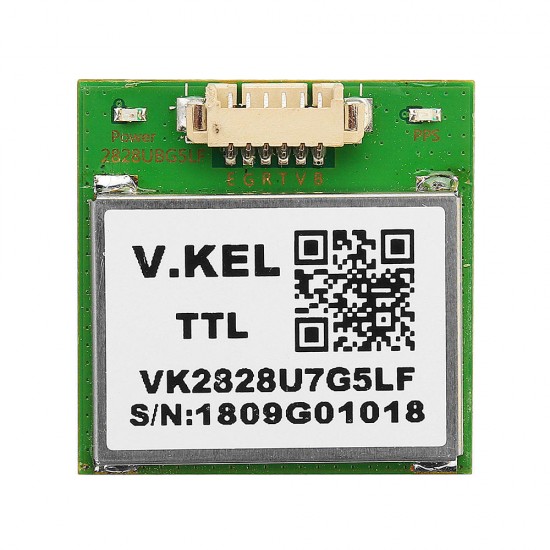

VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model

VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
VK2828U7G5LF GPS Module With Antenna TTL Level 1-10Hz With Flash Flight Control Model
$9.99
Ex Tax: $9.99
  • Stock: In Stock
  • Model: EB000479
  • SKU: EB000479
Characteristic:

Receiving frequency: L1 [1575.42MHz]
Follow channel: 56
Support DGPS [WAAS, EGNOS and MSAS]
Independent location: <10 meters
WAAS: <5 meters
Drift: <0.02m / s
Time accuracy: 1us
Coordinate system: WGS-84
Maximum altitude: 18,000 meters
Maximum acceleration 500m / s
Accelerator: <4g
Follow sensitivity: -159dBm
Capture sensitivity: -153dBm
Popular start: 1s
Warm start: 37s
Cold start: 39 seconds
Recapture time: 0.1 second
Working temperature: -40 To + 80 °C

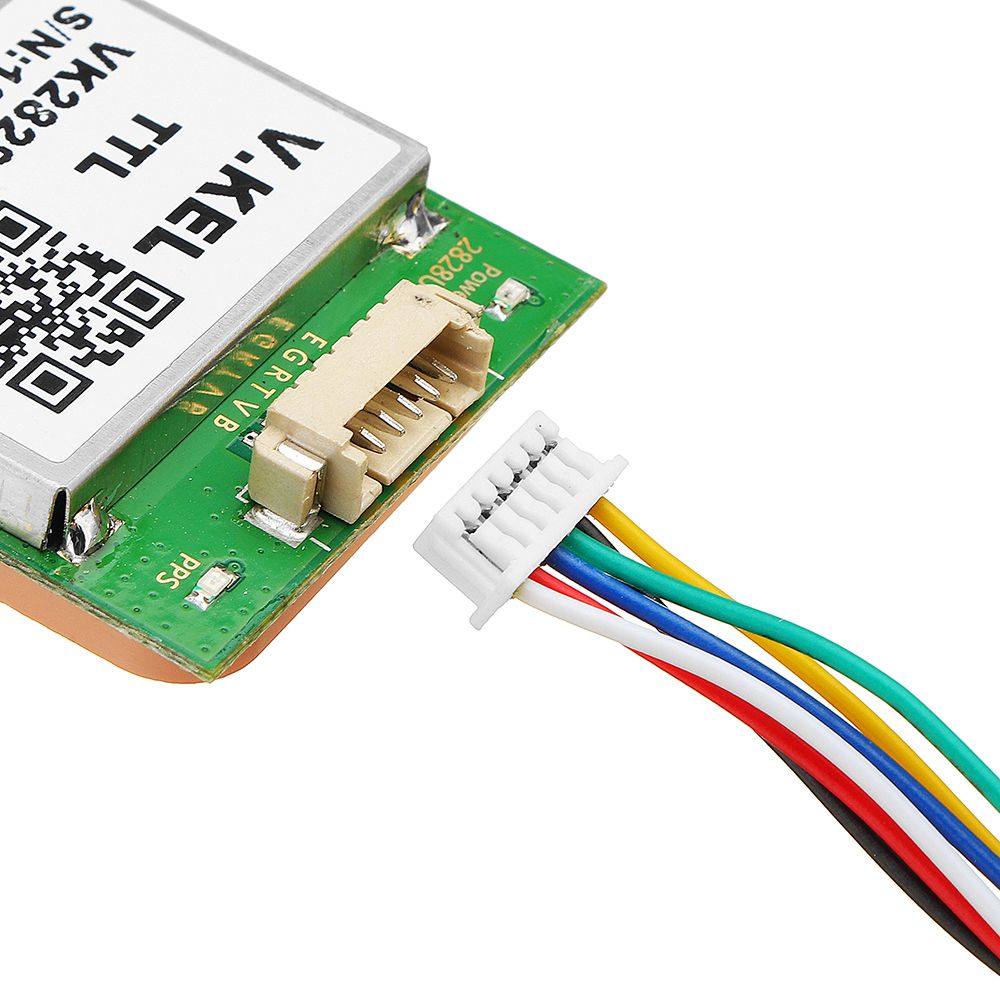

Size: 28 * 38 * 8.4mm, cable length 2m
Wide voltage range: + 3.5V~ + 5.0V
Output: SiRF binary system or nmea0183 V3.0 (GGA, GSA, GSV, RMC, VTG)

Package Included:

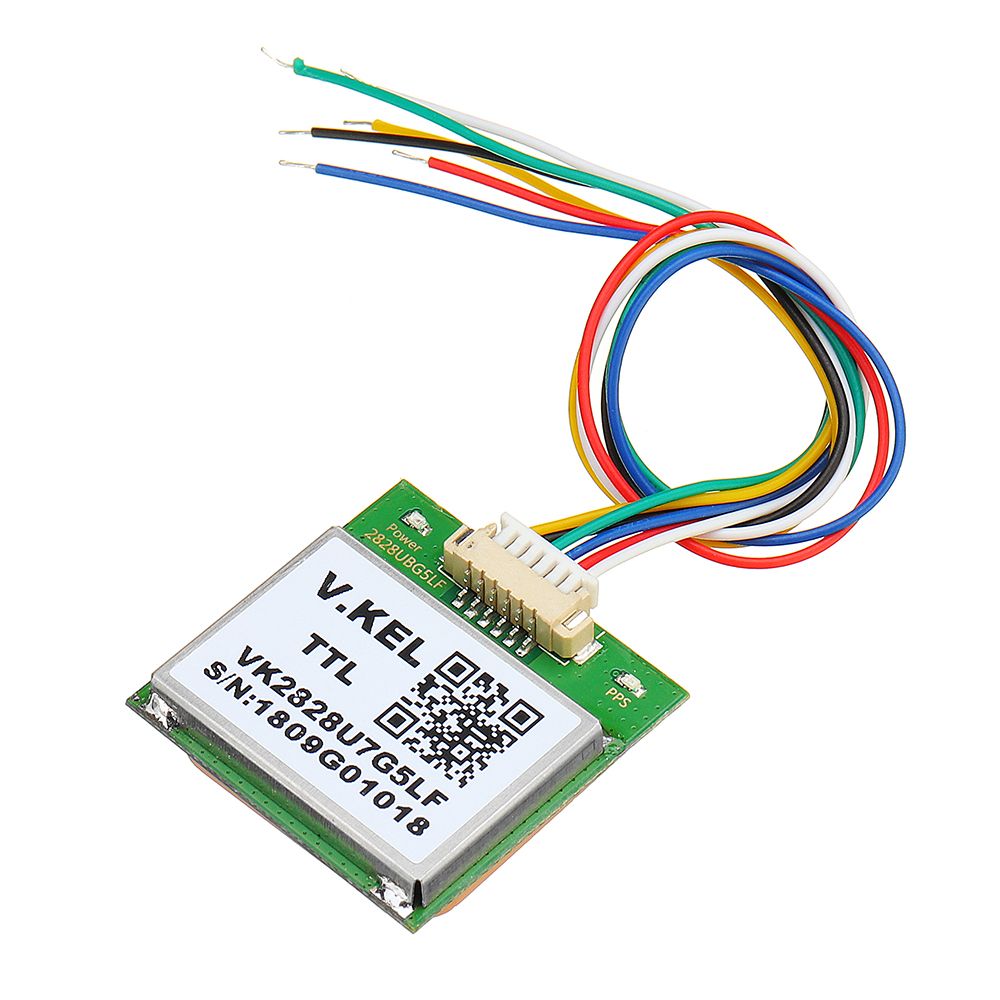

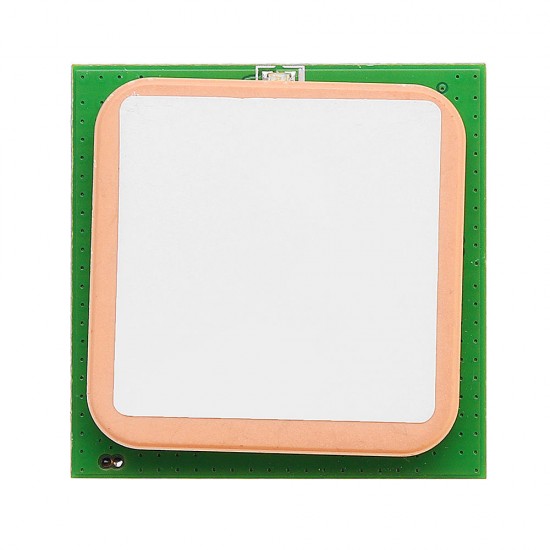

1 x GPS Module With Antenna
