VC9803 High-Precision Digital Multimeter Backlight Display LCD Screen AC/DC Voltage Current Resistance Capacitance Diode Triode Tester

Based on 0 reviews. - Write a review

$40.87

Ex Tax: $40.87

Stock: In Stock
Model: EB004230
SKU: EB004230

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

High-performance multi-function multimeter, can test LED multimeter
Backlit LCD display screen
Shockproof sleeve protection

Features:

LED test

AC and DC voltage / current test

On and off beep

Test diode triode capacitor

Square wave output

Back support for easier measurement

LCD backlit display

Equipped with protective equipment

The circuit is equipped with a double fuse tube to effectively prevent burning

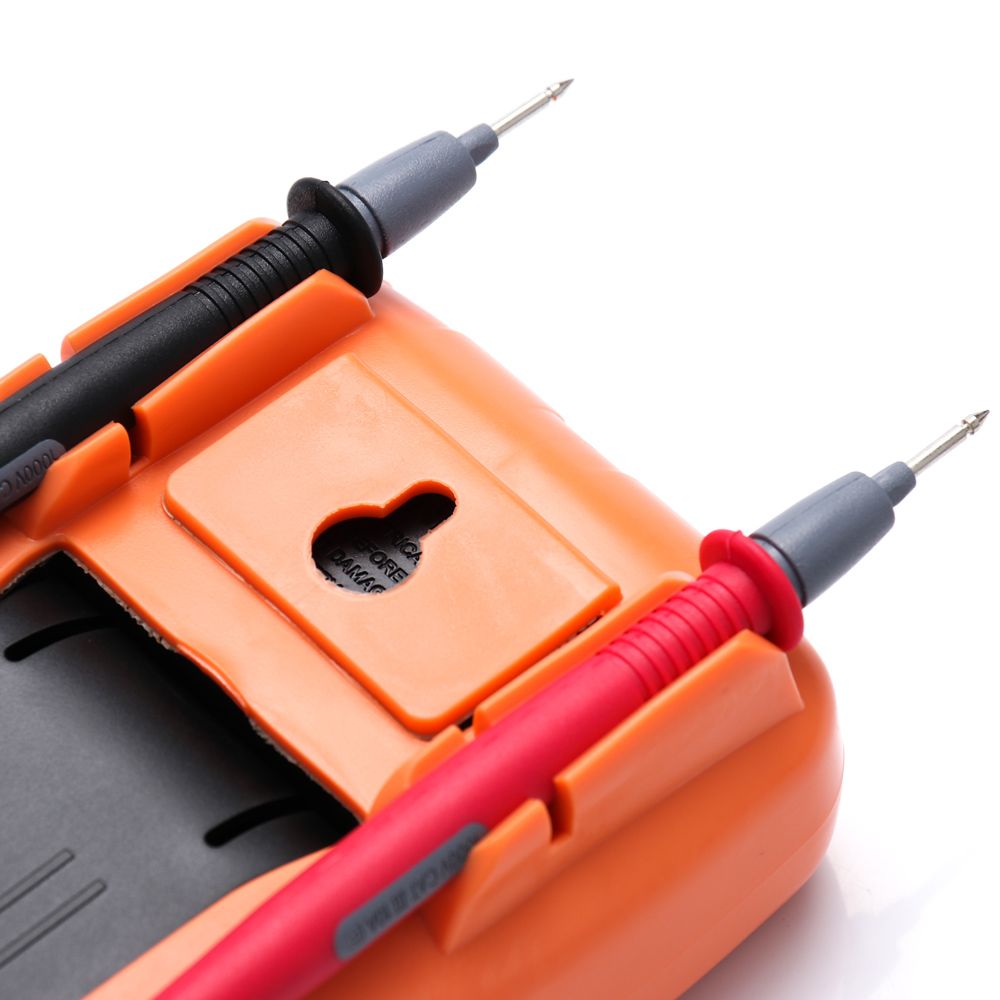

Back position table pen slot

Specification:

Display Type:Digital LCD Display
Operating Temperature:0 - 40 ℃

Battery: 1 x 9V battery

Maximum display: 5999 (3/5/6) automatic polarity display

Measurement method: double integral A/D conversion

Sampling frequency: 3 times per second

Overrange display; the highest bit shows 'OL'

Low voltage prompt: lack of power symbol display

Relative humidity: <80%

DC voltage range: 600mV/6V/60/600/1000V ±(0.5%+3)

AC voltage range: 6V/60V/600V/750V ±(0.8%+5)

DC current range: 60uA/6mA/20mA/60mA/600mA/6A/20A ±(1.2%+8)

AC current range: 600mA/6A/20A ±(2.0%+5)

Measuring resistance range: 200Ω2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+3)

Measuring capacitance range: 20nF / 200nF / 2uF / 20uF / 200uF ±(3.5%+20)

Square wave output: voltage amplitude is about 3.3V frequency 50Hz-10KHz

Frequency: 60Hz/600Hz/6KHz/60KHz/600KHz/10MHz ± (1%+10)

Package includes:

1 x Multimeter(Batter not included)

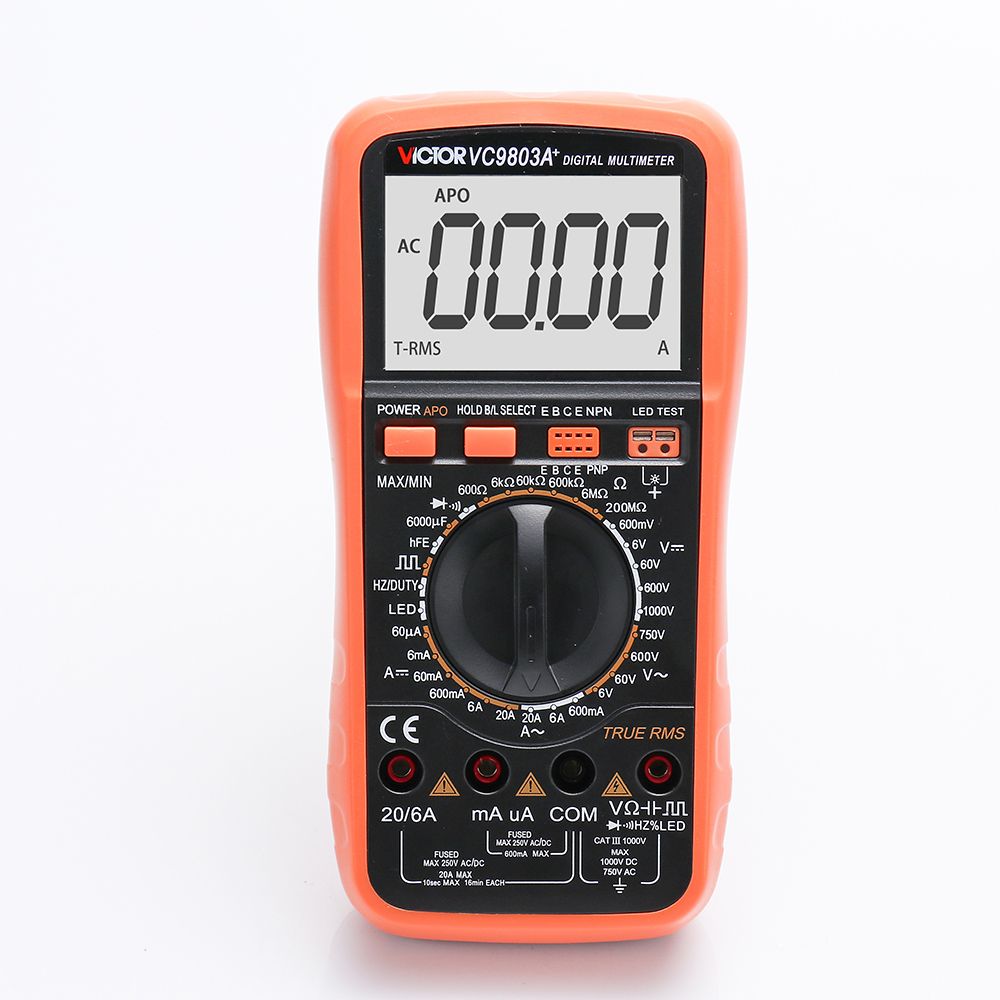

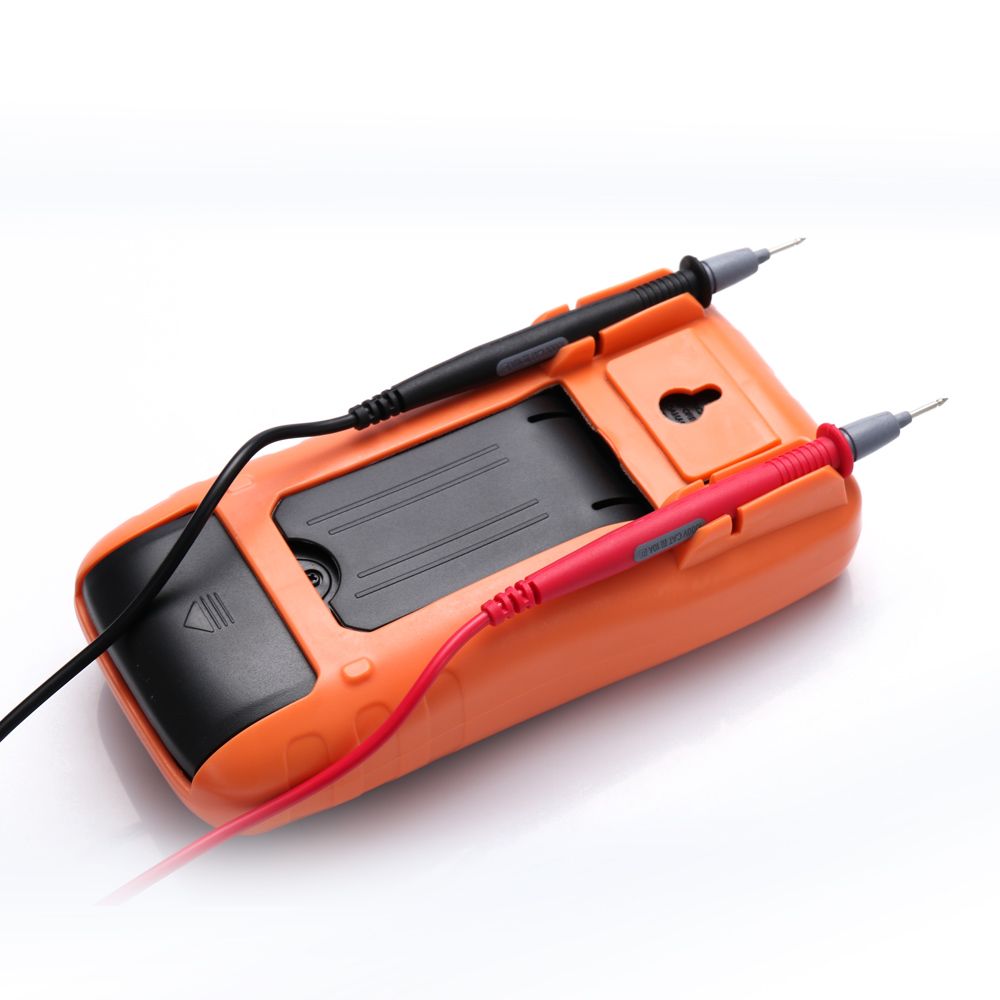

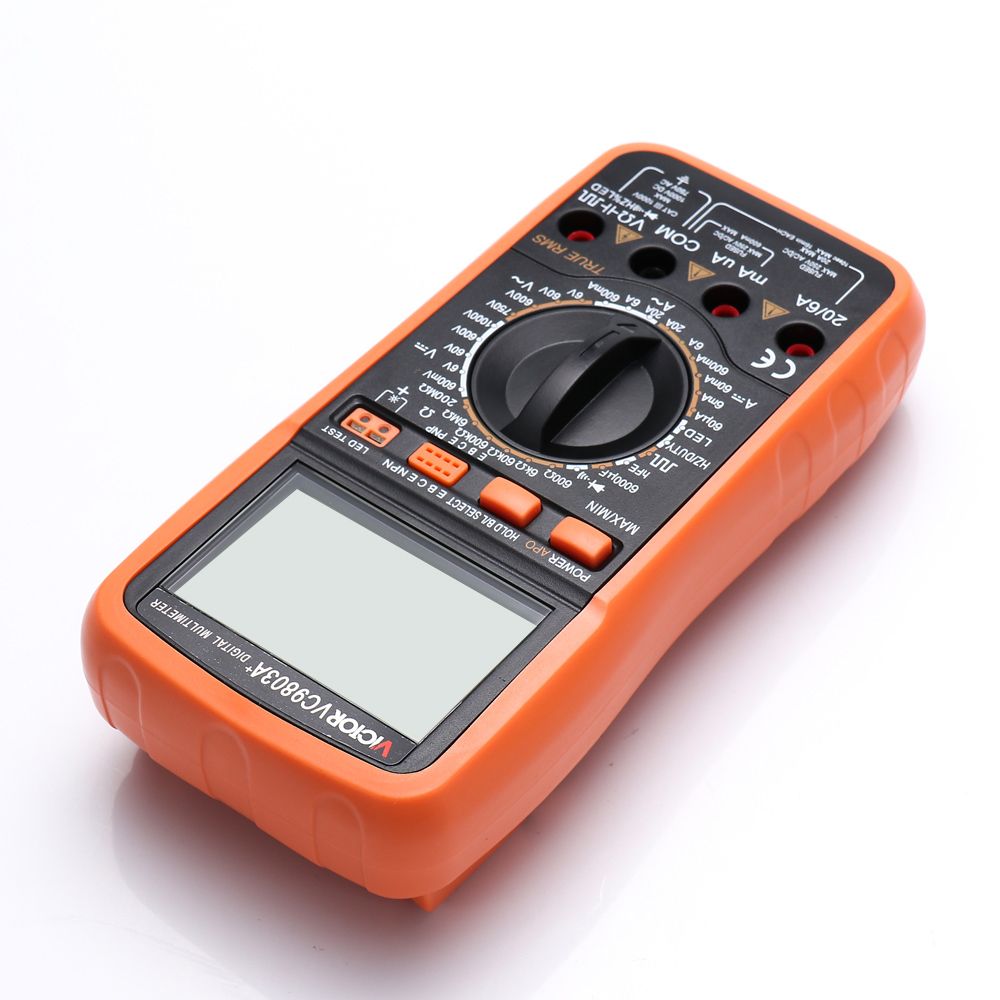

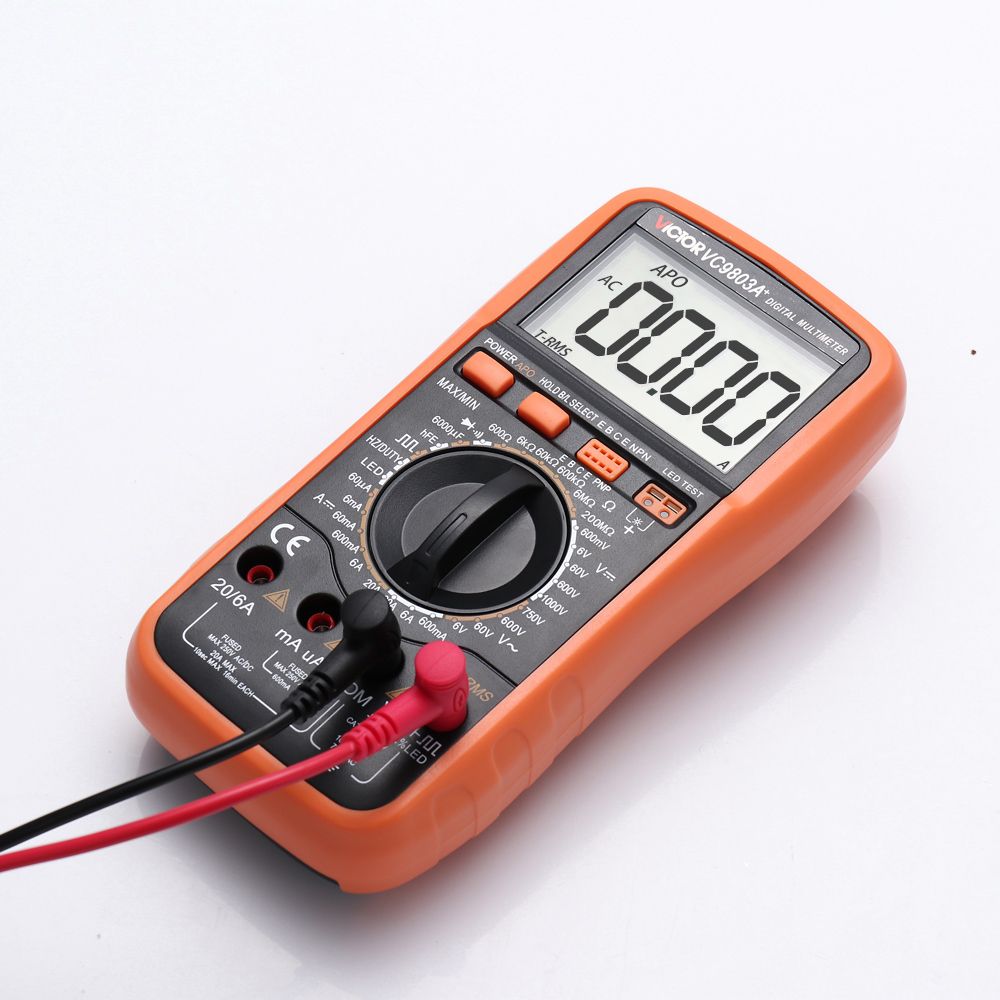

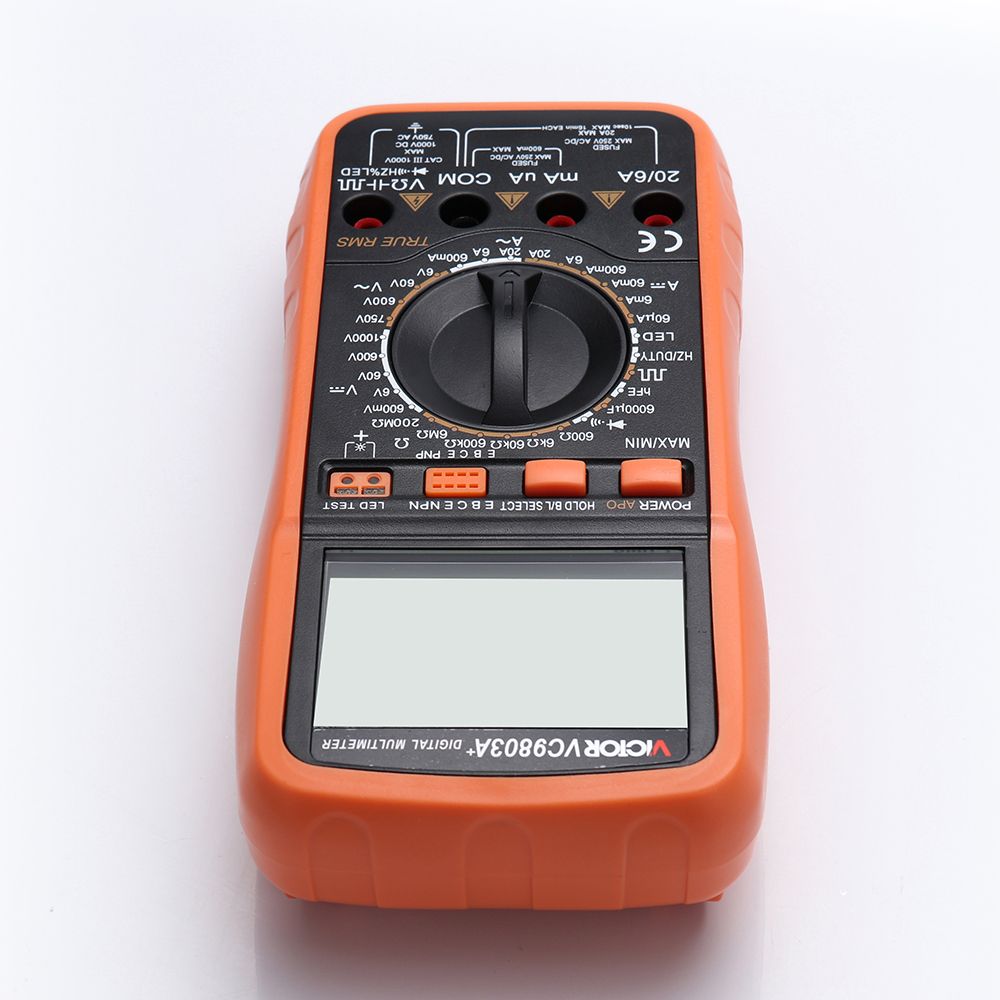

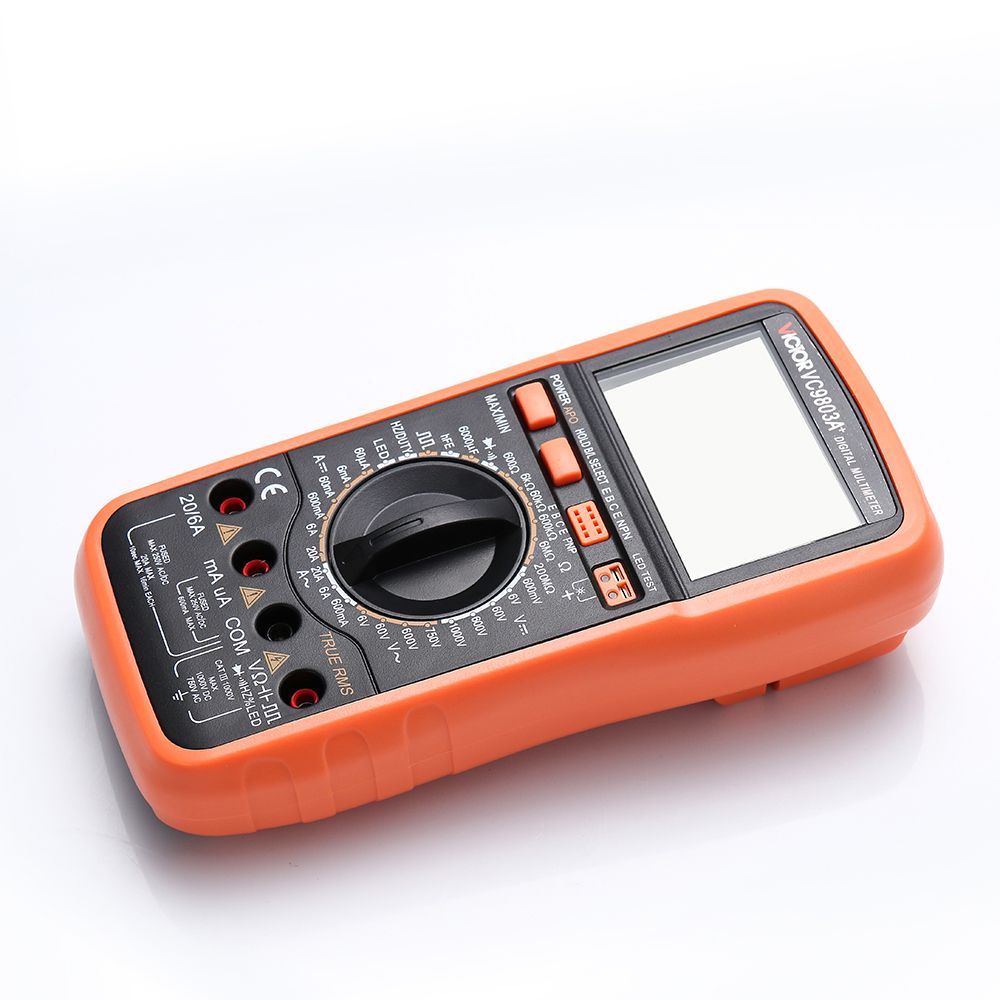

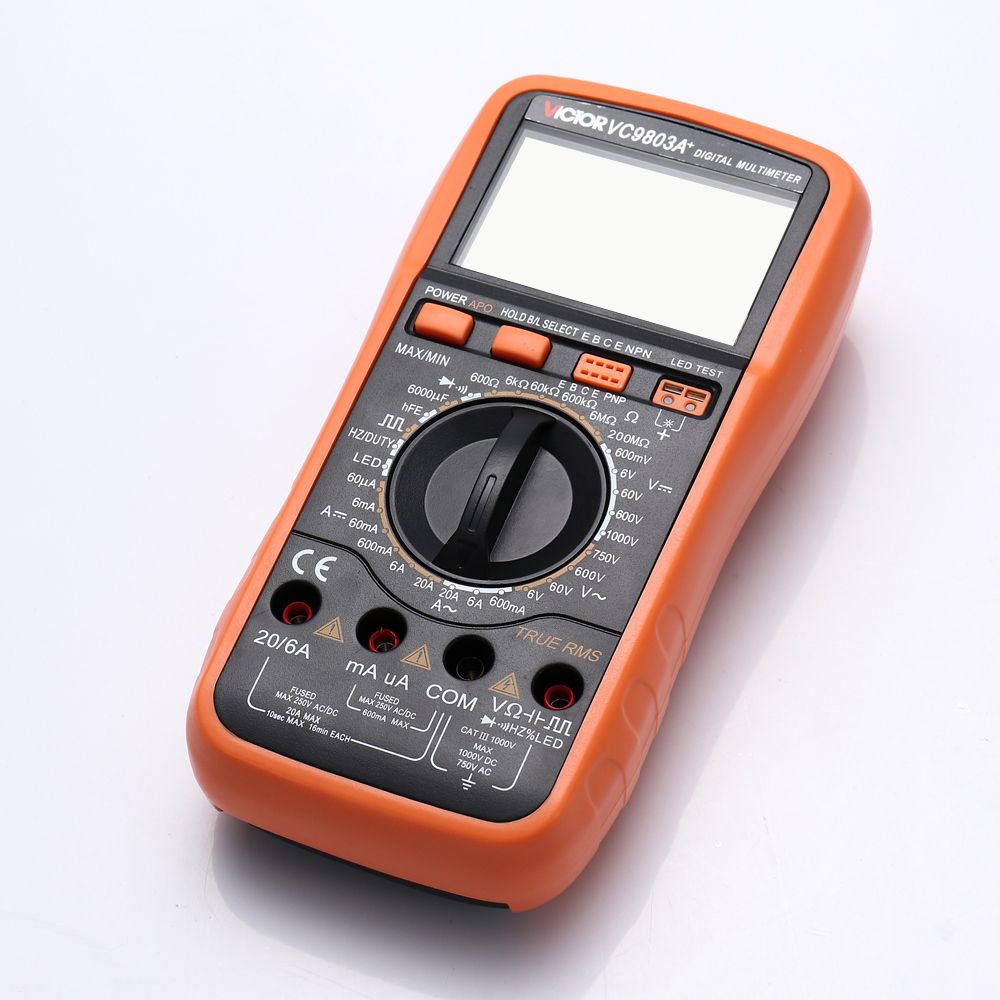

Detail pictures:

VC9803-High-Precision-Digital-Multimeter-Backlight-Display-LCD-Screen-ACDC-Voltage-Current-Resistanc-1397050
