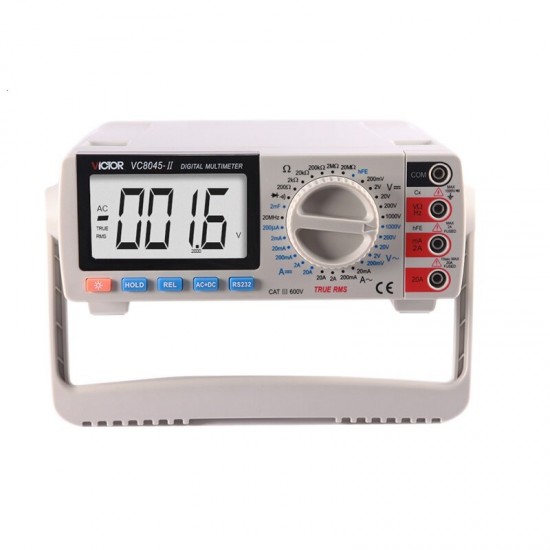

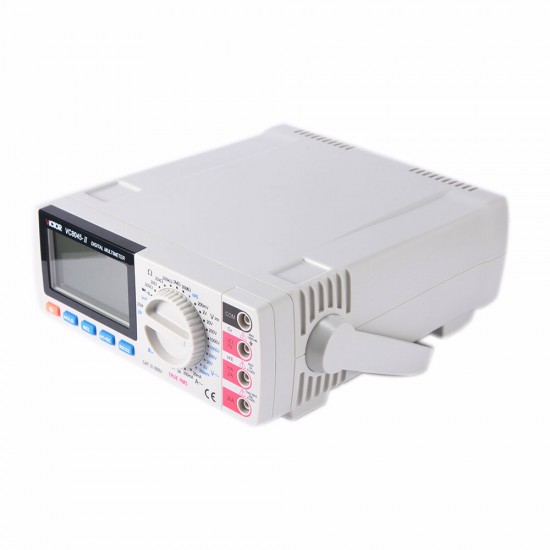

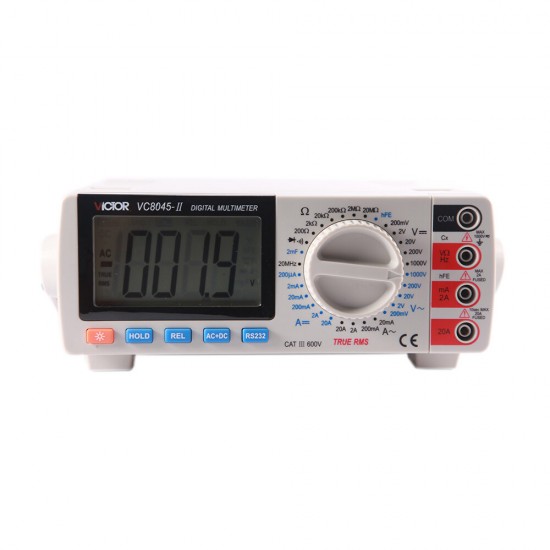

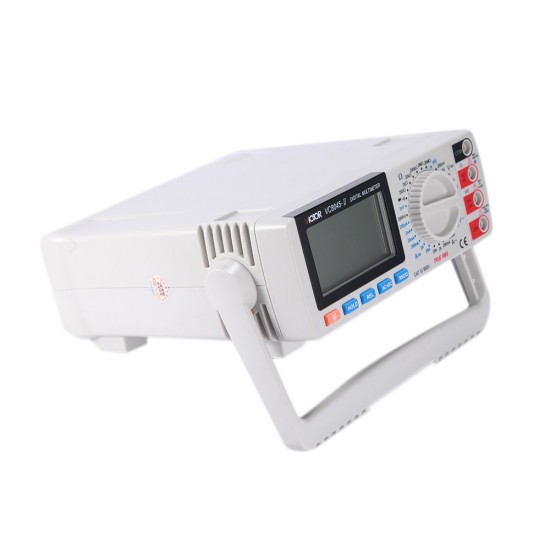

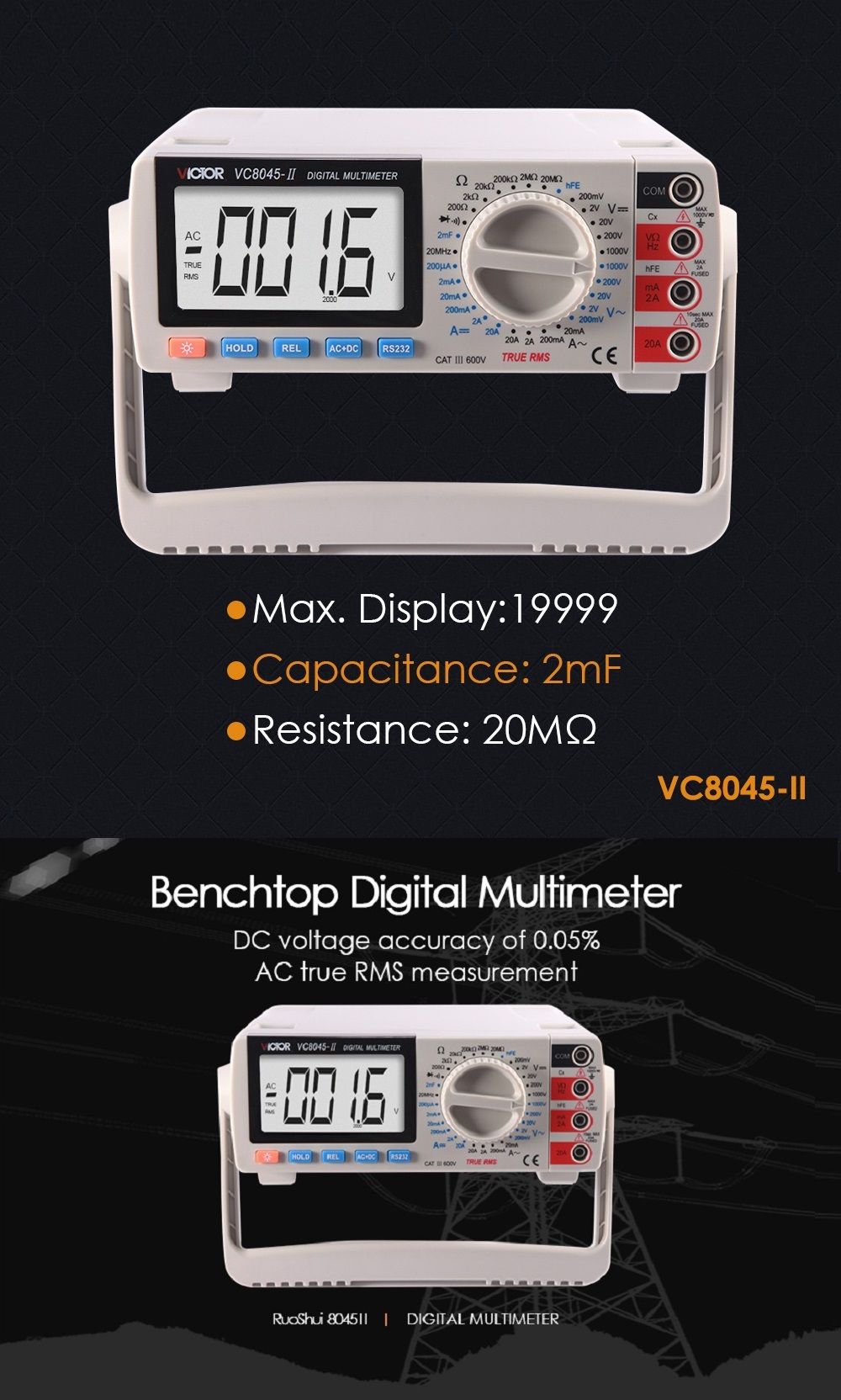

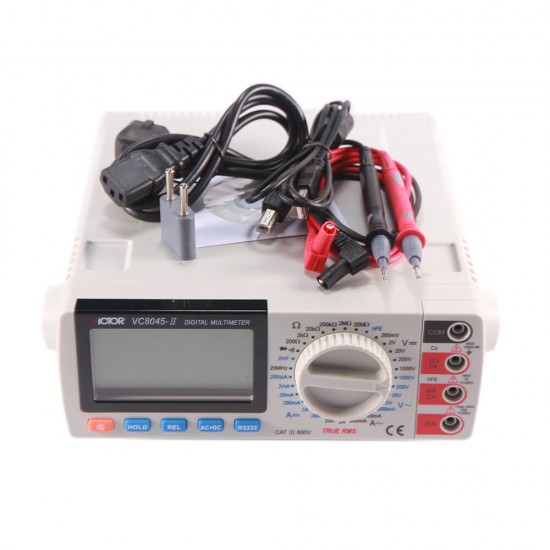

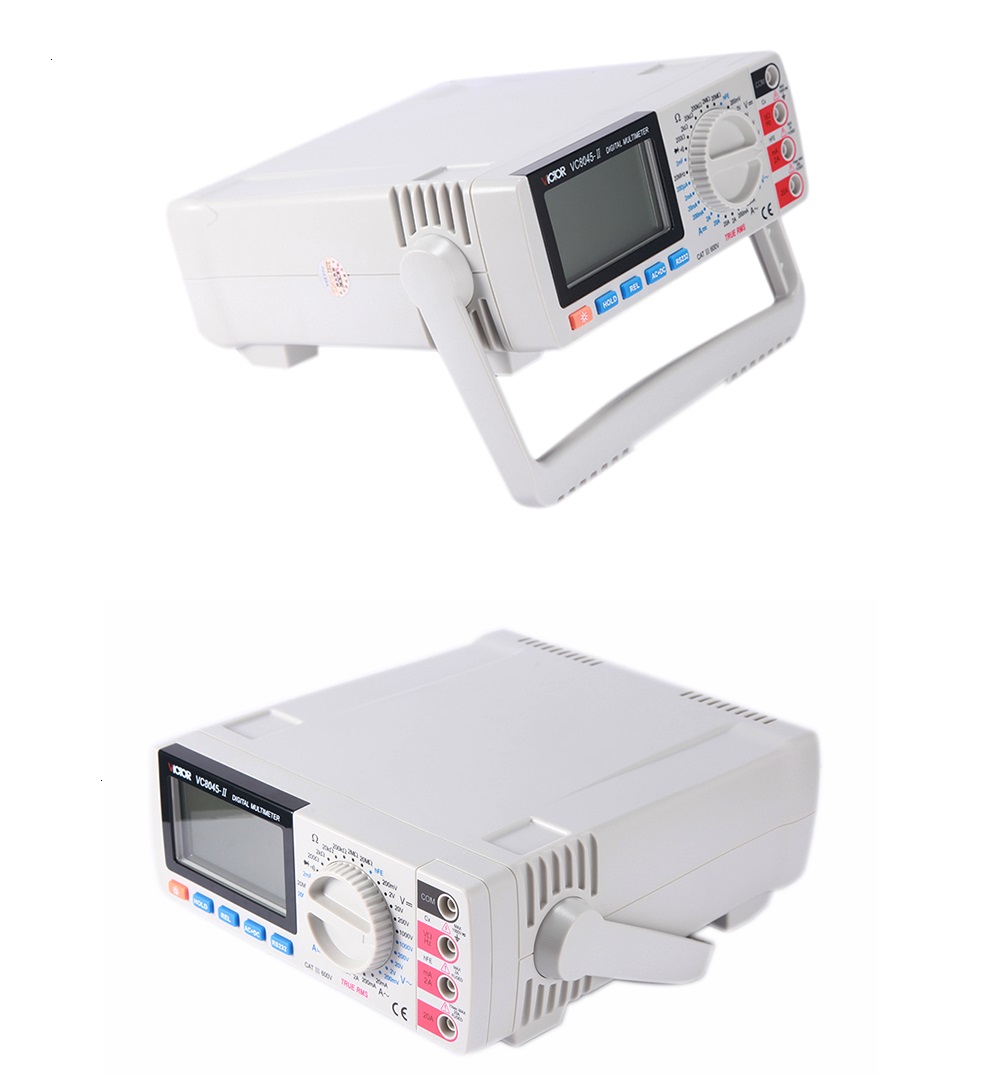

VC8045-II Bench Top True RMS Multimeter AC DC Transistor Measurement Capacitance HFE Multimetro Tester Digital Electrical
- Stock: In Stock
- Model: EB004329
- SKU: EB004329
| Model | VC8045-II | |
| Function | Range | Basic accuracy |
| DC Voltage | 200mV/2V/20V/200V/1000V | ±(0.05%+3) |
| AC Voltage | 200mV/2V/20V/200V/1000V | ±(0.8%+80) |
| DC Current | 200μA/2mA/20mA/200mA/2A/20A | ±(0.35%+10) |
| AC Current | 20mA/200mA/2A/20A | ±(0.8%+80) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.1%+5) |
| Frequency | 20KHz/200KHz/20MHz | ±(1.0%+20) |
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/2mF | ±(5%+30) |

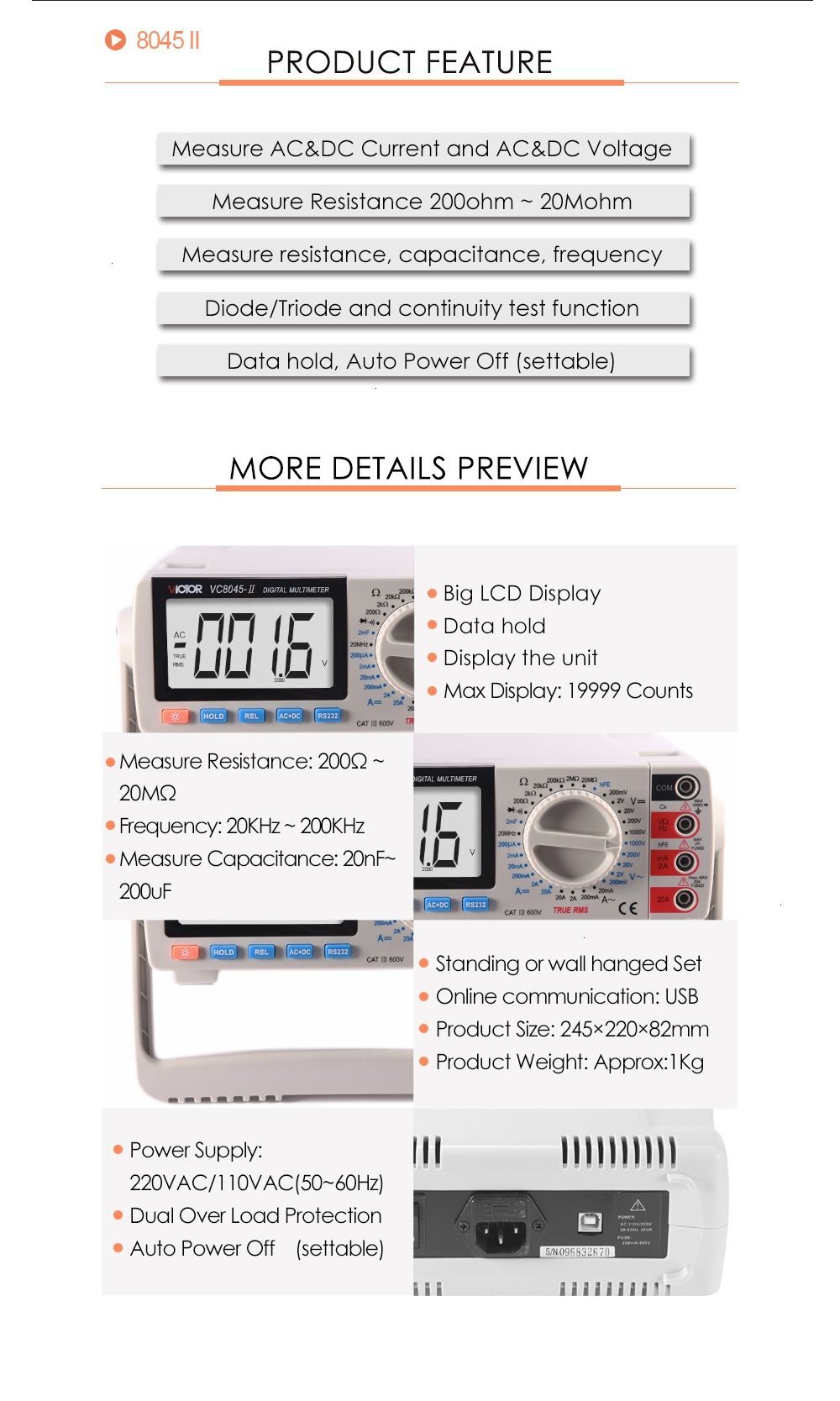

| Features | ||
| Diode and hFE test | √ | |
| Triode test | √ | |
| Continuity buzzer | √ | |
| True RMS | √ | |
| Input impedance | 10 МΩ | |
| AC frequency response | 3 times/s | |
| Sampling rate | 40~50kHz | |
| Operation way | Manual range | |
| Max. Display | 19999 | |
| General Information | ||
| Product Color | White | |
| Product Size | 260×220×82mm | |
| Product Weight | Approx:1Kg | |

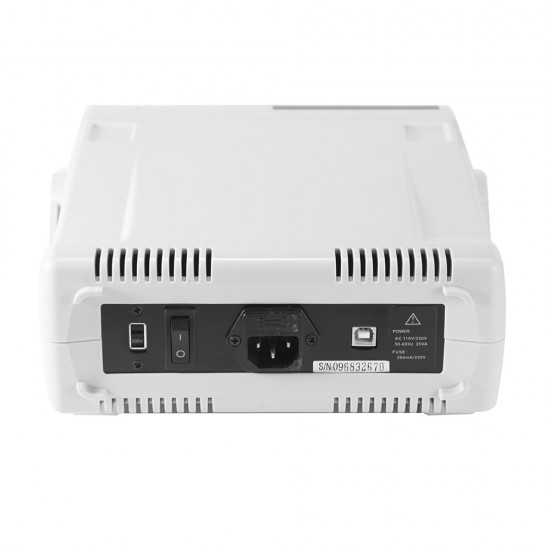

| Power Supply | AC220V; 110V 50Hz/60Hz | |
