VAT1100 Wireless DC Voltmeter Current Tester Watt Measurement Digital Display Electric Garage Meter With Temperature Sensor

Based on 0 reviews. - Write a review

$45.35

Ex Tax: $45.35

Stock: In Stock
Model: EB0046961
SKU: EB0046961

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Instruction: https://www.renhotecic.com/image/download/pdf/20180510042547VAT-Quick-Guide.pdf

Feature:

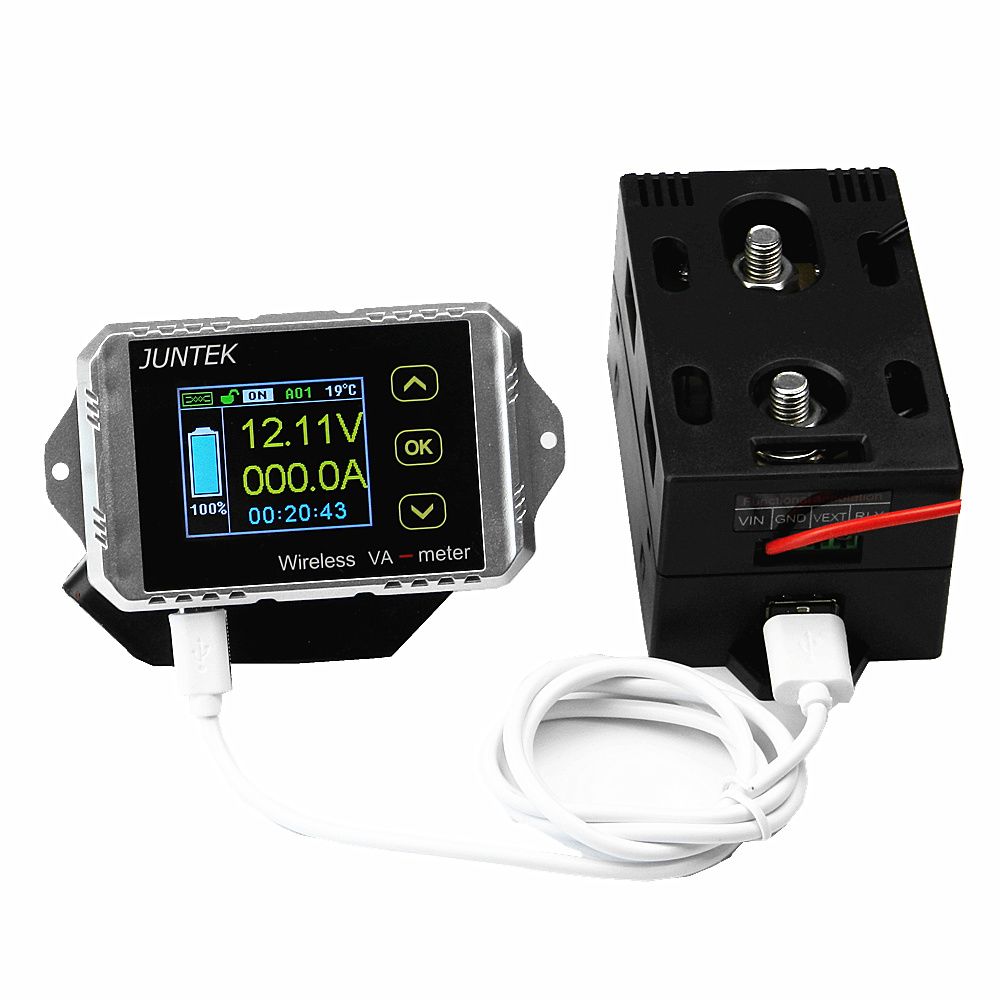

VAT series is a multi-function meter based on 2.4G wireless data transmission technology.

It can measure miscellaneous parameters such as voltage, current, power, charge and discharge capacity, watt-hour, time, and temperatureand with over-current protection Protection, under-voltage protection, and limited protection and other protection functions.

The instrument can automatically identify the direction of the current, and the battery capacity can be monitored in real time, the instrument uses TFT LCD display, display information is comprehensive, user-friendly and better interaction.

Performance advantages:

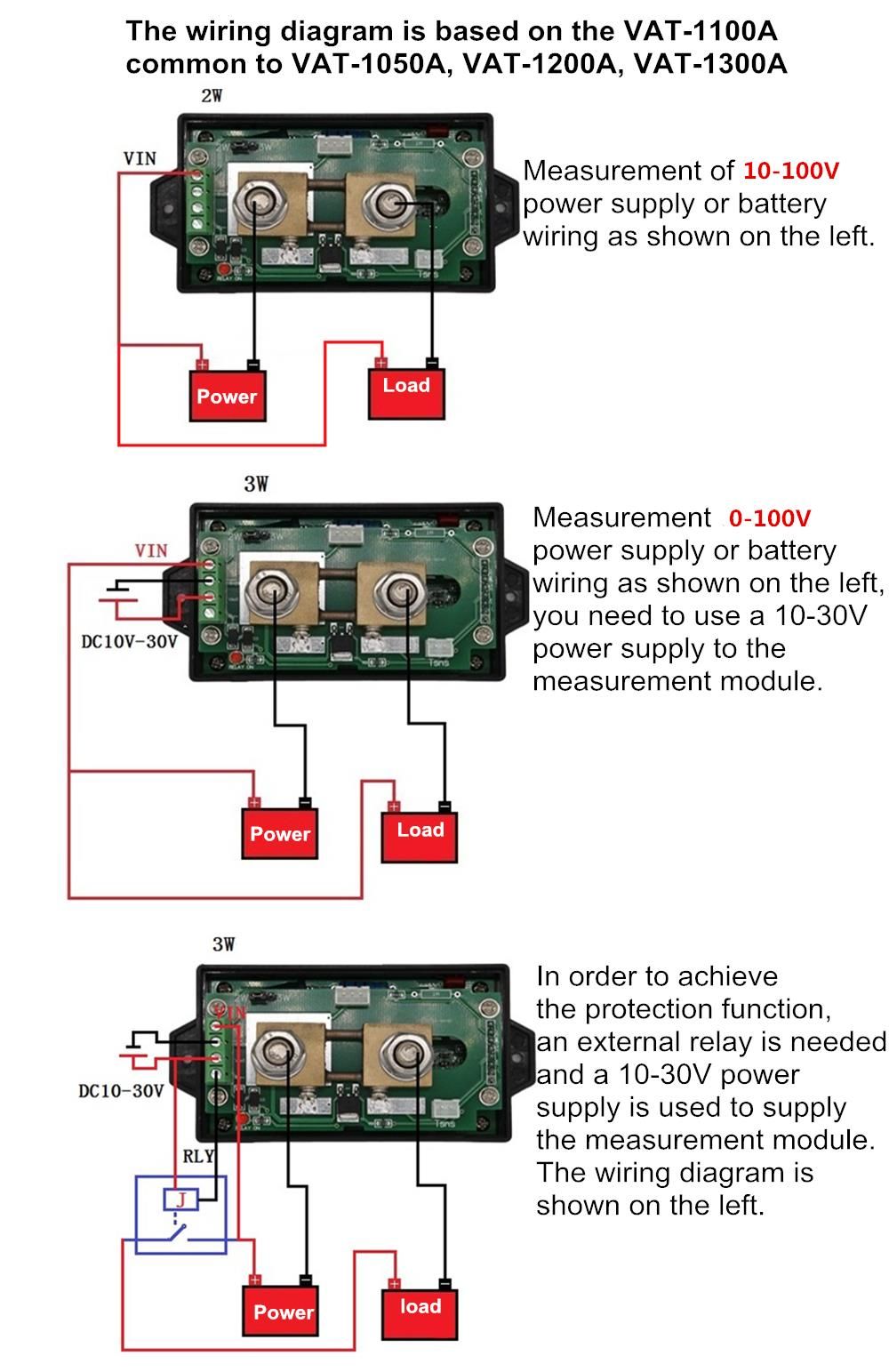

1. Bidirectional detection of current, convenient wiring.

2. Solve the problem of zero drift of the old product, the current can also ensure better accuracy after working for a long time.

3. Wireless mode, the farthest transmission distance can reach 10 meters, USB data cable using Andrews mobile phone data cable, the connection is solid, not easy to loose.

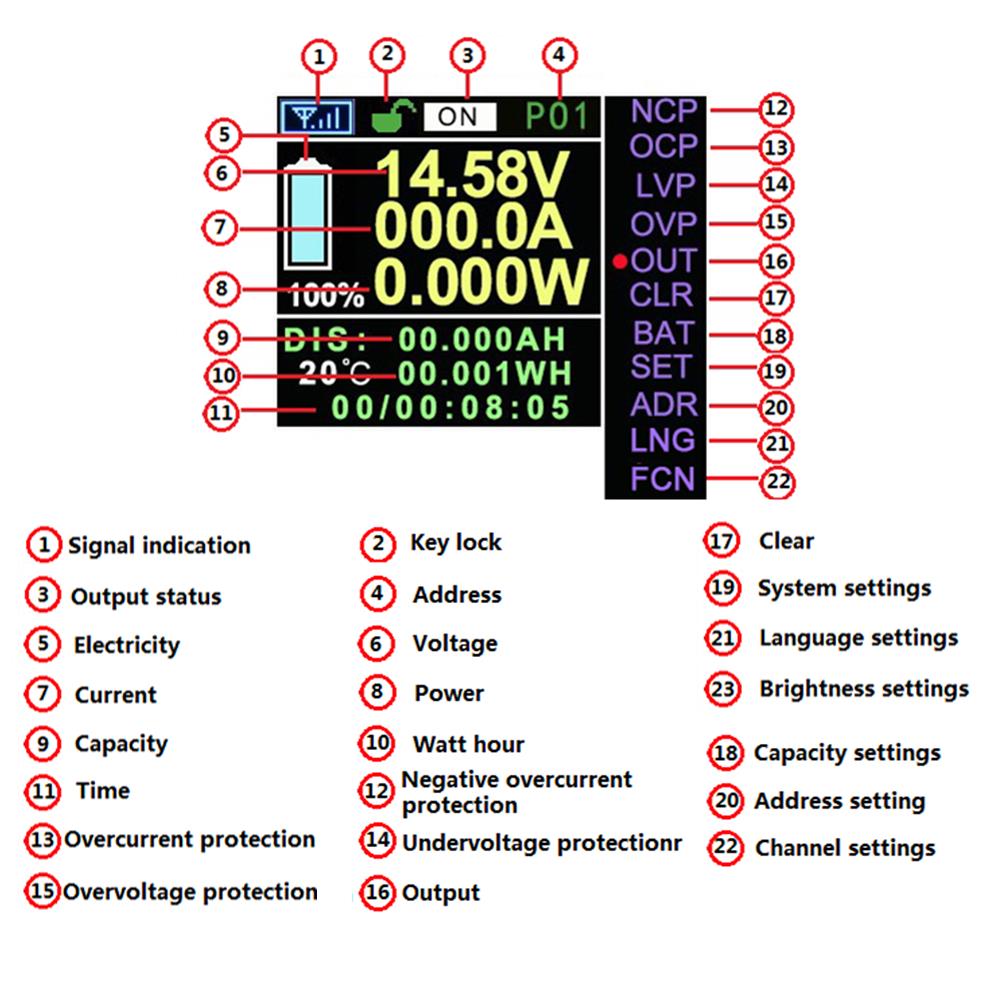

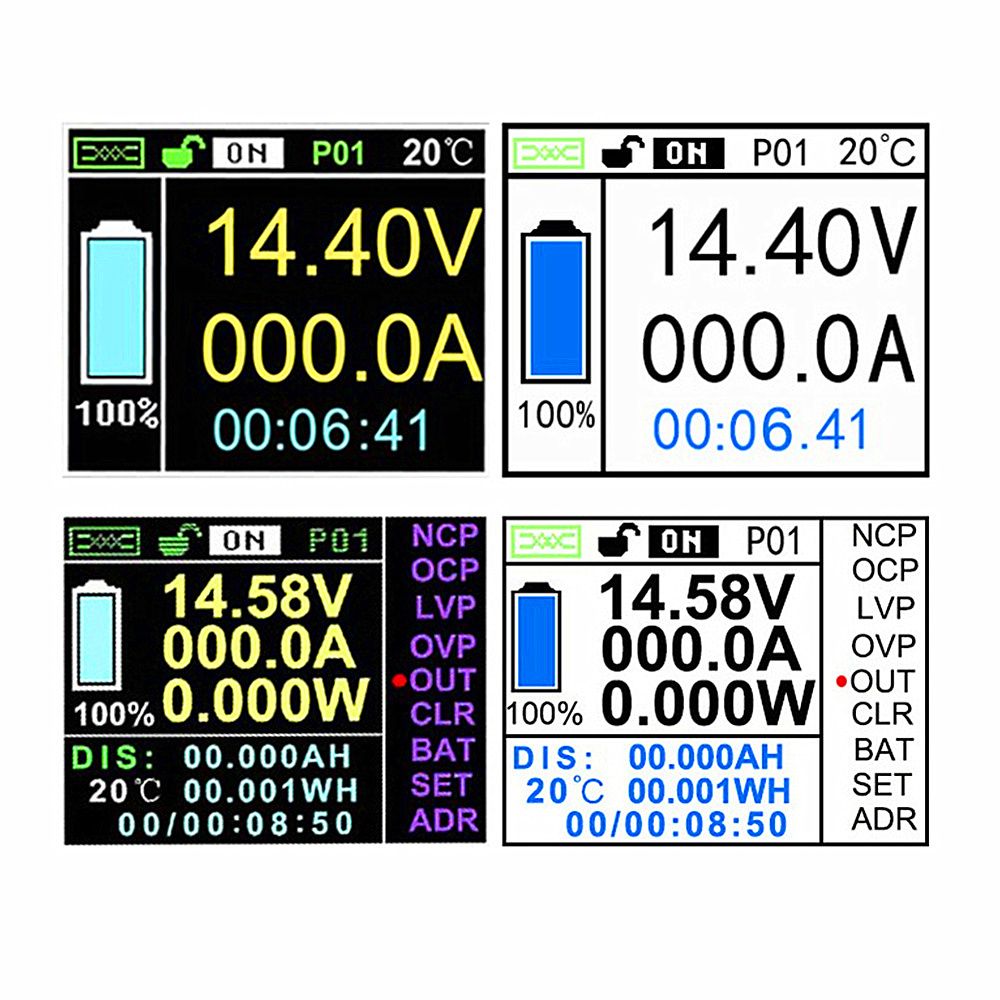

4. Display interface is divided into large font display interface, full-featured display interface and black and white display interface, to ensure that the sun can clearly see the display parameters.

5. Equipped with relays to achieve circuit over-current protection, over-voltage protection, under-voltage protection.

6. During the measurement, the ampere hours, watt hours and time can be cleared without affecting the next measurement.

7. The display can be set to extinguish the screen, press any key to wake up the screen.

8. Button touch buttons, feel comfortable, clean and elegant interface.

9. Wireless mode can set different communication address, multiple machines at the same time do not interfere with each other.

Technical indicators:

Voltage measurement range	0~100V
Voltage resolution	0.01V
Current measurement range	0~100A
Current resolution	0.1A
Temperature measurement range	-20~120 ℃
Capacity display range	0%~100%
Power measurement range	0~200kW
Power resolution	0.001W
AH measurement range	0~2000kAH
Capacity resolution	0.001AH
Watt-hour measurement range	0~4000kWH
Watt-hour accuracy	0.001WH
Time measurement range	0 ~ 99 days
Time resolution	1 second
Communication channel range	A ~ Z (26 channels)
Communication channel range	01~99
Voltage accuracy	± 2% + 3 words
Current accuracy	± 5% + 10 words
Sampling rate	5 times / second
Communication distance	up to 10 meters
Measurement module power consumption	About 0.4W
Display module power consumption	0.5W
NCP	0 ~ 300A (negative over-current protection setting)
OCP	0 ~ 300A (positive over-current protection setting)
OVP	0 ~ 100V (over-voltage protection setting)
LVP	0 ~ 100V (under-voltage protection setting)
Protection delay time	0 ~ 10s

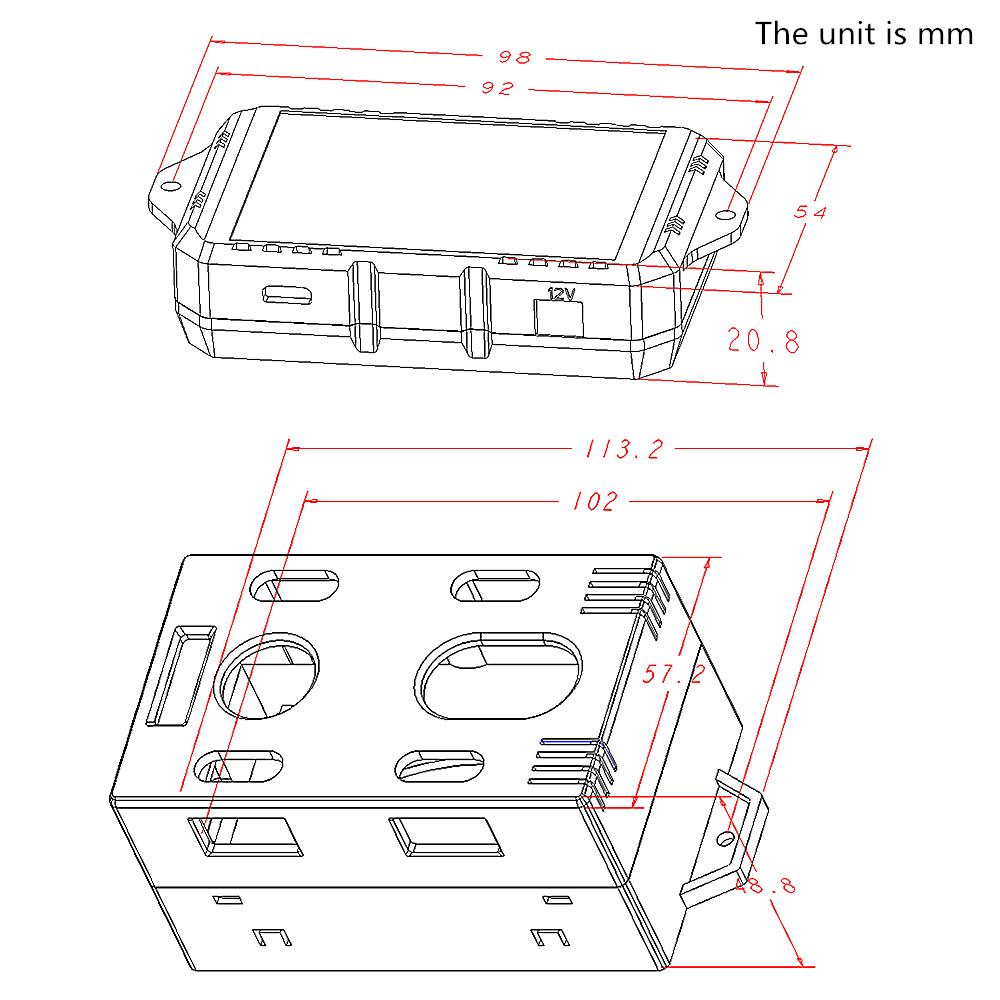

Size	14.5 x 10.5 x 8.5cm
Weight	360g

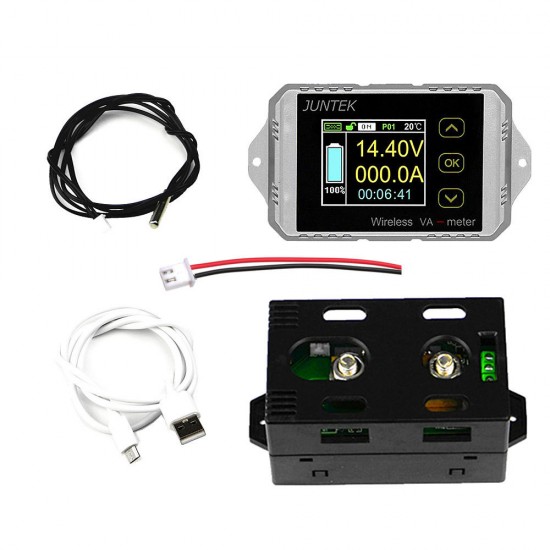

Package includes:

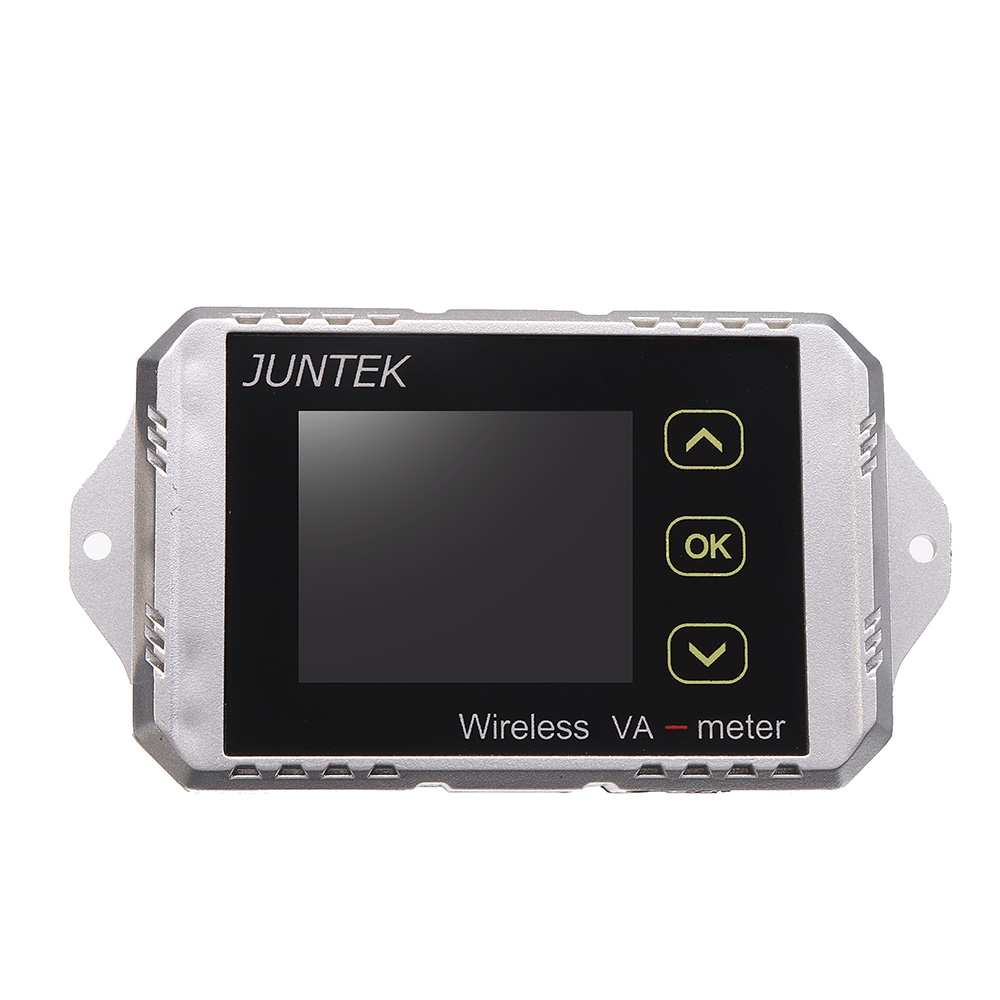

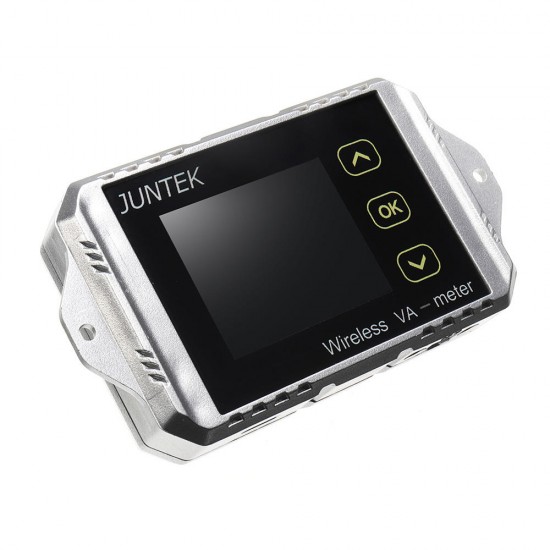

1 x Display module

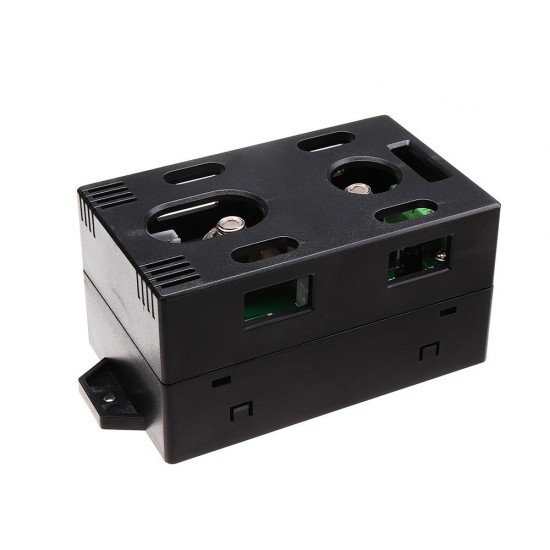

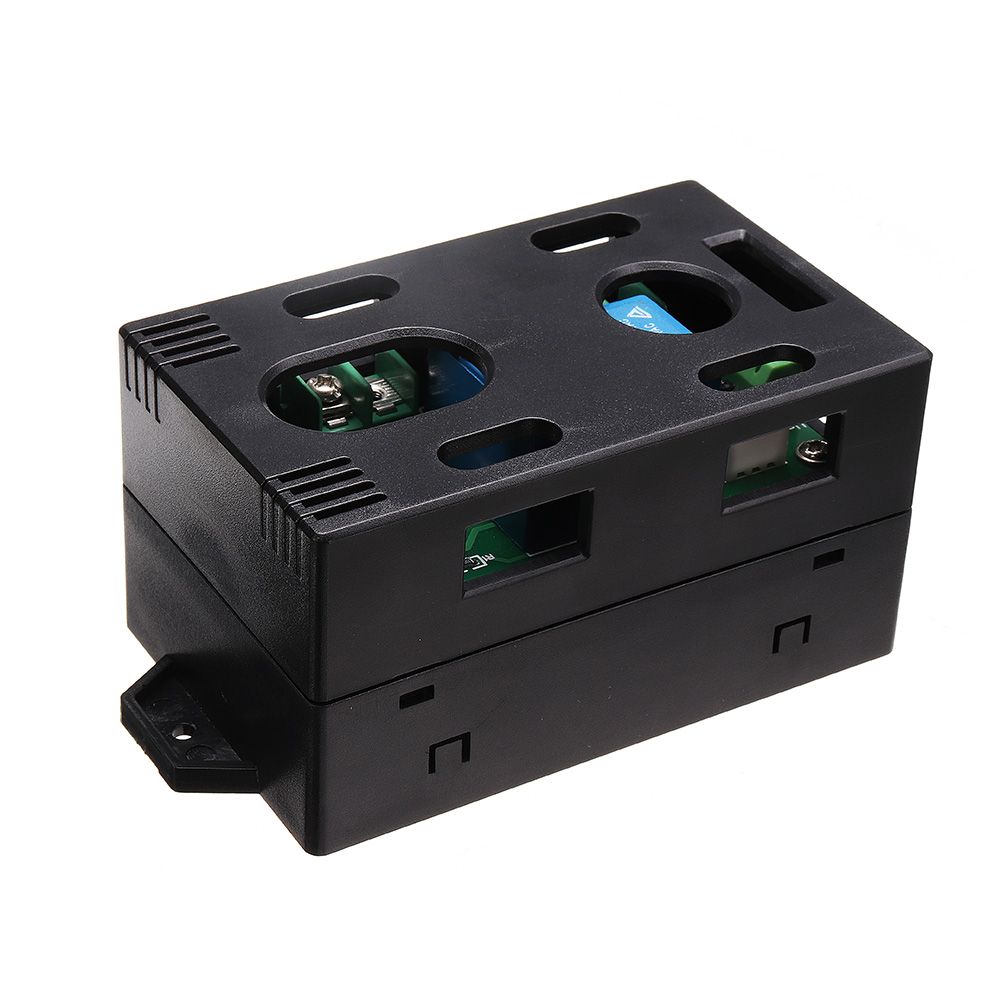

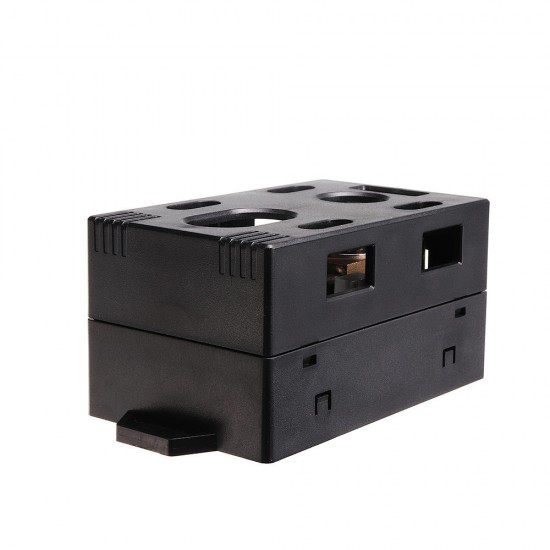

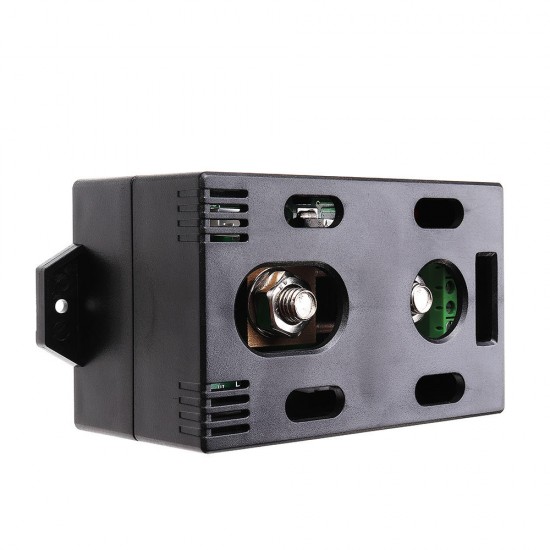

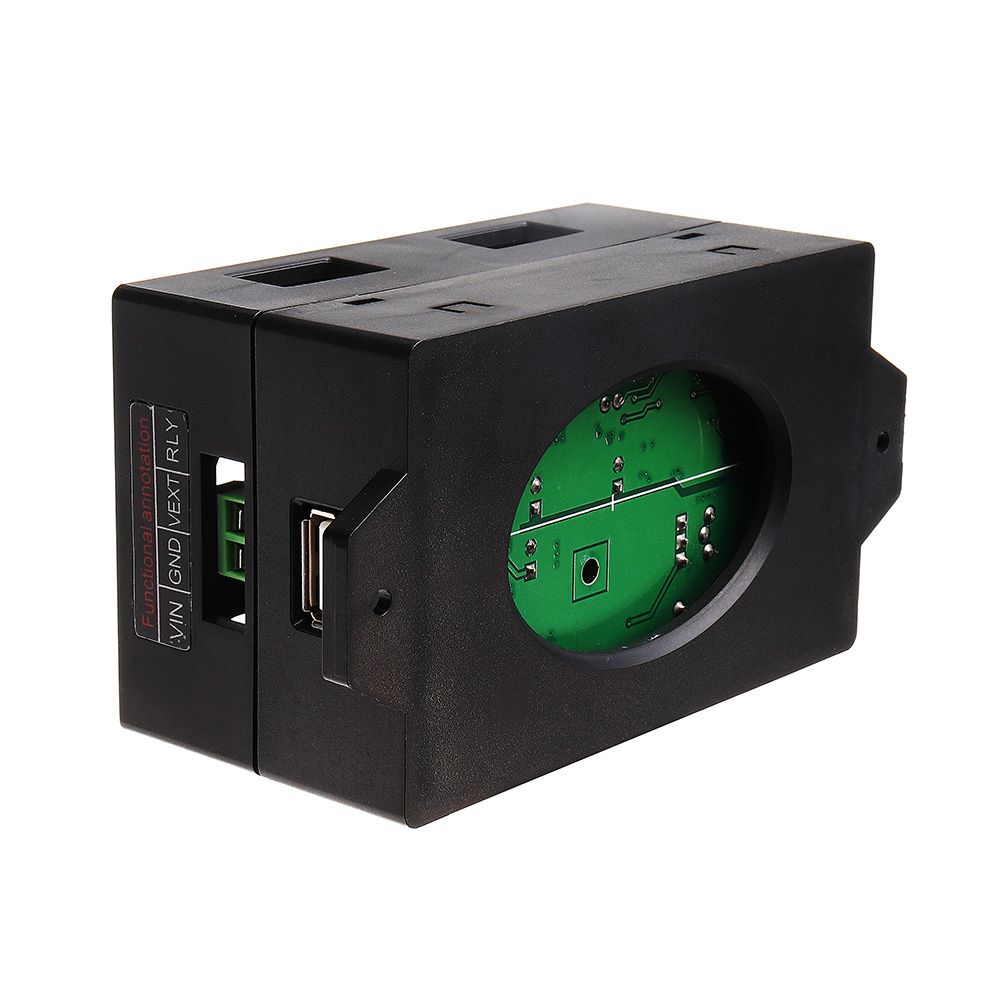

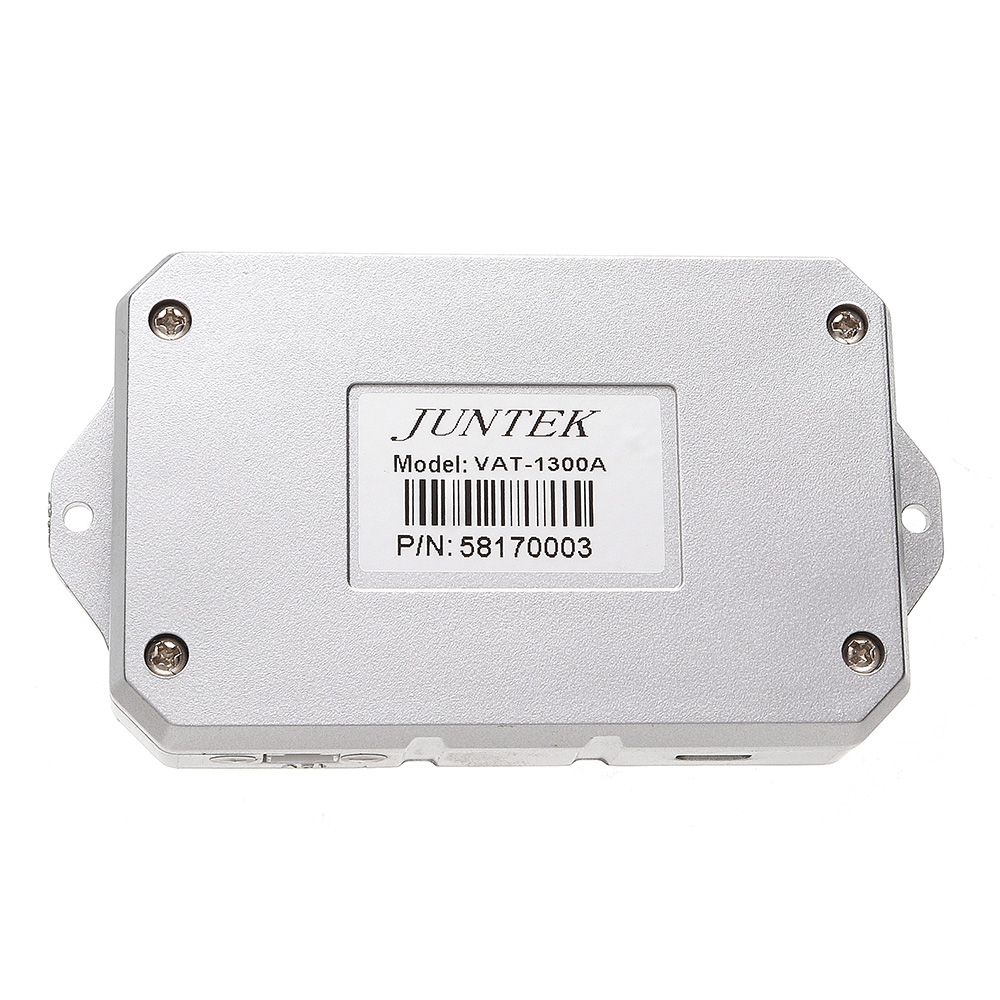

1 x Measurement module

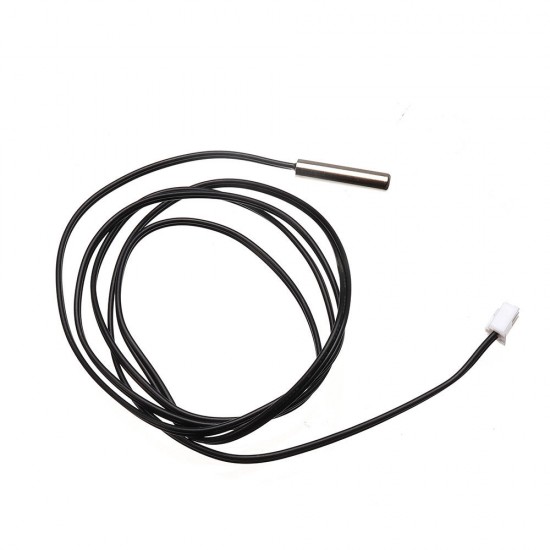

1 x Temperature sensor

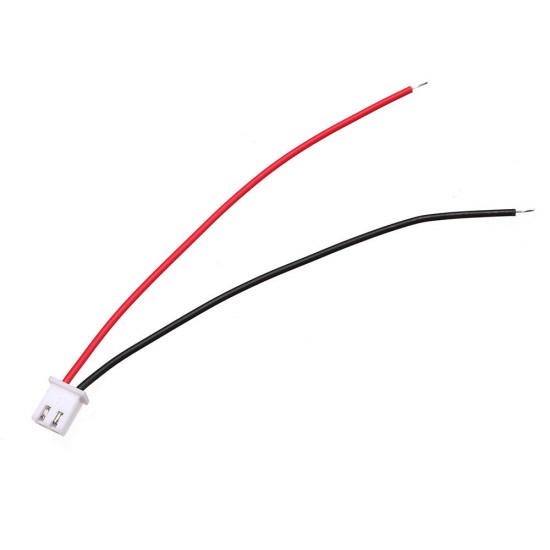

1 x Extension interface 2P line

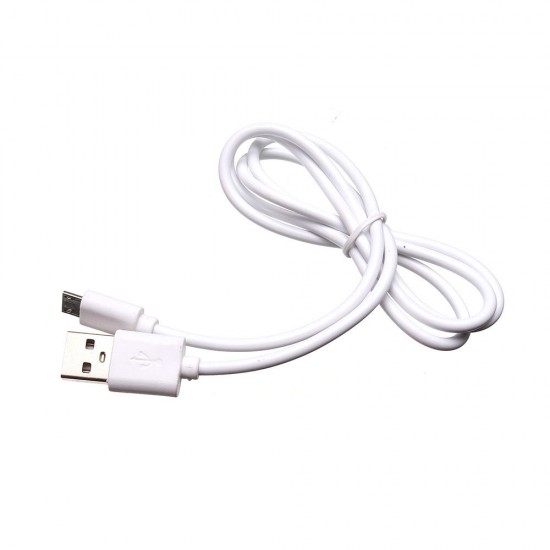

1 x USB cable

1 x EN instruction

VAT1100-Wireless-DC-Voltmeter-Current-Tester-Watt-Measurement-Digital-Display-Electric-Garage-Meter--1293741
