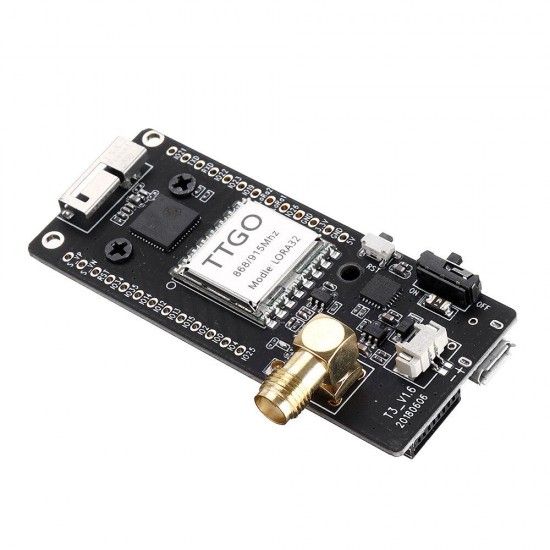

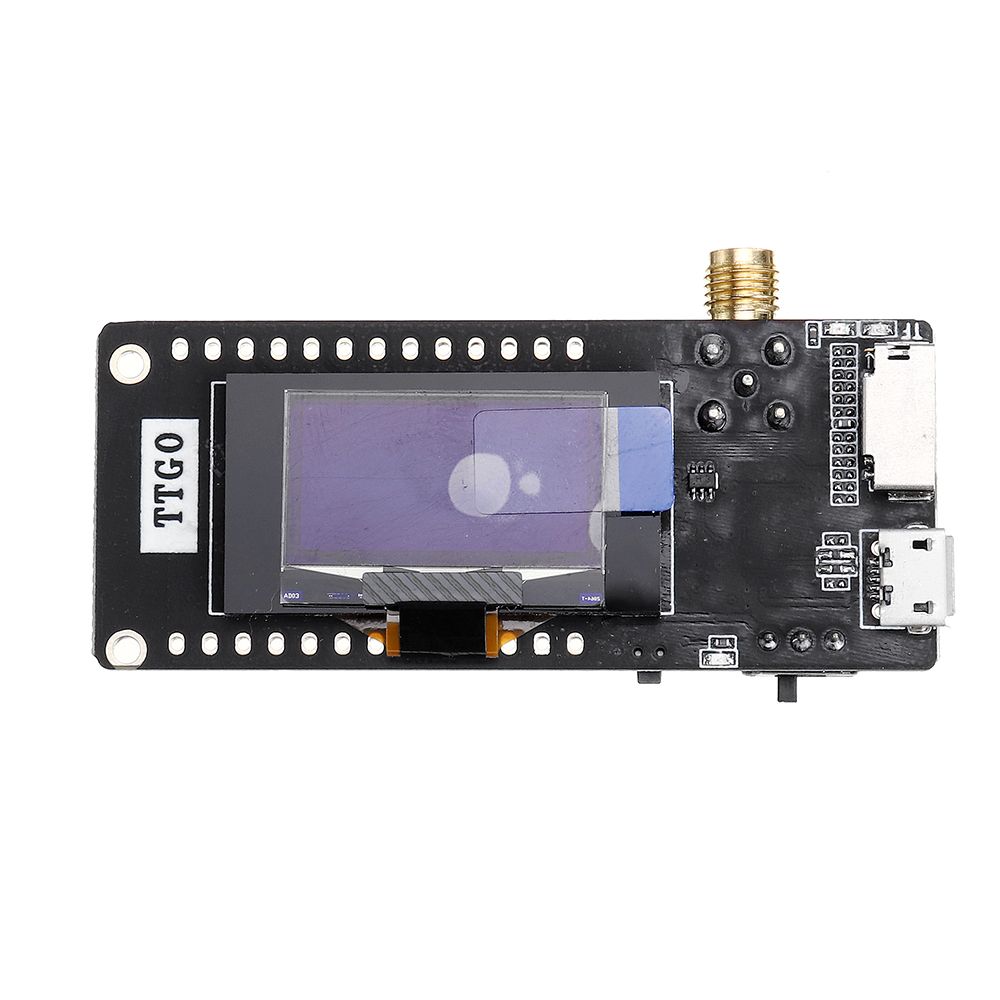

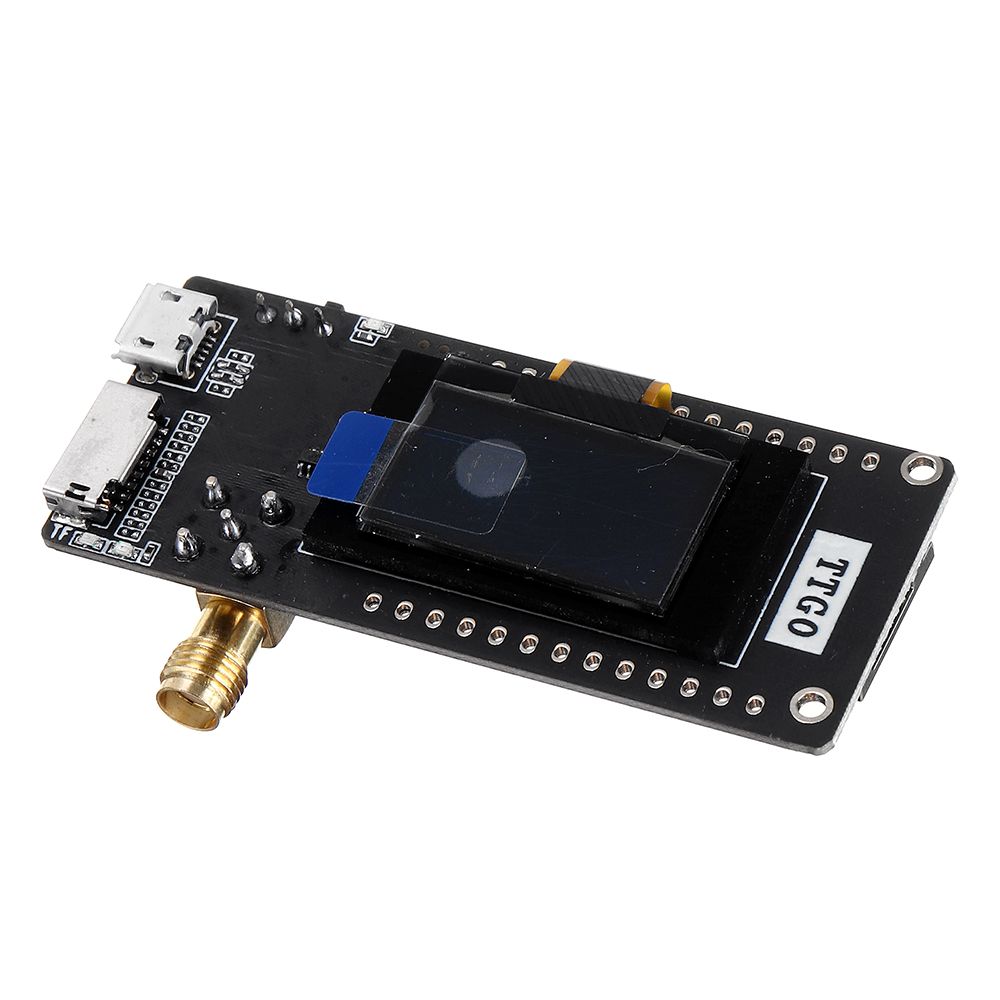

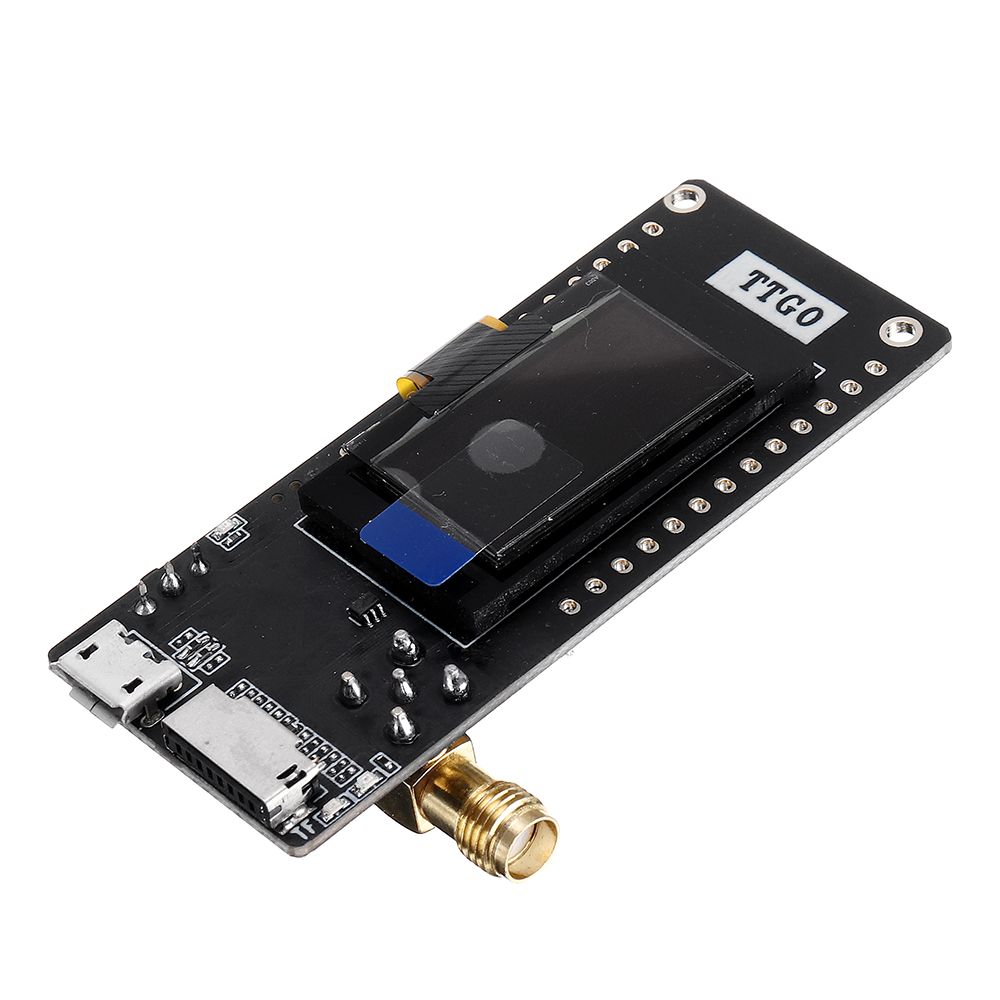

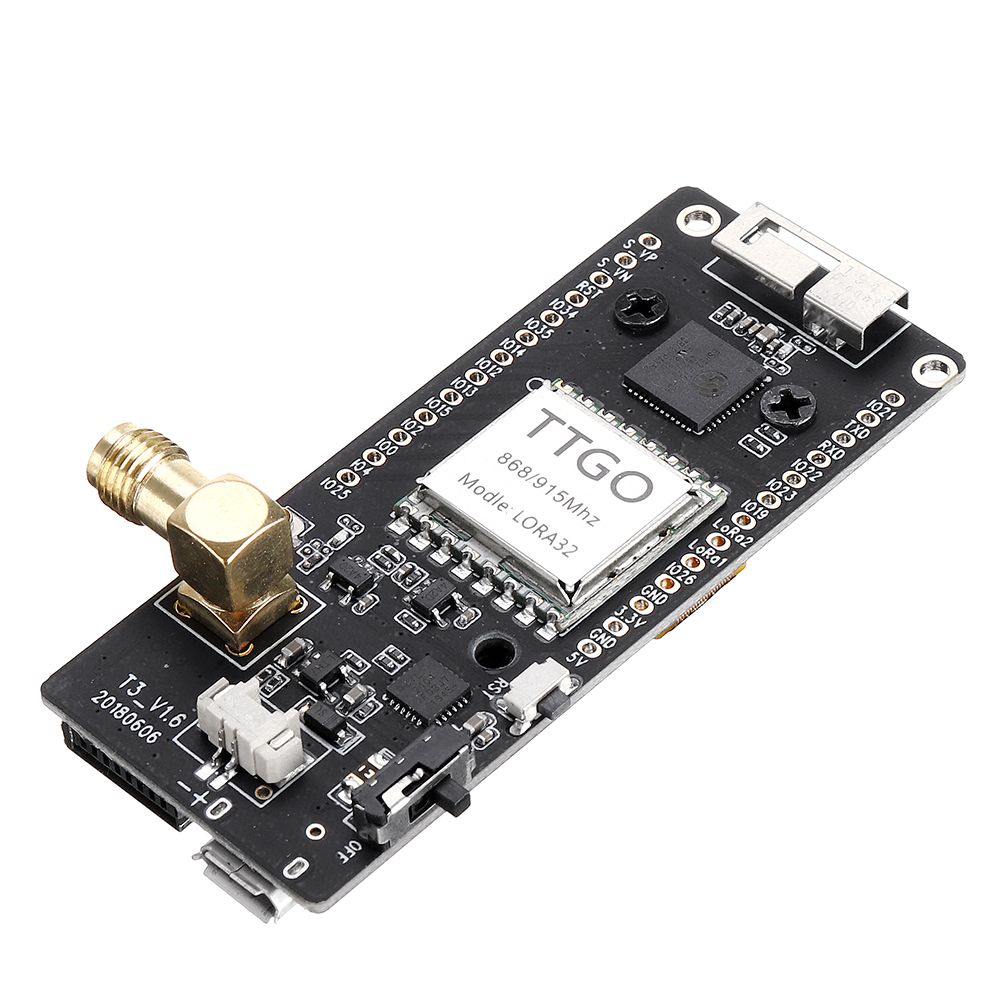

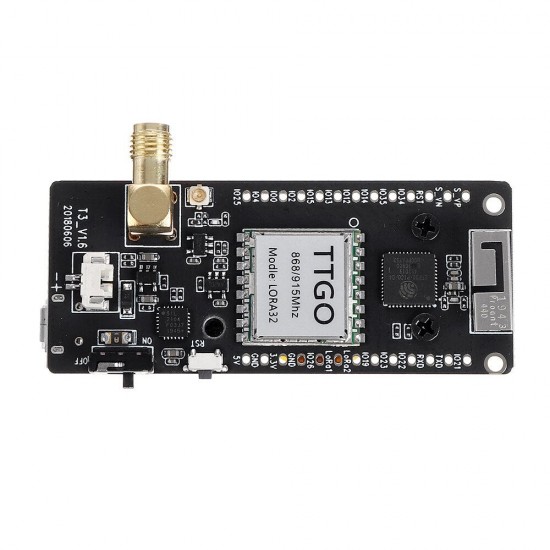

V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306

V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
V2.1 ESP32 433MHz/868MHz/915MHz OLED 0.96 Inch SD Card bluetooth WIFI Wireless Module SMA IP5306
$35.99
Ex Tax: $35.99
  • Stock: In Stock
  • Model: EB0041904
  • SKU: EB0041904

Available Options

  • Build-in Bluetooth: Yes
  • WiFi: YES
Precise details>>
Note: The chip version is gradually updated to CH9102.

Specifications:

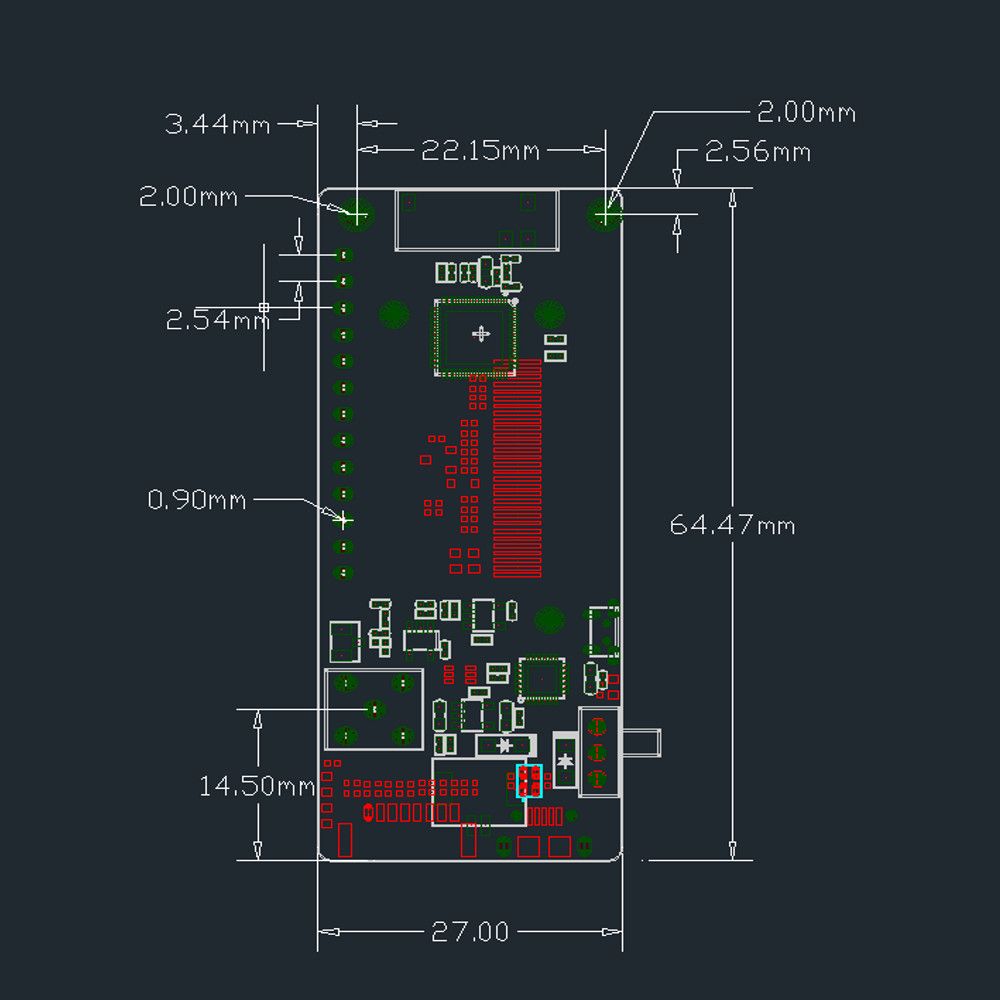

Size: app.6.4cmx2.8cm / 2.52inx0.71in
Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
                              90mA@+17dBm
                              29mA@+13dBm
Operating frequency: 868M/915MHz/433MHz
Transmit power: +20dBm
Receive sensitivity : -139dBm @ LoRa&62.5Khz&SF = 12&146bps
-136dBm @ LoRa&125Khz&SF = 12&293bps
-118dBm @ LoRa&125Khz&SF = 6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error:+/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
                   0.018K~37.5Kbps@LoRa
Modulation Mode: FSK,GFSK,MSK,GMSK,LoRa TM,OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
                           1.5uA@IDLE
Operating temperature: -40°- +85°
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler
SMA Antenna

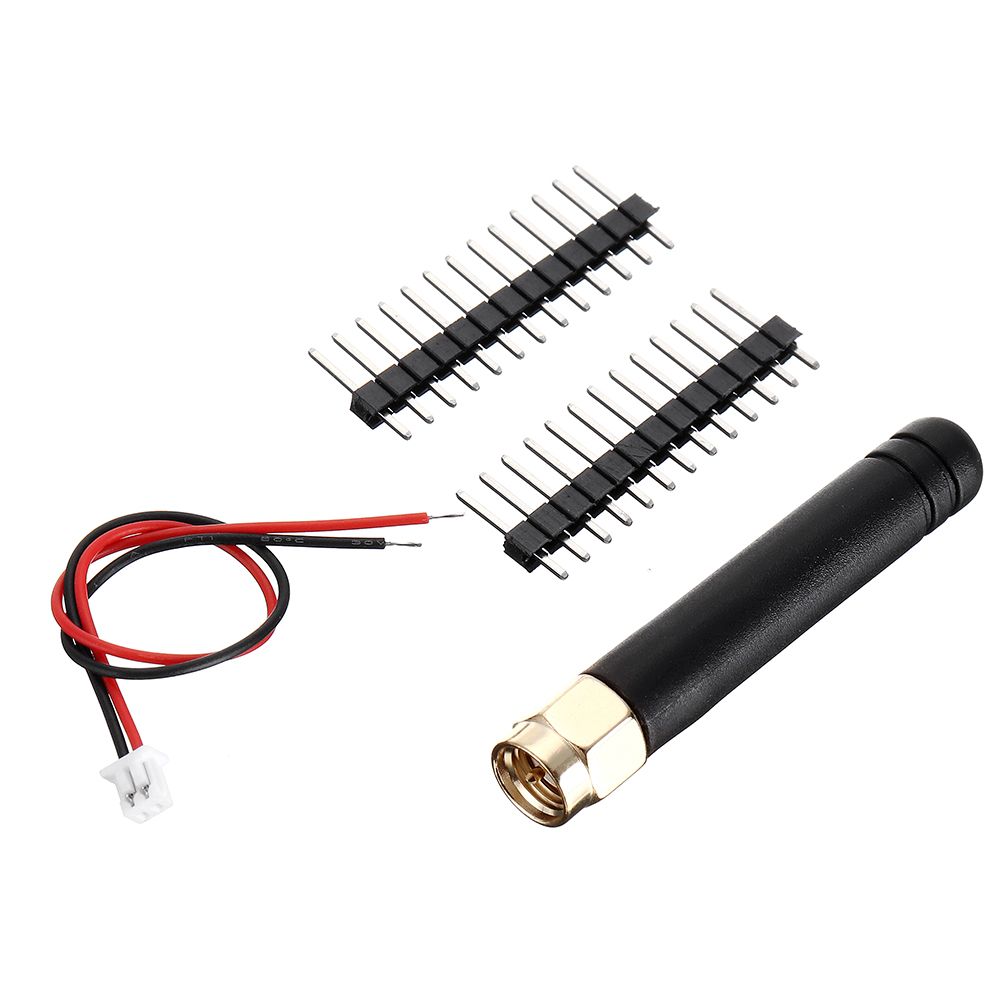

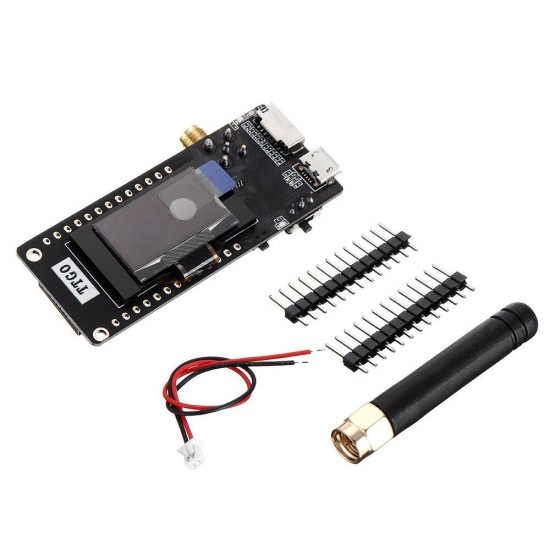

Package includes:

1 x TTGO LoRa32 V2.1 868/915 Module
2 x Pin
1 x Antenna
1 x Power Cable
