V1.1 ATMega328 Module with Grove Interface UNO Compatible Development Board

Based on 0 reviews. - Write a review

$19.43

Ex Tax: $19.43

Stock: In Stock
Model: EB0041984
SKU: EB0041984

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Product Details:

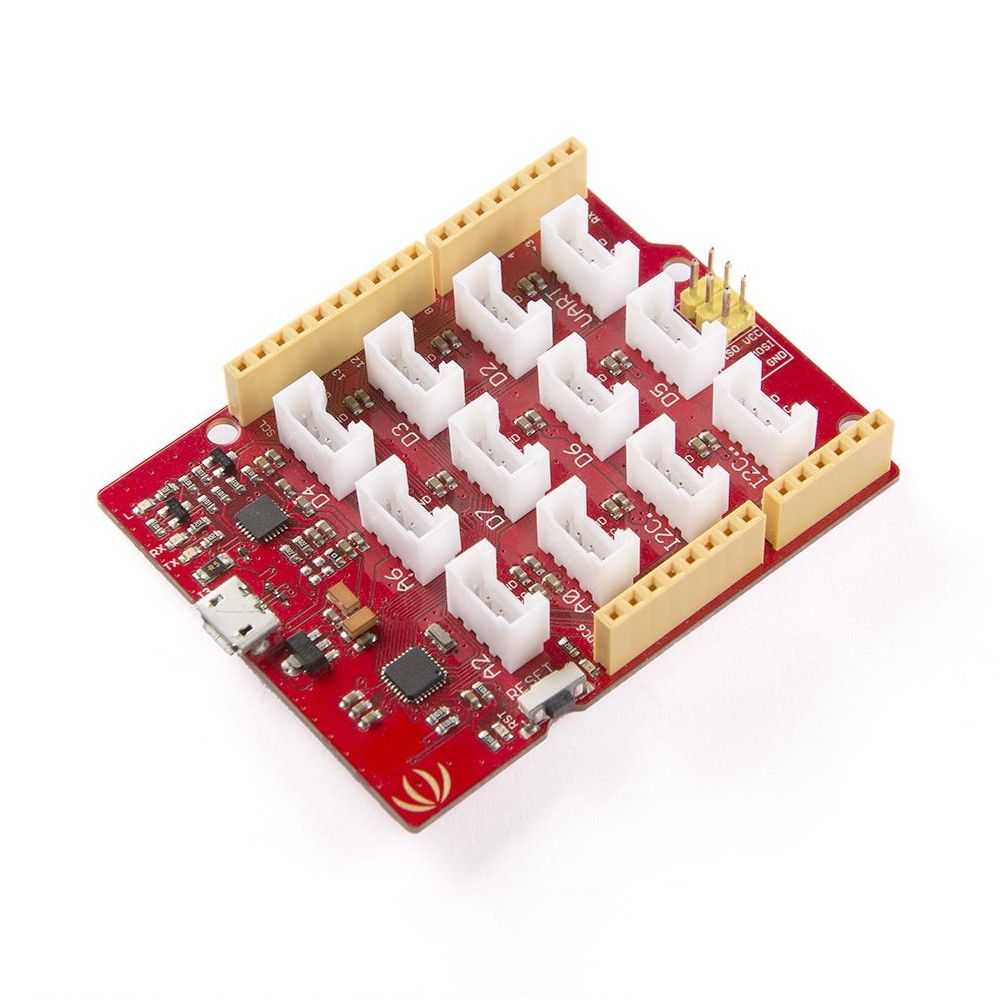

If you have experience using the board plus a base shield, you would know how easy it is because there is no jumper wire and soldering. In order to make it more convenient, we created this board, a 2 in 1 solution of board and base shield. It turns out the board is very welcome because it combines the advantages of the board and base shield and also very cost-effective. This time we’d like to introduce the new version to you.

This is a small update of the V1.0 version, we only changed the USB bus converter chip CH340 to CP2102N in order to make this board more compatible with Mac OS. Despite this change, the board is still based on ATMEGA328P-MU, a high performance, low power 8-Bit AVR Microcontroller. It is still Arduino compatible and has rich peripherals including digital interface, analog interface, I2C, SPI, UART.

The update of hardware might be small, while the reduction of price is huge. Even though the hardware is almost the same to the V1.0 version, the price of V1.1 is almost half of the V1.0. We have made a lot of cost down work to make this progress. The result is that you will have better experience and save more money. No matter you are using Windows or Mac OS, if want to build something based on Arduino quickly and conveniently, this board is the best for you.

Feature:

Combination of Seeeduino and base shield.

Arduino UNO Compatible

On-board Grove connector

Mac OS compatible.

Cost effective

Weight	G.W 21g
Battery	Exclude
Microcontroller	ATmega328P-MU
Operating Voltage	5V
DC Current per I/O Pin	40 mA
Flash Memory	32 KB (ATmega328P-MU)
RAM	2 KB (ATmega328P-MU)
EEPROM	1 KB (ATmega328P-MU)
Clock Speed	16 MHz

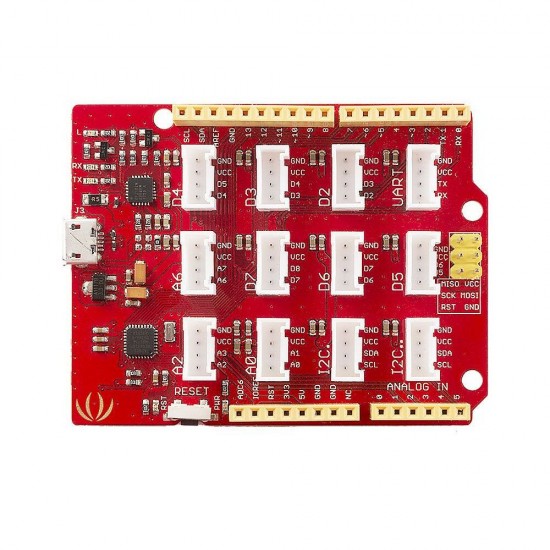

Digital Interface	D2,D3,D4,D5,D6,D7
Analog Interface	A0,A2,A4,A6
Other	I2C *2, SPI, UART

Documents:

wiki: Click here to open

Package includes:

1 x ATMega328 Board
