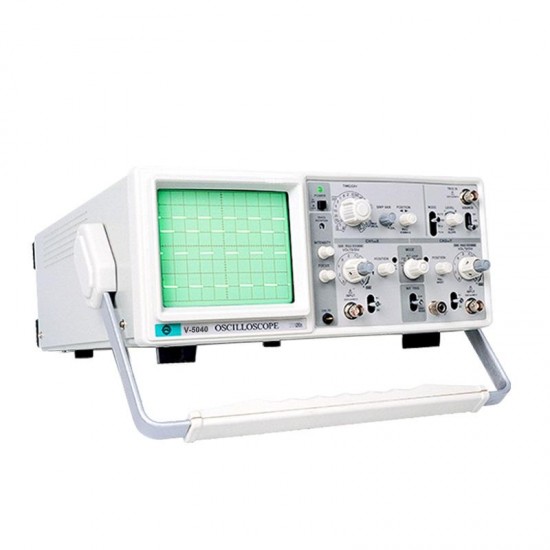

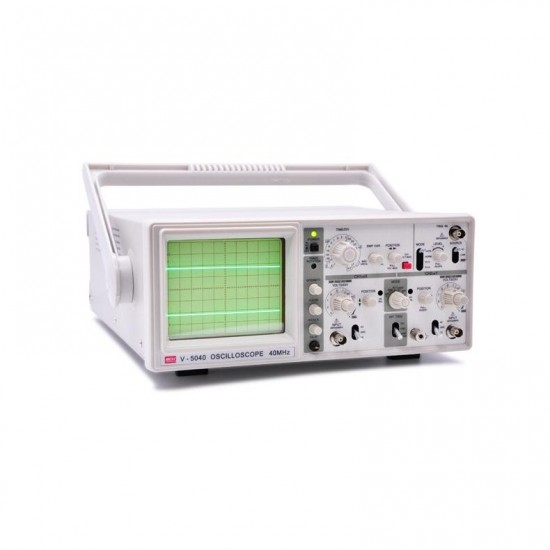

V-5040 Handheld Oscilloscope 40Mhz Analog Oscilloscope with 6'' CRT 2 Channels 2 Tracing Dual Channel Analogue Oscilloscope
- Stock: In Stock
- Model: EB004594
- SKU: EB004594
Specification:
| Model | V-5040 | V-5060 |
| CRT | 6 inch rectangular screen with internal graticule, 8X10div (1div = 1cm) | |
| Verticaldeflection | ||
| Display mode | CH1, CH2, ADD, ALT, CHOP | |
| Deflection factor | 5mV/div to 5V/div ±3%, 1mV/div to 1V/div ±5%(X5),10 steps | |
| Rise time | ≤8.8ns | ≤5.9ns |
| Max. Input voltage | 250V (DC+AC peak) ≤1KHz | |
| Input coupling | AC, DC, GND | |
| Polarity selection | + or - (CH2 only) (仅CH2) | |
| Horizontal deflection | ||
| Display mode | 1, 10, X-Y | |
| Time Base | 0.2ms/div to 0.2s/div,9 ranges | |
| Sweep magnification | x10 | |
| CH1 ALT Magnification | x10 | |
| Accuracy | ±3% | |
| Trigger System | ||
| Trigger mode | NORM , AUTO, TV-V, TV-H | |
| Trigger source | CH1, CH2, VERT, LINE, EXT | |
| Sensitivity and Frequency | 20Hz~40MHz(VERT) | 20Hz~60MHz(VERT) |
| AUTO, NORM | 1.5div(INT), 0.8Vp-p(EXT) | |
| TV-V, TV-H | At least 1div or 1Vp-p (大于一格或1.0Vp-p) | |
| Input impedance | 1MΩ | |
| X-Y Operation | ||
| X-Y Phase difference | ≤3°, DC-50kHz | |
| Others | ||
| Calibration waveform | Frequency: 1kHz ±20%, Voltage: 0.5V ±10% | |
| Power supply | 220V/110V ±10%; 50/60Hz | |

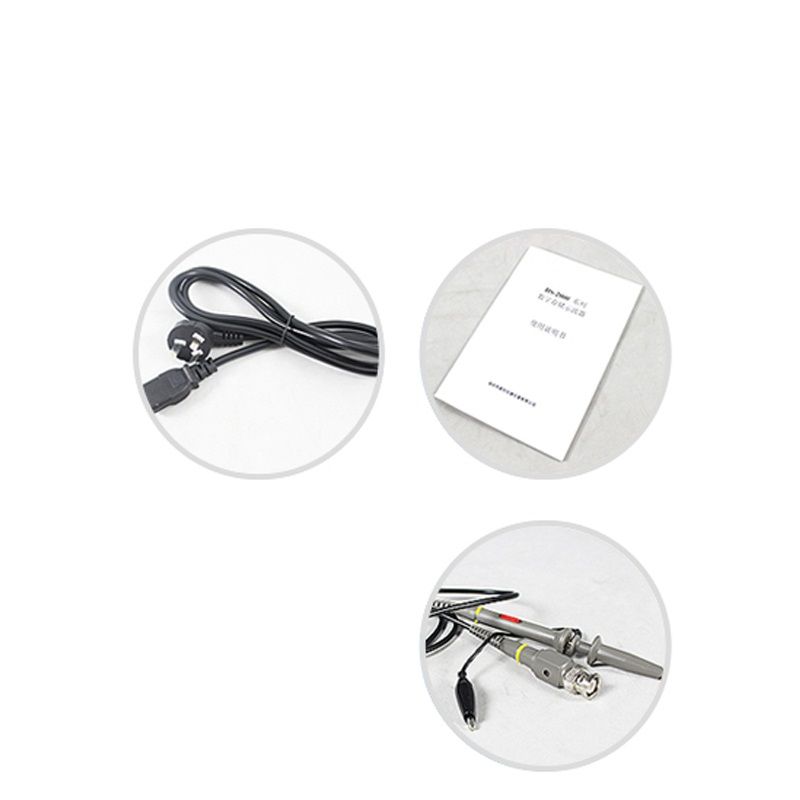

Package Includes:
1 x Analog Oscilloscope
1 x Power Supply

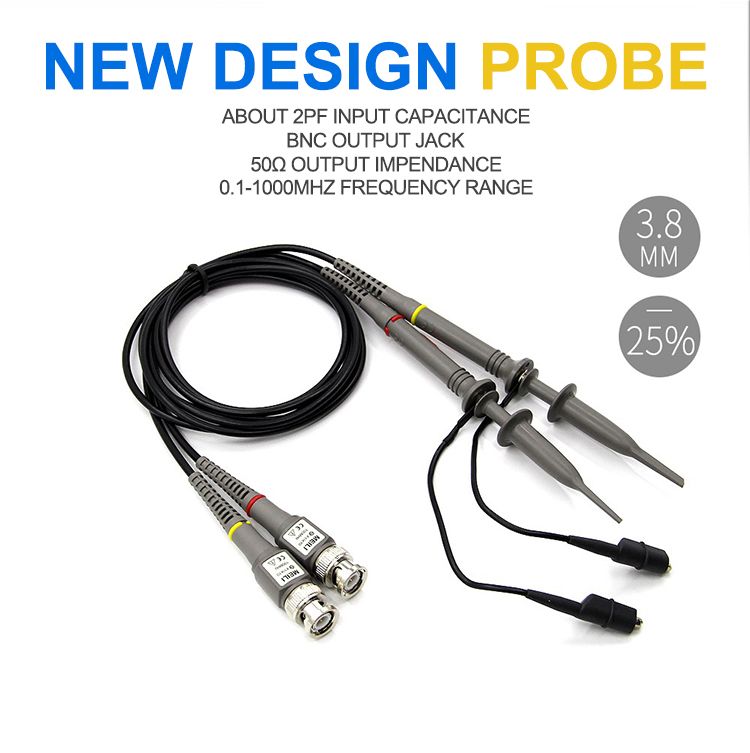

1 x Pair of Test Probes
Note:
We will send you a plug adapter according to your country.

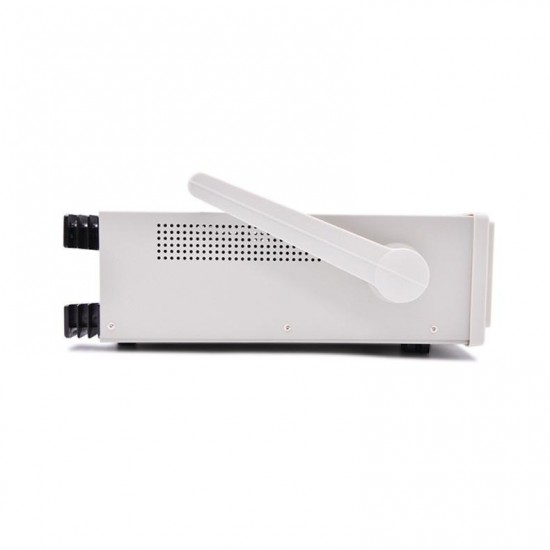

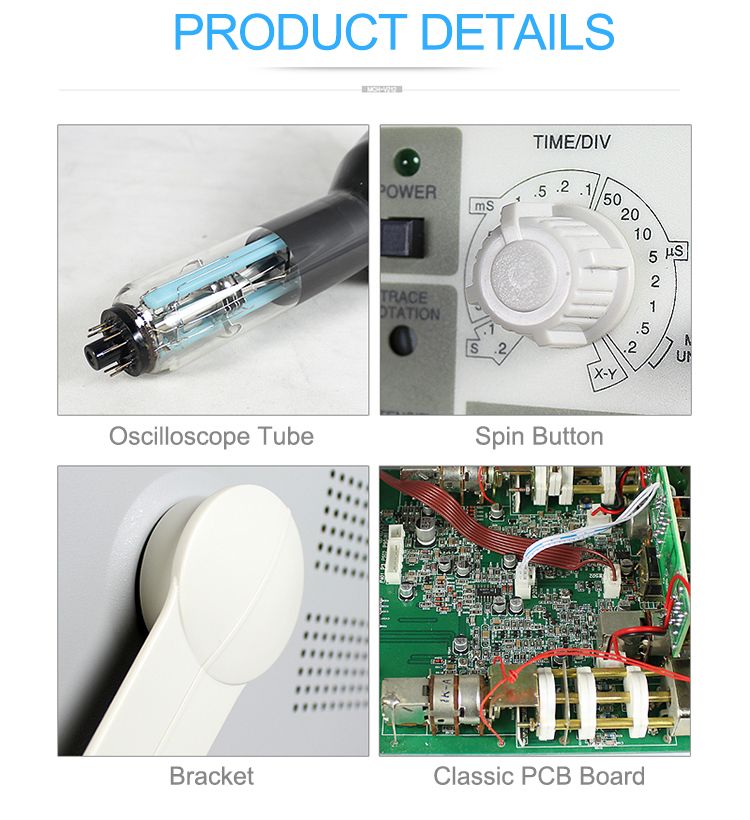

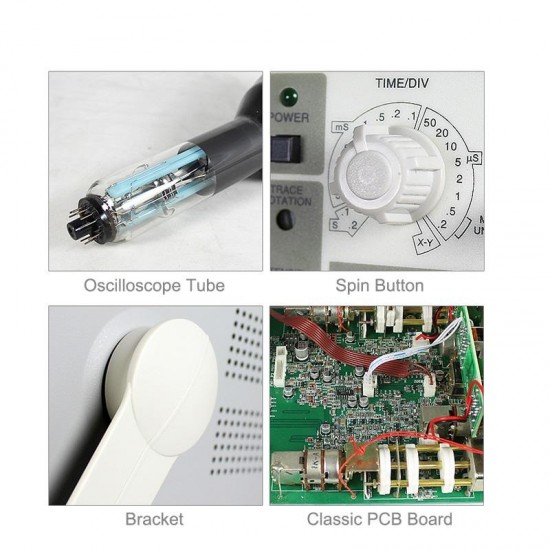

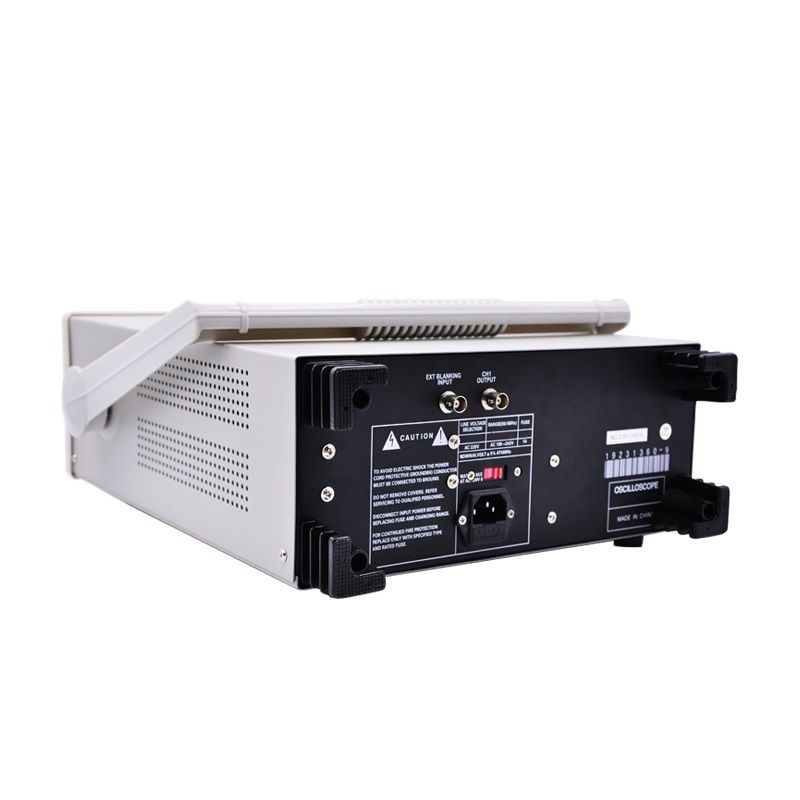

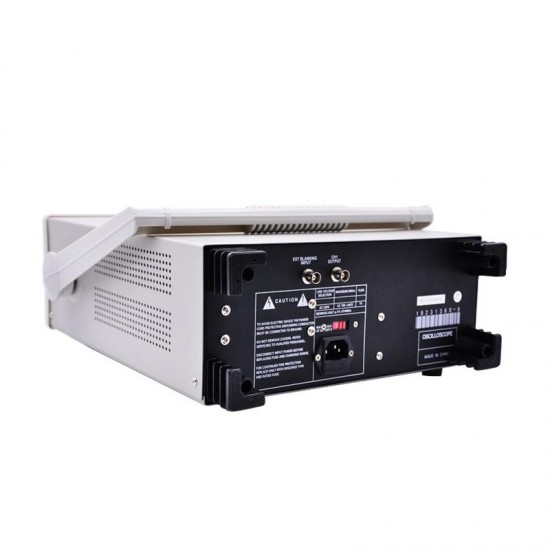

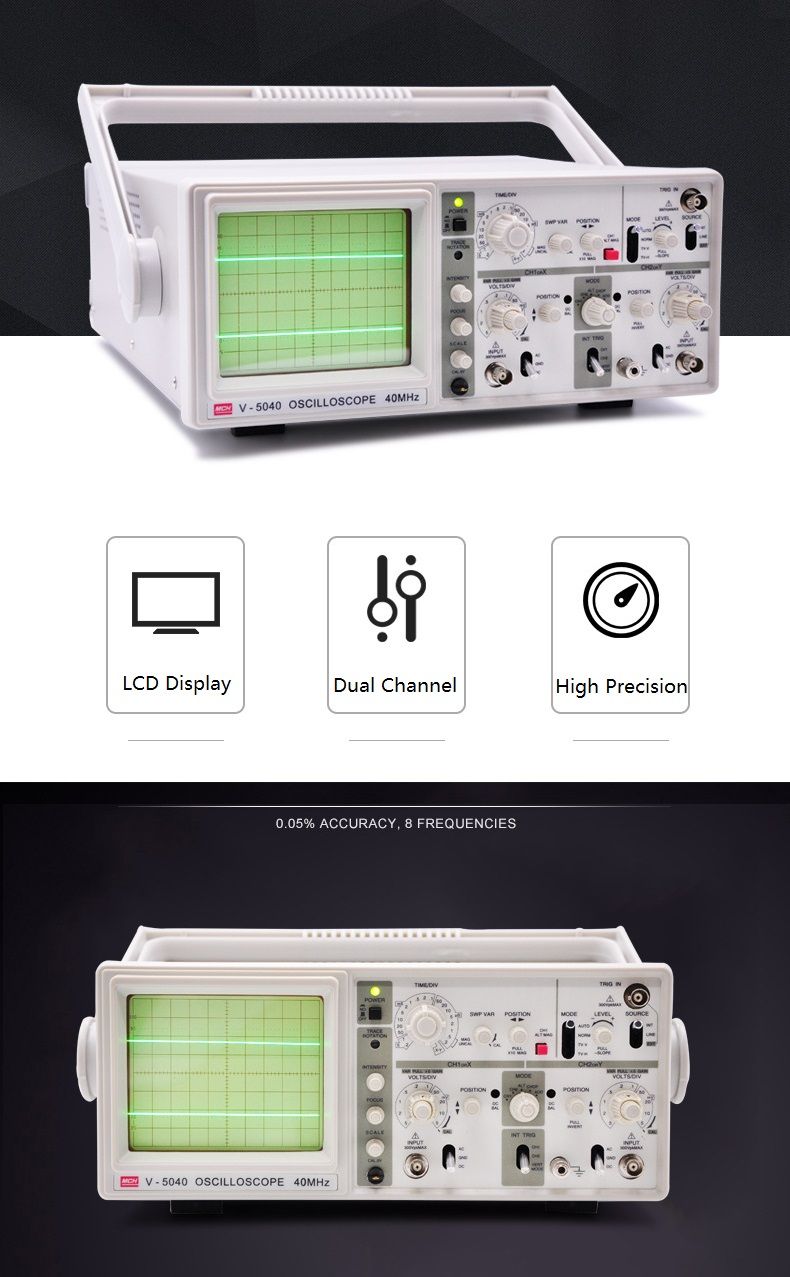

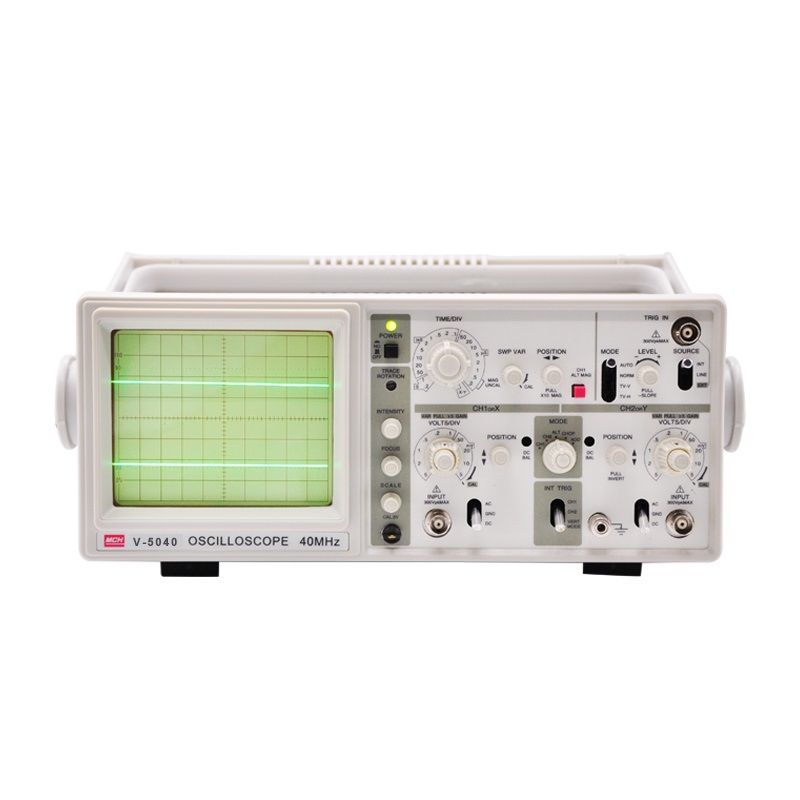

Details Pictures:
