Ultrasonic Sensor Module Distance Measuring Meter Ranging Sensor 1cm-600cm Adjustable Relay Output with Probe and Display 12V/24V DC

Based on 0 reviews. - Write a review

$36.99

Ex Tax: $36.99

Stock: In Stock
Model: EB0043830
SKU: EB0043830

Available Options

Voltage

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

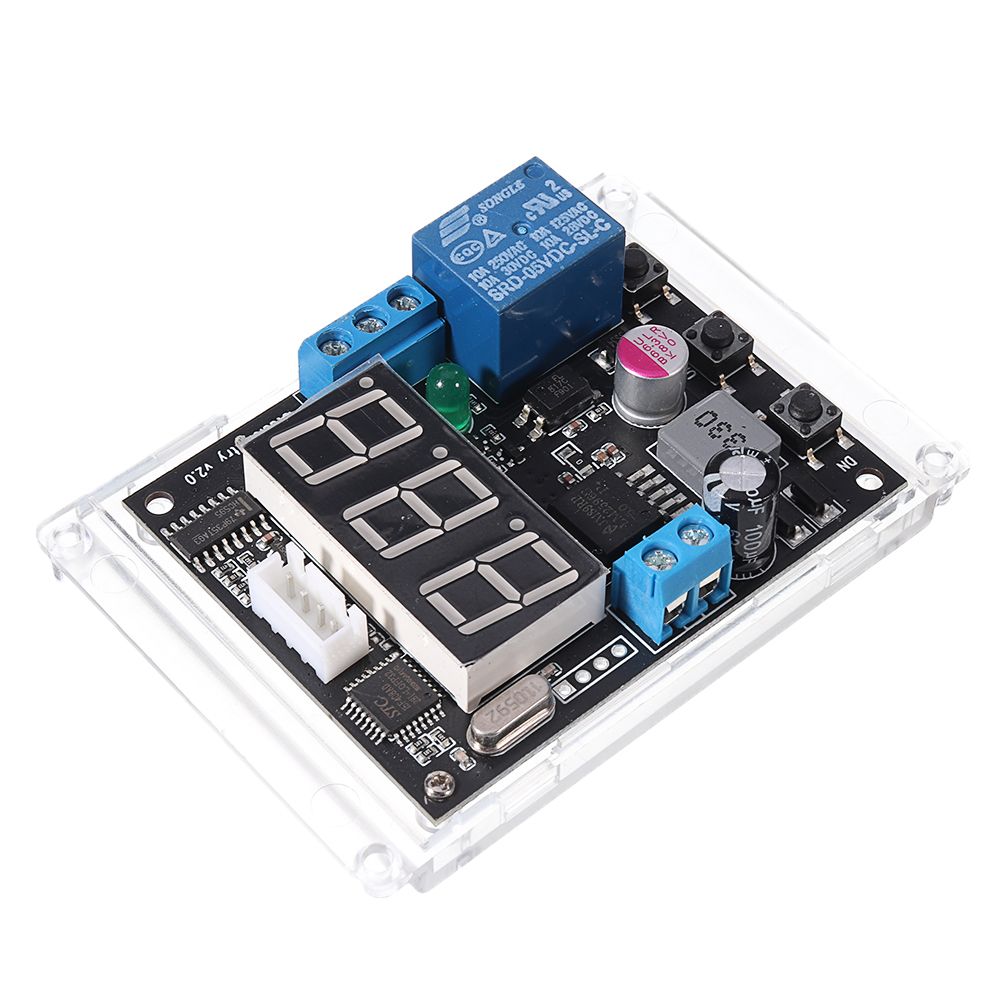

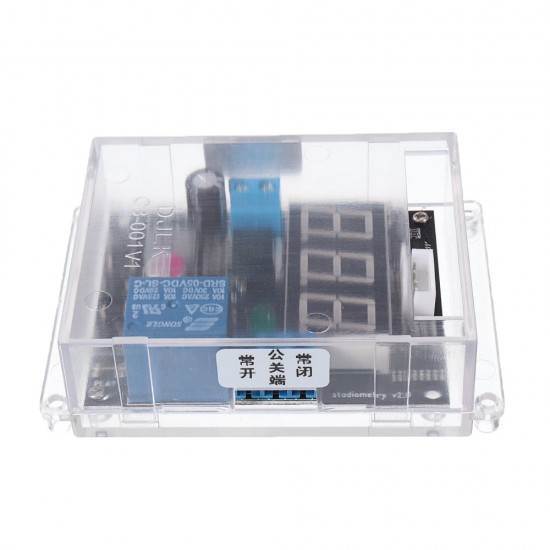

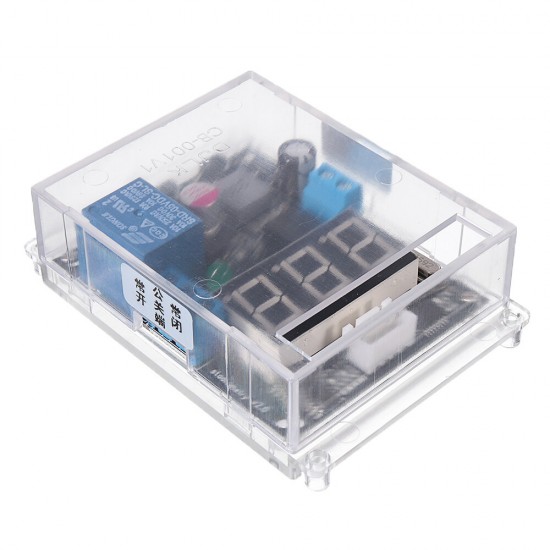

1. The CB-001-V2 ultrasonic ranging three-in-one module is designed using non-contact test ultrasonic detection technology. The product can accurately detect the distance from a flat object in the range of 1cm to 600cm, and can accurately measure people in the range of 1cm to 230cm.

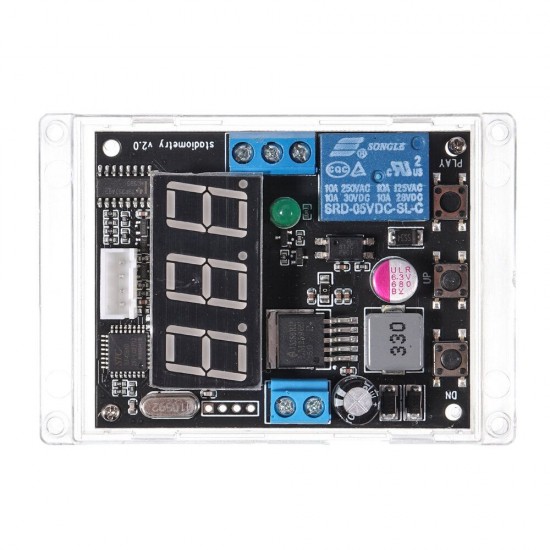

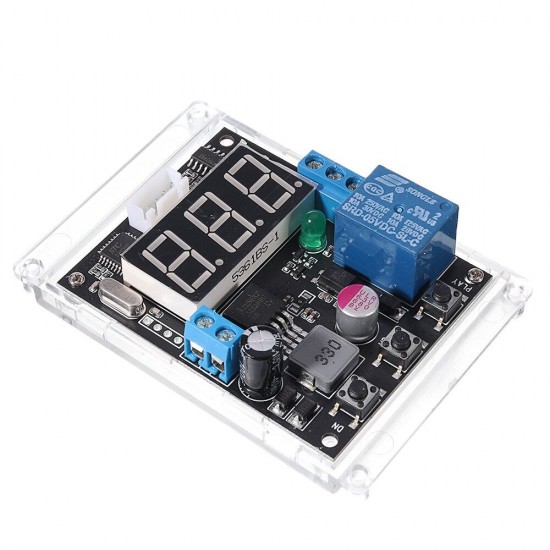

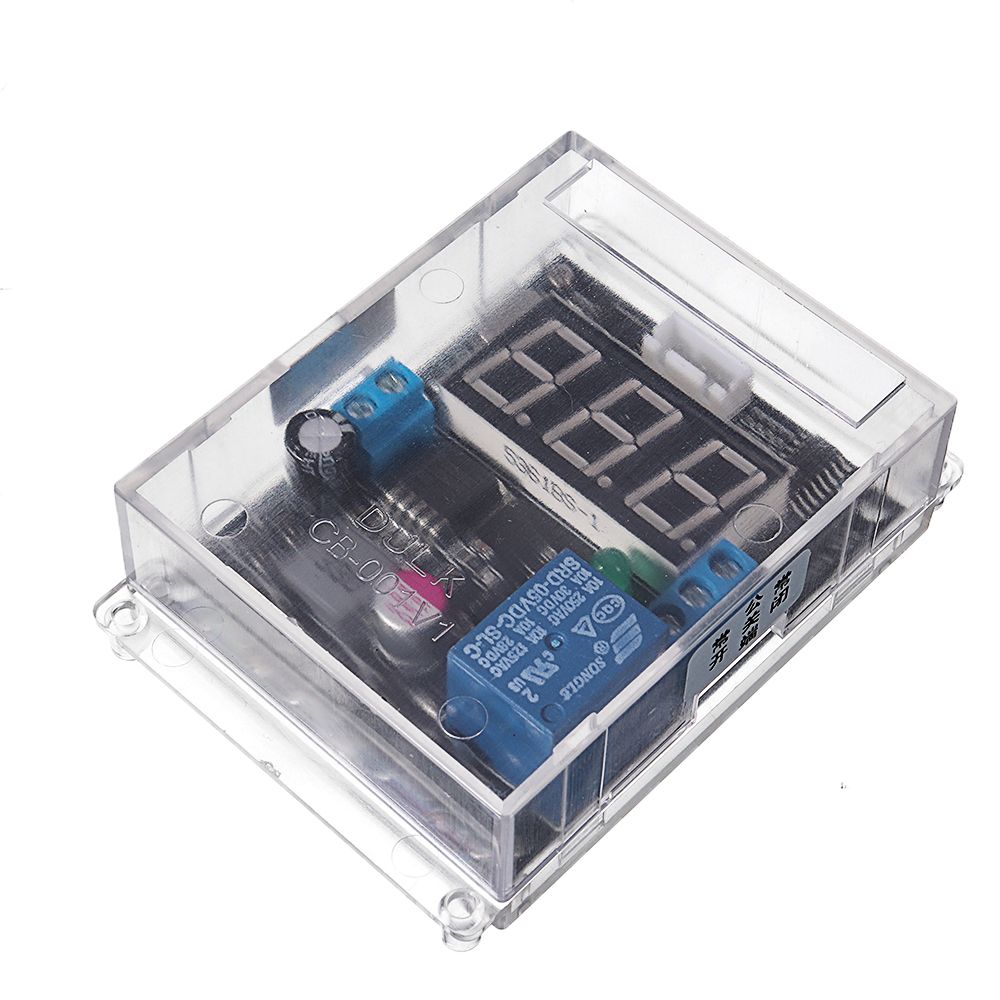

2. This product can match a variety of ultrasonic ranging modules with serial port output, can customize the actual practical measurement range (with digital tube display) and realize the relay normally open and closed dual output.

Specifications:

Parameter	specification			Unit	remark
	Minimum value	Typical value	Maximum	Unit	remark
Renhotec	10	12/24	30	V	DC
Input Current		35		MA	At 24V
output voltage		5		V
Data port level		5		V	TTL
Relay drive voltage	-	110	220	V	AC
Relay drive current		5	6	A
Digital tube display range	20	100/200	600	CM	(1)
Precision		1	2	cm	(2)
Measuring angle			8		(3)

Remarks:

(1) Adjustable range is 22cm-600cm

(2) The farther the measurement distance is, the larger the error is, which basically conforms to the linear proportional relationship.

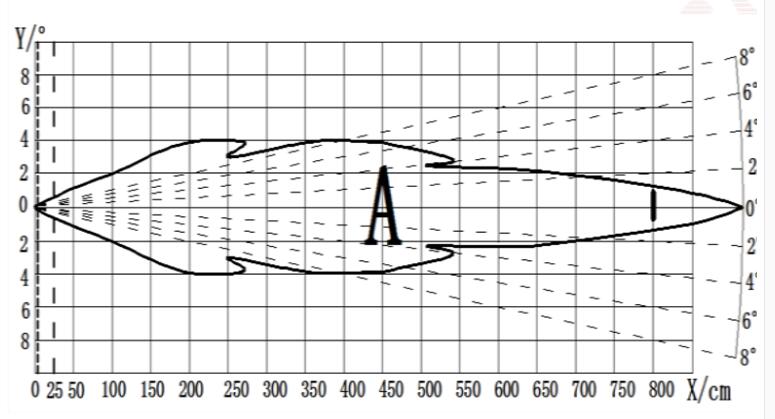

(3) Measuring angle characteristics such as the following wave speed map

Applications:

1. Horizontal ranging;

2. Obstacle avoidance and automatic control;

3. The object is close, there is awareness;

4. Traffic control;

5. Security and industrial control;

6. Artificial intelligence, teaching and research.

Instructions for Use:

This product can customize the trigger range, such as the ultrasonic module detection range 0-800cm, the actual application scenario needs 0-200cm trigger relay output, other measured values are not triggered, can be freely set by the product button.

The specific Operation is as Following:

1. long press the “Settings” button to flash the digital tube display, enter the upper limit setting mode, and the value displayed by the test digital tube is the upper limit value of the relay trigger.

2. the setting values are modified by the “+” and “-” keys. Short press the default increase/decrease by 1cm. Long press to continuously increase or decrease.

Note that the upper limit of the setting needs to be larger than the dead zone value of the matching module and smaller than the maximum range of the ranging

module.

Note:

Detect the starting point, the default is the surface of the probe, and the plane of the bell mouth needs to be reduced by 33mm

Package Included:

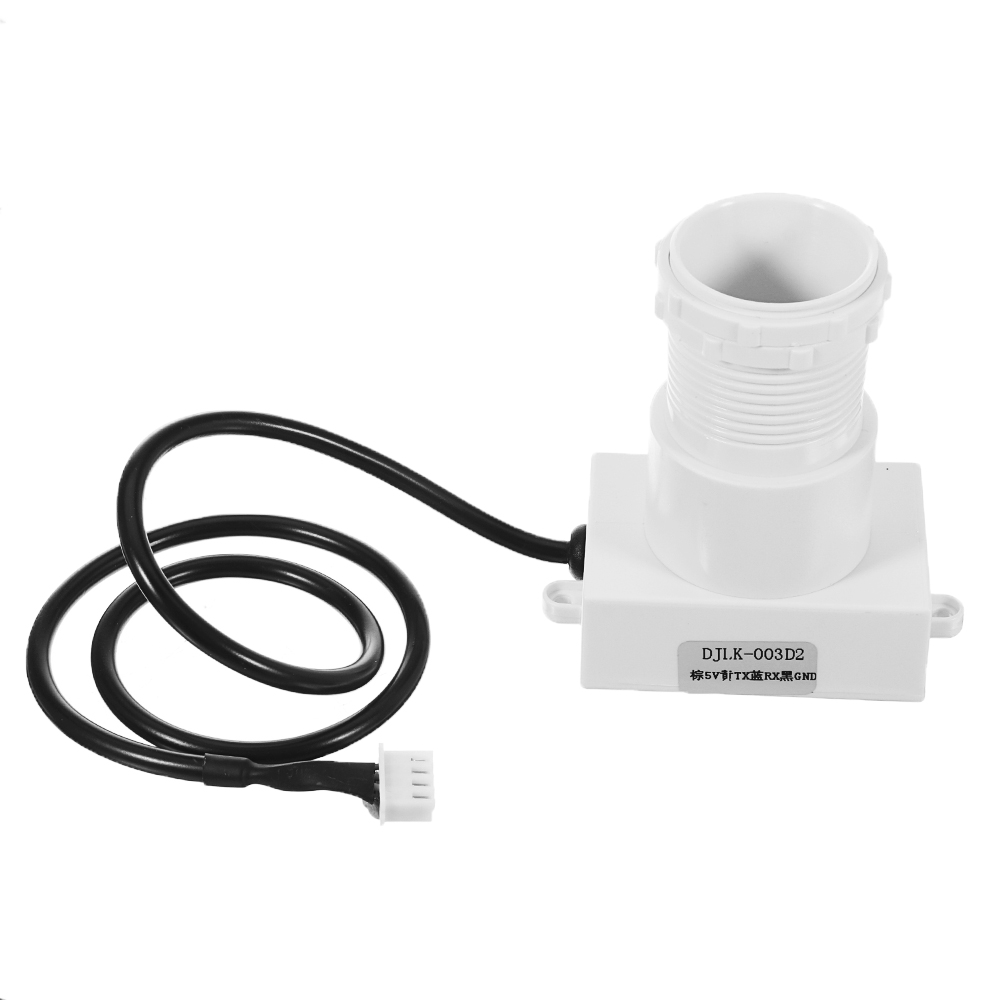

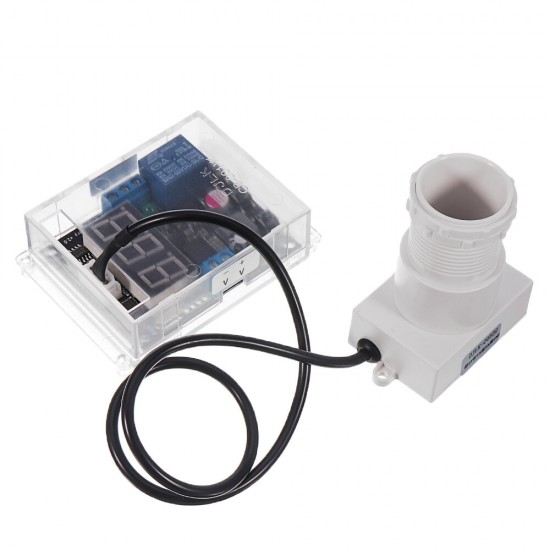

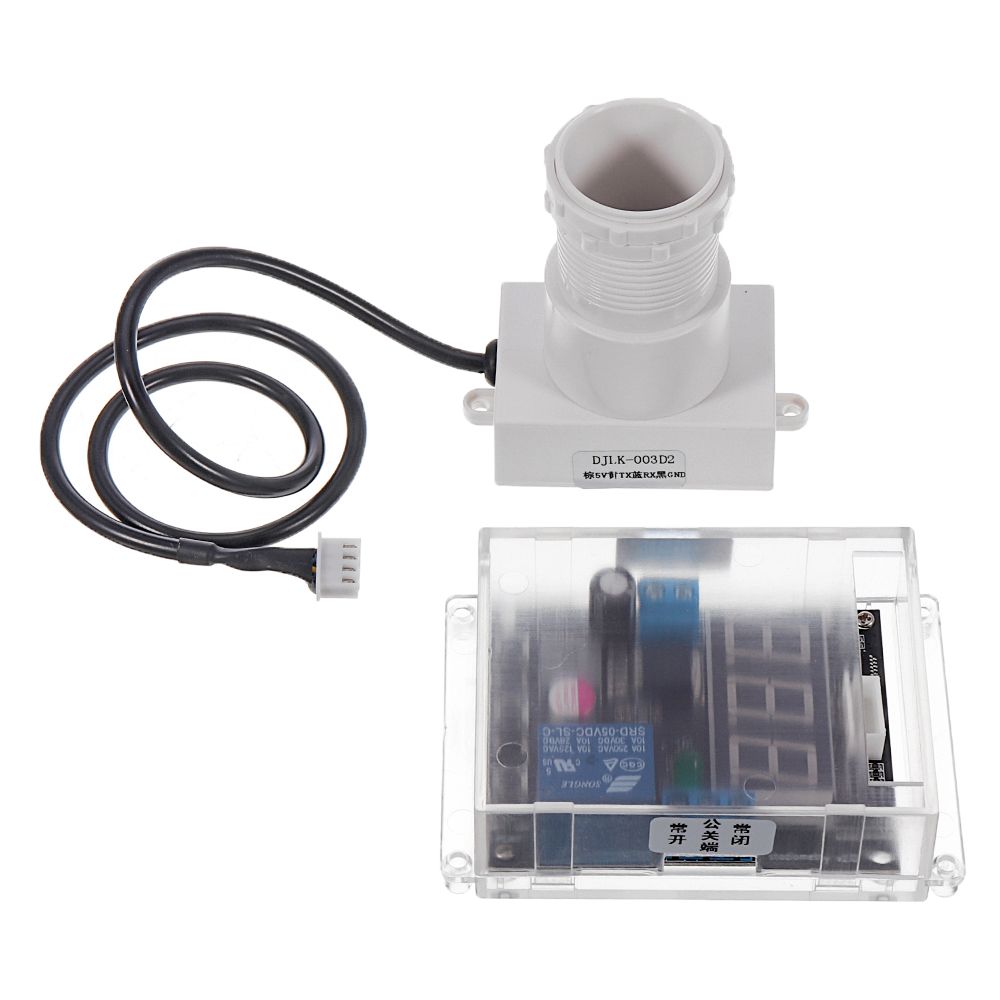

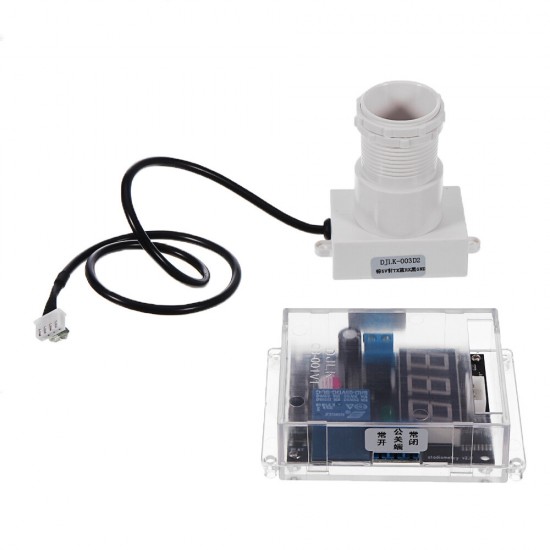

1 x 12V/24V DC Ultrasonic Sensor Module

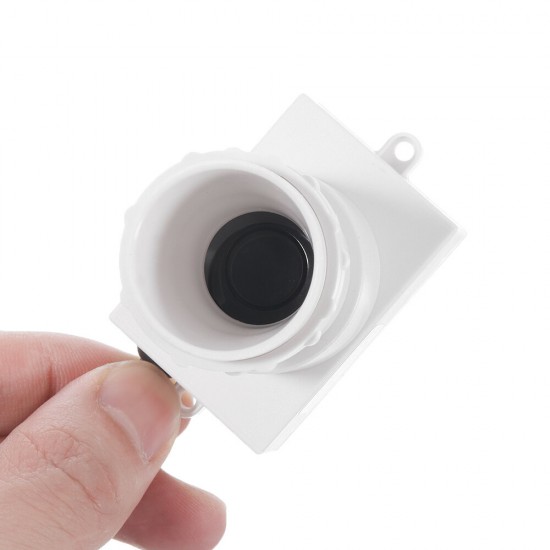

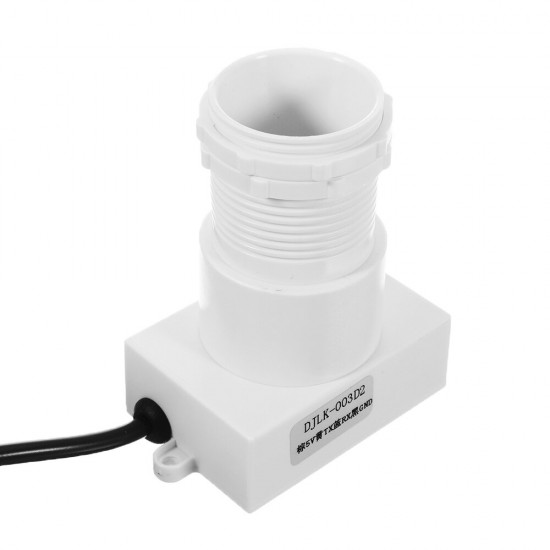

1 x Ultrasonic Sensor Probe
