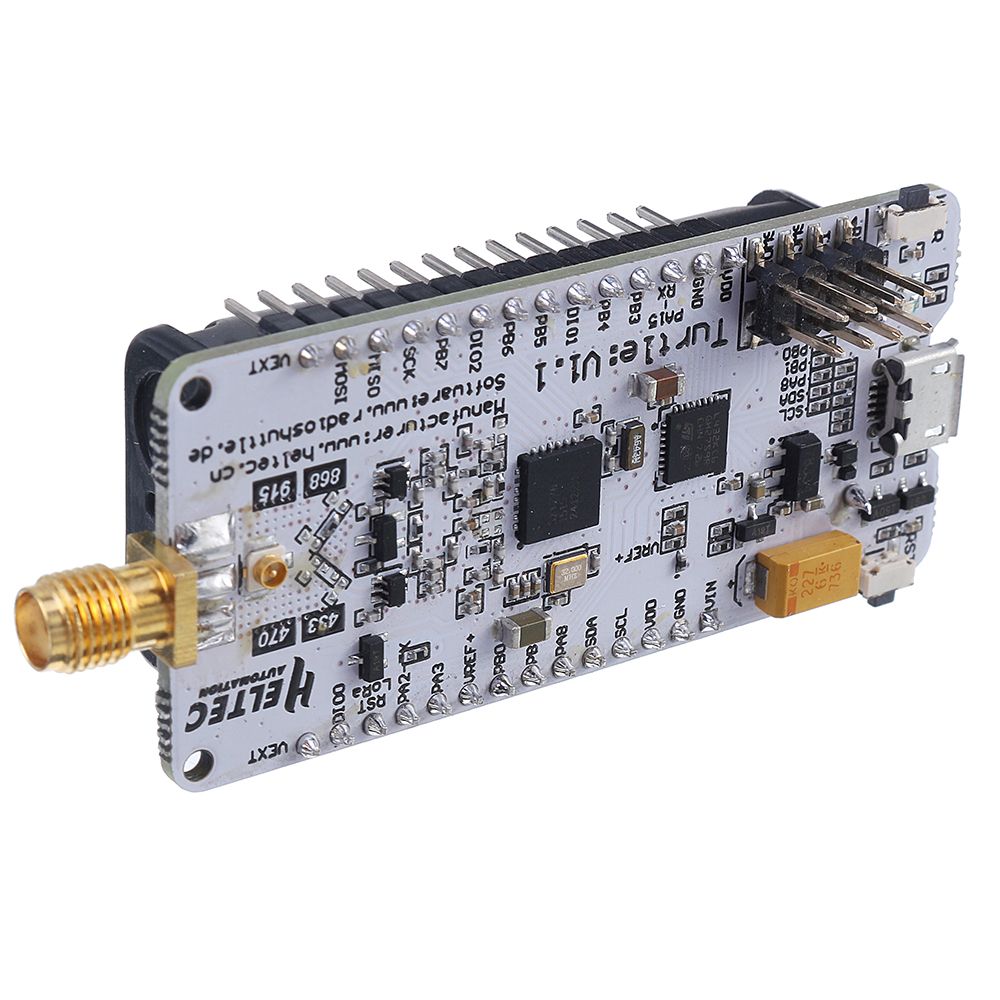

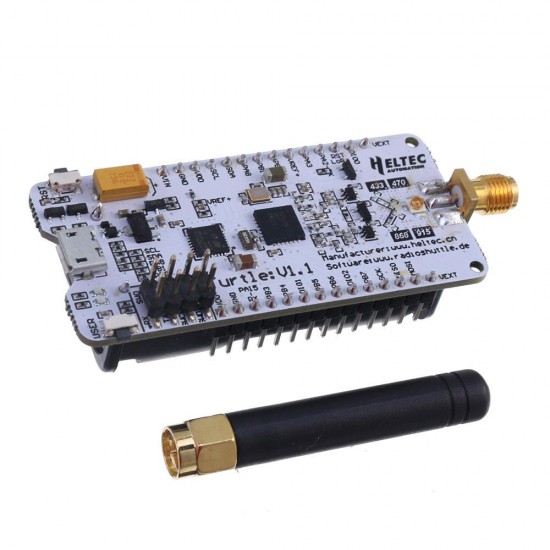

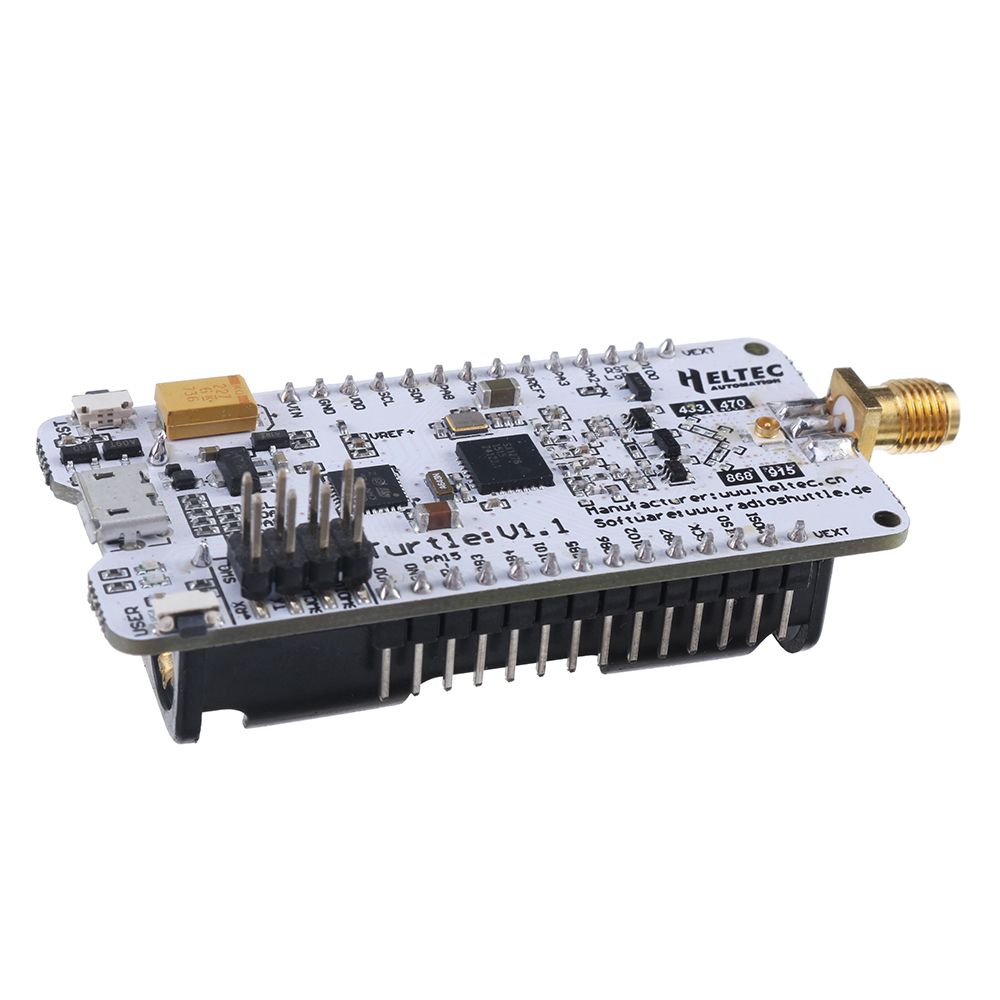

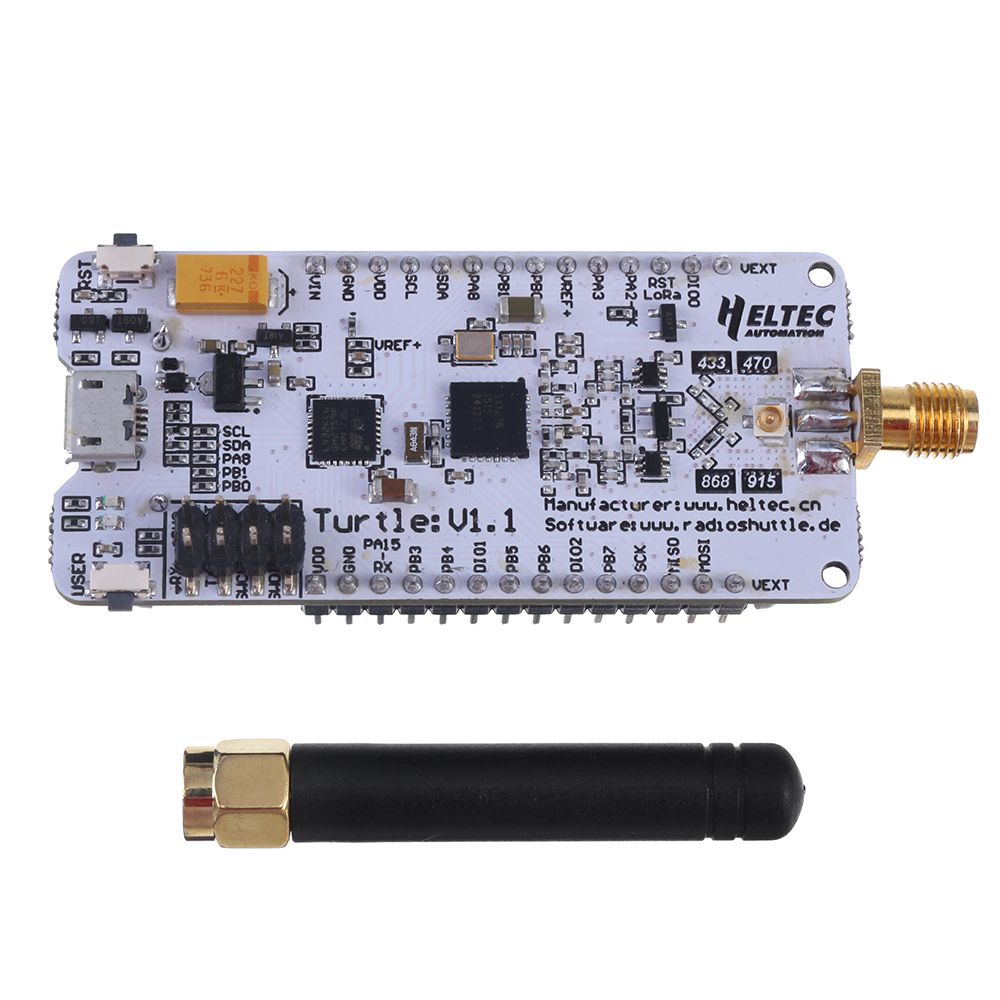

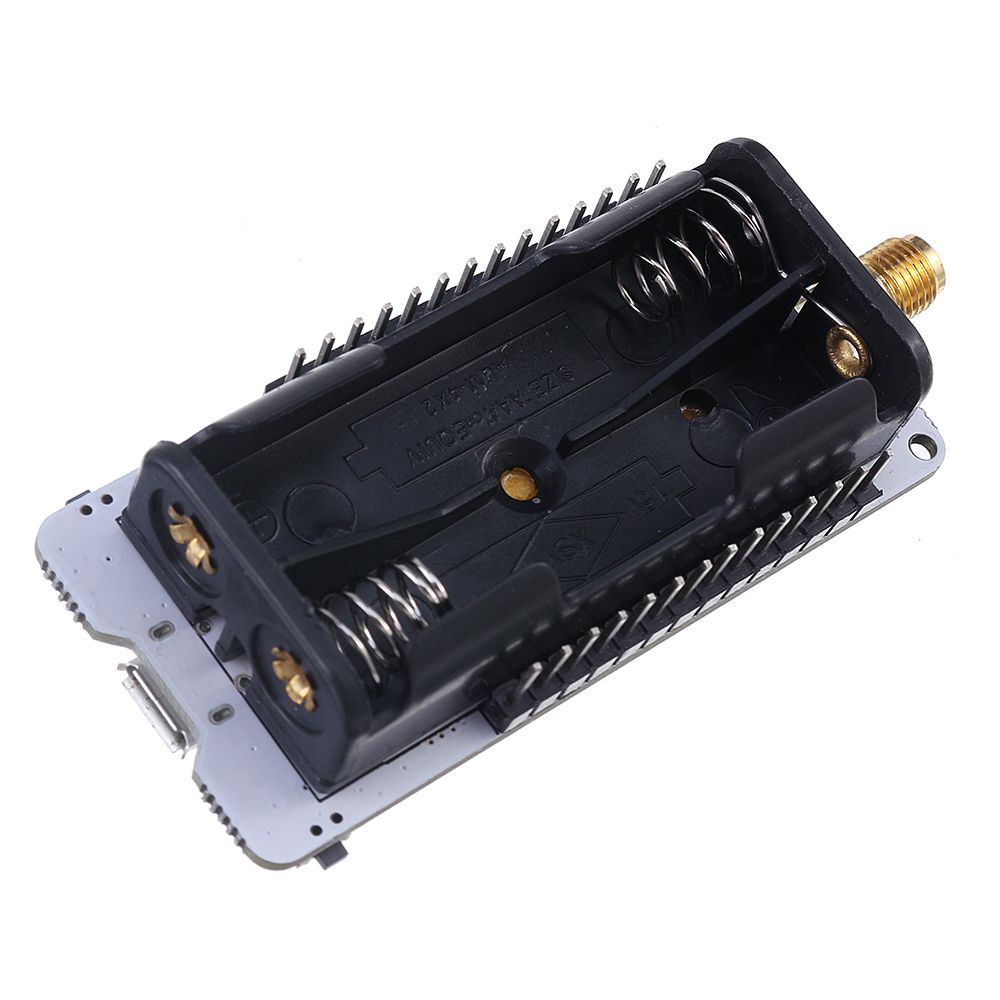

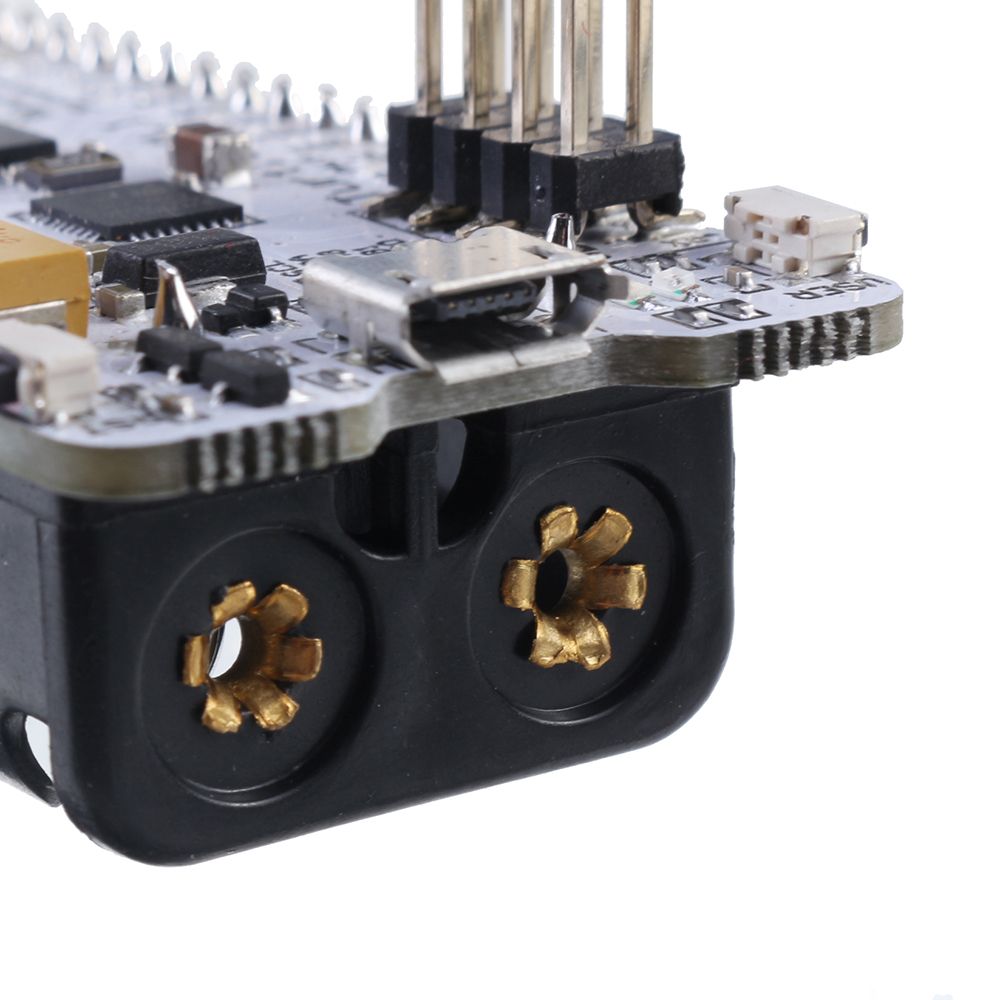

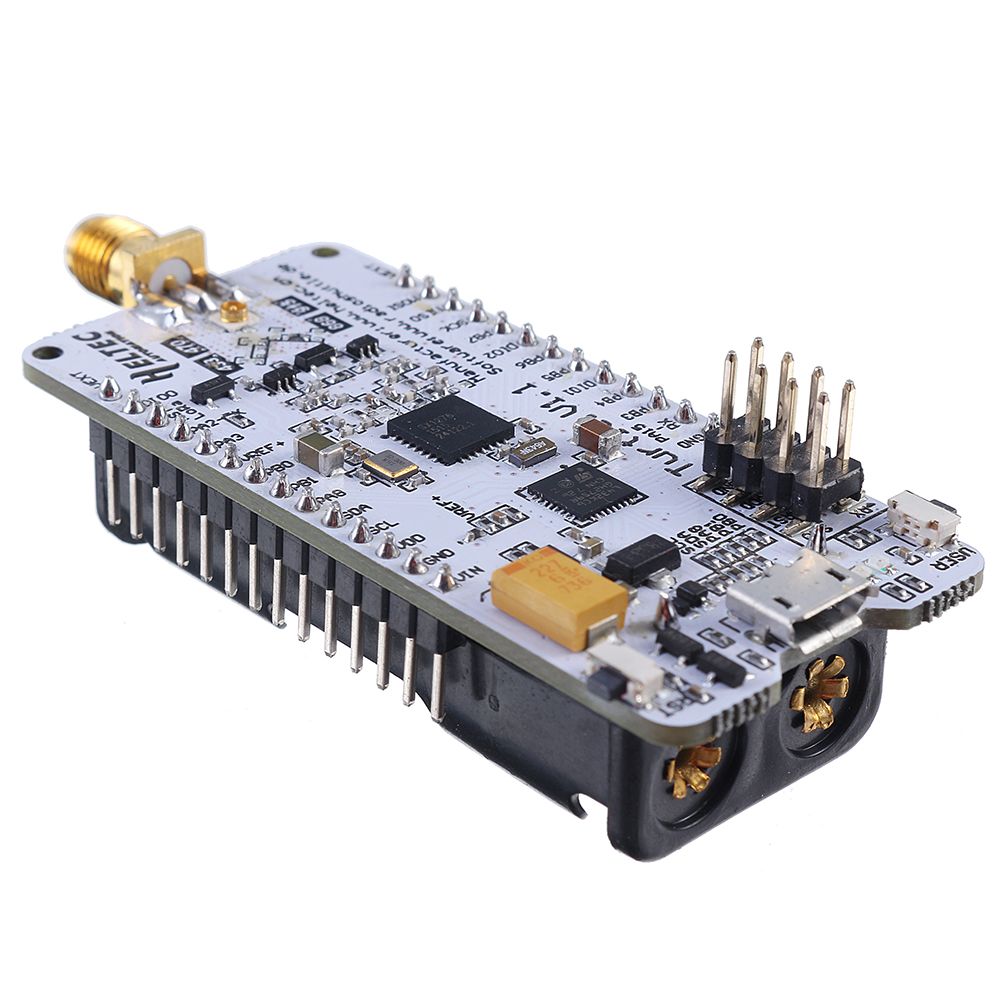

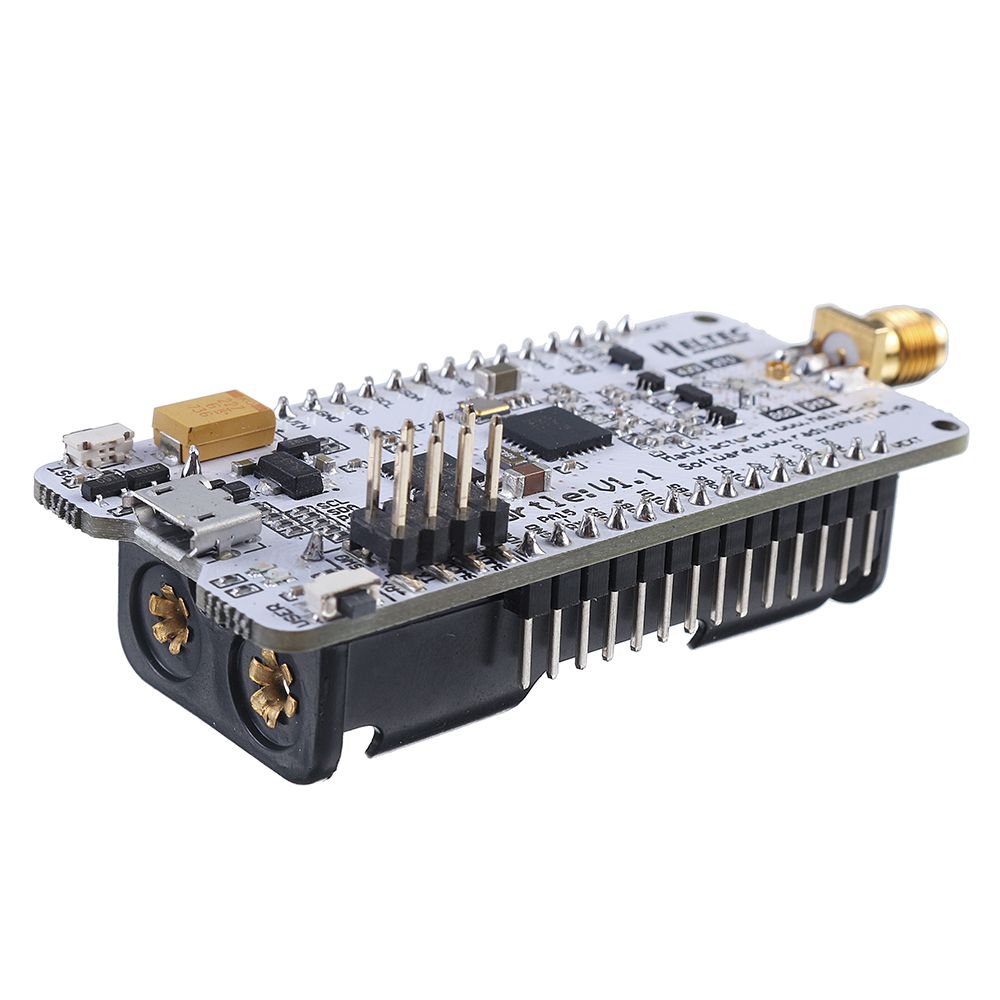

Ultra-low Power Turtle Board STM32L432KC SX1276 LoRaWAN Supports LoRaWAN MQTT Single Channel Wireless Module
- Stock: In Stock
- Model: EB0042551
- SKU: EB0042551
| LoRaWANTM | RadioShuttle |
| Concentrator required | No concentrator required, the station uses regular LoRa module |
| Network subscription fees (If use MQTT server) | No monthly fees |
| One large radio cell | Many small independent radio cells |
| Busy network in a radiu of many kilometers | Small networks with no interference |
| Single point of failure (Concentrator) | Automatic transmitting power adjustment – longer battery life |
| High latency, larger spreading factor, e.g. SF11 (1320 ms) | Low latency, small spreading factor, e.g. SF7 (120 ms) |
Feature:
-CE Certificate;
| Source | Parameter |
| MCU | STM32L432KC (Ultra-low-power 32-bit MCU+FPU ARM® Cortex®-M4) |
| LoRa chip | SX1276 |
| LoRa bands | EU_433, CN_470_510, EU_863_870, US_902_928 four bands optional |
| LoRa maximum output power | 18dB ± 2dB |
| Hardware Resource | USART x 3; SPI x 2; I2C x 2; SAI x 1; USB 2.0 x 1 |
| 12 – bits ADC x 1; 12 – bits DAC x 2 | |
| DMA controller | |
| 26 general GPIO | |
| Flash | 256KB FLASH;64KB SRAM; |

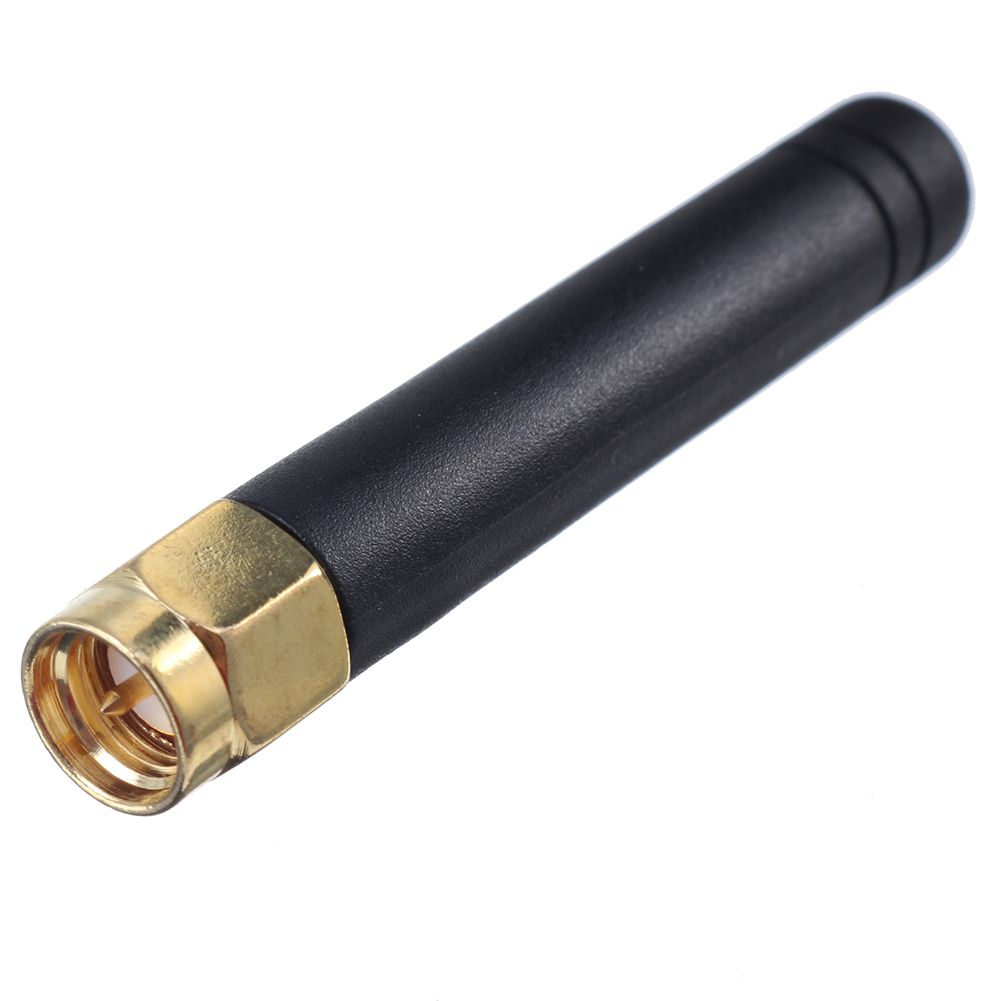

| Interface | Micro USB x 1; LoRa antenna(SMA) x 1, Debug interface(8-Pin) |
| Size | 56.6 x 24 x 20 mm |

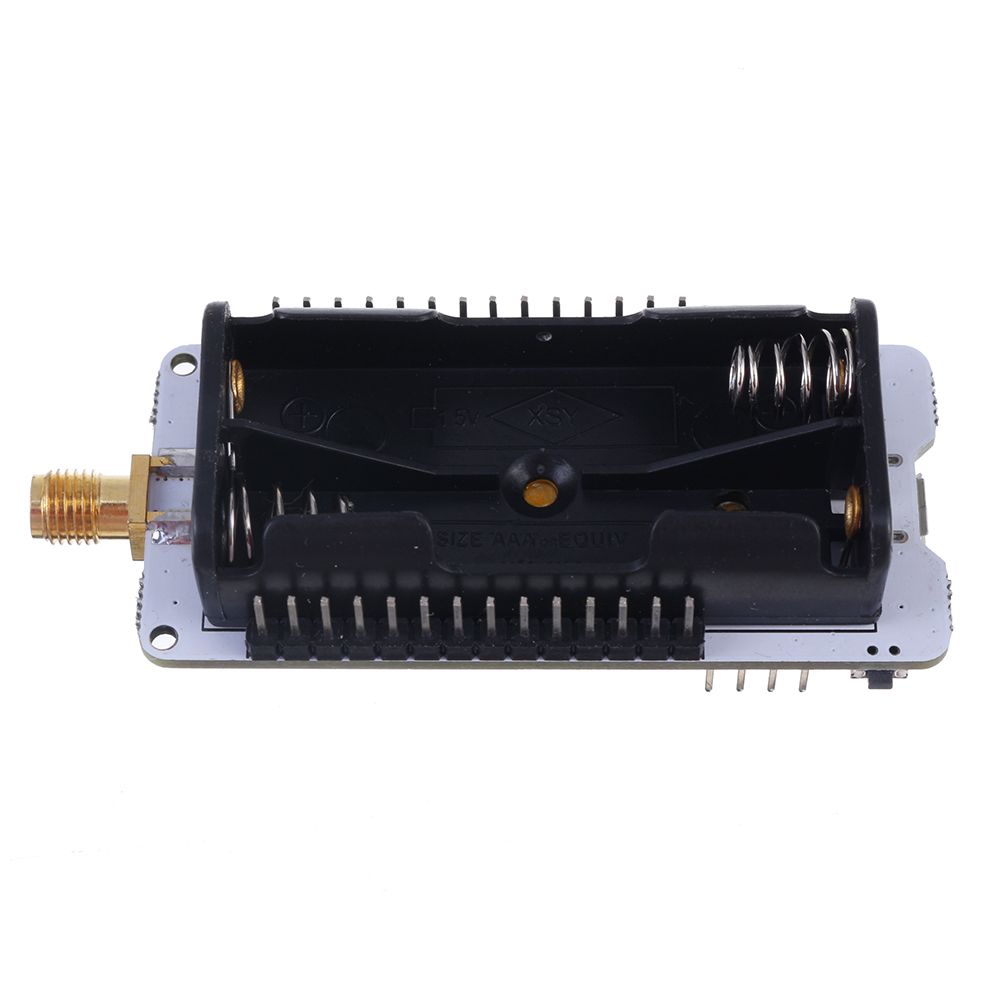

| Battery Type | AAA x 2 |
| Battery detection circuit | √ |
| External device power control(Vext) | √ |
| Low power design | Deep Sleep: 4uA |
| Electrical characteristics | Condition | Minimum | Typical | Maximum |
| Power Supply | USB powered(≥500mA) | 4.7V | 5V | 6V |
| Lithium powered(≥250mA) | 1.8V | 3V | 3V | |
| 3.3V(pin)powered(≥150mA) | 2.7V | 3.3V | 3.5V | |
| 5V(pin)powered(≥500mA) | 4.7V | 5V | 6V | |
| Power consumption(mA) | LoRa 10dB emission | 50mA | ||
| LoRa 12dB emission | 60mA | |||
| LoRa 15dB emission | 110mA | |||
| LoRa 20dB emission | 130mA | |||
| Output | 3.3V pin output | 500mA | ||
| 5V pin output (USB powered only) | Equal to the input current | |||
| External device power control (Vext 3.3V) | 350mA |
Package includes:

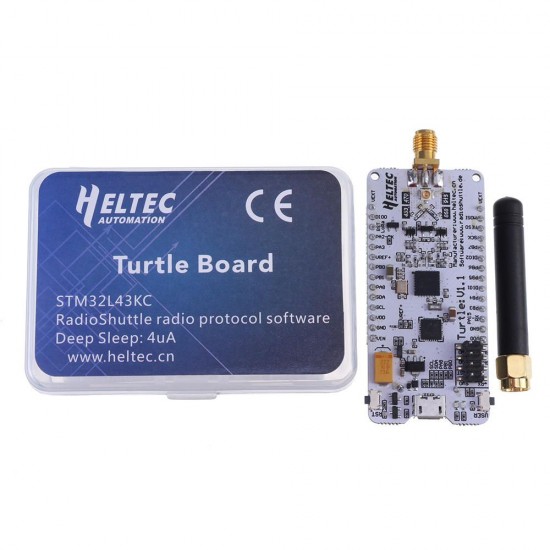

1 x Turtle Board

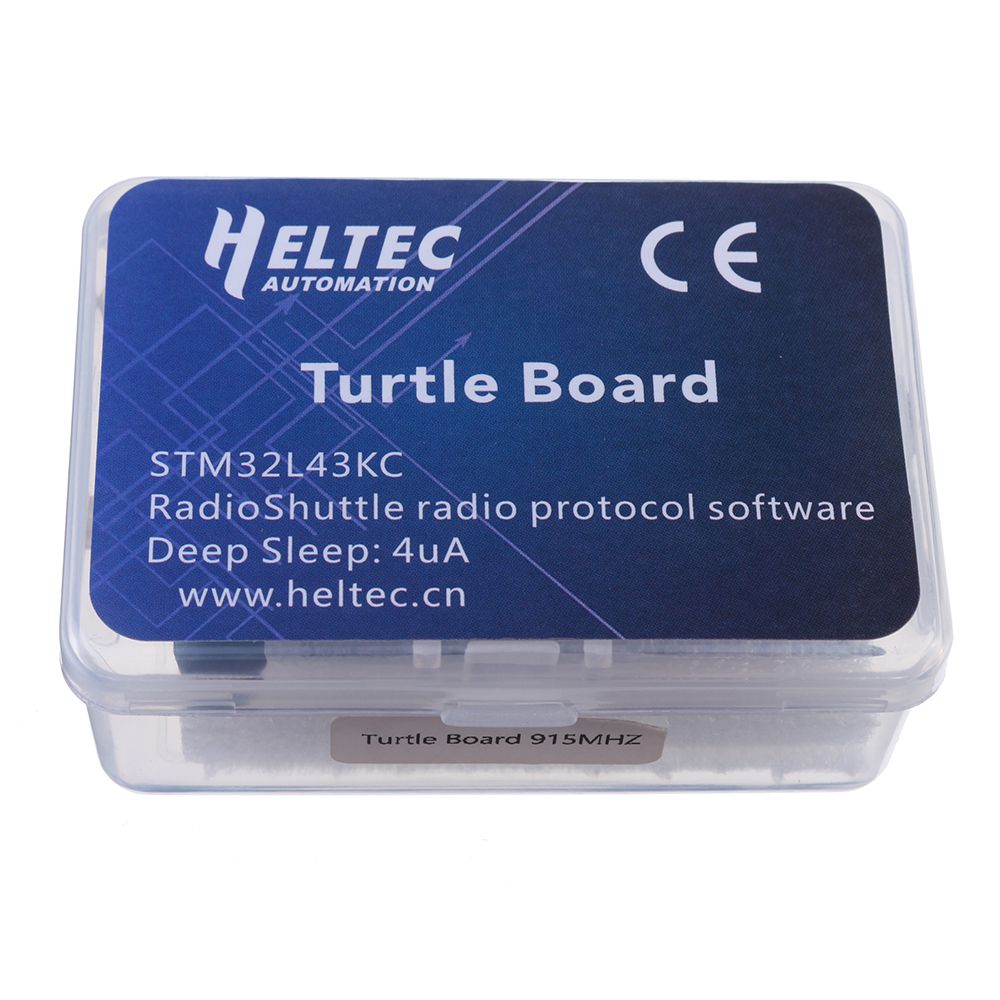

1 x Box
