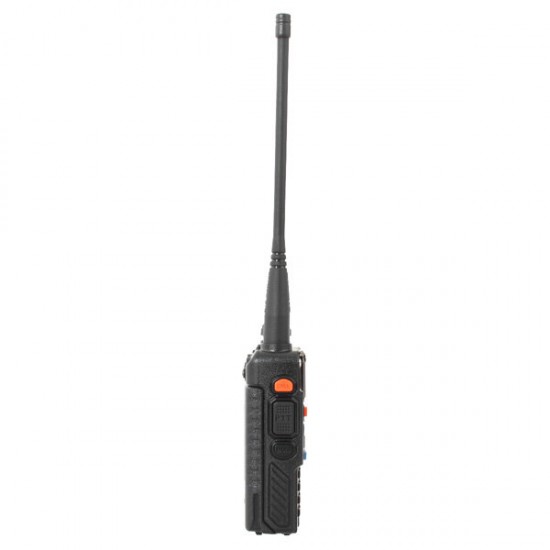

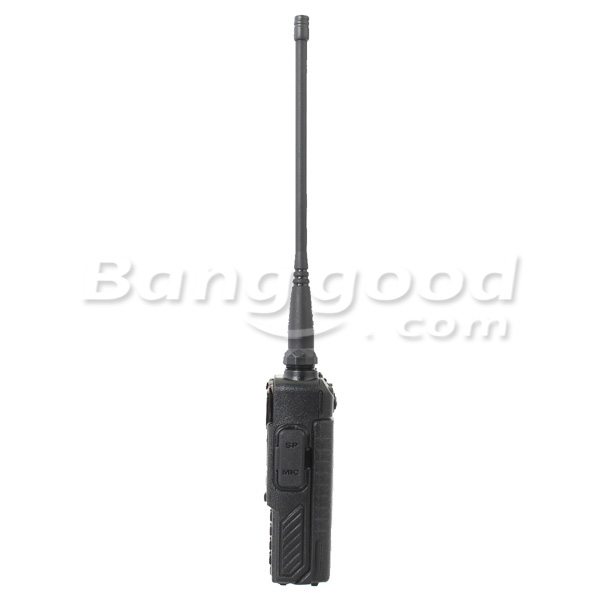

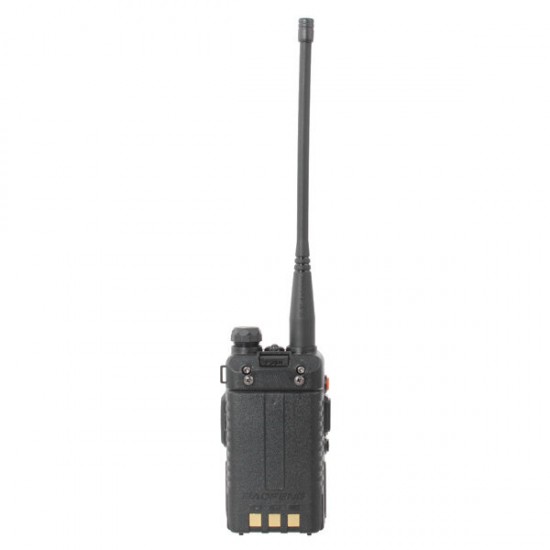

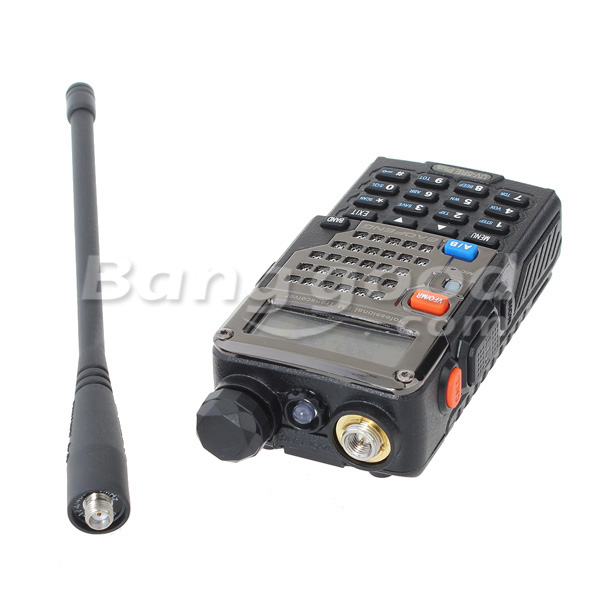

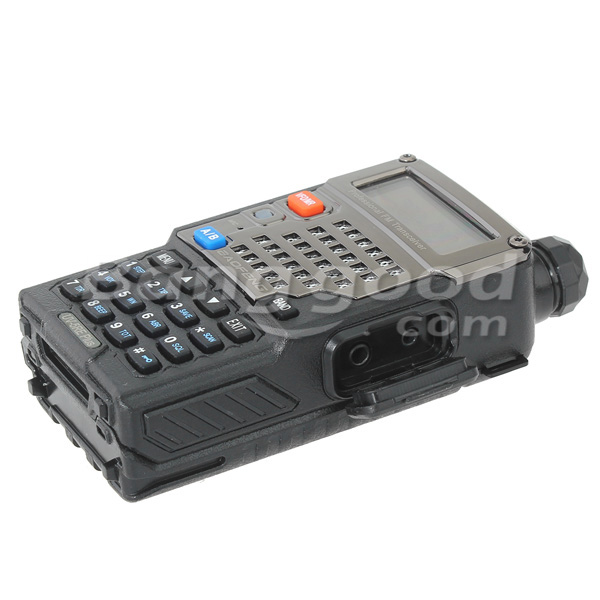

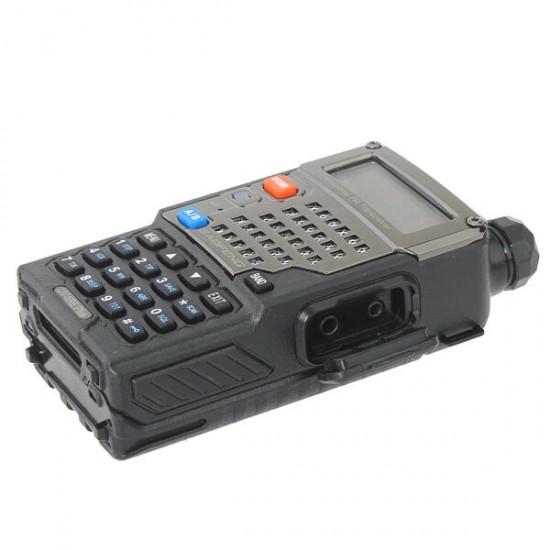

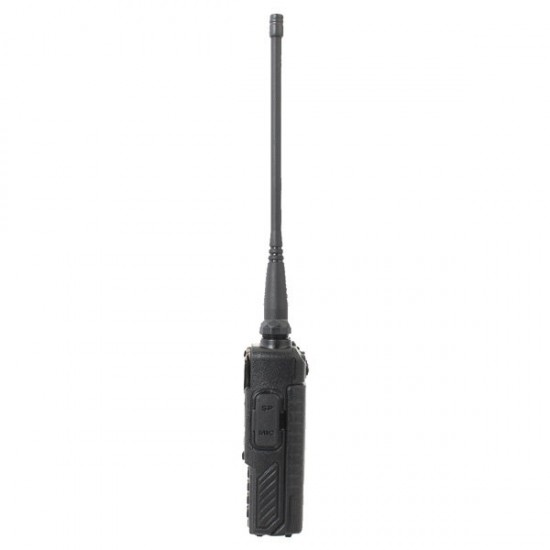

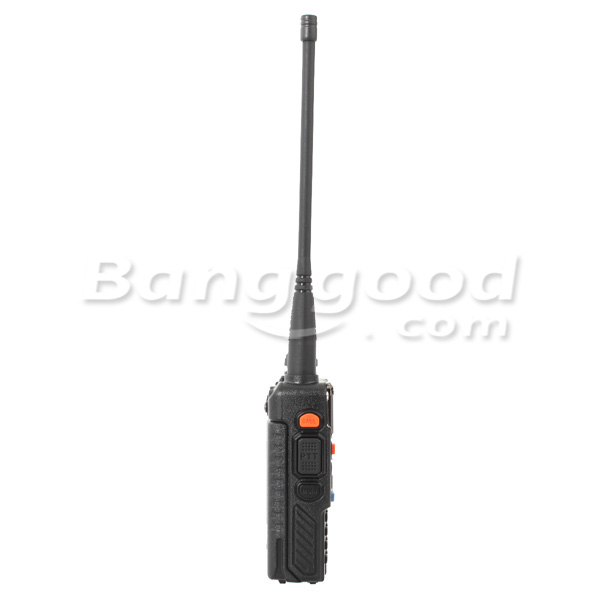

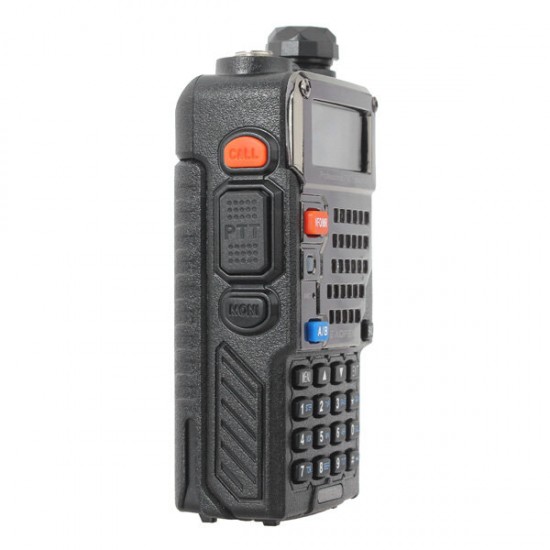

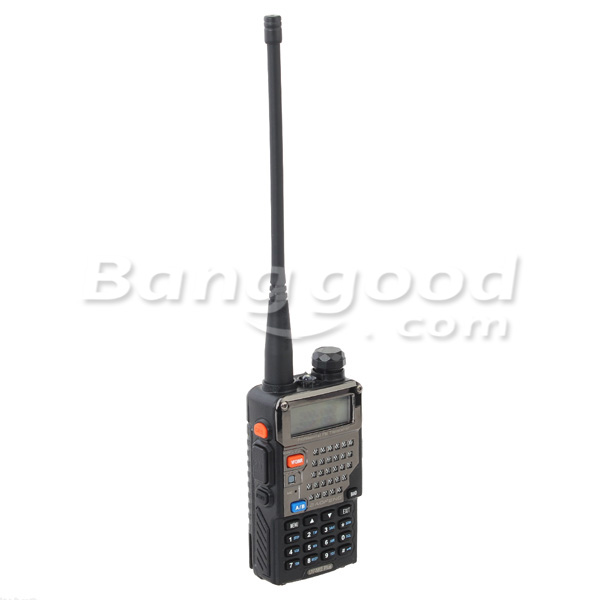

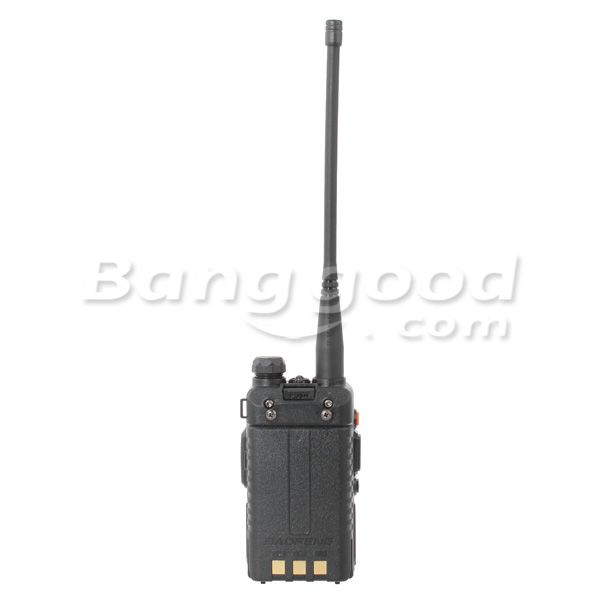

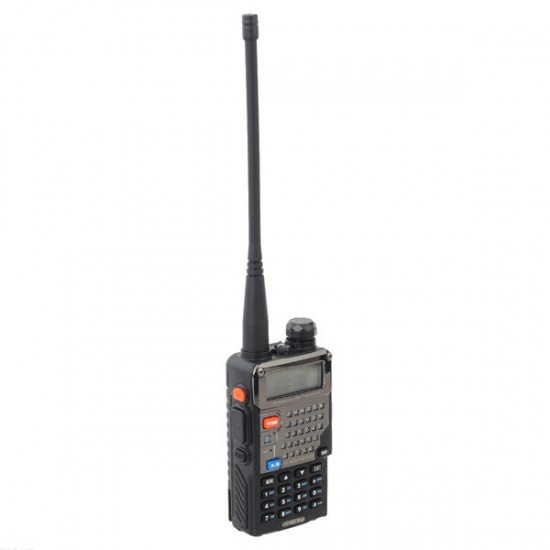

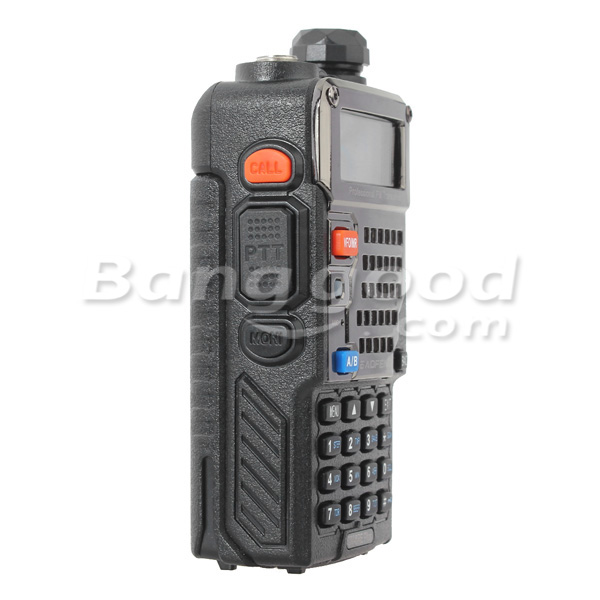

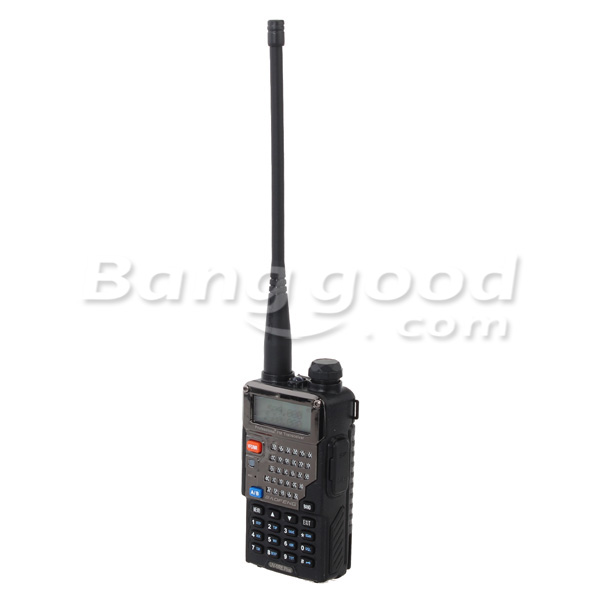

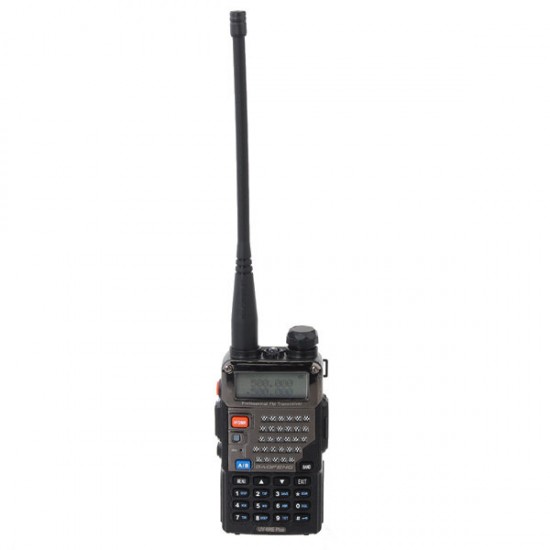

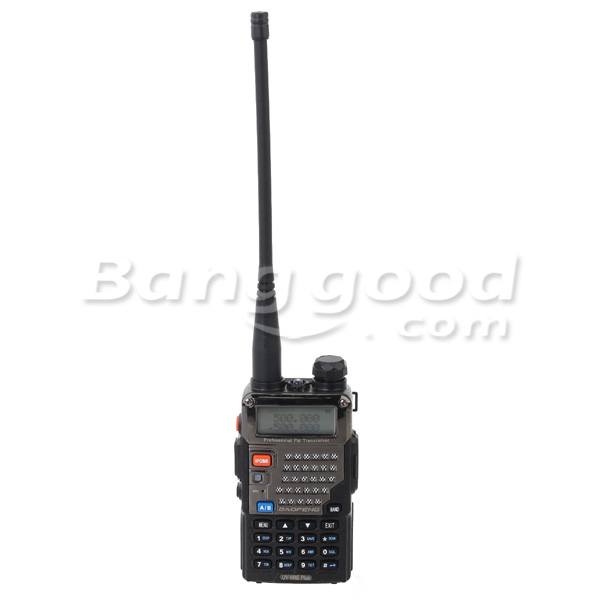

UV-5RE Plus Dual Band Handheld Transceiver Radio Walkie Talkie
- Stock: In Stock
- Model: EB0024826
- Dimensions: 52.00mm x 32.00mm x 100.00mm
- SKU: EB0024826
Description :
BAOFENG UV-5RE Plus Dual Band Handheld Transceiver Radio Interphone Walkie Talkie
Specifications :
| Baofeng Model | UV-5RE Plus | |
| Dual band/ dual display/ dual standby | A/B band independent operation (UV UU VV VU) | |
| 128 groups channels storage | 136-174MHz & 400-520MHz | |
| Shortcut menu operation mode | Emergency Alarm | |
| Transmitter time-out timer(TOT) | VOX (0~9 grades) | |
| PTT & ANI ID | FM radio (65-108MHz) | |
| Voice COMP | 50 CTCSS/ 104 DCS | |
| TX power selectable (4W/1W) | Busy channel lockout | |
| LED Flashlight | Large LCD Display | |
| Wide/Narrow Band | Yes | 25kHz/12.5kHz |
| Frequency step | Yes | 2.5/5/6.25/10/12.5/25KHz |
| Scanning function | Yes | |
| Monitor function | Yes | |
| Battery voltage display function | Yes | |
| Channel name display & editing | Yes | |
| Signal strength indicator | Yes | |
| Keypad lock function | Yes | |
| Flashlight | Yes | |
| Wire clone function | Yes | |
| Low battery alarm | Yes | |
| Power saving function | Yes | |
| ROGER SET | Yes | |
| Chinese and English voice prompt | Yes | |
| PC software programmable | Yes | |
| Basic Descriptions | ||
| Rated Voltage | 7.4V DC ±10% | |
| Max output power | 5W | |

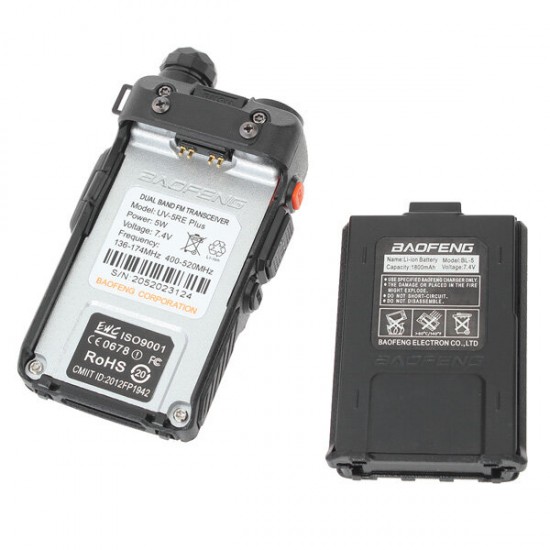

| Battery type | Li-ion battery | |
| Battery capacity | 1800mAh | |
| Earpiece / MIC type | 2 Pin KENWOOD Type | |
| Antenna | SMA-Female | |
| Working temperature | -20~+50°C | |
| Antenna Impedance | 50 OM | |
| Weight | 250g | |
| Dimension ( L x W x H ) | 52 x 32 x 100 mm (Not Antenna ) | |
| Specification | ||
| Frequency stability | ±2.5ppm | |
| Modulation | F3E | |
| Max frequency deviation | <= 5kHz(Wide) <= 2.5kHz(Narrow) | |
| Emission current | <=1.6A | |
| CTCSS / DCS | 0.5 ± 0.1kHz(Wide) 0.3 ± 0.1kHz(Narrow) | |
| Spurious Radiation | <7uW | |
| Intermediation Distortion | <10% | |
| Intermediation sensitivity | 8-12mv | |
| Adjacent channel selectivity | <= 65dB(Wide) <= 60dB(Narrow) | |
Package included :
1 x BAOFENG UV-5RE plus walkie talkie
1 x Dual Band Antenna

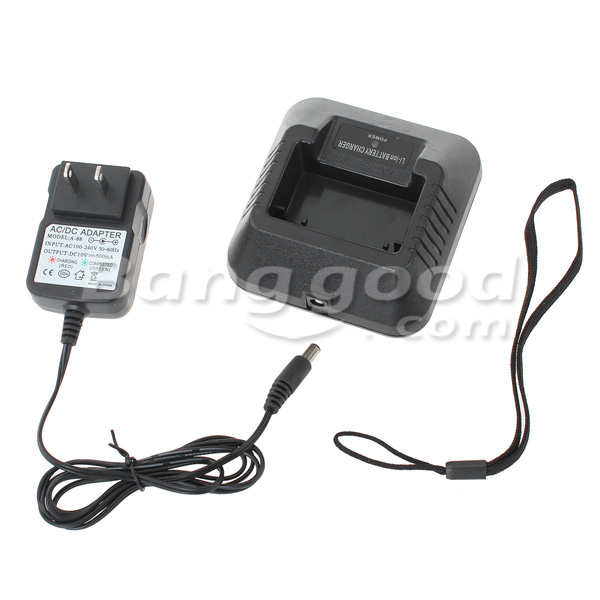

1 X AC Adapter

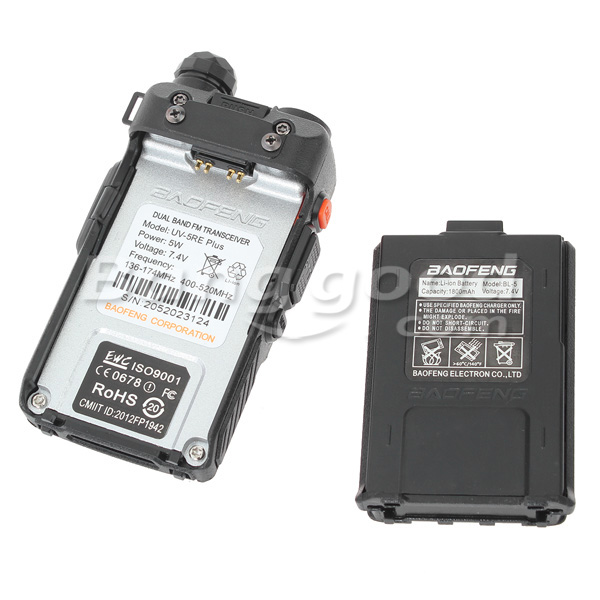

1 x Li-ion Battery
1 x Belt Clip
1 x Hand Strap

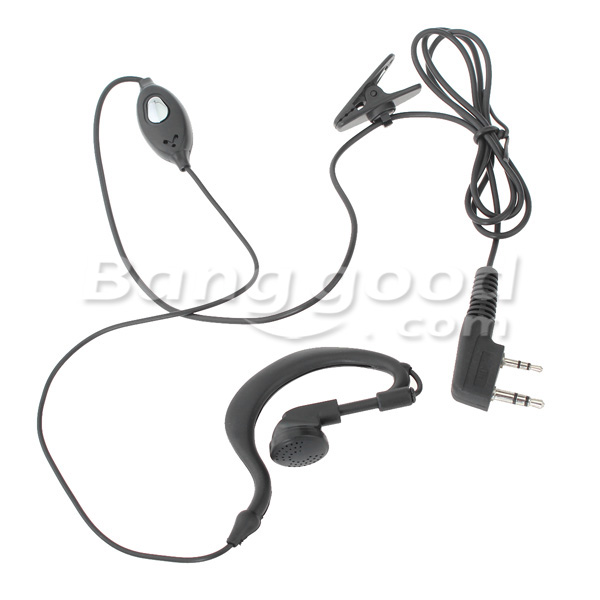

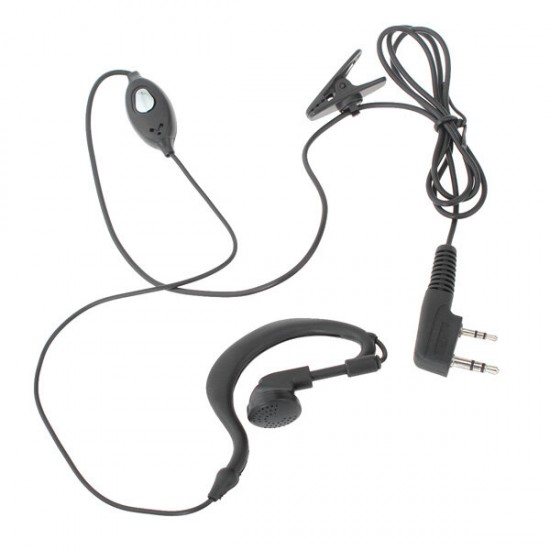

1 x Earpiece
1 x English User Manual
