USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester

USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
USB RTL SDR Receiver 100KHz-1.7GHz UV HF RTL-SDR Tuner Stick Support Up-convert winth RTL2832U TXCO 0.5ppm SMA N300U Tester
$38.99
Ex Tax: $38.99
  • Stock: In Stock
  • Model: EB004760
  • SKU: EB004760
This is a new RTL-SDR software defined radio receiver with RTL2832 ADC chip, 0.5 PPM TCXO, SMA connector and high-quality aluminum enclosure with internal thermal tape. Tunes from 100KHz to 1700MHz bandwidth.
This new RTL-SDR receiver addition to the SDR family offer an affordable high performance alternative to RTL-SDR and other TV dongles for the VHF and UHF bands,and is 100% compatible with all the existing software,including a number of popular free software like SDR, HDSDR, SDR-Radio, Linrad, GQRX . Works on Windows, MA C OS,Linux, Android and even embedded Linux computers like the Raspberr y Pi. Great for many applications including general radio scanning, air traffic control, public safety radio, ADS-B aircraft rada r, AIS boat rada r, ACARS, trunked radio, P25/MotoTRBO digital voice, POCSAG, weather balloons, APRS, NOAA APT weather satellites, Meteor M2 satellites, radio astronomy, meteor scatter monitoring, DAB, or for use as a low cost panadapter with a traditional ham radio.

This model adapted new RTL ADC solution. It uses the improved tuner, comes with a 0.5 PPM TCXO (no drift and accurate tuning with a 1 PPM initial offset and 0.5 PPM temperature drift), improved component tolerances and an SMA connector.

Features:

Covers VHF & UHF bands from 100KHz-1700MHz
Supports AM, FM, CW, DAB+, ADS-B, LSB
Aluminum enclosure with internal thermal tape
±0.5 PPM temperature compensated TCXO
Fully assembled and ready to use
Small size board and light weight
USB Powered, accessories include a USB extender cable
SMA golden female antenna connectors. It is also more durable and has lower insertion losses.

Free RTL-SDR Quick Start Guide Download :

www.rtl-sdr.com

www.sdr-radio.com


Package included:

1 x N300U
1 x USB Extended Cable
1 x SMA Antenna
1 x Service Card

Details pictures:

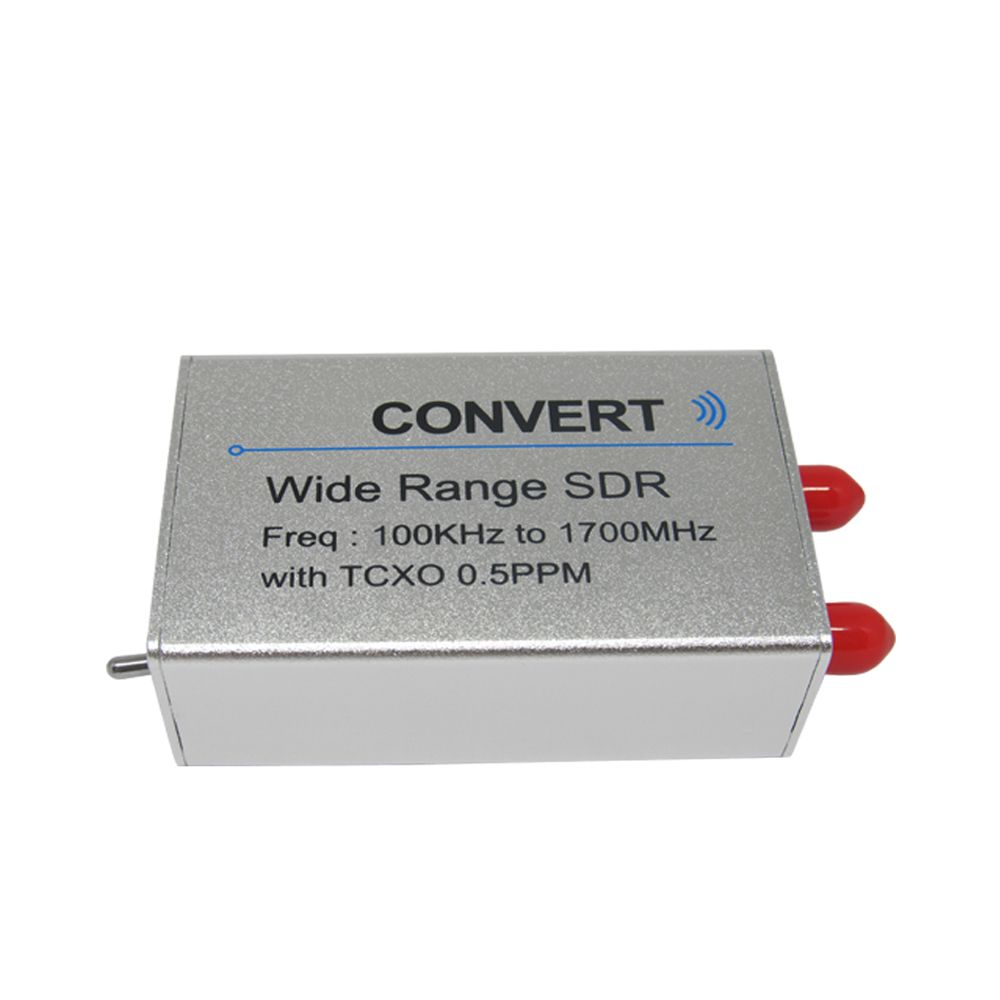

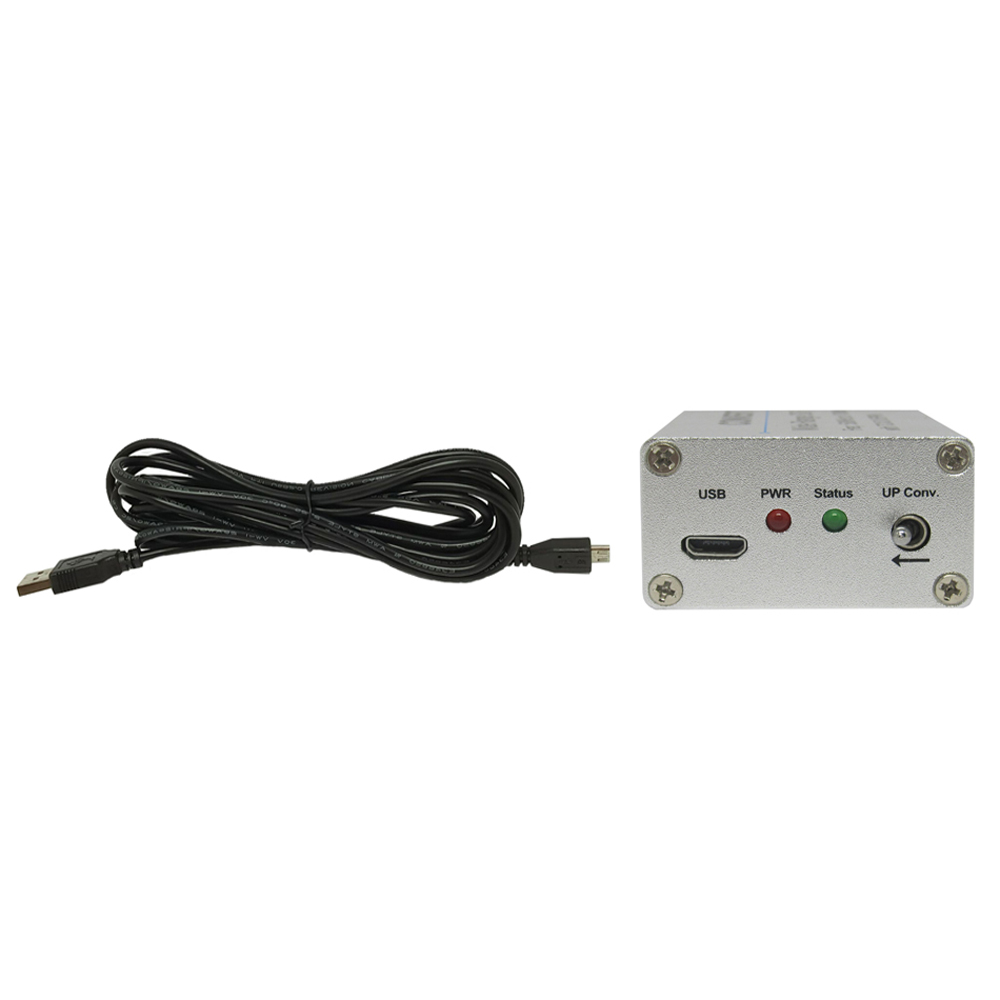

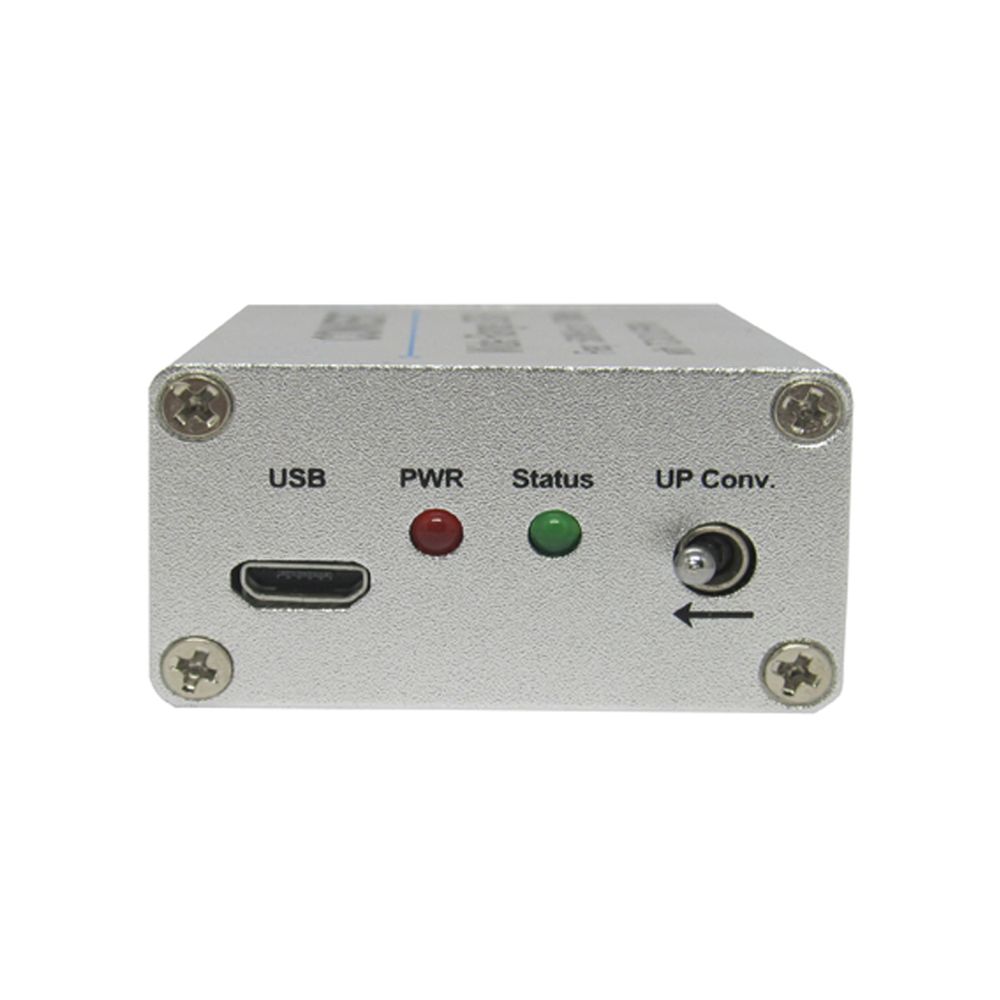

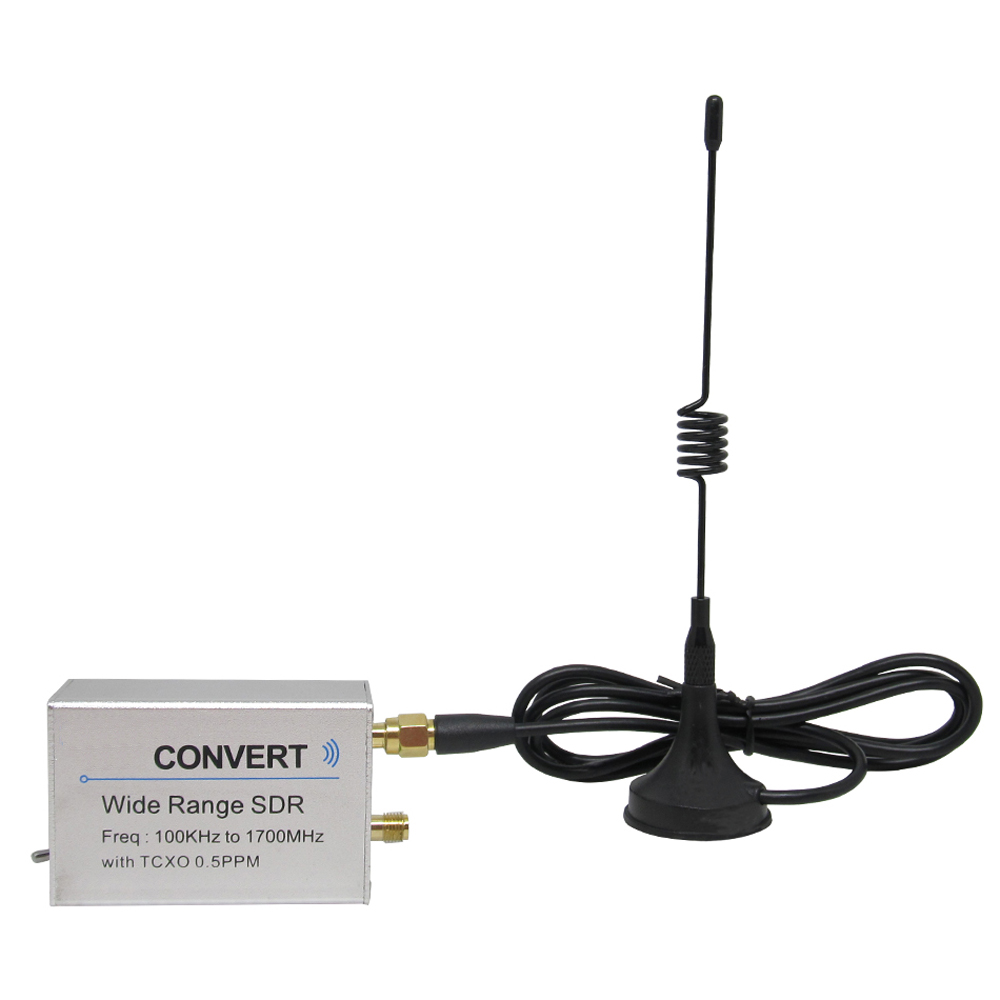

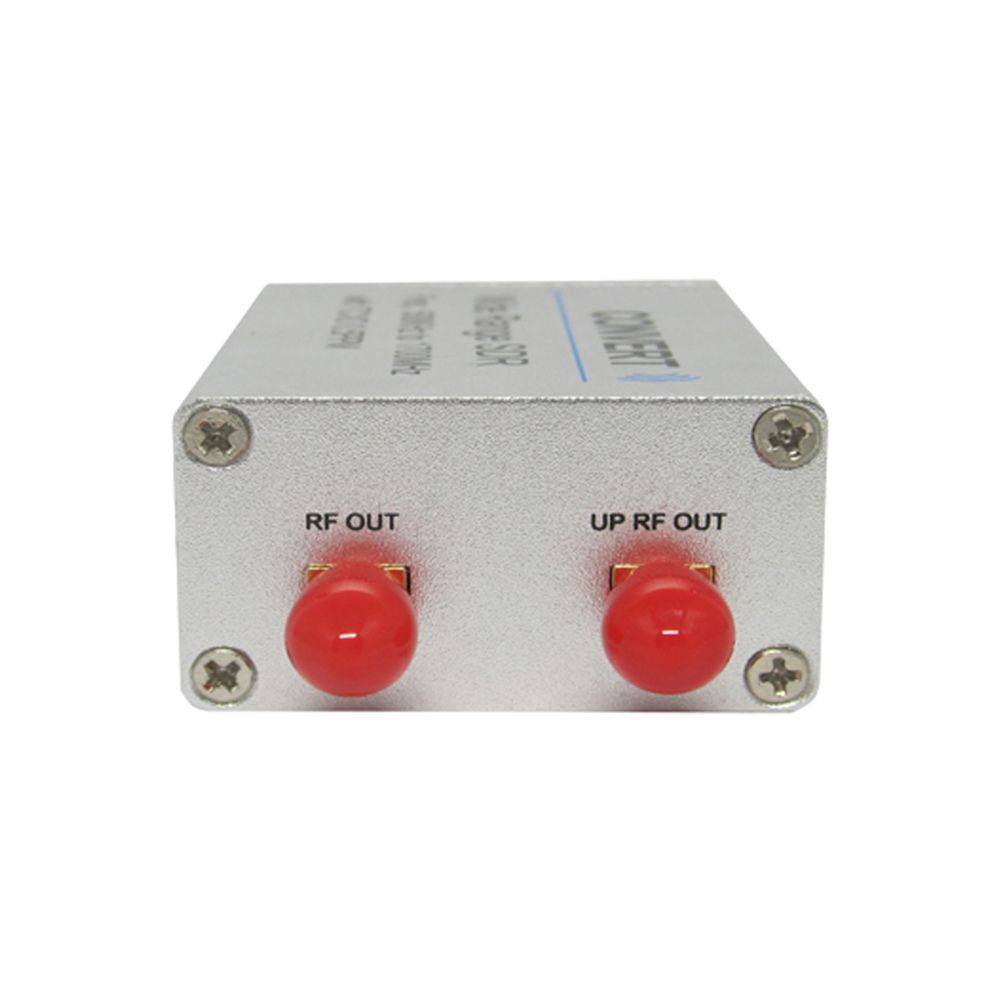

USB-RTL-SDR-Receiver-100KHz-17GHz-UV-HF-RTL-SDR-Tuner-Stick-Support-Up-convert-winth-RTL2832U-TXCO-0-1496674

USB-RTL-SDR-Receiver-100KHz-17GHz-UV-HF-RTL-SDR-Tuner-Stick-Support-Up-convert-winth-RTL2832U-TXCO-0-1496674

USB-RTL-SDR-Receiver-100KHz-17GHz-UV-HF-RTL-SDR-Tuner-Stick-Support-Up-convert-winth-RTL2832U-TXCO-0-1496674

USB-RTL-SDR-Receiver-100KHz-17GHz-UV-HF-RTL-SDR-Tuner-Stick-Support-Up-convert-winth-RTL2832U-TXCO-0-1496674

USB-RTL-SDR-Receiver-100KHz-17GHz-UV-HF-RTL-SDR-Tuner-Stick-Support-Up-convert-winth-RTL2832U-TXCO-0-1496674
