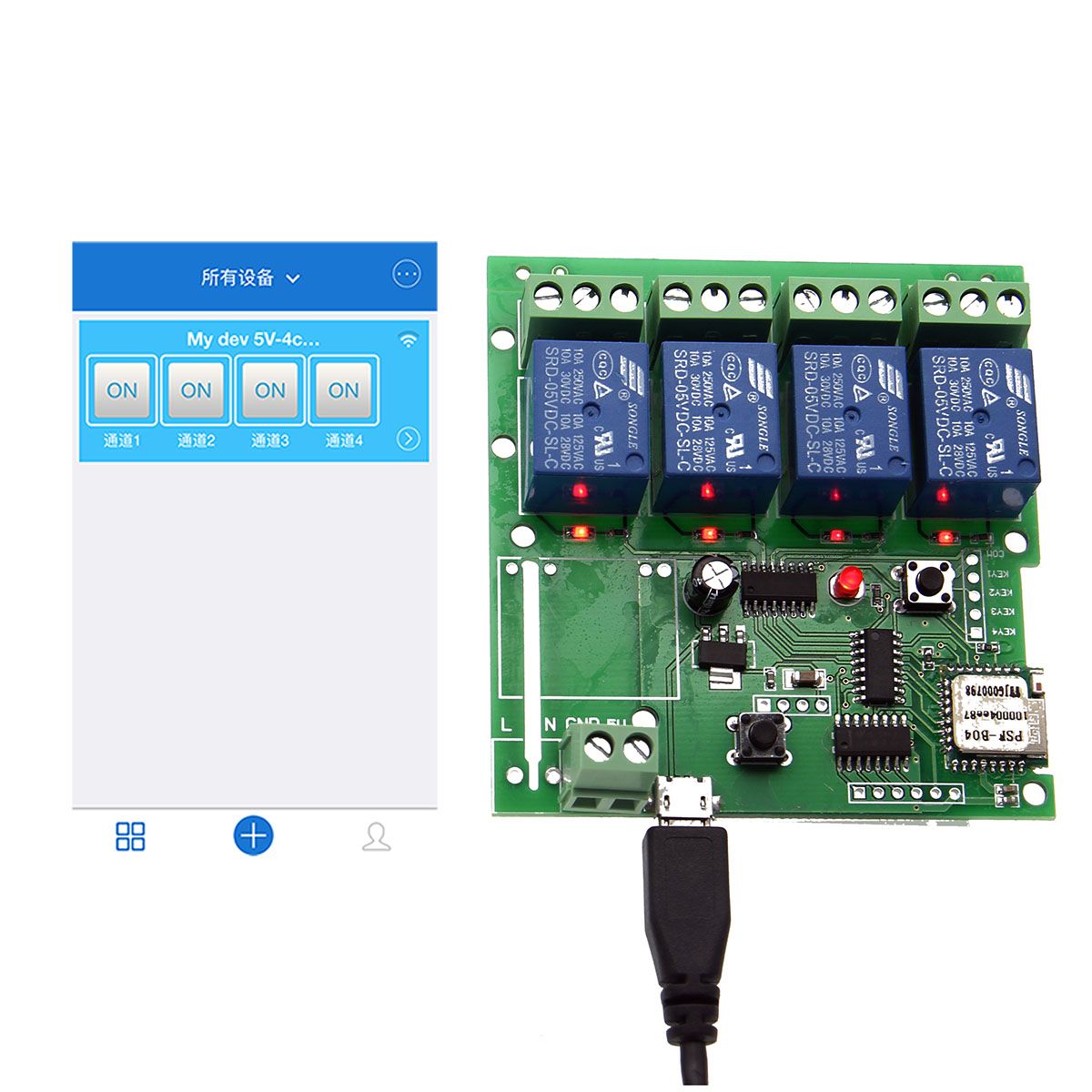

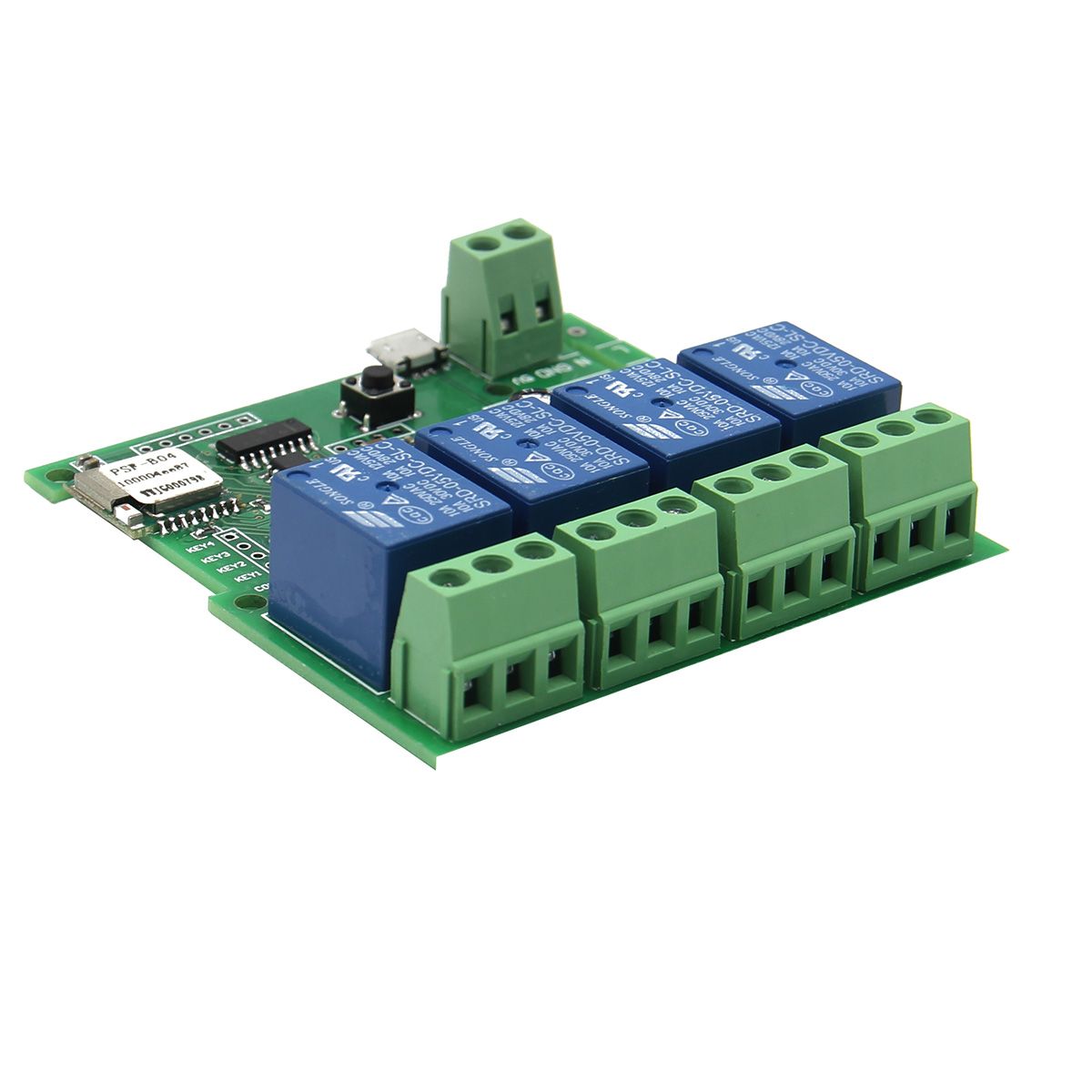

USB 5V Or DC 5V DIY 4 Channel Jog Inching Self-locking WIFI Wireless Smart Home Switch Sokcet APP Remote Control
- Stock: In Stock
- Model: EB0042146
- SKU: EB0042146
Support apple cellphone also, you can search "易微联" in App store to setup it;

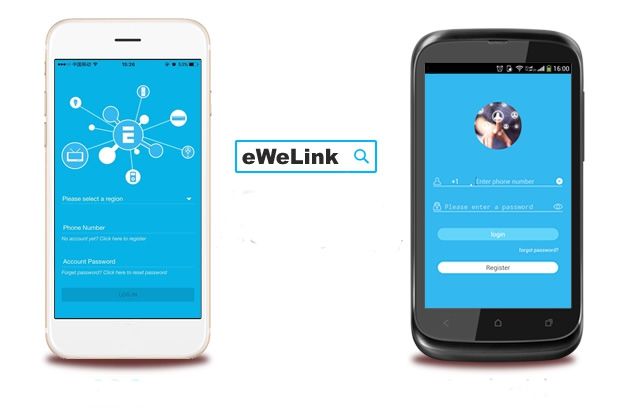

Support apple cellphone also, you can search "e-welink" in App store to setup it for English version;

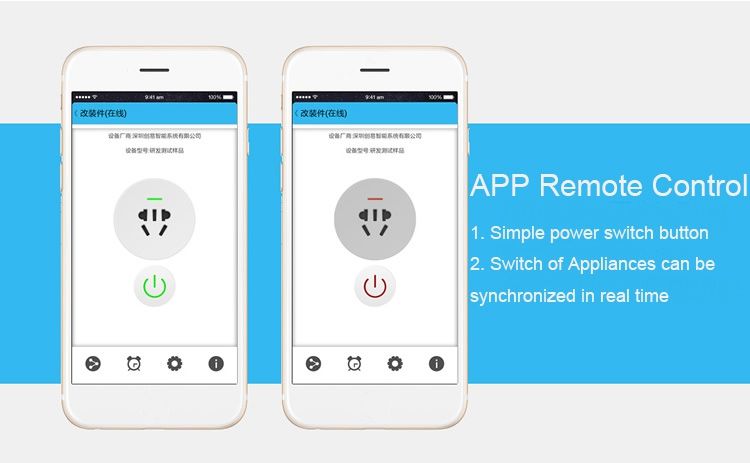

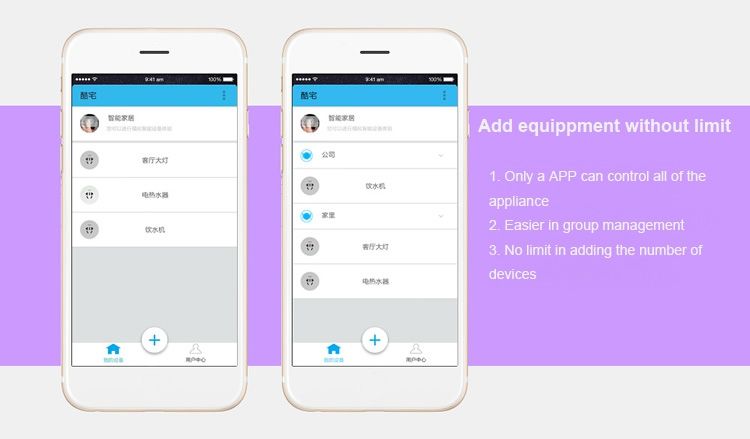

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
Features:
Working voltage: USB 5V or DC 5V
With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current:80mA
Cutover current< 10A , Cutover voltage< 250V
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -40 to 70degree
Working Humidity: 40% to 80% RH
Know more about this product, please click:

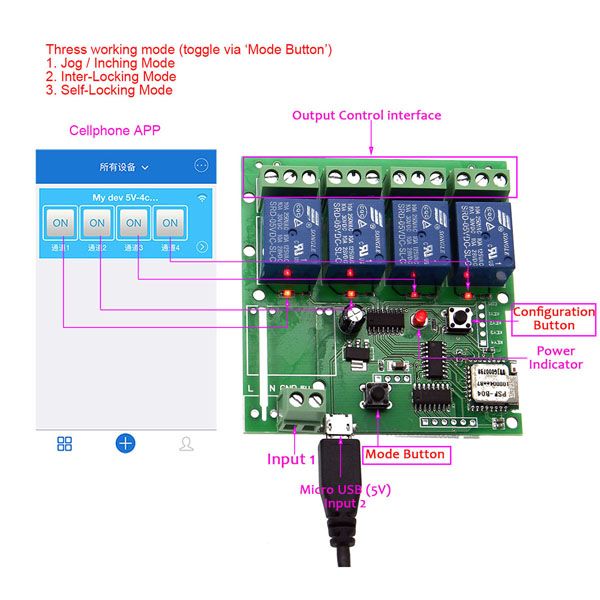

Function:

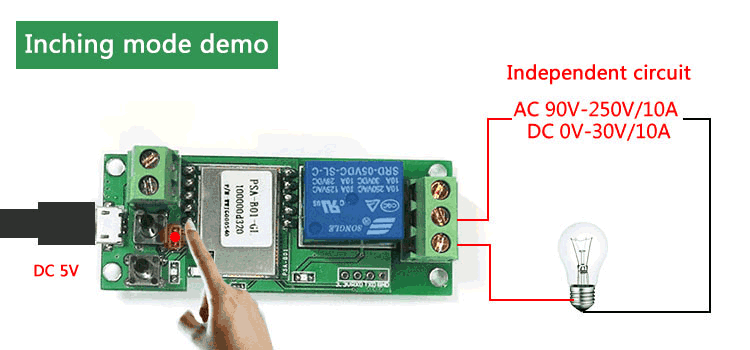

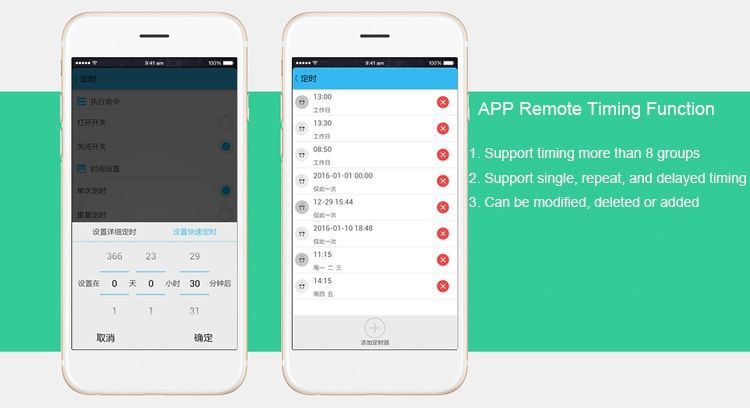

1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.

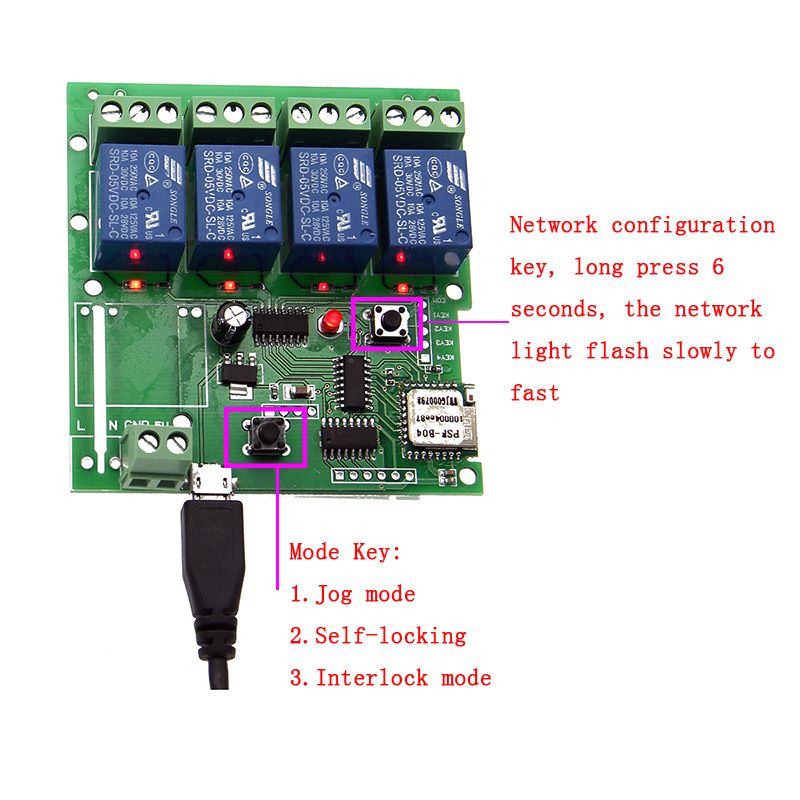

2. Self-locking when press the inching and locking button with the light on.Press open relay to pull-on, press close relay to cut off.

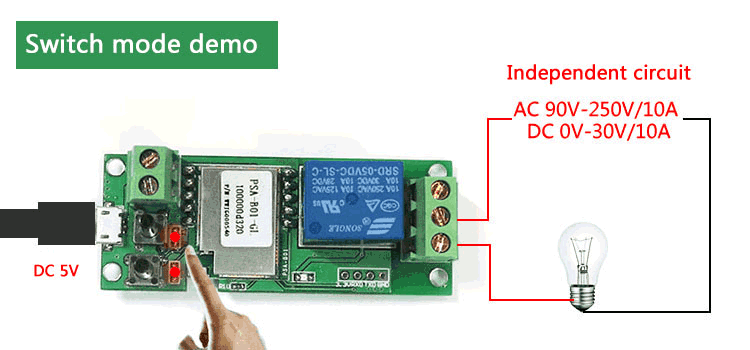

Here is the reference about 5V DIY One Channel Jog Inching Self-locking Switch:
Application:
Package included:
1 x 5V DIY Four Channel Jog Inching Self-locking WIFI Wireless Smart Home Switch
