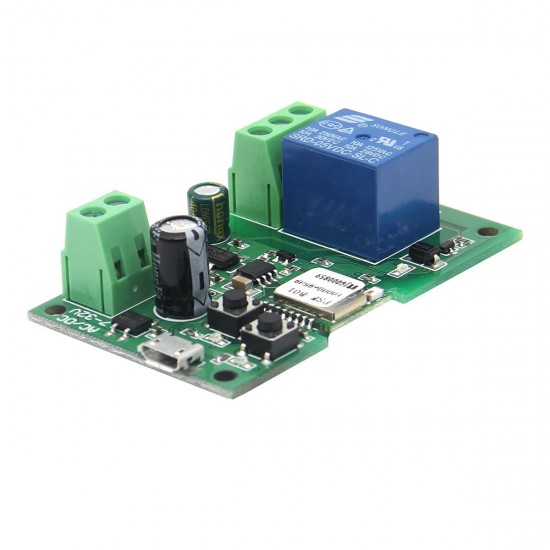

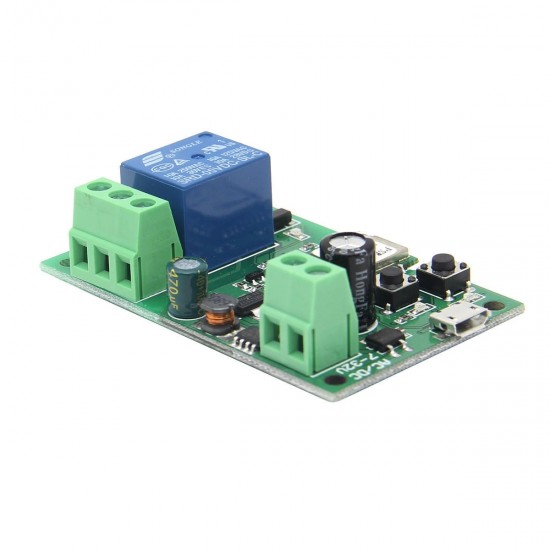

USB 1 Channel Jog Inching Self-locking WIFI Wireless Sokcet APP Remote Control Switch Smart Home 5V Or DC 7V-32V
- Stock: In Stock
- Model: EB0042112
- SKU: EB0042112
- Control Channels: 1 Channel
- Voltage: DC 12V,DC5V
- WiFi: YES
Precise details:

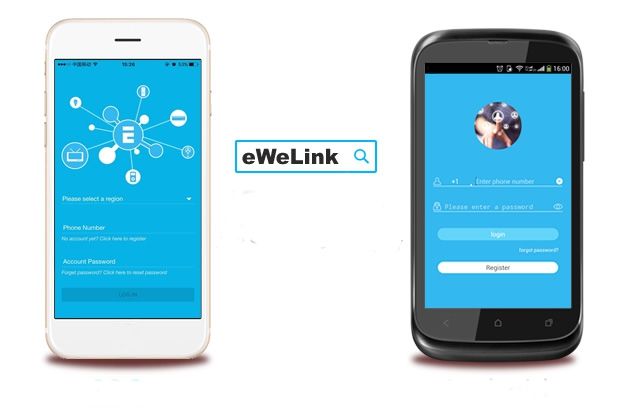

Android APP: E-WeLink-2.1.13.apkSupport apple cellphone also, you can search "易微联" in Apple store to setup it;
Support apple cellphone also, you can search "e-welink" in Apple store to setup it for English version;

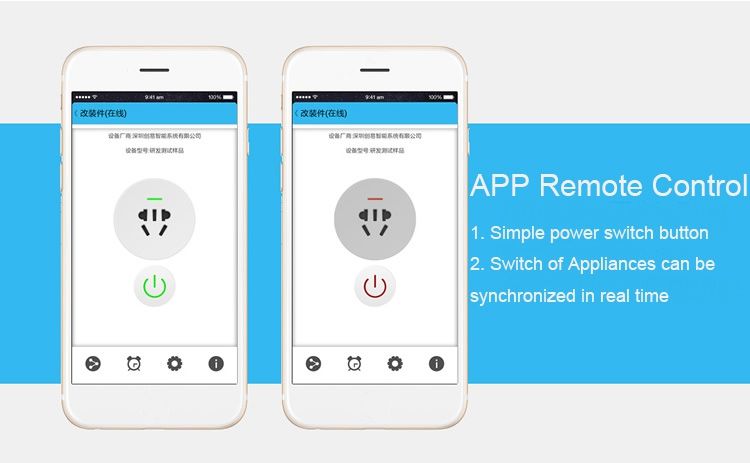

WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the WIFI and control the cloud.
Features:

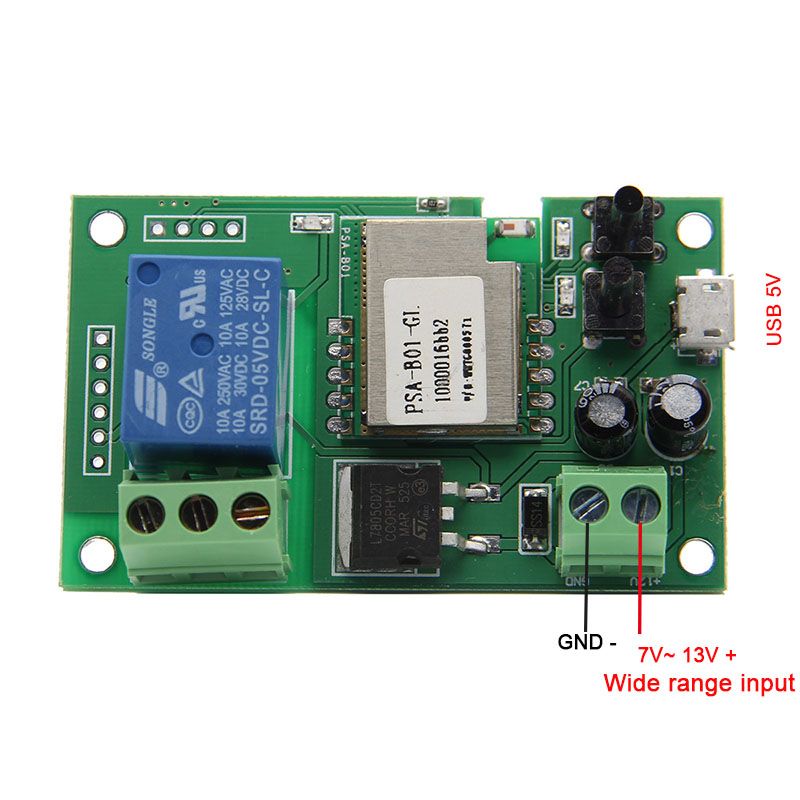

Two working voltage: USB 5V and DC 7V-32V
With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current:80mA
Cutover current< 10A , Cutover voltage< 250V
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -40 to 70degree
Working Humidity: 40% to 80% RH
Size:about 80*15*35mm
Function:

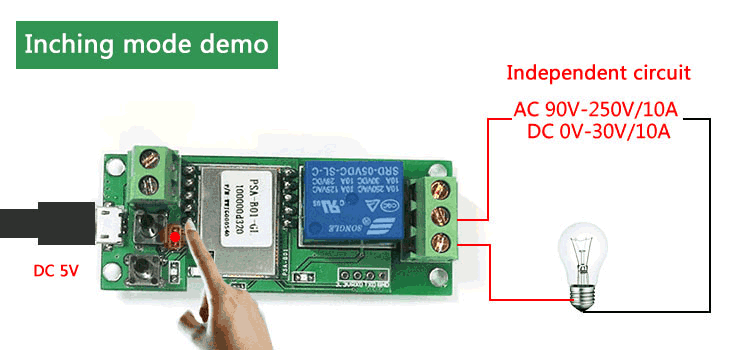

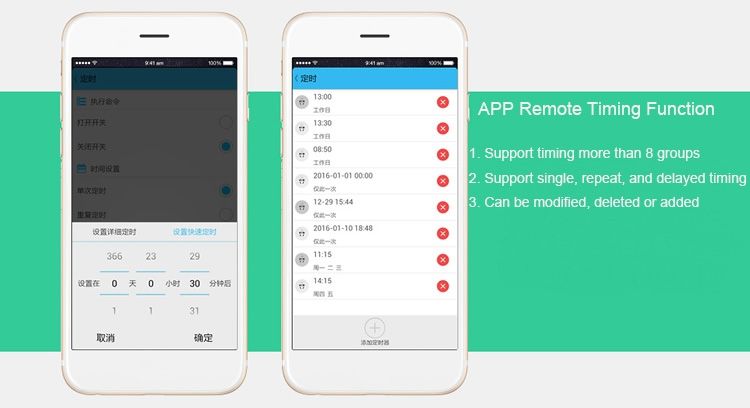

1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.

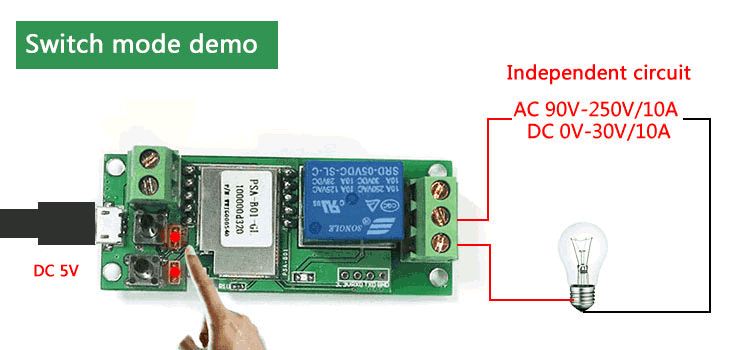

2. Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Here is the reference about 5V WiFi Wireless Smart Home Switch:
Know more about this product, please click:
Package included:
1 x WIFI Wireless Smart Home Switch
Support apple cellphone also, you can search "易微联" in Apple store to setup it;
Support apple cellphone also, you can search "e-welink" in Apple store to setup it for English version;
WIFI control model, no need to program. No matter where you are, you only need to download a APP to connect the WIFI and control the cloud.
Features:
Two working voltage: USB 5V and DC 7V-32V
With signal instruction light and relay pull-on instruction light
Power < 1W, and quiescent current:80mA
Cutover current< 10A , Cutover voltage< 250V
10A Relay Model
The life of Relay Model is more than 1,000,000
Insulation resistance: 100M
Maximum pull-on time: 15mS
Maximum release time: 5mS
Working Temperature: -40 to 70degree
Working Humidity: 40% to 80% RH
Size:about 80*15*35mm
Function:
1. Default inching Function: Press the open relay by mobile phone, then cut off the pull-on immediately(default one second), it has the timing-share function at the same time.
2. Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Here is the reference about 5V WiFi Wireless Smart Home Switch:
Know more about this product, please click:
Package included:
1 x WIFI Wireless Smart Home Switch
,
,
,
,
,
,
