UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M

UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator 200MSa/s 4.3inch TFTLCD Arb. Memory Depth 1M
$392.64
Ex Tax: $392.64
  • Stock: In Stock
  • Model: EB004732
  • SKU: EB004732
Features:

1. Intuitive Interface Design;
2. Dual Channels with Standard Performance;
3. 250MS/s ,200MS/s Sample Rate, 14bits Vertical Resolution;
4. Integrated Analog and Digital Design;
5. 4.3 HD Display Panel.

Specification:

Specification UTG2025A
Channels 2
Max.Sample Rate 200MS/s
Max.Output Frequency 25MHz
Frequency Resolution 1 Hz
Vertical Resolution 14 bits
Max. Arb Memory Depth 1Mpts
Waveform Sine,Square,Ramp,Triangle,Pulse,Noise,DC,Arb
Output Amplitude Range 1mVpp-10Vpp (50);2mVpp-20Vpp (High Z)
Modulation Types AM,FM,PM,ASK,FSK,PWM,Sweep,Burst
Interface USB Device, USB Host, LAN (UTG2062A )
General Characteristic
Power 100-240VAC, 40-440Hz
Display 4.3 Inches 64K Color TFT LCD, 480×272
Product Color White and Gray
Product Net Weight 3.2 Kg
Product Size 231mm × 94mm × 283mm
Standard Accessories BNC Cable,Power Cord , USB Cable,PC Software CD
Standard Individual Packing Gift Box, English Manual
Optional Accessories
LAN Communication Port

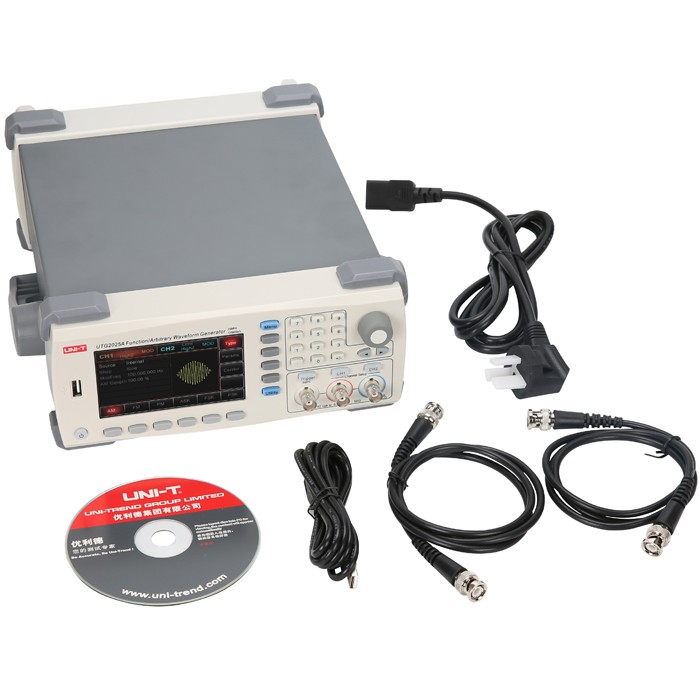

Package included:

1 x UNI-T UTG2025A Signal Function Arbitrary Waveform Generator
(Full set as pictures shown)

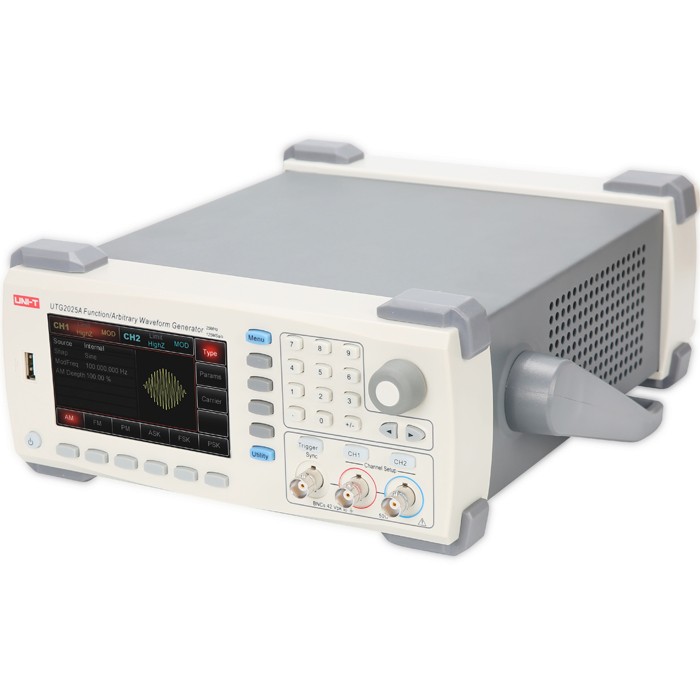

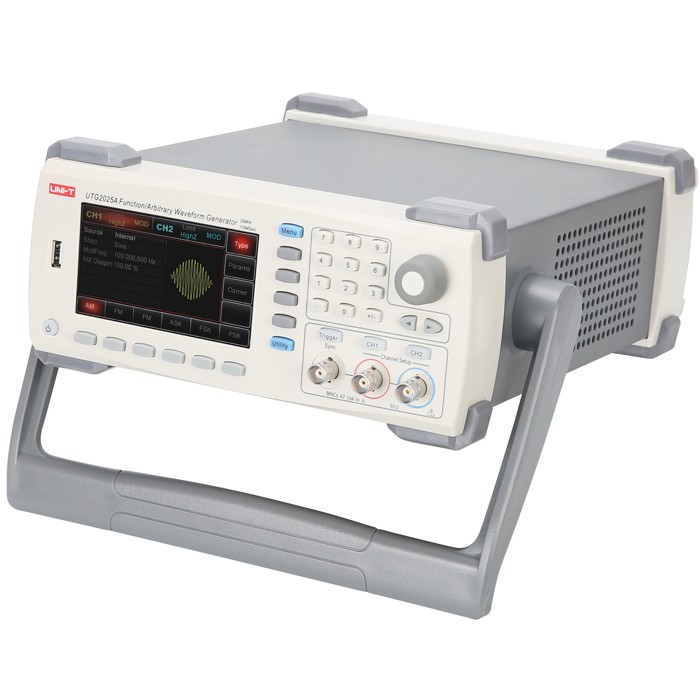

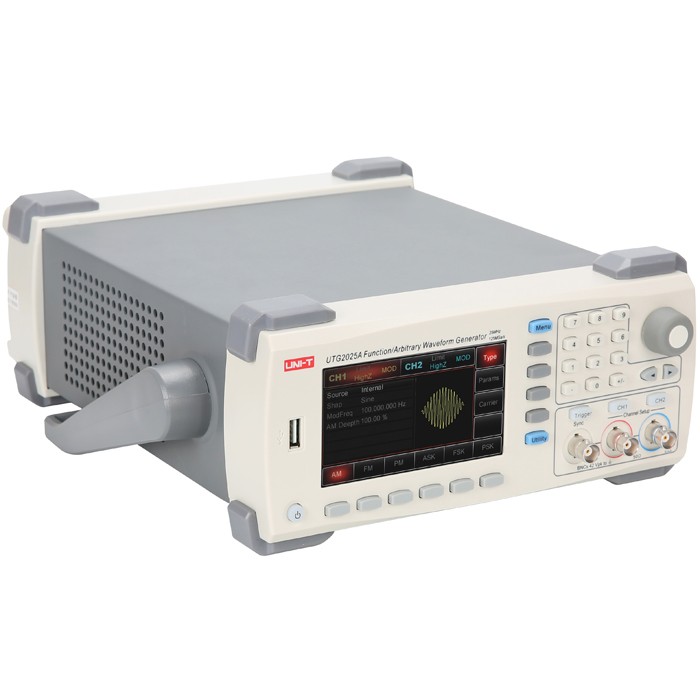

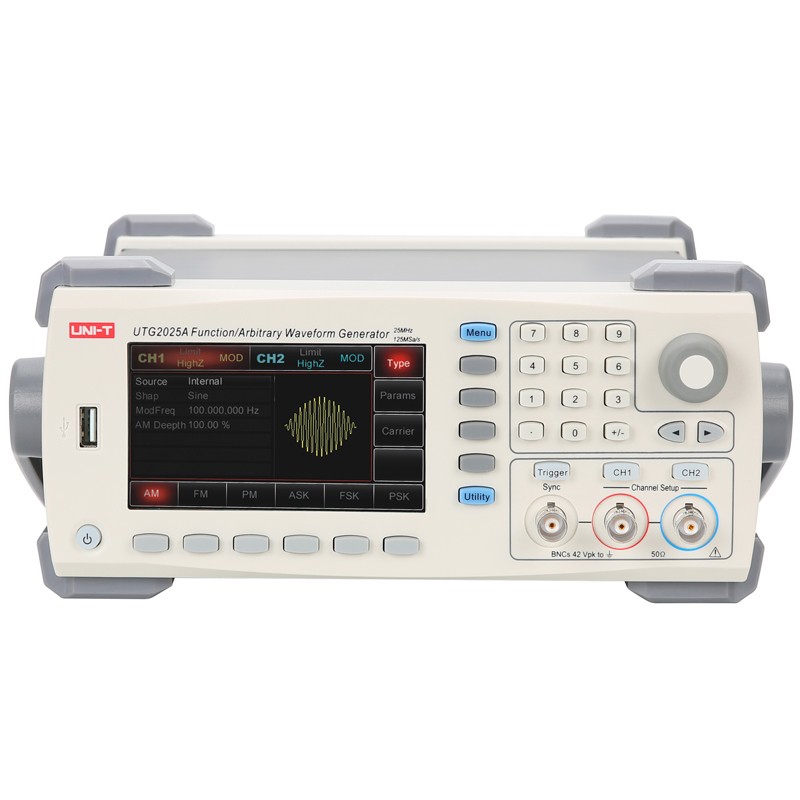

Detail Pictures:



UNI-T-UTG2025A-25MHz-USB-Dual-Channels-Signal-Function-Arbitrary-Waveform-Generator-200MSas-43inch-T-1105511
UNI-T-UTG2025A-25MHz-USB-Dual-Channels-Signal-Function-Arbitrary-Waveform-Generator-200MSas-43inch-T-1105511

UNI-T-UTG2025A-25MHz-USB-Dual-Channels-Signal-Function-Arbitrary-Waveform-Generator-200MSas-43inch-T-1105511

UNI-T-UTG2025A-25MHz-USB-Dual-Channels-Signal-Function-Arbitrary-Waveform-Generator-200MSas-43inch-T-1105511

UNI-T-UTG2025A-25MHz-USB-Dual-Channels-Signal-Function-Arbitrary-Waveform-Generator-200MSas-43inch-T-1105511
