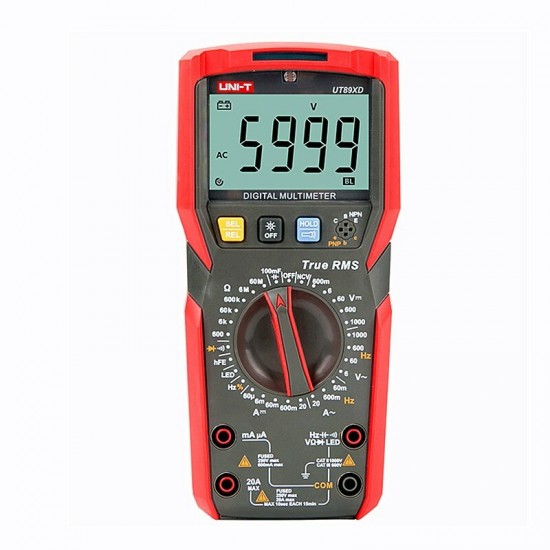

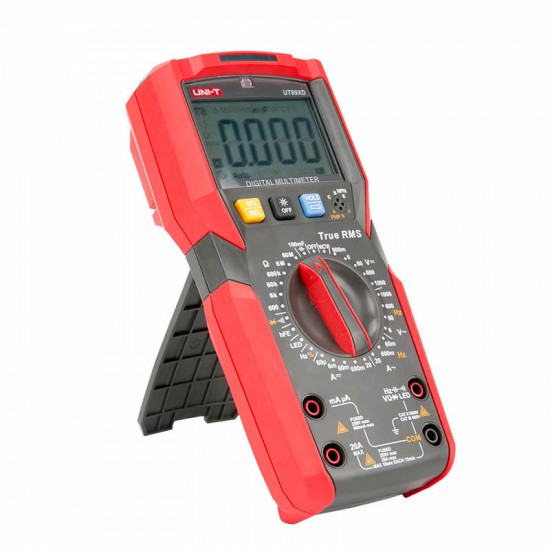

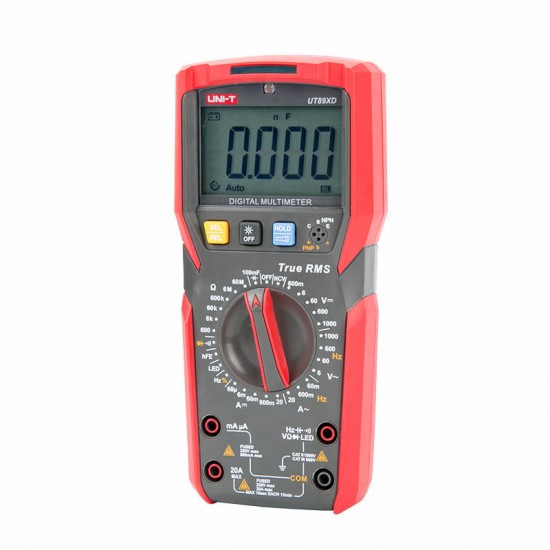

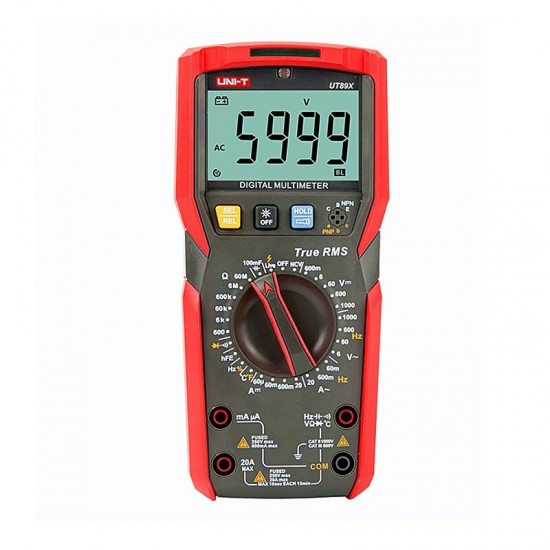

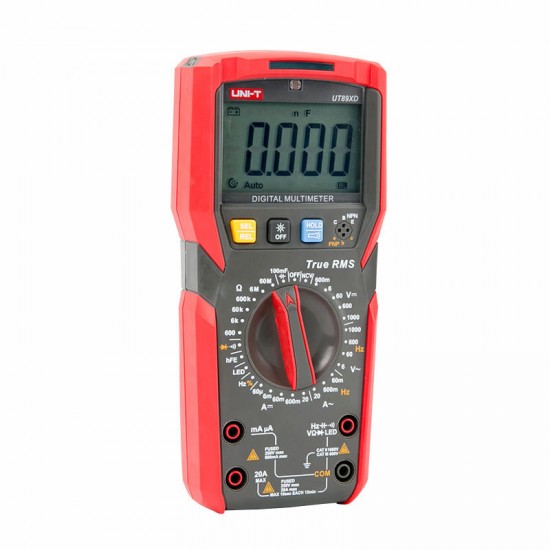

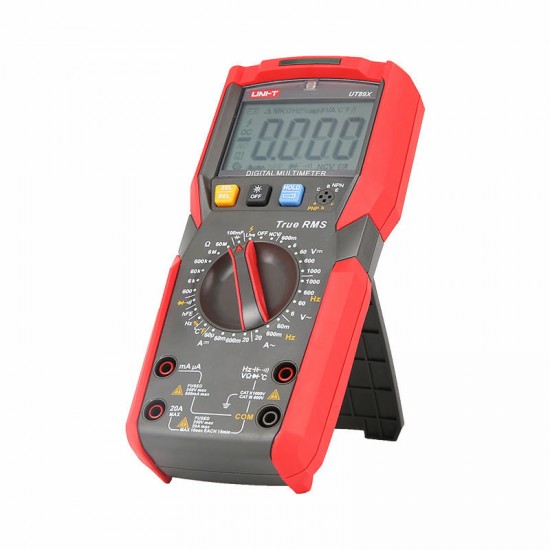

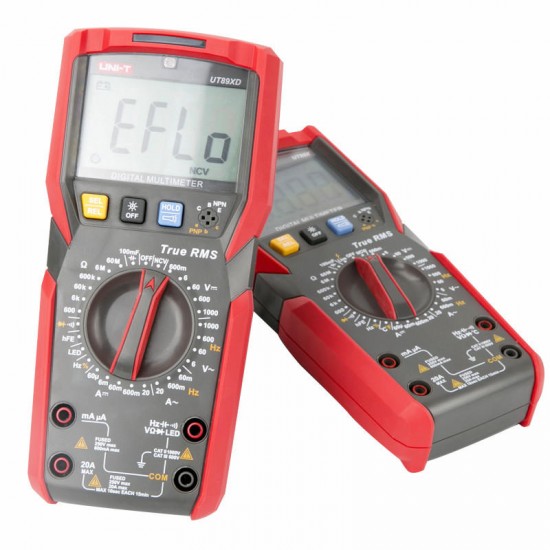

UT89X/UT89XD 6000 Count Digital Multimeter True RMS Automatic Backlight Multimeter NCV/Condensator/Triode/Temperatuur Tester

Based on 0 reviews. - Write a review

$39.99

Ex Tax: $39.99

Stock: In Stock
Model: EB004180
SKU: EB004180

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

•The Unid UT89X and UT89XD professional NCV digital multimeters can solve a long-term, problem faced by customers - how to quickly and accurately distinguish the zero-fire line, depending on the level of the detection voltage, the UT89X and UT89XD will display 3 different, color light tips, which can be used to accurately distinguish the zero-fire line, and has a, very high versatility.

•The whole series are designed with Audible/visual alarm,allowing you to observe the test result more intuitively. The flashlight and the auto backlight features are also convenient when measuring in the dark. With ergonomic design and durable double injection.

•The UT89X has a temperature measurement function that can be used for HVAC system inspection.

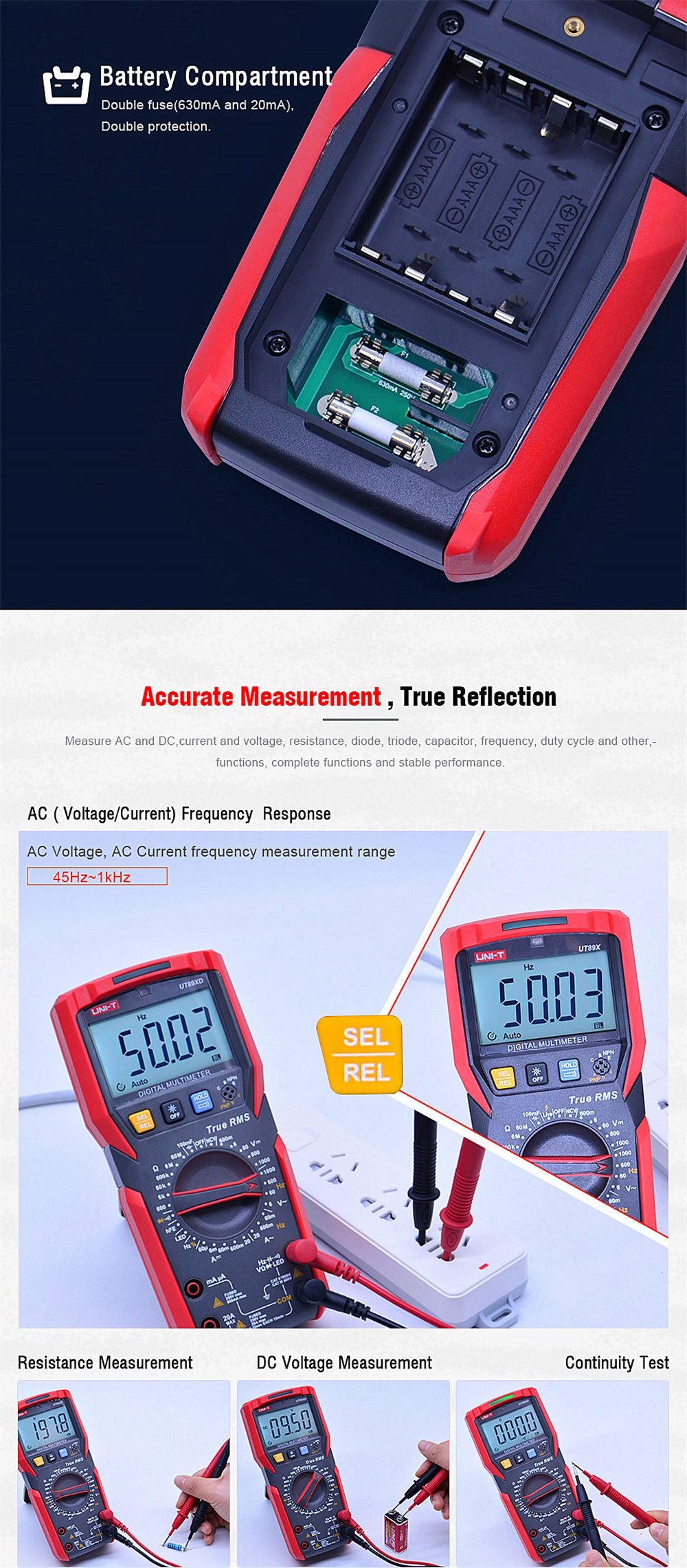

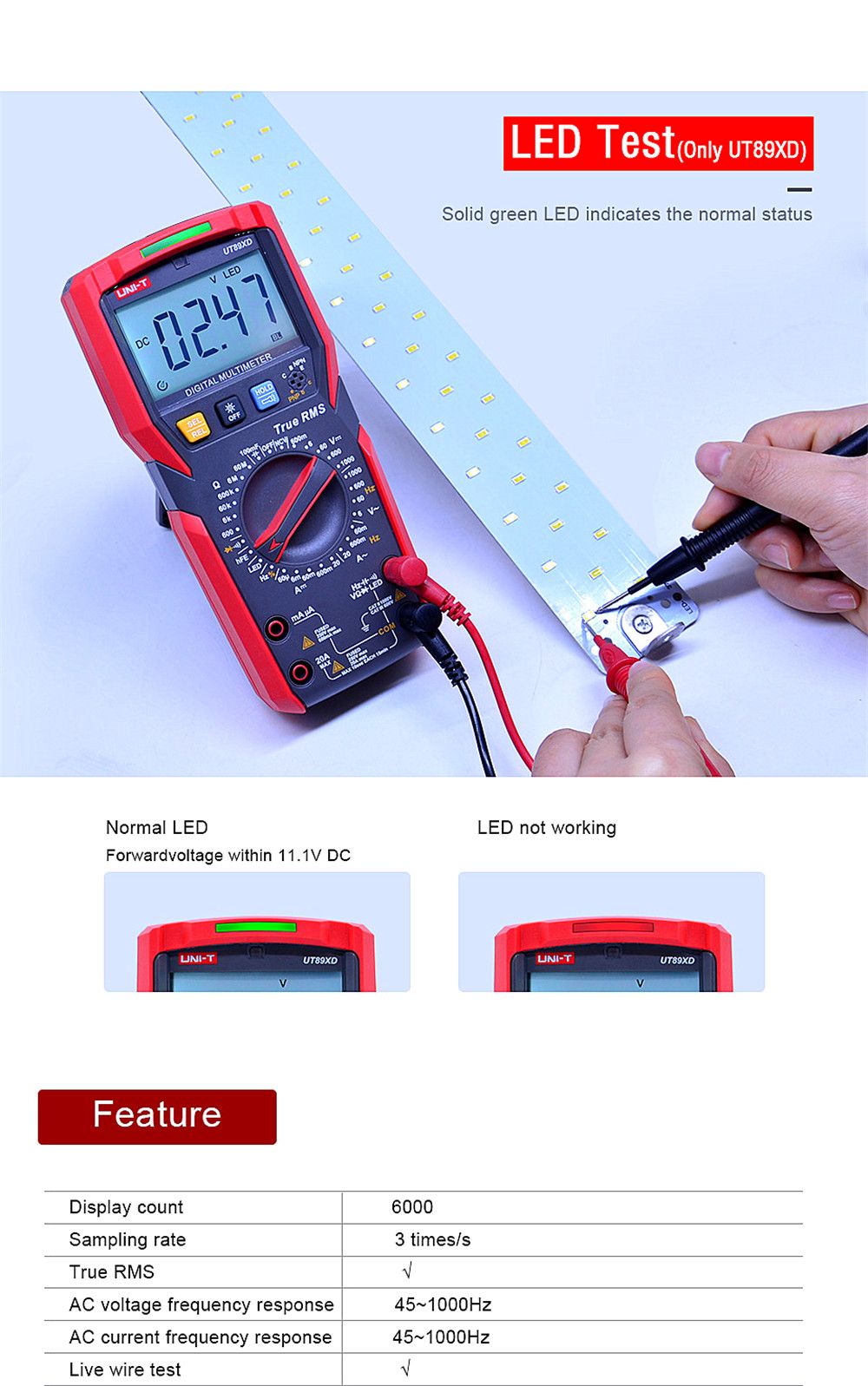

•The UT89XD is equipped with an LED light-emitting diode detection function to detect the use of the LED and diagnose its quality. At the same time, UT89X series also has the traditional multimeter to AC and DC, current and voltage, resistance, diode, triode, capacitor, frequency, duty cycle and other, functions, full functions and stable performance.

Features:

1) Double injection, durable and ergonomic

2) Audible/visual alarm (applied in voltage/currenVcapacitance/diode/transistor/ continuity/NCV/LED measurement)

3) Up to 1000V voltage measurement

4) Up to 20A current measurement

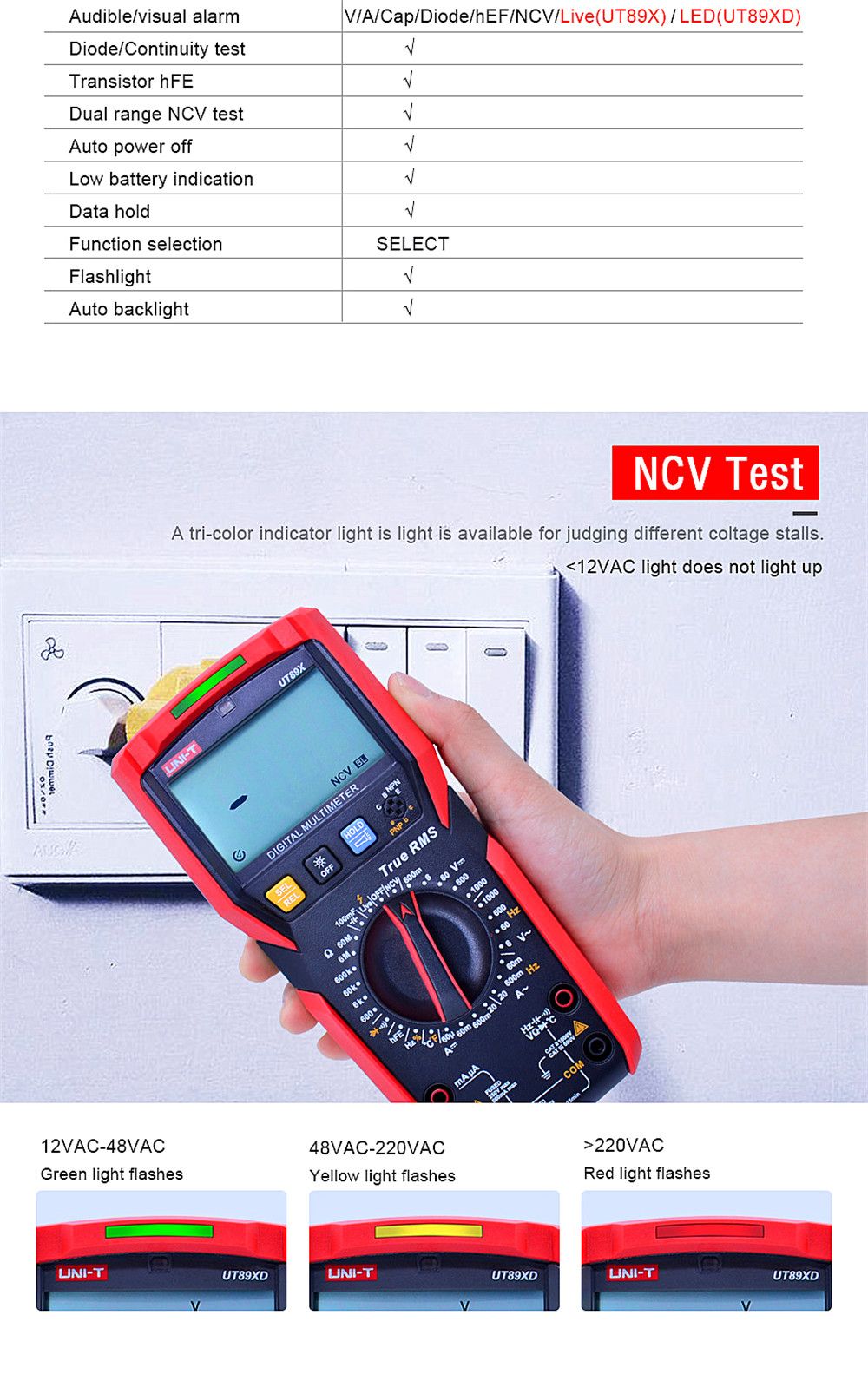

5) NCV measurement with voltage levels can measure voltage down to about AC 12V/50Hz and distinguish live/neutral wires by sensing

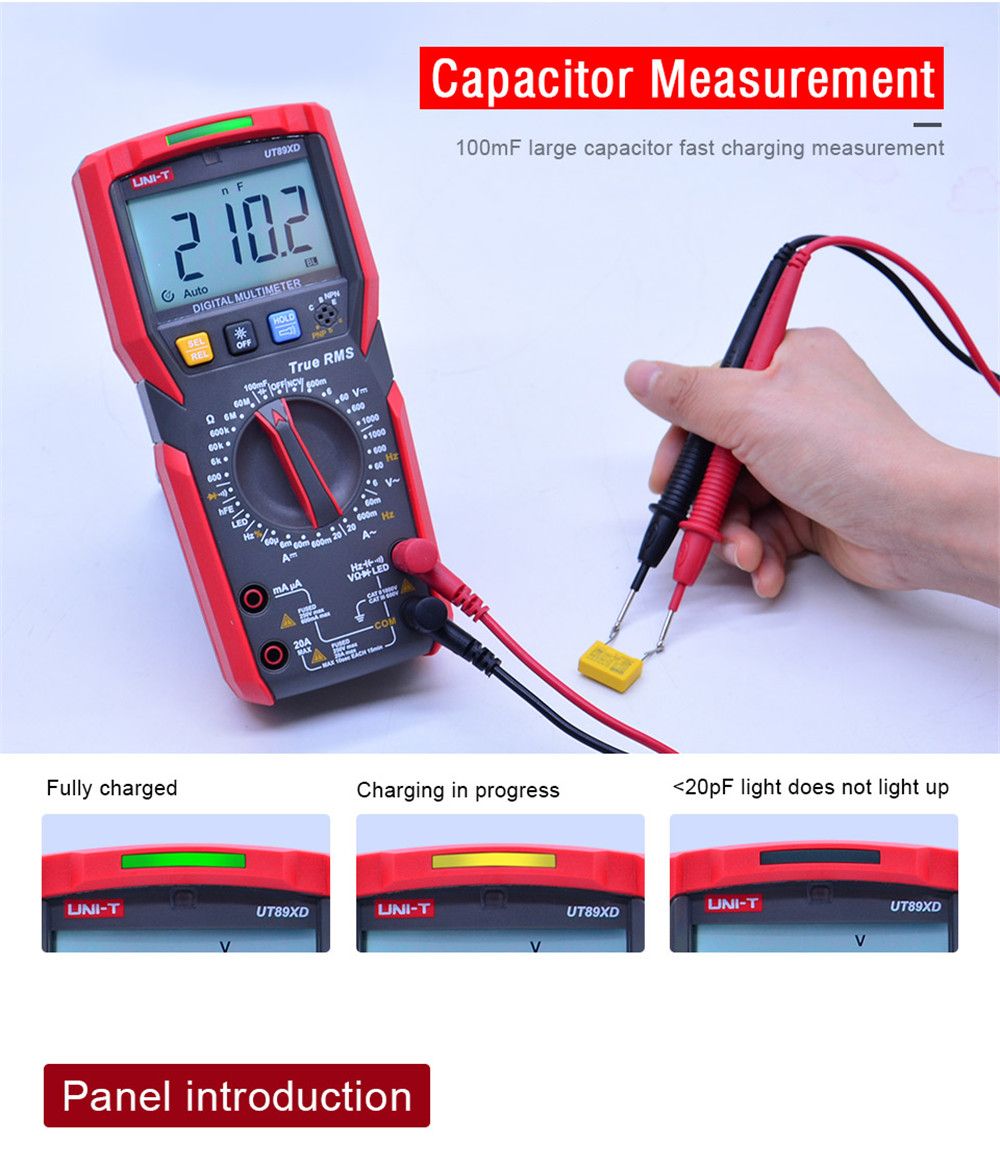

6) Up to 100mF capacitance measurement

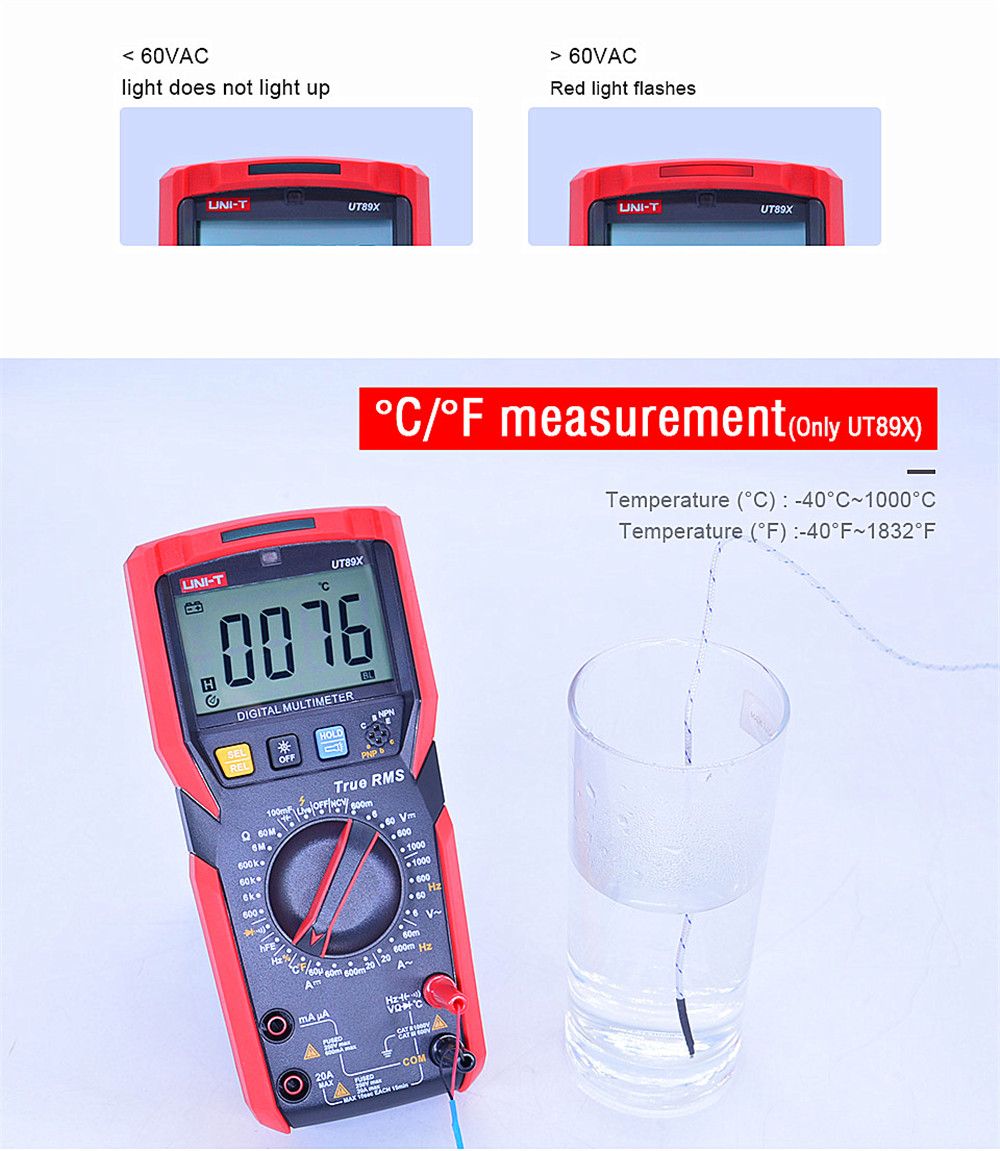

7) Temperature measurement range: -40-1000 ° C(Only UT89X)

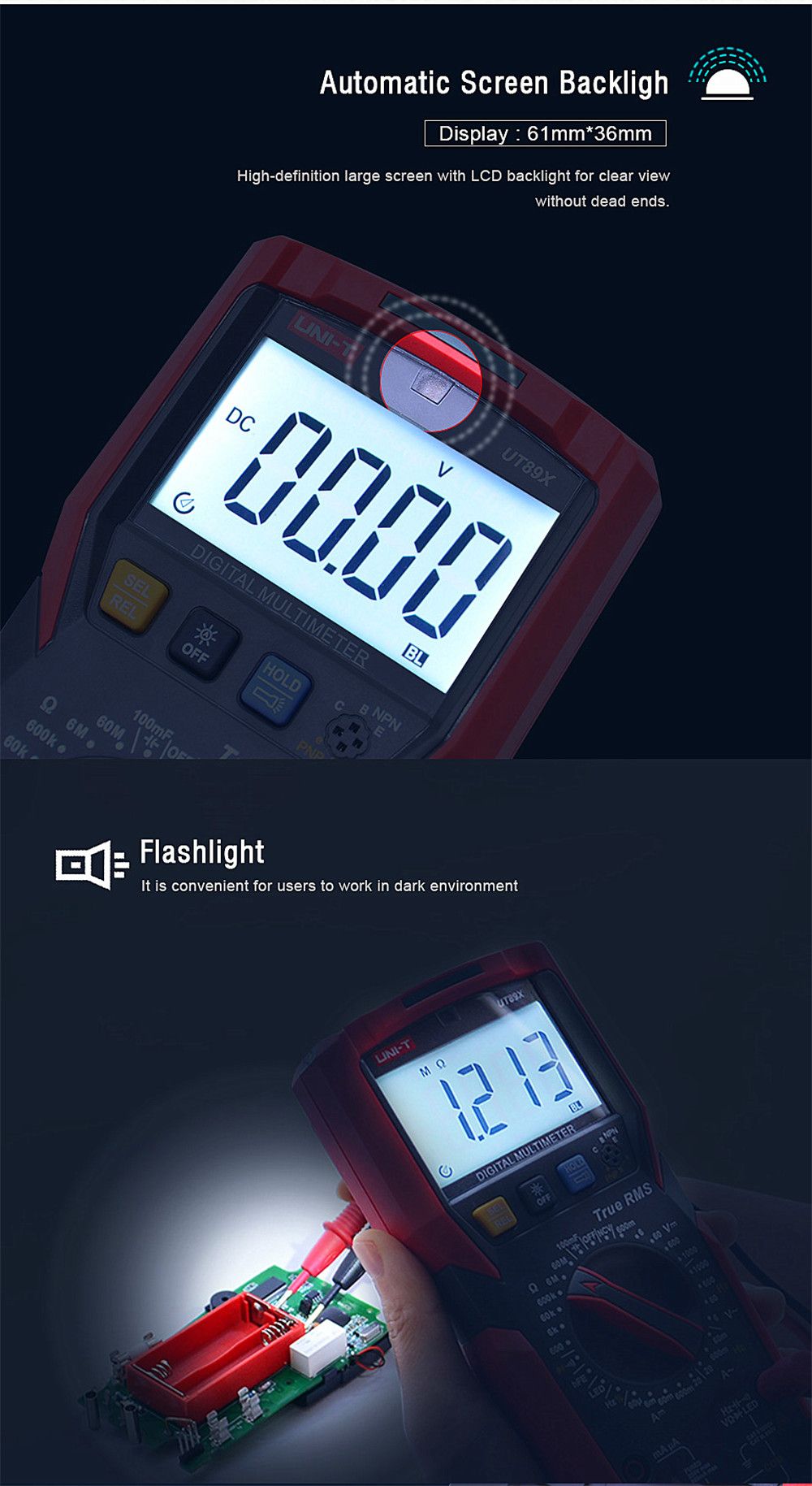

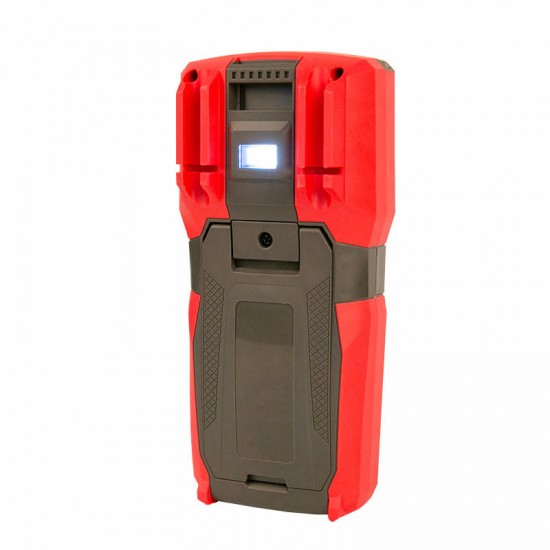

8) LCD auto backlight and flashlight

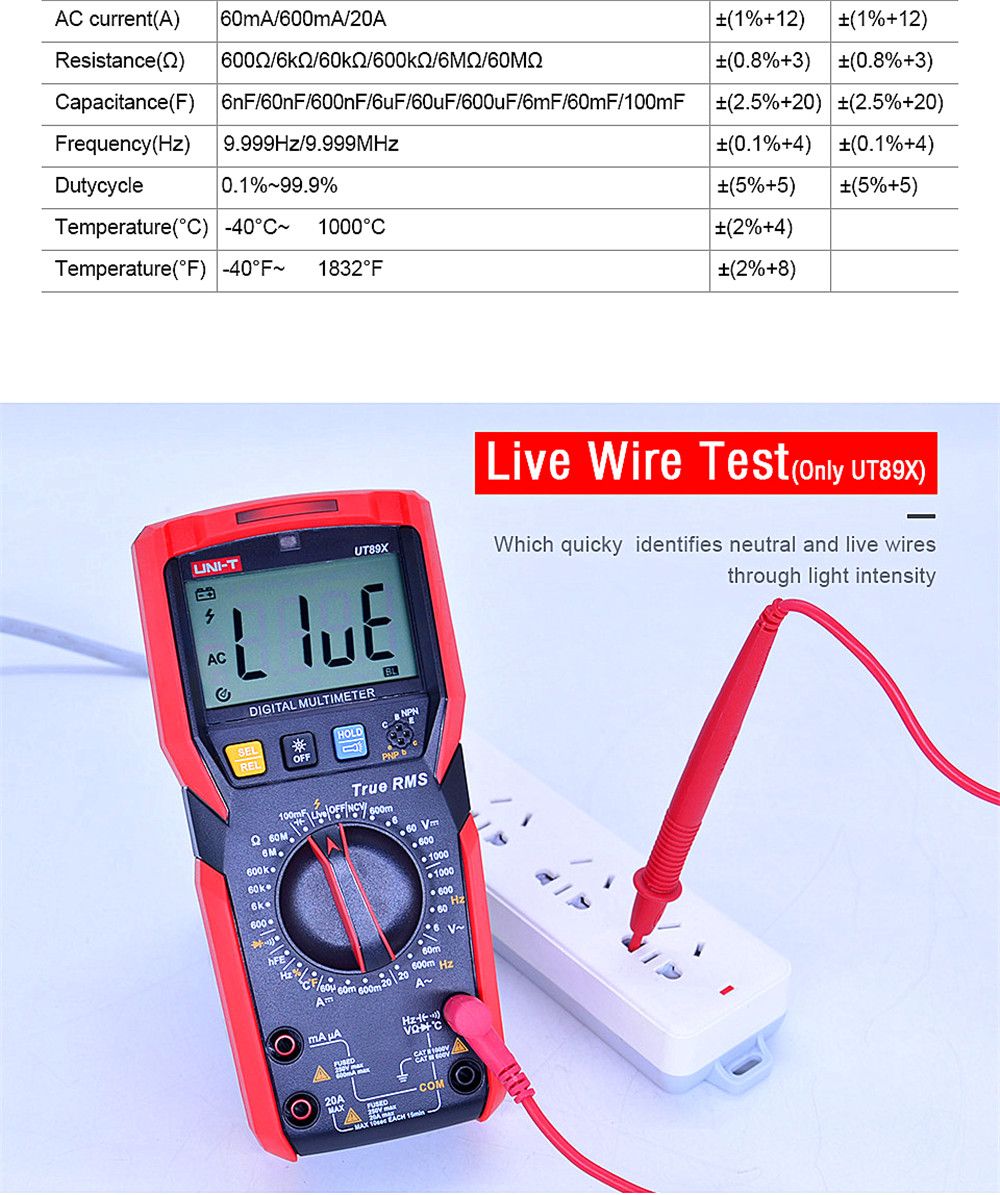

9) Live wire test(Only UT89X)

10) LCD auto backlight and flashlight (Only UT89XD)

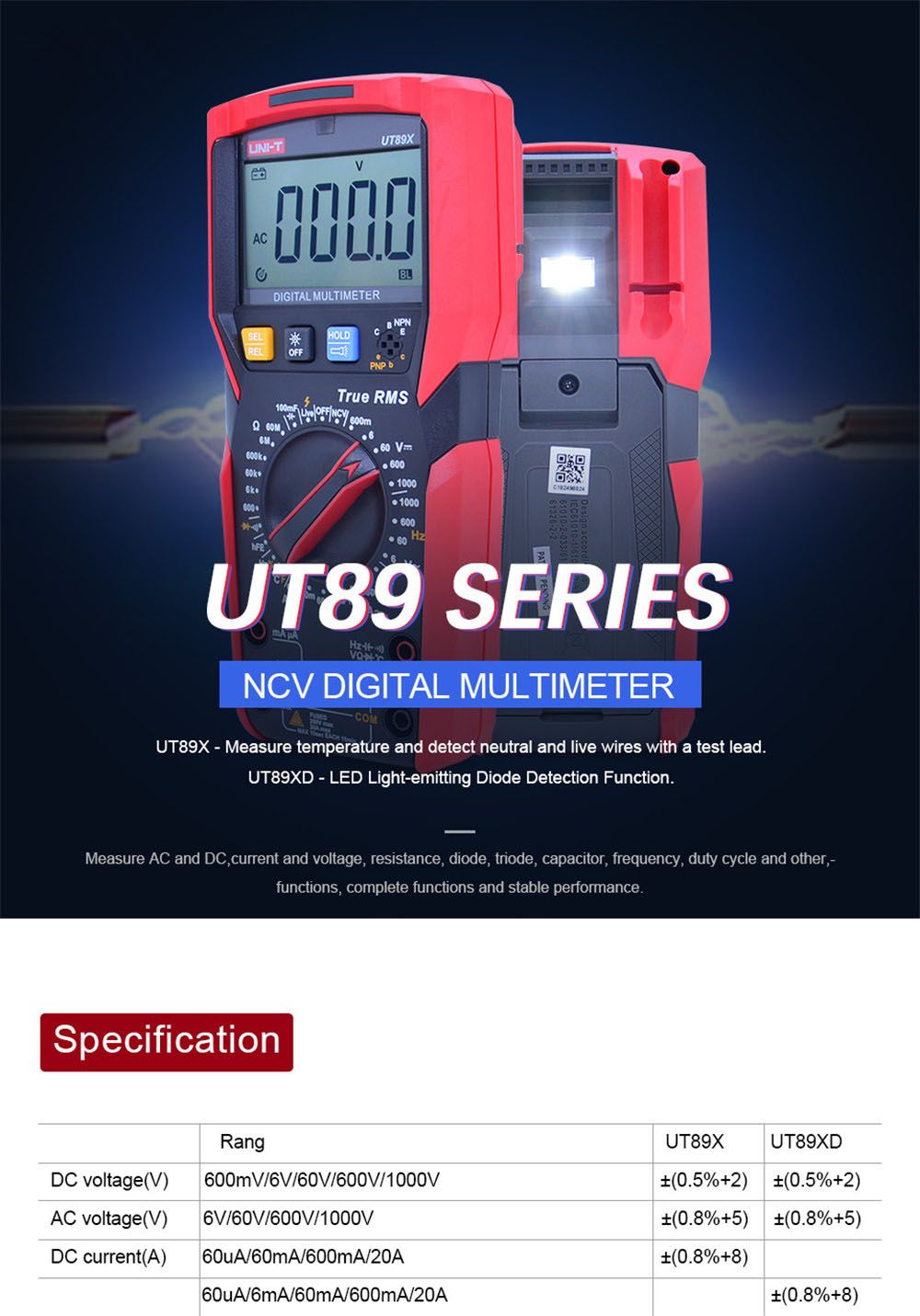

Specifications:

♦DC Voltage: 600mV 土(0.5%+4);6V/60V/600V土(0.5%+2);1000V 士(0.7%+10);

♦AC Voltage(45~400Hz):6V/60V/600V土(1.8%+5);1000V 士(1.0%+10);

♦AC Voltage(400~1000Hz):6V土(1.0%+8);60V/600V土(1.5%+8);1000V 士(1.8%+12);

♦DC Current: 60uA/6mA/60mA/600mA 土(0.8%+8); 20A 士(2.0%+5);

♦AC Current(45~400Hz): 60mA土(1.0%+12);600mA土(2.0%+3);20A 土(3.0%+5);

♦AC Current(400~1000Hz): 60mA土(1.5%+12);600mA土(2.5%+5);20A 土(3.5%+8);

♦Resistance: 600Ω士(0.8%+5);6kΩ/60kΩ/600kΩ士(0.8%+3);6MΩ士(1.5%+5);60MΩ士(1.5%+25);

♦Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF

♦Frequency(Hz): 9.999Hz/9.999MHz

♦Duty cycle: 0.1%~99.9%

♦Sampling rate:3 times/s

♦True RMS: √

♦Temperature measurement range: -40-1000 ° C (Only UT89X)

♦Live wire test: √

♦Audible/visual alarm: V/A/Cap/Diode/hEF/NCV/LED

♦Diode/Continuity test:√

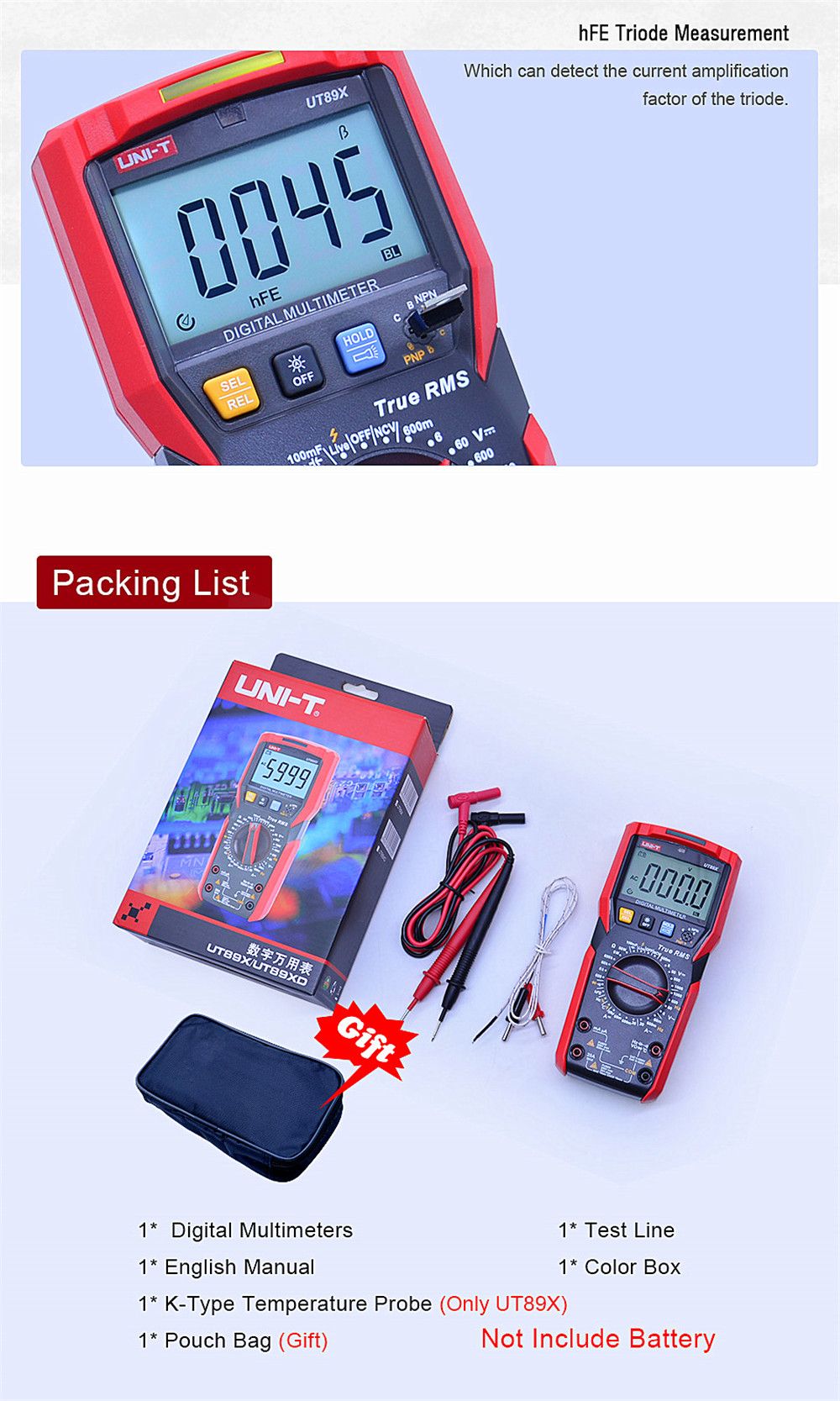

♦Transistor hFE:√

♦Dual range NCV test:√

♦Auto power off: √

♦Low battery indication: √

♦Data hold: √

♦Function selection: SELECT

♦Flashlight: √

♦Auto backlight: √

♦Range: Auto/Manual

♦Polarity: Auto

♦Display: TN screen

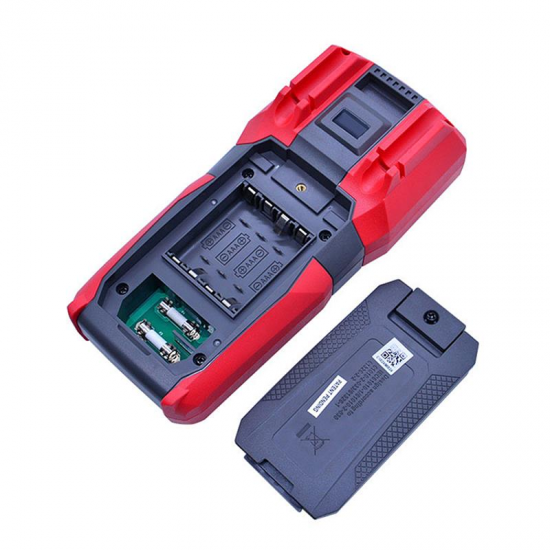

♦Power Supply:4 x AAA(Not included)

♦Operating temperature: 0° - 40°(32°F- 104°F)

♦Storage temperature: -20° - 60°(-4°F- 140°F )

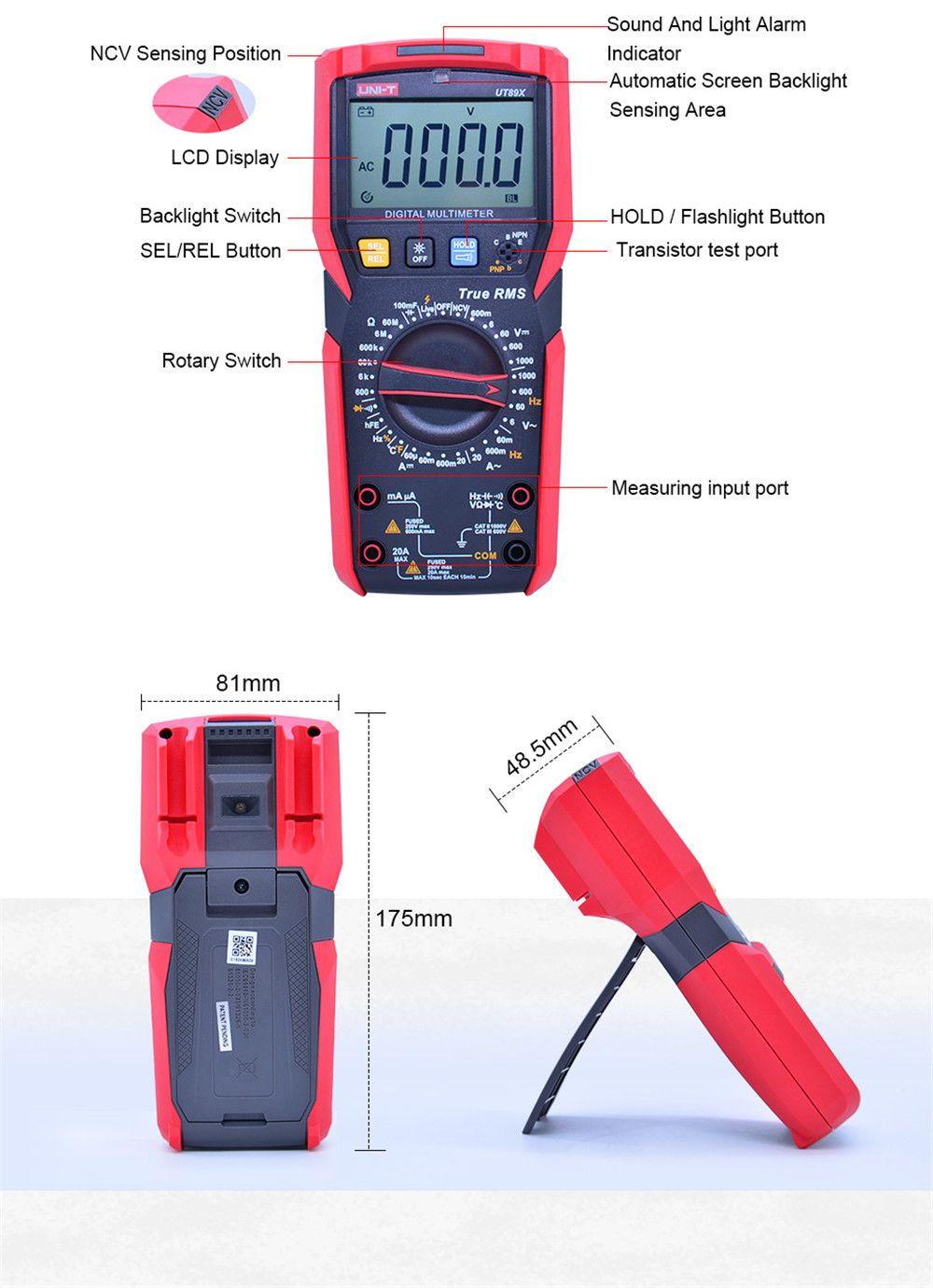

♦Dimension: about 175mm x 81mm x 48.5mm

♦Weight: UT89X about 523g, UT89XD about 514g

Package includes:

1 x Digital multimeter UT89X

1 x User manual

1 x Test leads

1 x Color box

1 x K-type Temperature Probe (Only UT89X)

1 x Pouch Bag (Gift )

Detail pictures:
