UT81B Professional LCD Handheld Oscilloscope Digital Multimeter
- Stock: In Stock
- Model: EB004623
- SKU: EB004623
UNI-T UT81B Handheld Oscilloscope Digital Multimeter 8MHz w/ USB & LCD
Model Number : UT81B
Specification :
| Basic Functions | Range | Best Accuracy |
| DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.8%+8) |
| AC Voltage | 4V/40V/400V/750V | ±(1%+15) |
| DC Current | 400mA /4000mA/40mA/400mA/4A/10A | ±(1%+8) |
| AC Current | 400mA/4000mA/40mA/400mA/4A/10A | ±(1.5%+8) |
| Resistance | 400Ω/ 4kΩ/40kΩ/400kΩ/4MΩ/ 40MΩ | ±(1%+5) |
| Capacitance | 40nF /400nF/4mF/40mF/100mF | ±(3%+8) |
| Frequency | 10Hz~10MHz | ±(0.1%+3) |
| Vertical Accuracy | ±(5%+1) | |
| Input Sensitivity | 20mV/div-500V/div (1-2-5) | √ |
| Horizontal Accuracy | ±(0.01%+1) | |
| Timebase Range | 100ns/div-5s/div (1-2-5) | √ |
| Bandwidth | 8MHz | |
| Display Resolution | 160X160 | √ |
| Real-Time Sample Rate | 40MSa/s | |
| Duty Cycle | 0.1%~99.9% | √ |
| Special Functions | ||
| Diode | √ | |
| Continuity Buzzer | √ | |
| Display | 160x160 Monochrome | √ |
| Trigger Types | Free Run / Normal / Single Shot | √ |
| Memory | 10 screens and setups | √ |
| Contrast and Bright Setup | √ | |
| Input Impedance For DCVoltage Measurement | Around 10MΩ | √ |
| Sleep Mode | √ | |
| Low Battery Display | √ | |
| Display Backlight | √ | |
| USB | √ | |
| Max.Display | 3999 | √ |
| Power | 1.5V Battery (R6) x 6 |
| LCD Size | 60 x 60mm |
| Product Color | Red and Grey |
| Product Net Weight | 500g |
| Product Size | 200 x100 x 48mm |
| Standard Accessories | Test Lead , Battery, Alligator Clip, USB Interface Cable, Software, Power Adapter |
| Optional Accessories* | Scope Probe, BNC Probe |

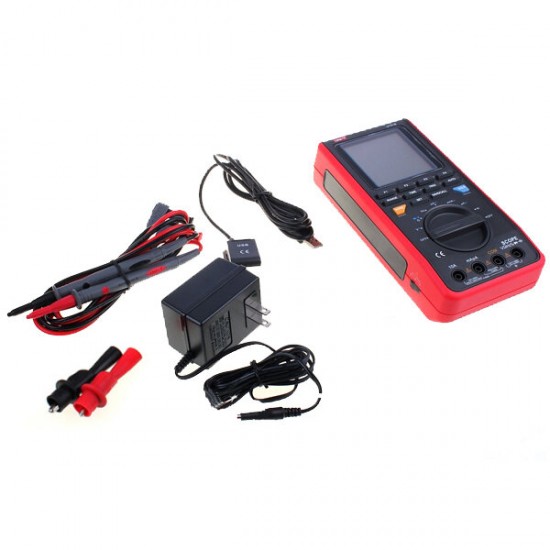

Package included :
1 x UNI-T UT81B Digital Oscilloscope (Come with full kit accessories as above)

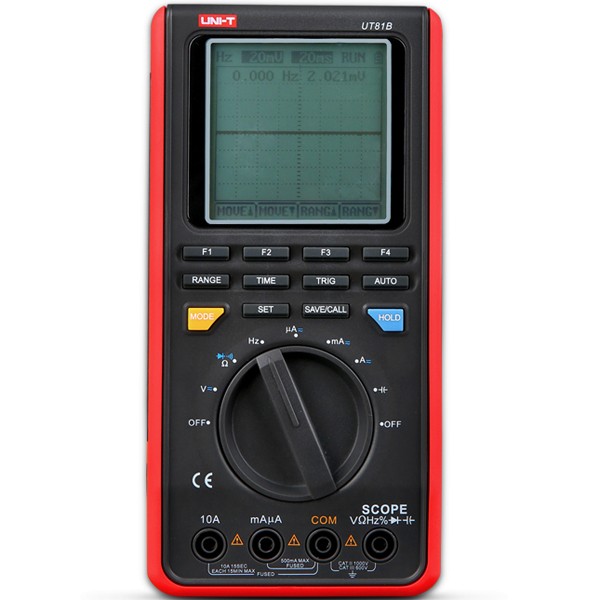

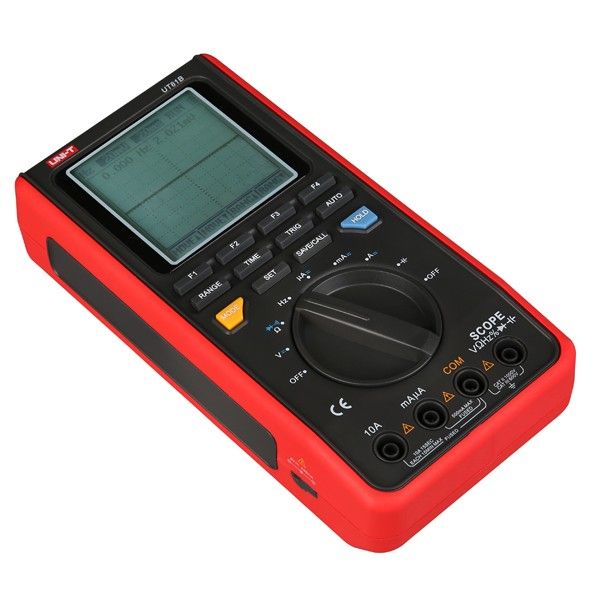

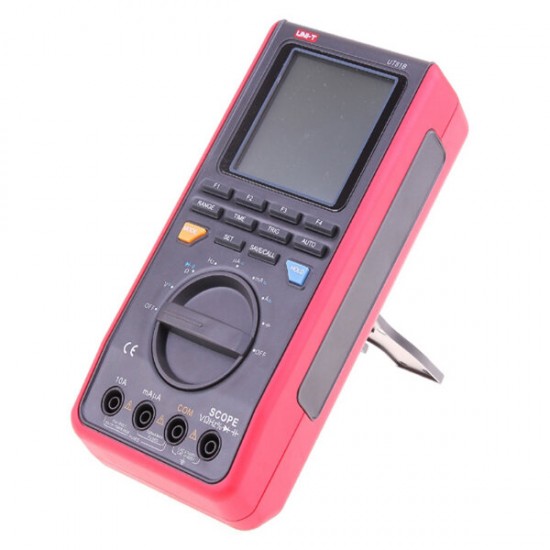

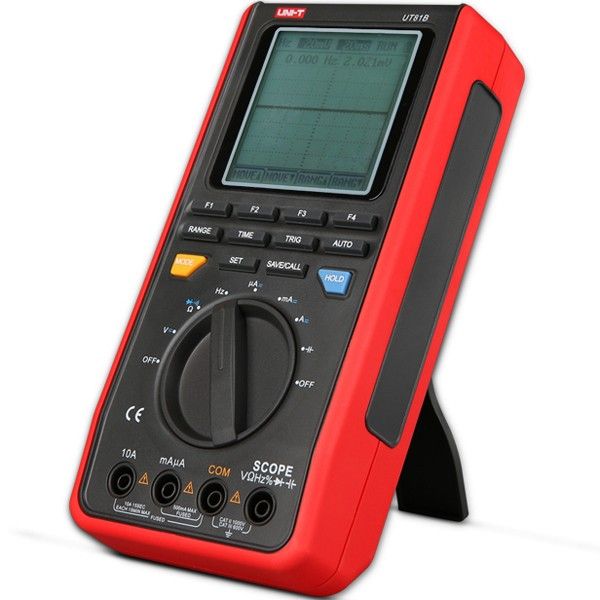

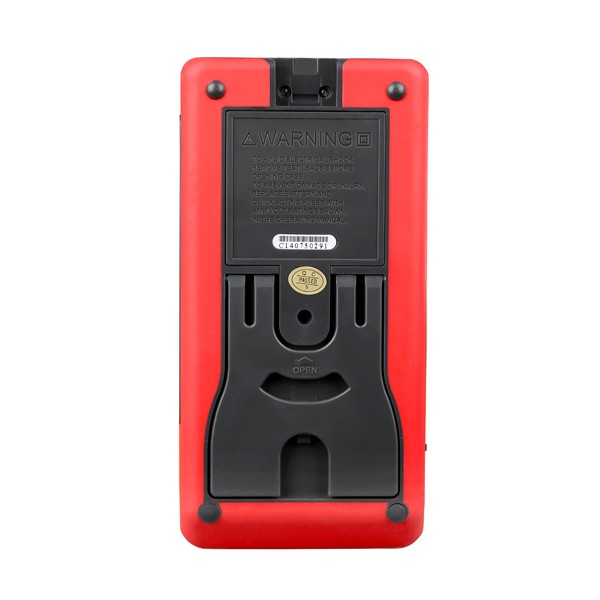

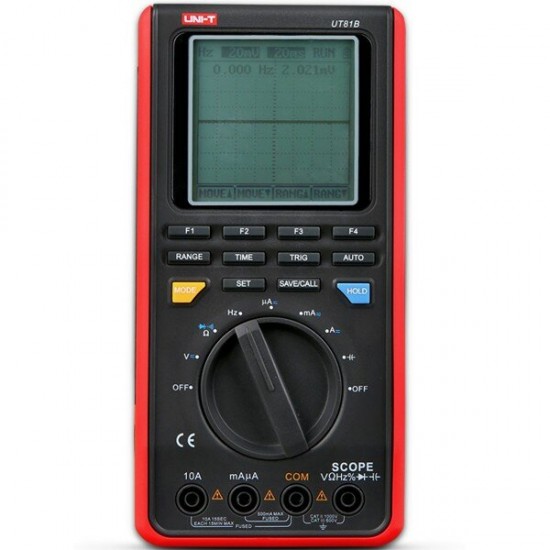

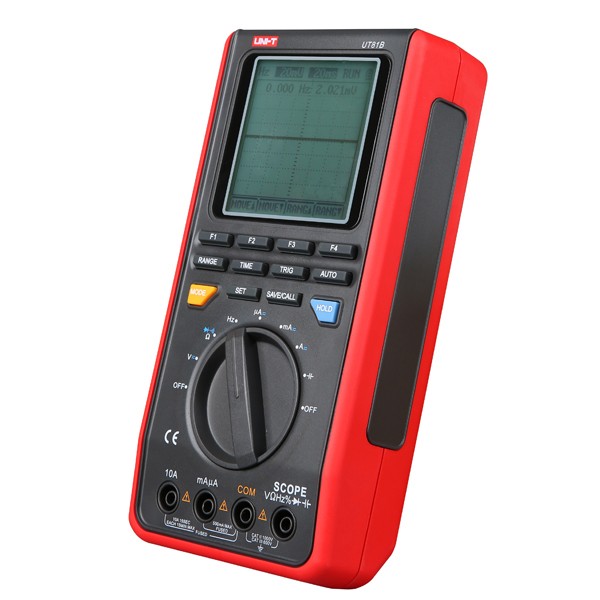

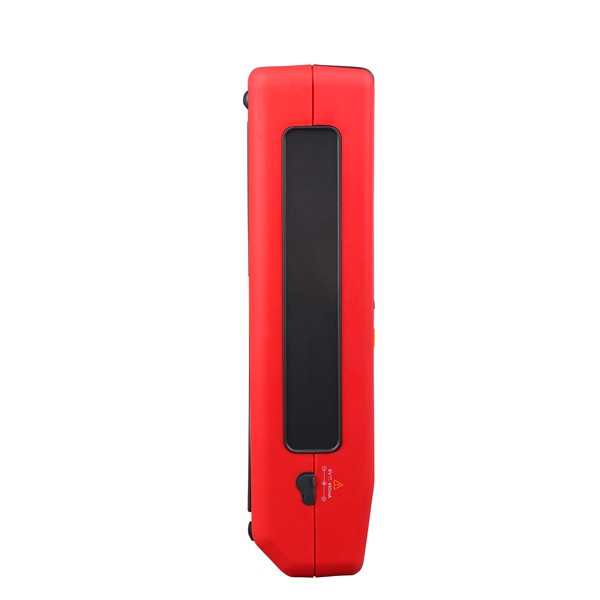

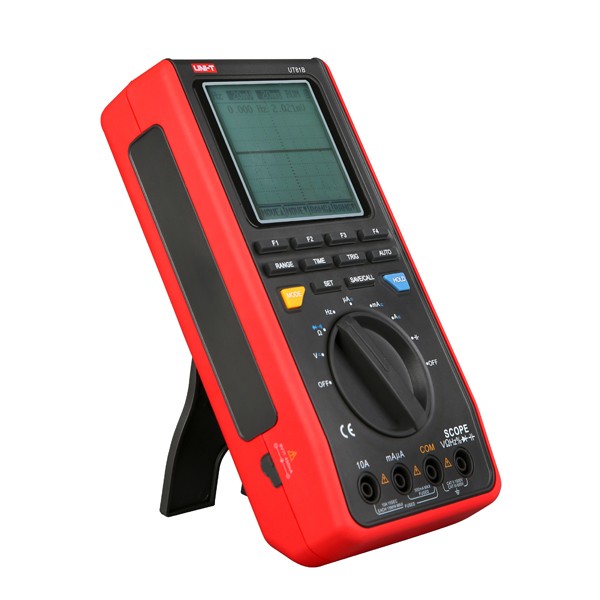

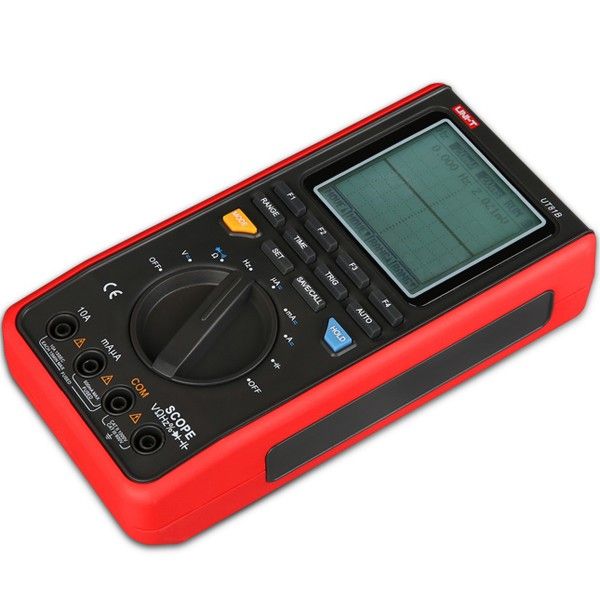

Details pictures :
