UT801 LCD Display Desktop Digital Multimeter with AC/DC Current Voltage Tester
- Stock: In Stock
- Model: EB004327
- SKU: EB004327
UNI-T UT801 LCD Display Desktop Digital Multimeter Data Hold with AC/DC Current Voltage Resistance Capacitance Frequency Tester Thermometer
Brand Name: Renhotec
UT801 is a manual range digital bench-type multimeter with average value display, full function and full range overload protection and a unique outlook design. It can be powered by AC 220V/50Hz or 1.5V batteries(R14) x 6. Its your ideal testing meter with superior performance.
| Specifications | Range | Best Accuracy |
| Model | UT801 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | (0.5%+2) |
| AC Voltage (V) | 2V/20V/200V/750V | (0.8%+3) |
| DC Current (A) | 200A/2mA/20mA/200mA/10A | (0.8%+2) |
| AC Current (A) | 2mA/20mA/200mA/10A | (1.0%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | (0.8%+3) |
| Capacitance (F) | 20nF/2F/200F | (4%+3) |
| Frequency (Hz) | 2kHz/200kHz | (1.5%+5) |
| Temperature (C) | -40℃~1000℃ | (1.2%+3) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| LCD Backlight | √ | |
| Input Impedance for DCV | Around 10M | √ |
| Misuse Alarm | √ | |
| General Characteristic | ||

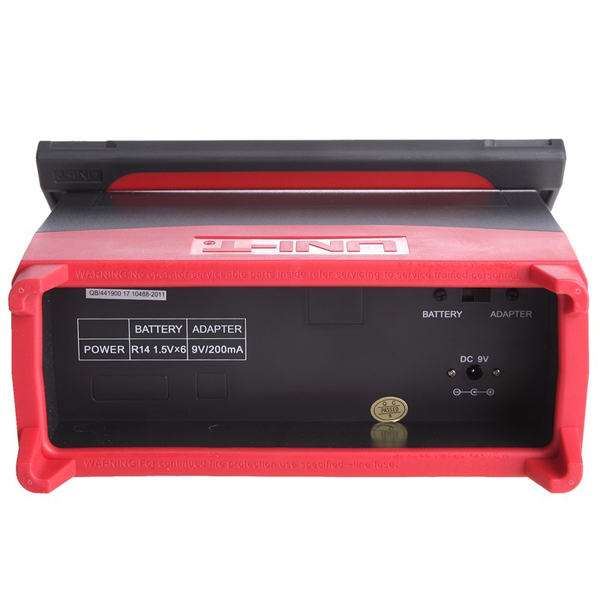

| Power | AC 220V/50Hz or 1.5V Batteries (R14) x 6 (Not included) | |
| LCD Size | 108mm x 34.5mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 1650g | |

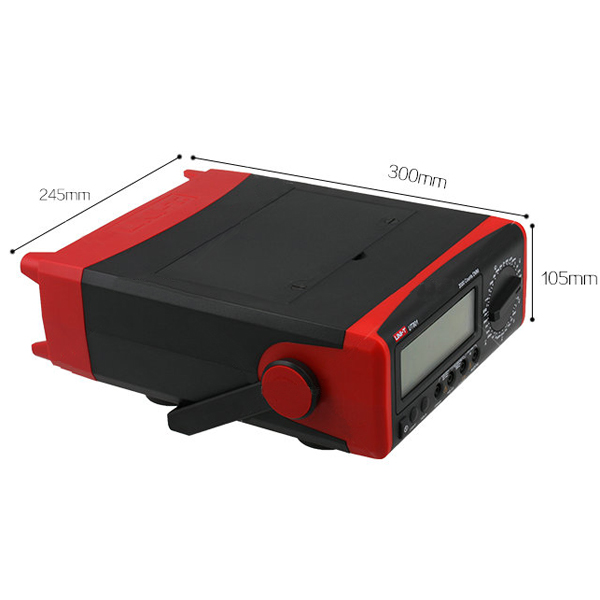

| Product Size | 300mm x 245mm x 105mm | |
| Standard Accessories | Test Lead, Alligator Clip, Point Contact Temperature Probe, Multi-Purpose Socket, AC 220V Power Cord, Power Adapter | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 4 PCs | |
| Standard Carton Measurement | 680mm x 365mm x 320mm(0.0794 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11.7 Kg | |
Packing included:
1 x UNI-T UT801 Desktop Digital Multimeter
1 x Gift Box
1 x English Manual

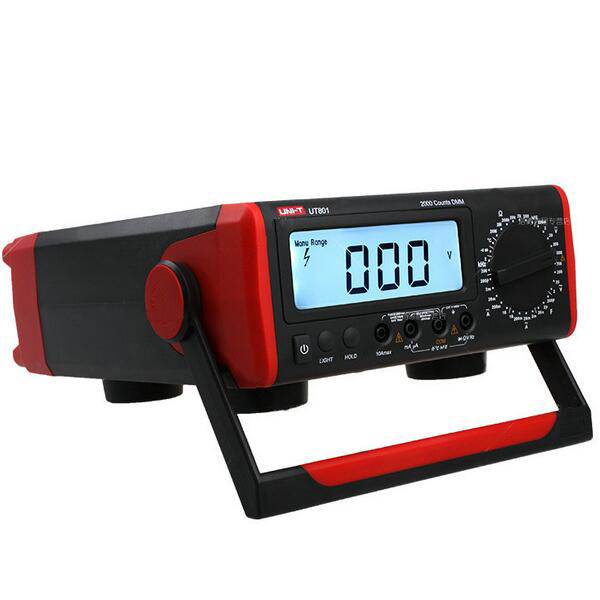

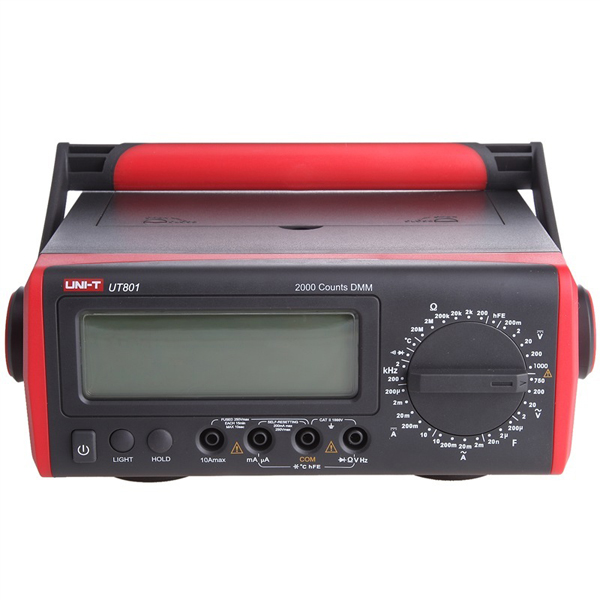

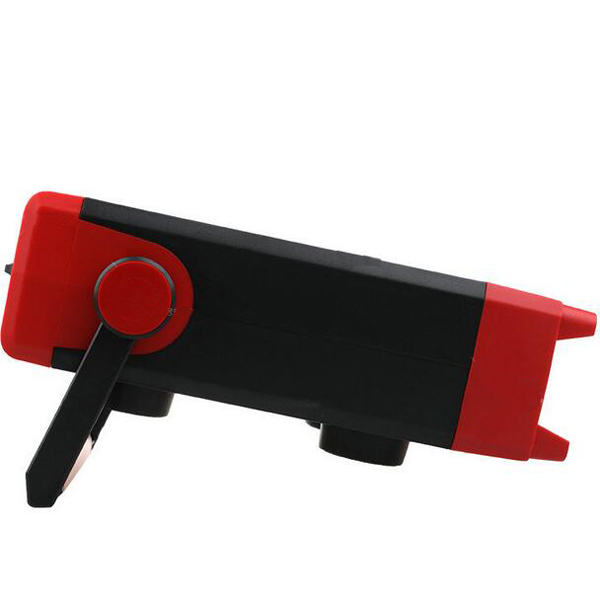

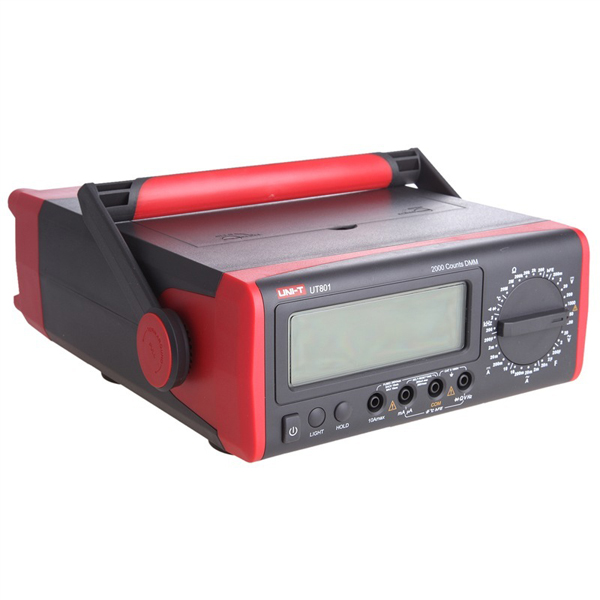

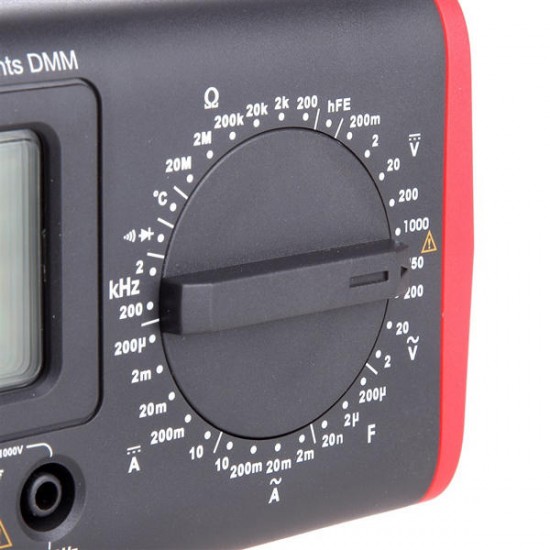

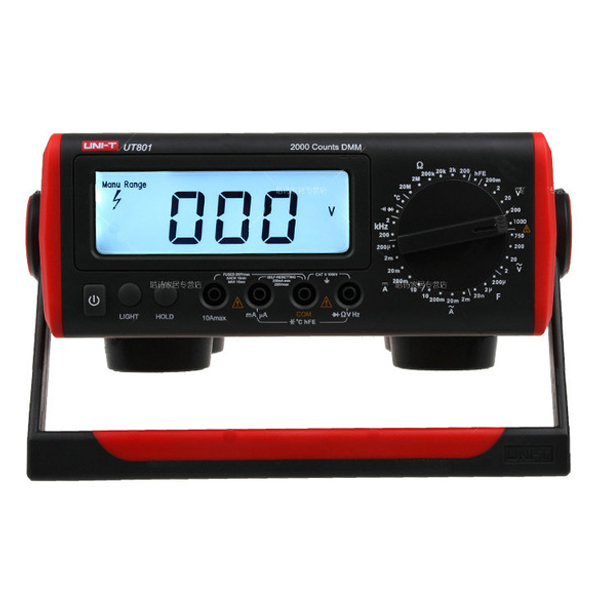

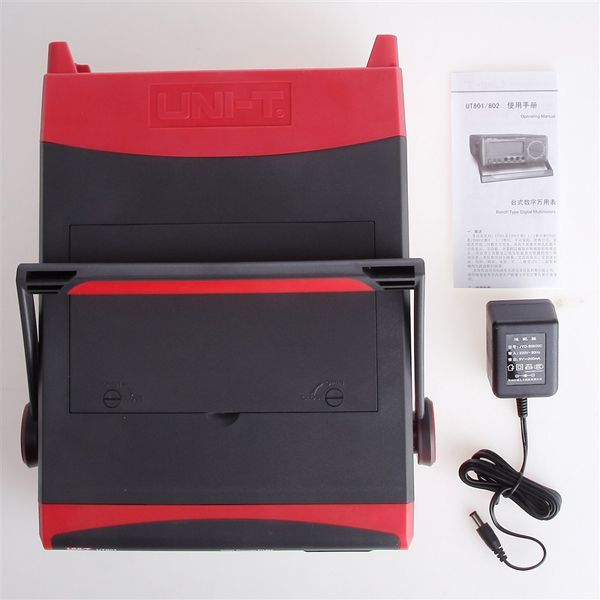

Details pictures:
