UT661A 20M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
- Stock: In Stock
- Model: EB006151
- SKU: EB006151
Model | UT661A | UT661B |
Transmitter | √ | √ |
Signal line length | 20m | 30m |
Receiver | √ | √ |

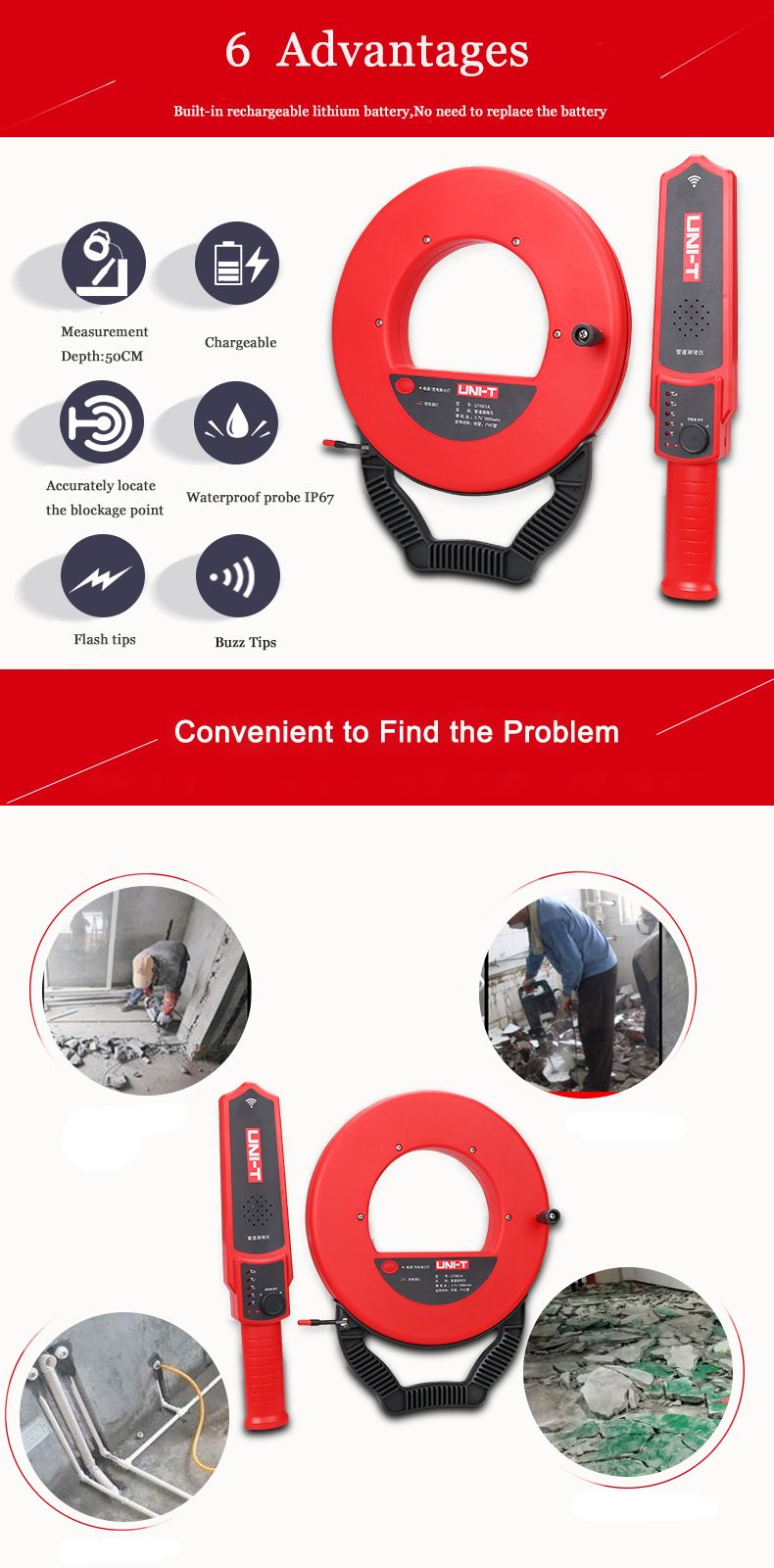

Measuring distance (depth) | >50cm | >50cm |
Transmitter current | Shutdown current<2uA, Working current 230~310mA | |
Receiver current | Shutdown current <2uA, Standby current <40mA | |
Maximum operating current 150~450mA (distance 1cm) | ||
Chargeable | √ | √ |
Recharging current | 450~550mA | |

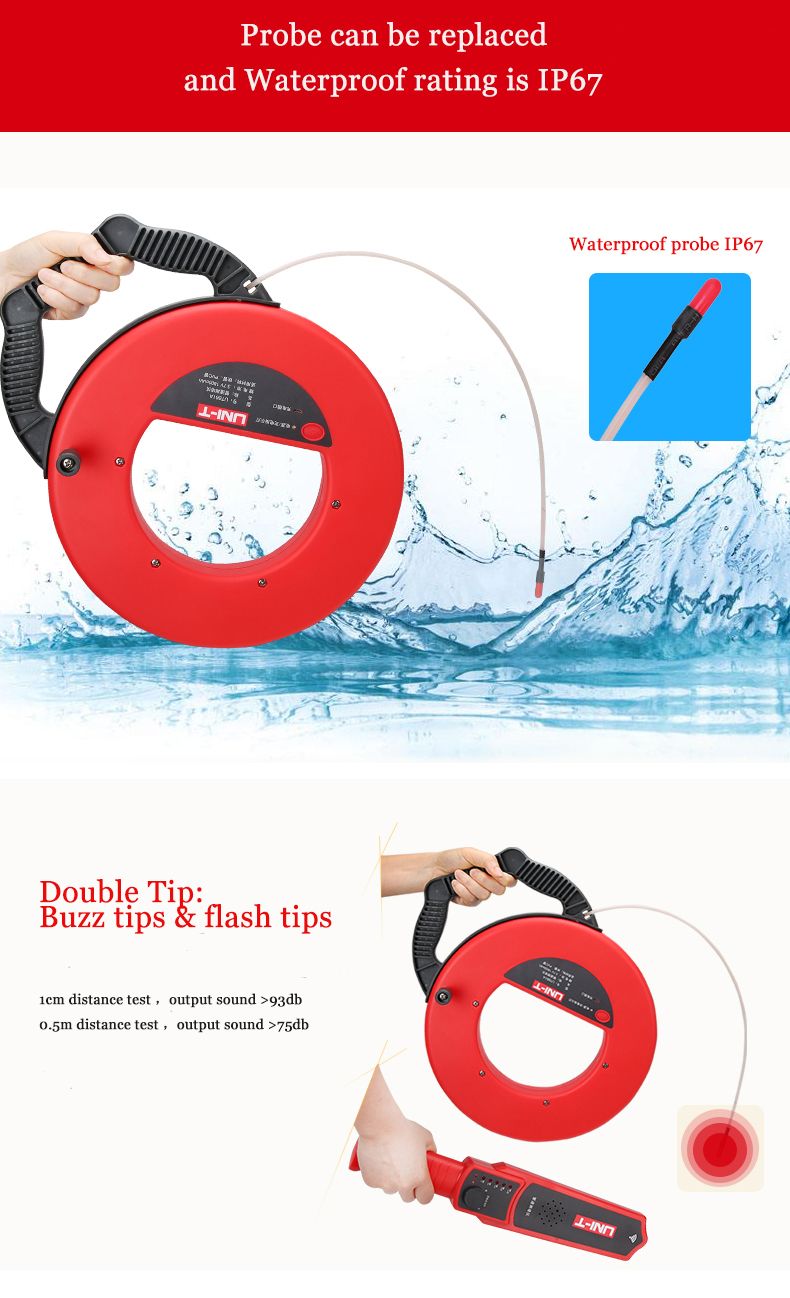

1cm distance test output sound | >93dB | |
0.5m distance test output sound | >75dB | |
General Information | ||

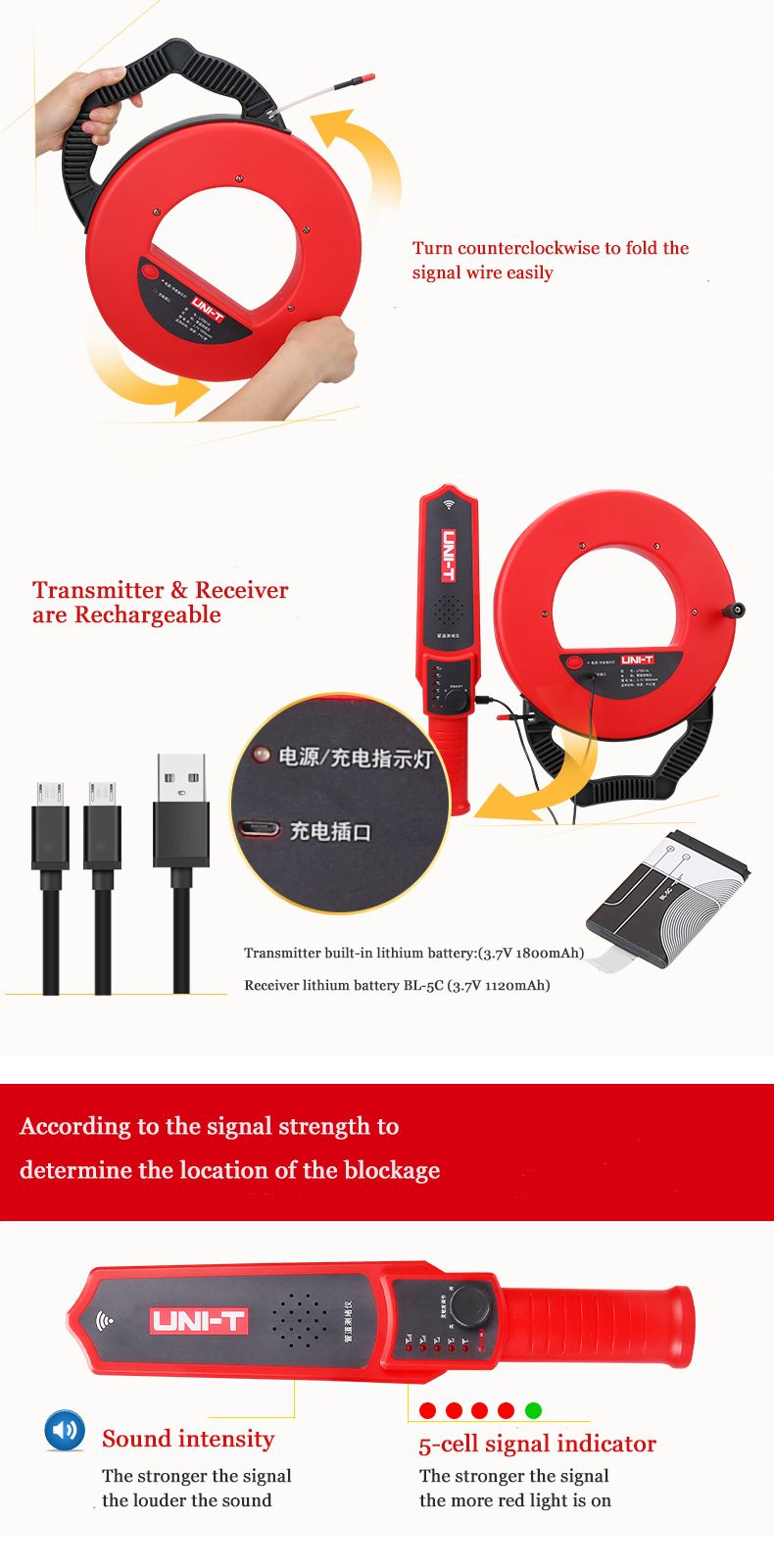

Transmitter battery | Built-in lithium battery(3.7V1800mAh) | |
Receiver battery | lithium battery BL-5C(3.7V 1120mAh) | |
Usage time | About 10 hours | |
Operating temperature | -10°C~50°C10~80%RH | |
Storage temperature | -20°C~50°C10~70%RH | |
Measurable pipe material | Plastic, Metal | |

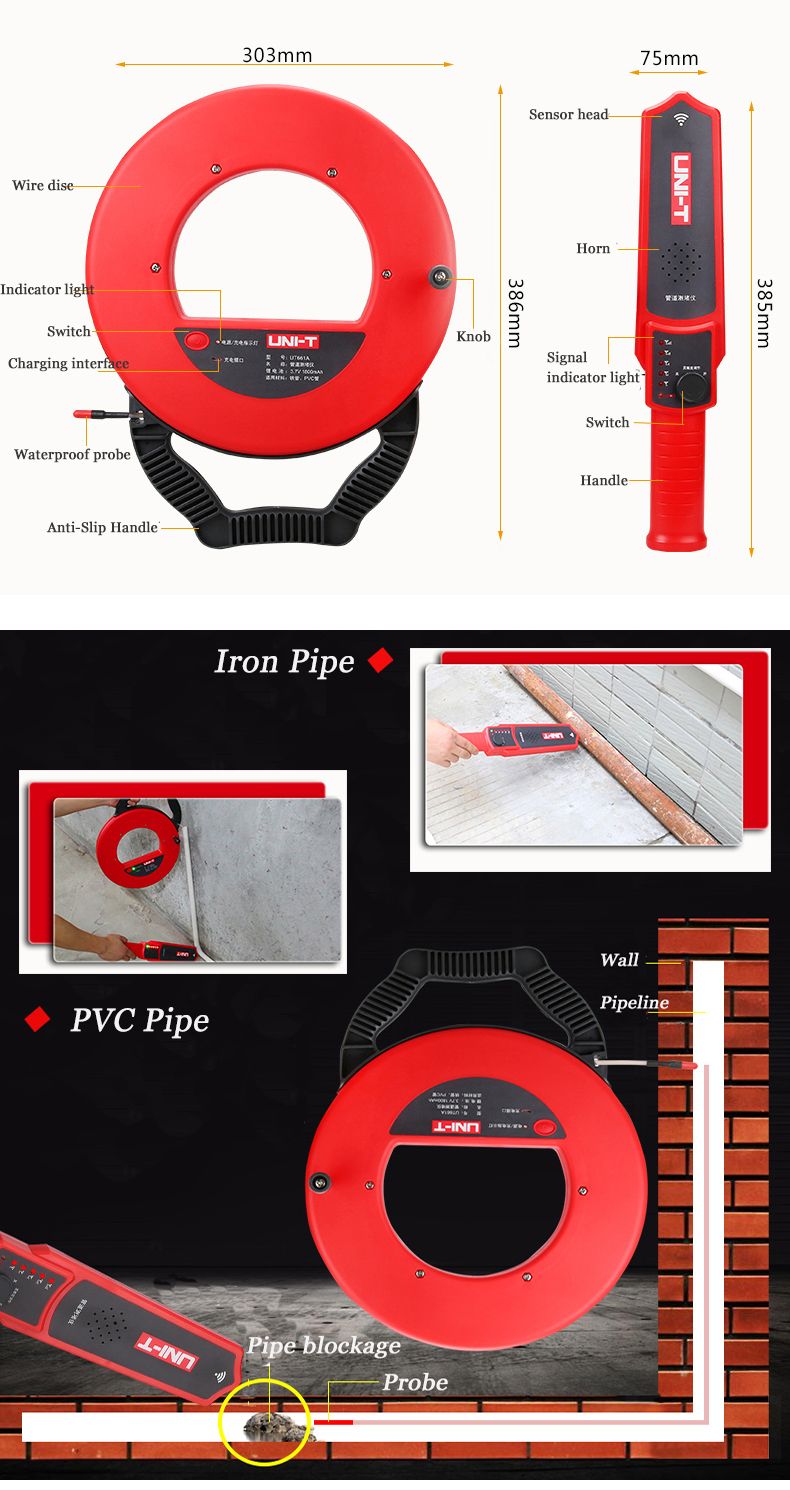

Dimensions | Transmitter Dimensions 386 x 303 x 42mm | |
Receiver Dimensions 385 x 75 x 44mm | ||
Weight | Transmitter 1.10KG | Transmitter 1.28KG |
Receiver 0.23KG | Receiver 0.23KG |

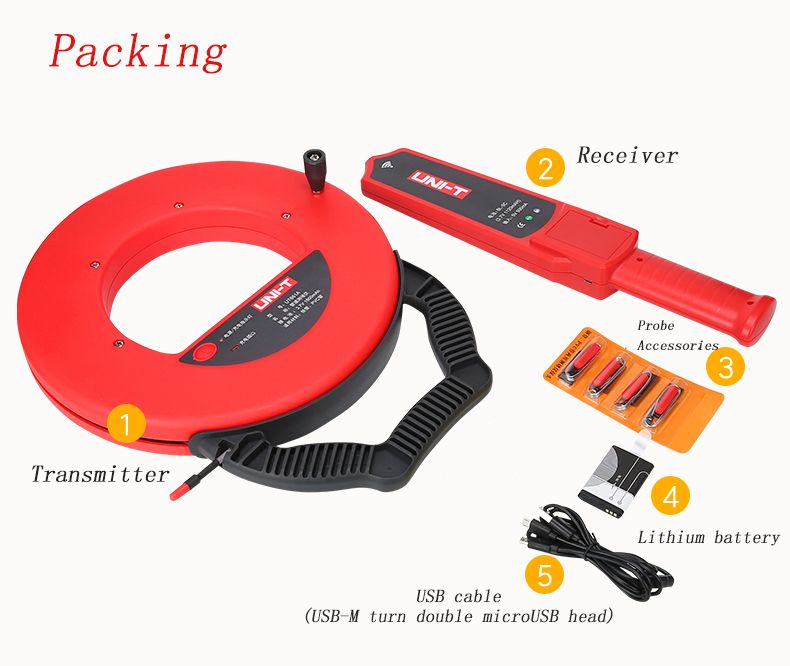

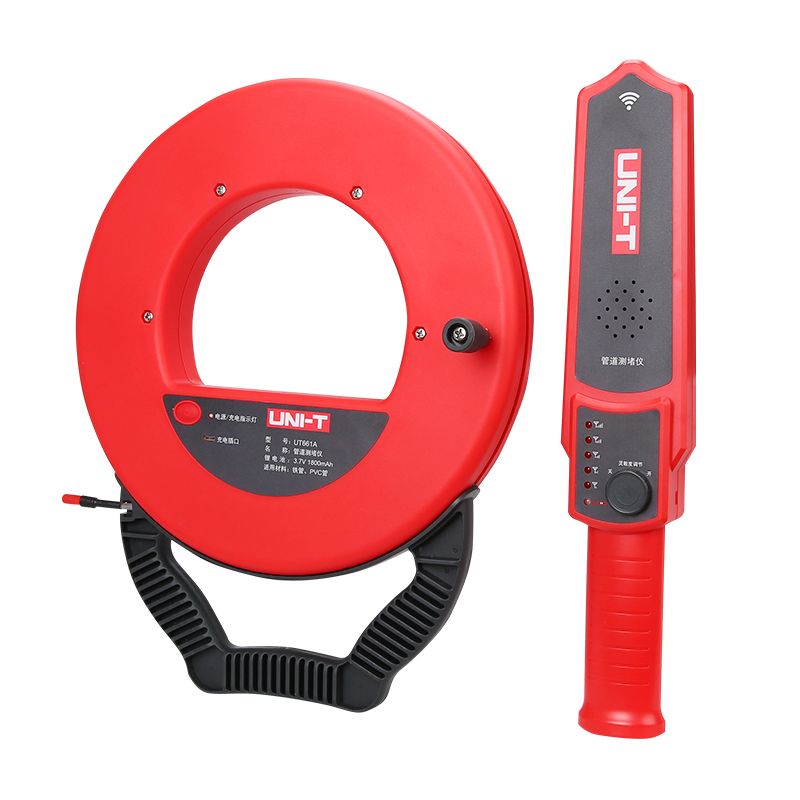

Detail Pictures:
