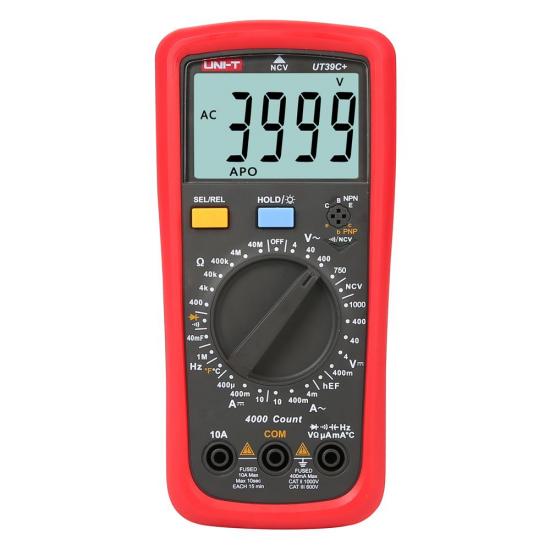

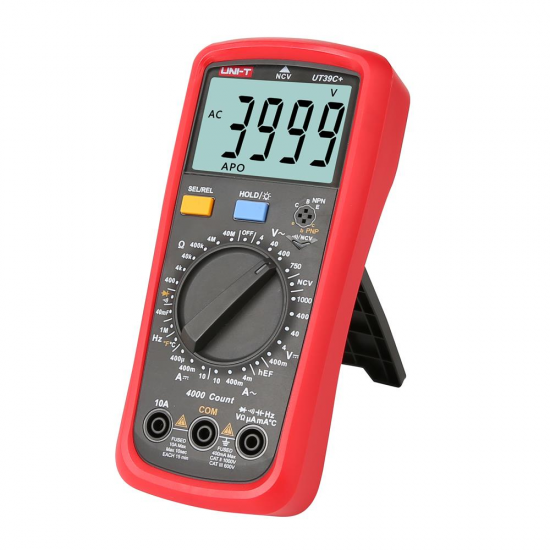

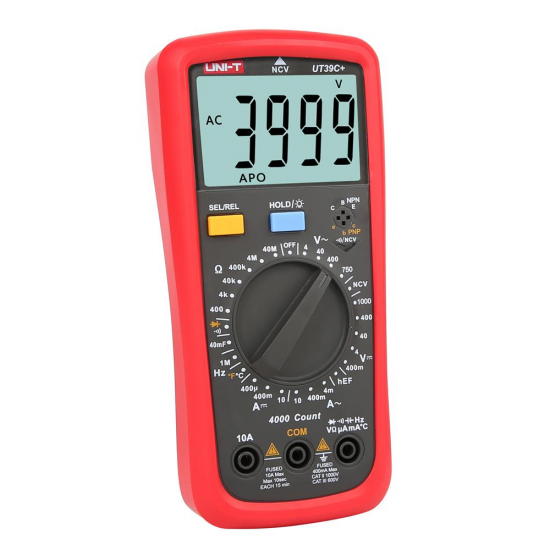

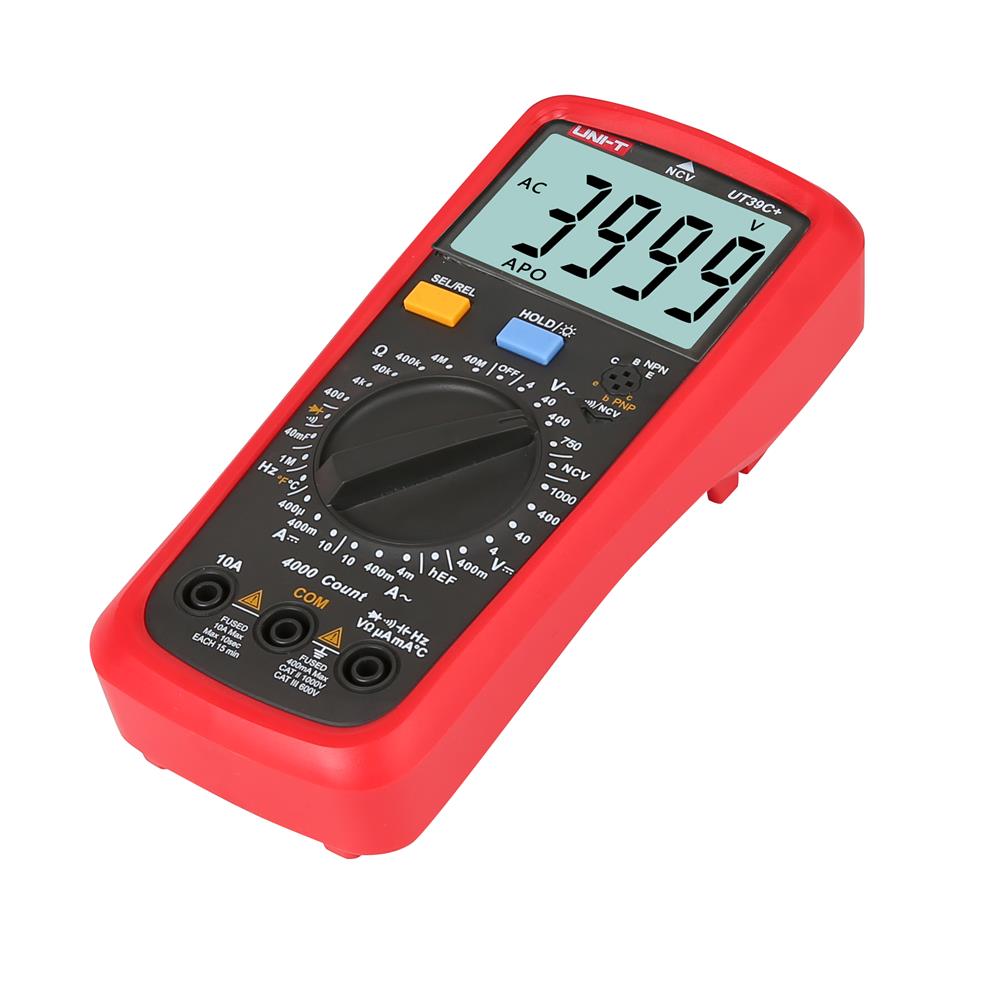

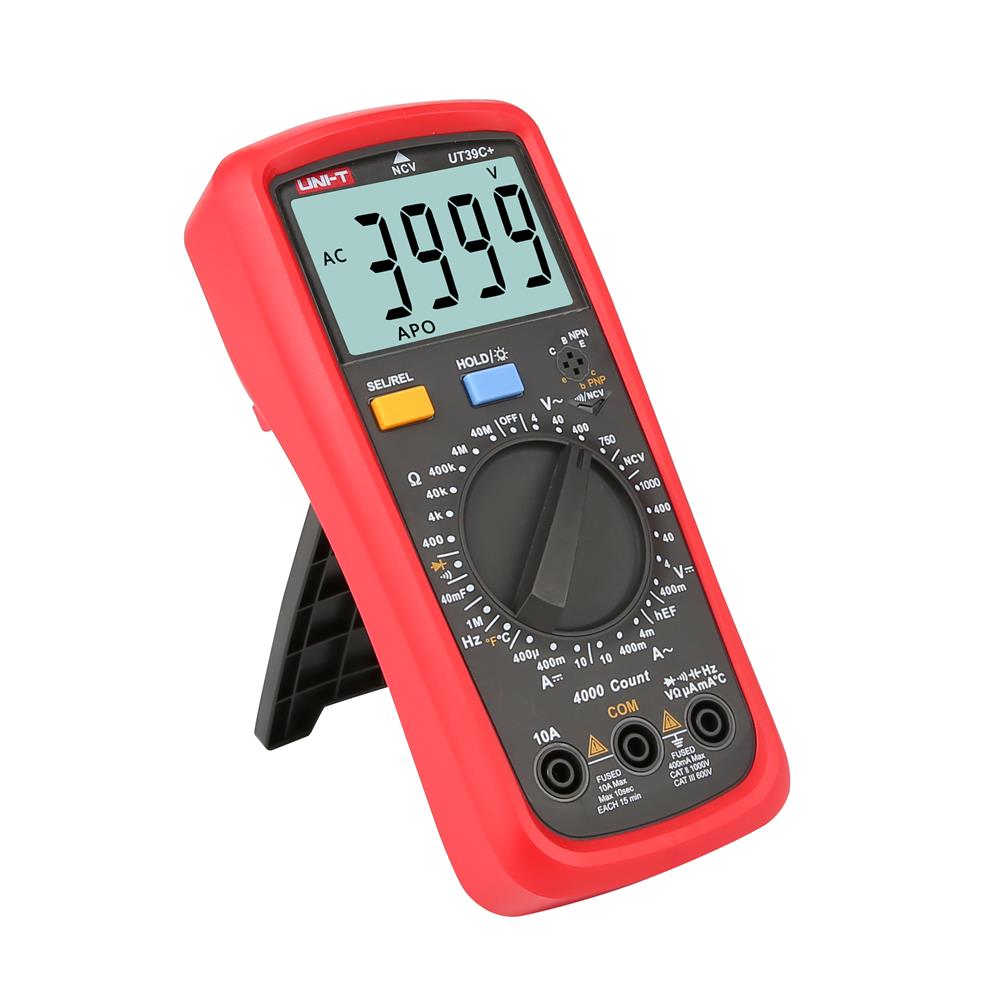

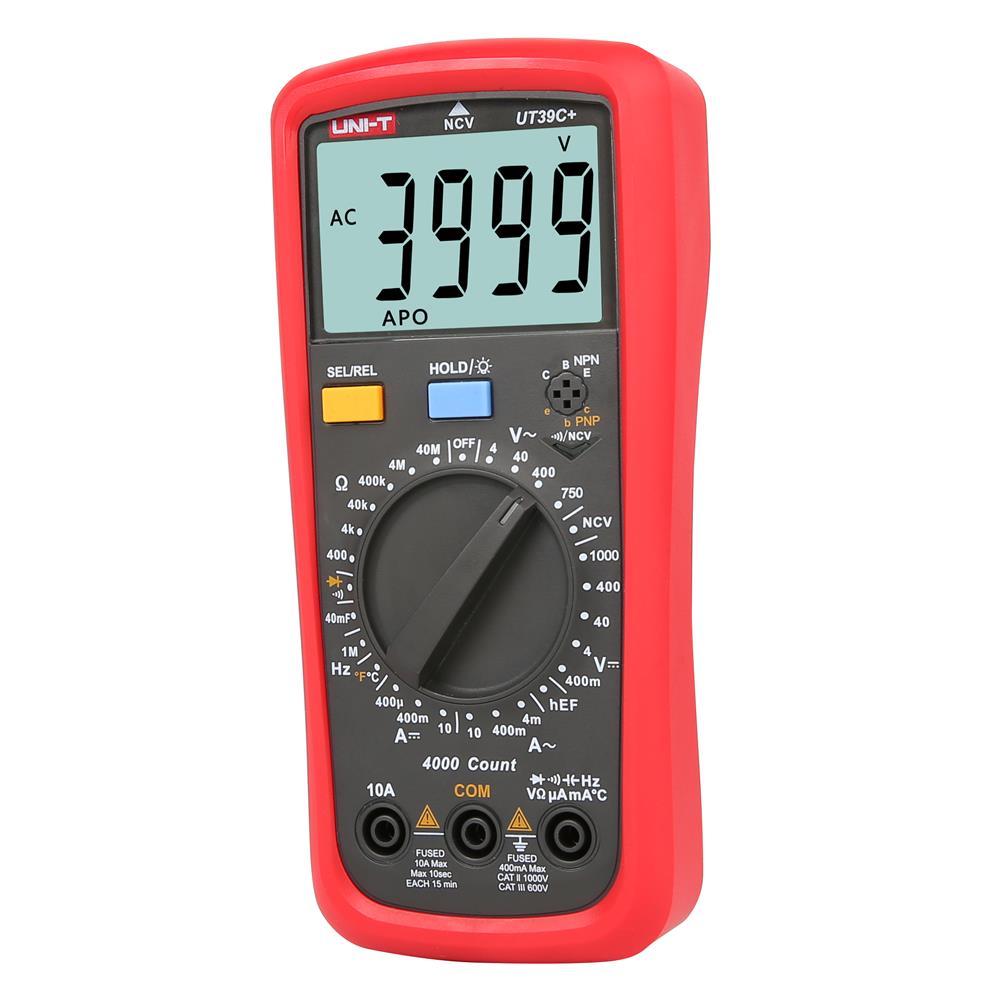

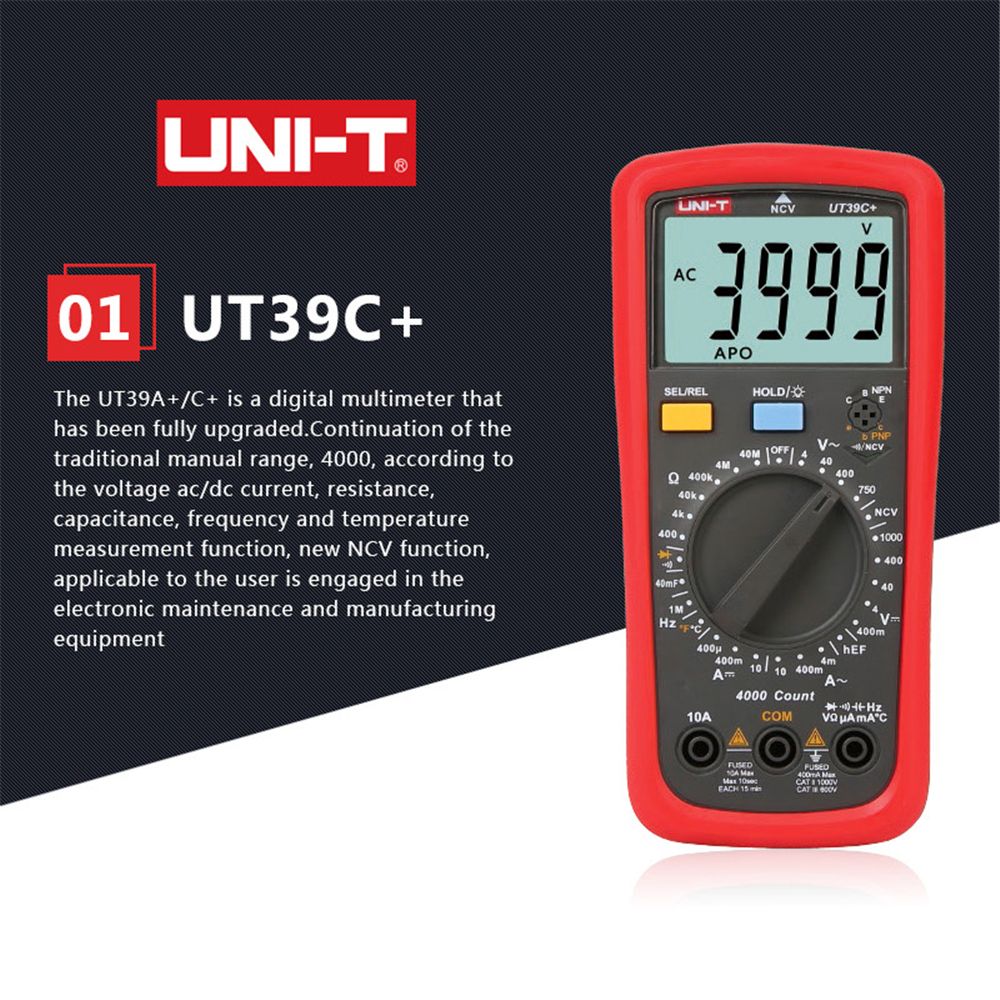

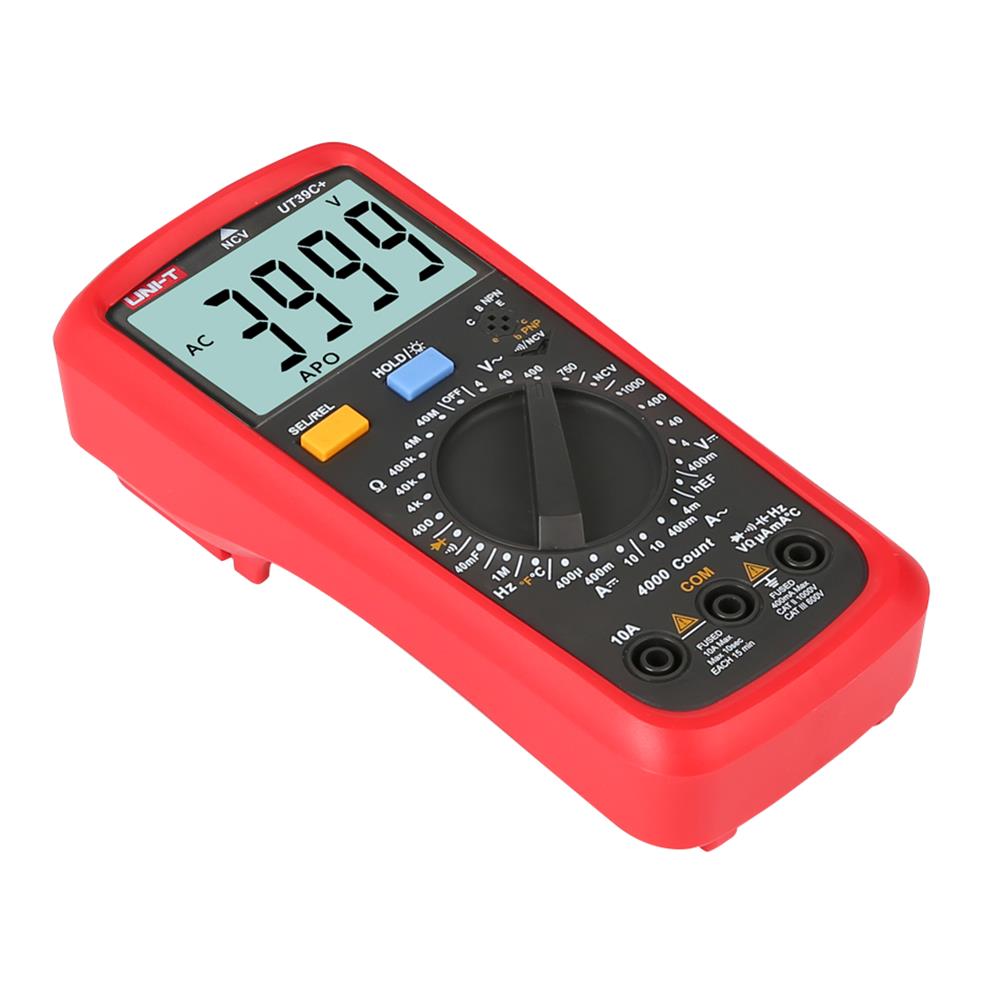

UT39C+ Digital Multimeter AC DC Volt Amp Ohm Capacitance Temp Hz Tester UT39C Plus Data Hold
- Stock: In Stock
- Model: EB004407
- SKU: EB004407

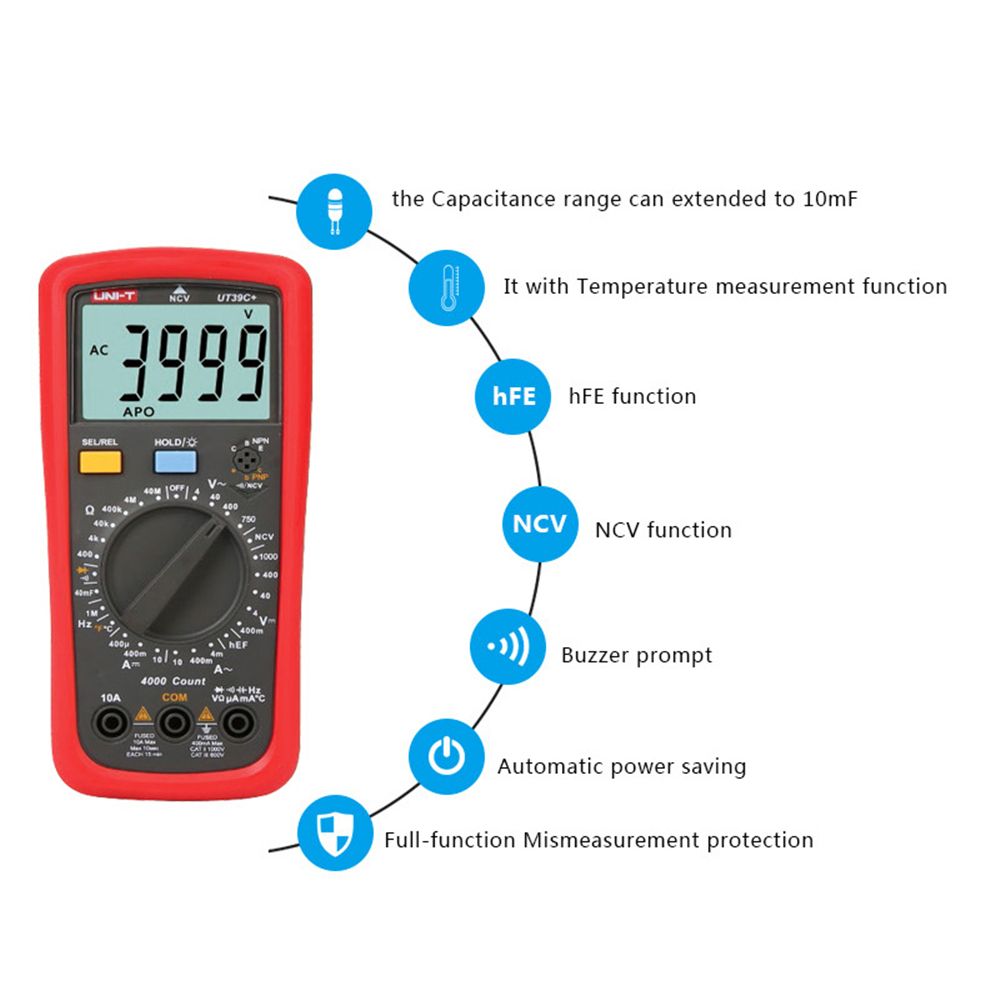

The capacitance range can extended to 10mF.
With temperature measurement function.
hFE function.

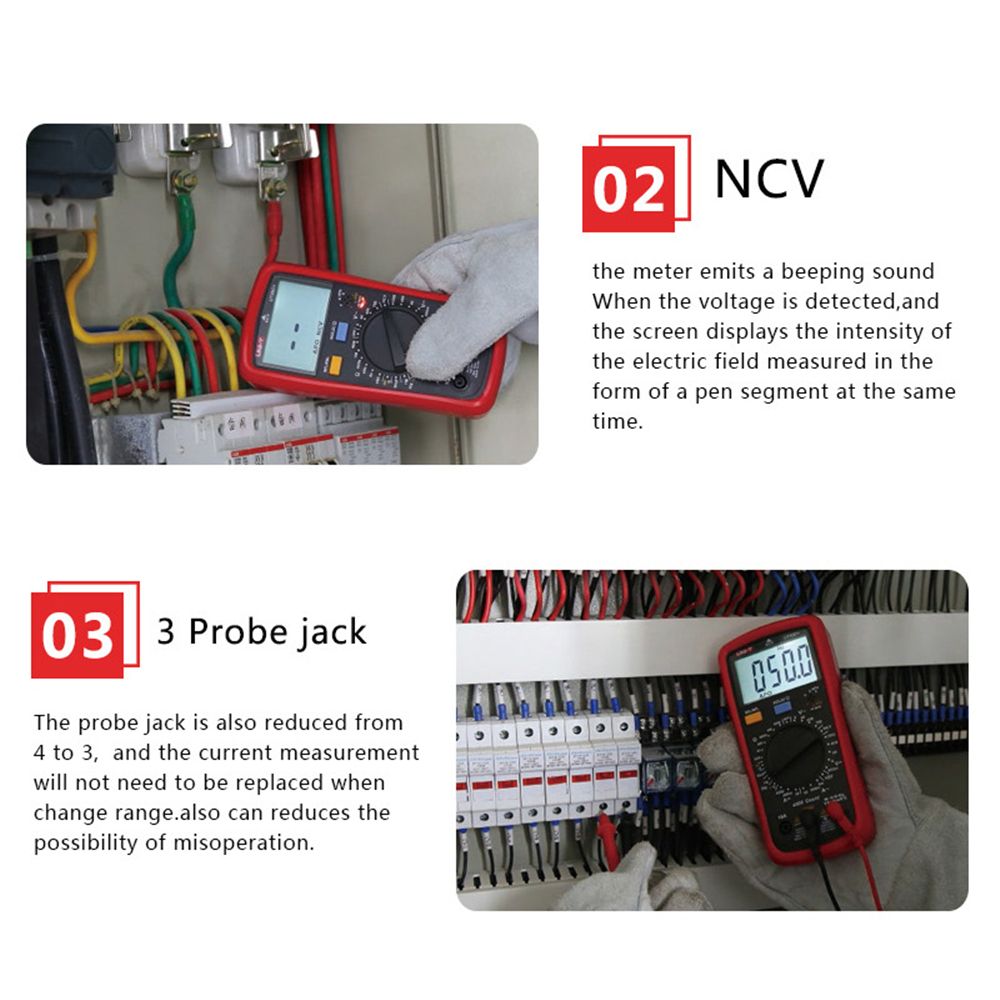

NCV function.
Buzzer prompt.
Automatic power saving.
Full-function mismeasurement protection.
Brand Name: Renhotec
Model Number: UT39C+
Dimensions: 72mmx137mmx35mm
| Specifications | Range | Best Accuracy |
| Model | UT39C+ | |
| DC Voltage(V) | 400mV/4V/40V/400V/1000V | ±(0.7%+3) |
| AC Voltage(V) | 4V/40V/400V/750V | ±(1.0%+3) |
| DC Current(A) | 40μA/400μA/4mA/40mA/400mA/10A | |
| 400uA/400mA/10A | ±(0.8%+3) | |
| AC Current(A) | 40mA/400mA/10A | |
| 4mA/400mA/10A | ±(1.0%+2) | |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | |
| 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) | |
| Capacitance (F) | 4nF/40nF/400nF/4uF/40uF/400uF/4mF/10mF | ±(4.0%+5) |
| Frequency (Hz) | 1MHz | ±(0.1%+4) |
| Temperature (°C) | -40~1000°C | ±(1.0%+4) |
| Temperature (°F) | -40~1832°F | ±(1.5%+5) |
| Features | ||
| Range Select | Manual Range | |
| Display Count | 3999 | |
| hFE | √ | |
| REL | √ | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Date Hold | √ | |
| LCD Backlight | √ | |
| Auto Power Off | √ | |
| Low pressure display | √ | |
1 x UNI-T UT39C+ Multimeter (Battery is not included.)
1 x Test Lead
1 x Point Contact Temperature Probe
1 x User Manual
