UT33A Palm Size Digital Mini Auto Range Multimeter Diode Transistor AC DC Current Voltage Test
- Stock: In Stock
- Model: EB004453
- SKU: EB004453
UNI-T UT33A Palm Size Digital Mini Auto Range Multimeter Diode Transistor Test AC DC Current Voltage Mesurement
UT33A is a full-featured, stable performance, low power consumption, the new structure, safe, reliable and cost-effective small handheld 3 3/4 digit autoranging digital multimeter. For customers, this is an ideal carry maintenance tools.
Specification:
| Model | UT33A | ||
| DC Voltage(V) | 400mV/4V/40V/400V/500V | ±(0.8%+1) | |
| AC Voltage(V) | 4V/40V/400V/500V | ±(1.2%+3) | |
| DC Current(A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+2) | |
| AC Current(A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.5%+5) | |
| Resistance(Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) | |
| Features | |||
| Display Count | 4000 | ||
| Auto Range | √ | ||
| Diode | √ | ||
| Transistor | √ | ||
| Continuity Buzzer | √ | ||
| Low Battery Indication | √ | ||
| Input Impedance for DCV | Around 10MΩ | √ | |
| General Characteristic | |||
| Power | 1.5V Battery×2pcs (Battery not included) | ||
| LCD Size | 48mm×16mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 179g | ||
| Product Size | 130mm×73.5mm×35mm | ||
Package includes:

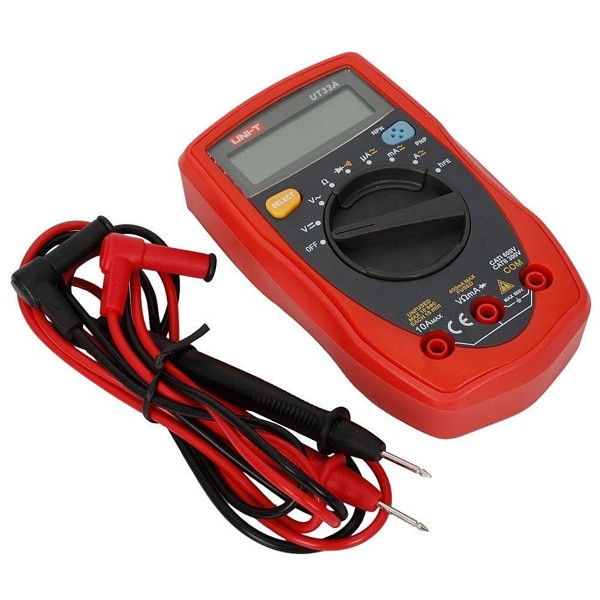

1 x UNI-T UT33A Palm Size Digital Auto Range Multimeter

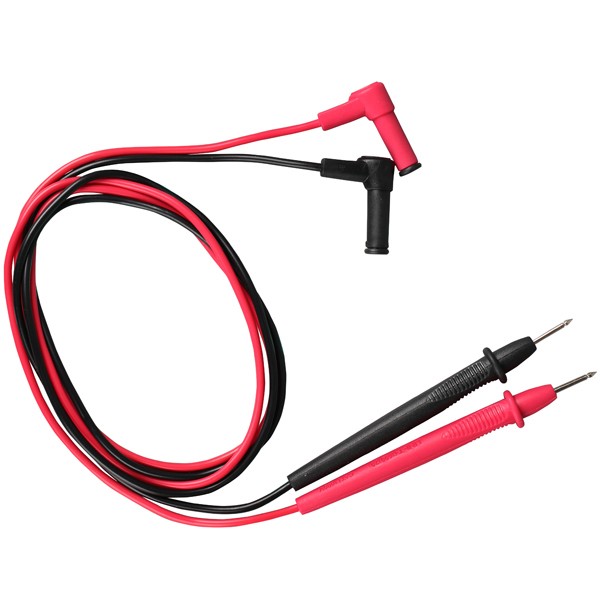

1 x Test Lead

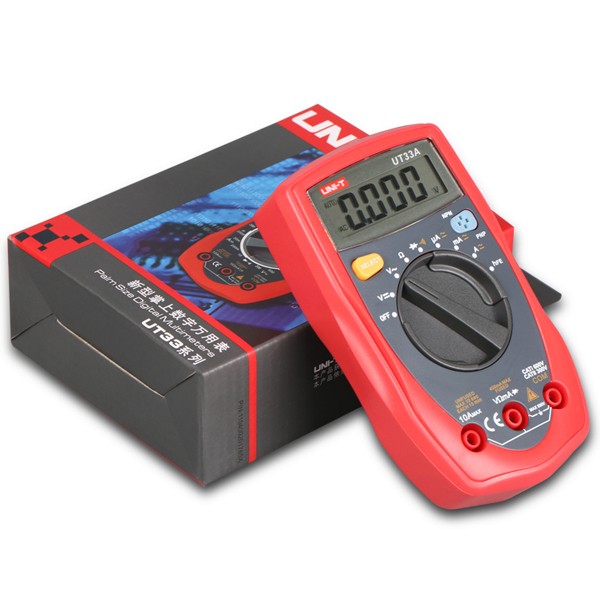

1 x Gift Box
1 x English Manual

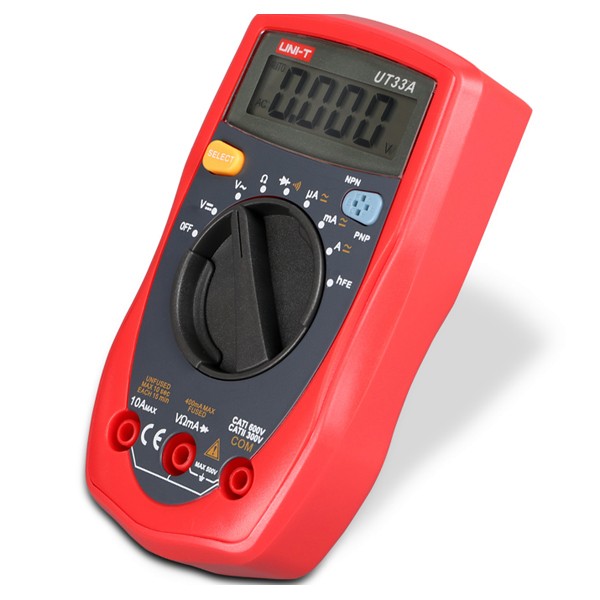

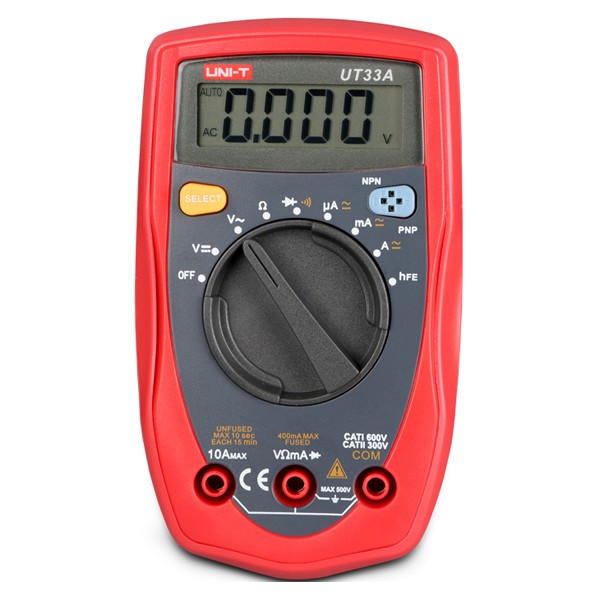

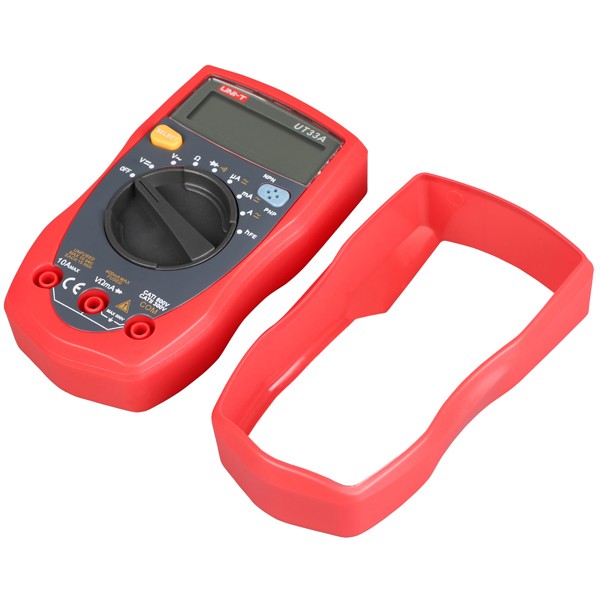

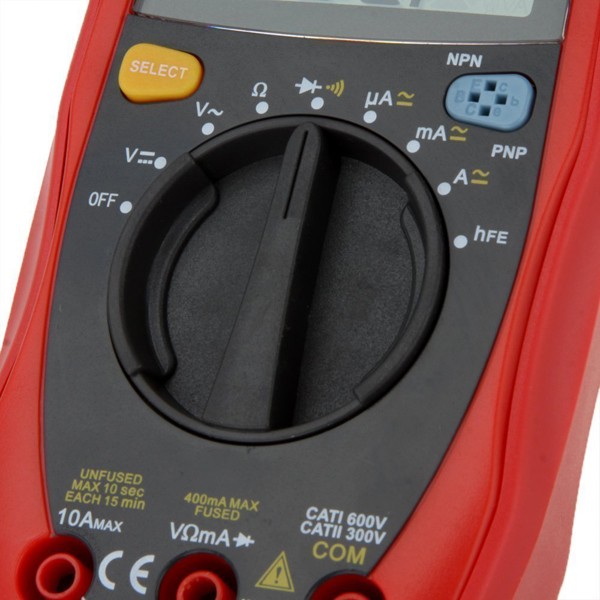

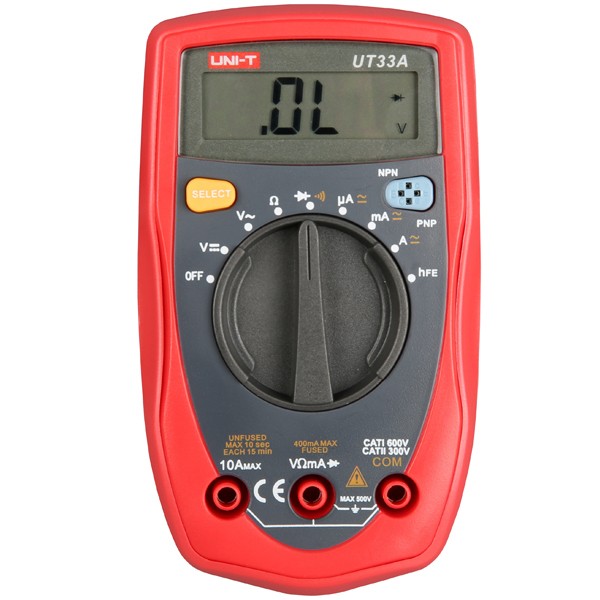

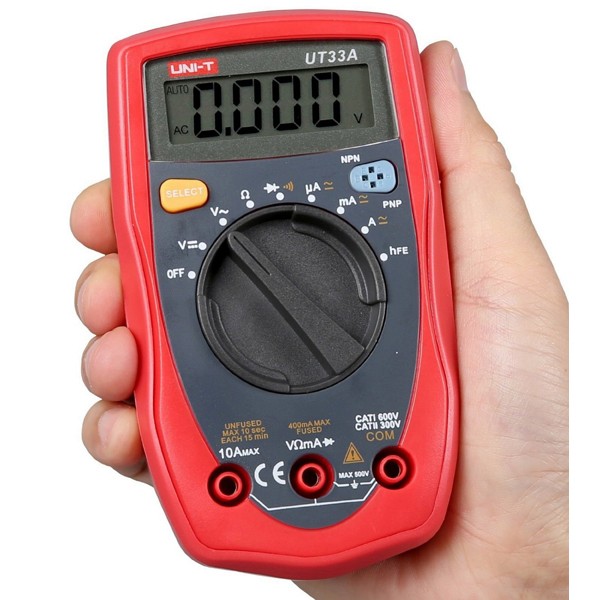

Details pictures:
