UT275 Professional Auto Range Earth Ground Resistance Clamp Tester with 0~30A Leakage Current Test
- Stock: In Stock
- Model: EB004139
- SKU: EB004139
UNI-T UT275 Professional Auto Range Earth Ground Resistance Clamp Tester with 0~30A Leakage Current Test
| Specifications | Range | Best Accuracy |
| Model | UNI-T | UT275 |
| Earth Ground Resistance (Ω) | 0.01~0.099Ω | (1%+0.01) |
| 0.1~0.99Ω | (1%+0.01) | |
| 1.0~49.9Ω | (1.5%+0.1) | |
| 50.0~99.5Ω | (2%+0.5) | |
| 100~199Ω | (3%+1) | |
| 200~395Ω | (10%+5) | |
| 400~590Ω | (20%+10) | |
| 600~1000Ω | (25%+20) | |
| Leakage Current(A) | 0.00~299mA | (2.5%+2mA) |
| 0.30~2.99A | (2.5%+100mA) | |
| 3.00~30.0A | (2.5%+300mA) | |
| Features | ||
| Display Count | 9999 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| Auto Power Off | √ | |
| Low Battery Indication | 5.2V | |
| Data Hold | √ | |
| Data Logging | 30 | |
| Data Recall | √ | |
| LCD Backlight | √ | |
| Auto Calibration | √ | |
| Resistance Limit Alarm | √ | |
| General Characteristic | ||
| Power | 4 x 1.5V Alkaline Batteries(LR6) (Not included) | |
| LCD Size | 47mm x 28.5 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 1320g | |
| Product Size | 293mm x 90mm x 66 mm | |

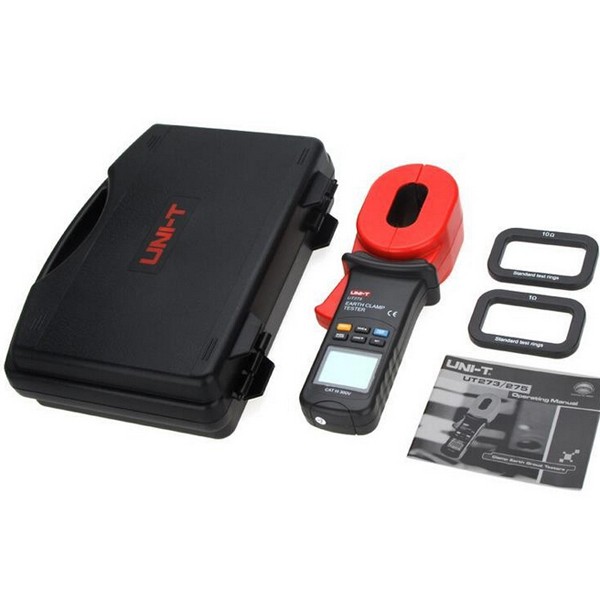

| Standard Accessories | Test Ring, Tool Box | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 5 PCs | |
| Standard Carton Measurement | 495mm x 368mm x 310mm (0.057CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 16Kg | |
