UNI-T UT211B Multifunction 6000 Count True RMS Mini Clamp Meter Multimeter with V.F.C. NCV Test & Zero Mode

Brand Name: Renhotec
Model: UT211B

UT211 series mini clamp meters are innovative products for smaller current measurements at 60A range.  This series consists of UT211A (60A AC current model) and UT211B (60A AC/DC current model).  Both clamp meters are very small in size which make it very convenient for users to carry and store them;

The key features of this series are:
1.True RMS response for AC current and AC voltage.
2.600mA measurement range with 0.1mA resolution for small current measurement. This is a very useful measurement range for automobile and leakage check applications.
3.V.F.C (variable frequency control) mode for maintenance and diagnostic of air-conditioners that is variable frequency driven.
4.Unit body design with double mold case.

Features:

1.60A AC and DC current measurement (AC with True RMS response).
2.600mA AC current range at 0.1mA resolution.
3.600V AC and DC voltages.
4.Diode test at 3.2V open circuit voltage.
5.62mF capacitance measurement.
6.Data Hold, and data ZERO.
7.Build-in non-contact voltage detection feature.

Specifications Range Best Accuracy
Model   UT211B
AC Current (A) 600mA/6000mA/60A ±(1.5%+10)
DC Current (A) 6000mA/60A ±(2%+3)
AC Voltage(V) 6V/60V/600V ±(0.8%+3)
DC Voltage(V) 600mV/6V/60V/600V ±(0.7%+3)
Resistance (Ω) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+2)
Capacitance (F) 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4%+5)
Features
Display Count   6000
Auto Range   √
True RMS   √
Diode Around 3.0V √
V.F.C.   √
NCV   √
Data Hold   √
Zero Mode
LCD Backlight   √
Auto Power Off Around 15 Minutes √
Continuity Buzzer   √
Low Battery Indication ≤2.5V √
Input Protection   √
Input Impedance for DCV ≥10MΩ √
General Characteristic
Power AAA 1.5V x 2 (Not included)
LCD Size 39.3mm x 26.5 mm
Product Color Red and Grey
Product Net Weight 170g
Product Size 175mm x 60mm x 33.5mm

Package Included:

1 x UT211B Clamp Meters
1 x Test Lead
1 x English Manual User

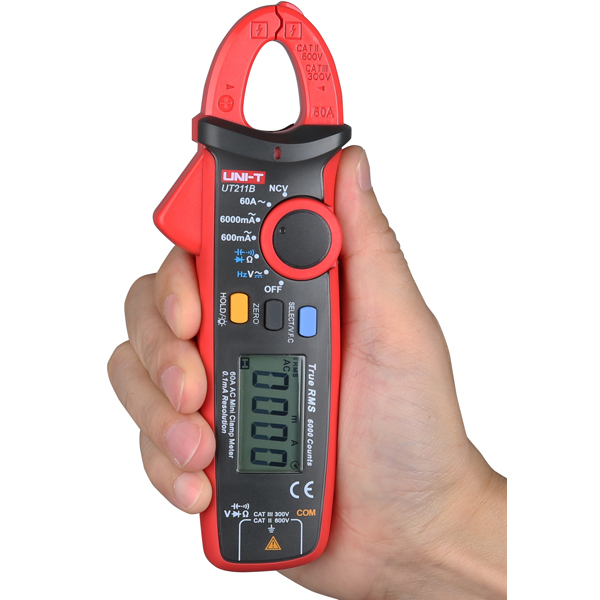

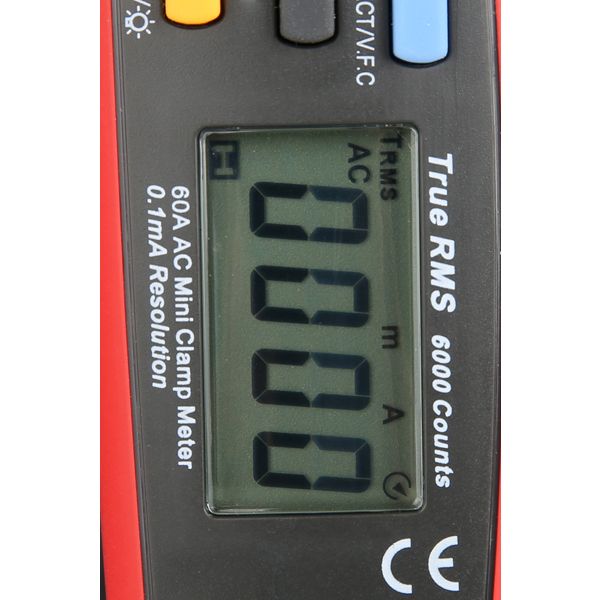

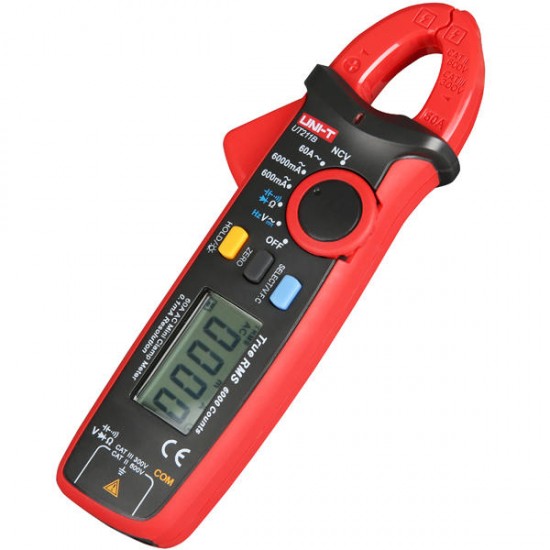

Details pictures:

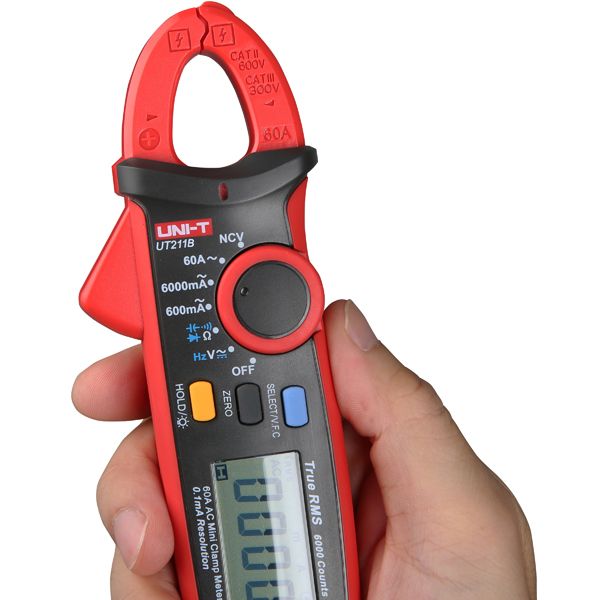

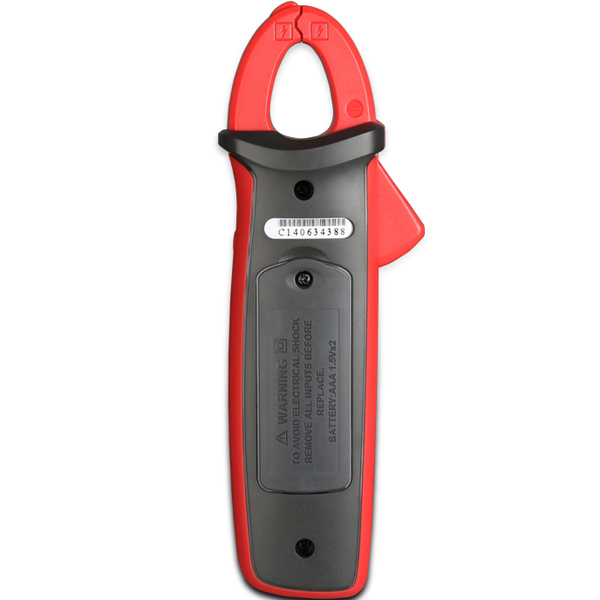

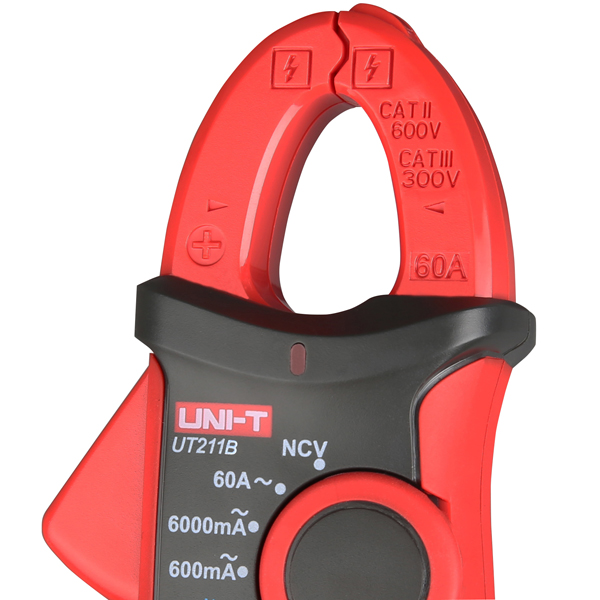

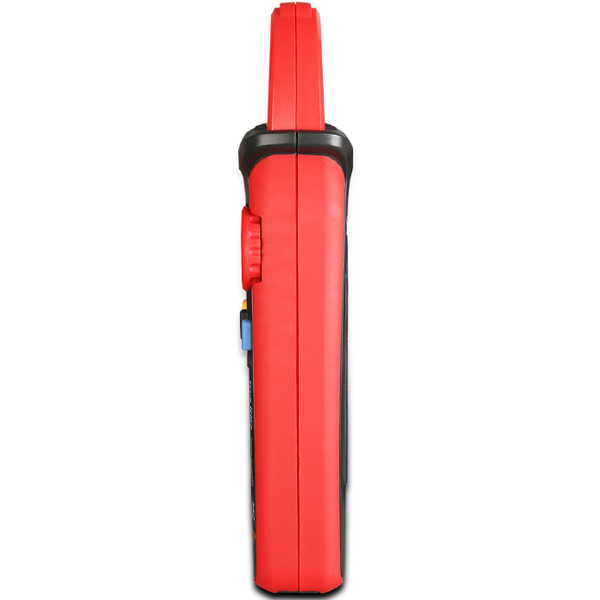

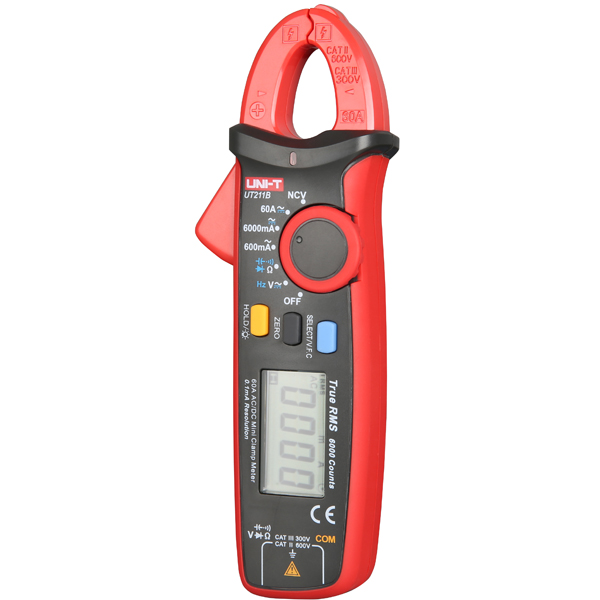

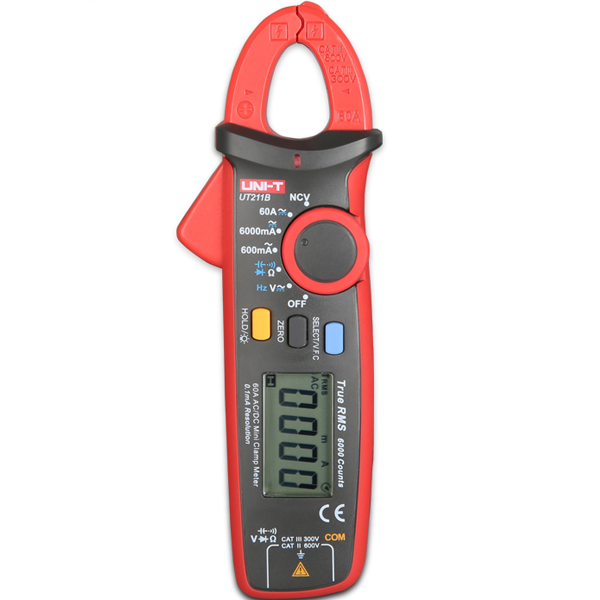

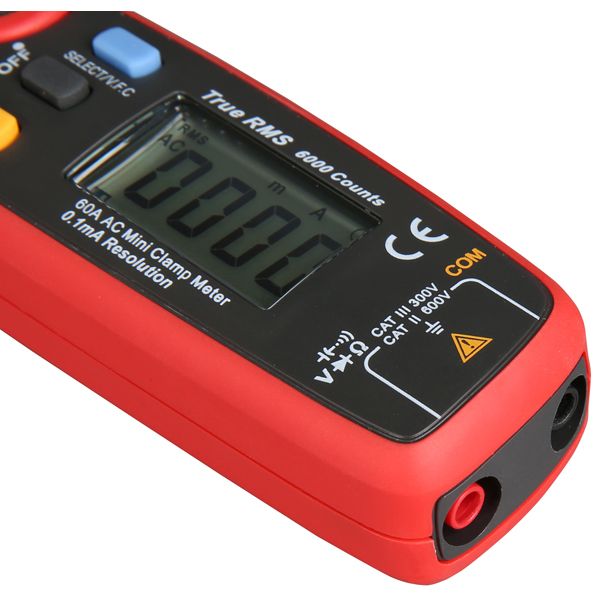

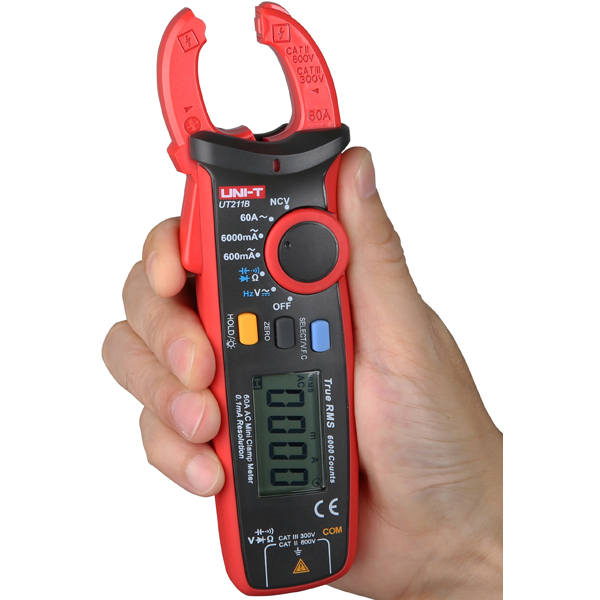

UNI-T-UT211B-Multifunction-6000-Count-True-RMS-Mini-Clamp-Meter-Multimeter-with-VFC-NCV-Test-amp-Zer-1060994
