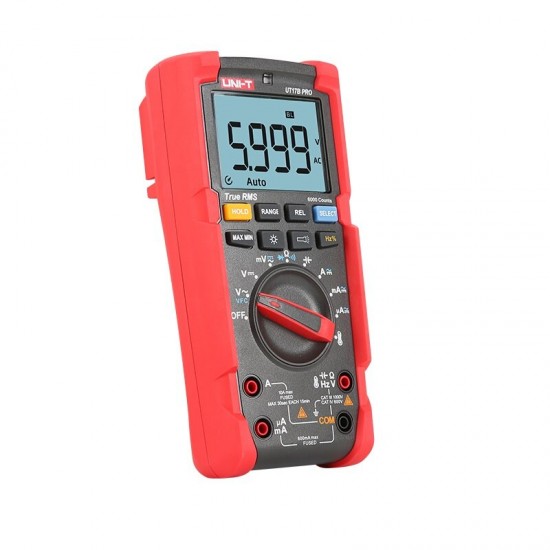

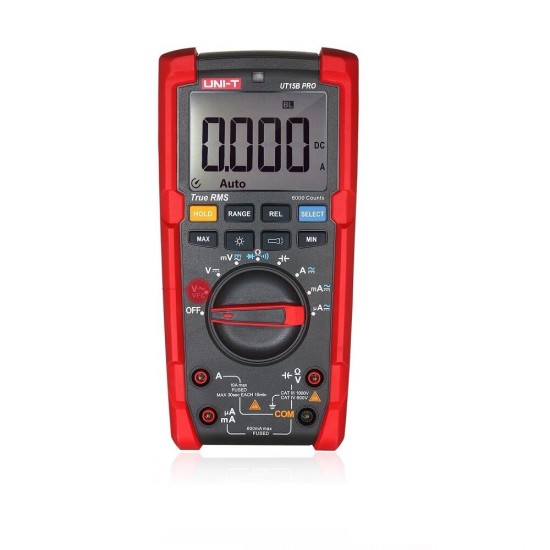

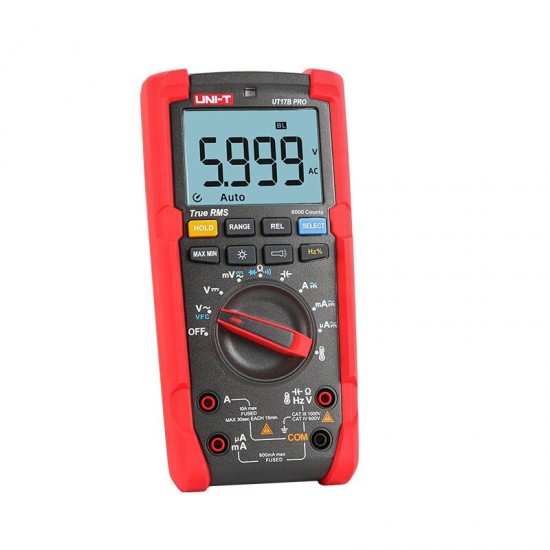

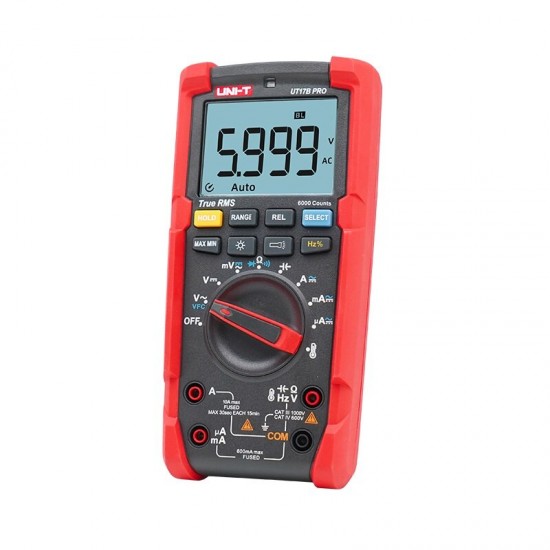

True RMS Digital Multimeter Auto-Ranging Multitester High Accuracy Universal Meter 6000 Counts Backlit LCD VOM with Flashlight VFC Mode
- Stock: In Stock
- Model: EB004345
- SKU: EB004345

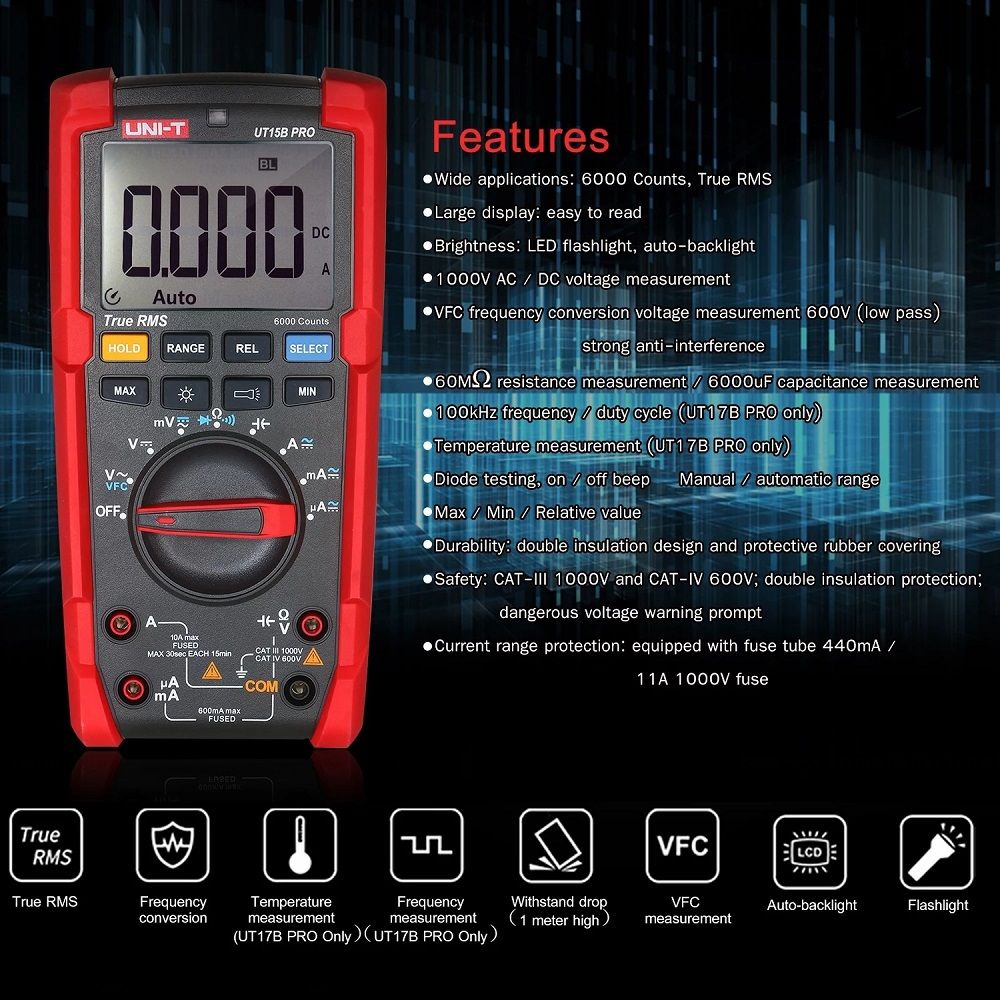

Features:
LCD display: big LCD screen with large digital-readout and backlight for clear readings.

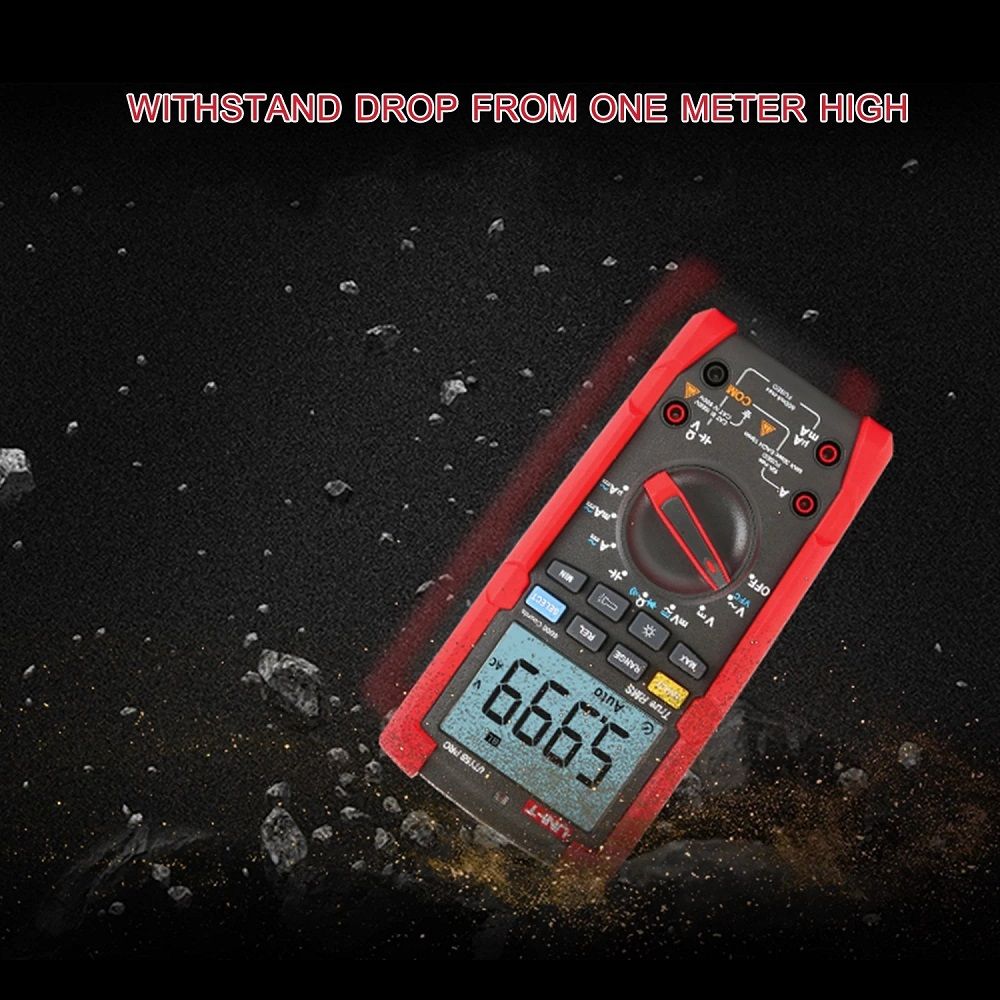

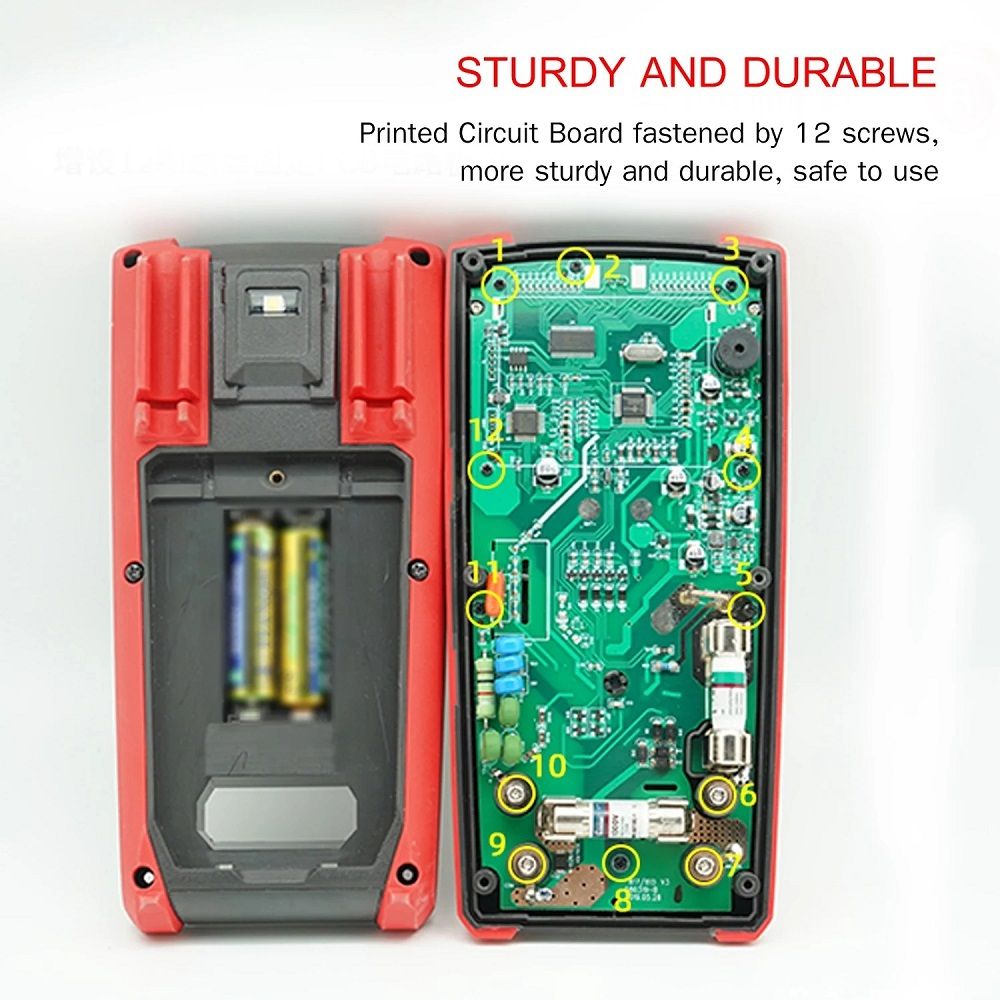

Reliable quality: employed double insulation design and protective rubber covering, which is robust, durable and impact-resistant, ensuring maximum safety.

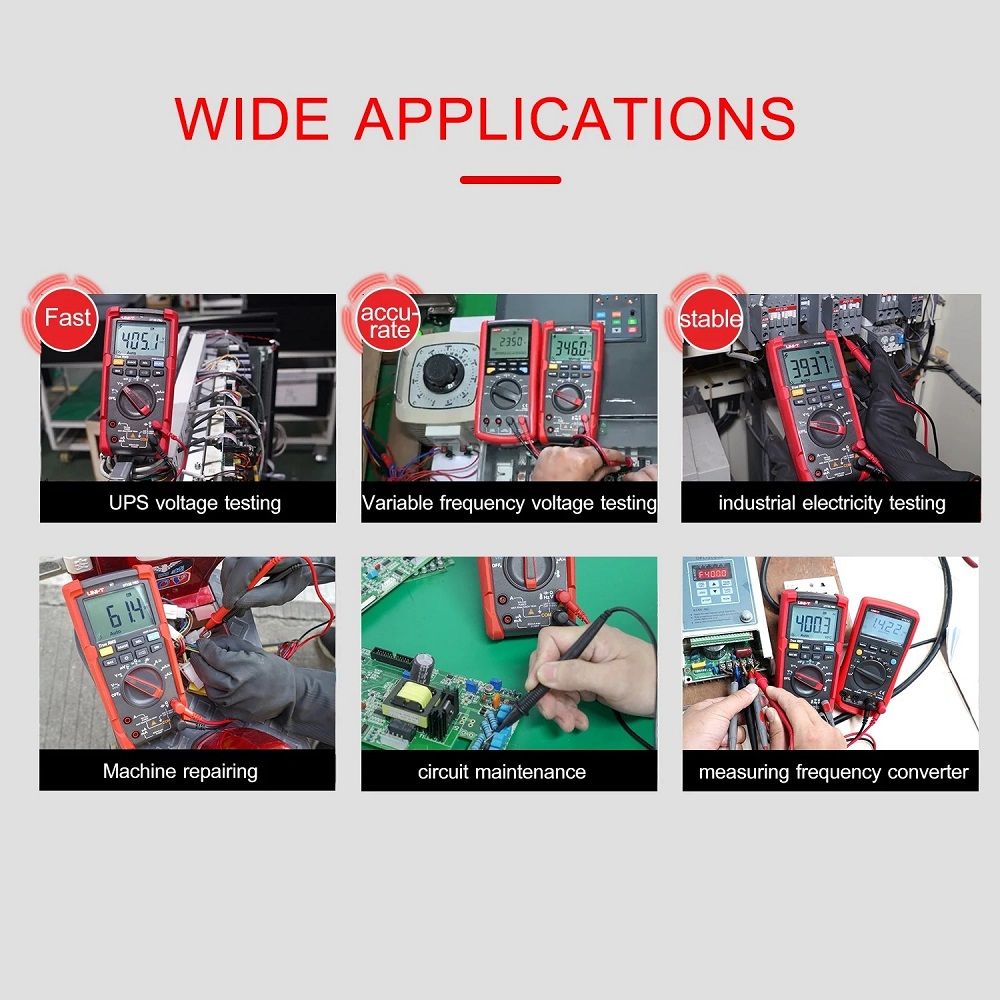

A host of measurement capabilities: DC/AC voltage, DC/AC current, resistance, capacitance, diode, live wire. Besides the above, UT17B PRO can also measure temperature, frequency and duty ratio.

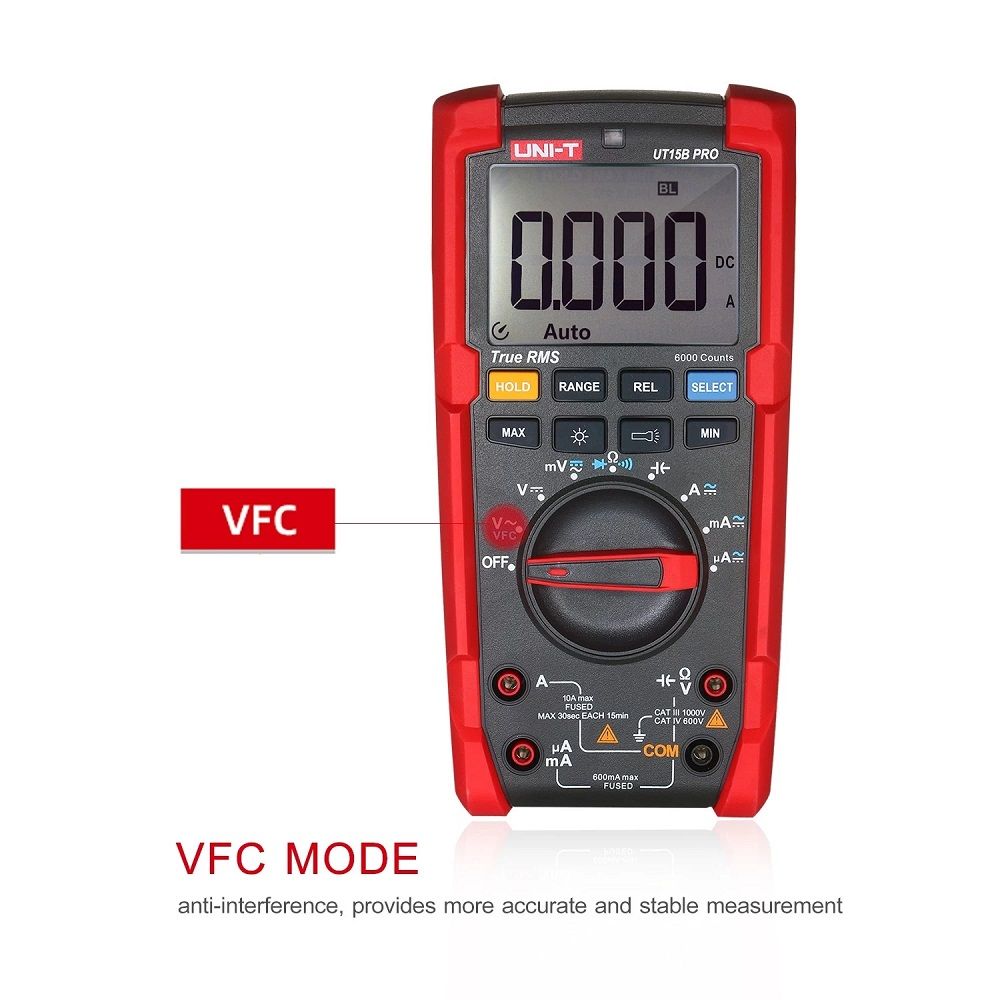

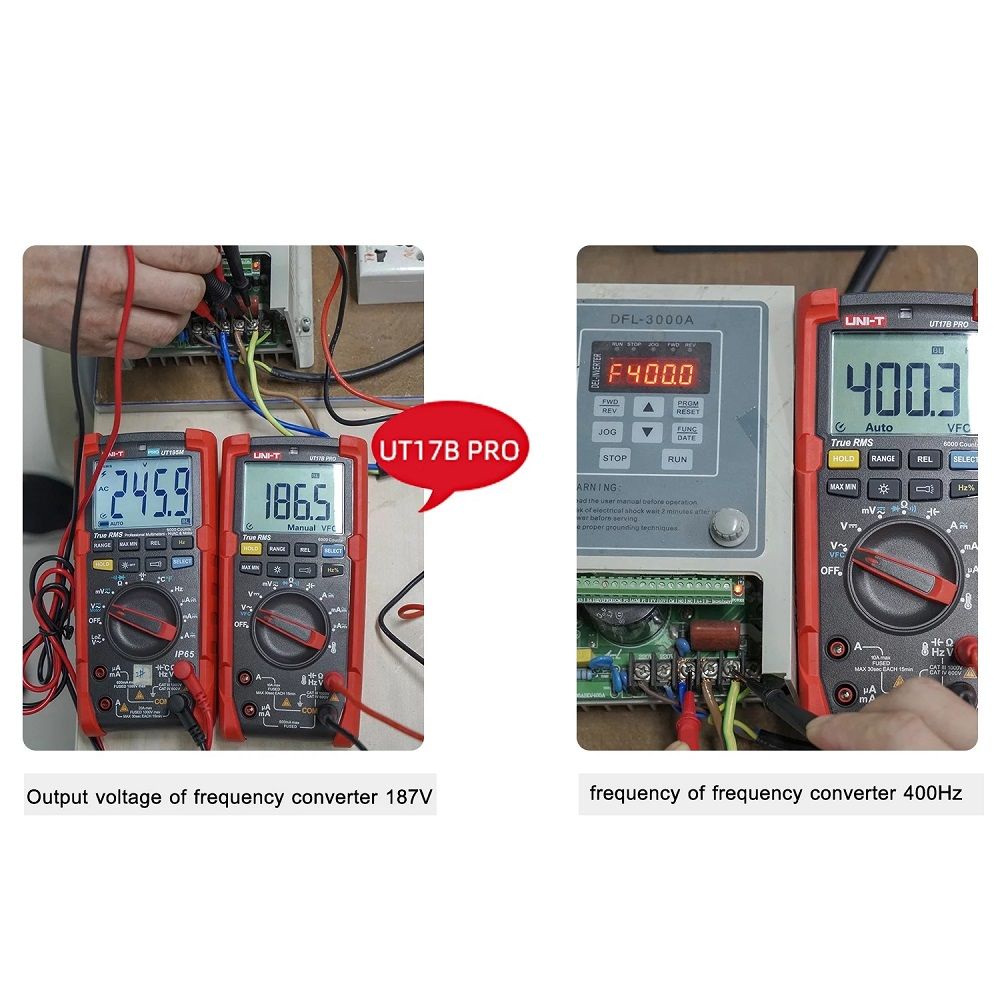

VFC mode: anti-interference, provides more accurate and stable measurement.
Auto shut-off: to save power, it would automatically shut off if there is no operation for 15 minutes. This feature can be turned off as per your needs.

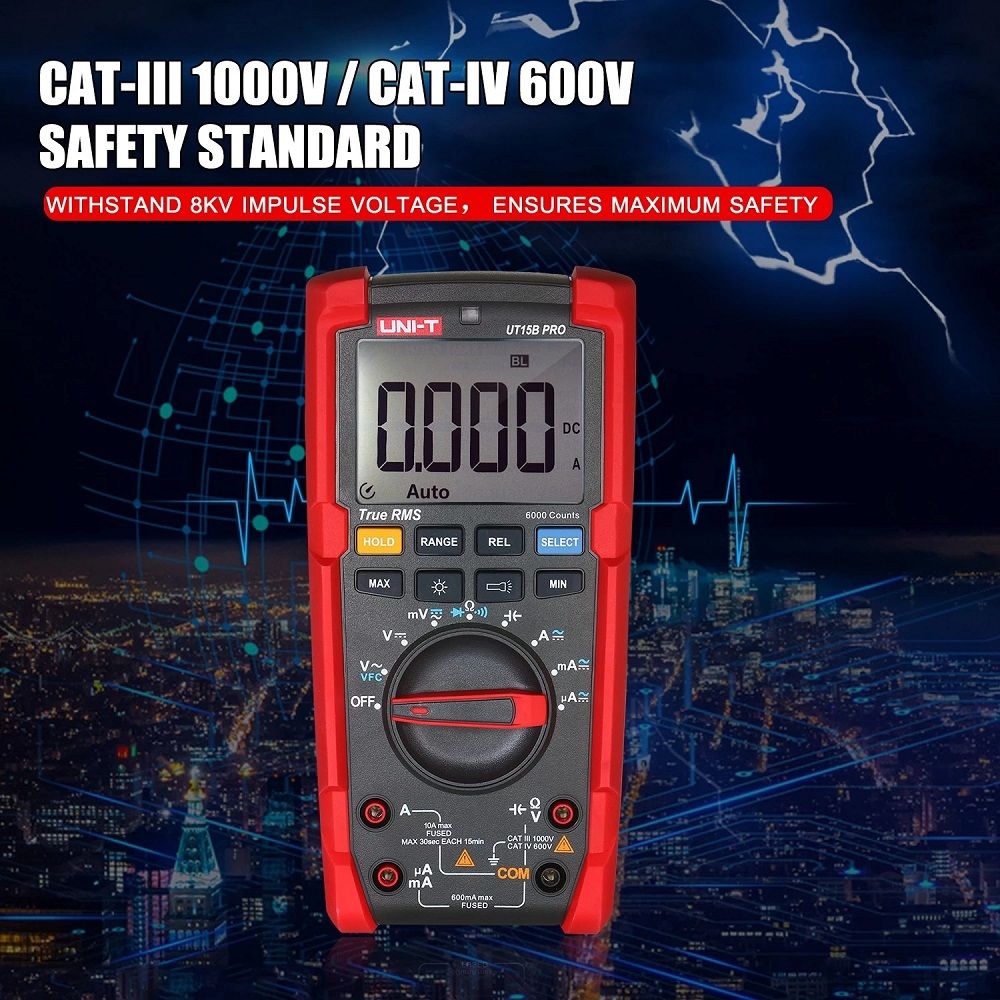

Safety level: meet CAT-III 1000V and CAT-IV 600V standards.

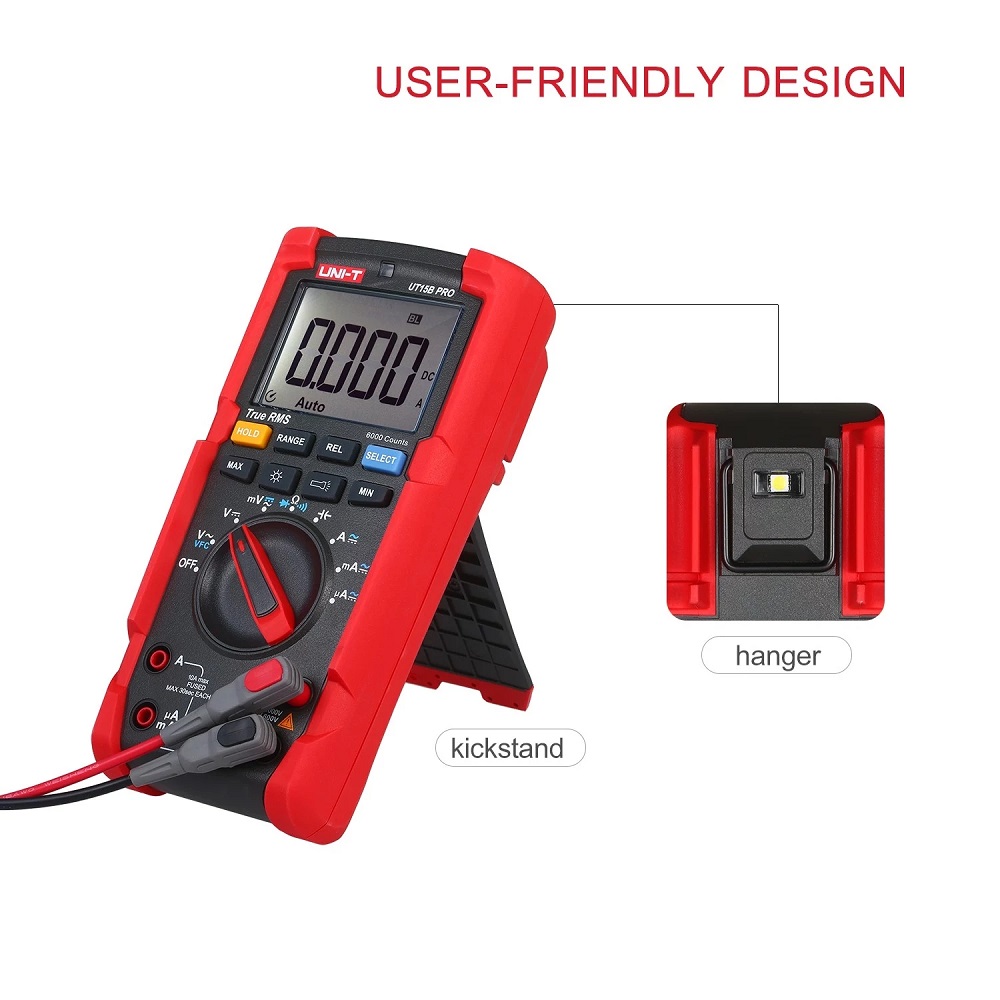

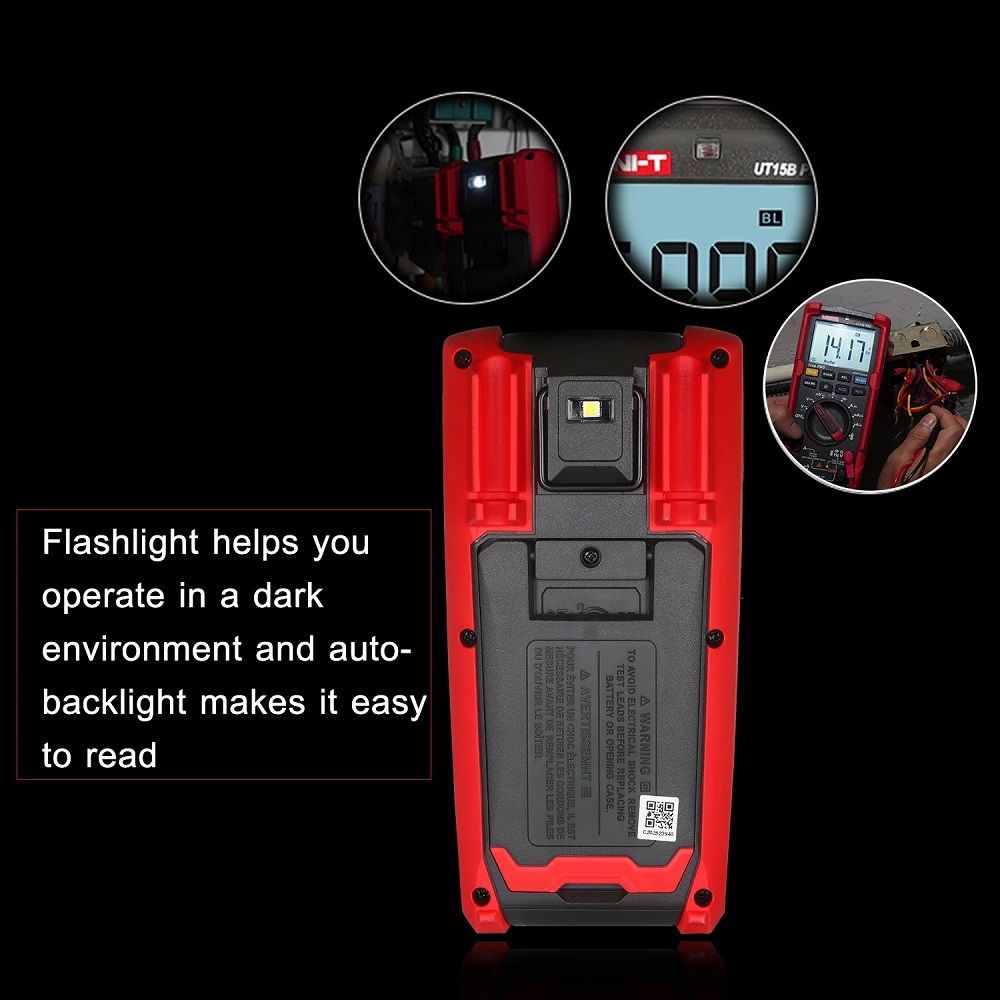

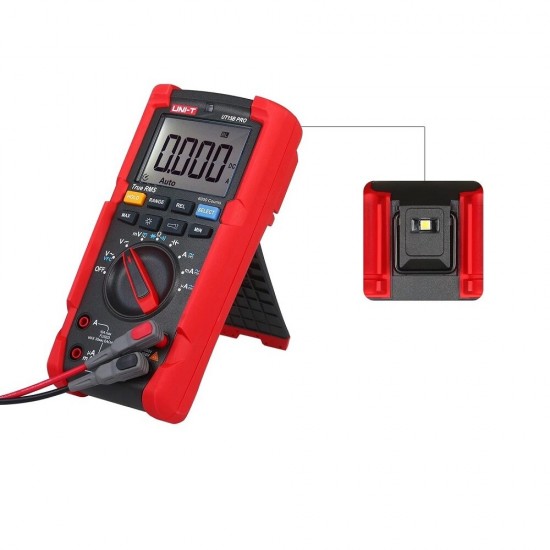

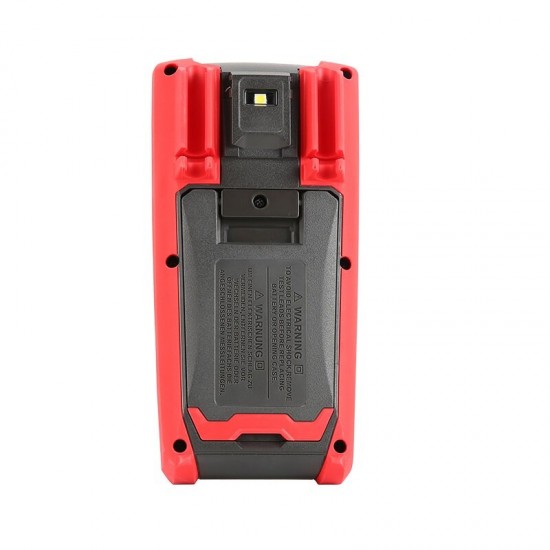

Greater convenience: a built-in flashlight will be very helpful in dark conditions, and bracket can free your hands with your work.

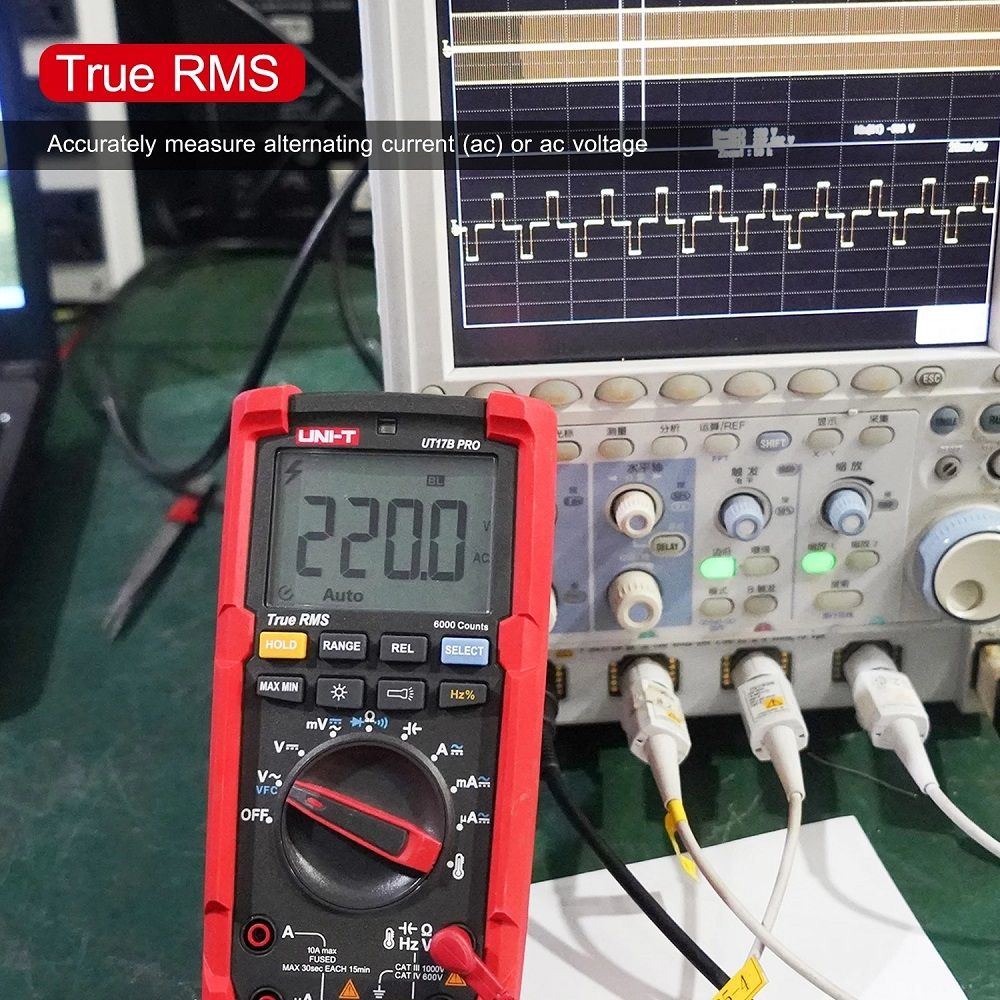

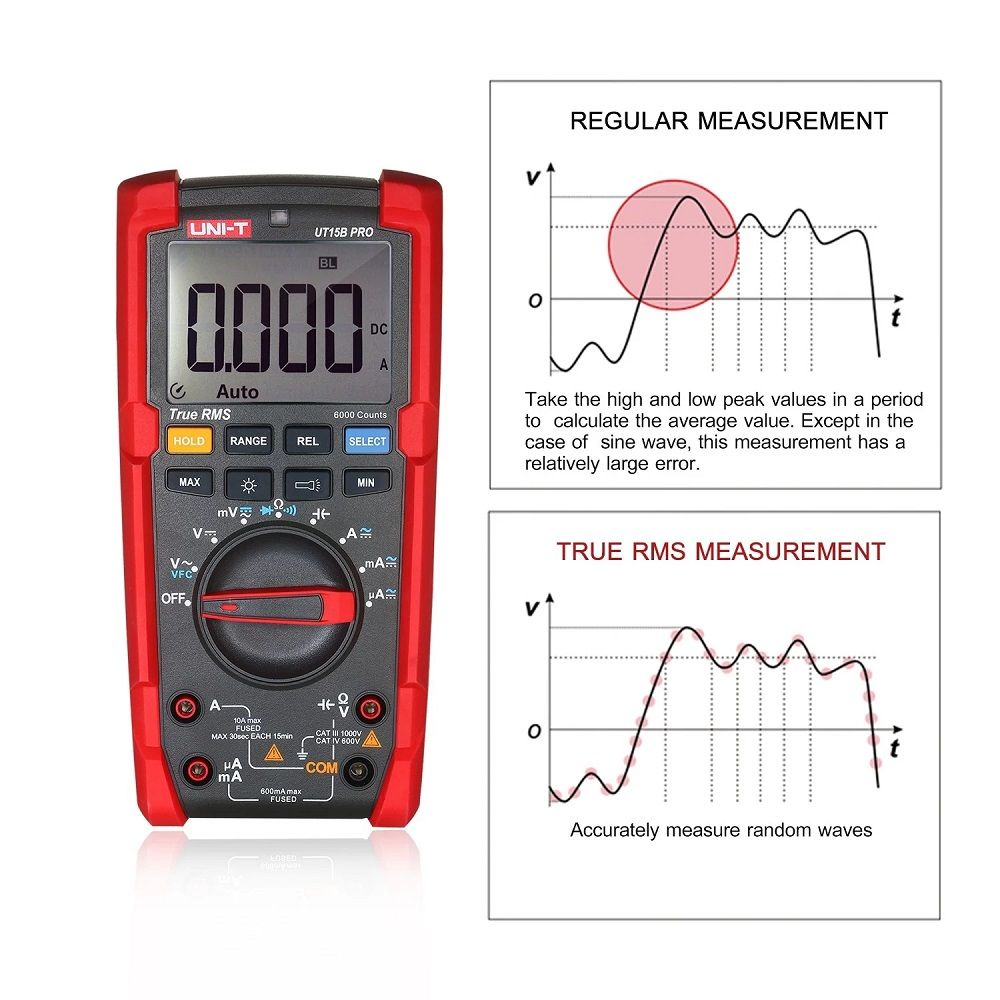

More features: true RMS, 6000 counts, auto/manual range, buzzer alarm, data hold.
Specifications:
Brand Name: Renhotec

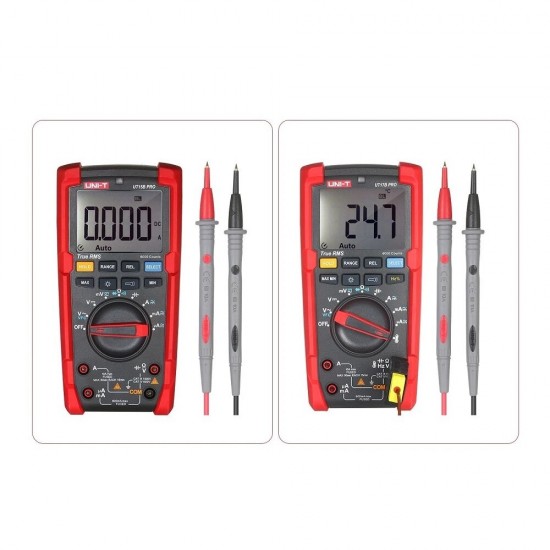

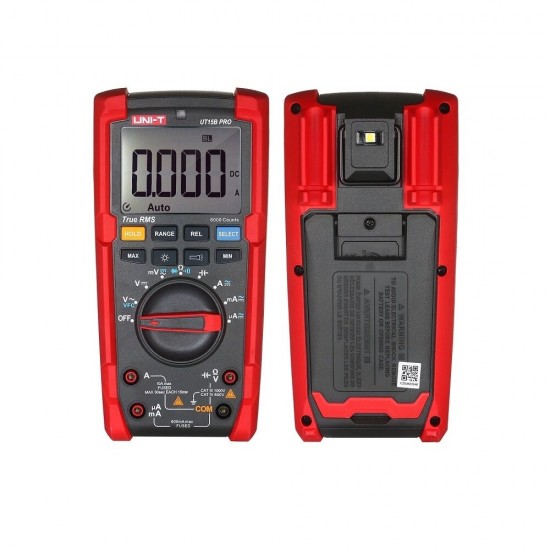

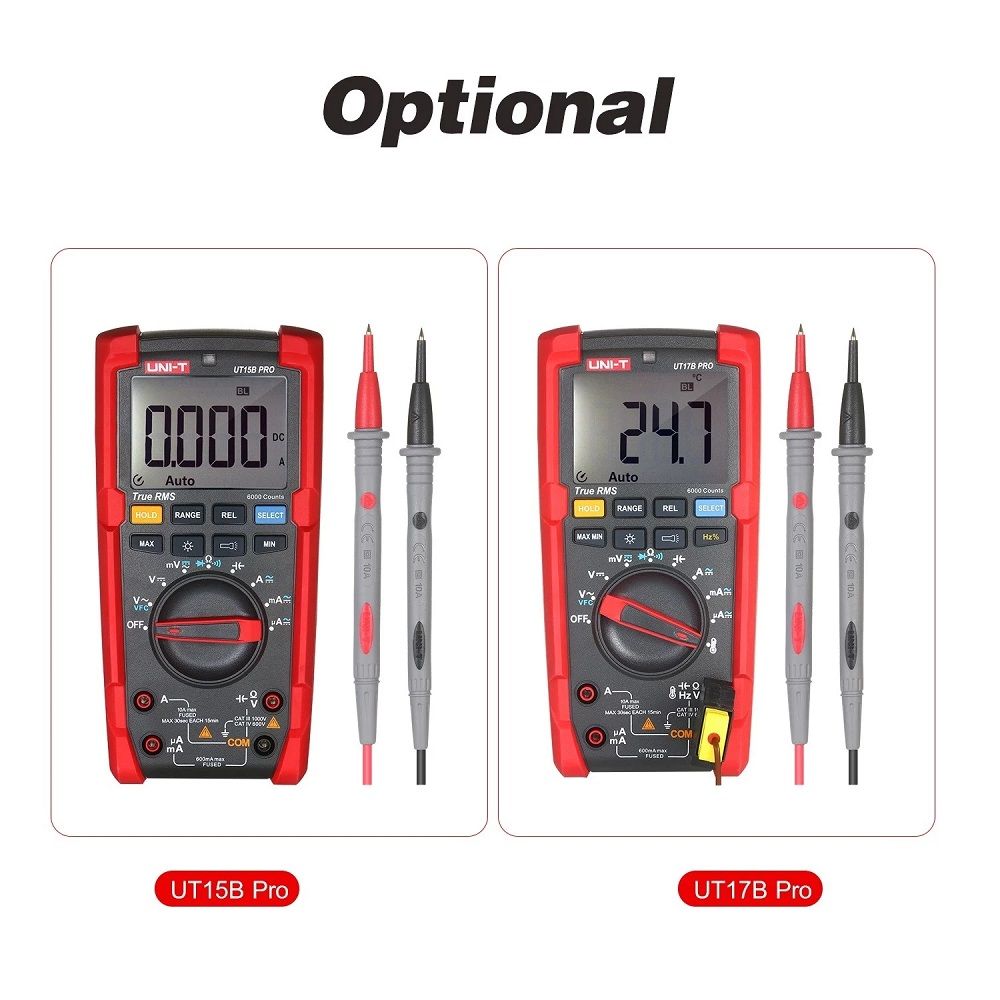

Model: UT15B Pro / UT17B Pro (Optional)
Material: ABS
Color: Red
Max. Display: 6200
Range Control: Auto/Manual range
Operating Temperature: 0~40℃ (32~104℉)
Storage Temperature: -10~50℃ (14~122℉)
Relative Humidity: 0~30℃: ≤75%RH, 30-40℃: ≤50%RH
Operating Altitude: 0~2000m

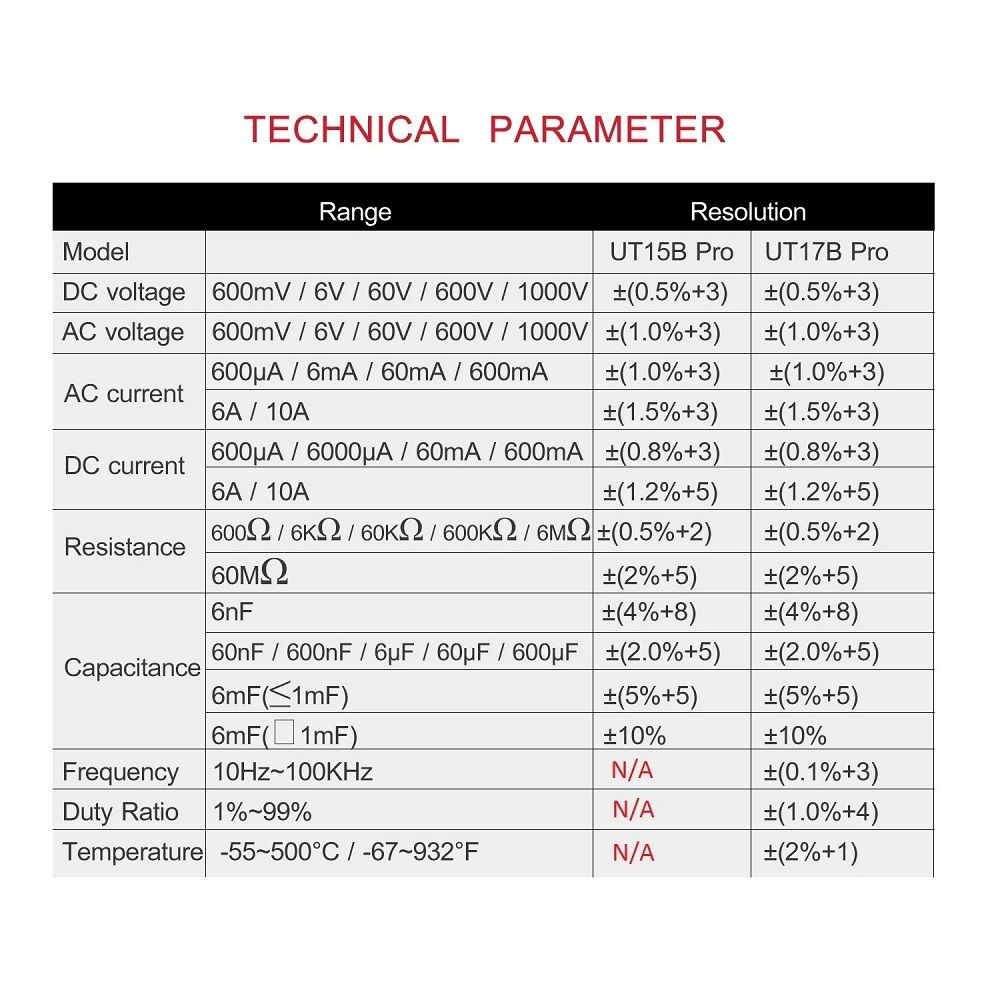

DC Voltage Range: 600mV / 6V / 60V / 600V / 1000V
AC Voltage Range: 600mV / 6V / 60V / 600V / 1000V (VFC: 600V)
DC Current Range: 600μA / 6000μA / 60mA / 600mA / 6A / 10A
AC Current Range: 600μA / 6mA / 60mA / 600mA / 6A / 10A
Resistance Range: 600Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ

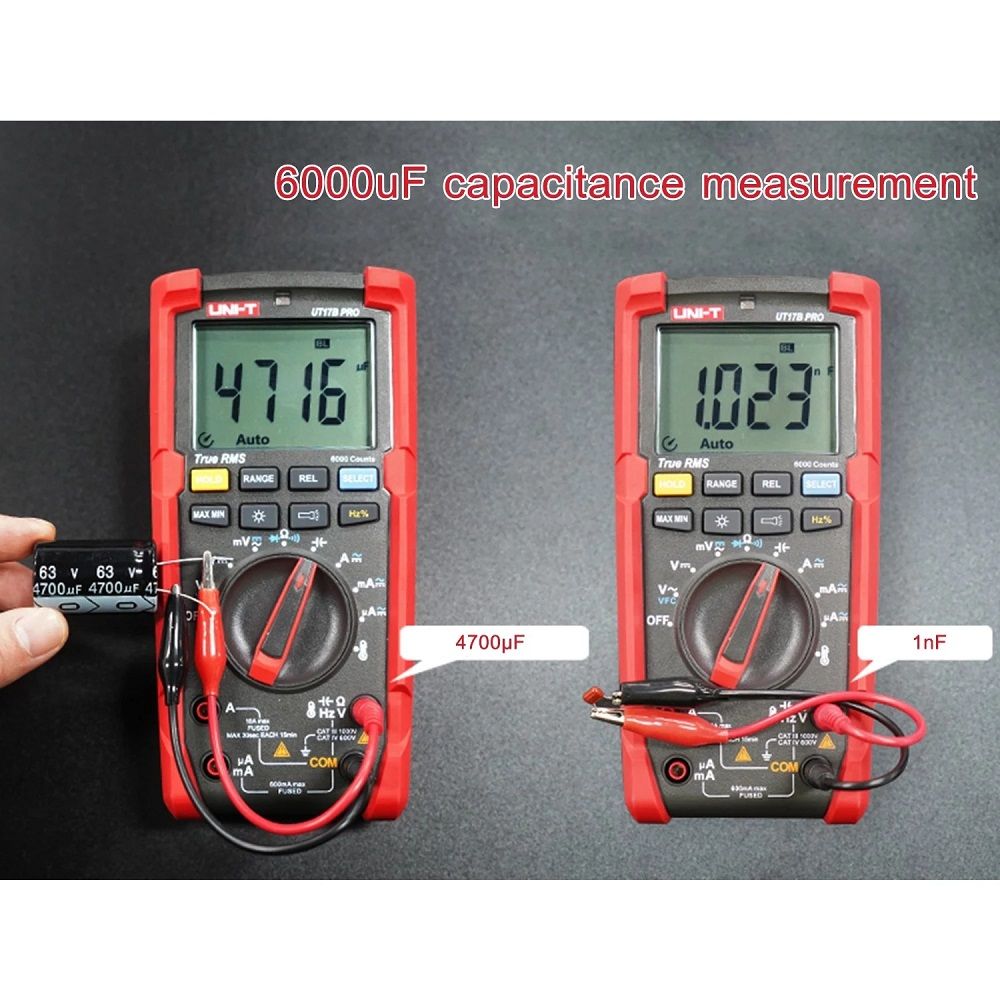

Capacitance Range: 6nF / 60nF / 600nF / 6μF / 60μF / 600μF / 6mF
Frequency Range: 10Hz~100KHz (UT17B PRO only)
Duty Ratio Range: 1%~99% (UT17B PRO only)

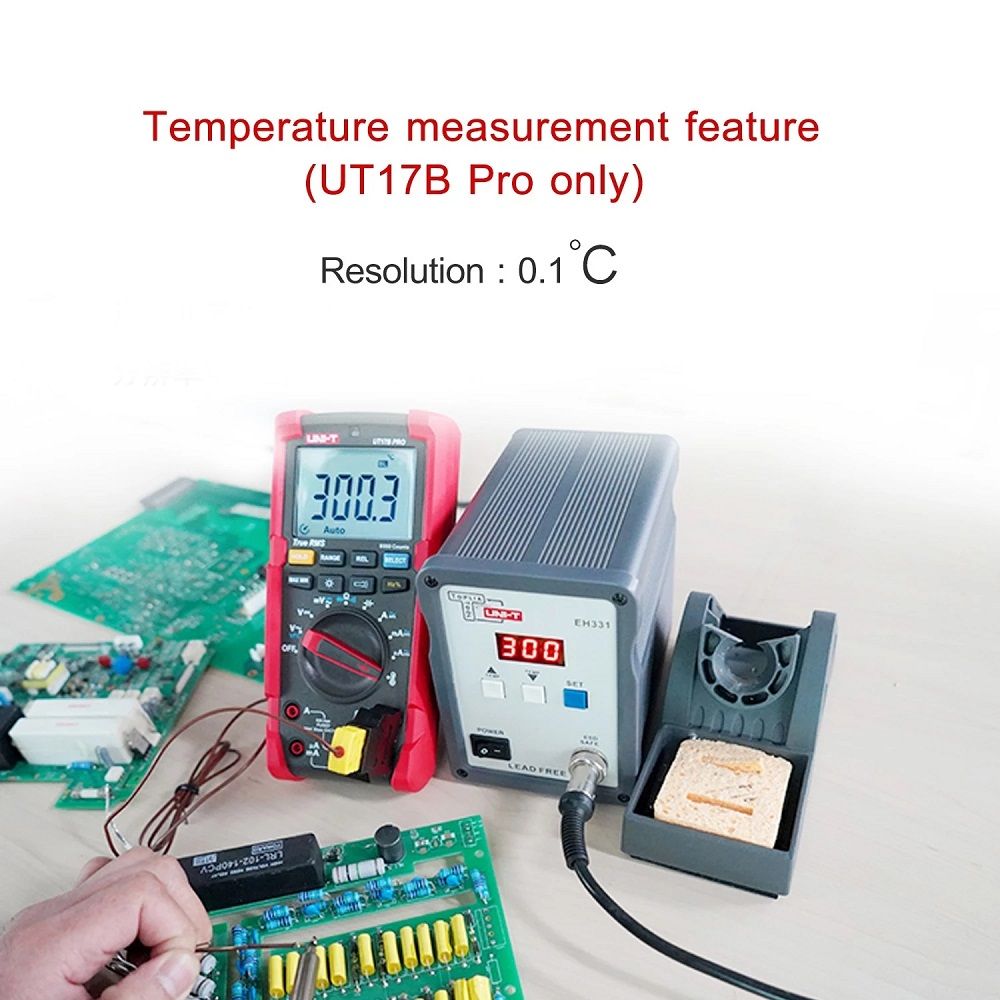

Temperature Range: -55~500°C / -67~932°F (UT17B PRO only)

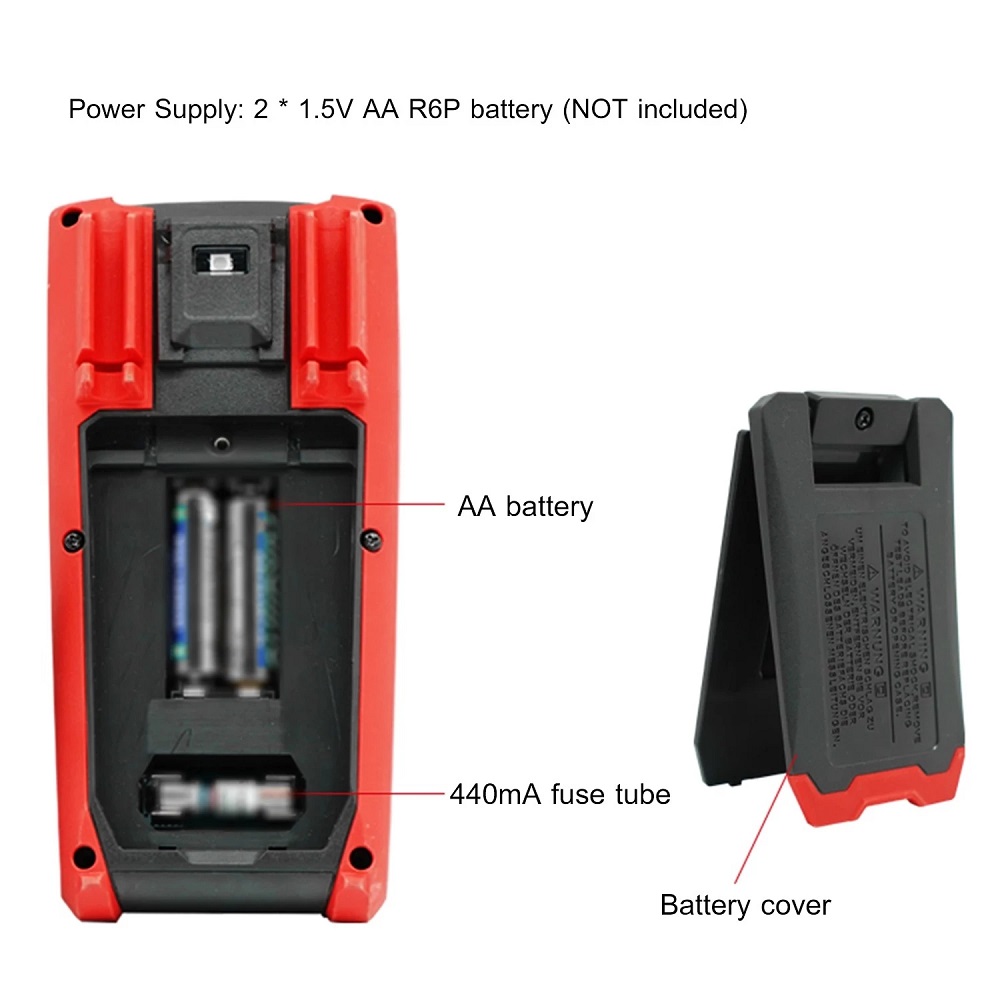

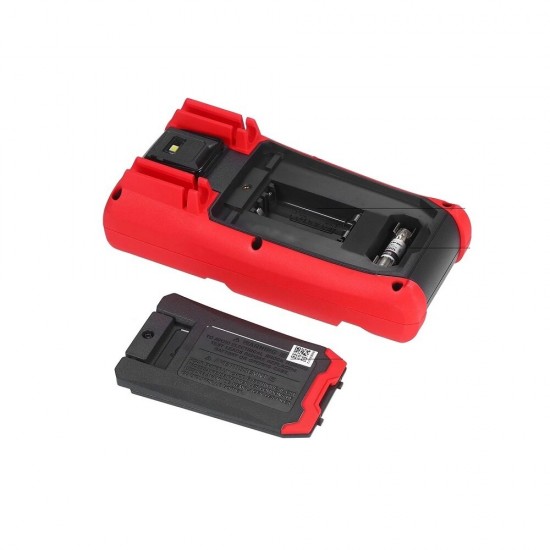

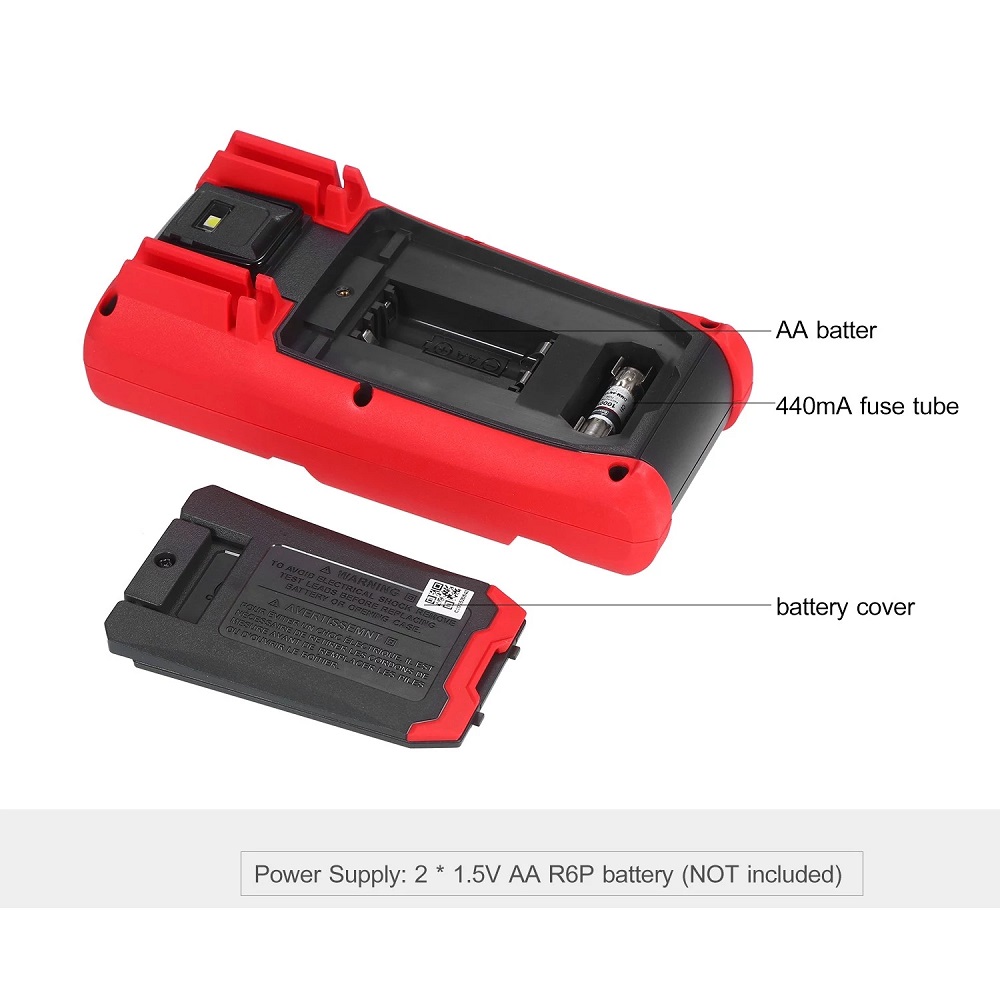

Power Supply: 2 * 1.5V AA R6P battery (NOT included)
Safety Level: CAT-III 1000V and CAT-IV 600V

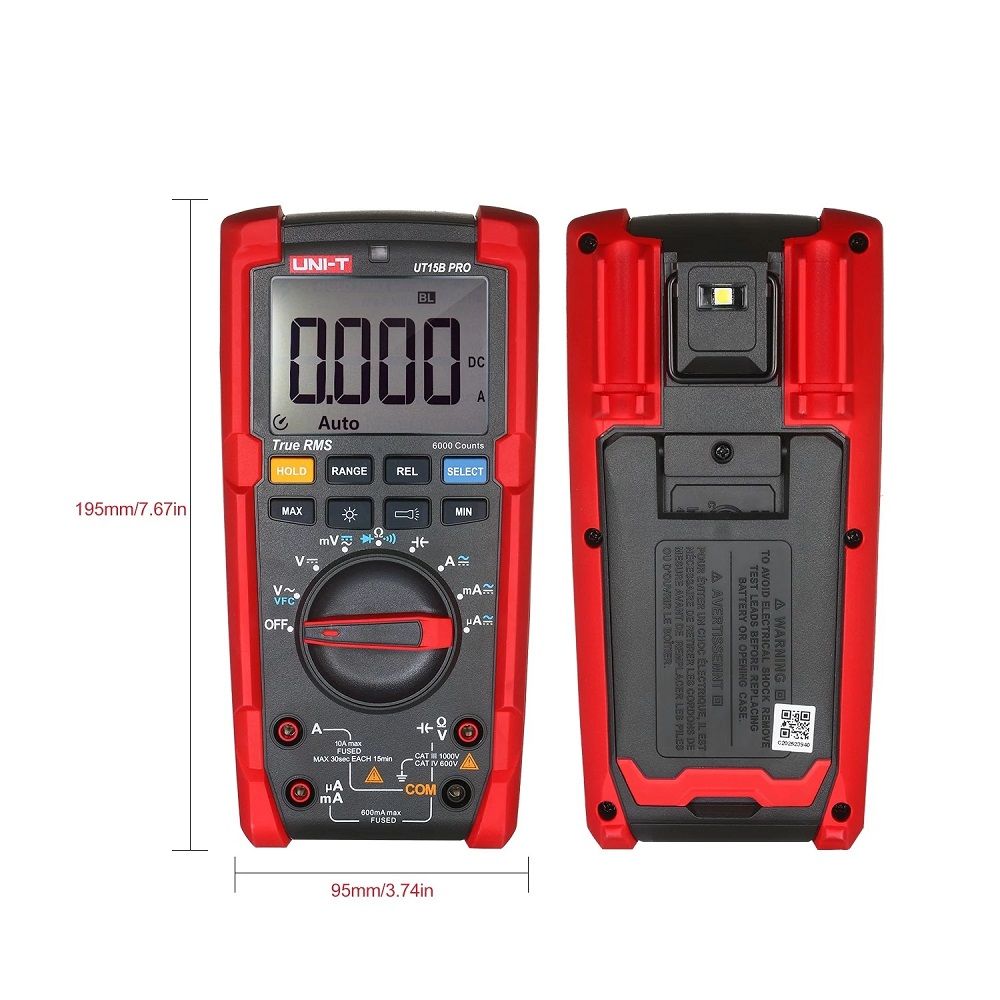

Item Size: 195 * 95 * 58mm / 7.67 * 3.74 * 2.28in
Item Weight: 445g / 15.69oz
Package Weight: 781g / 27.54oz
Package Size: 24.5 * 18 * 7cm / 9.64 * 7.08 * 2.75in
Package includes:
1 * Multimeter (Battery not included)
1 * Storage Bag

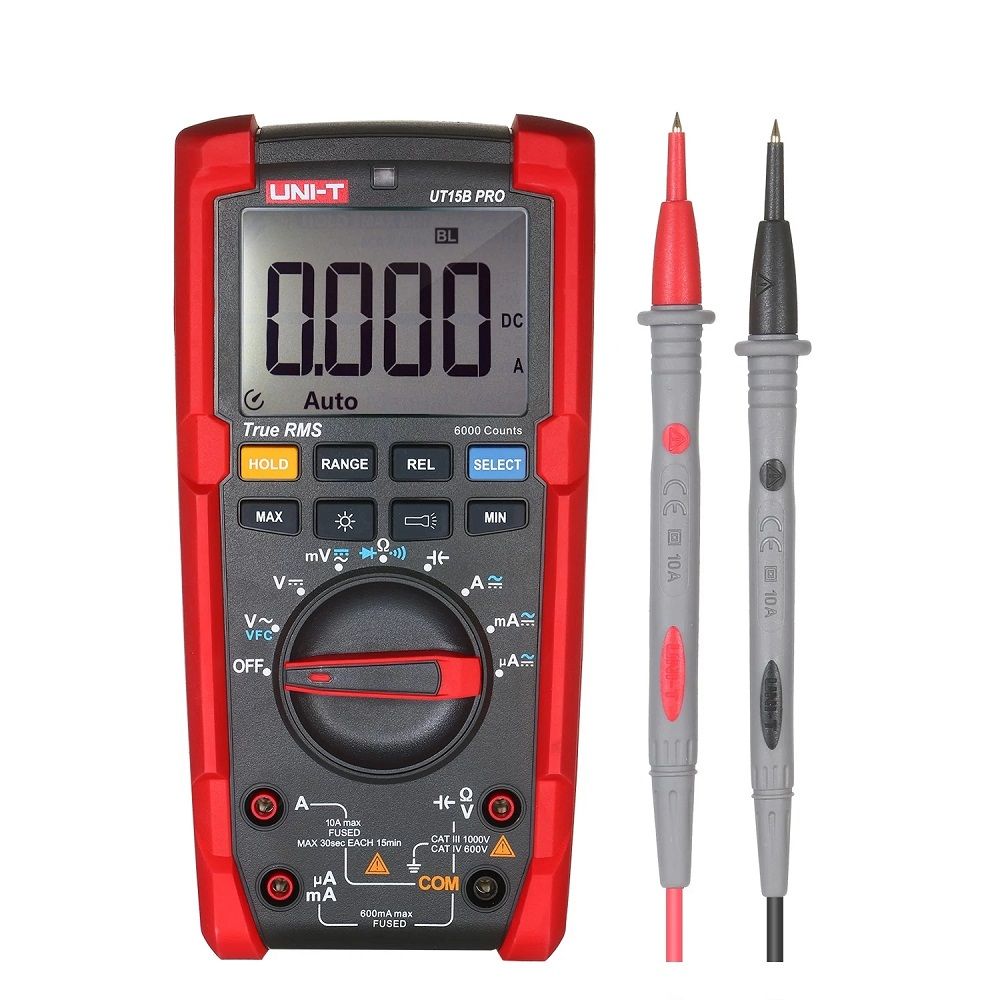

1 * Test Leads(pair)
1 * User Manual
