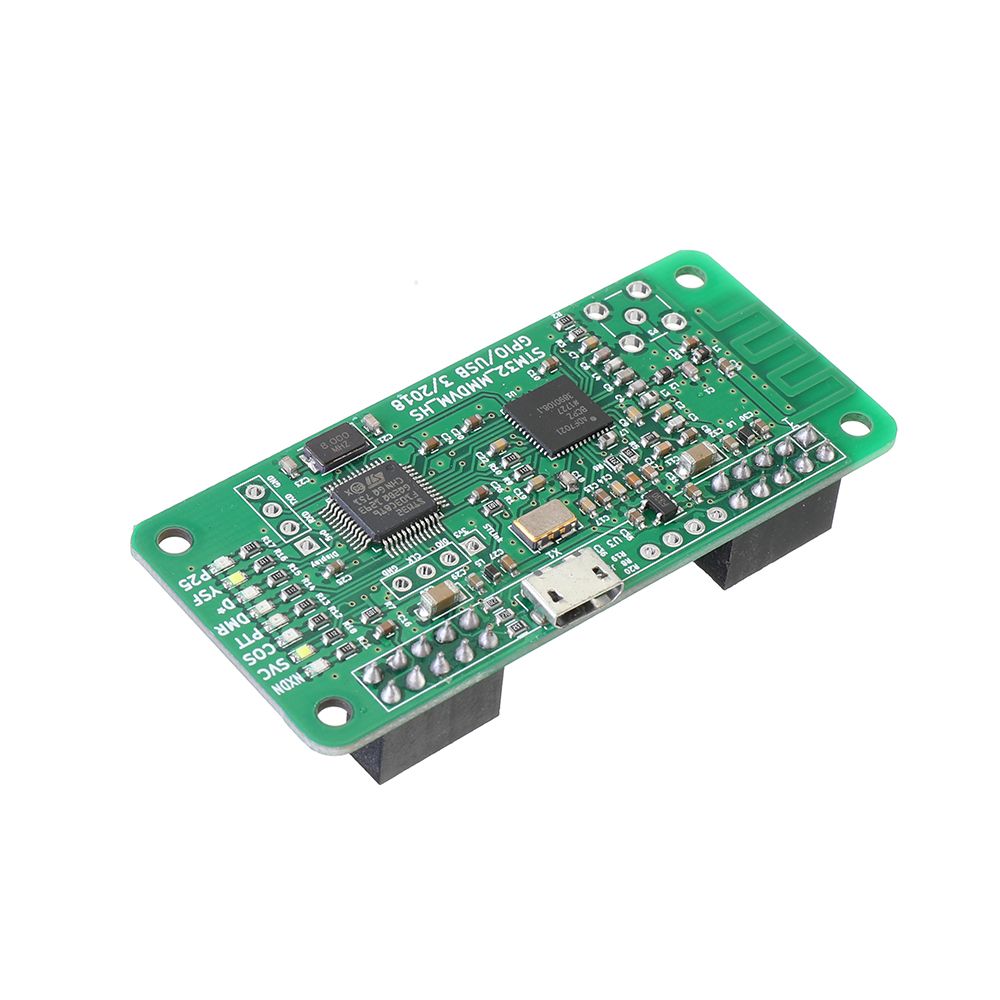

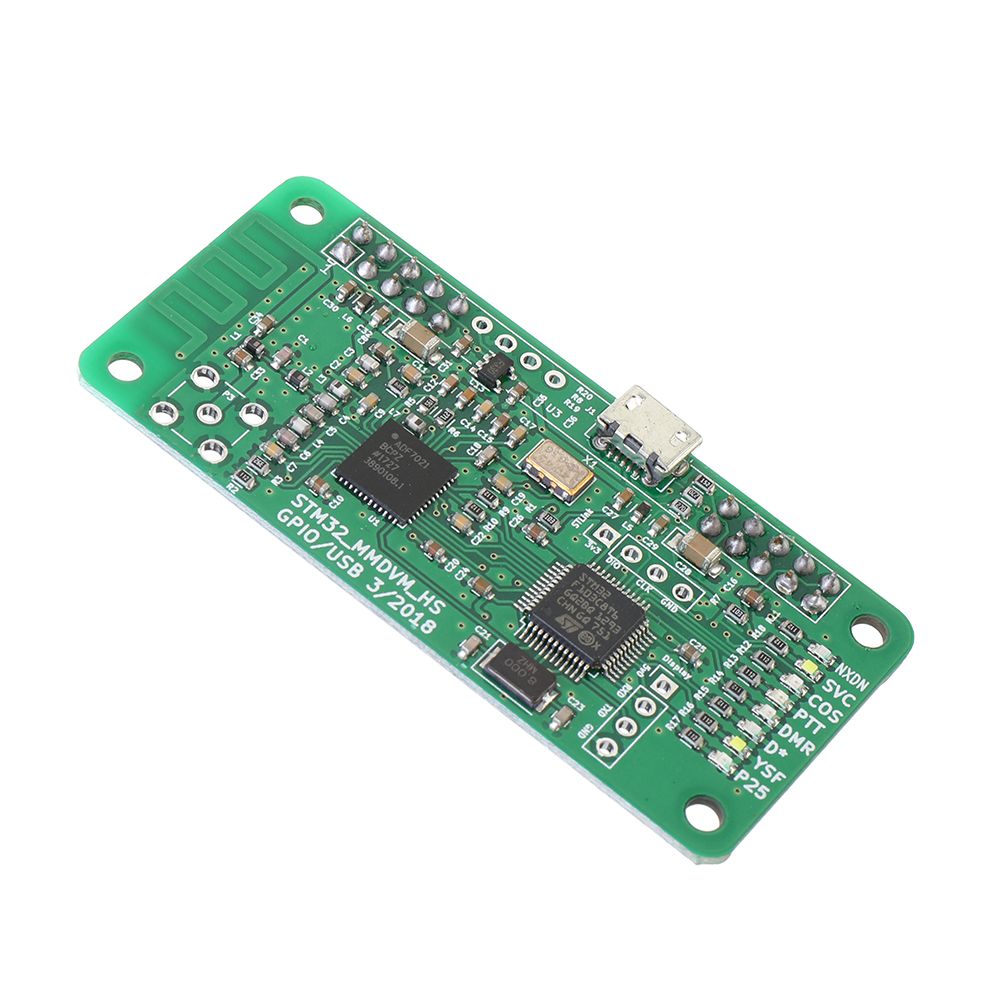

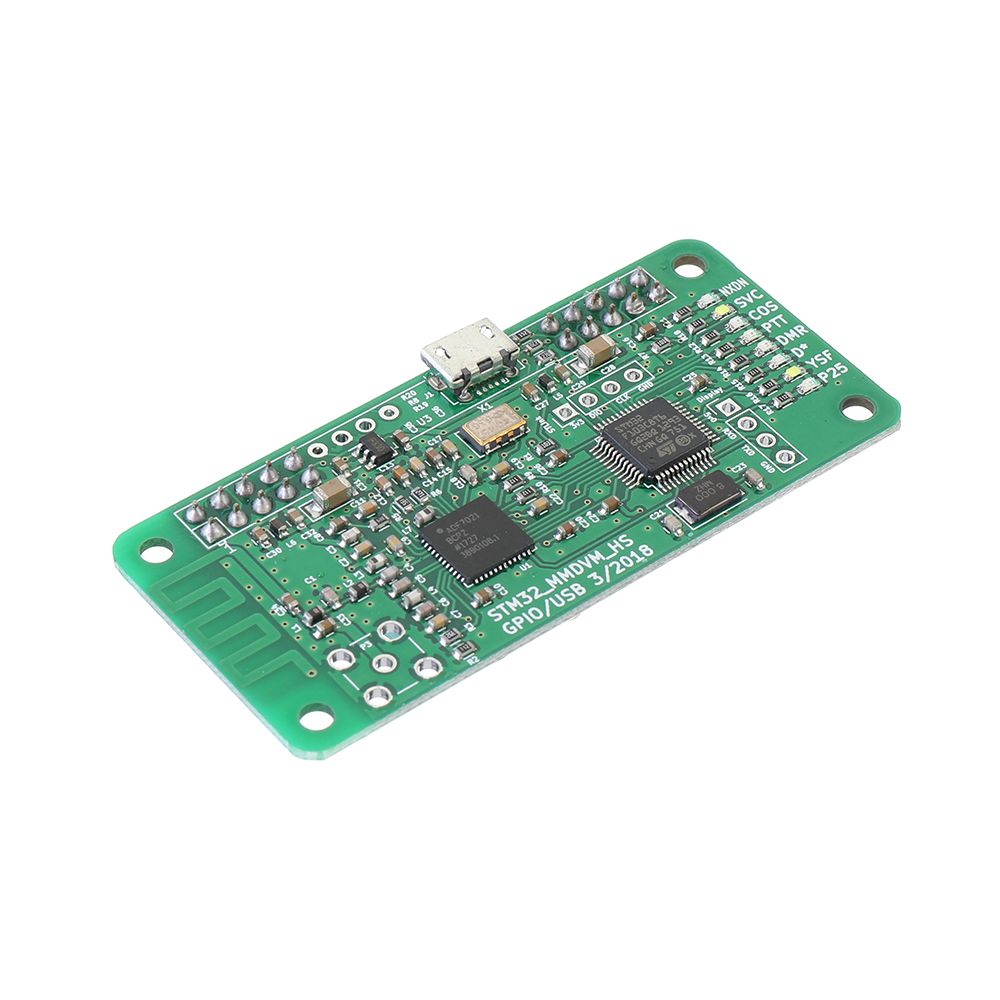

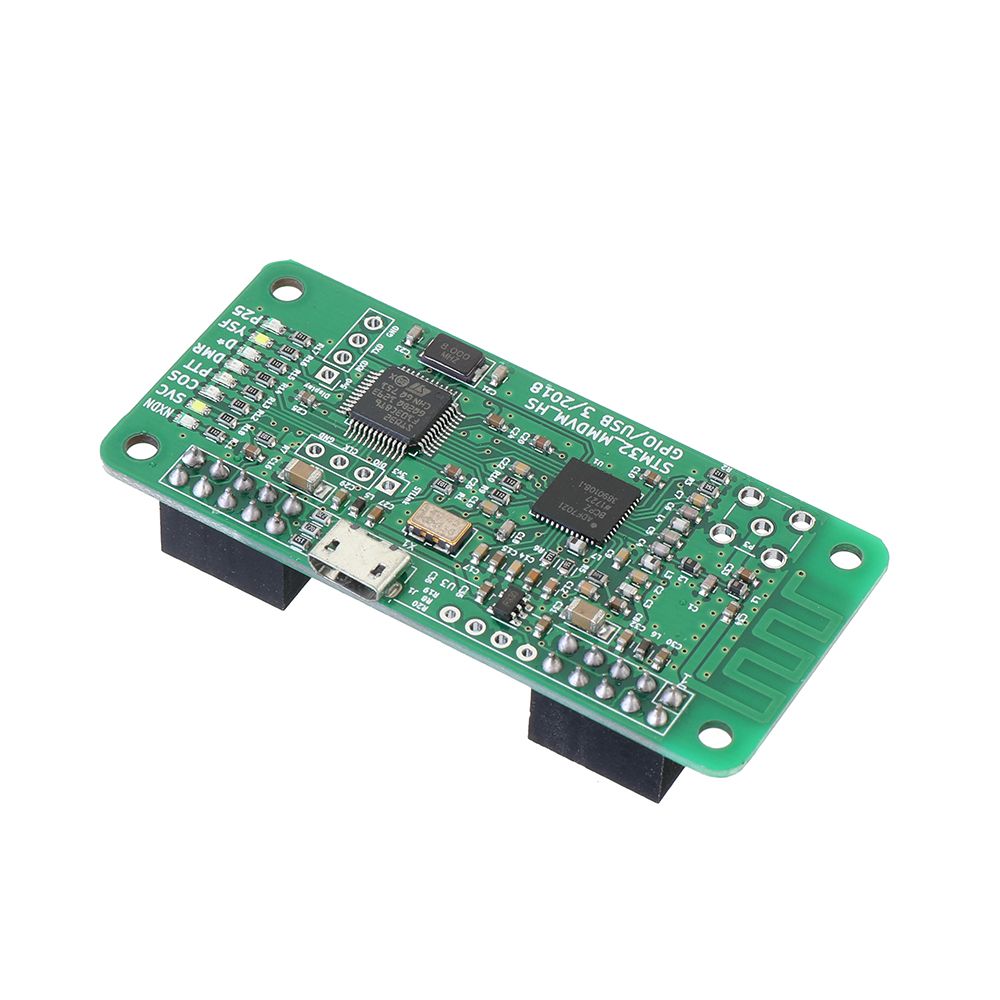

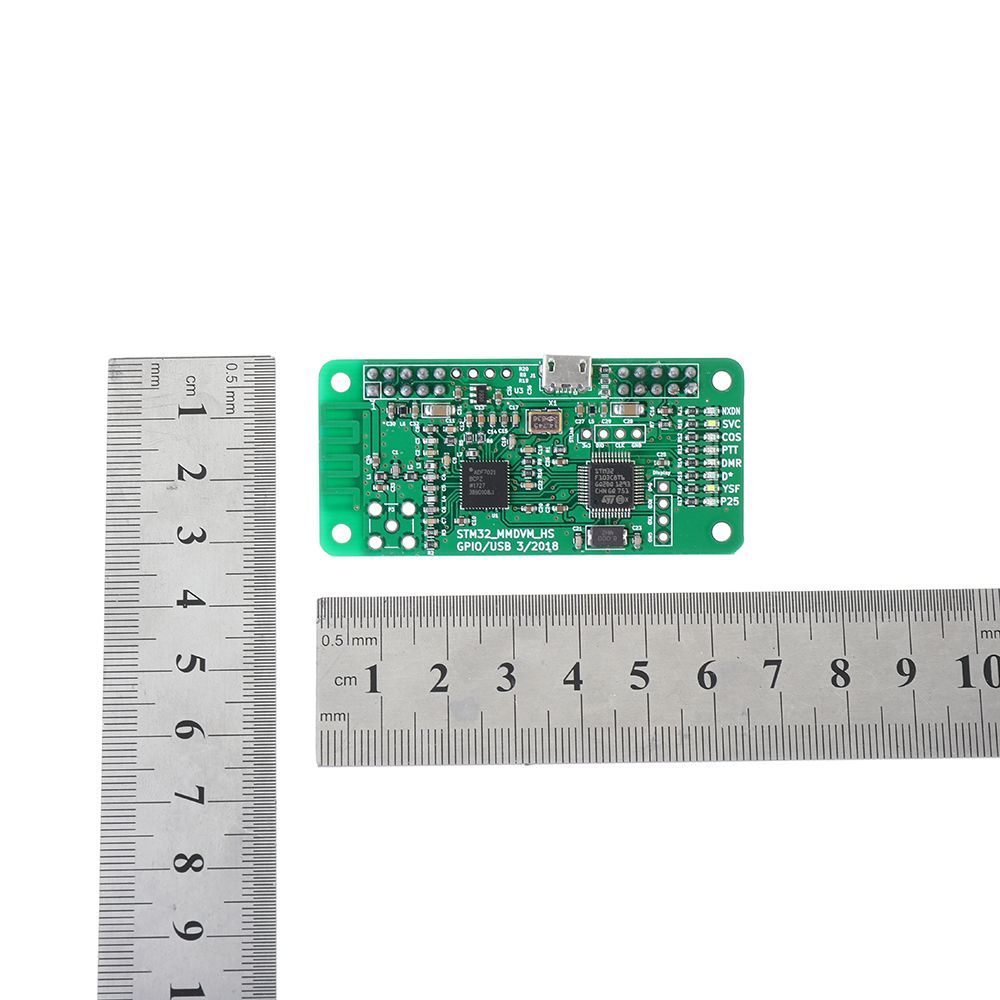

UHF+VHF Hotspot Support BLUEDV with USB Interface GPIO for Digital Ham Radio A3-004

Based on 0 reviews. - Write a review

$32.99

Ex Tax: $32.99

Stock: In Stock
Model: EB0046604
SKU: EB0046604

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

UHF (430-440) + VHF (144-146)

USB version supports BLUEDV

GPIO/USB cannot exist at the same time

Can be upgraded by USB

USB switch GPIO, USB mode

One computer supports N devices, has N serial ports, supports simultaneous online, and can do multi-mode real-time such as one frequency point and one mode.

Product description:

Windows 10 and ubuntu 14.x don't need driver, only win7, win 8 need drivers, installed COMx for Windows is work for BlueDV software or MMDVM Host windows software.

Setting For Pi-star with raspberry hardware you just Connect STM32_MMDVM_HS USB to it's USB Port with MicroUSB Cable.

Controller Mode: Simplex Node

Radio Frequency: 144-148, 219-225, (Main Band) 420-475, 842-950

Example: 438.000000

Radio/Modem Type: STM32-DVM (USB)

Admin->Expert->Edit MMDVMHOST->RXOFFSET=xxx TXOFFSET=xxx

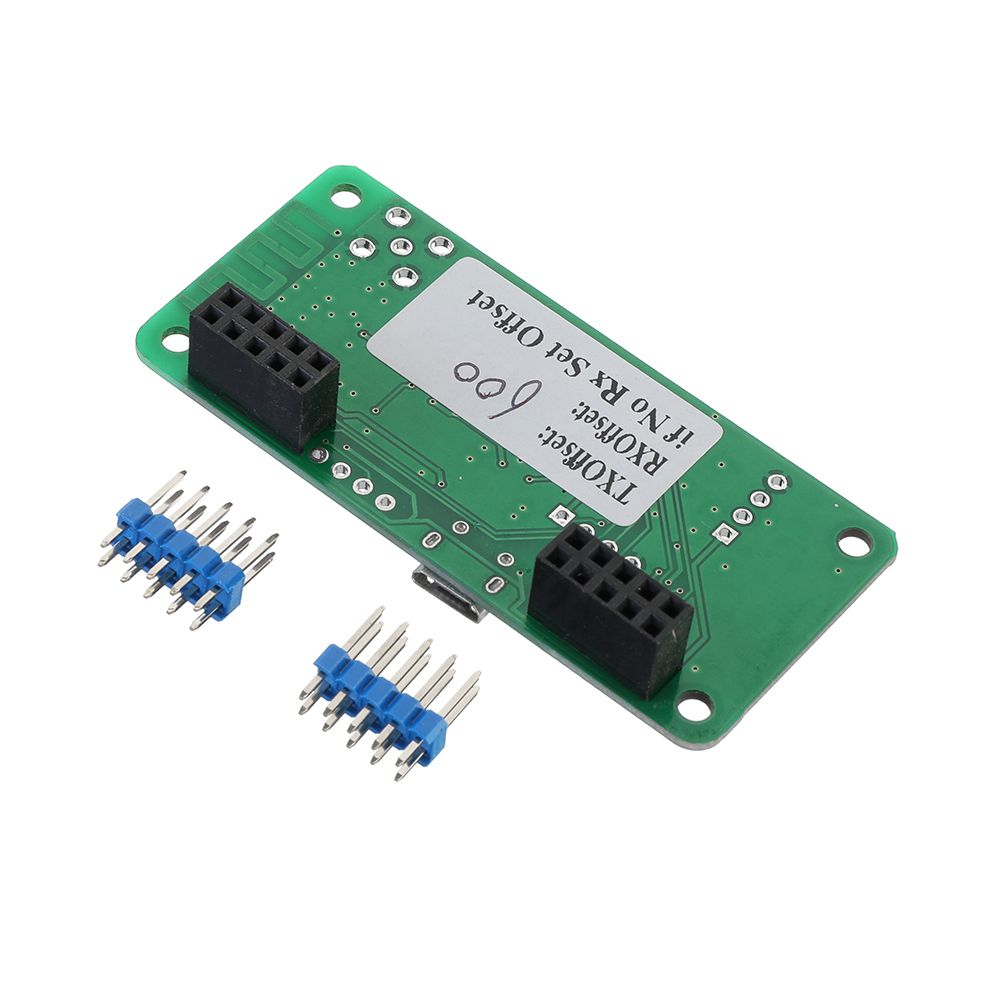

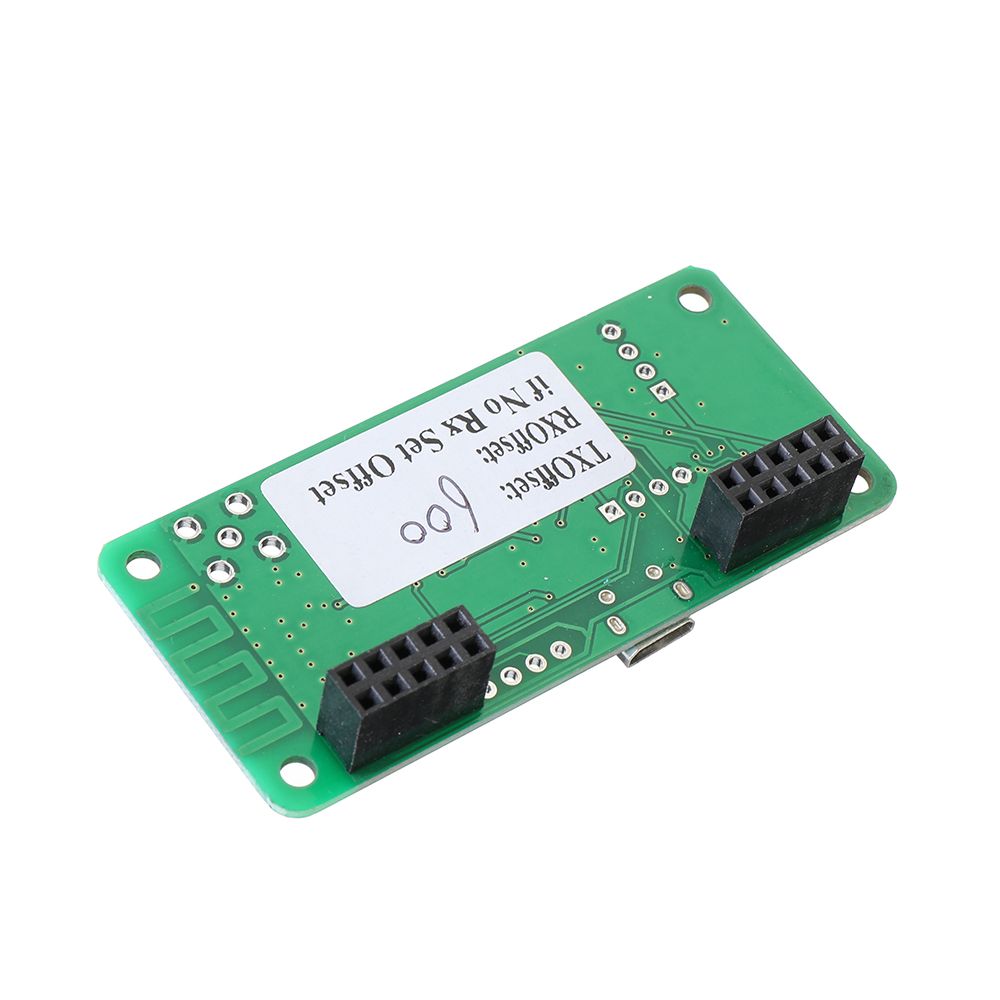

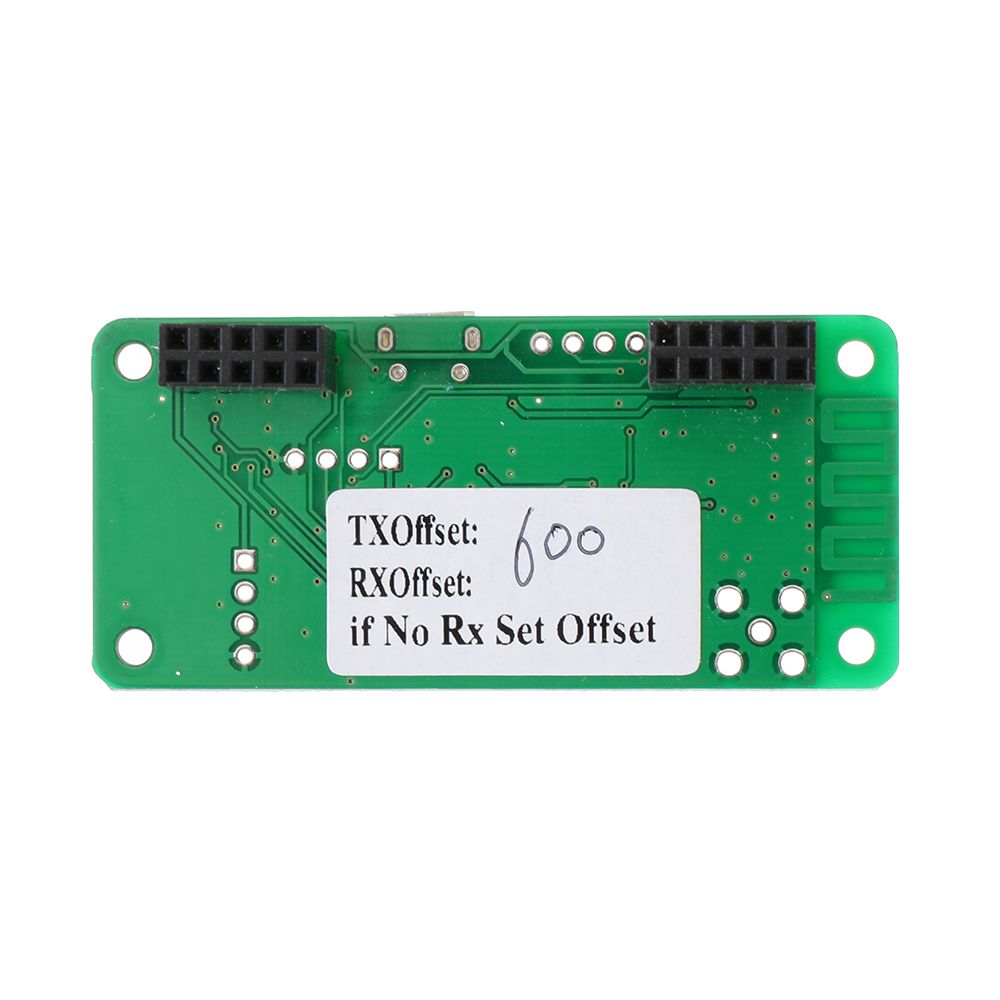

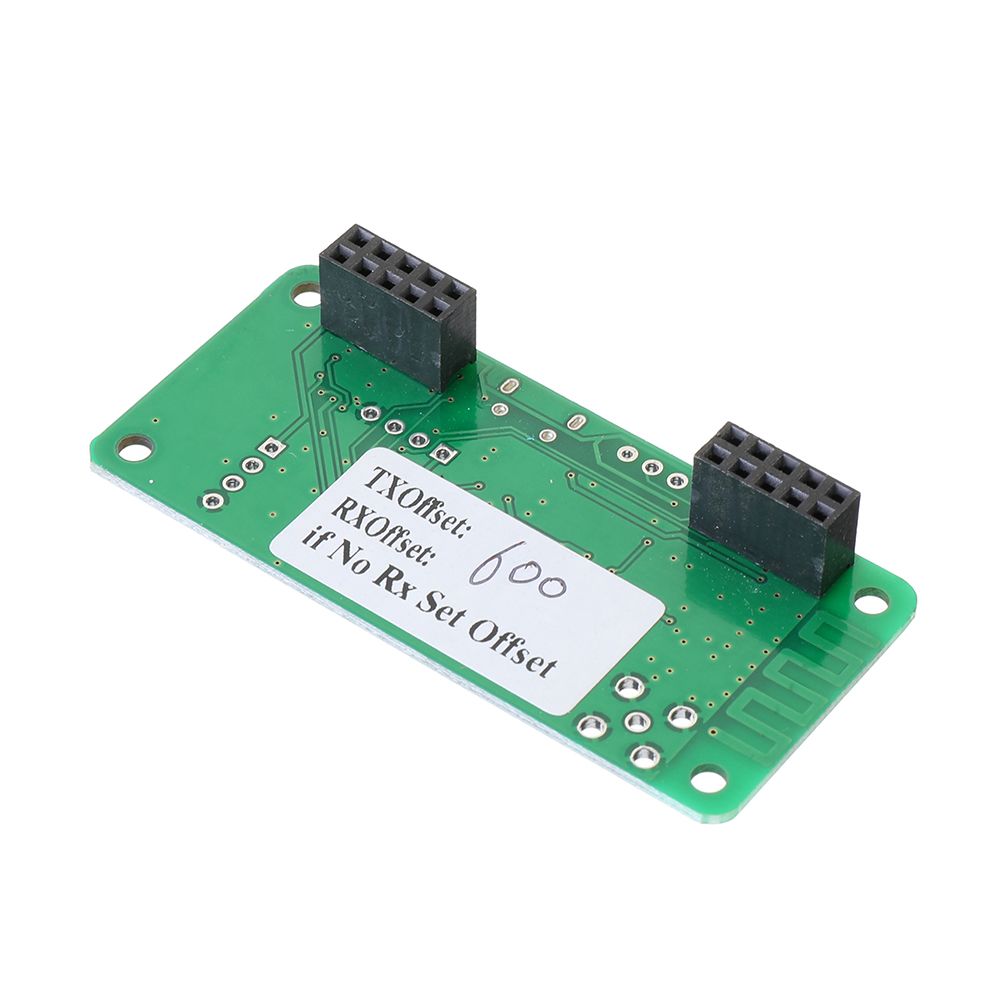

XXX is tested OFFSET print or write back white label every Board is different, update the offset does always not change.)

Can I Change to GPIO Mode?

Yes, you need an update in pi-star ssh panel Installed to GPIO Port use stm32flash.

To Flash GPIO FW to change GPIO mode info pls visit.

Package includes:

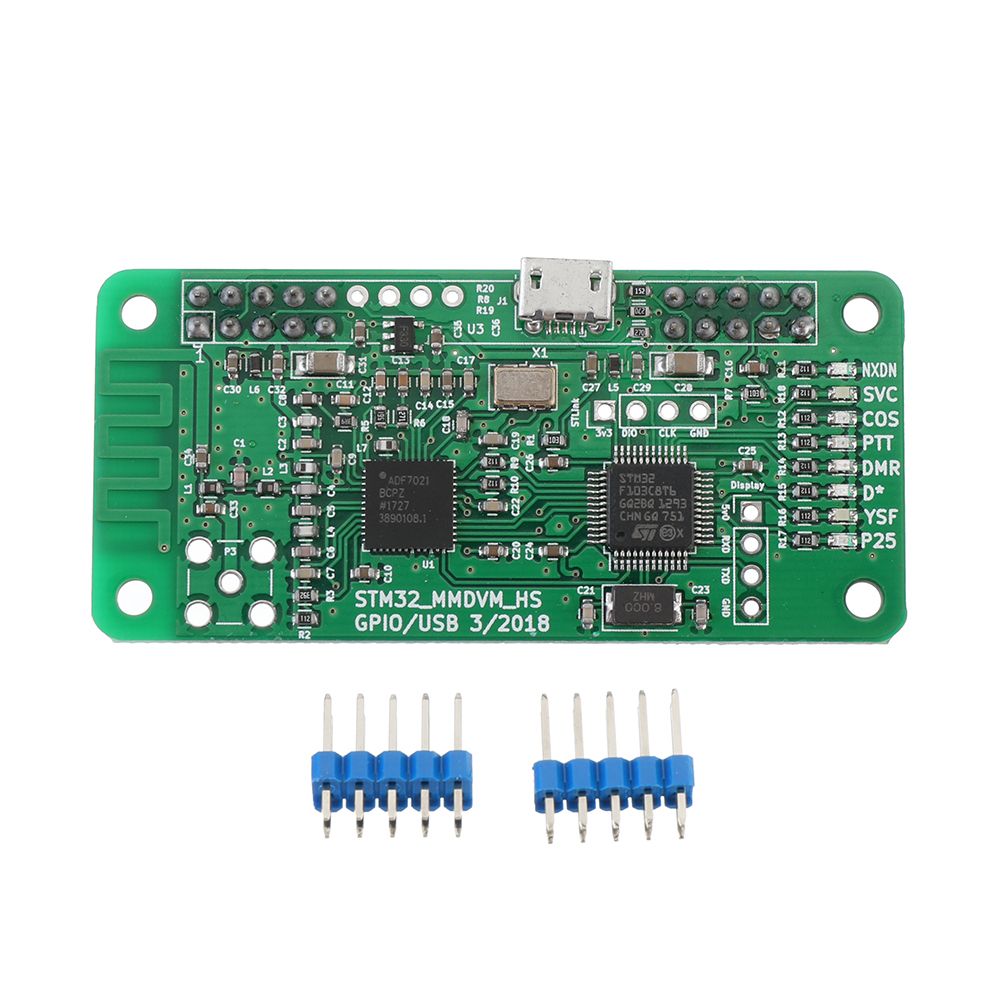

1 x Board
