Digital Display 0~100% Adjustable 60A PWM DC Motor Speed Regulator Controller 12V 24V 36V 48V Timing Reversible Remote Control

Based on 0 reviews. - Write a review

$20.99

Ex Tax: $20.99

Stock: In Stock
Model: EB006102
SKU: EB006102

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

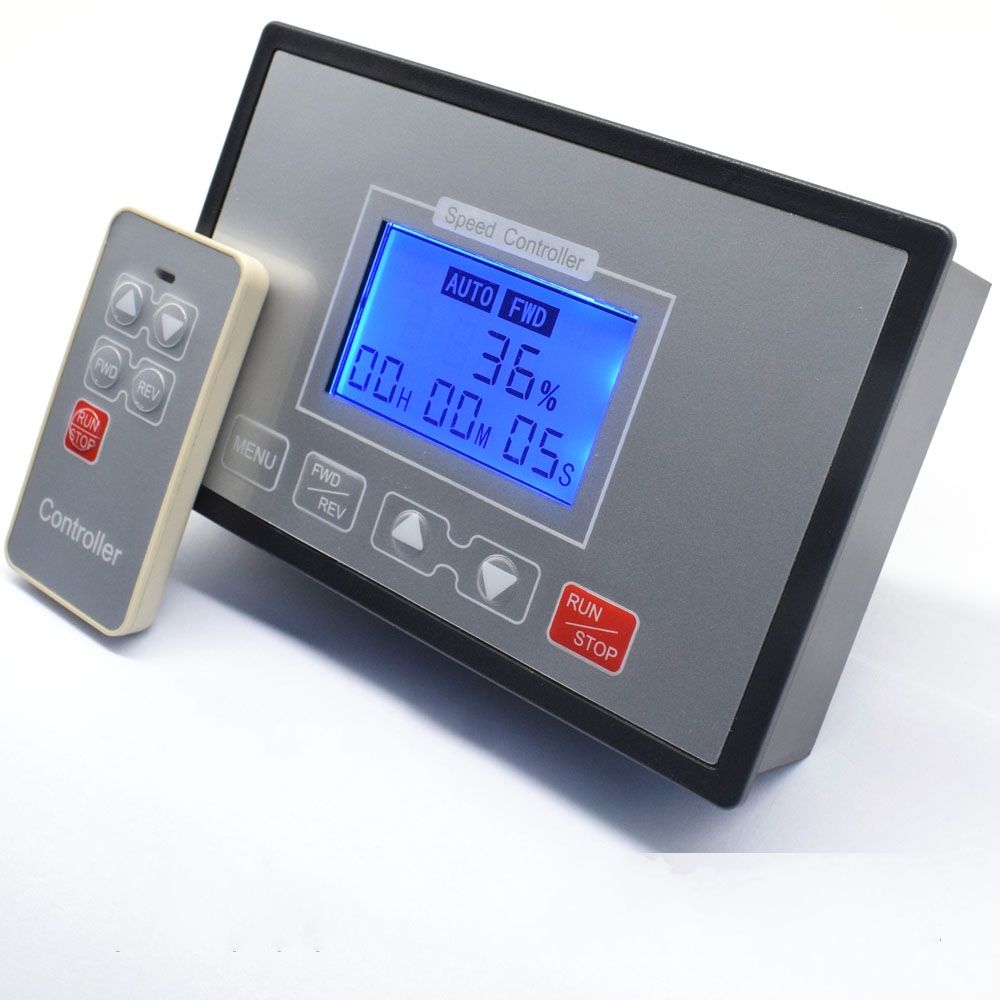

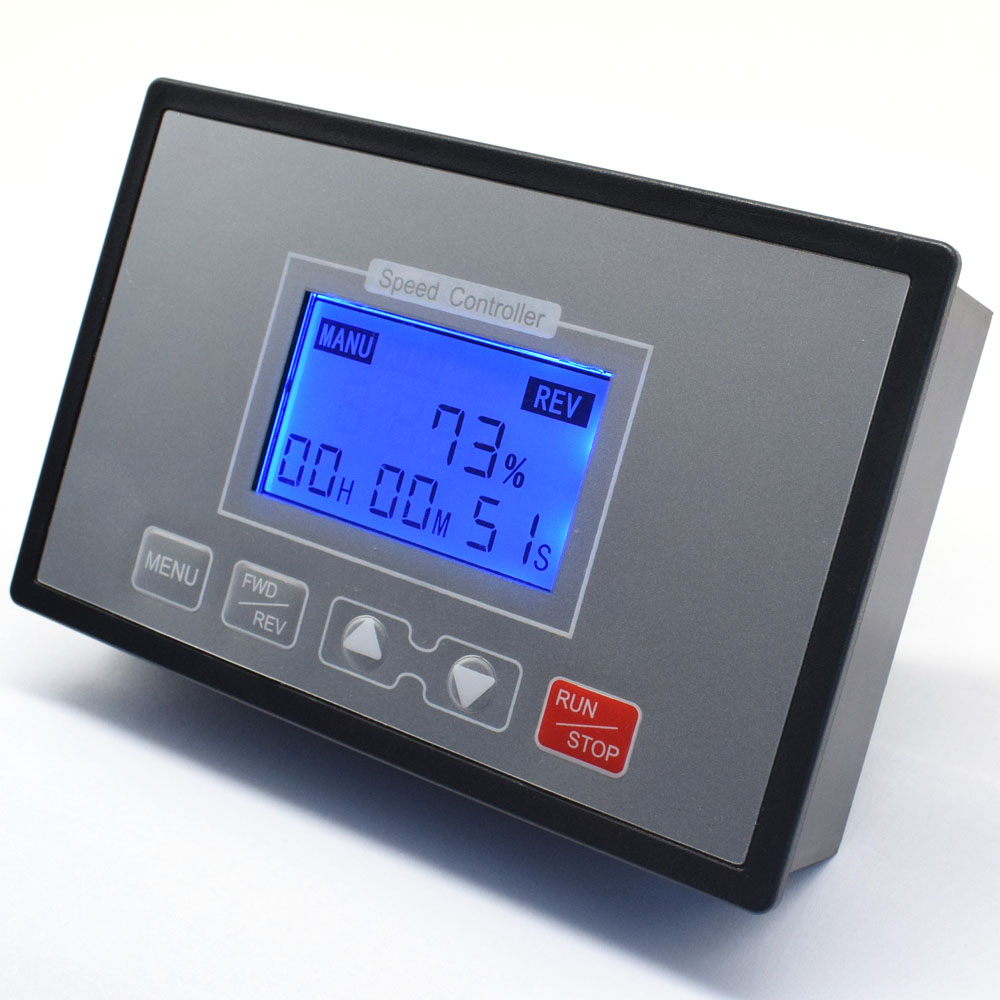

1. LCD screen with backlight, can display working time, percentage of rotation speed, current mode, forward rotation, reverse rotation status

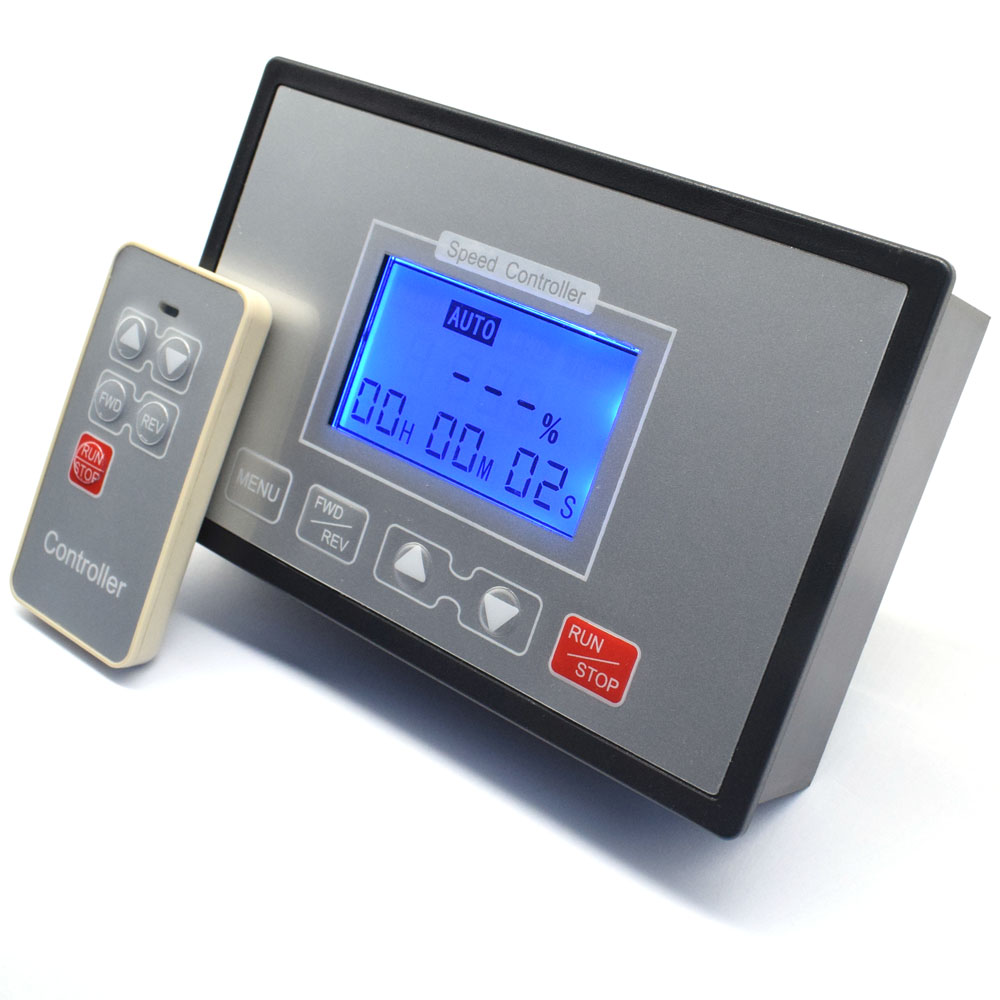

2. Equipped with wireless remote control

3. Multiple limit modes available

4. Can be set to start slowly

5.Upper and lower speed limits can be set

6.Can set the total working time

7.Support separate speed regulation of forward speed and reverse speed

8.Two modes, manual and automatic, are available

9.Touch switch to switch forward and reverse, jog acceleration and deceleration solve the problem of the traditional potentiometer

Specification:

Input voltage

DC10-55V (the specific voltage is equal to the rated voltage of the motor)

Output voltage

linear under load

Instantaneous current

60A

Continuous current

Within 40A

Forward rotation

Support

Wireless remote control

Support

Timing timing

Yes

Limit function

Yes

Slow start slow stop

can be set

Speed digital display

0-100 percentage table

Speed regulation type

Flow regulation

Speed regulation mode

Jog +-

Speed range

0-100%

Control frequency

15KHZ

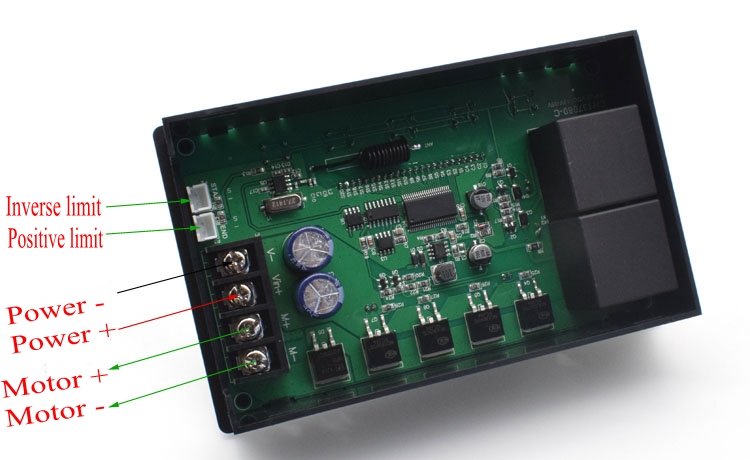

Wiring type

Fence type terminal

Support motor

Brushed motor

Module size

length * width * height 148mm * 95mm * 36mm

Product net weight

255g

Panel opening

length * width 142mm * 88mm

Note:

1.Press and hold the FWD / REV button to turn off the backlight

For reverse start, press FWD / REV to reverse start

2.The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V).

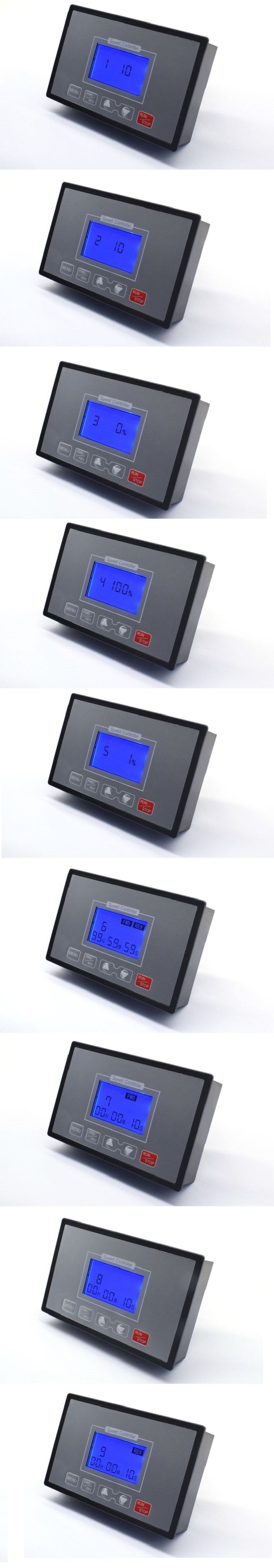

0-1-2-3-4-5-6-7-8-9-E functions are set as follows

Manual automatic mode selection Function 0: 1 is manual mode 2 is automatic mode The default is 1 manual mode.

Slow start time setting Function 1: 000-100 Slow start to 100% speed time adjustable between 0-10 seconds The default is 1 second.

Slow stop time setting Function 2: 000-100 Slow stop time is adjustable between 0-10 seconds. The default is 1 second.

Speed lower limit setting Function 3: 000-080 The minimum speed is adjustable between 0-80% and less than the maximum speed setting value. The default is 0.

Speed upper limit setting Function 4: 000-100 The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting value. The default is 100%.

Acceleration / deceleration value setting Function 5: 001 002 005 010 015 020 025 Each time the key is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Total motor running time setting Function 6: 1 second minimum-99 hours 59 minutes 59 seconds maximum The default is 99 hours 59 minutes 59 seconds.

The following function 7.8.9. Is time setting in full automatic mode

Forward rotation time setting Function 7: 0 seconds minimum-99 hours maximum Default is 10 seconds

Stop time setting Function 8: 0 seconds minimum-99 hours maximum Default is 10 seconds

Reverse time setting Function 9: 0 seconds minimum-99 hours maximum Default is 10 seconds

Limit mode selection Function E:

E1 Unlimited bit Default unlimited bit

E2 Press to start the motor to rotate forward.

E3 Press to start the motor, forward rotation, forward rotation to positive limit motor, reverse rotation, reverse rotation to reverse limit motor, stop

E4 Press the start motor to rotate forward.

Manual and automatic mode selection Press the MENU button 1 to display 0 to enter manual and fully automatic mode selection 1 for manual mode 2 for automatic mode Press the plus and minus keys to switch Press RUN / STOP to save and exit

Slow start time setting Press the MENU key 2 to enter the function 1 setting key surface Press the plus and minus key to set the time

Slow stop time setting Press the MENU key 3 to enter the function 2 setting key surface Press the plus and minus keys to set the time Press RUN / STOP to save and exit (10 is 1 second and 100 is 10 seconds)

Speed lower limit setting Press MENU key 4 to enter function 3 key surface Press plus and minus keys to set Press RUN / STOP to save and exit

Speed upper limit setting Press the MENU key 5 to enter the function 4 key surface Press the plus and minus keys to set the value

Acceleration / deceleration value setting Press the MENU key 6 to enter the function 5 key surface Press the plus / minus key to switch Press RUN / STOP to save and exit

Motor total running time setting

Press MENU key 7 to enter function 6 key surface. The default is 99 hours, 59 minutes, and 59 seconds. FWD / REV key switching hours, minutes, and seconds

Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

Function 7 Forward rotation time setting in fully automatic mode

Press the MENU key 8 times to enter the function 7 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds

Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

Function 8 Stop rotation time setting in fully automatic mode

Press the MENU key 9 times to enter the function 8 key surface. The default is the maximum time 0 hours 0 minutes 0 seconds.

Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

Function 9 Reverse time setting in fully automatic mode

Press the MENU key 10 times to enter the function 9 key surface. The default is the maximum time 0 hours 0 minutes 10 seconds. FWD / REV key switching hours minutes seconds

Press plus, minus, hour, minute, second, size, press RUN / STOP to save and exit

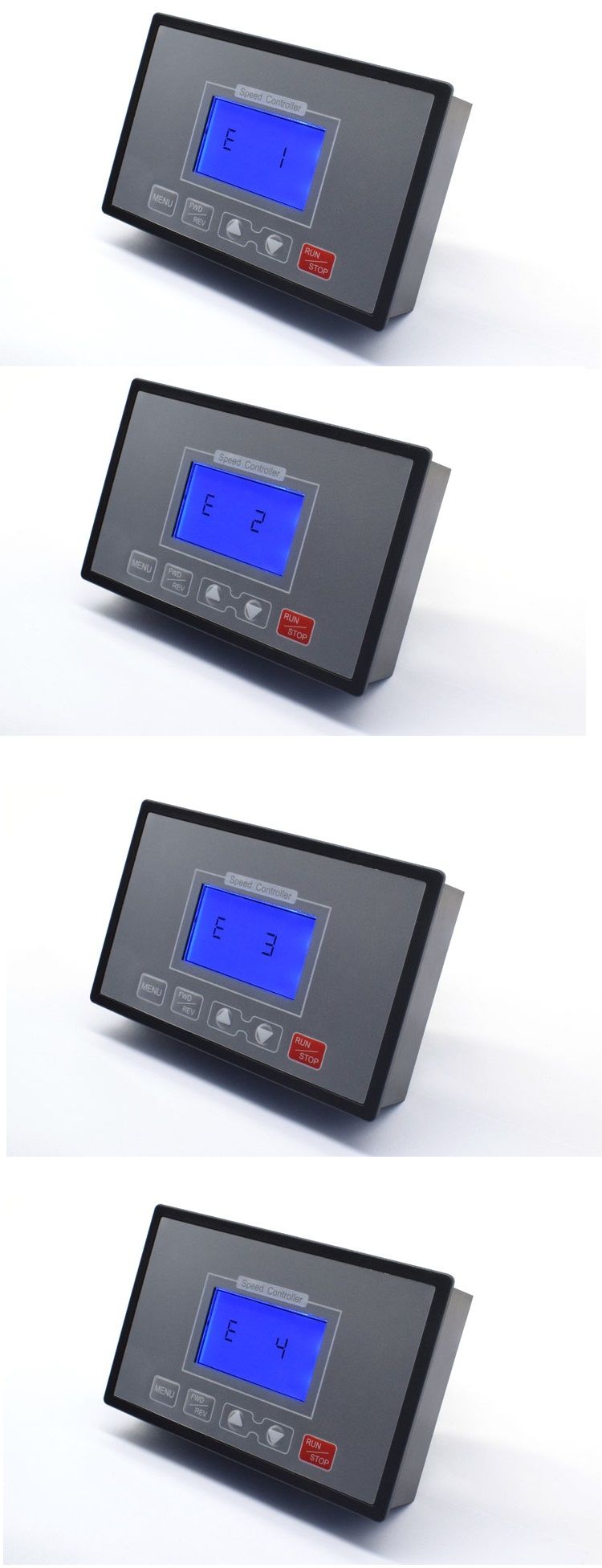

Function E limit mode selection E1 E2 E3 E4

Press MENU key 11 to enter the function E key surface. The default is E1 infinite position. Press plus or minus to switch E1 E2 E3 E4 Press RUN / STOP to save and exit

E2 function: Press to start the motor to rotate forward.

E3 function: press start motor forward rotation forward rotation to positive limit motor reverse rotation reverse rotation to reverse limit motor stop

E4 function: Press to start the motor and rotate forward.

Package included :

1 x PWM DC Motor Speed Controller

2 x Cable

NOTE:Does not include remote control

Details Pictures:
