4 Digital LED Blue Red Tachometer RPM Speed Meter

4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
4 Digital LED Blue Red Tachometer RPM Speed Meter
$9.99
Ex Tax: $9.99
  • Stock: In Stock
  • Model: EB006109
  • SKU: EB006109

Available Options

Features:

The tachometer has the characteristics of small volume, high cost performance, quick reaction speed and beautiful appearance.
Applicable to a variety of mechanical equipment of the motor speed detection, the use of this instrument can accurately measure the engine and the speed of various motors, the built-in menu to select Frequency test.

Specification:

Power supply: DC8V~15V  power supply
Overall Dimension: 72mm x 36mm x 20mm
Opening size: Long 68mm x 33mm
Installation mode: Embedded
Accuracy: 5000rpm: 2rpm
Refresh Speed: 120-1200rpm: 0.2-0.5s 2400-9999rpm: 0.25-0.06s
Range of measurement: 5-9999 rpm/per minute
Time of back to zere: 5-9999rpm: 10s 1-9999rpm: 60s
Display: Super highlight 0.56 inch LED digital tube display
Input signal: Voltage pulse signal, active contact signal, PNP or NPN proximity switch

Package Includes:

1 x RPM Speed Meter

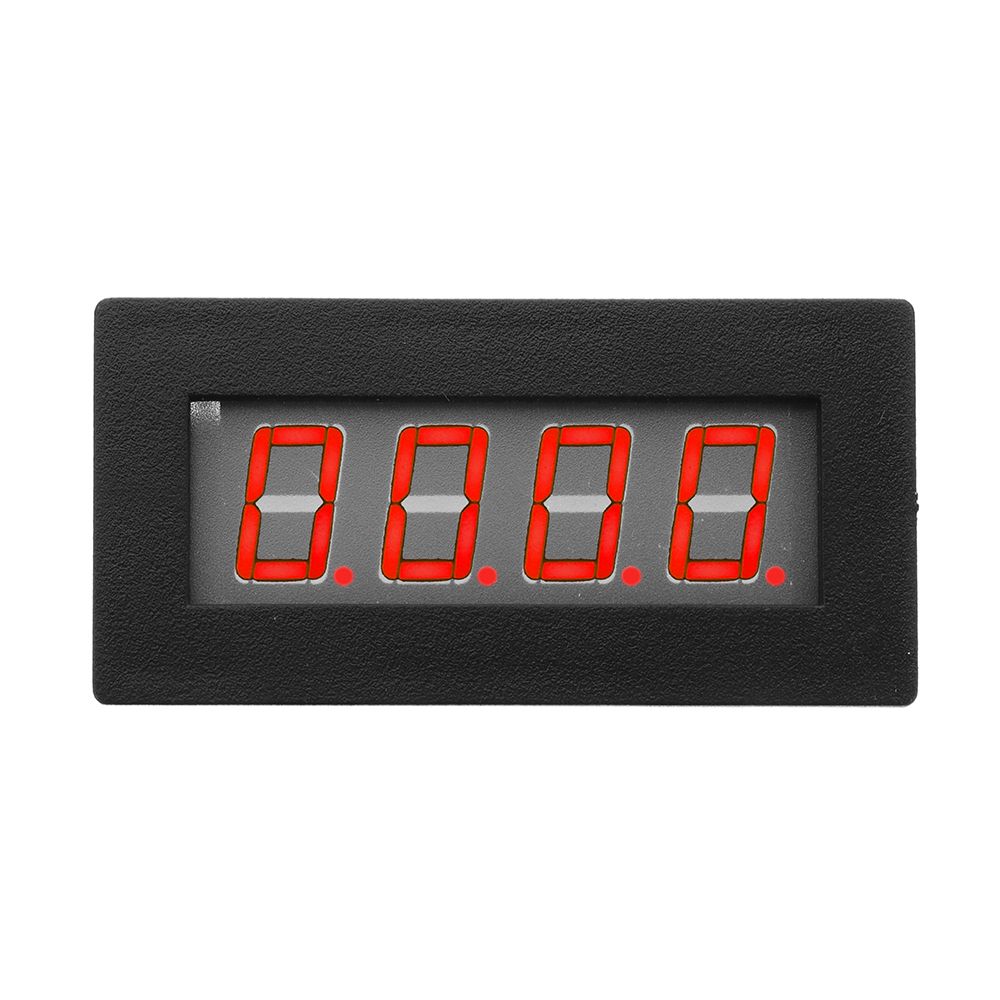

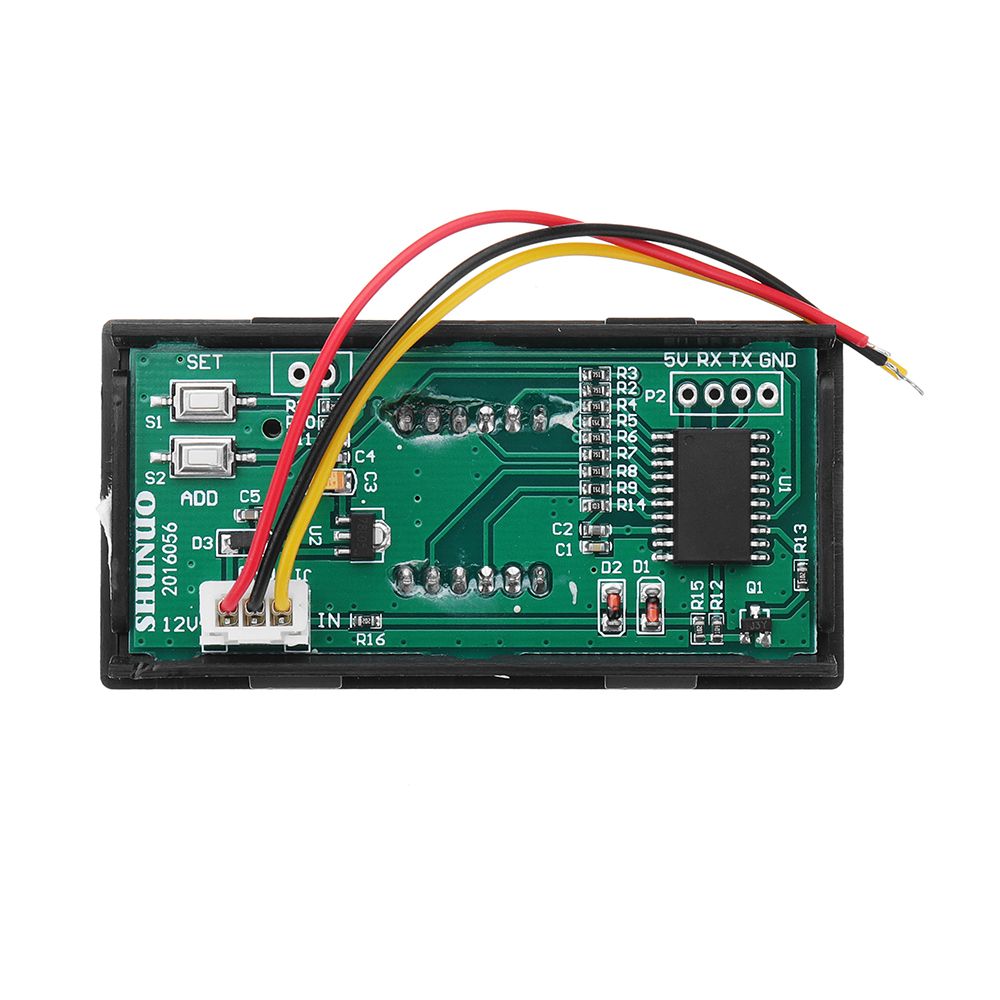

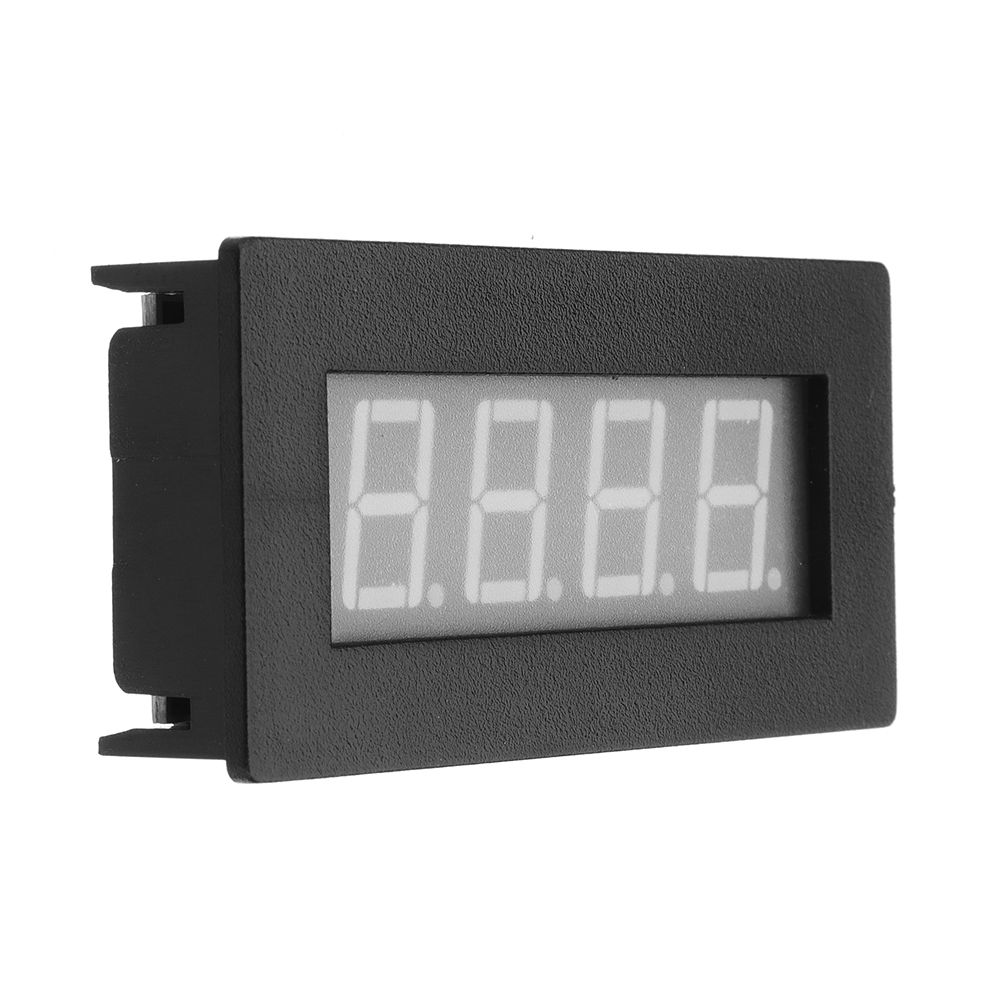

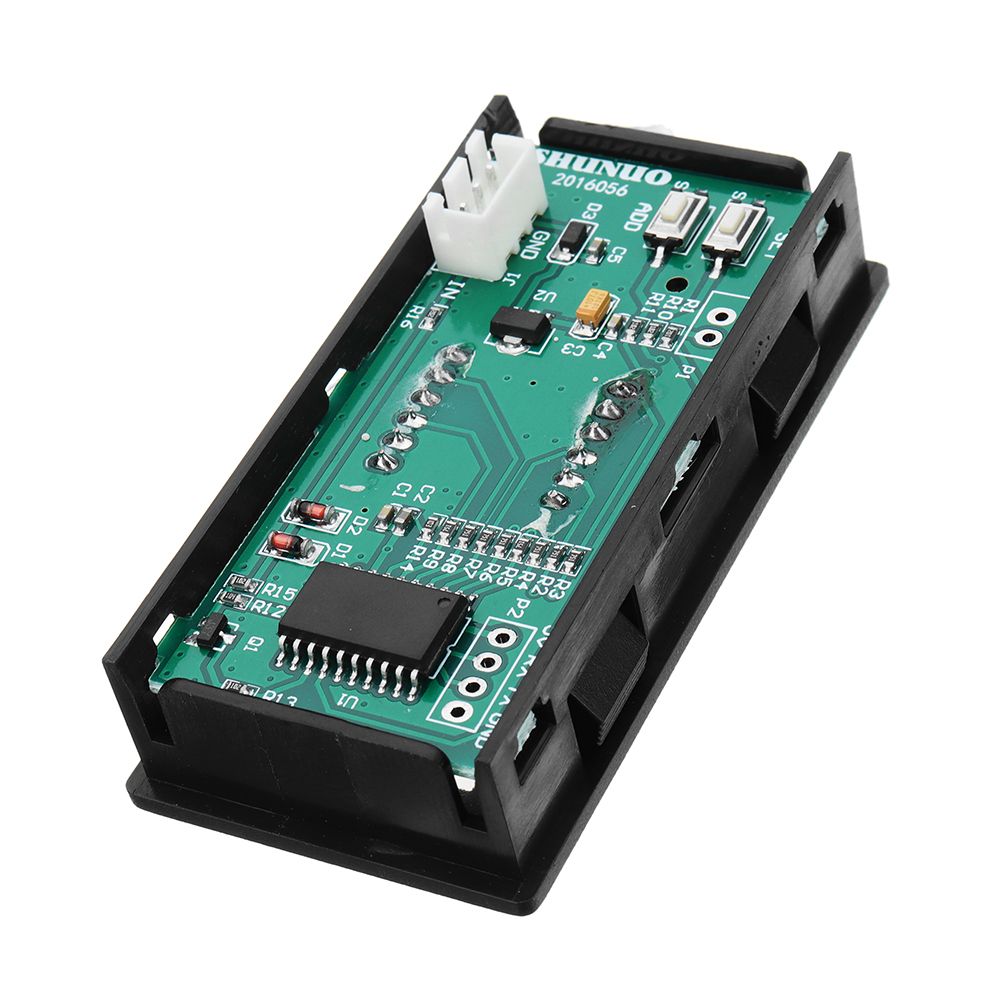

Details Pictures:




4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512

4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512

4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512

4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512

4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512

4-Digital-LED-Blue-Red-Tachometer-RPM-Speed-Meter-1307512
