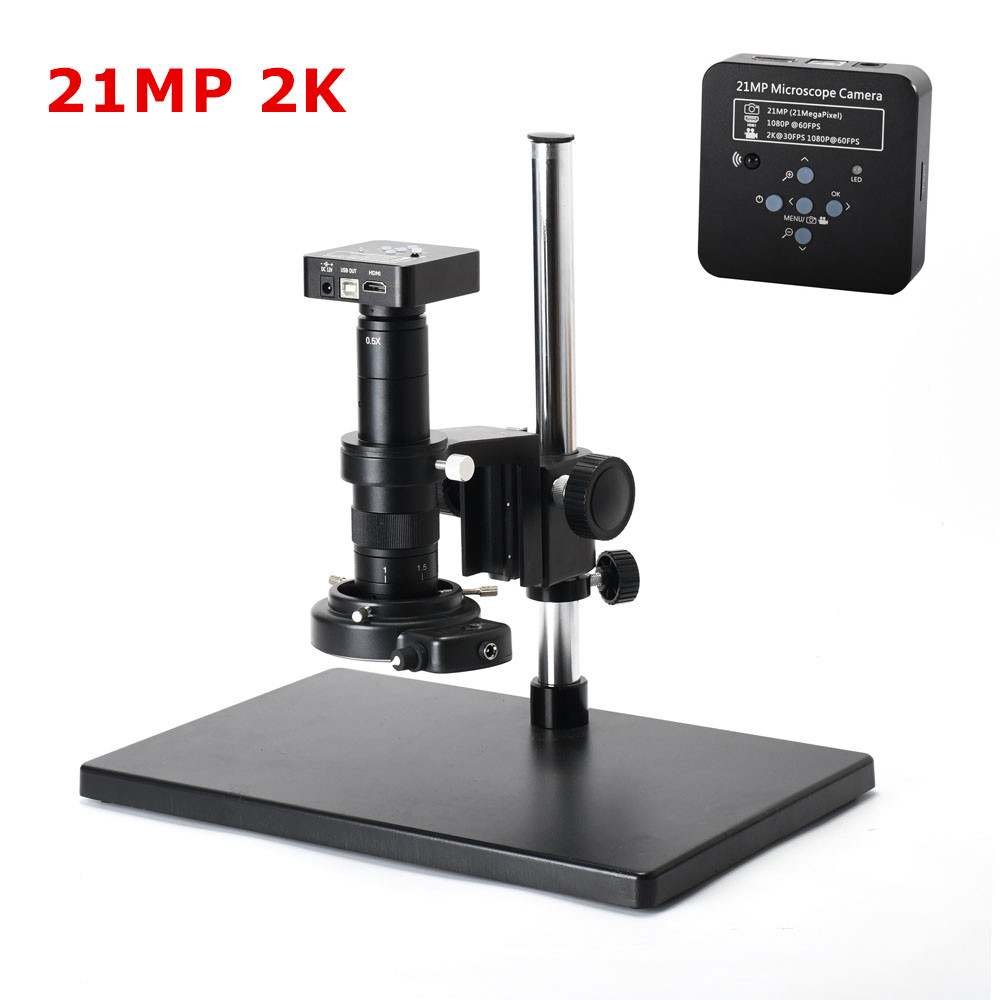

21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering

21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
21MP 1080P 60FPS 2K HDMI Electron Microscope Set USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering
$254.00
Ex Tax: $254.00
  • Stock: In Stock
  • Model: EB004960
  • SKU: EB004960

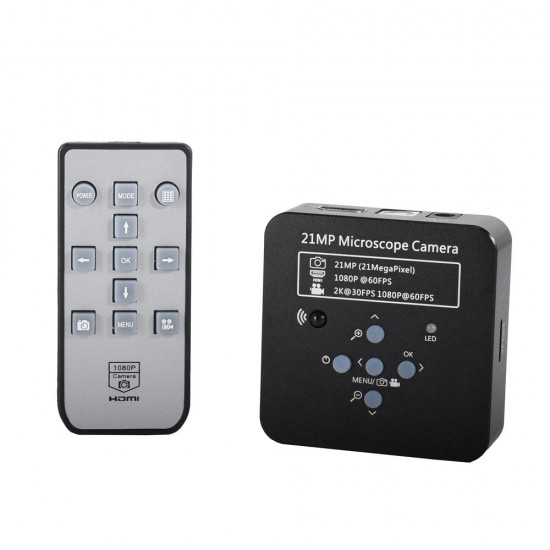

Features:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 21 MegaPixel
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Renhotec
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions

Specification:

Image sensor: 21 megapixel  CMOS sensor 1/2.33 inch
Effective pixel: 21 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C/CS
Video format: MOV
Digital Zoom:Renhotec
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Renhotec
Cross cursor:Support multi-color, size adjustable

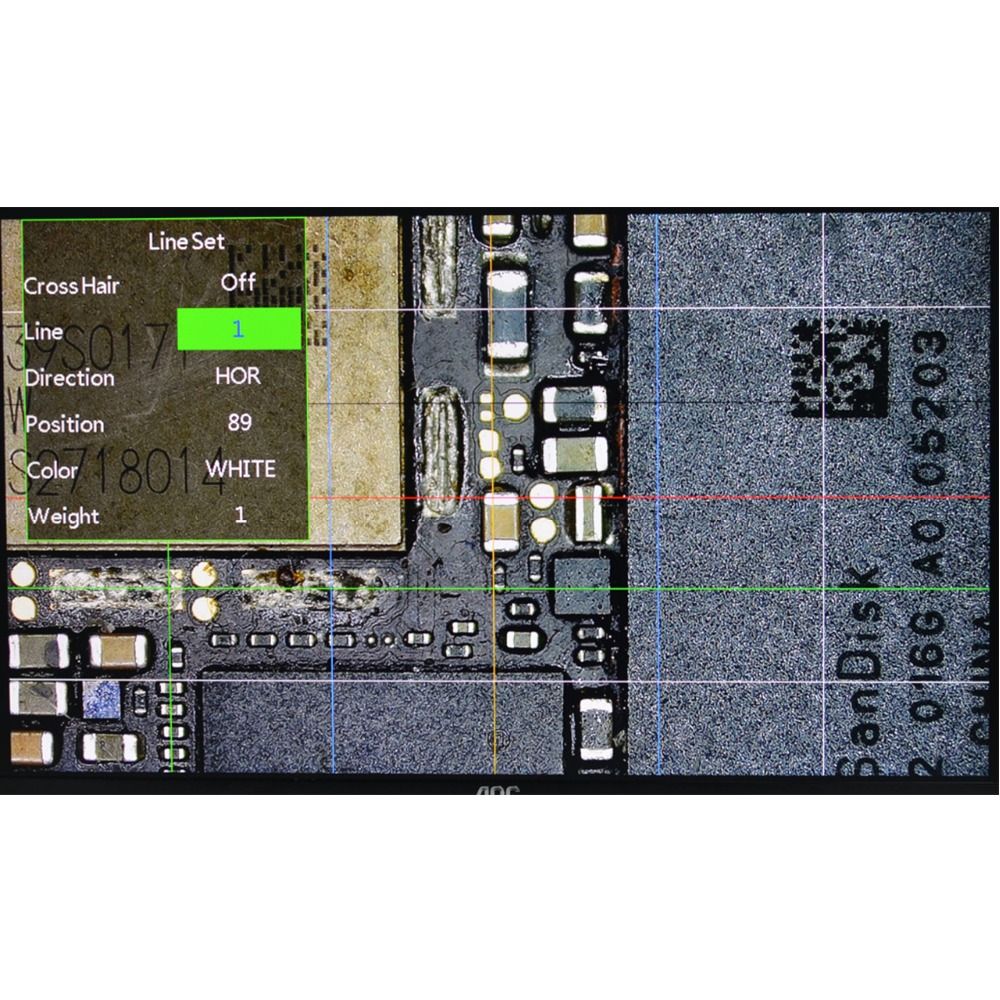

Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

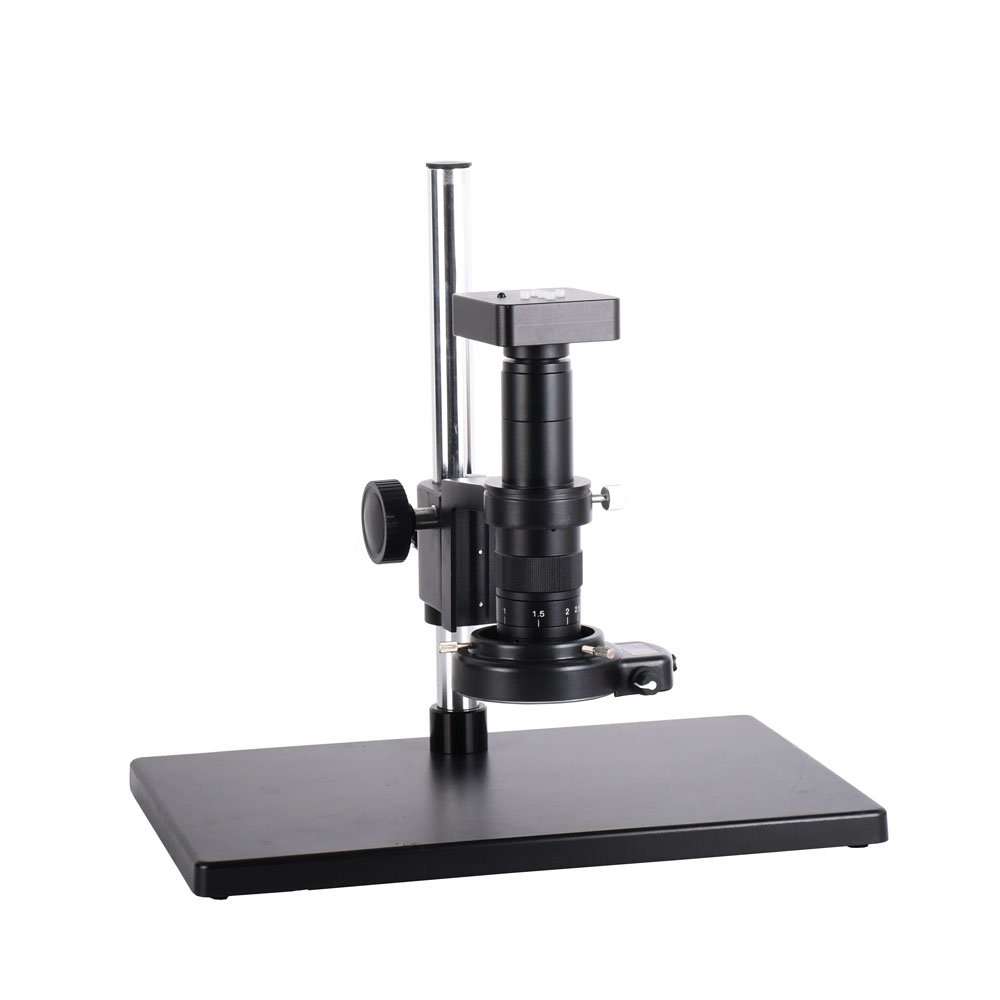

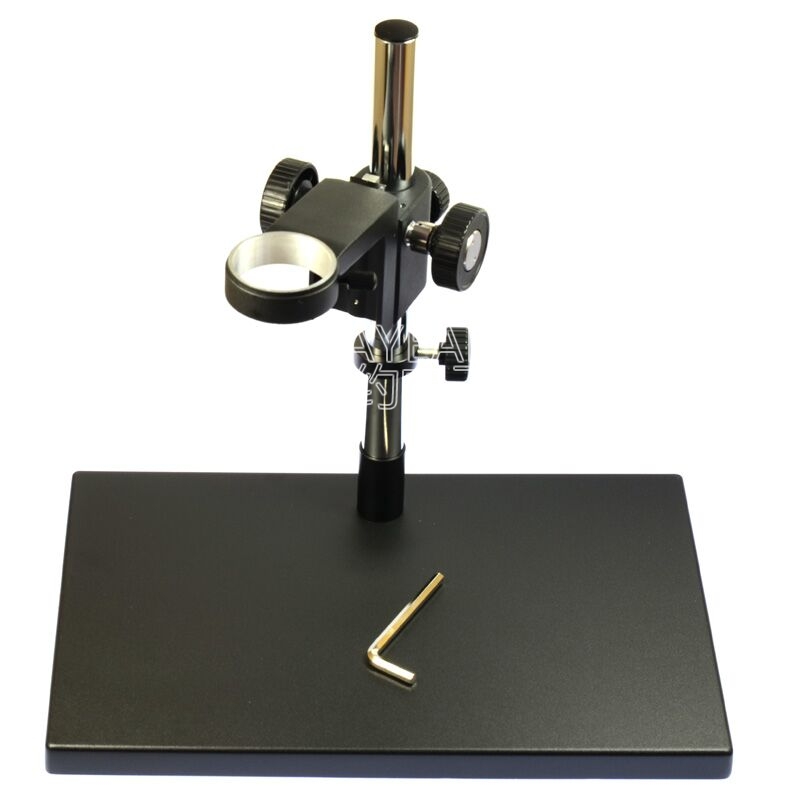

Stereo Table Stand Feature:
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Item size: see the 1th picture
Weight: 2.6kg

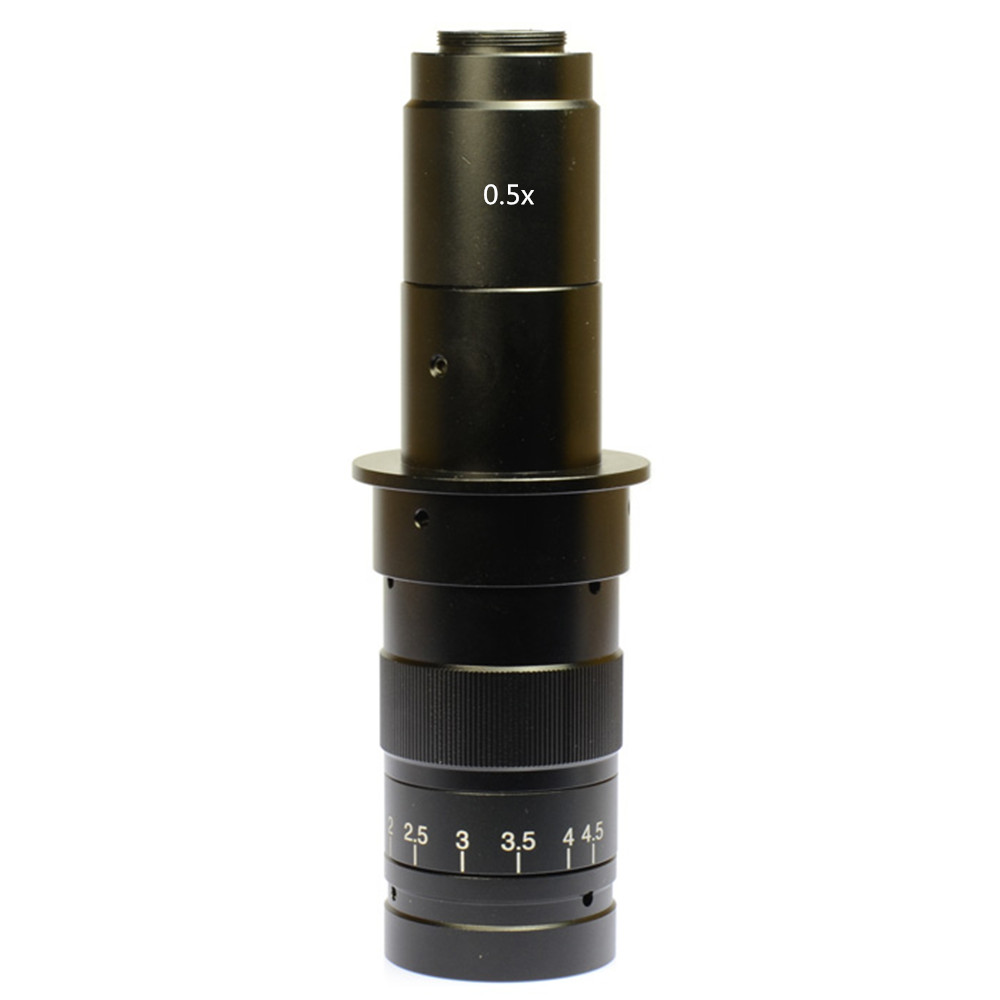

180X C-MOUNT Lens:

Working distance: 100-150mm
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

300X C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 248mm(L) * 50mm(DIA)

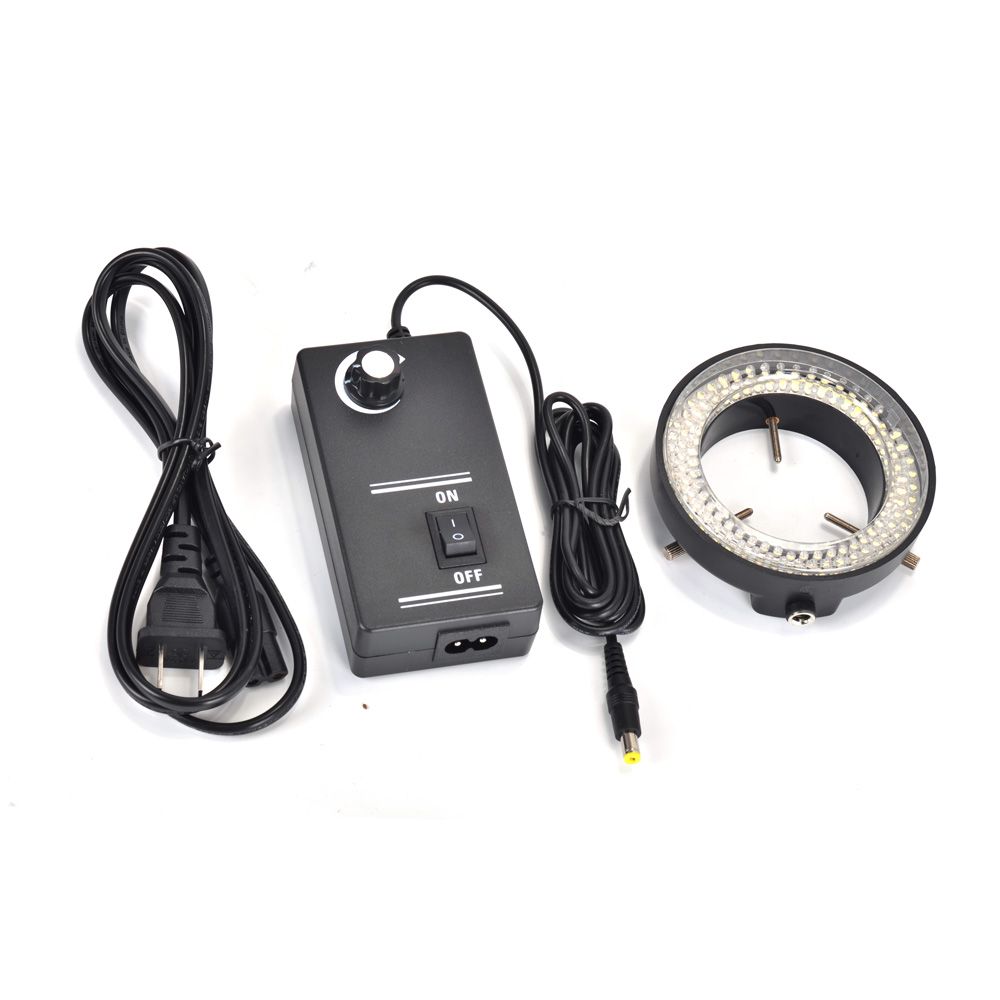

144 Bulbs Microscope LED Ring Light:

60 bright white LED bulbs:
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm



Package including:

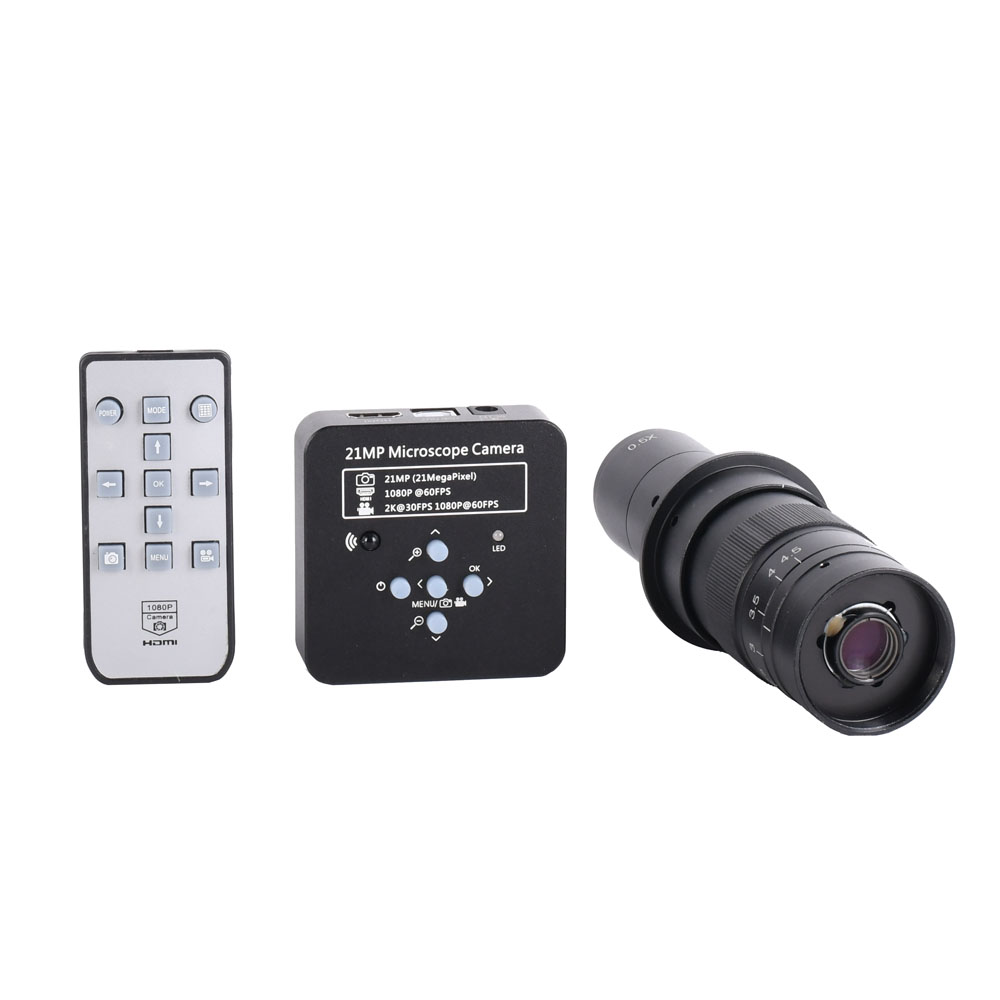

1 x 21mp Microscope Camera
1 x 180X C-mount Lens or 300X X-mount lens
2 x Power supply
1 x USB line
1 x HDMI line

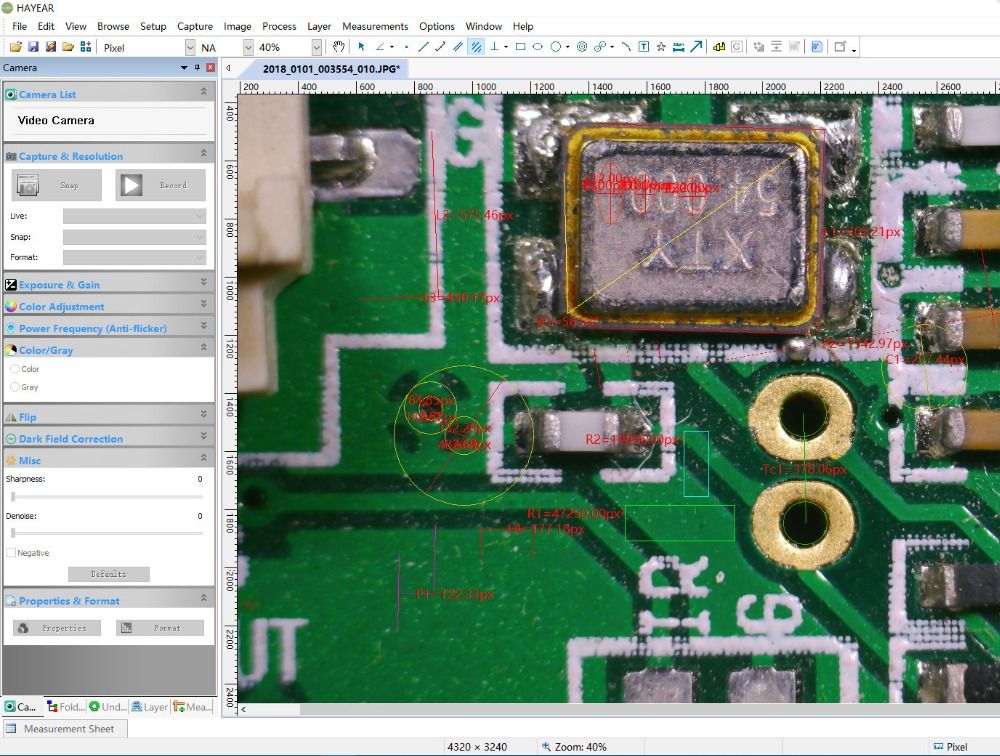

1 x Software DISC
1 x LED Ring light
1 x Table Stand

Details pictures:


HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
HAYEAR-21MP-1080P-60FPS-2K-HDMI-Electron-Microscope-Set-USB-Digital-Industry-Video-Microscope-Camera-1463822
