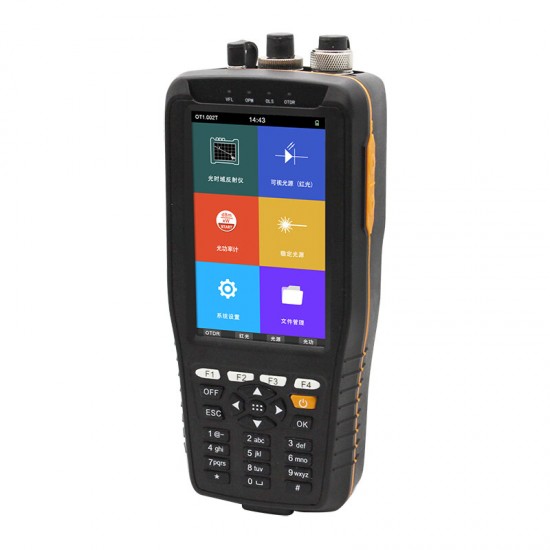

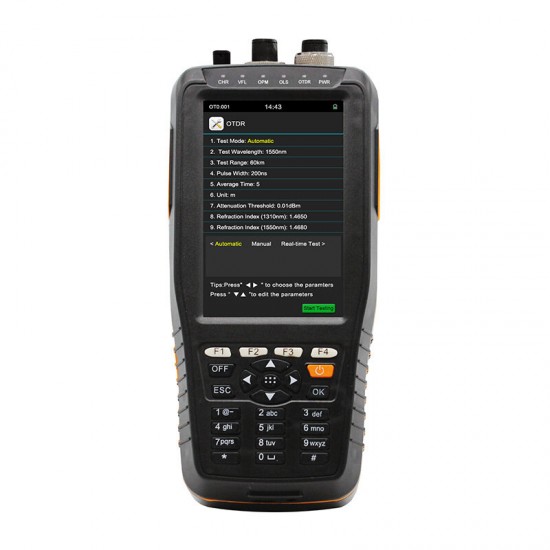

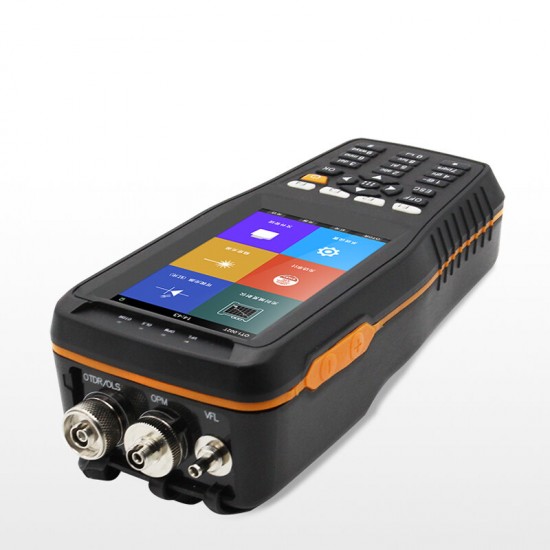

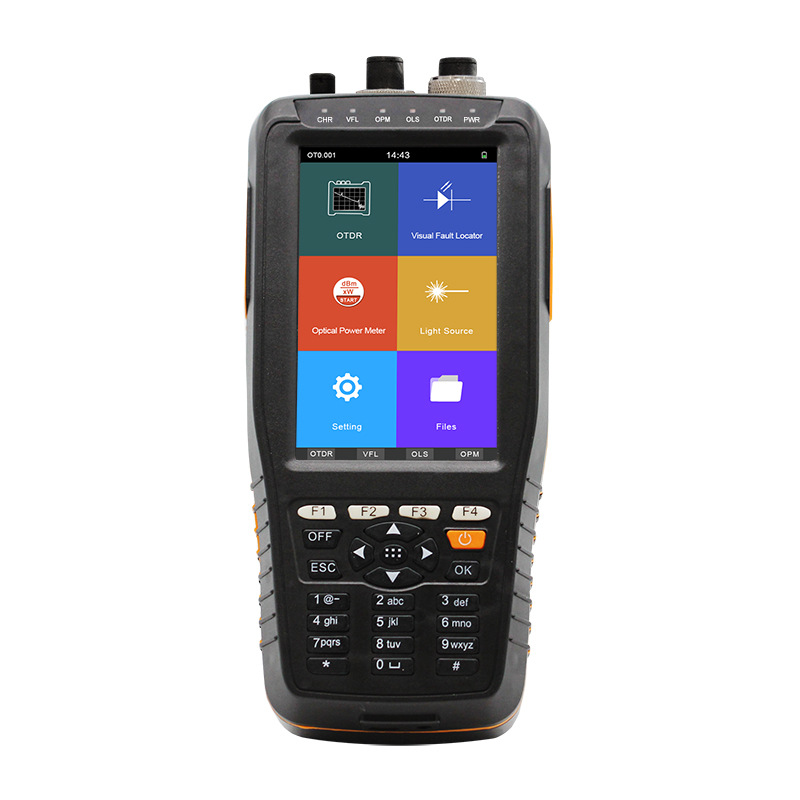

New S290 Smart OTDR 1310/1550nm with VFL/OPM/OLS Touch Screen 0-60km Optical Time Domain Reflectometer
- Stock: In Stock
- Model: EB003404
- SKU: EB003404
Features:
- Lightweight, portable, cost-effective
- One Key Operation, Legible Test Data
- Integrated with Visual Fault Locator system, it is easily to detect fault location of dead Zone
- Use the rubber Key, good dustproof, waterproof, quakeproof ability, suitable for field maintenance work

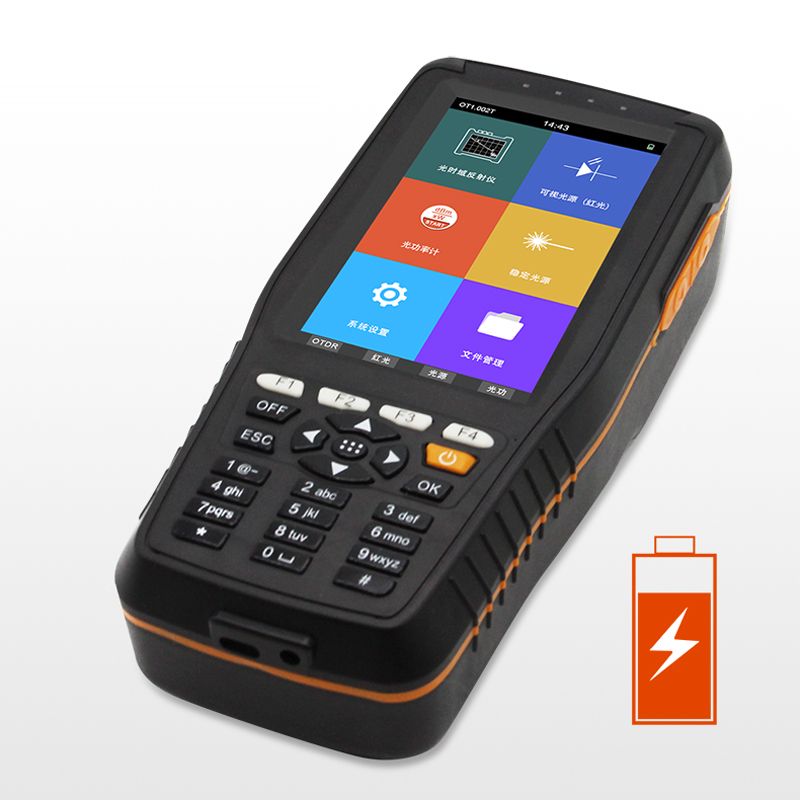

- Use big capacity battery, long working time, suitable for long time field working
- Suitable for engineer construction and maintenance fault location of FTTx and access network
Specification:
Type | S290 |
Wavelength | 1310/1550nm |
Dynamic Range | 22/20dB |
Measure distances | 0-60km |
Fiber type | SM |
Type of Fiber | 9/125um Single-mode optical fiber |
Type of Connectors | FC/PC/ (FC/APC Connector can be customized) |
Peak Value of laser | >=30mW |
UOM of Measurement | Meter,Feet,Mile |
Dead Zone of Reflection Event | 2m |
Dead Zone of attenuation Event | 12m |
Accuracy Distance (Reflection Event) | About +_(1m+2 *10(-4)* distance) |
Number of test records saved | 200 |
Power Supply | 7.4V Li-ion Battery 4400mAH |
Battery working time | >=5,000 times of measurements |
Temperature | Operate :-5~50 ,Store:-10~60 |
Humidity | 0~85%(Non-condensing) |
Weight(g) | 300 |
Visual Fault Locator
Wavelength : | 650nm |
VFL Output Power | >=10mW |
Mode | CW, 1Hz, 2Hz |
Fiber type | SM/MM |

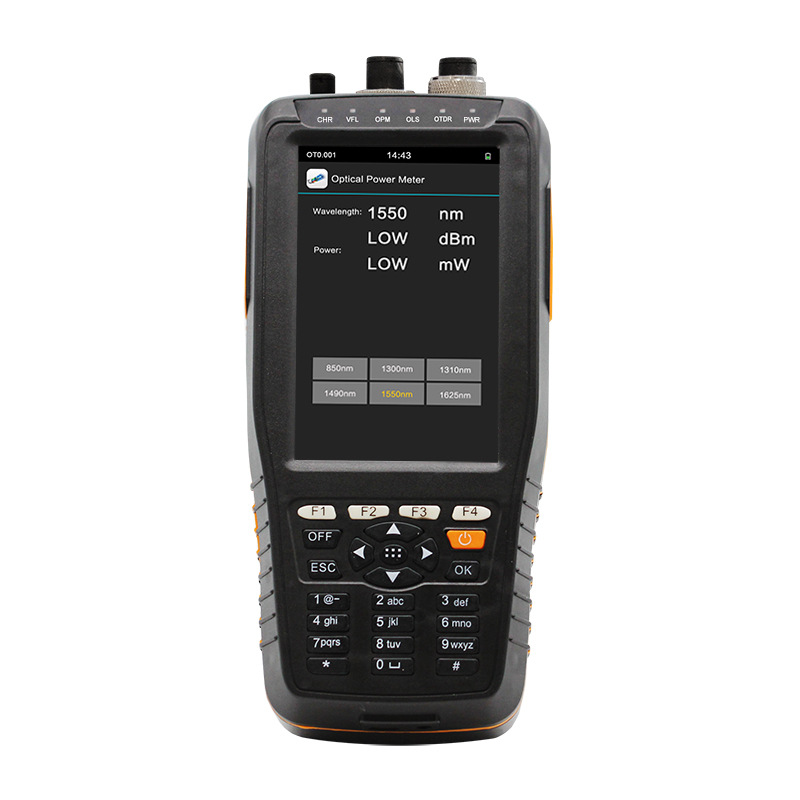

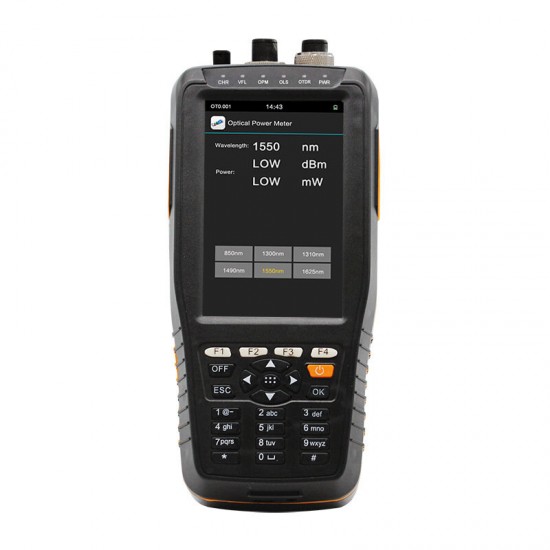

Optical Power Meter
Measurement range dBm | -70～+10 dBm | -50～+26 dBm |
Wavelength range（nm） | 800～1650 | |
Calibrated wavelength | 850nm、1300nm、1310nm、1490nm、1550nm、1625nm（other wavelength will be on request） | |
Detector | InGaAs | |
Accuracy | <±3% （-10dBm、22℃） | |
Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |
connector | Changeable FC/PC SC/PC，( ST as Optional) | |

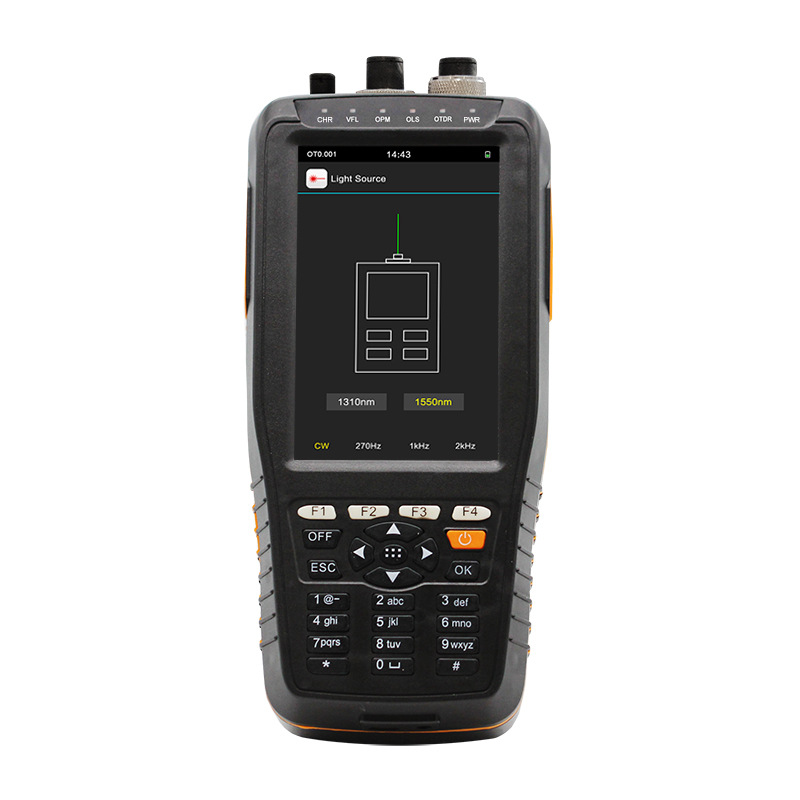

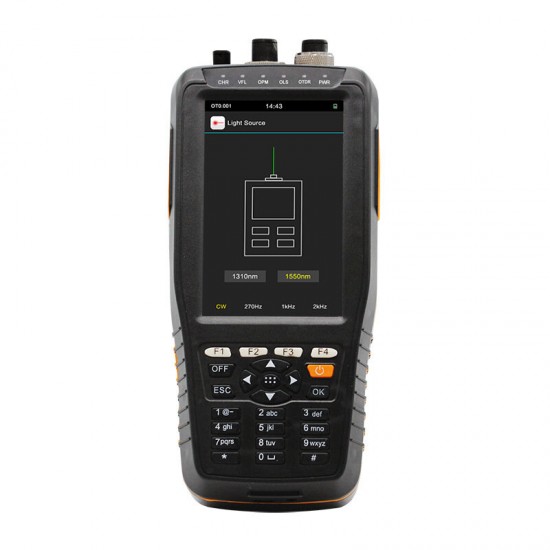

Optical Light Source
Emitter | FP-LD |
wavelength (nm) | 1310/1550nm |
Connector | FC/PC（SC/ST as optional） |
Output power | ≥-5dBm |
Output stability(dBm) | ±0.04@20℃@15min |
Modulation | CW/270Hz/1KHz/2KHz |
Fiber type | SM |

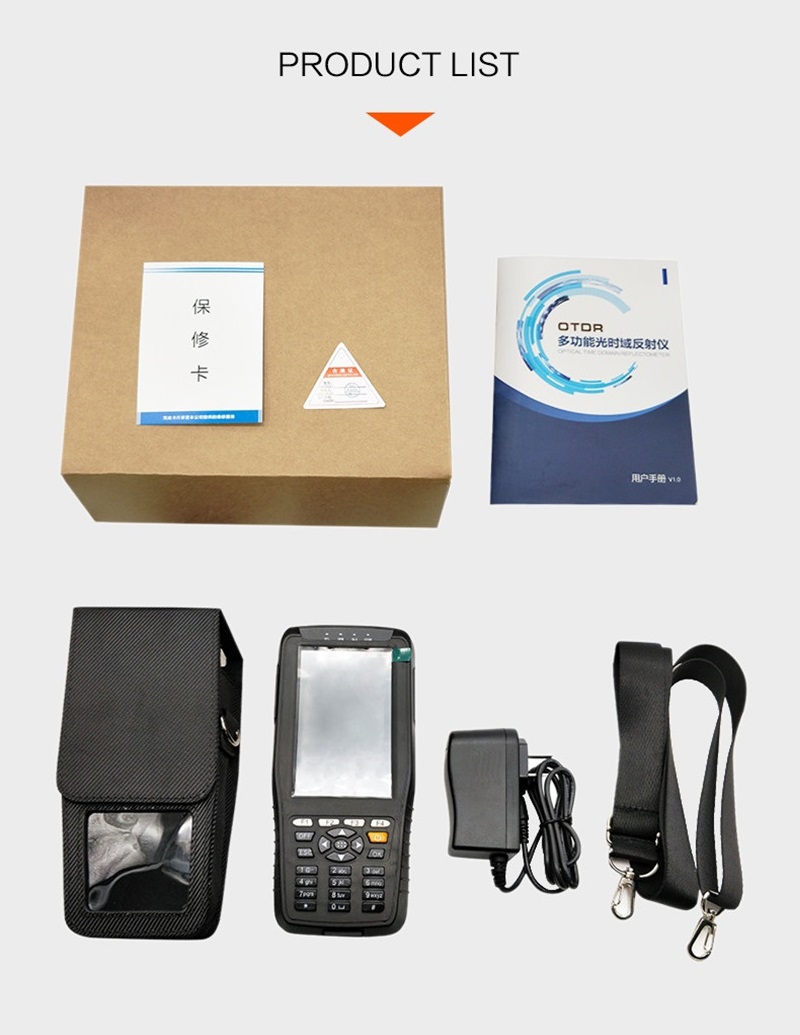

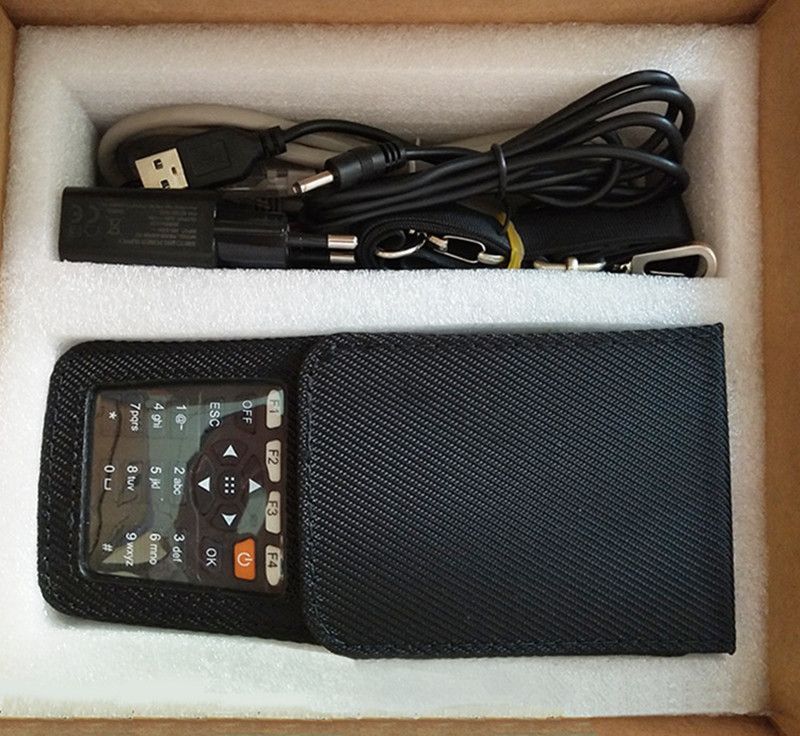

Package includes:
1 x Optical Time Domain Reflectometer
1 x Power Charging Adapter

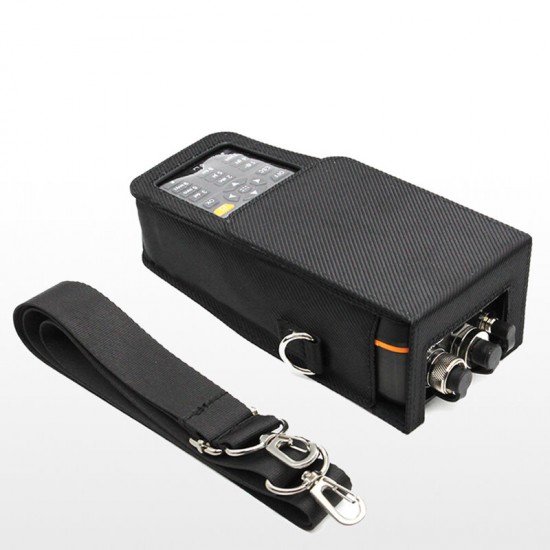

1 x Carrying Case
1 x User Manual
Details pictures:
