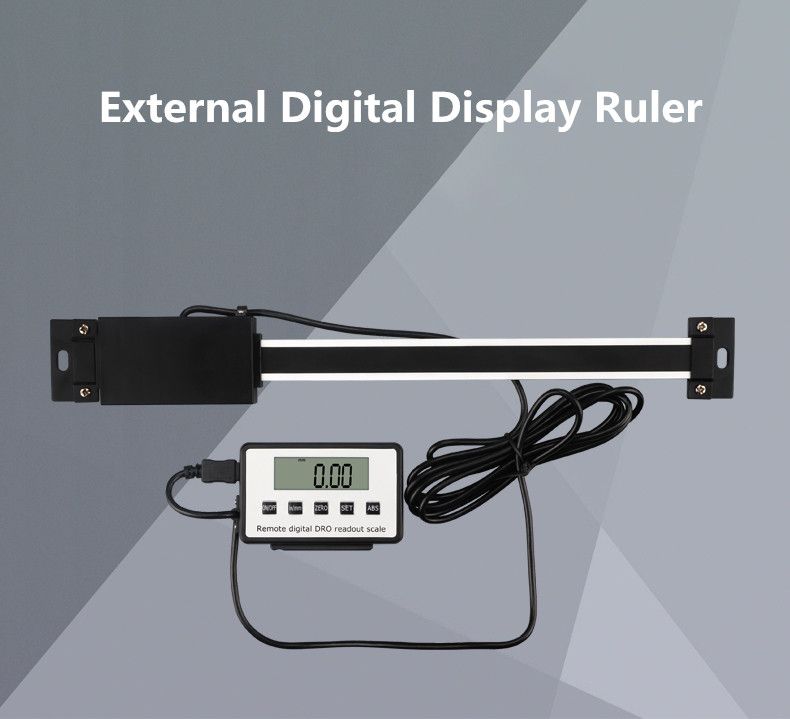

0-150/200/300/500/600/1000mm External Digital Display Ruler Horizontal and Vertical Dual-purpose Machine Positioning Ruler Displacement Ruler
- Stock: In Stock
- Model: EB003785
- SKU: EB003785
Features:

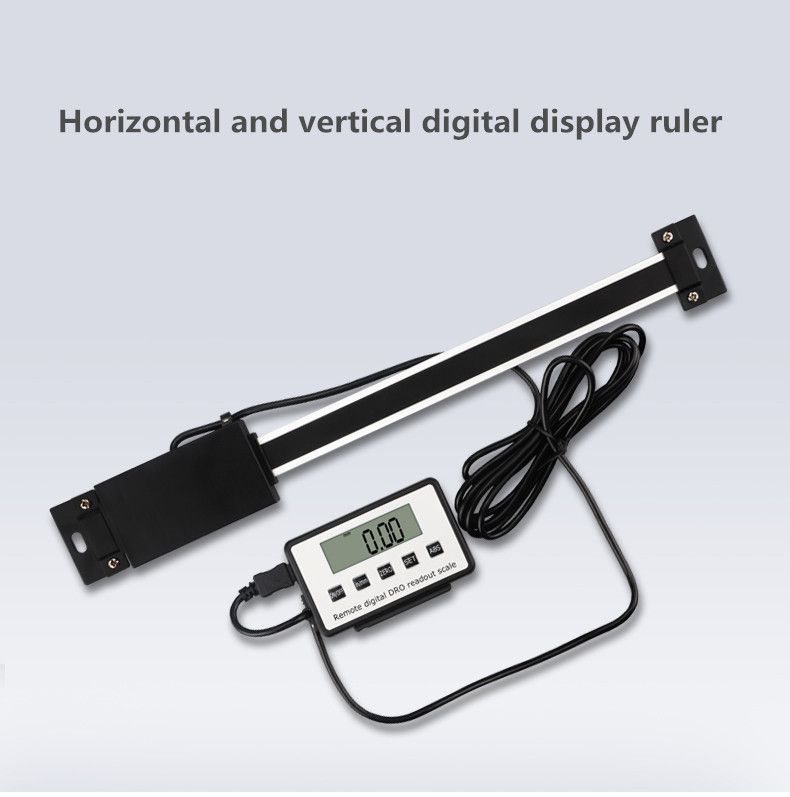

- Horizontal and vertical digital display ruler

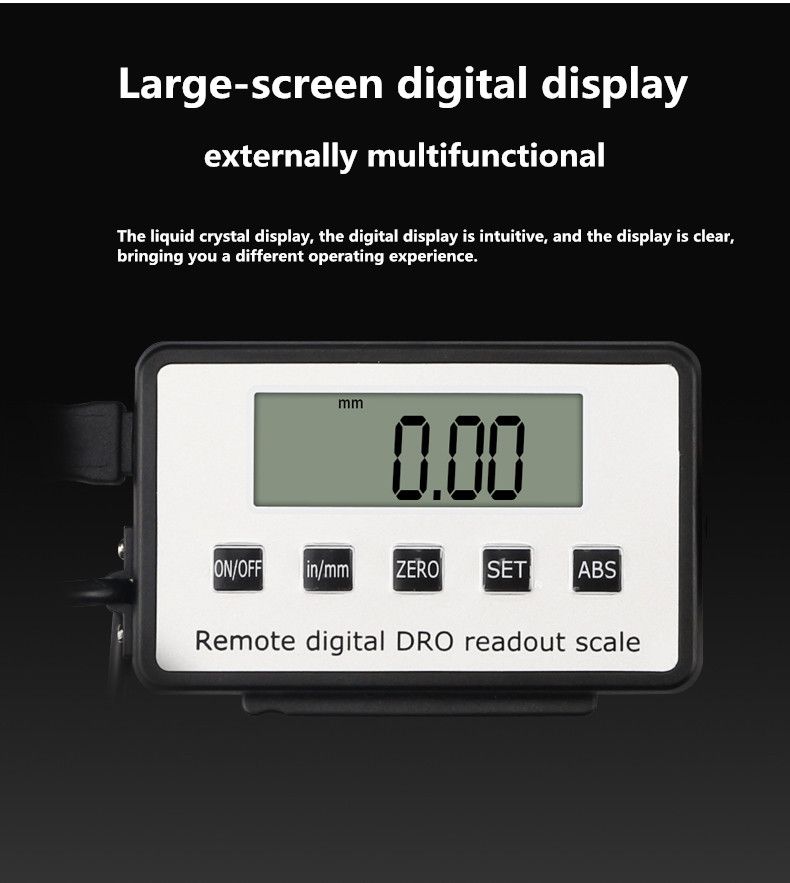

- The large-screen digital display is externally multifunctional. The liquid crystal display, the digital display is intuitive, and the display is clear, bringing you a different operating experience.

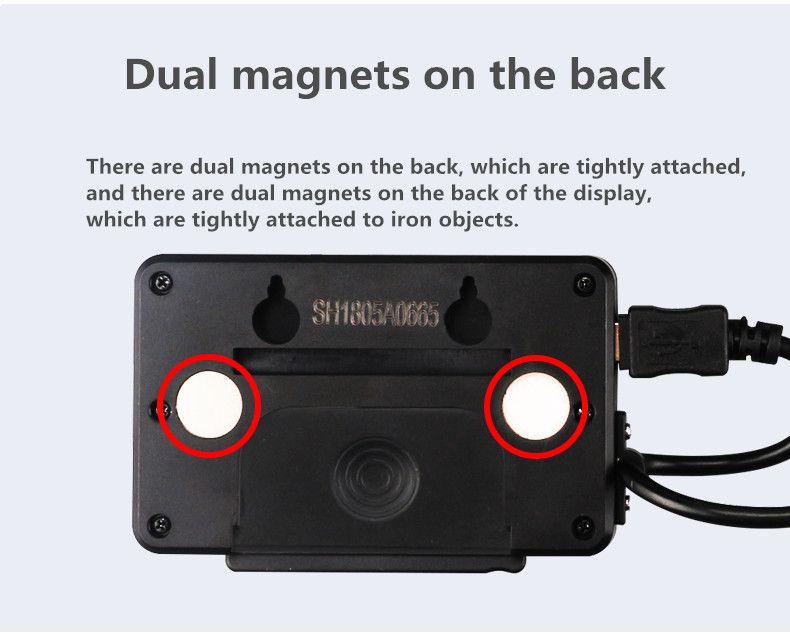

- There are dual magnets on the back, which are tightly attached, and there are dual magnets on the back of the display, which are tightly attached to iron objects.

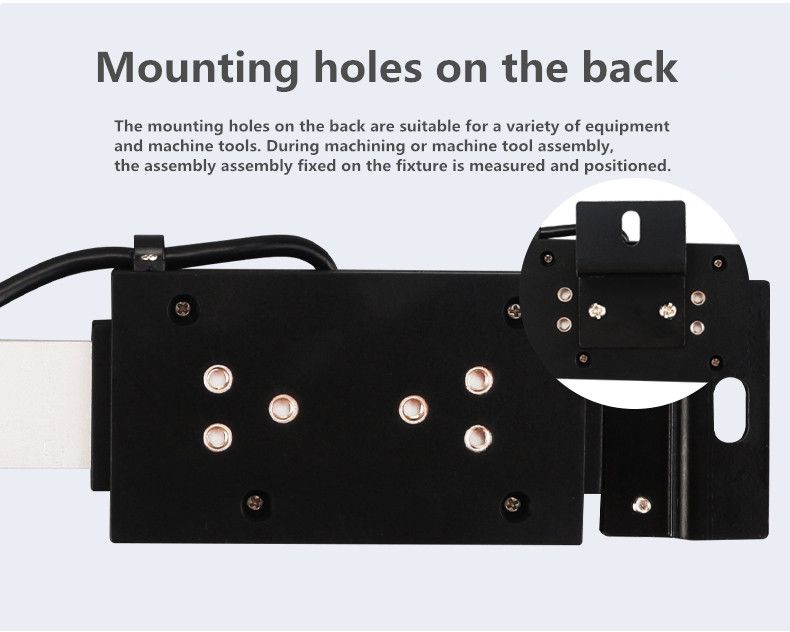

- The mounting holes on the back are suitable for a variety of equipment and machine tools. During machining or machine tool assembly, the assembly assembly fixed on the fixture is measured and positioned.
Specification:

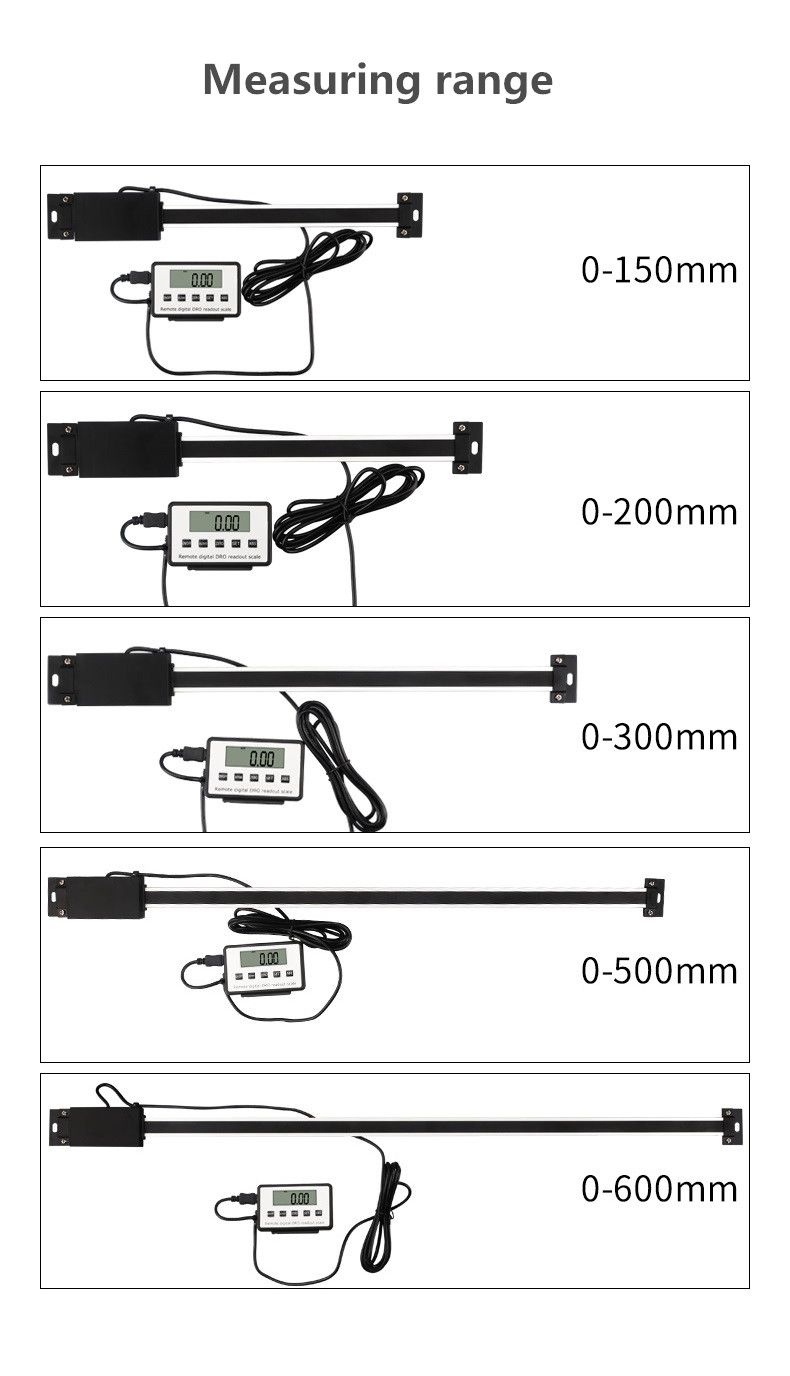

Measuring Range | 0-150mm | 0-200mm | 0-300mm | 0-500mm | 0-600mm | 0-1000mm |
Display Error | +0.06mm | +0.08mm | +0.10mm | +0.15mm | +0.15mm | +0.20mm |
| Accuracy | ±0.05mm | ±0.07mm | ±0.10mm | ±0.15mm | ±0.15mm | ±0.20mm |
- ON/OFF: power switch
- In/mm: metric conversion at any position (forward and reverse direction switching)
- ZERO: Clear data at any position
- ABS: relative measurement and absolute measurement conversion
- SET: In the inch measurement state, each time you press this key, the resolution of the fractional part will be switched between 1/32, 1/64, and 1/128.
1 x External Digital Display Ruler
4 x Mounting Brackets
2 x Mounting Screws
1 x User Manual
Details pictures:
