DY294 Digital Transistor Tester Semiconductor Tester DC Parameter Tester
- Stock: In Stock
- Model: EB004777
- SKU: EB004777
| Function | Range | Display Scope | Resolution | Operation Condition |
| V(BR) | 1000V | 0-1999V | 1V | breakdown current < 1mA |
| 200V | 0-199.9V | 0.1V | breakdown current < 1mA | |
| VCC(Set) | 2A(Ic) | 0-6.00V | 0.01V | Ic≈2000mA Ib≈200mA |
| 800mA(Ic) | 0-6.00V | 0.01V | Ic≈800mA Ib≈80mA | |
| 100mA(Ic) | 0-6.00V | 0.01V | Ic≈100mA Ib≈1mA | |
| 10mA(Ic) | 0-6.00V | 0.01V | Ic≈10mA Ib≈1mA | |
| hFE | 10mA(Ib) | 0-199.9 | 0.1 | Ib≈10mA |
| 1mA(Ib) | 0-1999 | 1 | Ib≈1mA | |
| 1μA(Ib) | 0-1999 | 1 | Ib≈0.01mA | |
| ICEO | 2000μA | 0-1999μA | 1μA | Vce?≈?27V |
| 78,79 three-pole constant voltage value | 78xx/79xx | 0-24.0V | 0.1V | Ui?≈?27V |

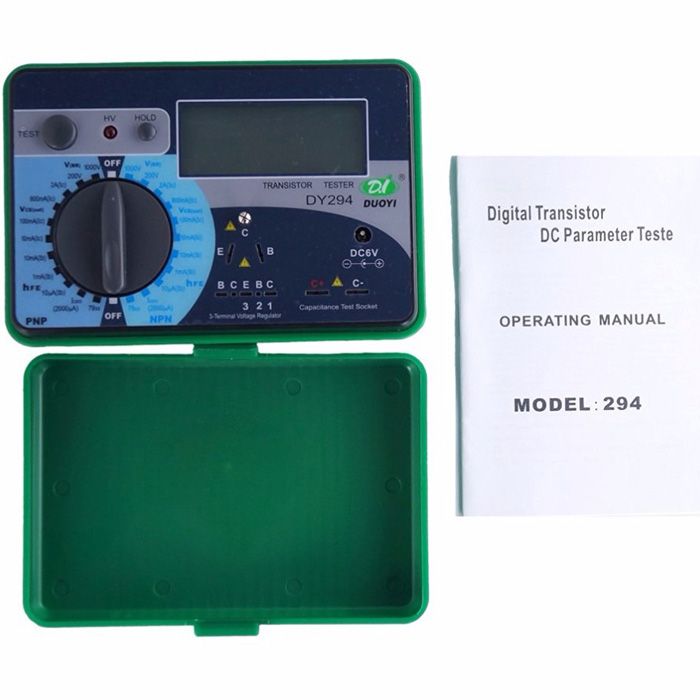

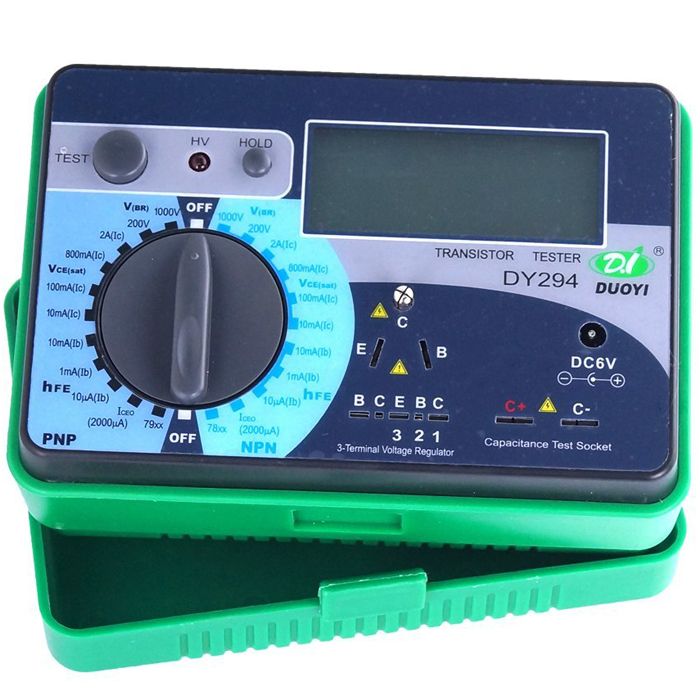

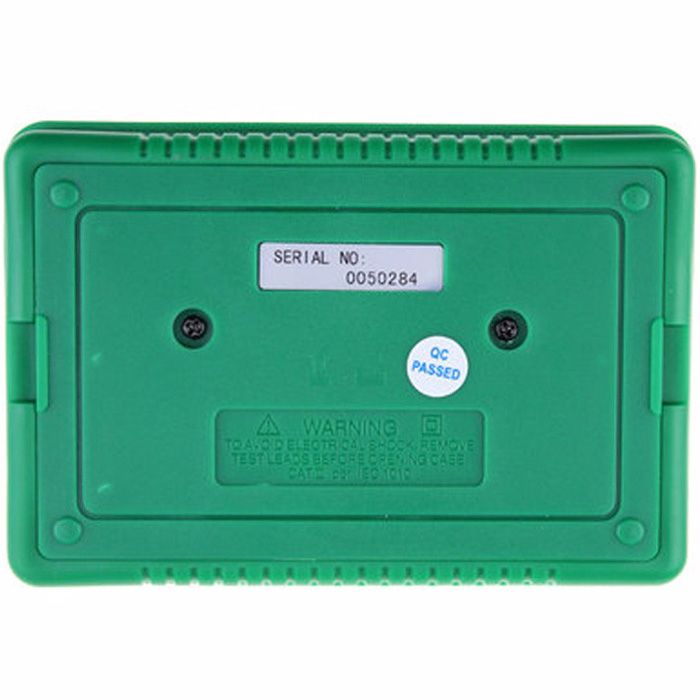

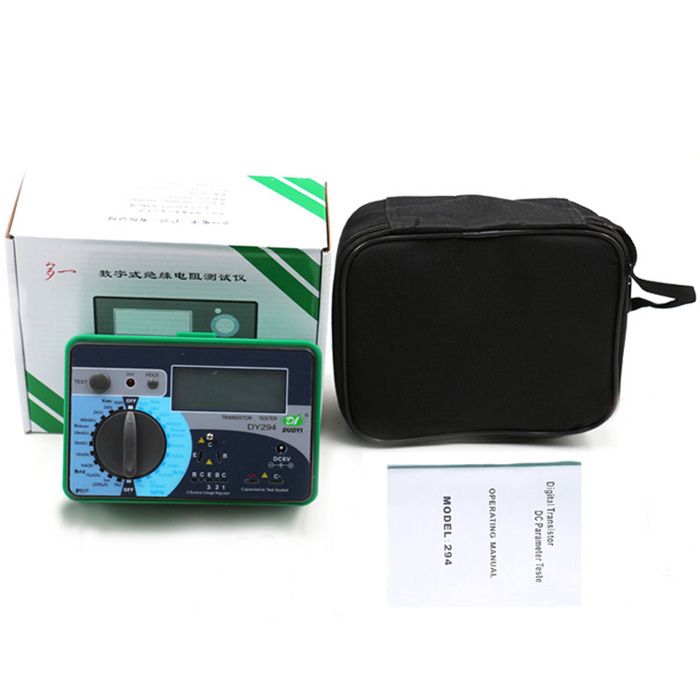

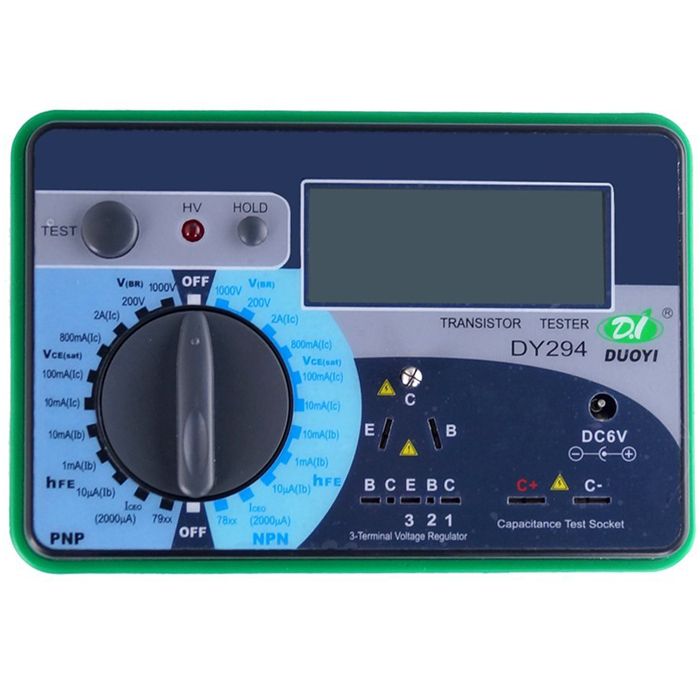

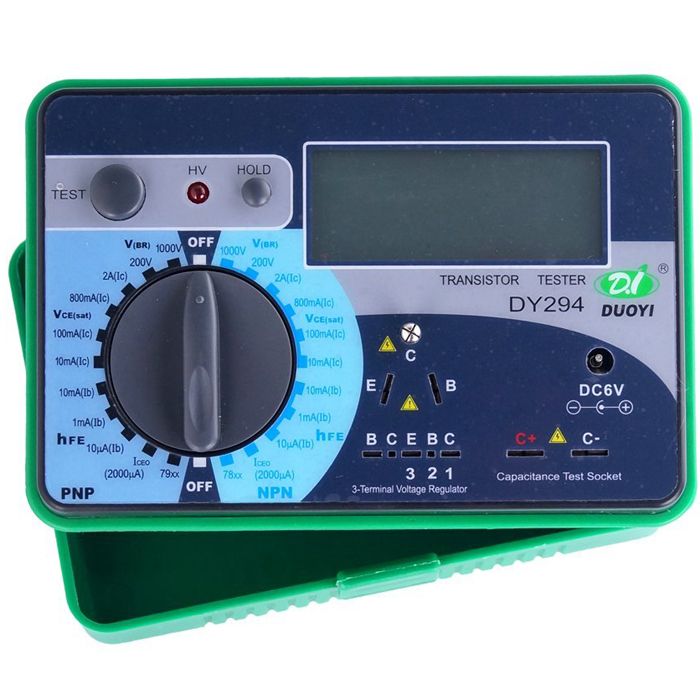

Detail Pictures:
,
,
,
,
,
,
