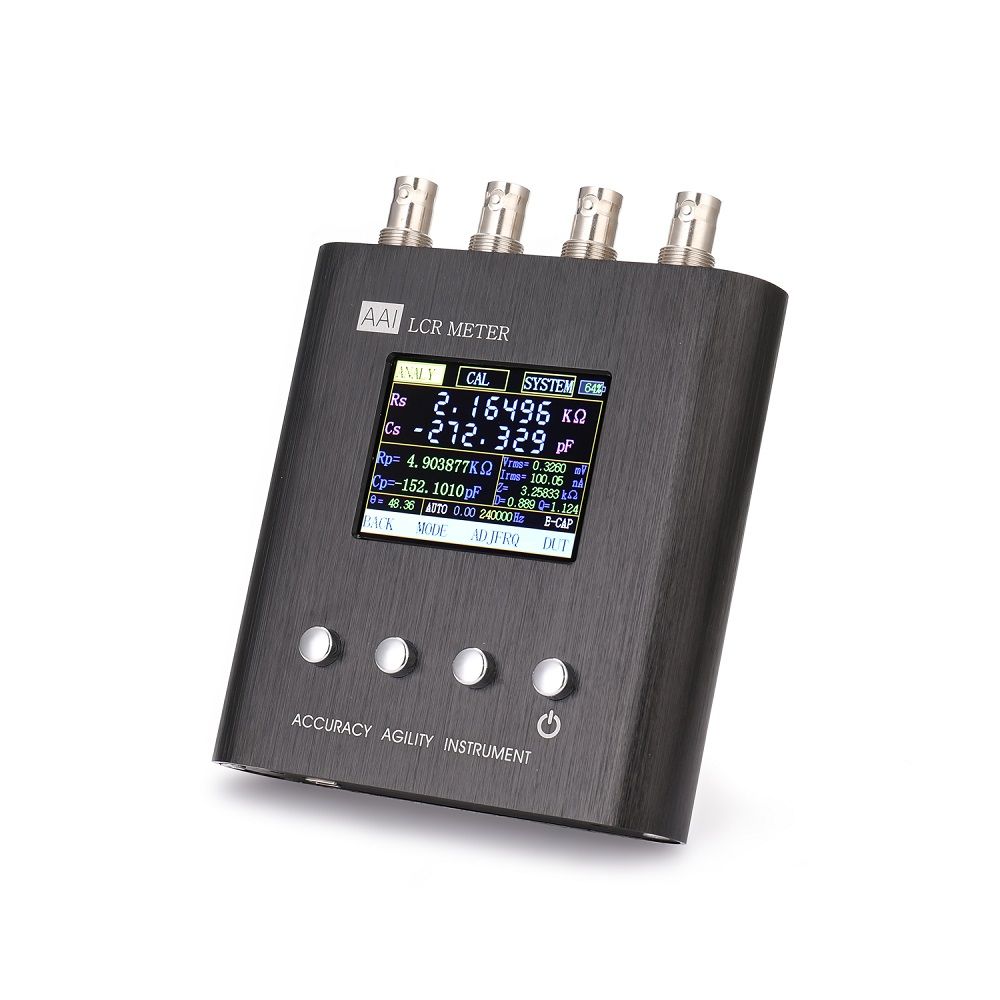

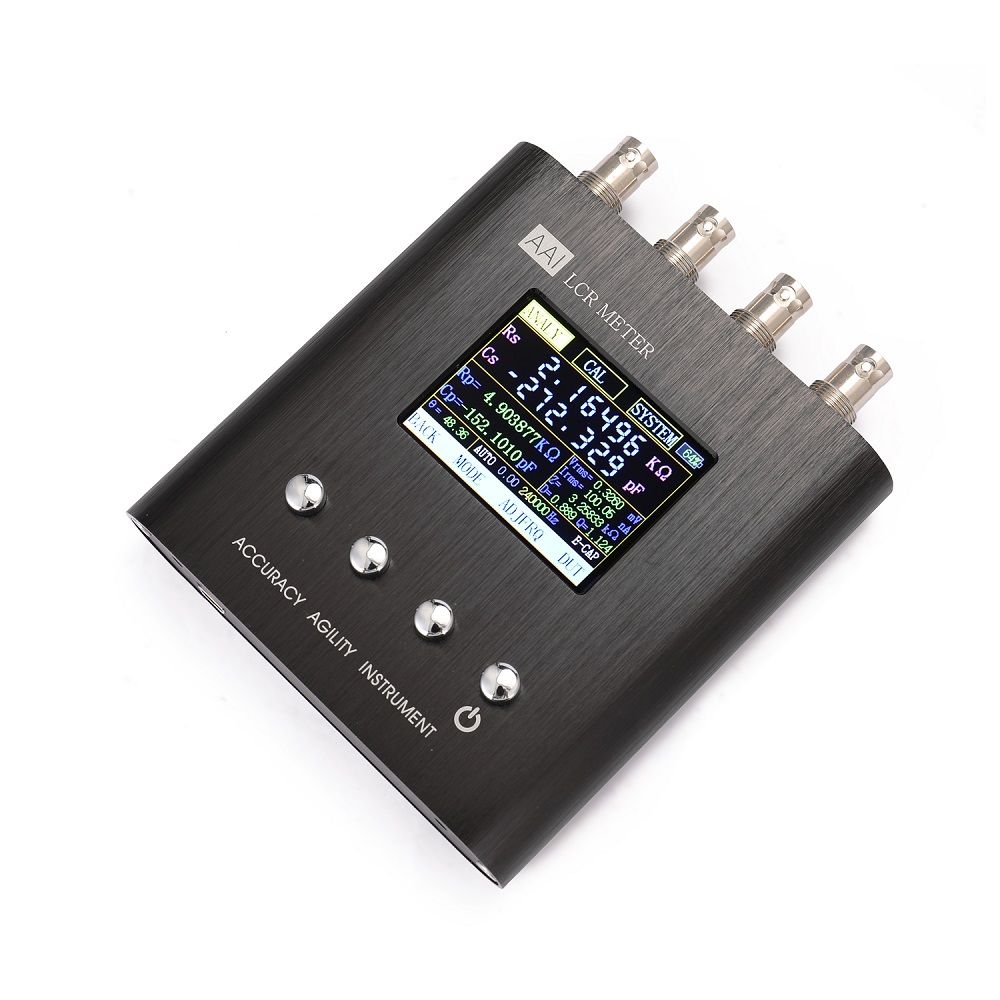

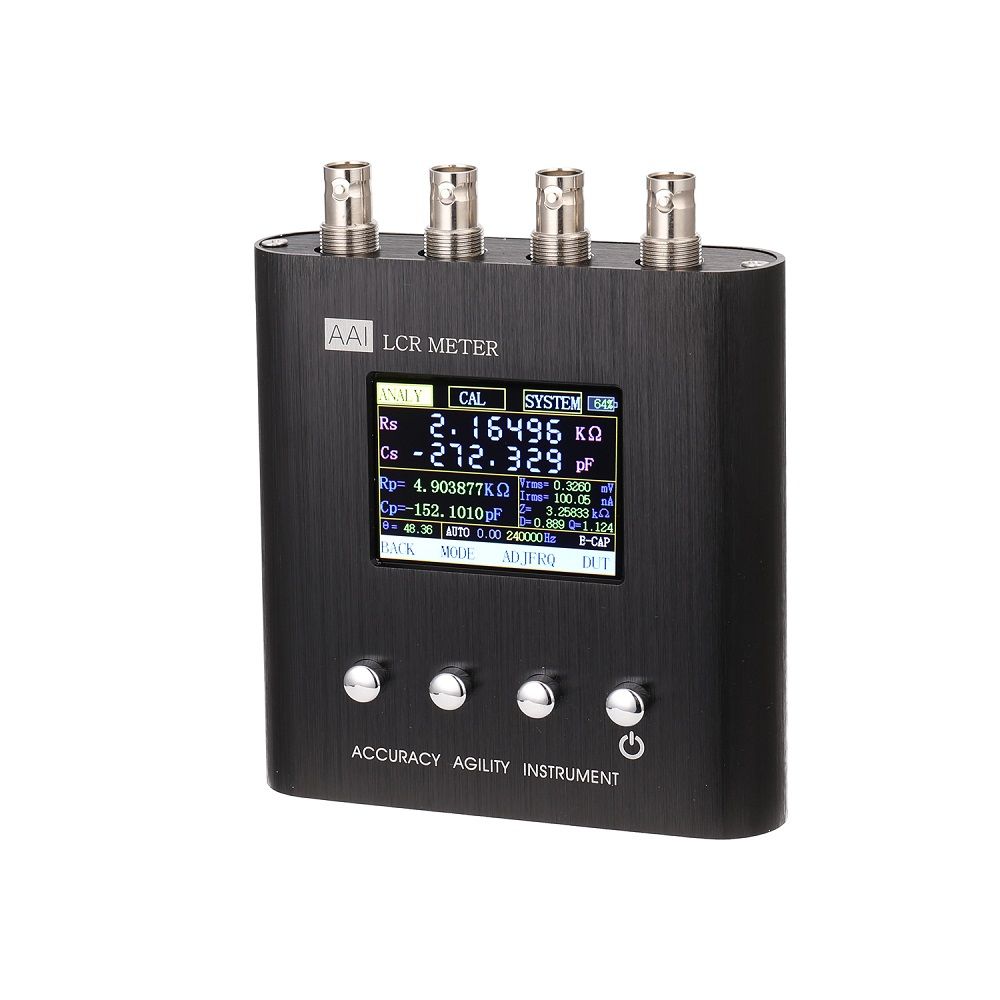

50-300KHz Handheld Impedance Tester Bridge LCR Digital Resistance Measurement Capacitance Adjustable Inductance
- Stock: In Stock
- Model: EB004826
- SKU: EB004826

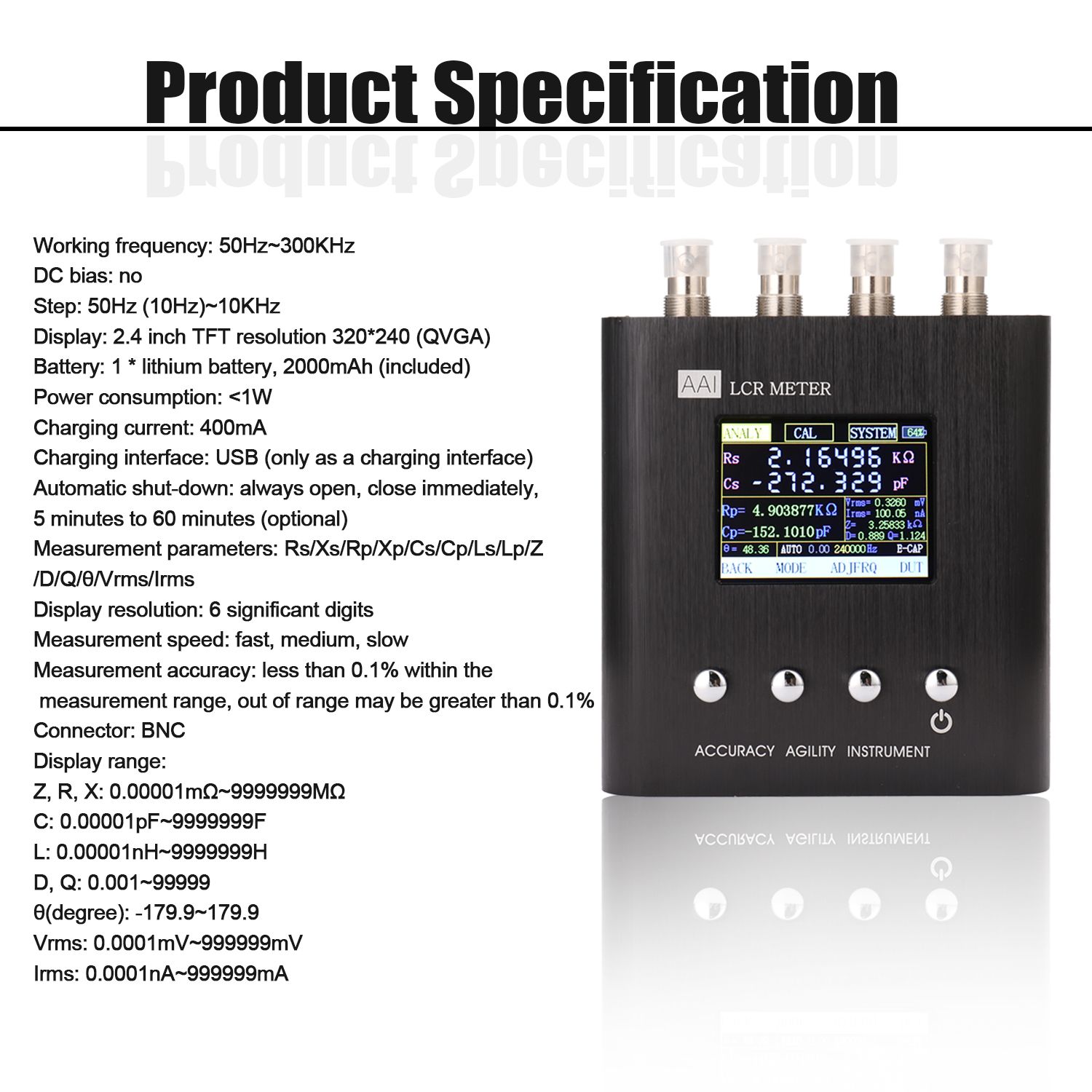

| Working frequency | Type A: 50Hz～300kHz Type B: 50Hz～200kHz Type C: 50Hz～100kHz Type D: 50Hz～100kHz-24 frequency | |
| Stepping | Type A：10Hz～10kHz Type B：10Hz～5kHz Type C：10Hz～1kHz | |
Display screen | 2.4 inch TFT resolution 320×240 (QVGA) | |
Battery capacity | 2000mAH（7.4Wh） | |
Power consumption | <1W | |
Charging current | 400mA | |

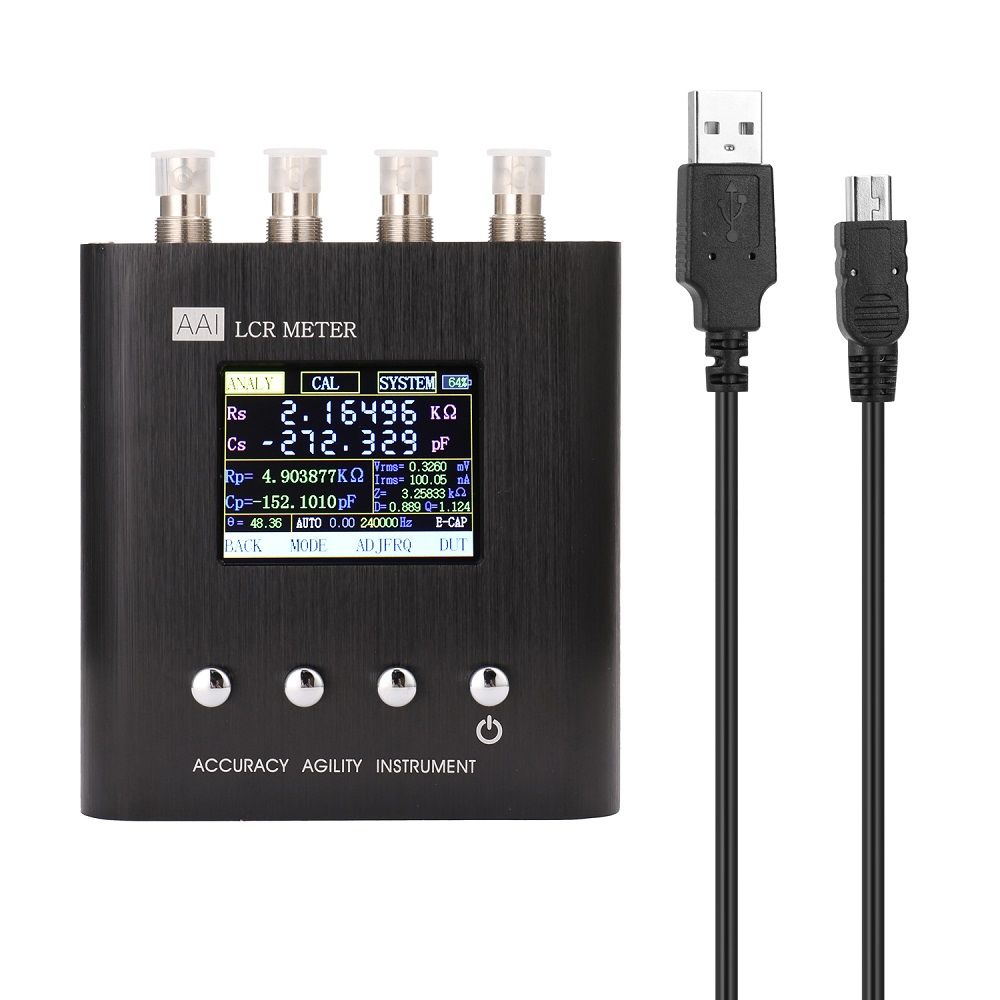

Charging port | USB (only as a charging port) | |
Automatic shutdown | always on, immediately off, 5 minutes to 60 minutes (optional) | |
Measurement parameters | Rs/Xs/Rp/Xp/Cs/Cp/Ls/Lp | |
Z /D/Q/θ/Vrms/Irms | ||
DC bias | None | |

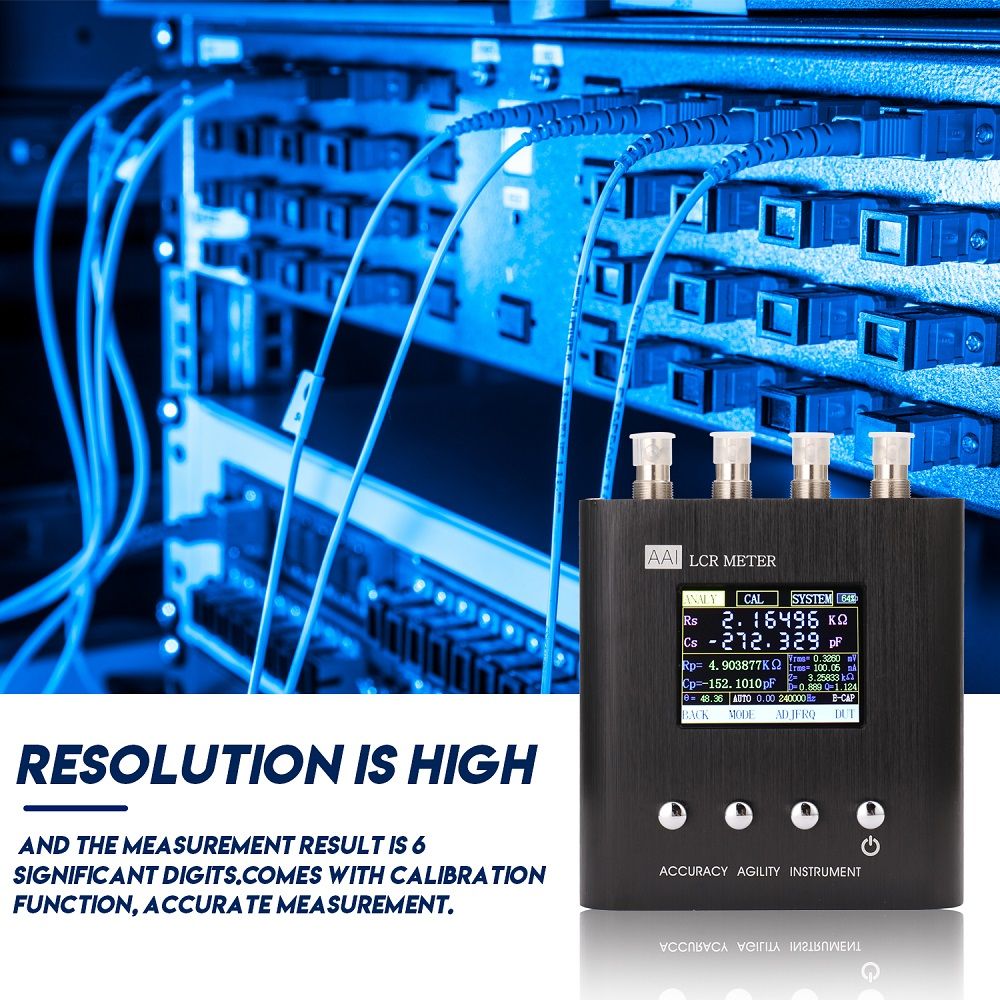

Display resolution | 6 digits effective value | |
Measuring speed | fast, medium and slow | |
Measurement accuracy | less than 0.1% within the measurement range | |
Out of range may be greater than 0.1% | ||

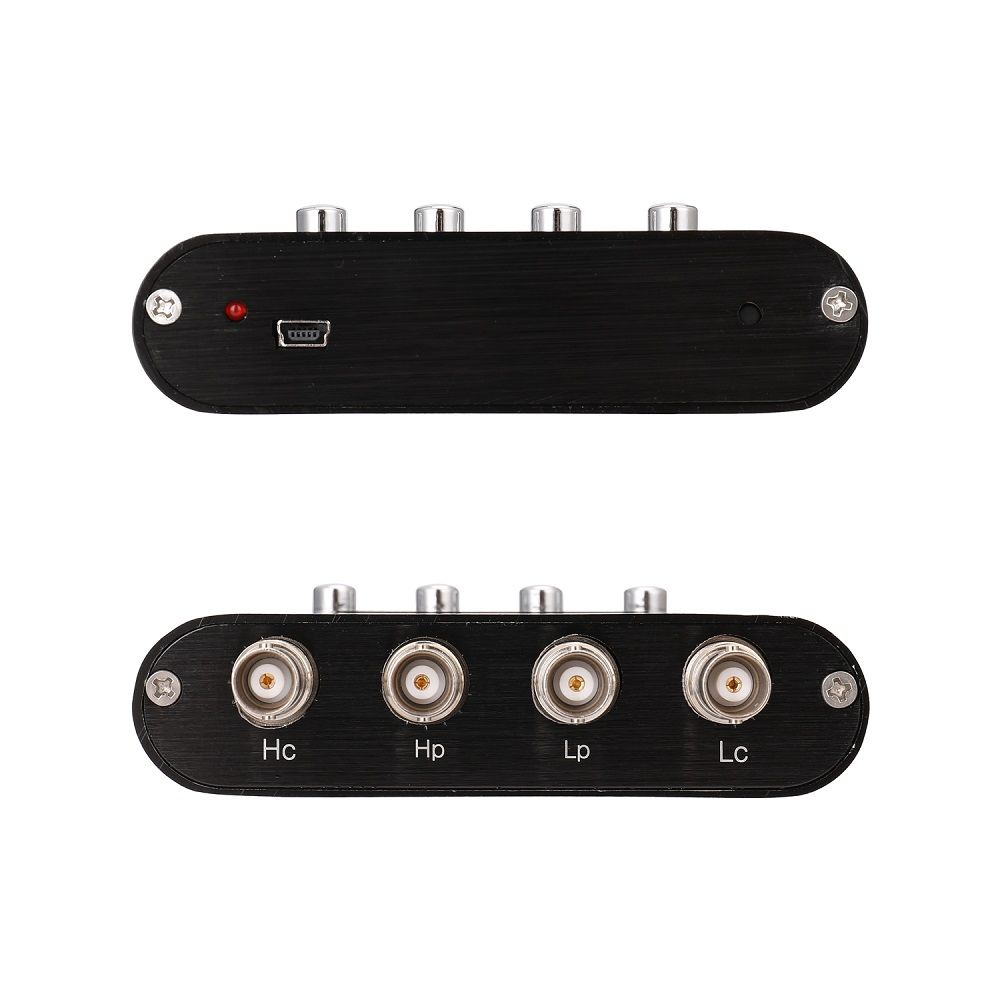

Connector | BNC | |
Display range | Z ,R,X | 0.00001 mΩ～9999999 MΩ |
C | 0.00001pF～9999999F | |
L | 0.00001nH～9999999H | |
D, Q | 0.001～99999 | |
θ(degree) | -179.9～179.9 | |
Vrms | 0.0001mV～999999mV | |
Irms | 0.0001nA～999999mA | |

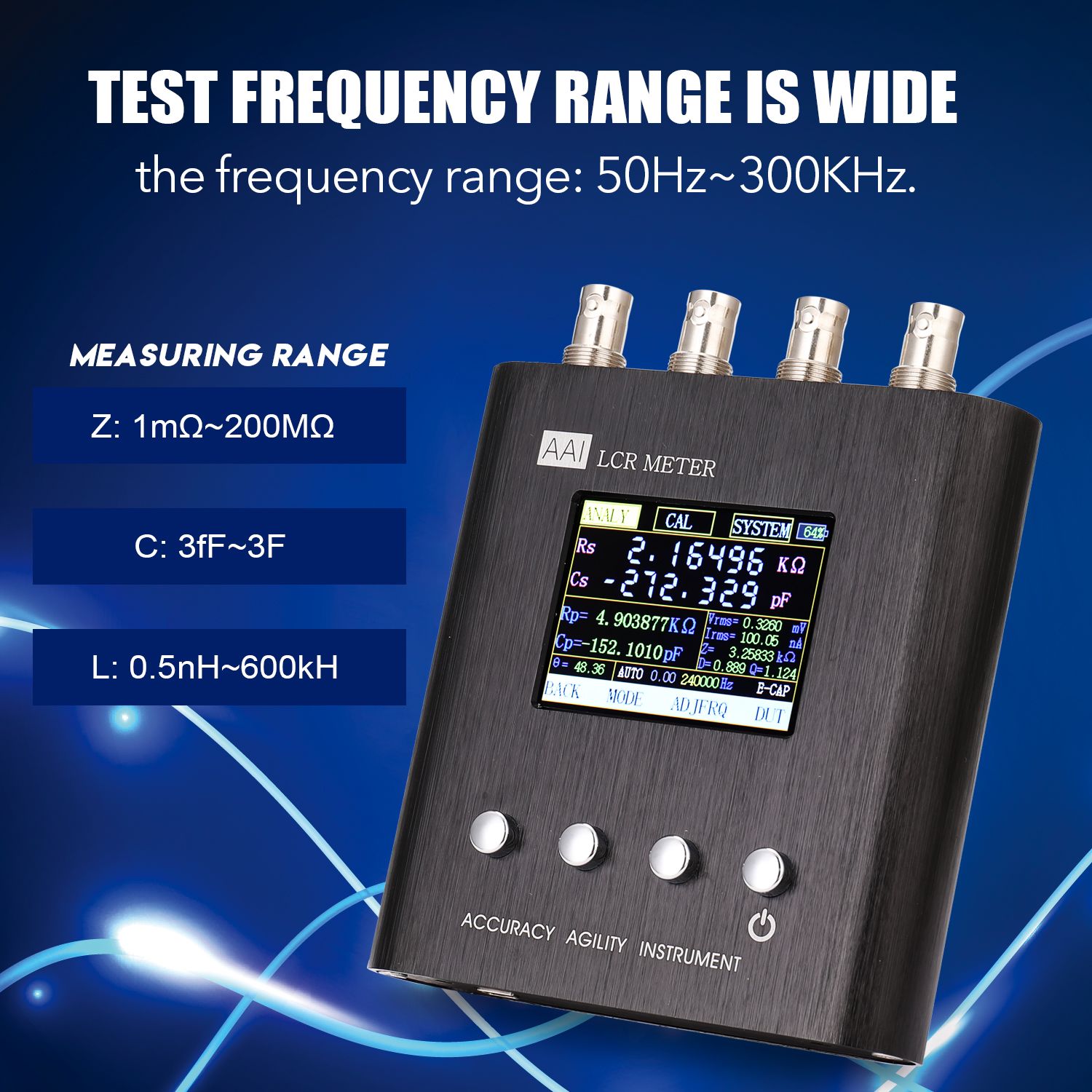

Measuring range | Z | 1mΩ～200MΩ |
C | 3fF～3F | |
L | 0.5nH～600kH | |
Level | （mVrms） | 1,002,003,004,005,000,000,000,000,000,000 |
Output impedance | 30Ω，100Ω (optional) | |
Model | Automatic, series, parallel (optional) | |
DUT | Automatic, resistance, inductance, capacitance, electrolysis (optional) | |
Calibration function | Open circuit, short circuit (with factory value), load calibration | |

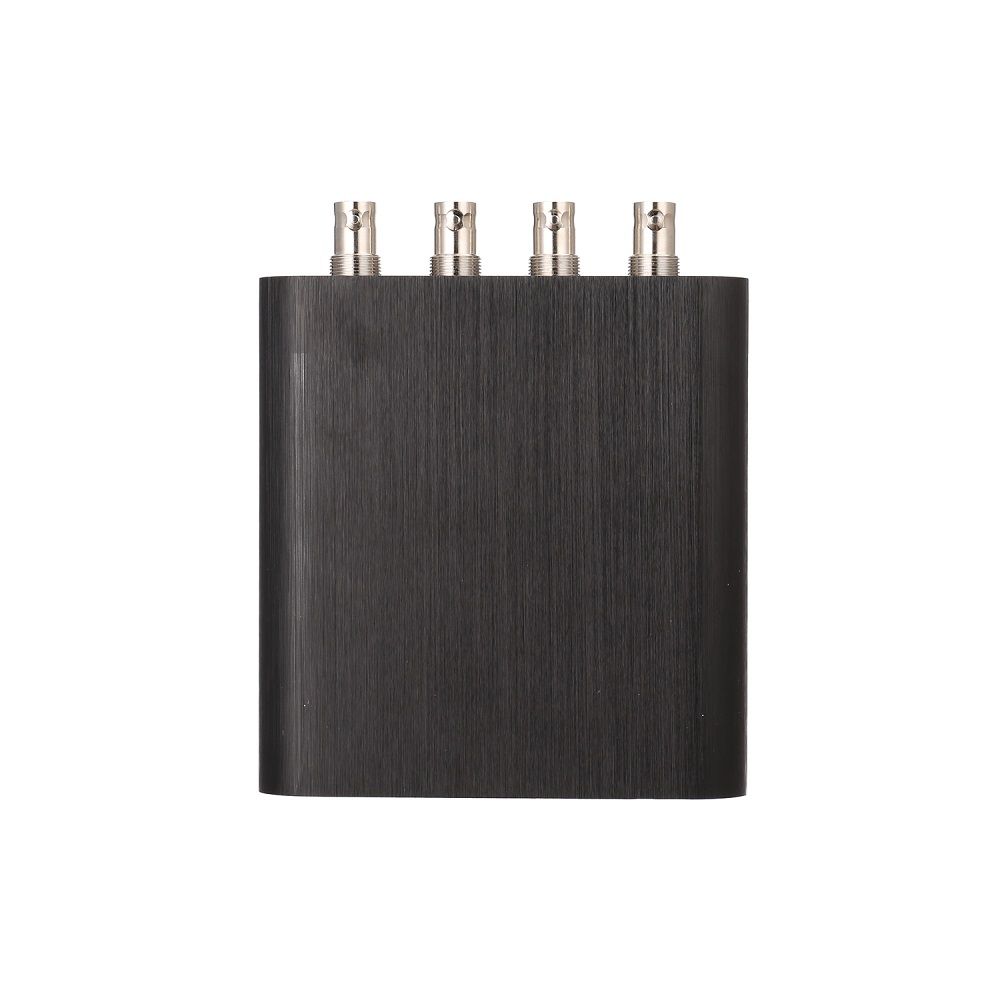

Appearance size | 130*108*31（mm） | |
Net weight | 315g | |
Working temperature | 5℃～40℃ | |
Atmospheric pressure | 860hPa～1060hPa | |
