15801K DIY WAVE2 DSO150 Touch Screen Dual Channel Digital Storage Oscilloscope Y-X Mode Available Built-in 2-channel DDS Function Generator

Based on 0 reviews. - Write a review

₹5,879.81

Ex Tax: ₹5,879.81

Stock: In Stock
Model: EB004584
SKU: EB004584

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

JYE TECH WAVE2 is the latest 2-Channel Oscilloscope on the market, catered to hobbyists, educational institutions and professionals in the field of electronics and mechatronics. Featuring a bright and easy-to-use color touch screen display with access to many features only advance oscilloscopes offer such as built-in function generator and X-Y plotting. With an optional battery, it is portable enough to be taken wherever the jobs that need to be done is. Its an exciting project for any DIY-er, or can be purchased fully assembled for those who are looking to start using it right away. It comes with everything you need out of the box, with a micro-USB cable and two high-quality BNC probes. Enjoy and start creating!
For data transfer and program update, please buy product ID: EB0050887

Features:

Channels: 2

Bandwidth: 0-200KHz per channel

Sensitivity range: 5mV/DIV-20V/DIV (using x1 probe)

Maximum input voltage: 50Vpk (using x1 probe)

Maximum real time sampling rate: 1MS/s

Time Base range 10us/DIV-500s/DIV

X-Y Display Feature: Yes

Function Generator Capability: Built-in 0 – 20KHz (sine) dual channel DDS function generator

Display Resolution: 320 x 240 Color display

Display Size: 2.4″

Touch Display Capability: Yes

General:

Touch panel operation

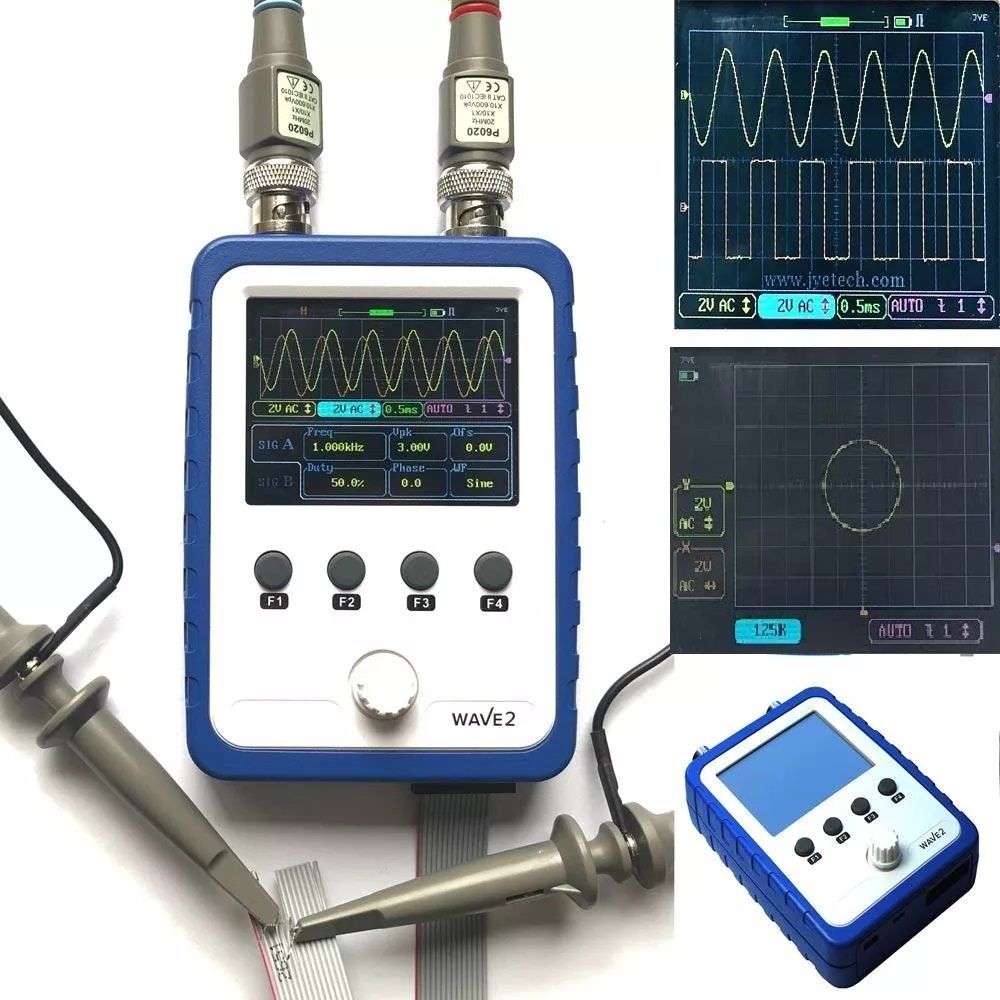

Y-X mode available

Built-in 2-channel DDS function generator

Light weight and portable

Vertical:

Number of Channel: 2

Analog Bandwidth: DC-200KHz

Sensitivity: 5mV/Div - 20V/Div (with x1 probe)

Sensitivity error: < 5%

Resolution: 12-bit

Input Impedance: 1M ohm / 25pF

Maximum Input Voltage: 50Vpk

Coupling: DC, AC

Horizontal:

Max Real-time Sampling Rate: 1Msps (per channel)

Timebase: 10us/Div - 500s/Div

Record Length: 1024 points

Trigger:

Trigger Modes: Auto, Normal, Single

Trigger Types: Rising/falling edge

Trigger Position: 1/2 of buffer size

Trigger Source: Ch1, Ch2, External

Maximum external trigger voltage: 15V

External trigger threshold

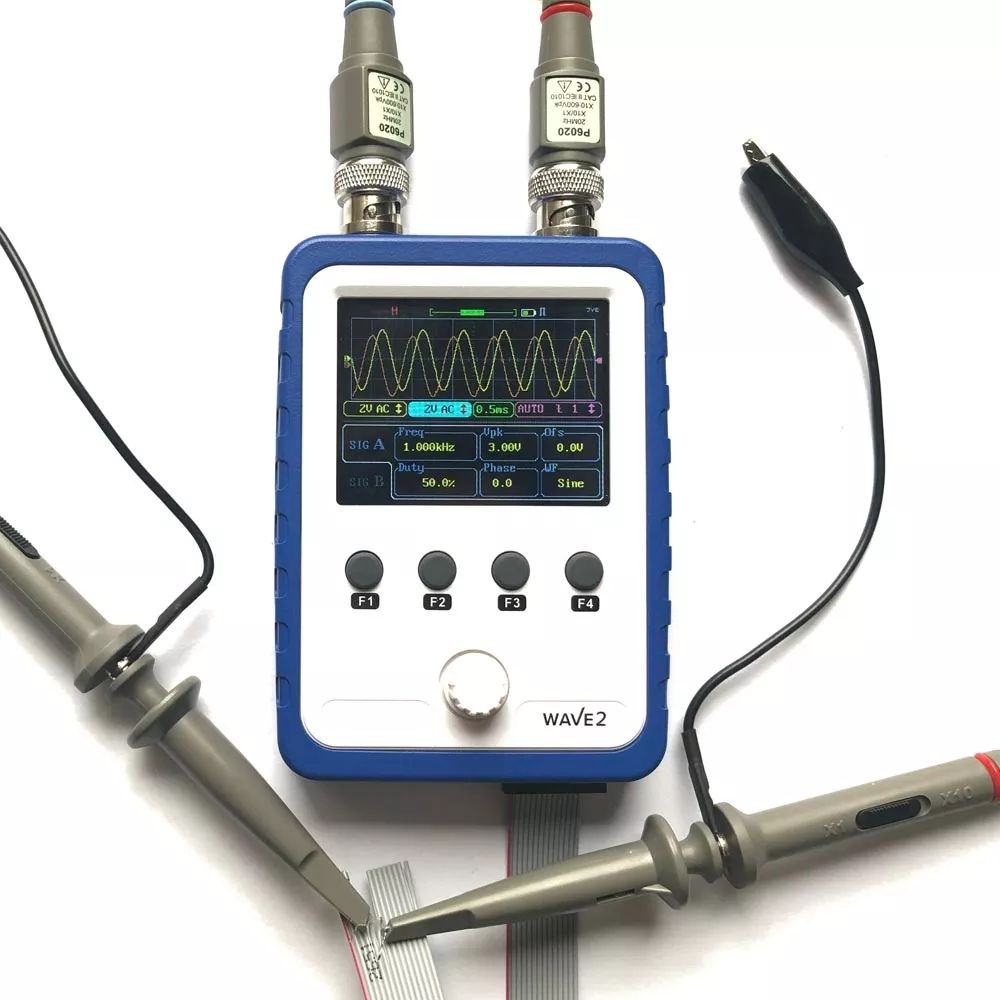

Function Generator:

Number of channel: 2

Waveform type: Sine, Square, Saw-tooth, Stair

Frequency range: DC-20KHz (Sine)

Amplitude range: 0-3V (peak value)

Offset: 0V or +3.3V

Duty Cycle: 0- 100%

Phase: -360~360 degree

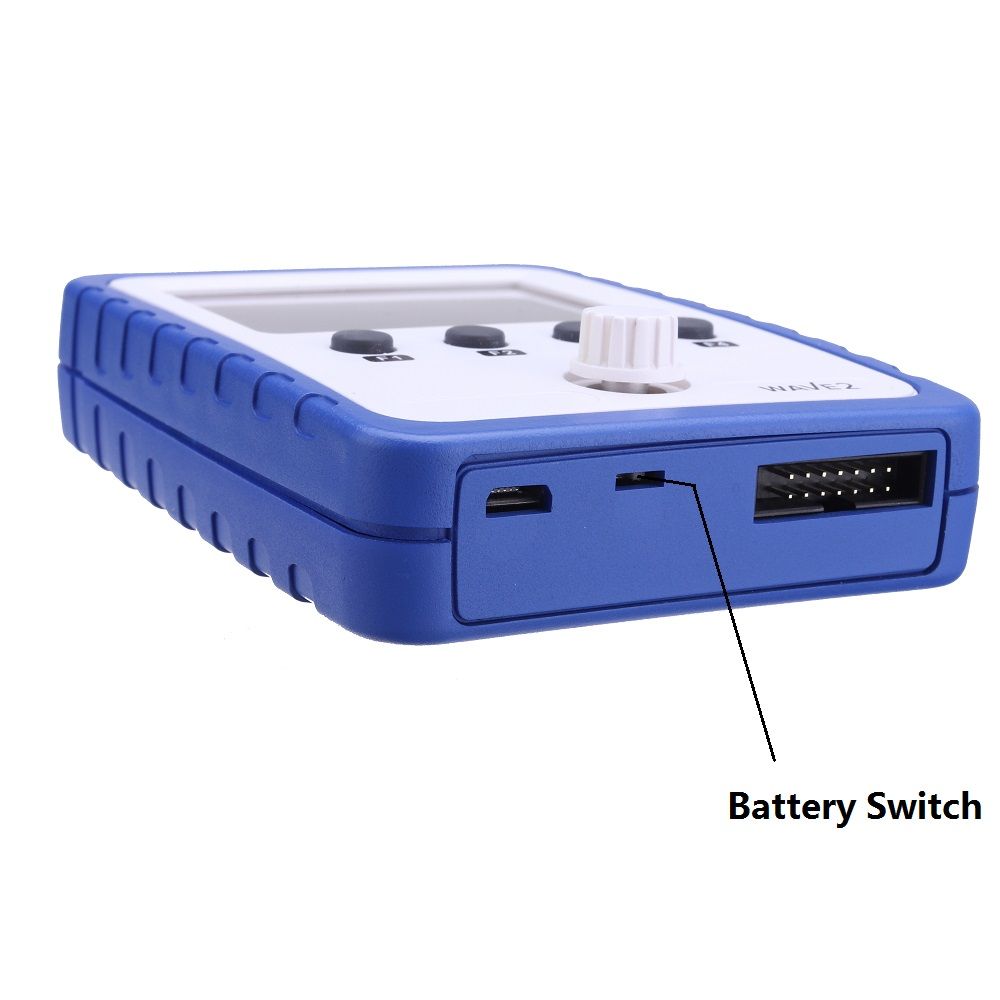

Power Supply:

Powered on 3.7V Li-ion battery or USB(battery included)

Current consumption: ~300mA @ 3.7 – 5V

Automatic power off on battery

Battery running time: Appr. 3hrs (when fully charged)

Other Features:

Y-X display mode

On-screen measurement display

Save / recall up to 4 captures

Serial output of captured data

Serial port format: LVTTL, 115200bps, 8N1

Built-in 1KHz/3.3V test signal

Package included:

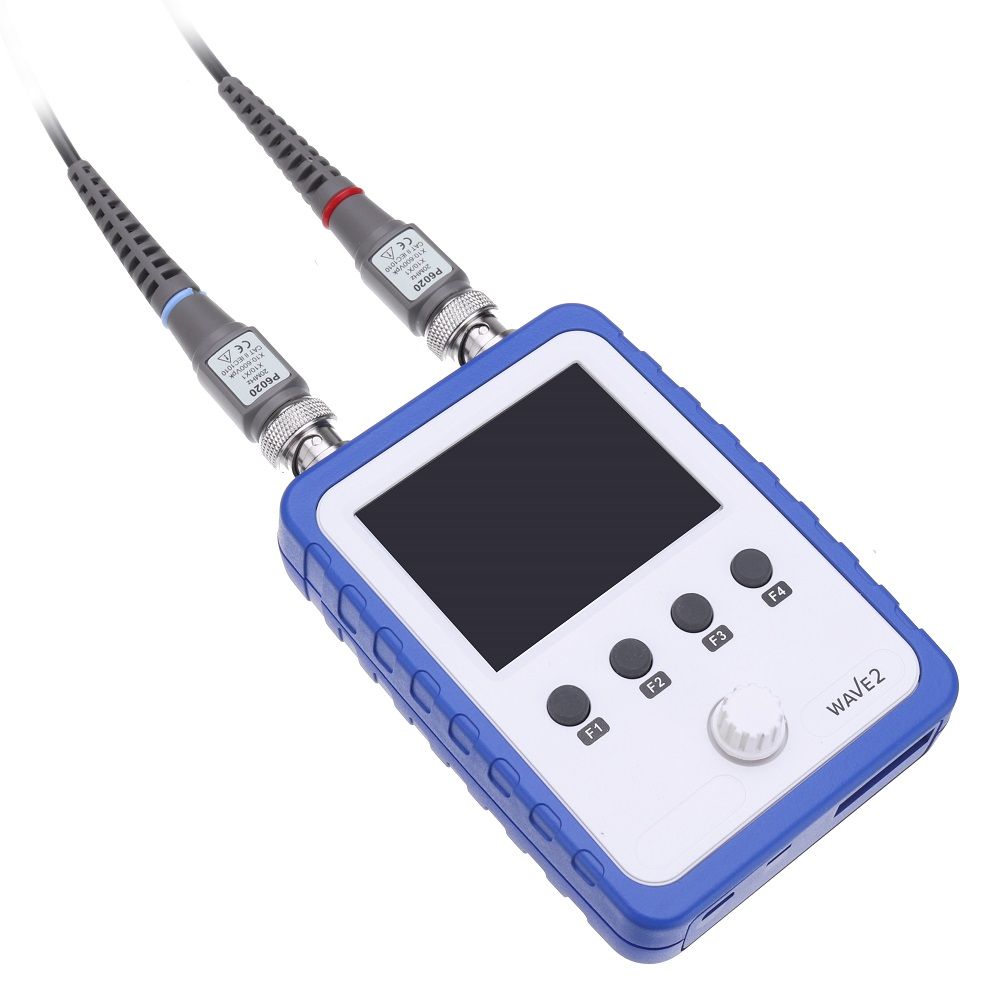

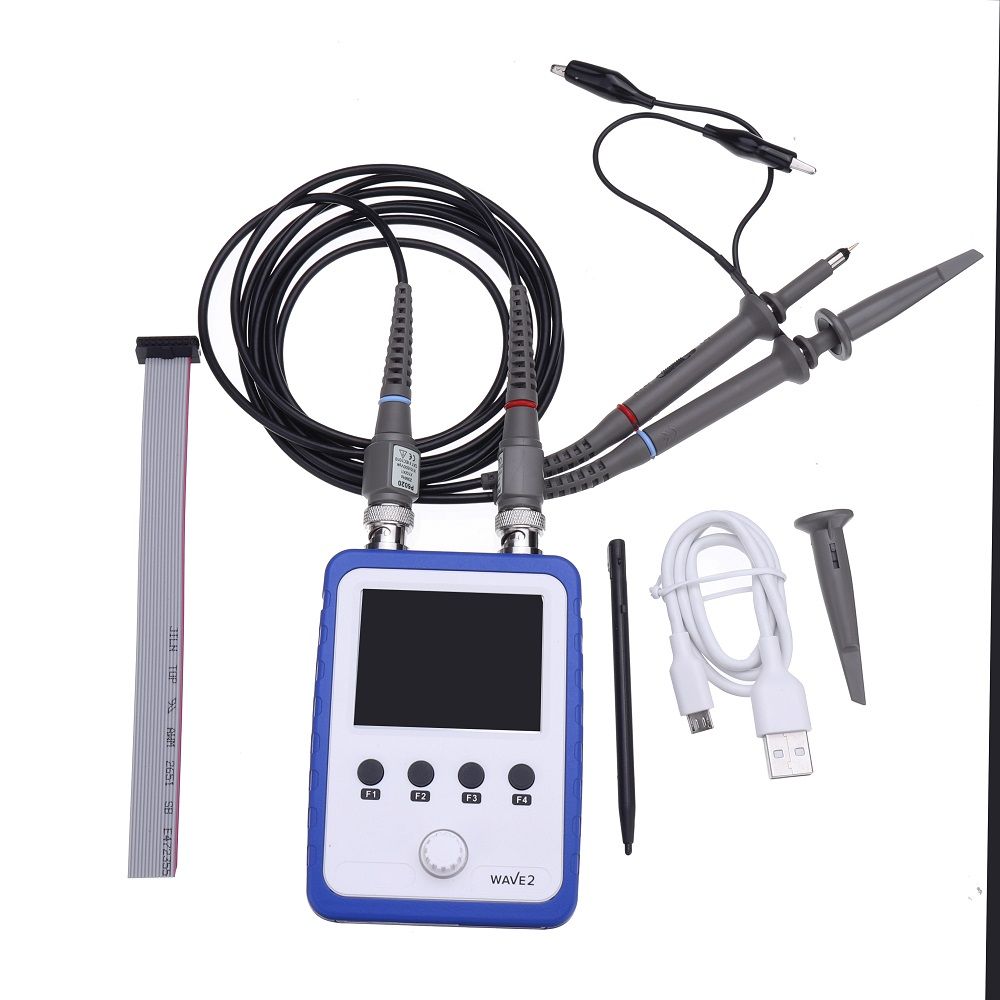

1 x WAVE2 oscilloscope

2 x BNC x1/x10 selectable probes

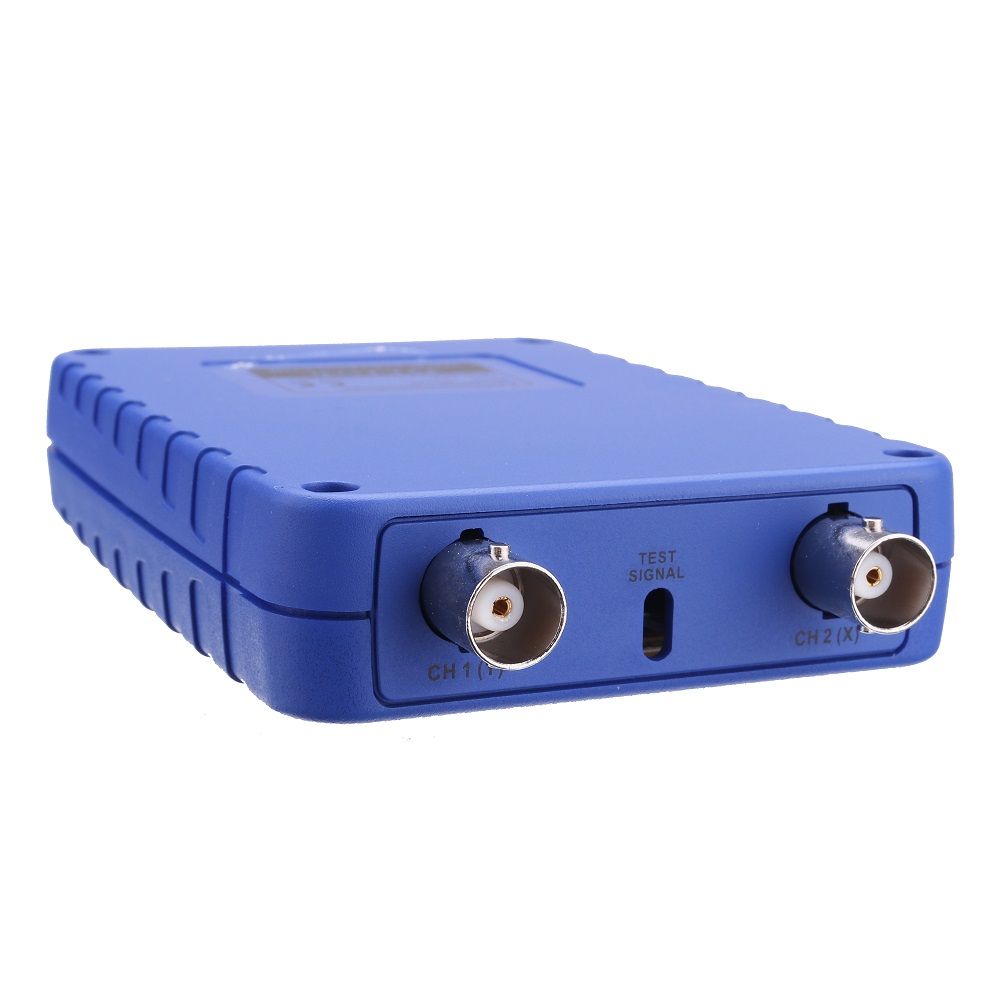

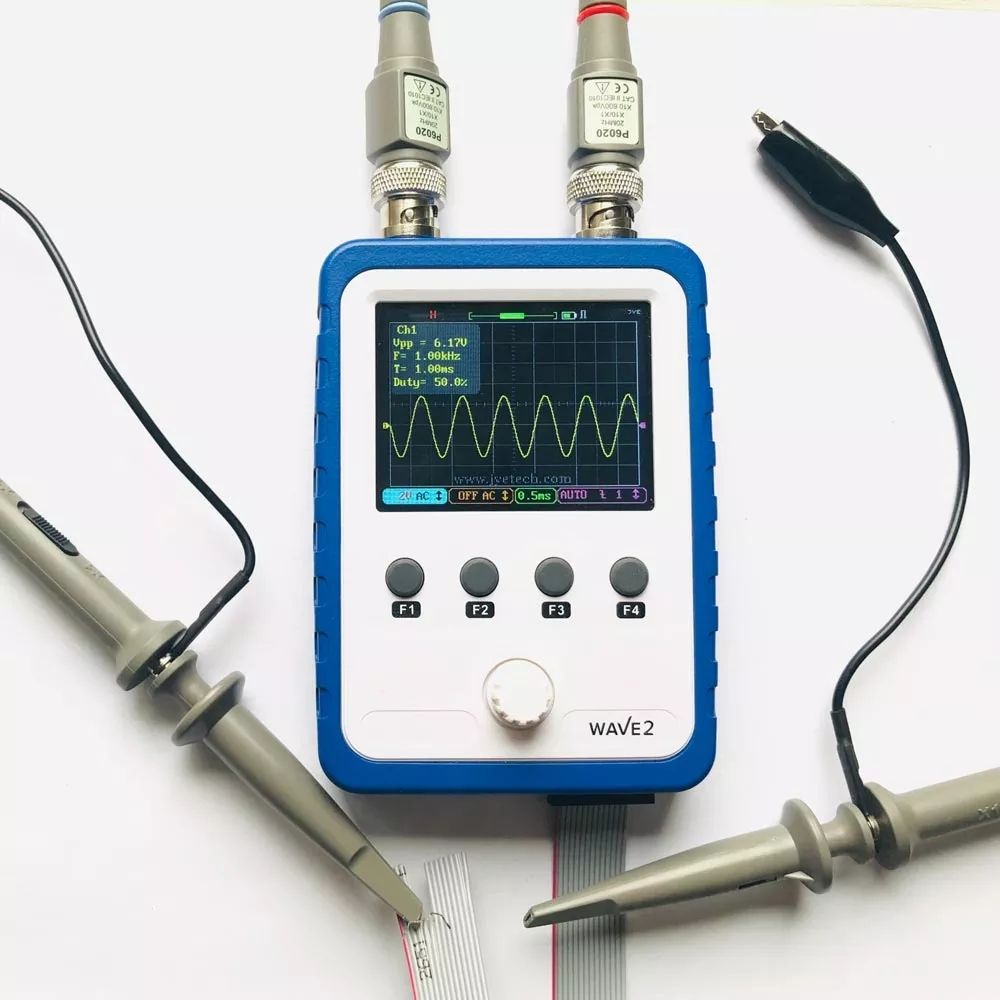

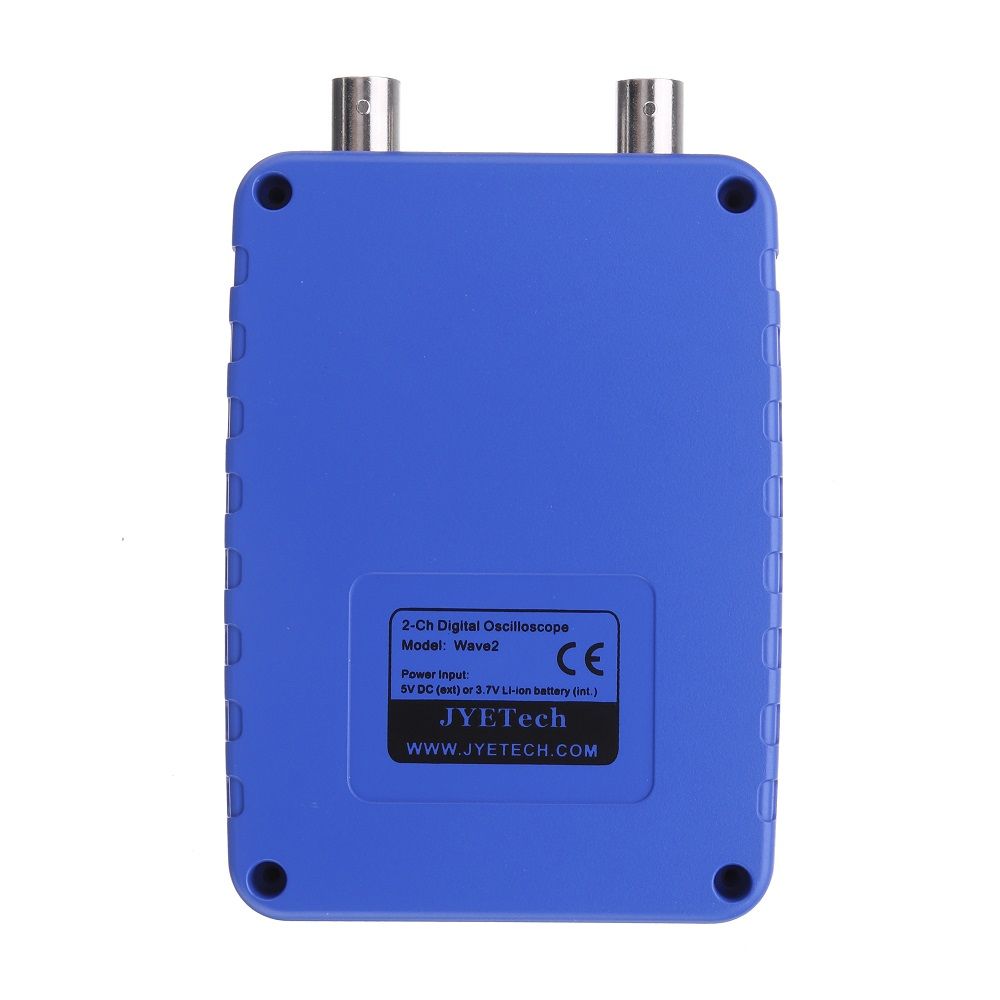

Details Pictures:

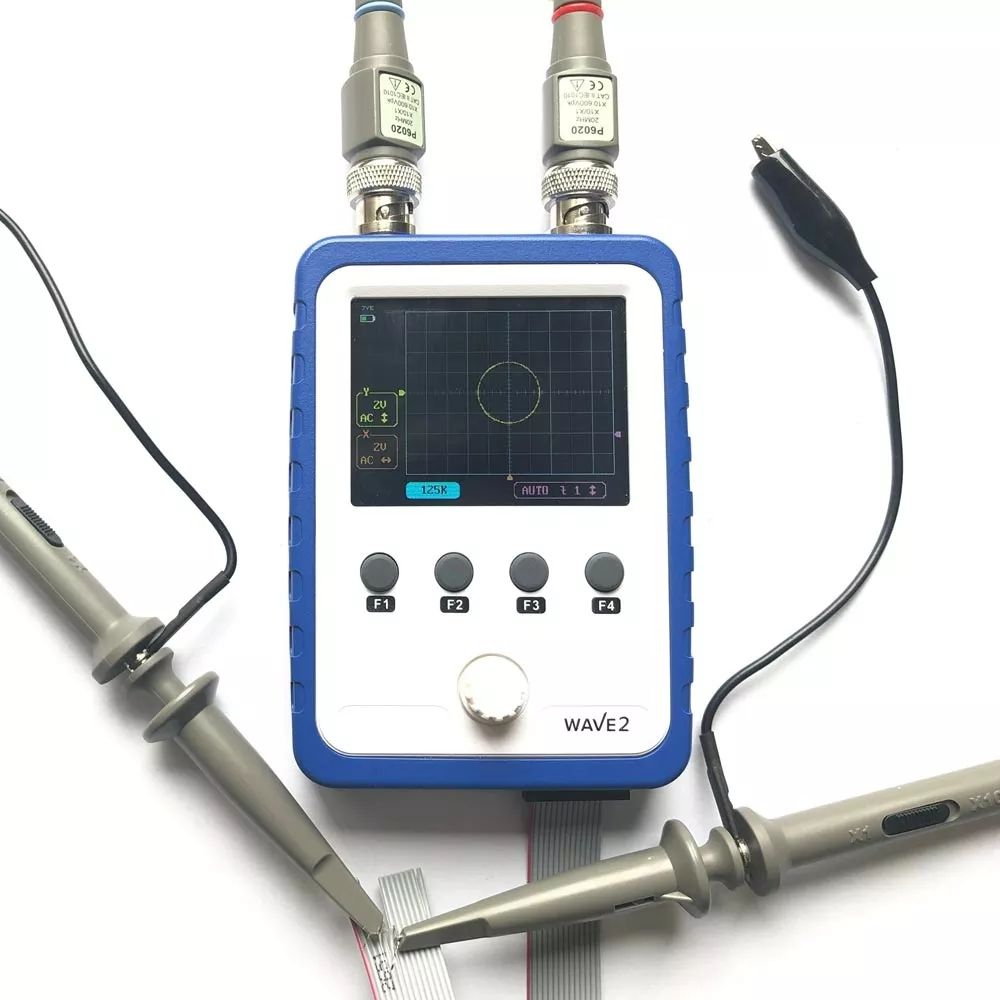

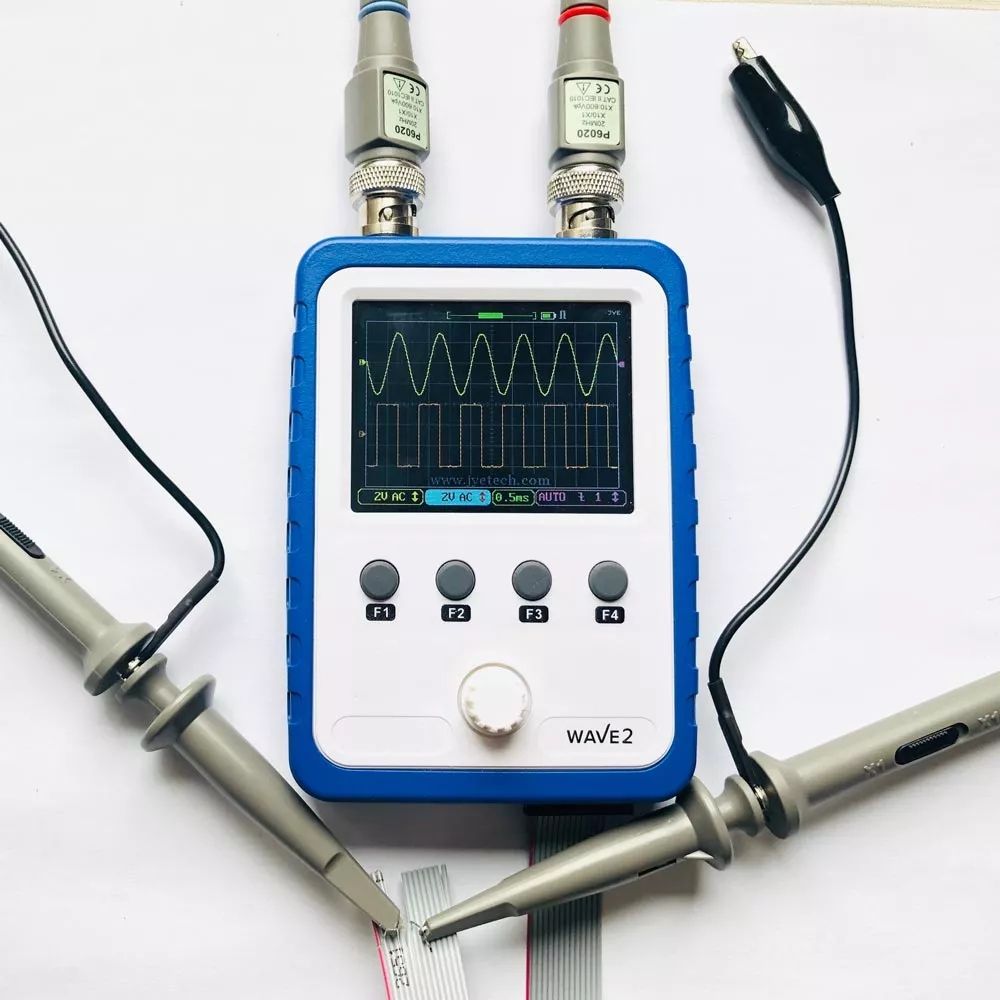

Original-JYETech-15801K-DIY-WAVE2-DSO150-Touch-Screen-Dual-Channel-Digital-Storage-Oscilloscope-Y-X--1449907
