6022BL PC USB Oscilloscope 2 Digital Channels 48MSa/s Sample Rate 16 Channels Logic Analyzer
- Stock: In Stock
- Model: EB004567
- SKU: EB004567
| Model | Hantek6022BL |
| Oscilloscope Features | |
| Bandwidth | 20MHz |
| Channel | 2(Digital)+16(Logic) |
| Sample Rate | 48MSa/s |
| Memory Depth | 1M |
| Rise Time | 17.5ns |
| Time Base Precision | 50ppm |
| Time Base Range | 4ns/div-1h/div (Step by1-2-4) |
| Input Impendence | 1M 25pF |
| Input Sensitivity | 10mV/div-5V/div |
| Vertical Resolution | 8Bit |
| Vertical Position Range | 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; 1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe |
| DC Accuracy | 3% |
| Bandwidth Limited | 20MHz |
| Trigger Type | Edge, Alternative |
| Trigger Source | CH1, CH2, EXT, EXT/10 |
| Math | +,-,x,÷,FFT, Invert |
| Cursor Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Logic Analyzer Features | |
| Channel | 16 |
| Max. Impendance | 1M(C=7.5pF) |
| Max. Voltage | 0V~5.5V |
| Max. Sample | 48M |
| Bandwidth | 10MHz |
| Compatible Input | TTL, LVTTL, CMOS |
| Memory Depth | 1M/CH |
| General Features | |
| Power | USB Port |
| Dimensions | 205mm x 120mm x 35mm |
| Weight | 0.382KG |

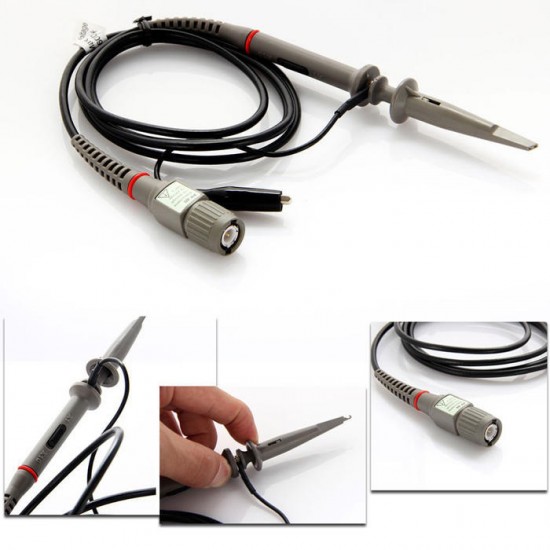

| Standard Probe | 2 x PP80 |

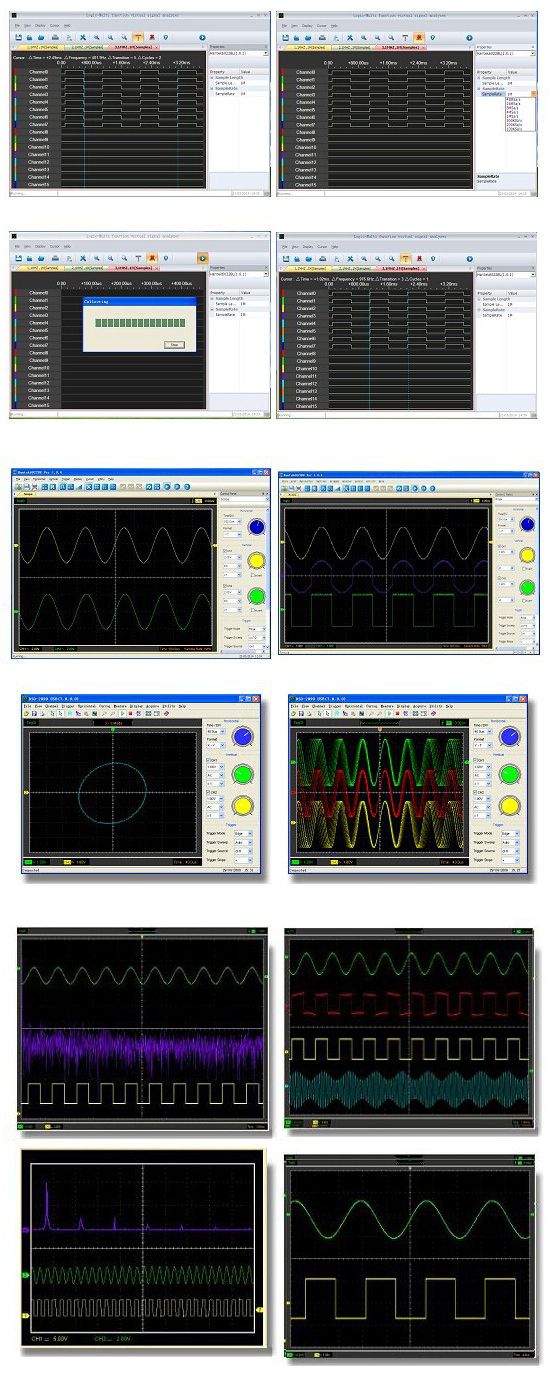

Function Picture:

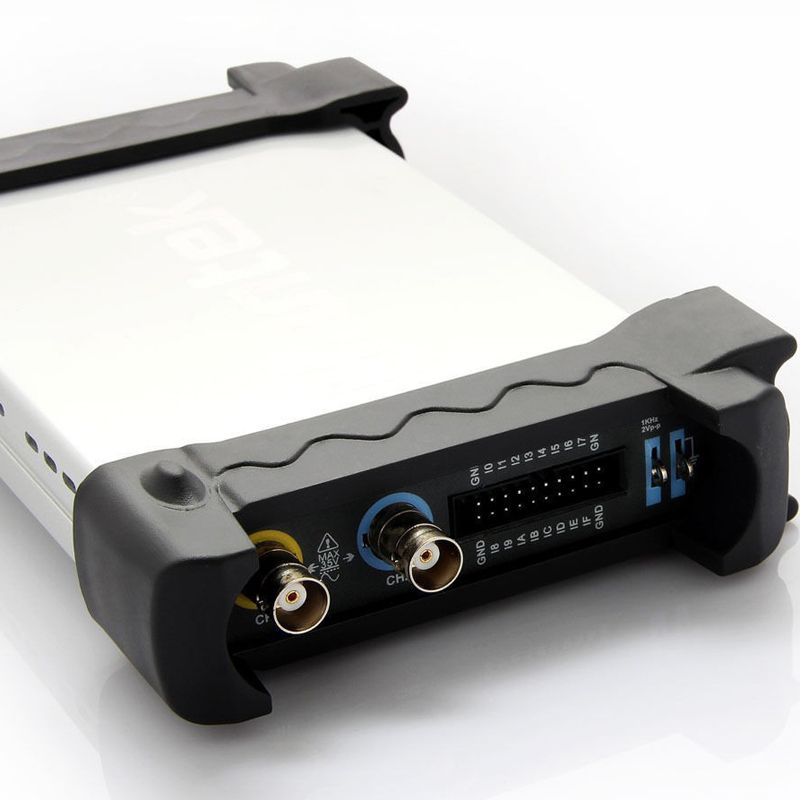

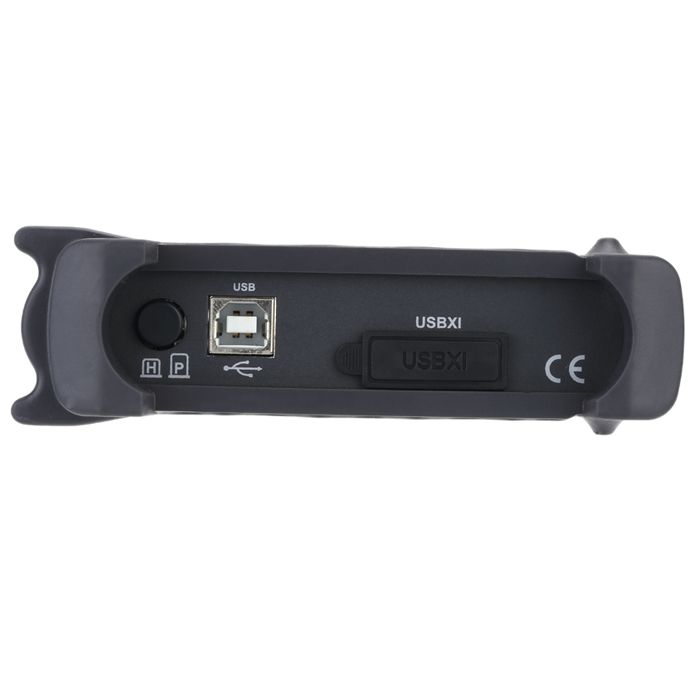

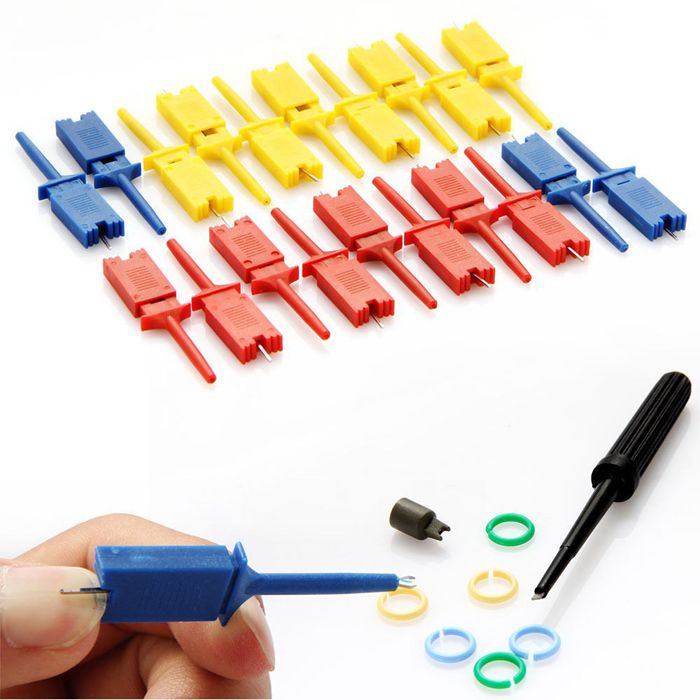

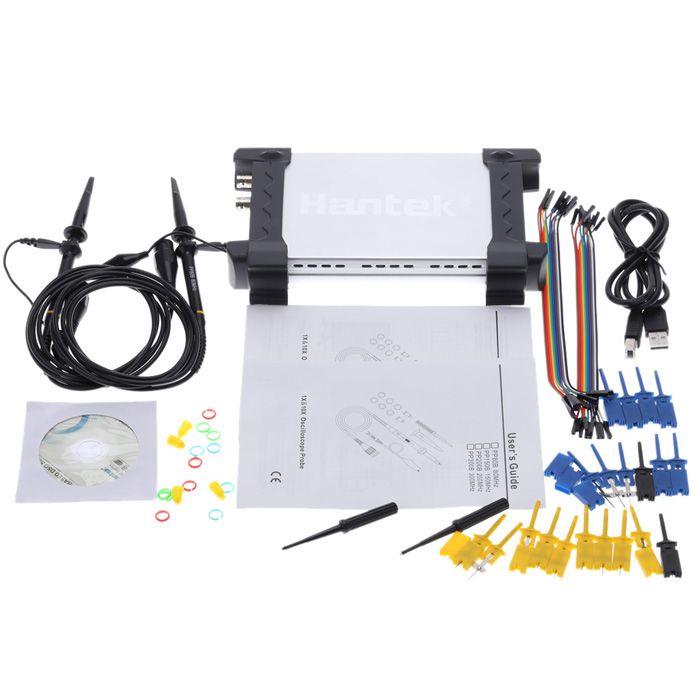

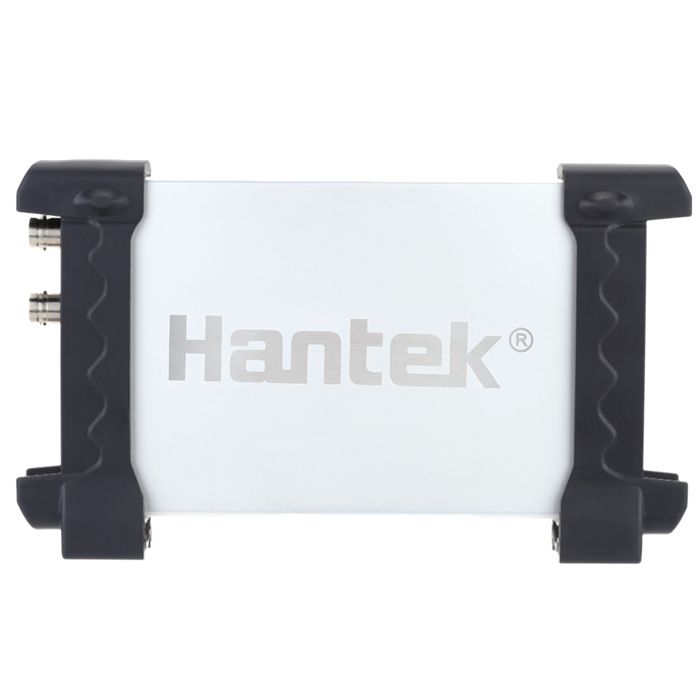

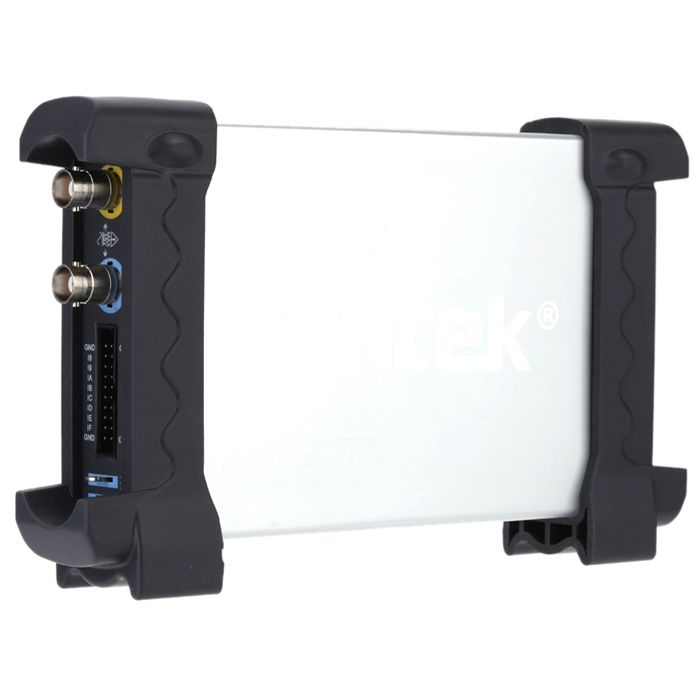

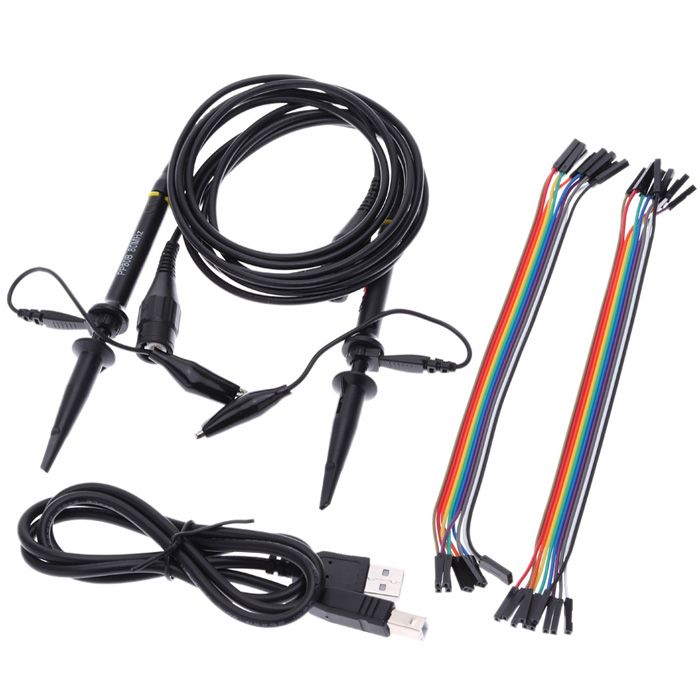

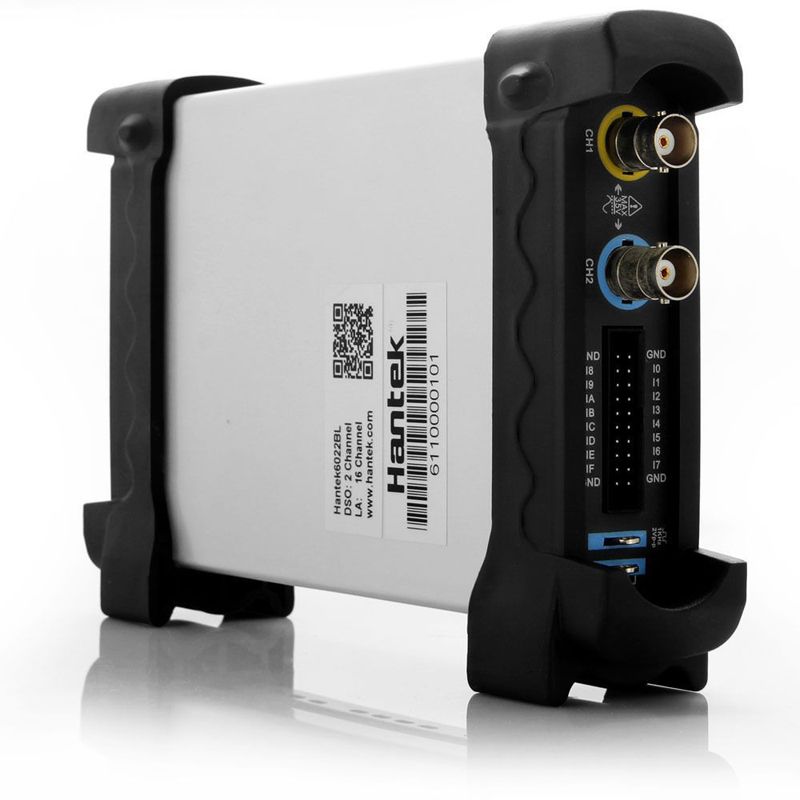

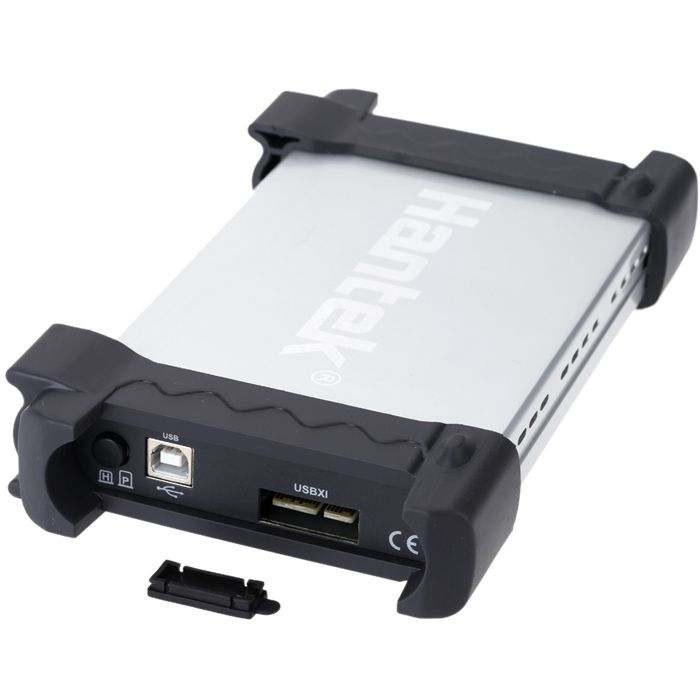

Detail Pictures:
