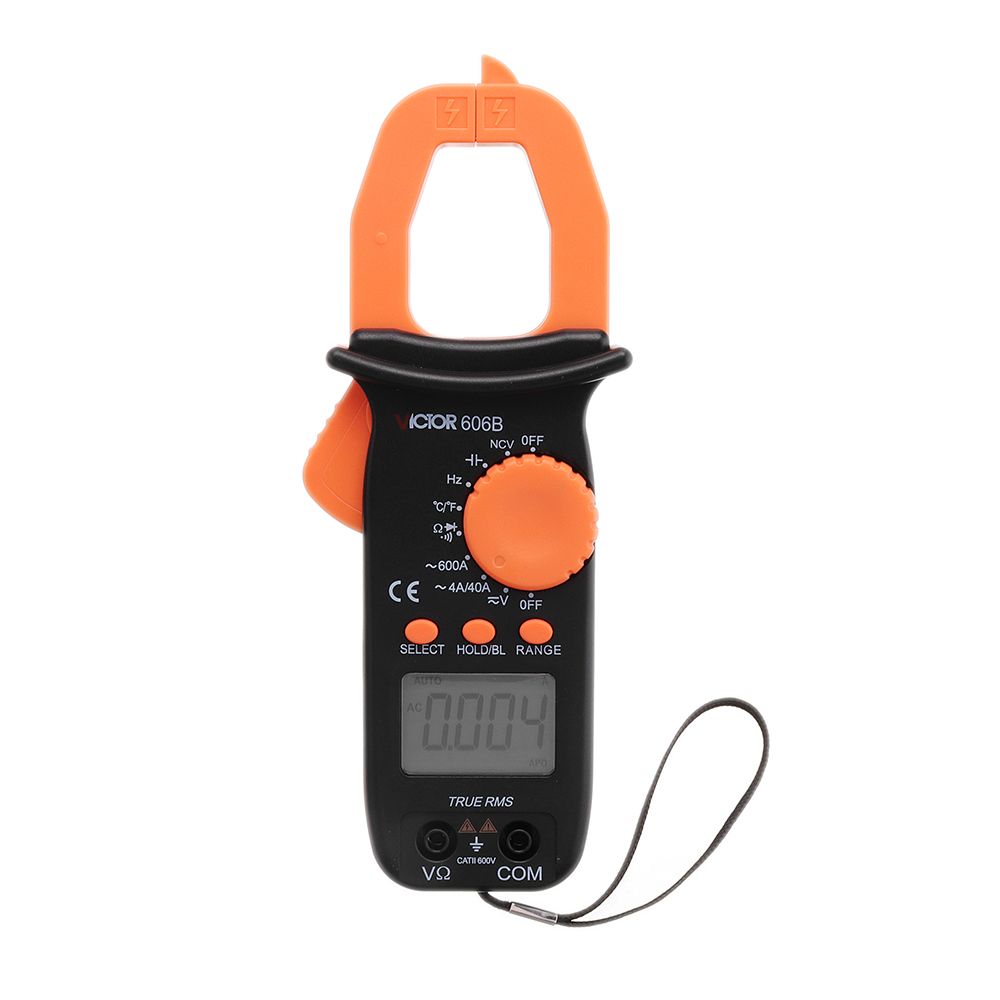

606B Clamp Multimeter Overload Protection Digital NCV Auto Off Data-Hold
- Stock: In Stock
- Model: EB004352
- SKU: EB004352
This meter is a handheld automatic range digital multiemter which driven by battery(not included). It can be used to measure such parameters as DCV, ACV, ACA, Resistance, Continuity Buzzer, Diode, Frequency, Temperature, etc.
Fetaures:
Displaying:Max.
Displaying:4000
Sampling rate:approx. 3 times/second.
Polarity indication:Automatic negative polarity indication
Over range indication:” OL” shown on the LCD
Operation environment:0℃-40℃,R.H.< 75%.
Storage environment:-10℃-50℃,R.H.<80%.

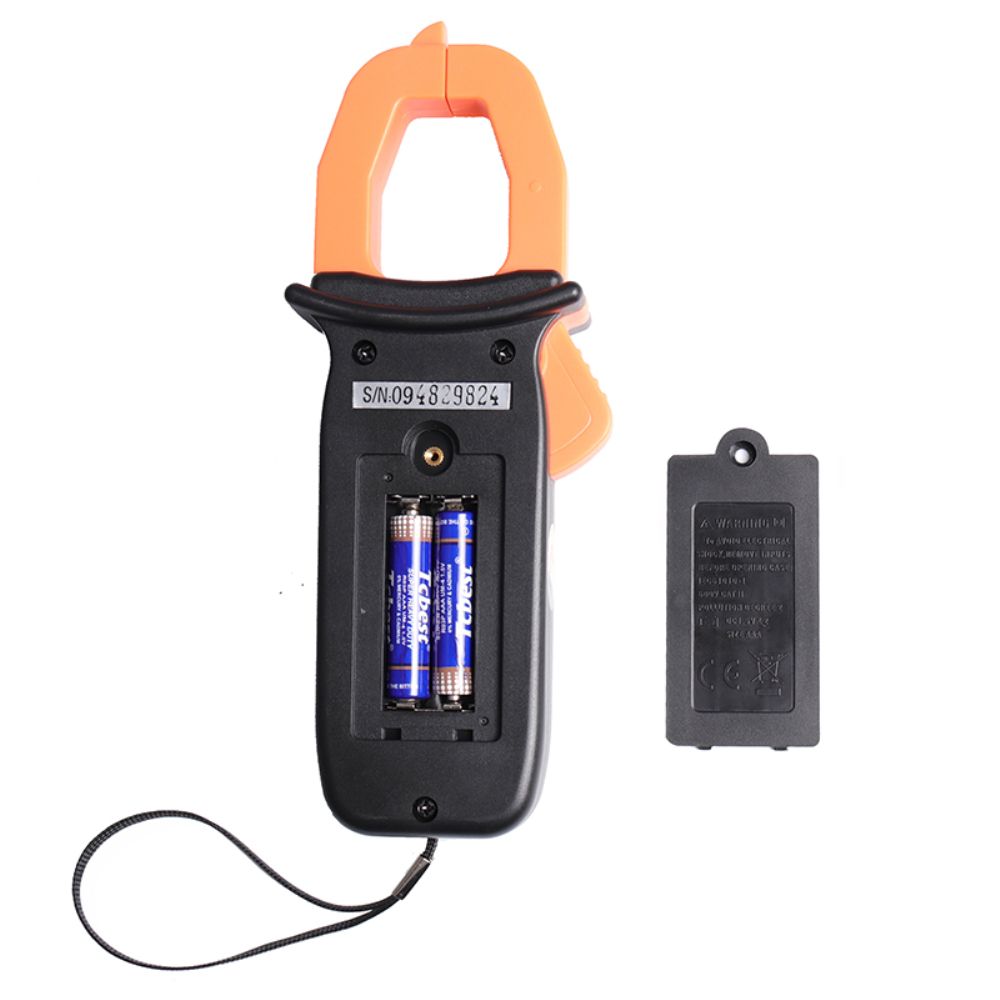

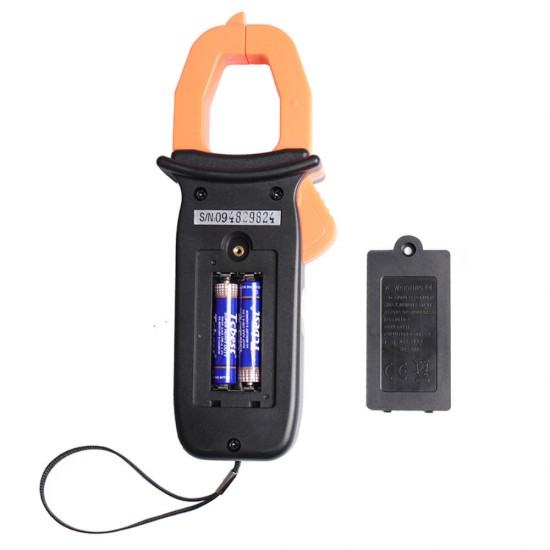

Power supply:(Size AAA)1.5V×2
Size:193×73×37mm
Weight:about 220g.

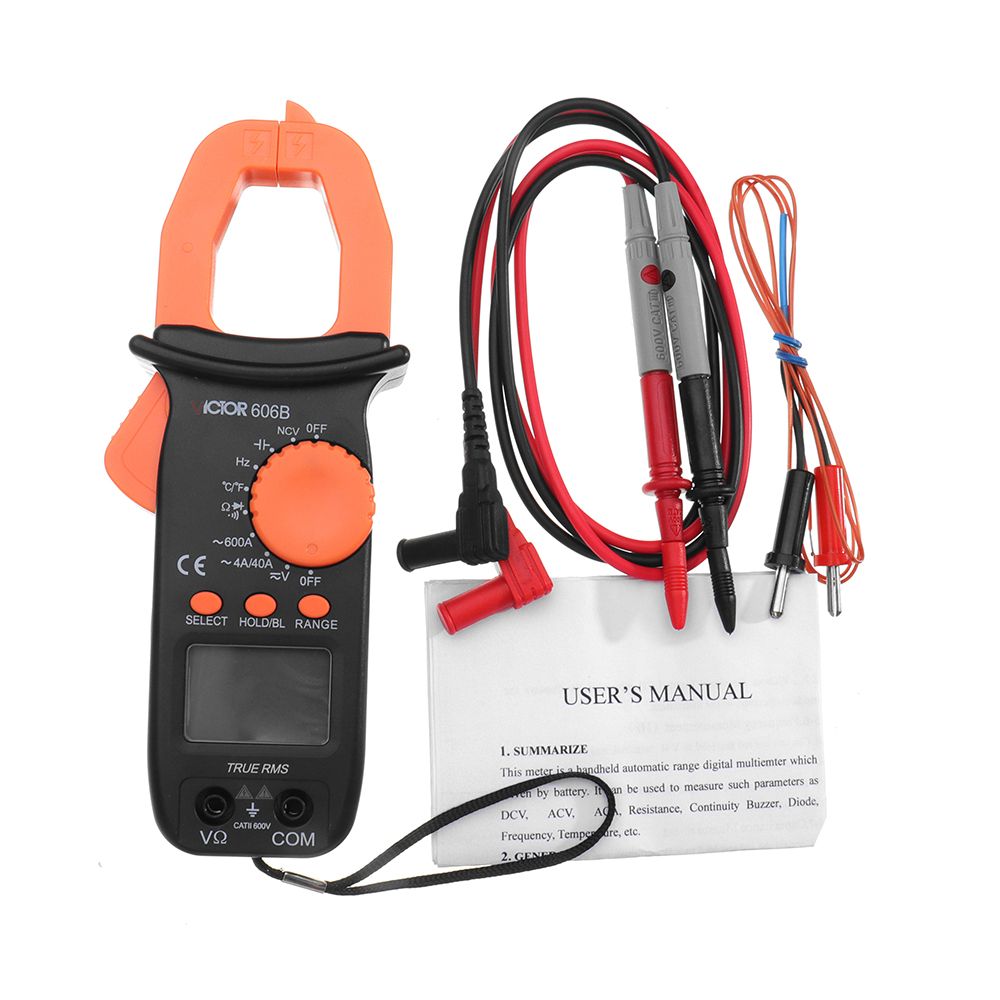

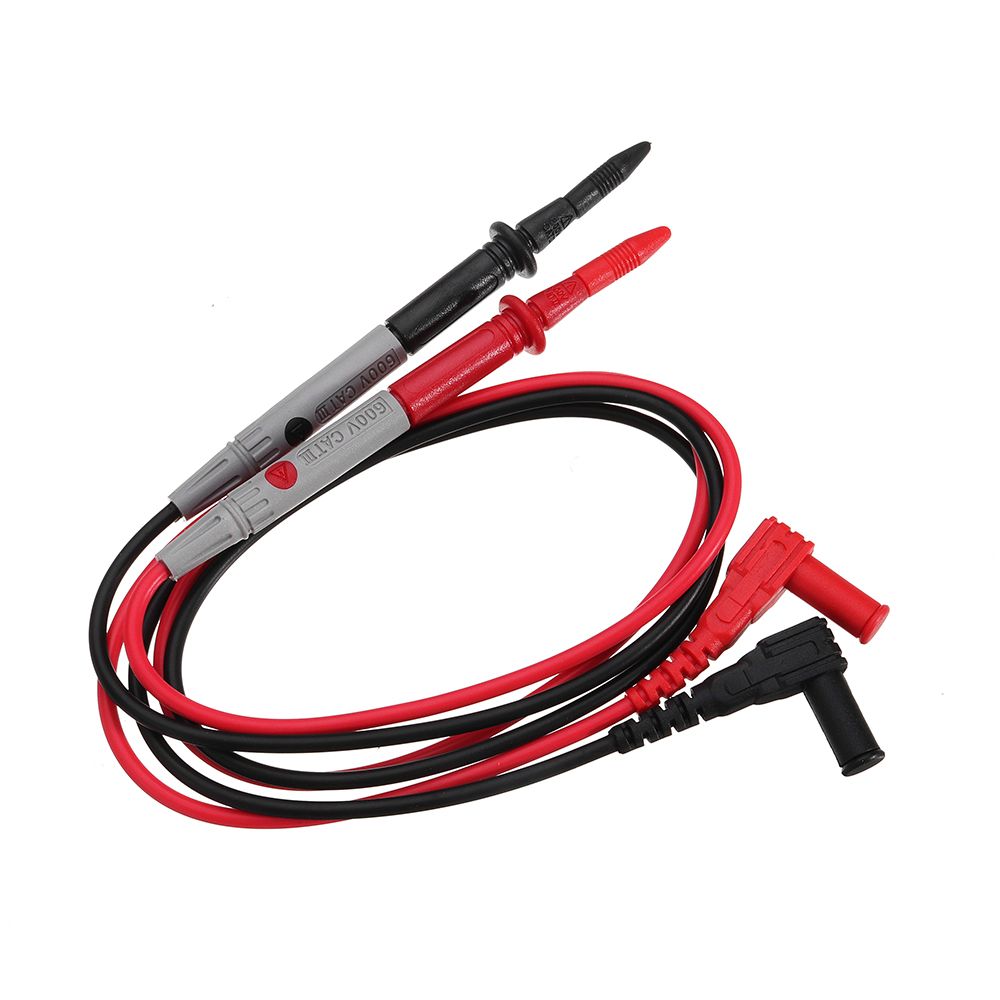

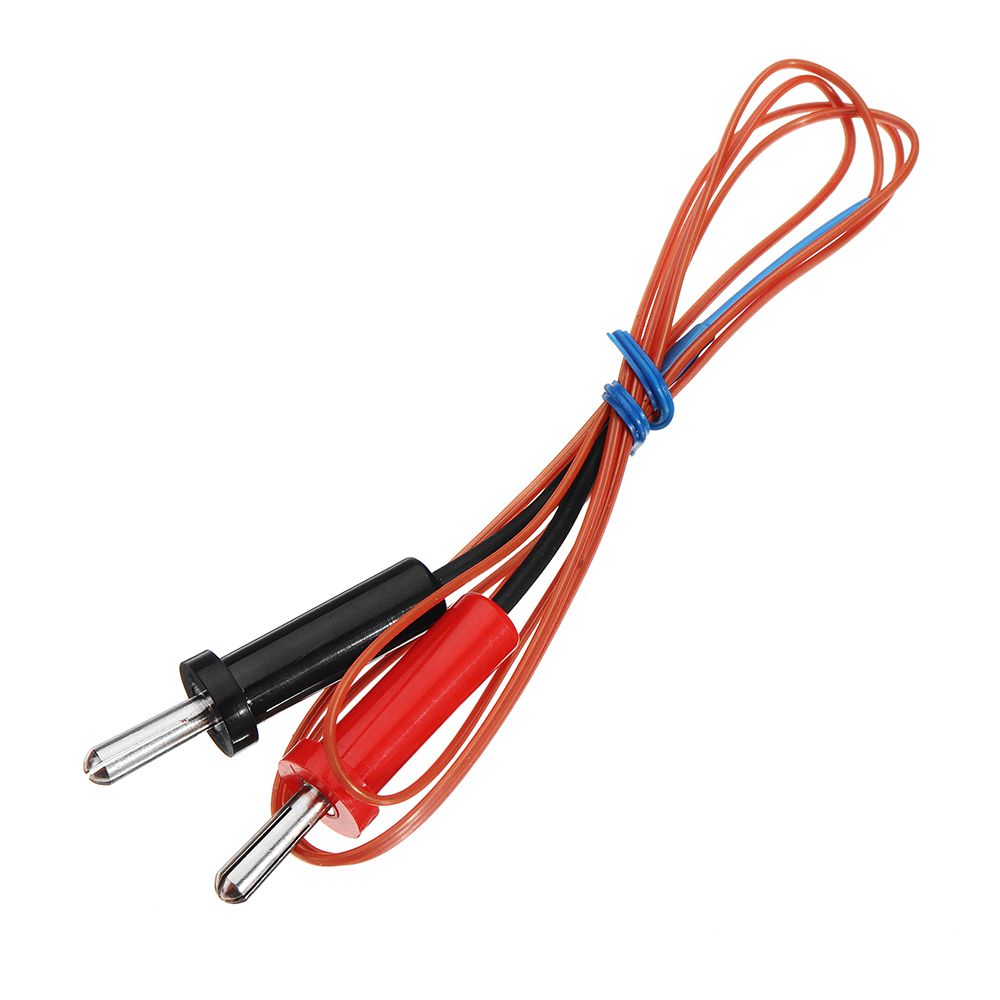

Accessories:user’s manual,battery,testleads,temperature probes
Specification:
Accuracy:±(a%×rdg+d) Temperature:(23±5)℃,R.H.<75%
3-1.ACV(V-)
| RANGE | ACCURACY |
| 400mV/4V/40V/400V | ±(0.8%+10d) |
| 600V | ±(1.0%+10d) |
AC 400mV range can only be chosen by press RANGE key under the ACV auto range.
Frequency response:SIN wave and triangular wave is 40Hz-1kHz, other wave is 40Hz-200Hz
DCV
| RANGE | ACCURACY |
| 400mV/4V/40V/400V | ±(0.5%+4d) |
| 600V | ±(1.0%+6d) |
RESISTANCE(auto range)
| RANGE | ACCURACY |
| 400Ω/4kΩ/40kΩ/400kΩ/4MΩ | ±(1.0%+5d) |
| 40MΩ | ±(1.2%+10d) |
ACA A~(auto range)
| RANGE | ACCURACY |
| 4A/40A | ±(2.5%+8d) |
| 400A/600A | ±(2.5%+8d) |
FREQUENCY Hz(auto range)
| RANGE | ACCURACY |
| 0~10MHz | ±(0.3%+3d) |
Sensitivity:1V RMS
CAPACITANCE(auto range)
| RANGE | ACCURACY |
| 4nF/40nF/400nF/4uF/40uF/1000uF | ±(5.0%+8d) |
TEMPERATURE ℃/℉
| RANGE | ACCURACY |
| -20℃-400℃ | ±(3.0%+2d) |
| -4℉-752℉ |
Package Included:
1 x VICTOR 606B Clamp Multimeter

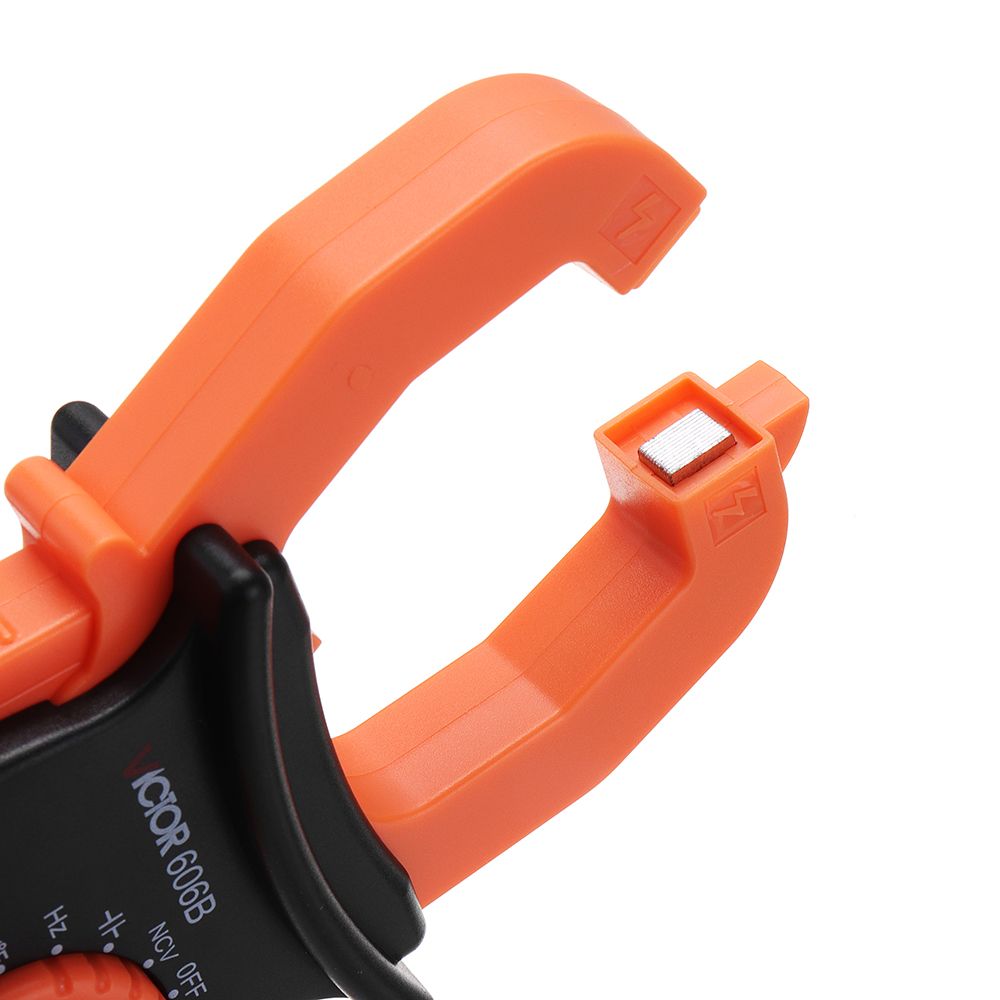

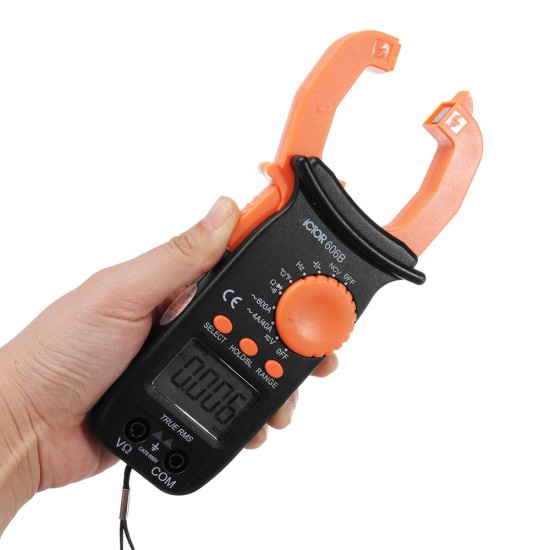

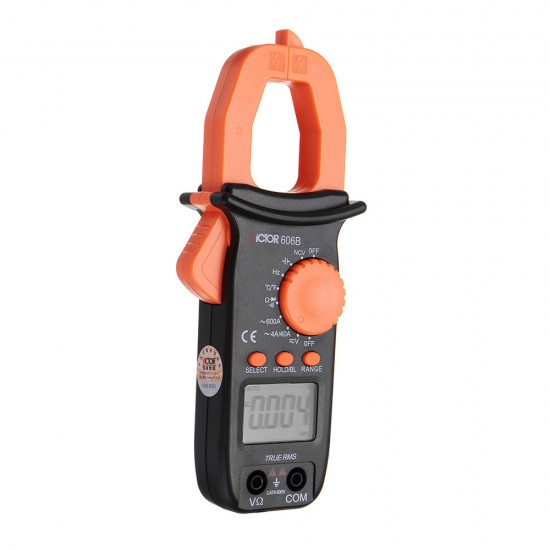

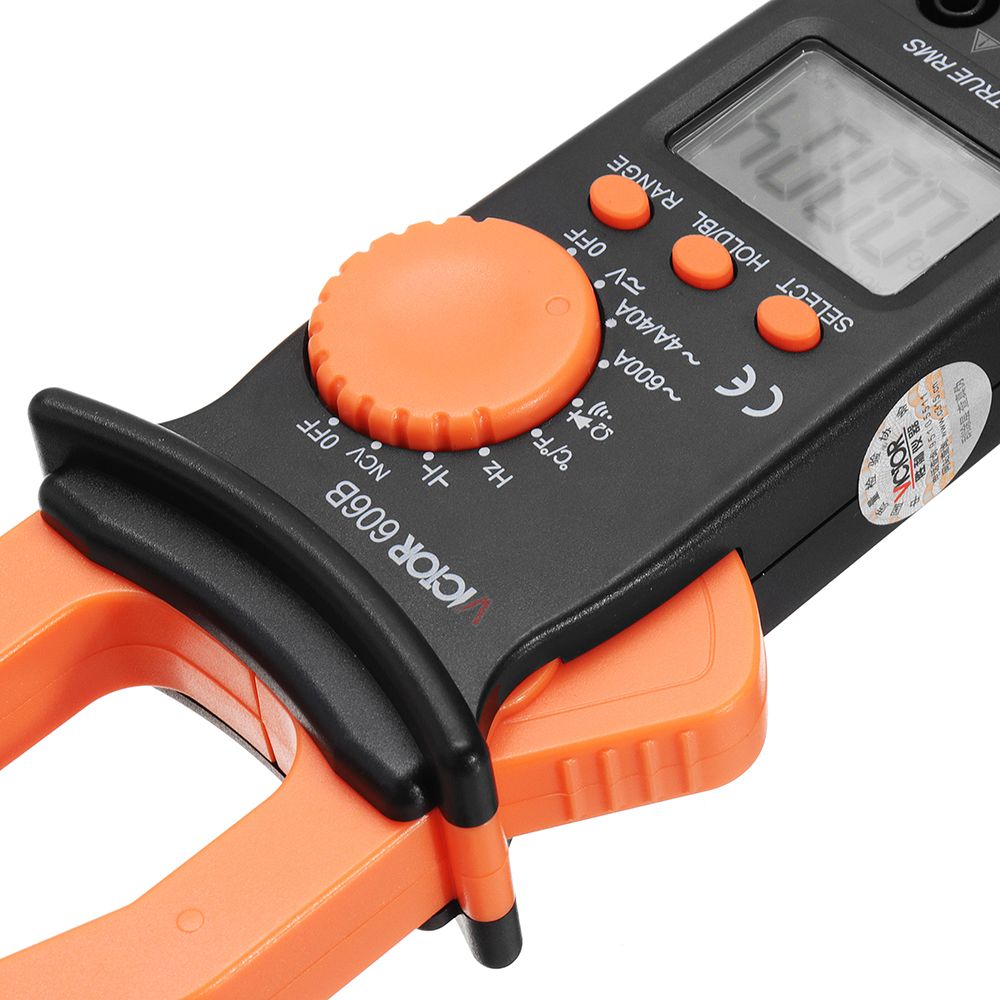

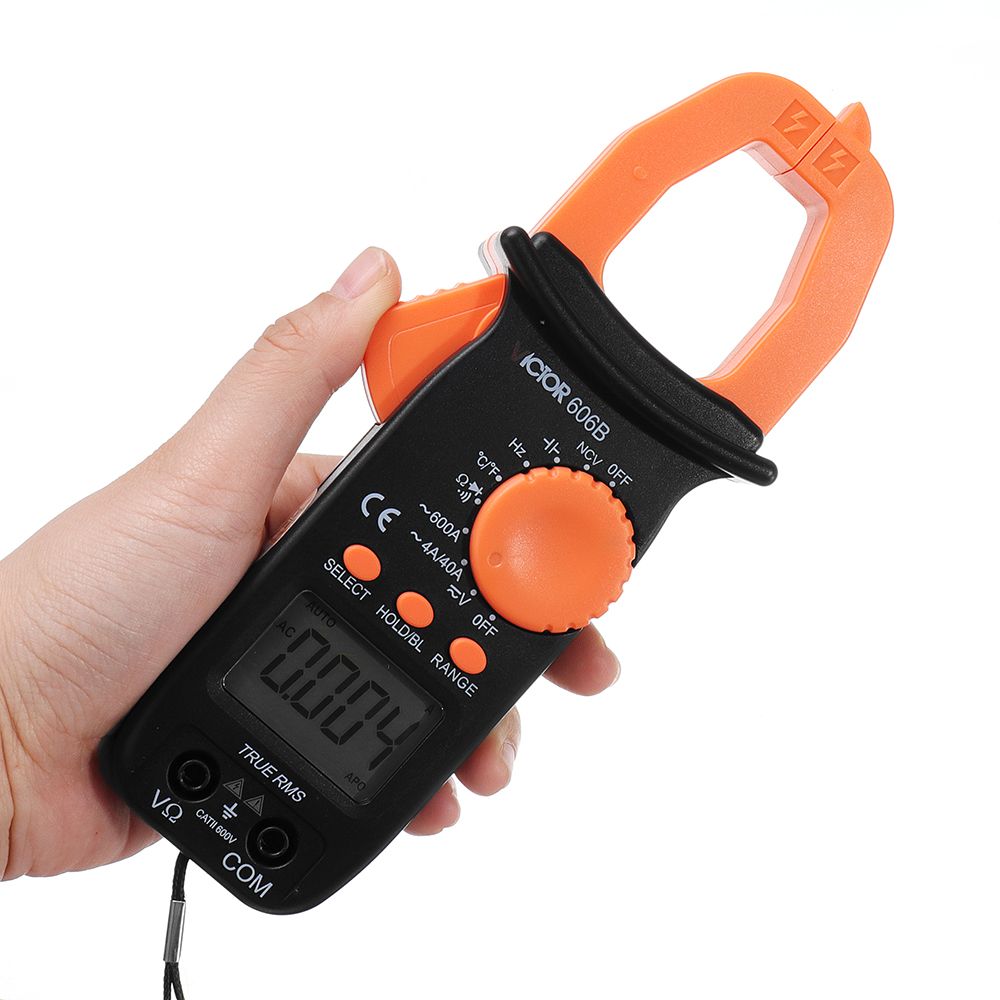

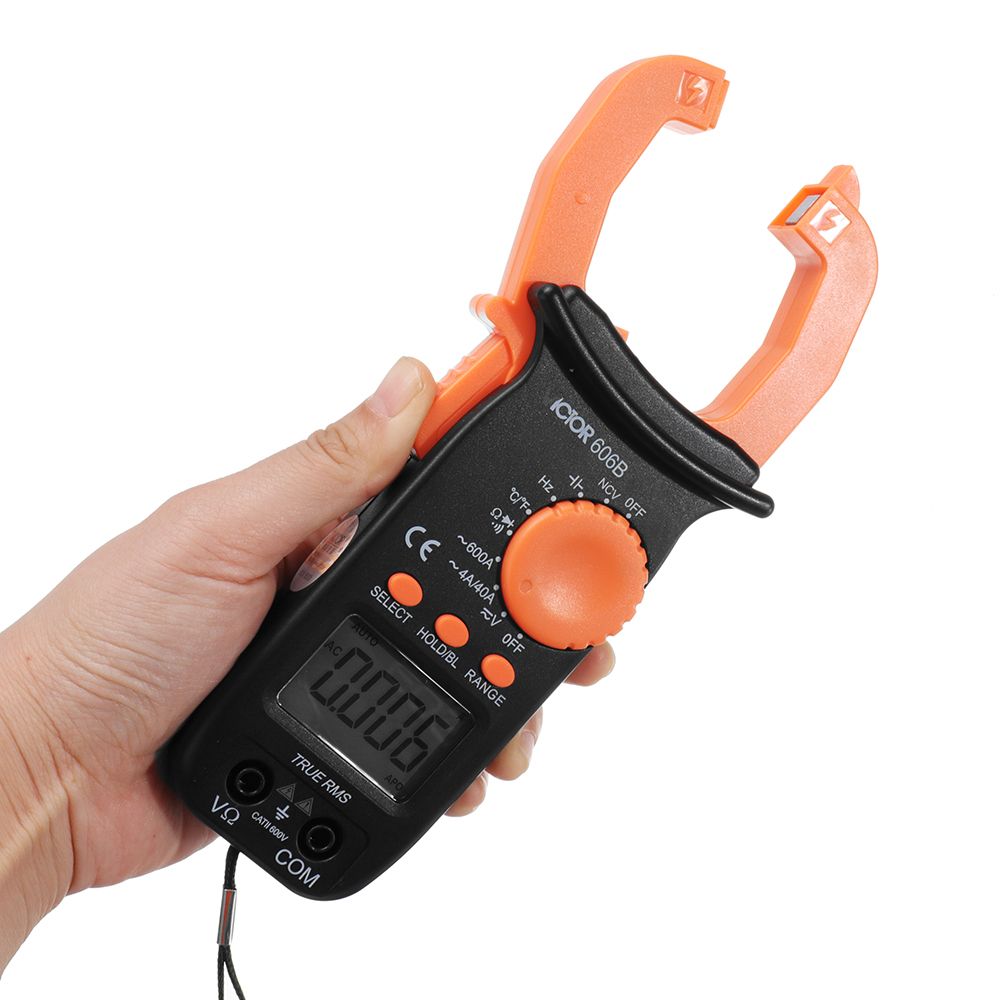

Detail Pictures:
