Anti-Thunder Hand Crank Earth Ground Resistance Tester Meter Testing Instrument 1000Ω Multimeter
- Stock: In Stock
- Model: EB004184
- SKU: EB004184
Feature:
1. Anti-thunder and high accuracy, easy to operate and convenient for carrying.2. This ground resistance tester is suitable for testing resistance and is easy to use and practical.
3. The operation is simple, the dial is clear, the data is intuitive, and the reading is convenient.
4. High quality material, sturdy and durable, anti-friction, anti-corrosion and has long service life.
5. Hand-cranked power generation, with electric generator, suitable for field occasions, environmentally friendly and low carbon
Specification:
Condition: 100% Brand New
Item Type: Earth Resistance Tester
Material: Plastic, Metal
| Model | Measuring Range Ω | Minimum Division Value Ω | Auxiliary Grounding Resistance | Accuracy % |
| ZC29B-1 | 0-10 | 0.1 | ≤ 1000 | 3 |
| 0-100 | 1 | ≤ 2000 | 3 | |
| 0-1000 | 10 | ≤5000 | 3 | |
| ZC29B-2 | 0-1 | 0.01 | ≤500 | 3 |
| 0-10 | 0.1 | ≤1000 | 3 | |
| 0-100 | 1 | ≤2000 | 3 |
Use Temperature and Humidity: Temperature (-20-40)℃; Relative Humidity ≤80%;
Test Temperature and Humidity: Temperature (23±5)℃; Relative Humidity ≤75%;
Rated of the Handle: 150r/min
Tilt Effect: When the meter is tilted by 5° in any direction, the change of the indication value does not exceed 50% of the accuracy;
External Magnetic Field Influence: When the external magnetic field strength is 0.4kA/m, the change amount of the instrument indication value does not exceed 100% of the accuracy;
Insulation Resistance: Not less than 30MΩ under normal temperature and humidity

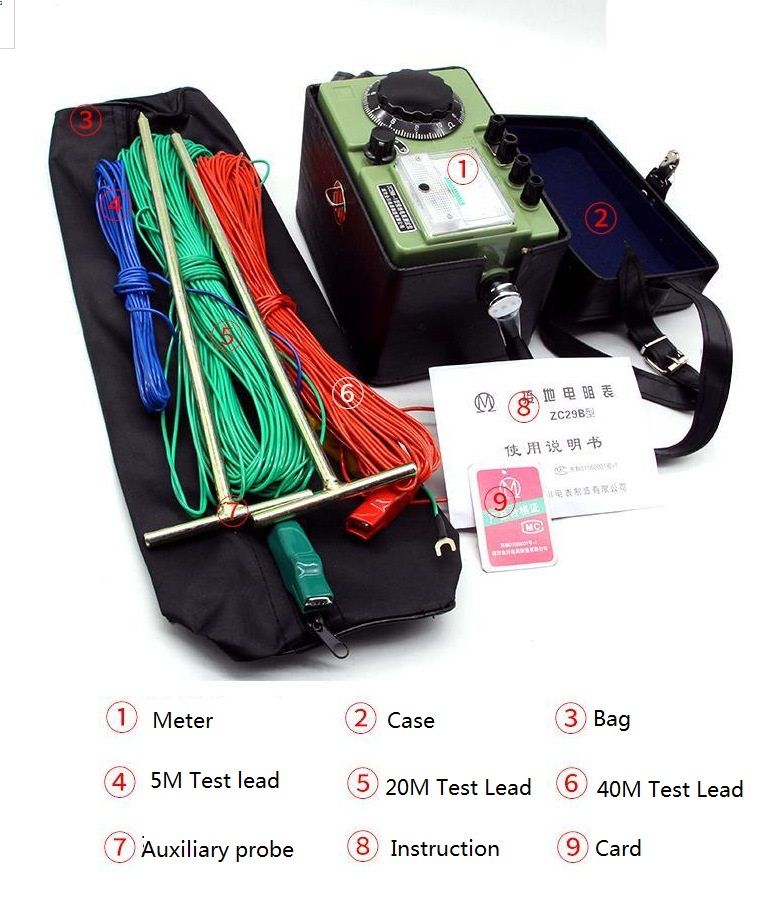

1 x Earth Resistance Tester
1 x User Manual
1 x Set of Accessories

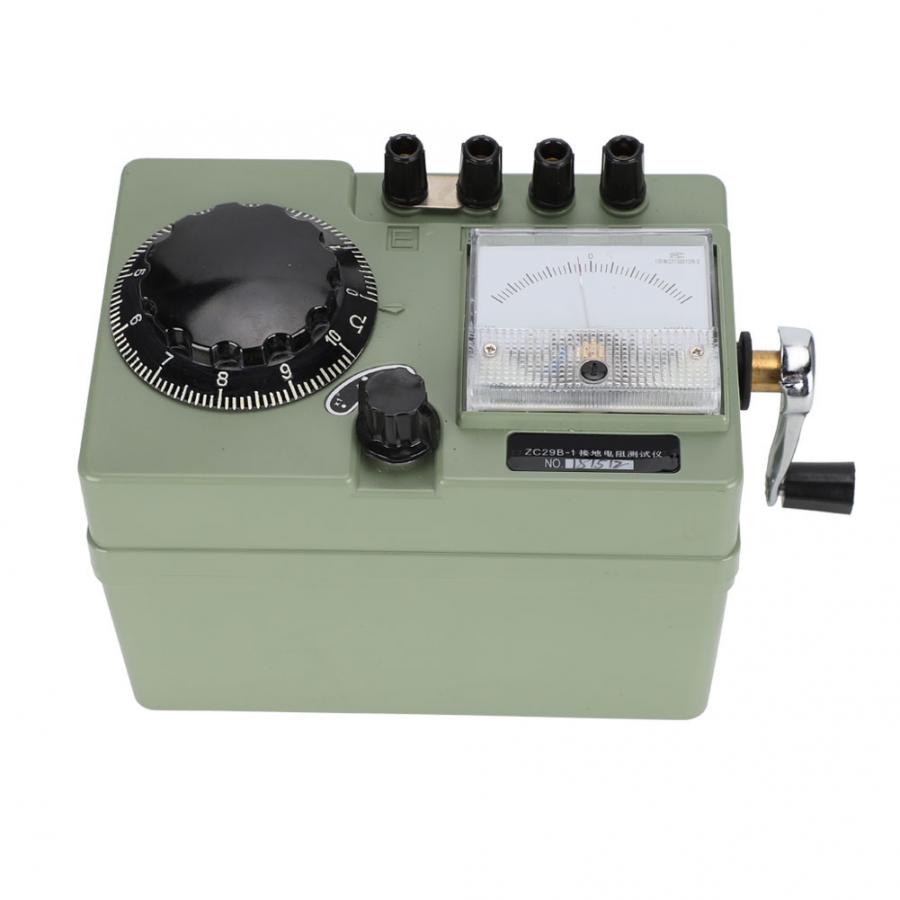

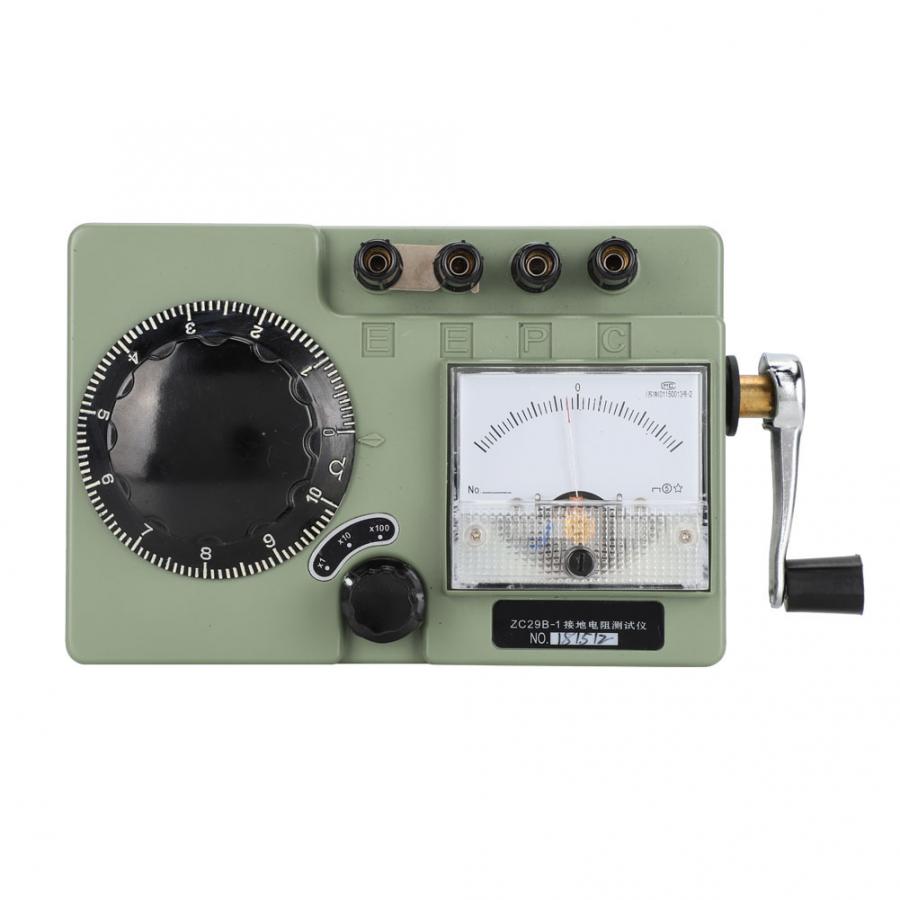

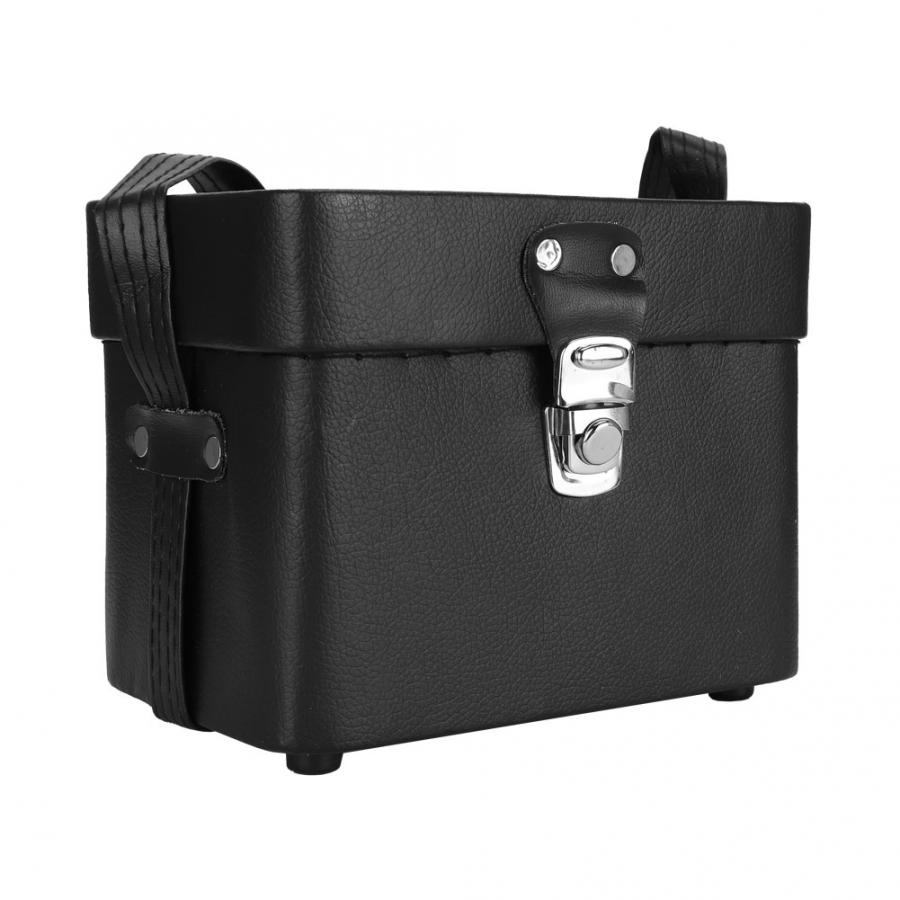

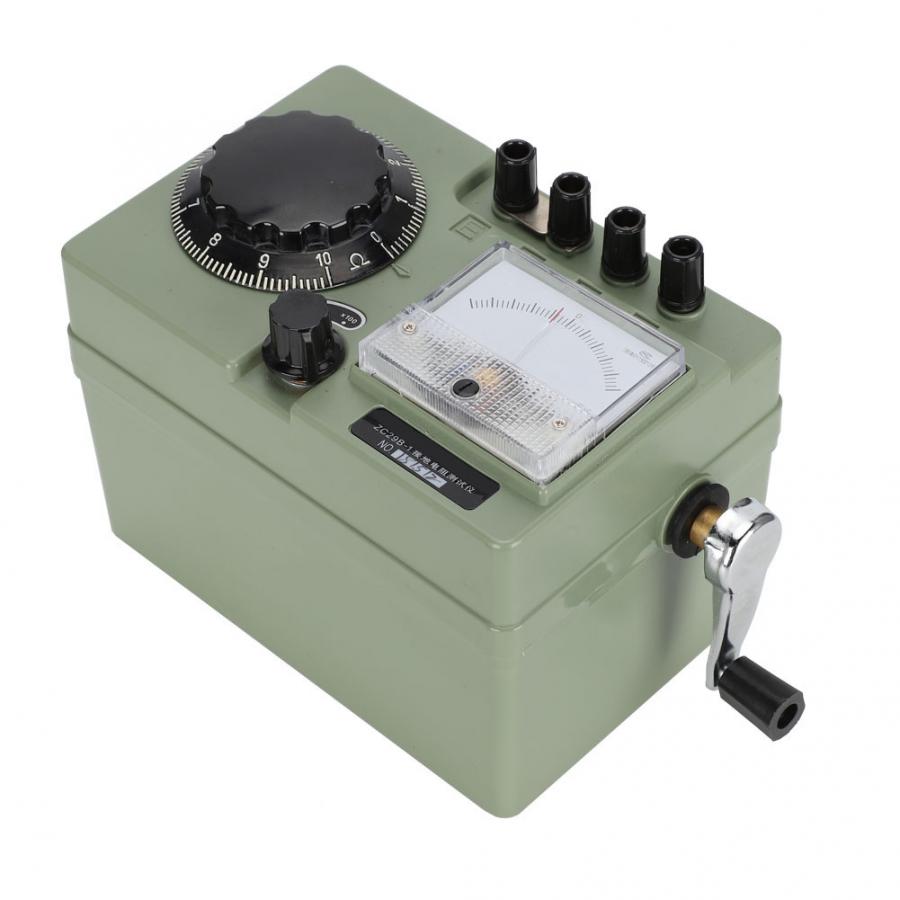

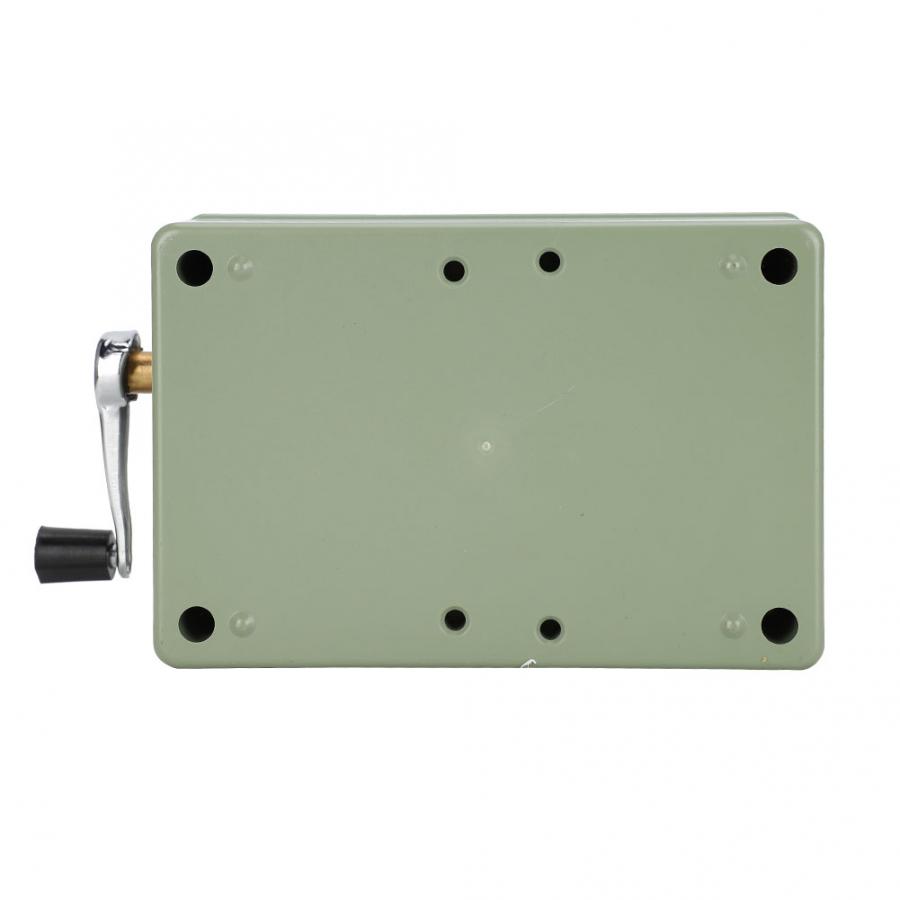

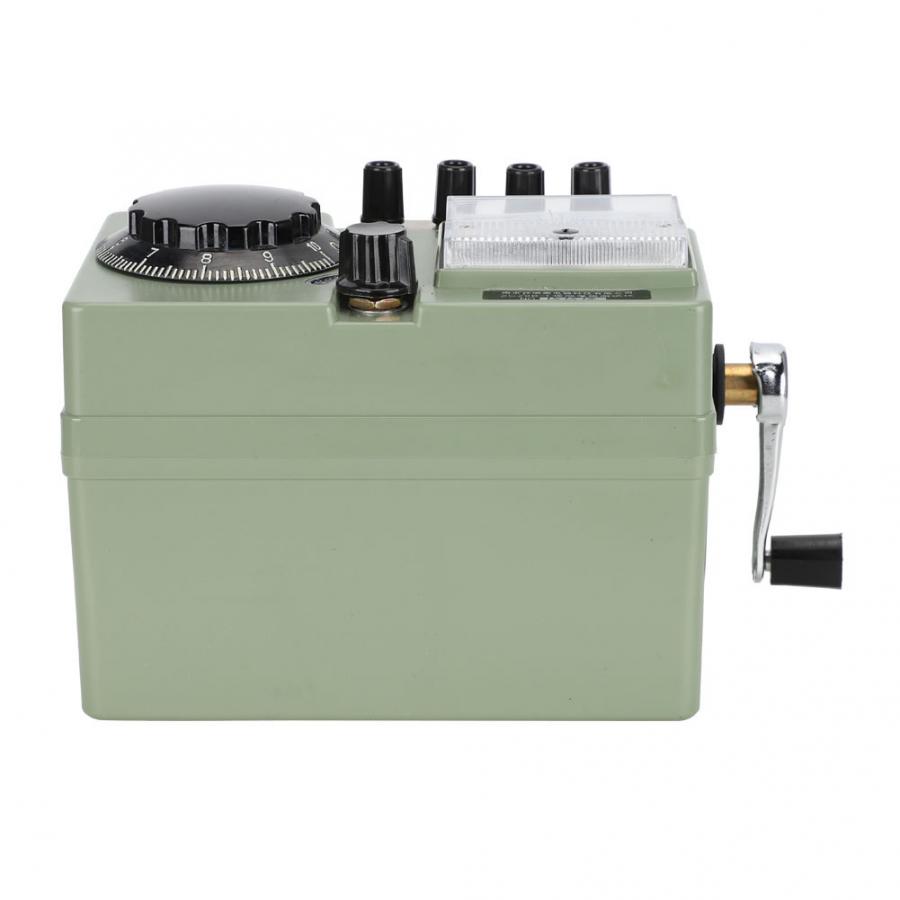

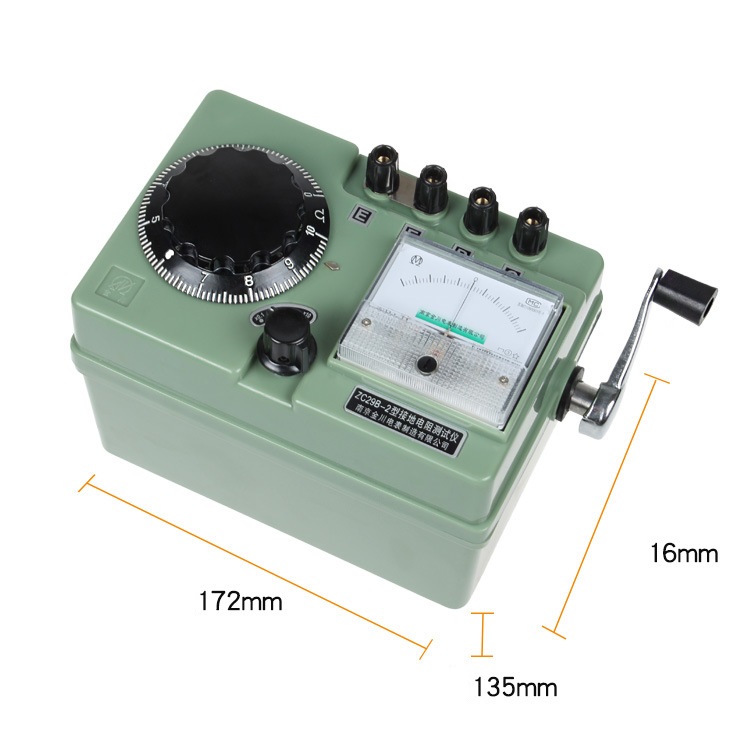

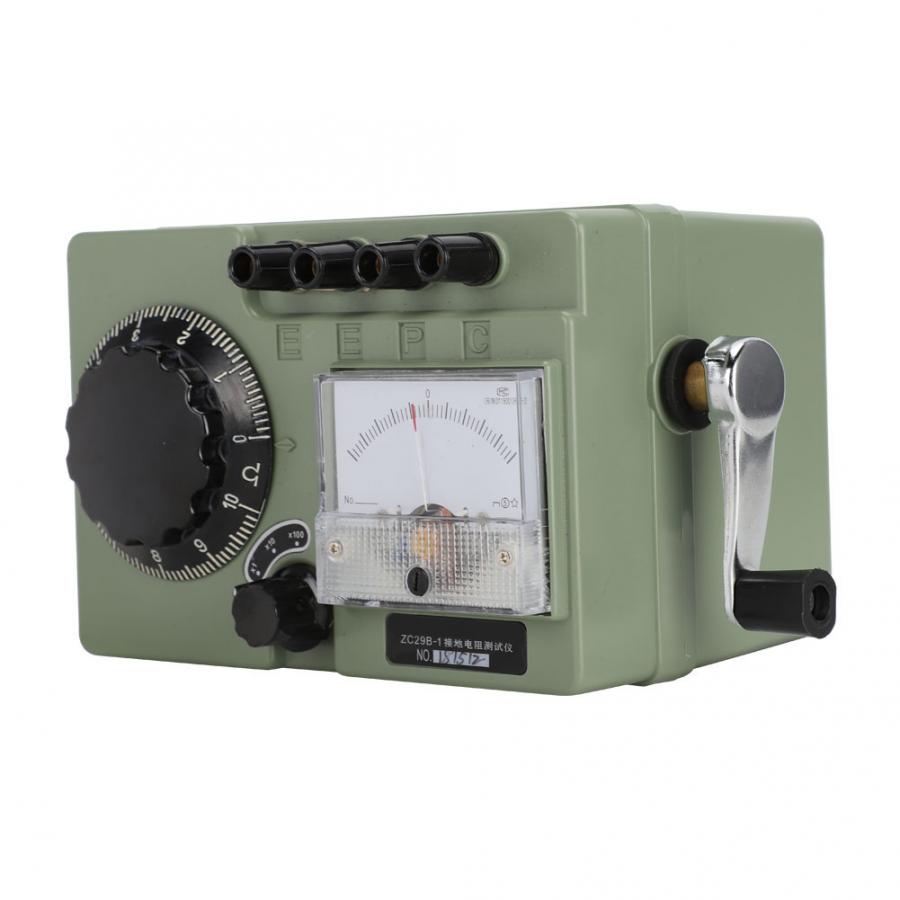

Details Pictures:
