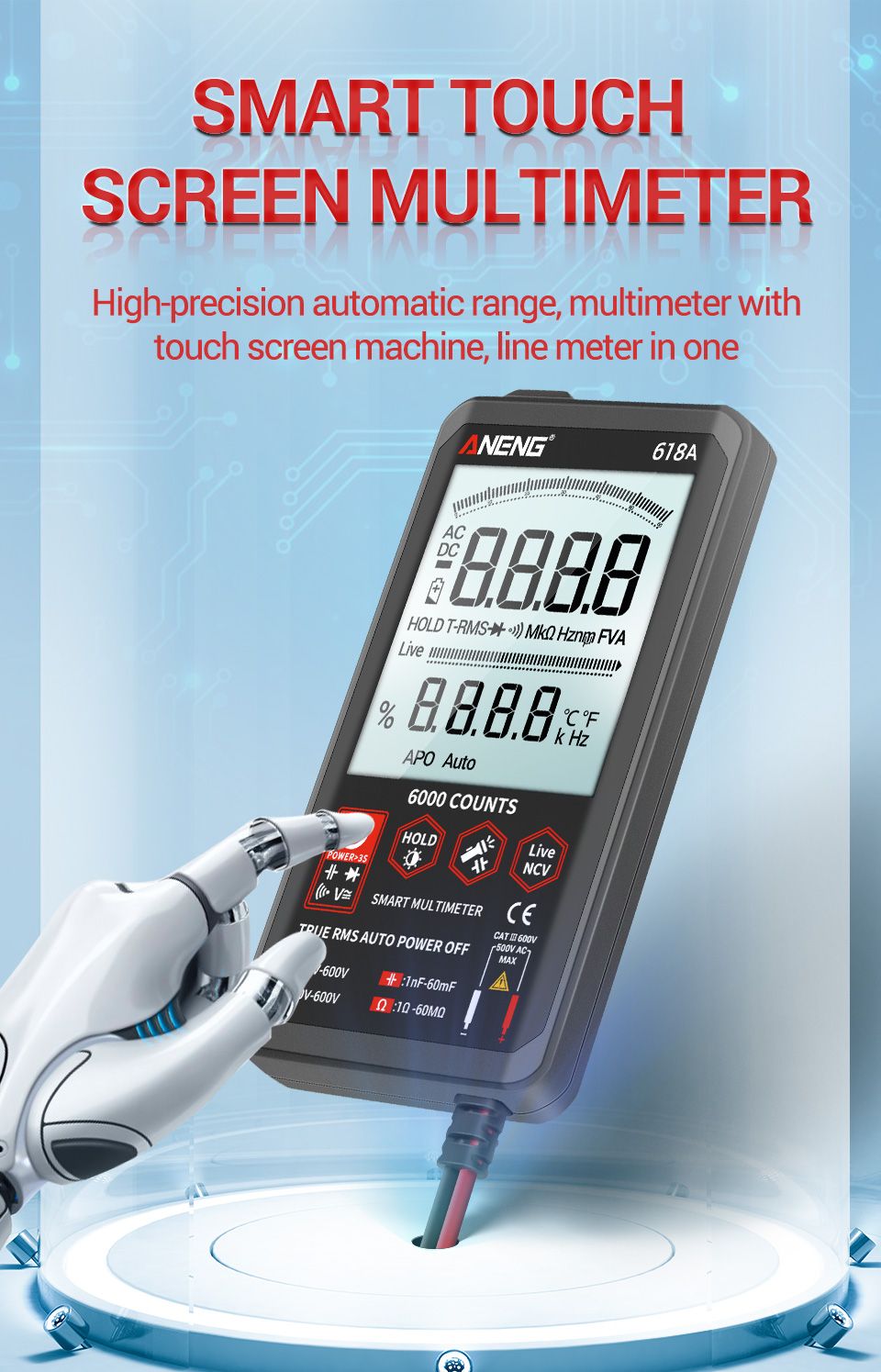

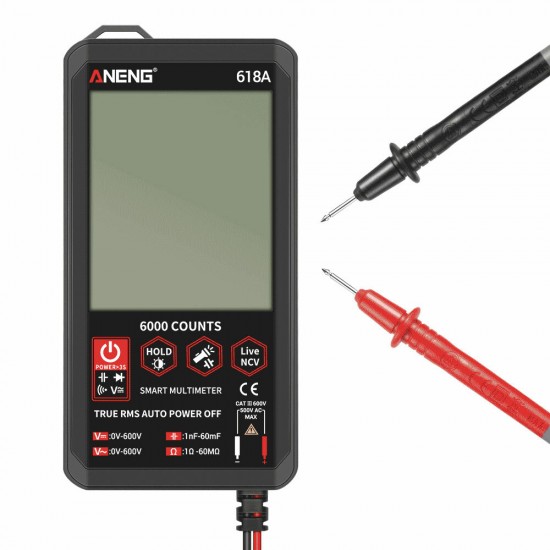

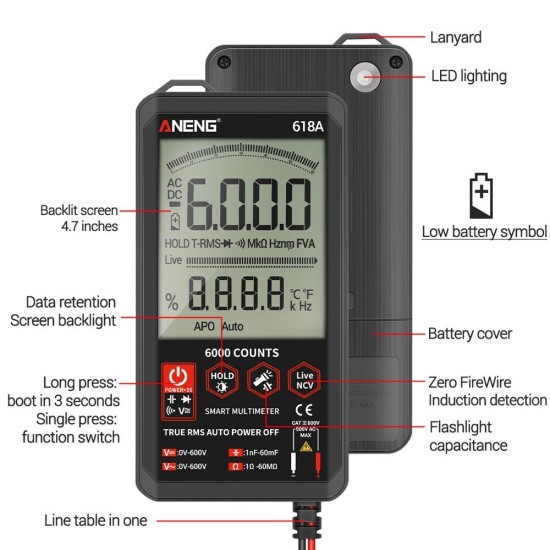

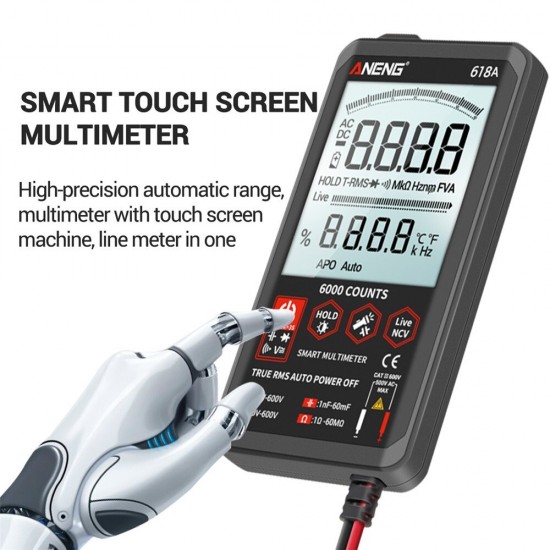

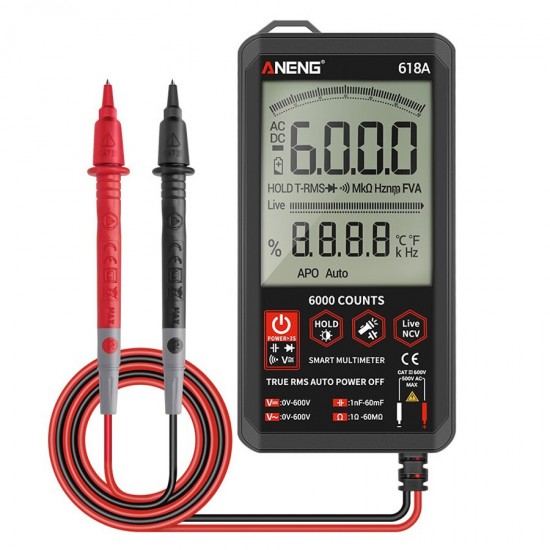

618A Digital Multimeter Professional Smart Touch DC Analog True RMS Auto Tester Capacitor NCV Testers Meter
- Stock: In Stock
- Model: EB004173
- SKU: EB004173
2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%

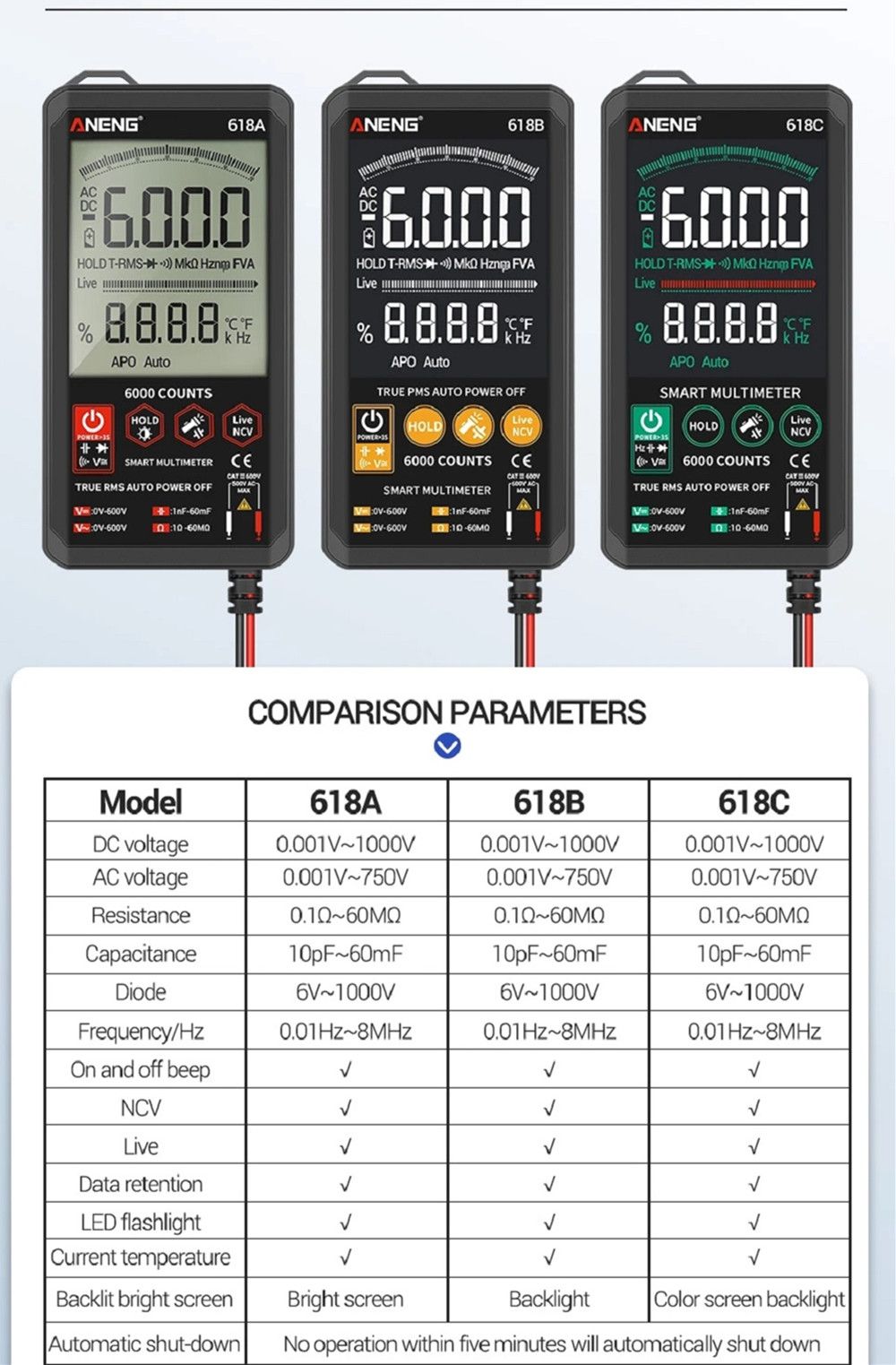

2-2. Performance (Note "√" indicates that the meter has this function)
Function | 618A | 618B | 618C |

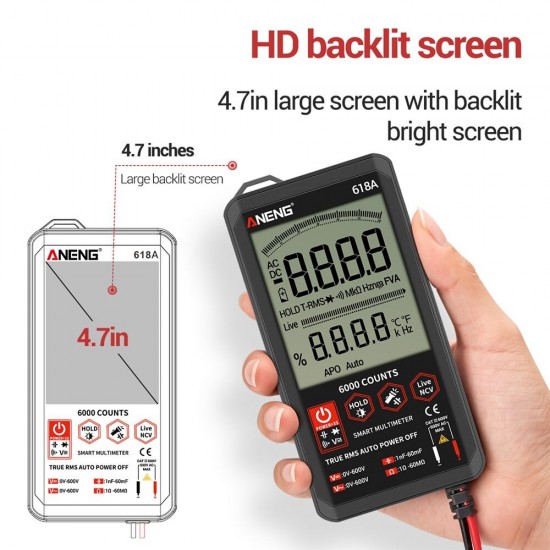

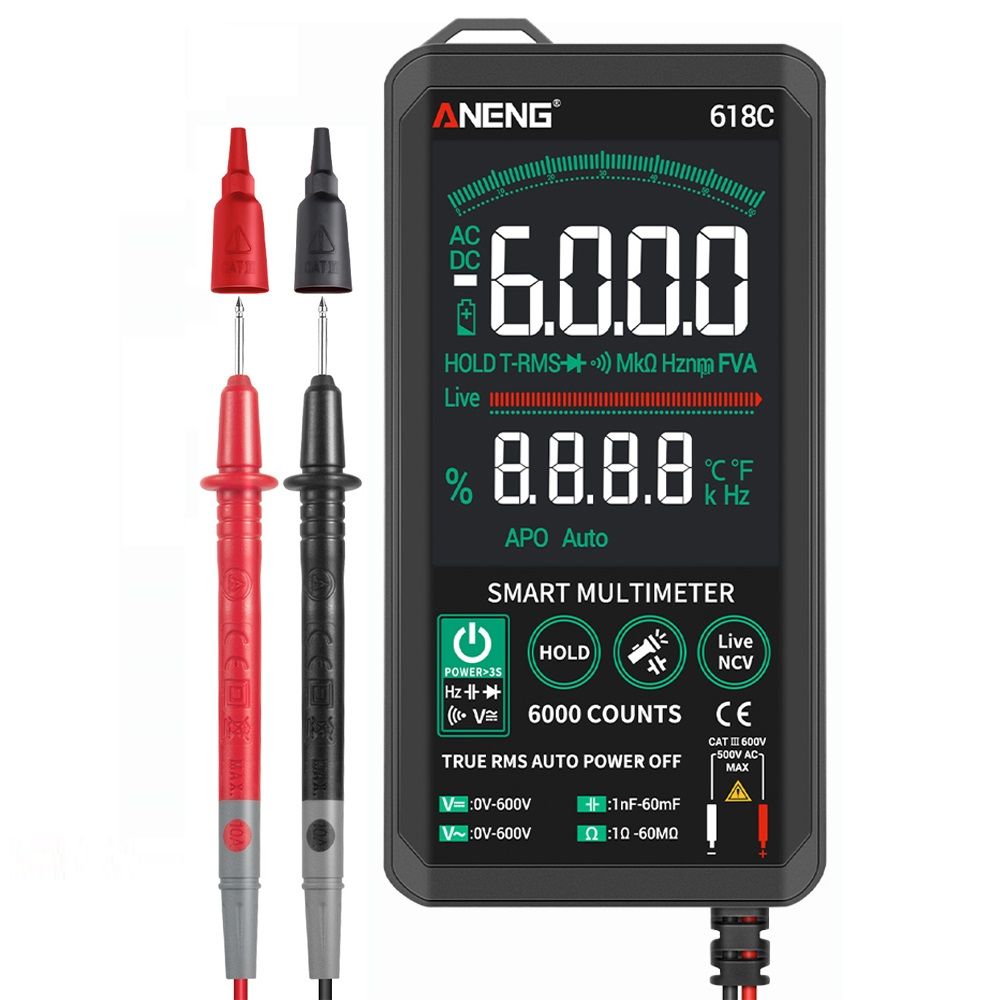

Screen | Normal LCD | VA Screen | Color Scrren |
DC voltage DCV | √ | √ | √ |
AC voltage ACV | √ | √ | √ |
Resistor | √ | √ | √ |
Diode / On-Off Test / Capacitor | √ | √ | √ |
Frequency F | √ | √ | √ |
Touch key | √ | √ | √ |
Continuous power operation | √ | √ | √ |

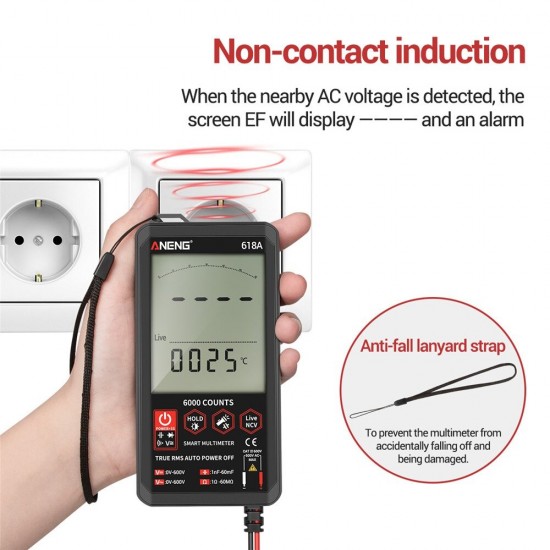

NCV | √ | √ | √ |

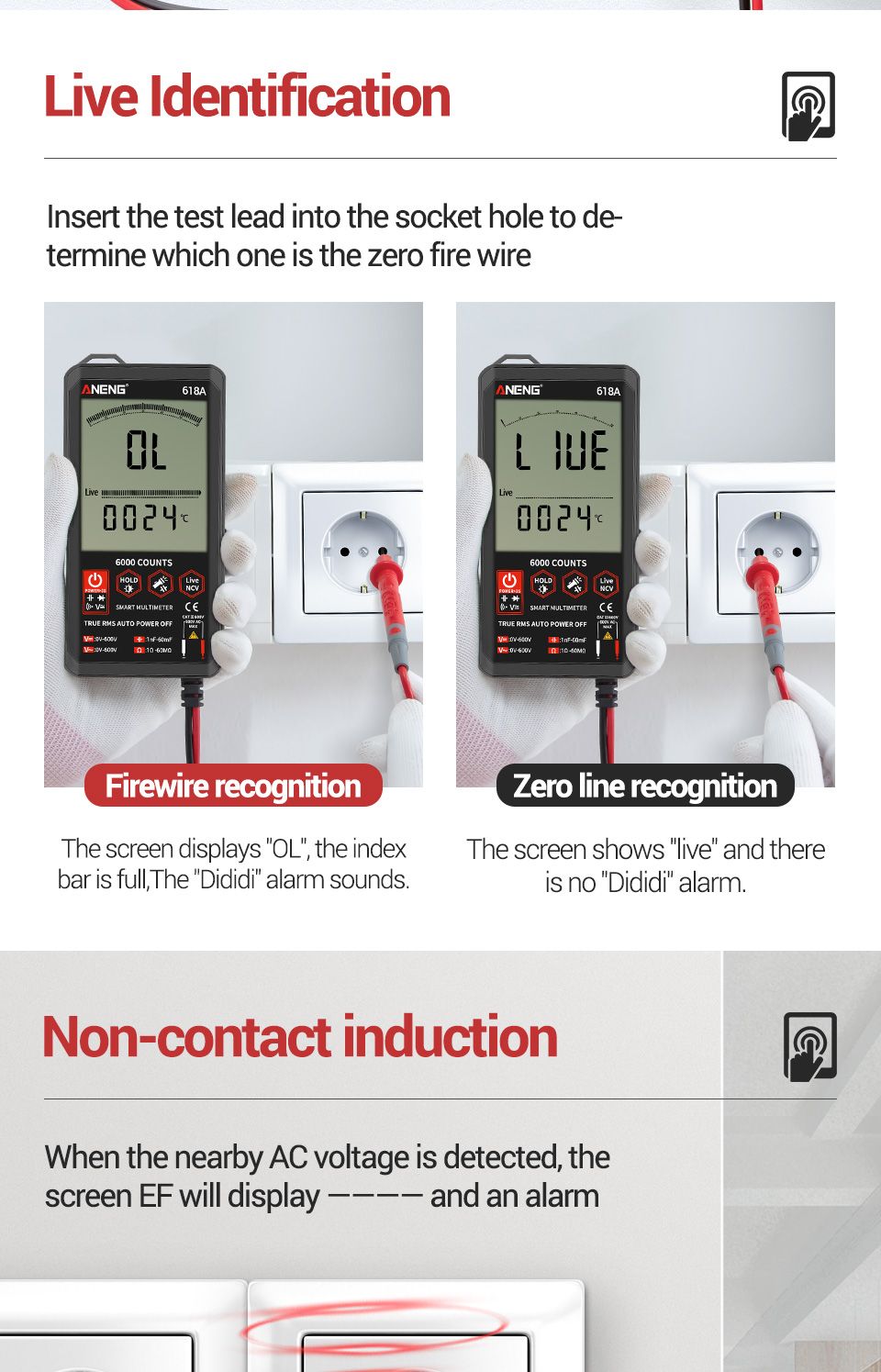

Zero line / Fire line test | √ | √ | √ |
Full unit symbol | √ | √ | √ |
Backlight manual/Auto off | √ | √ | √ |
True RMS measurement | √ | √ | √ |
Temperature(℃/℉) | √ | √ | √ |
Flashlight lighting | √ | √ | √ |
| Range | Accuracy |
DCV / ACV | 6V/60V/600V | ±(0.5%+3) |
DCV / ACV | DC1000V/AC750V | ±(0.8%+10) |
Resistance | 600Ω | ±(0.8%+5) |
| 6kΩ/60kΩ/600kΩ/6MΩ | ±(0.8%+3) |
| 60MΩ | ±(2.5%+3) |
Capacitance | 10nF/100nF /1uF/10uF/100uF/1mF/10mF | ±(3.5%+20) |
| 60mF | ±(5%+3) |
Frequency | 10Hz/100Hz/1kHz/10kHZ/100kHz/1MHz/10MHz(only 618C) | ±(0.1%+3) |
