80mW 405nm Blue-violet Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
- Stock: In Stock
- Model: EB0017472
- SKU: EB0017472

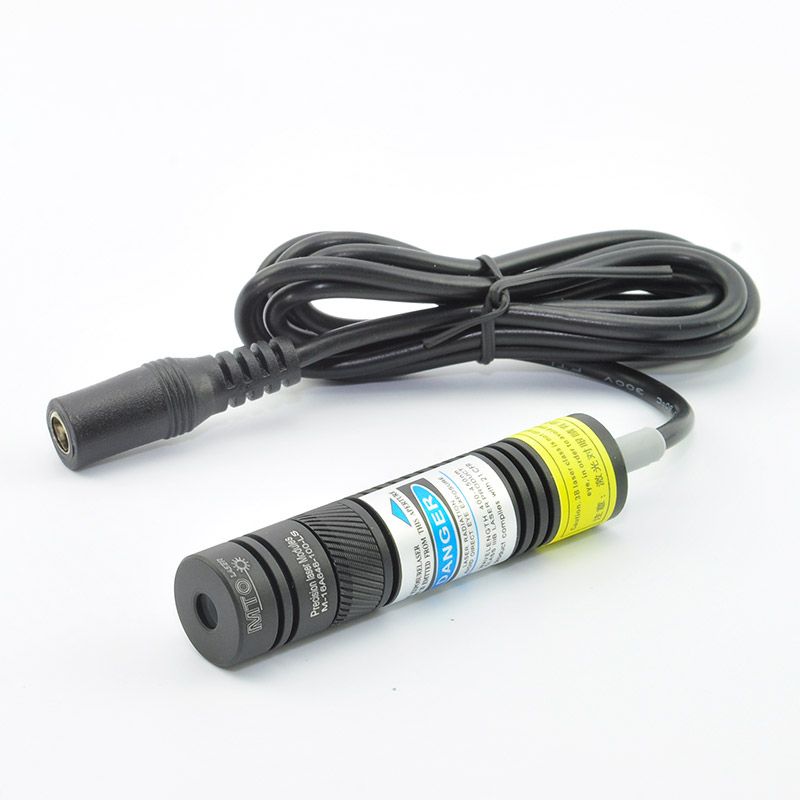

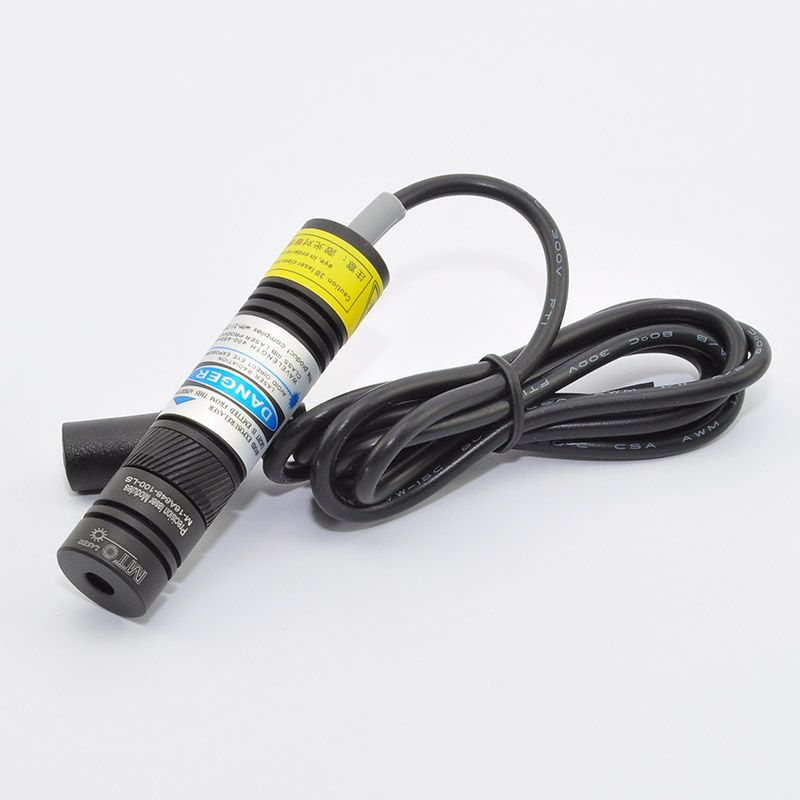

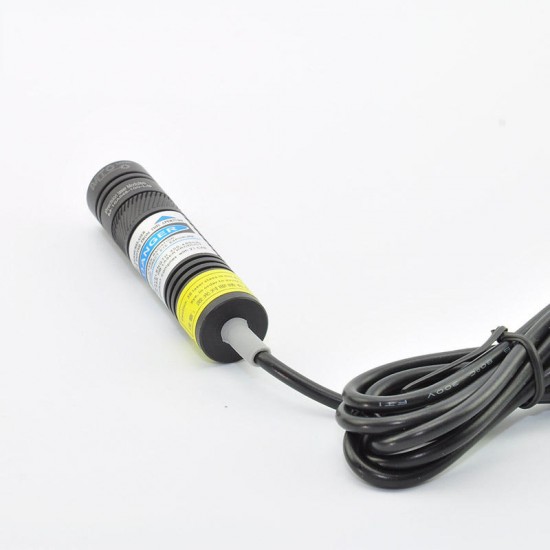

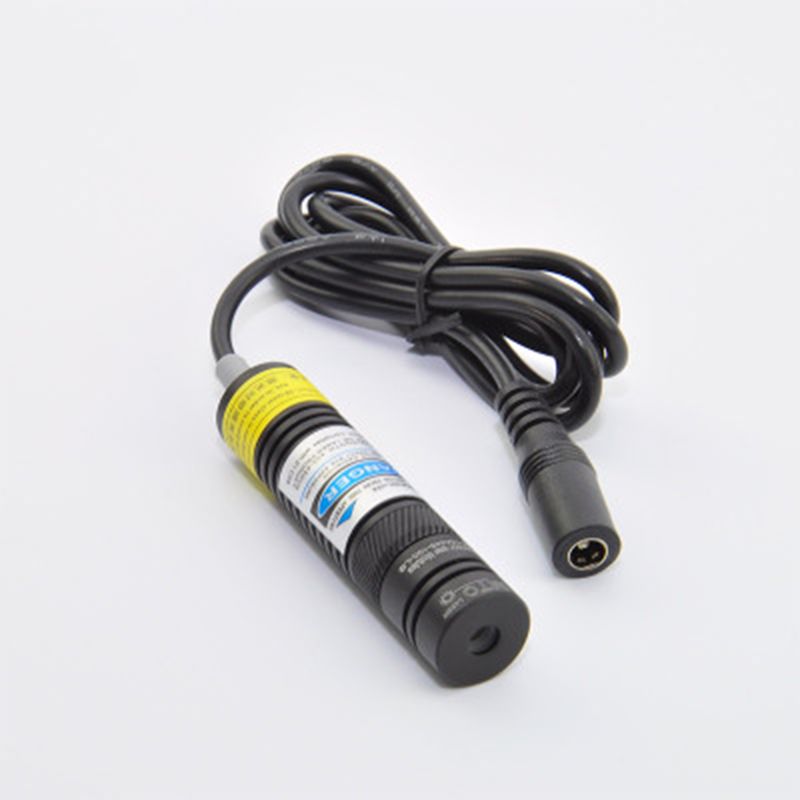

This variable focus 80mW 405nm Blue-violet dot laser module employs qualified 405nm blue-violet laser diode, generates the stable and reliable blue-violet laser dot applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
Specification:
| Brand | Renhotec |
| Laser Power | 80mW |
| Wavelength | 405nm |
| Beam Shape | Dot |

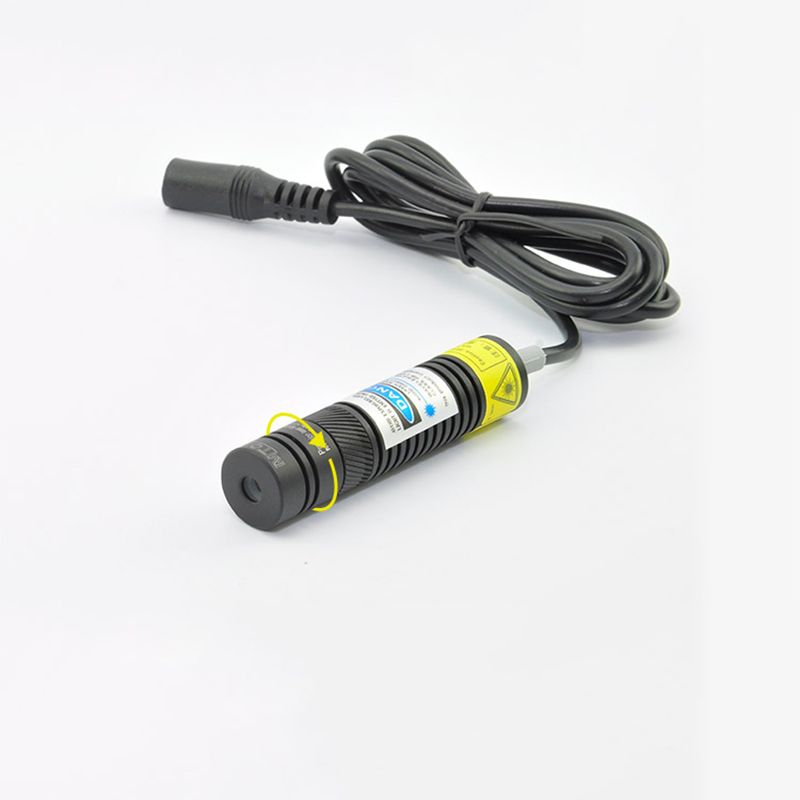

| Variable Focus | YES |
| Output Light | Visible Light |
| Working Voltage | DC 5V |
| Working Current | 90mA |
| Optics | Focus Lens |
| Shell Material | Shell Material |
| Operation Temperature | ±50℃ |
| Service Life | 8000h |

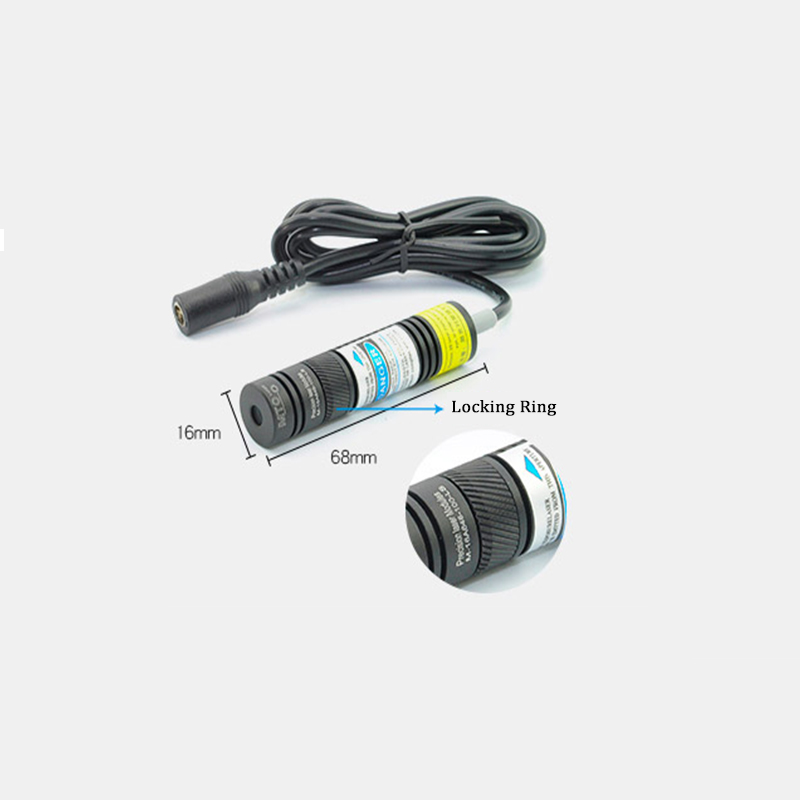

| Dimension (D*L) | 16mm x 68mm (With Locking Ring) |
| Optimum Working Distance | The brightness of 405nm blue-violet lights is weak and not suitable for long-distance use. |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V 0.3A 50-60Hz |
Features:
1.80mW stable output power, variable focus, 405nm blue-violet dot laser module.
2. Good heat dissipation ensures its long service life.

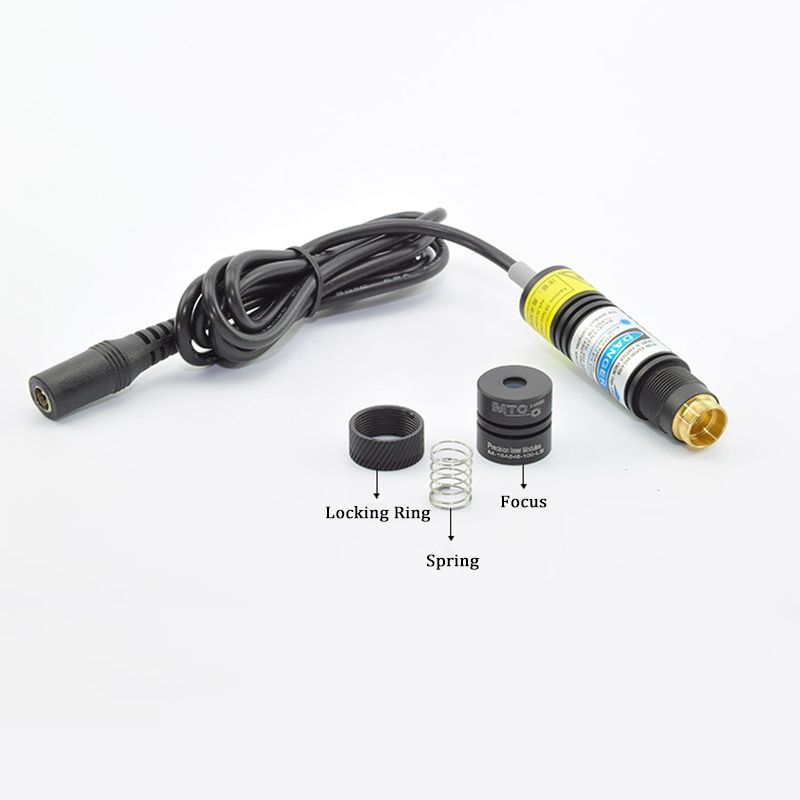

3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

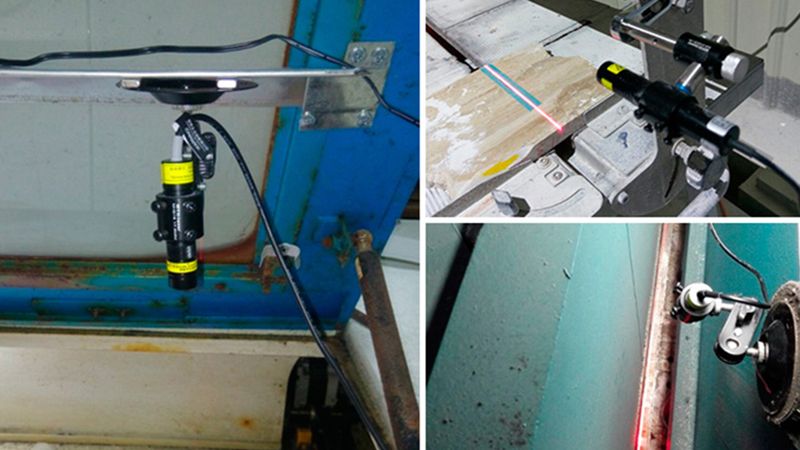

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm
Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.
3. Pay attention not to ignite black objects, be careful when using distances within tens of centimeters.

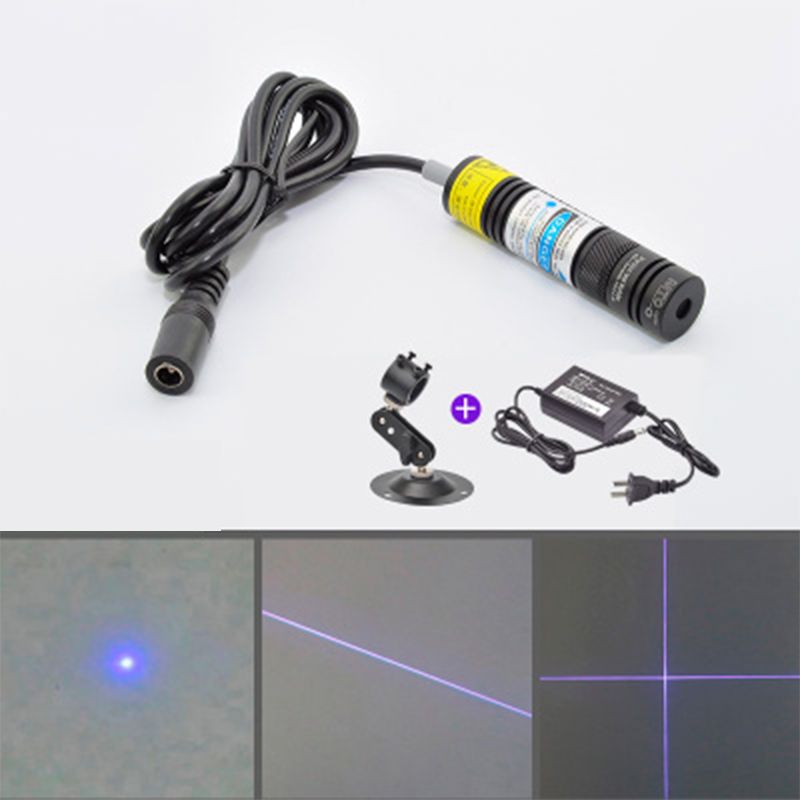

Package Included:
1 x Blue-Violet Dot Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
