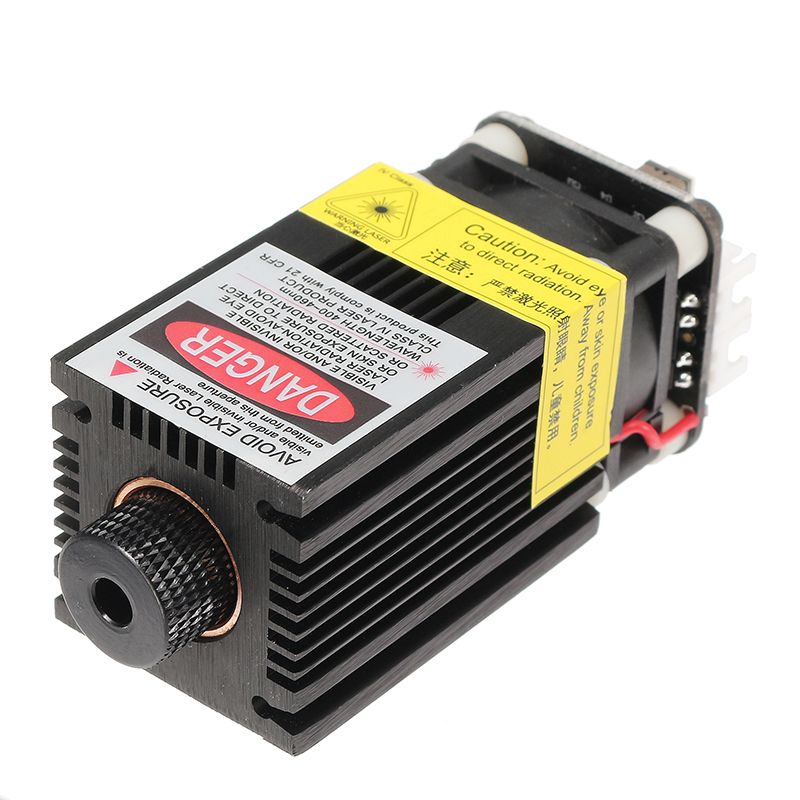

FB03-1600 1600mW Blue Violet Engraving Laser Module 2.54-3P TTL/PWM Modulation
- Stock: In Stock
- Model: EB0017443
- SKU: EB0017443
Specification:
| Brand | Renhotec |
| Model | FB03-1600 |
| Heatsink Material | Aircraft Aluminum |
| Aircraft Aluminum | 1600mW |
| Wavelength | 445nm (Blue Laser) |
| Supply Voltage | DC 12V |
| Beam Shape | Dot (Focusable) |
| Life Time | >10,000 hours |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper |
| Can Not Engrave | Metal/Glass/Ceramics/PCB/Reflective Material/ Transparent Material |
Features:
- New version EleksMaker® laser module, exquisite workmanship and nice appearance.
- 445nm 1600mW focusable blue violet laser module, with TTL / PWM function, can control the power.

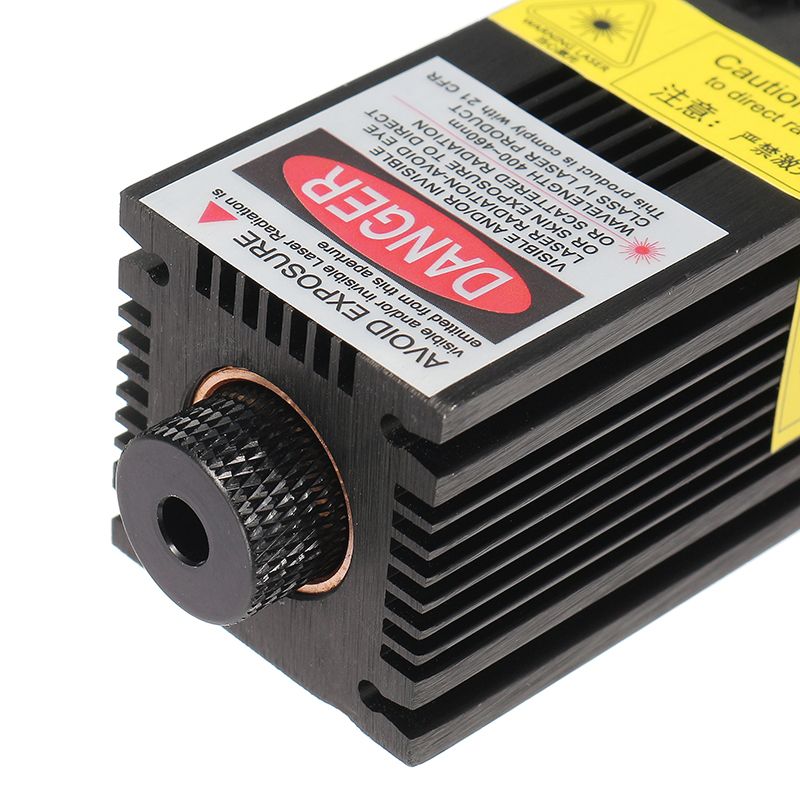

- New Aircraft aluminum heatsink with cooling fan ensure long working time continuously.

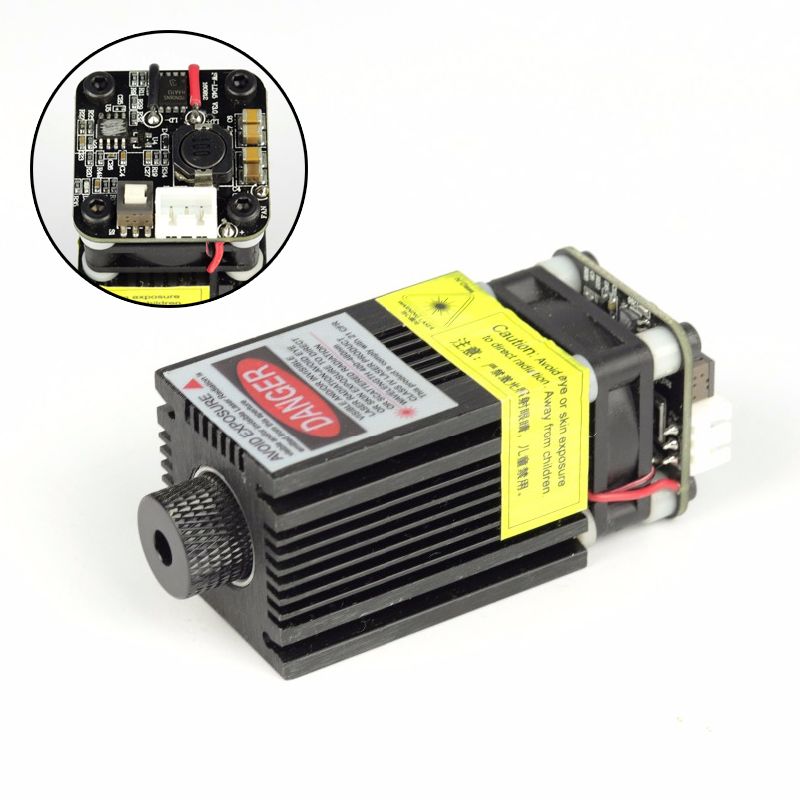

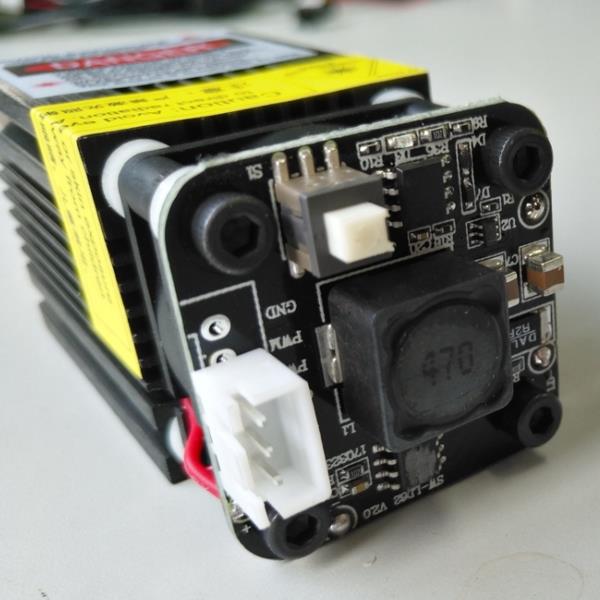

- Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
- 3 pins plug, PWM drive mode, suitable for laser engraving machine equipment usage.
Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
to your video and problem description. Thank you in advance.
6. This laser module is compatible with our EleksMaker machine.
Package Included:
1 x 1600mW Laser Module

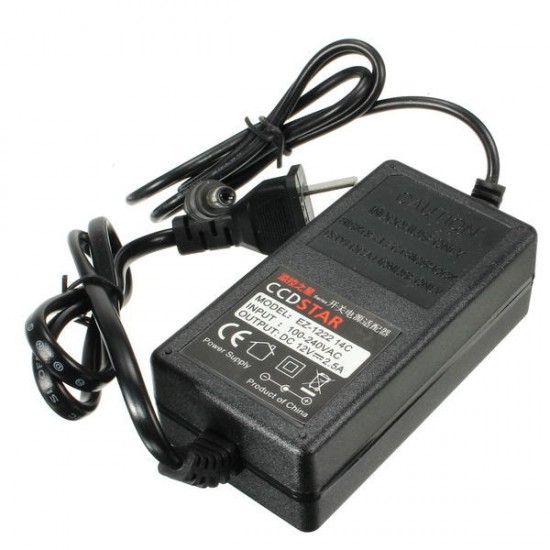

1 x Power Supply
1 x DC2.1-XH2.54-3P Cable
1 x XH2.54-3P Cable
1 x Plug Adapter(According to your country)
