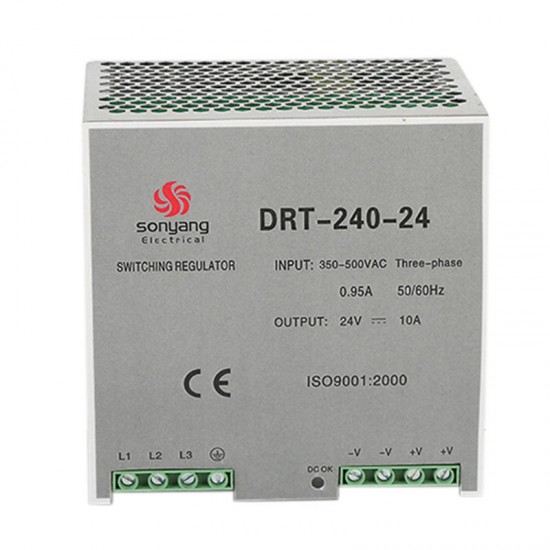

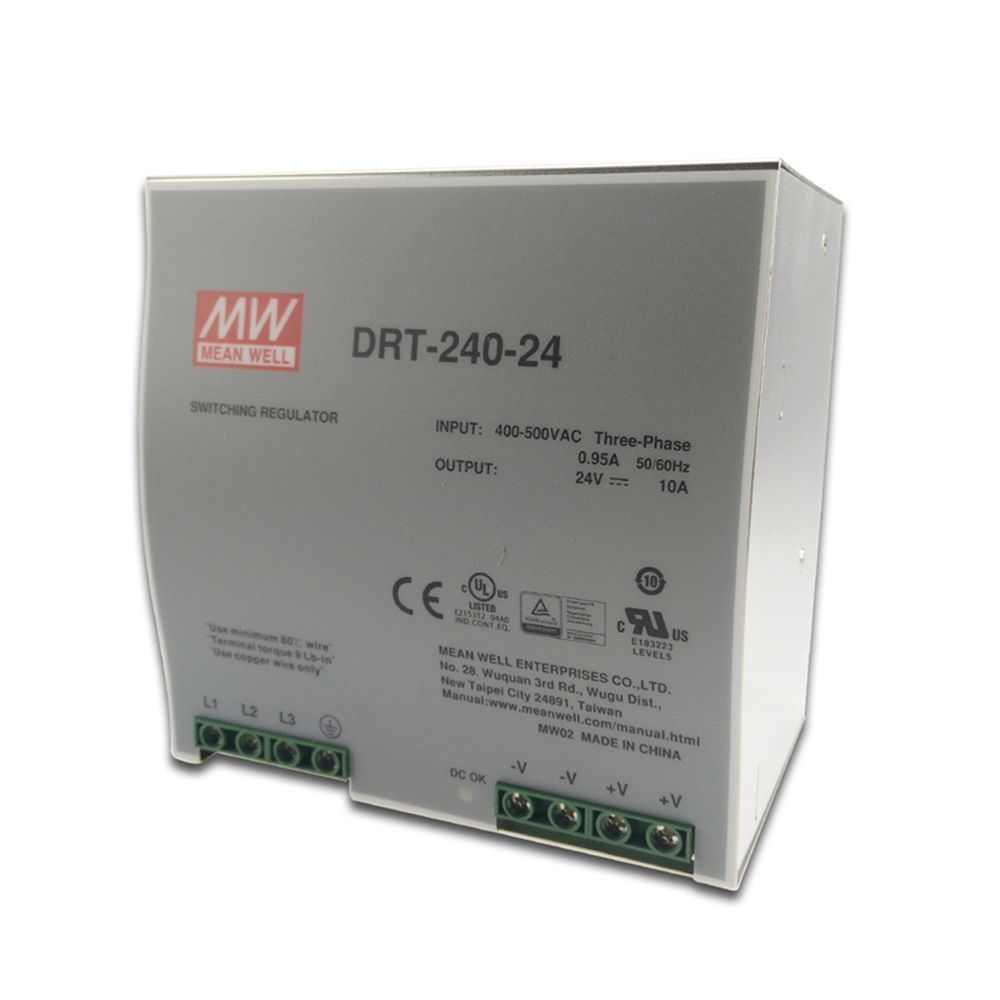

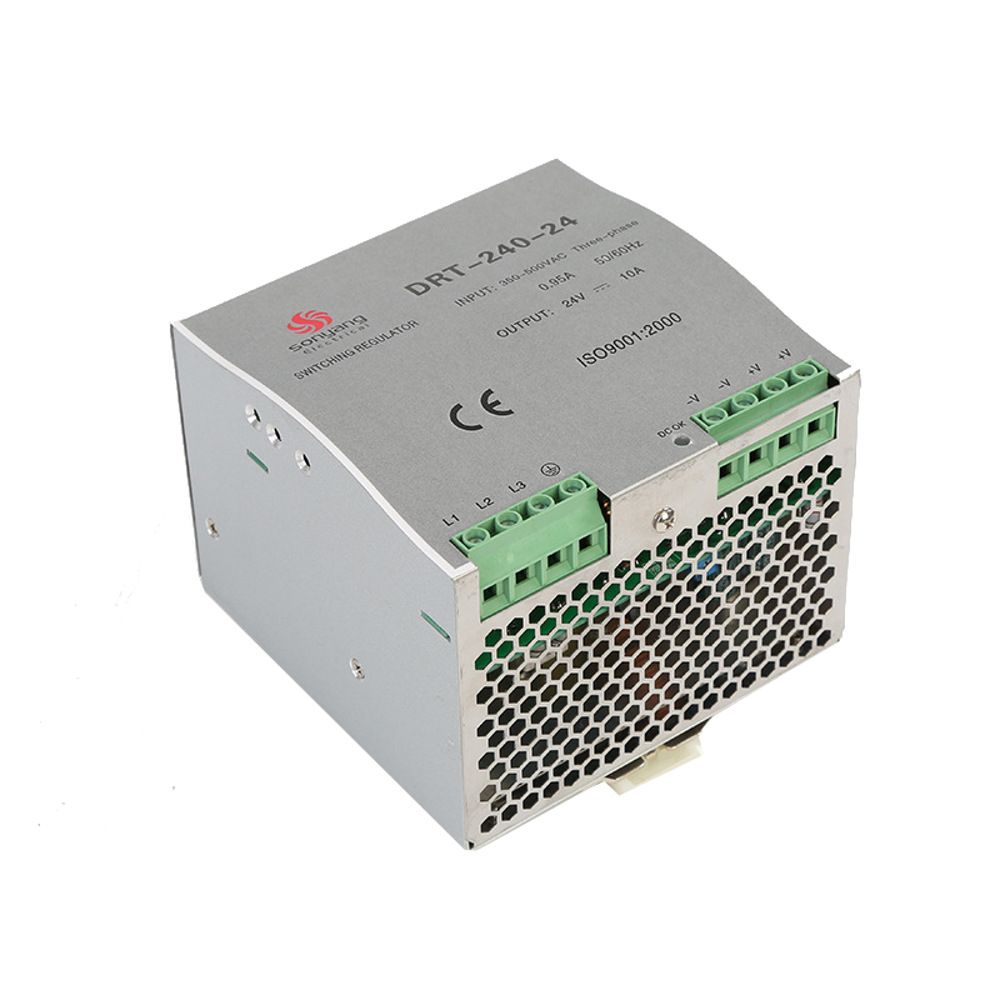

Three Phase Industrial Din Rail Switching Power Supply Driver AC 380V To DC 12/24V 240W Single Output
- Stock: In Stock
- Model: EB0030774
- SKU: EB0030774
1.The shell is made of high quality alluminum material, conductive safer.
2. Stable working efficiency, soft start current, Effectively reduce AC input impact.
3.Multi-protections: built in short-circuit, over-voltage, low-voltage, over-load, over-heat protections, automatically reply.

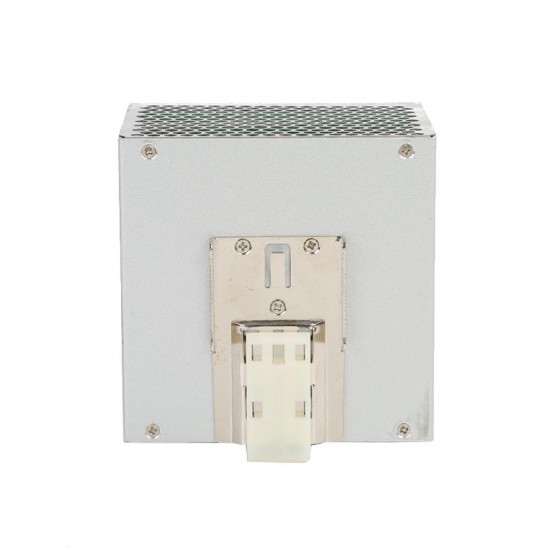

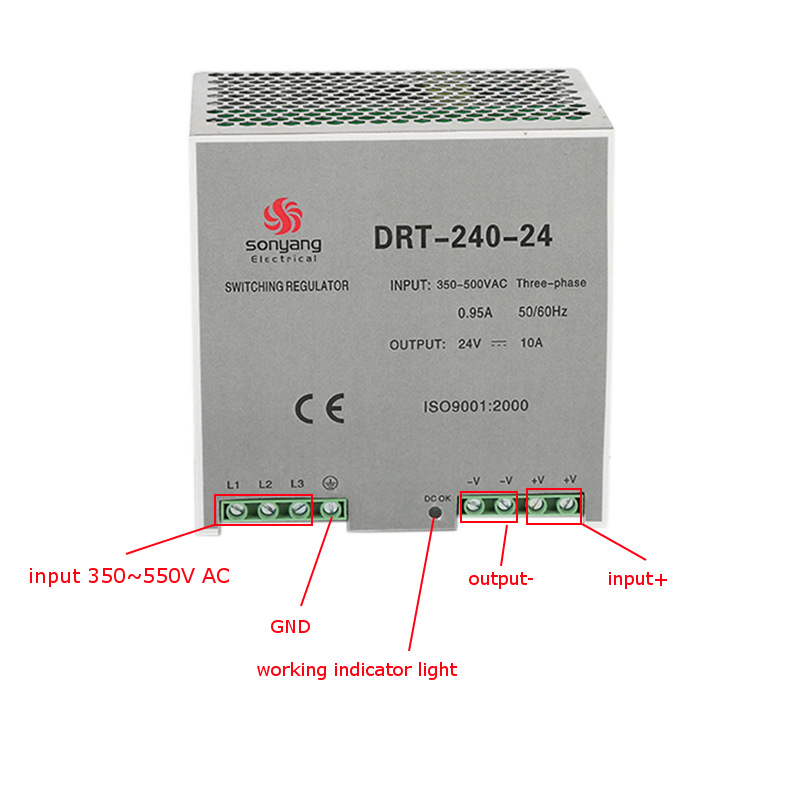

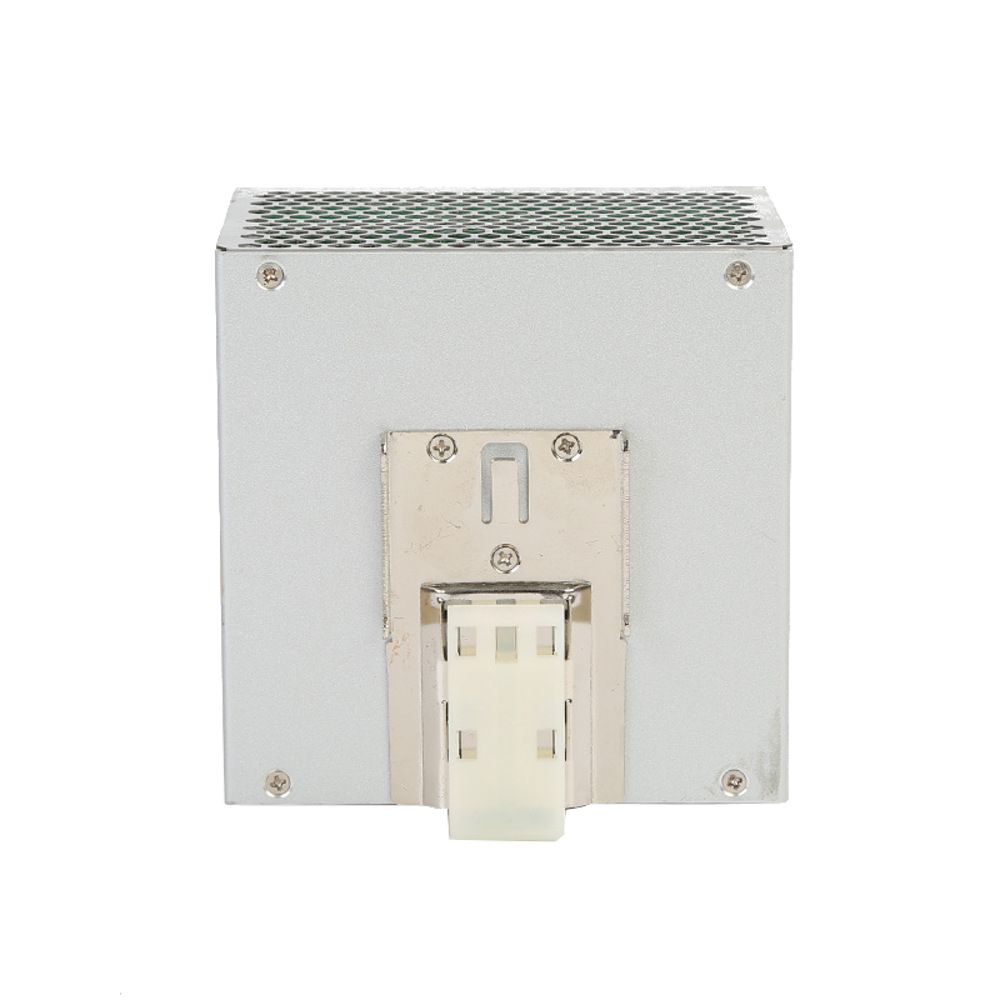

4.Rail mounting, small size, easy to install, with multiple wiring ports on the output.
5.Widely used in kinds of DC equipments, DC motor stepless speed adjustment, battery charging, Industrial automation,
LED light strip display, student experiment, communications, etc.
Specification:
Product: Switching Power Supply
Type: AC/DC power
Model: DRT-240
Transistor Connection: Half bridge
Input Voltage: AC 350~550V±15%
Rated Input Voltage: 380V AC
Output: DC 12 20A / DC24V 10A
Output Power: 240W
Output Voltage Accuracy: 0.2(%)
MV: <100MV
Working Efficiency: ≥85%
Load Regulation: ±5%
Output Voltage Regulation: ±5%
Input Frequency Range: 47~63Hz
Modulation Mode: PWM
Working Temperature: -20℃~+60℃
Security Standard : CE
Size: Approx. 65*125*100
Gross Weight: Around 1.3kg
Package Included:
1 X Switching Power Supply
