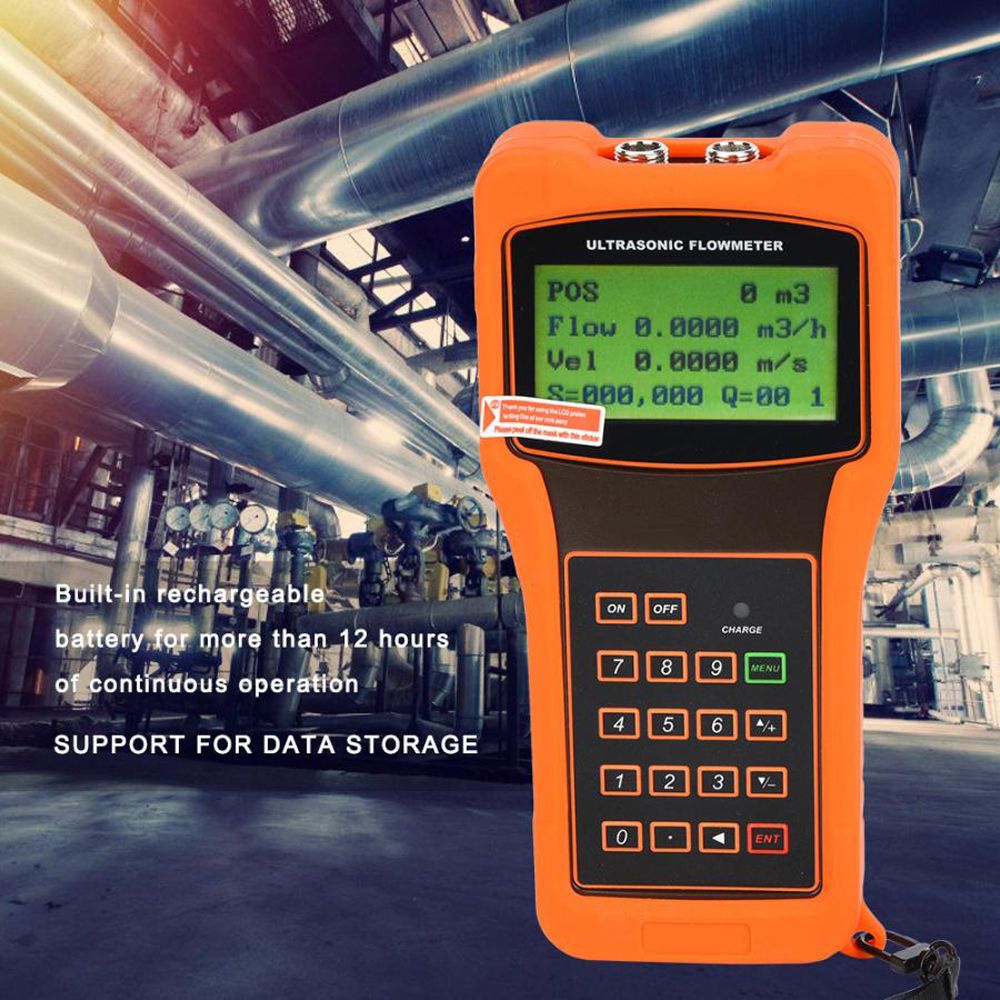

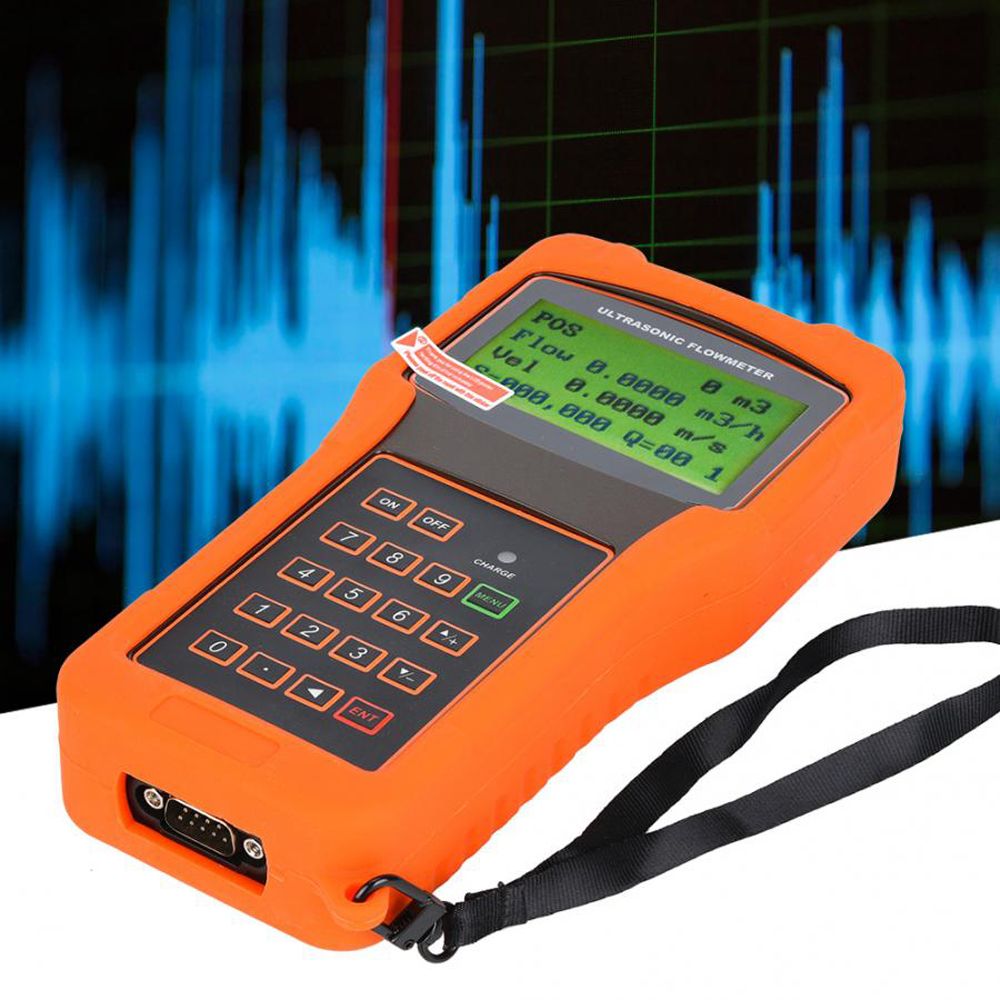

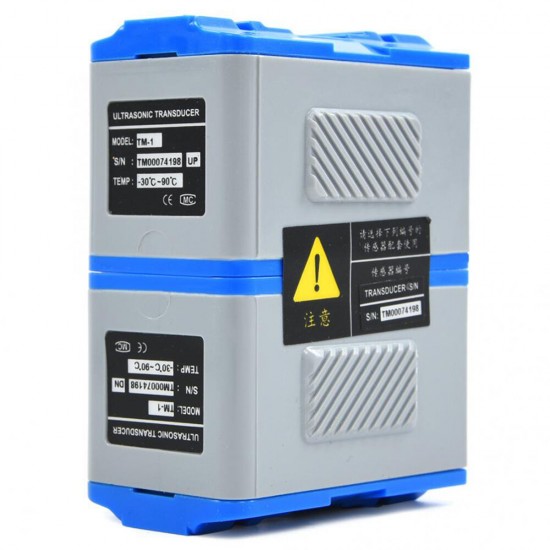

TUF-2000H Digital Ultrasonic Flowmeter DN50-700mm TM-1 Transducer Liquid Flow Meter
- Stock: In Stock
- Model: EB006299
- SKU: EB006299
Features:
High accuracy measuring: Accuracy: plusmn1%, linearity: 0.5%, repeatability: 0.2%
Wide measuring range: DN50-700
Large capacity battery: Ni-MH battery, operate over 12 hours
Non-intrusive measuring: clamp on transducer, no pressure drop
Support multiple language menu: Chinese, English, Italian and other language can be customized.
Large LCD display: show varieties of results like accumulated flow rate.
Built-in data logger: store over 2000 lines measuring data
Specification:
| Items |
| Performance & Parameter |
|
Meter | Principle | Transit time ultrasonic flowmeter |
| Accuracy | plusmn 1% | |
| Display | 4times16 character LCD with backlight, support the language of Chinese, English and Italian | |
| Signal Output | 1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms) | |
| Data Interface | Insulate RS232 serial interface, upgrade the flowmeter software by computer | |
|
Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 50~700mm | |
| Straight Pipe | Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. | |
|
Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~160degc | |
| Turbidity | Less than 10000ppm and little bubble | |
| Flowrate | 0 ~ plusmn7m/s | |
| Working Environment | Temperature | main unit: -20~60degc; Transducer: -30~160degc |
| Humidity | main unit: 85%RH; Transducer protection level: IP67 | |
| Power Supply | 3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation). Achieve to continuous measurement by connecting AC 90V - 260V adapter. | |
| Power Consumption | 1.5W | |
| Housing Material | Inflaming retarding ABS | |
| Main unit Weight | 390g | |

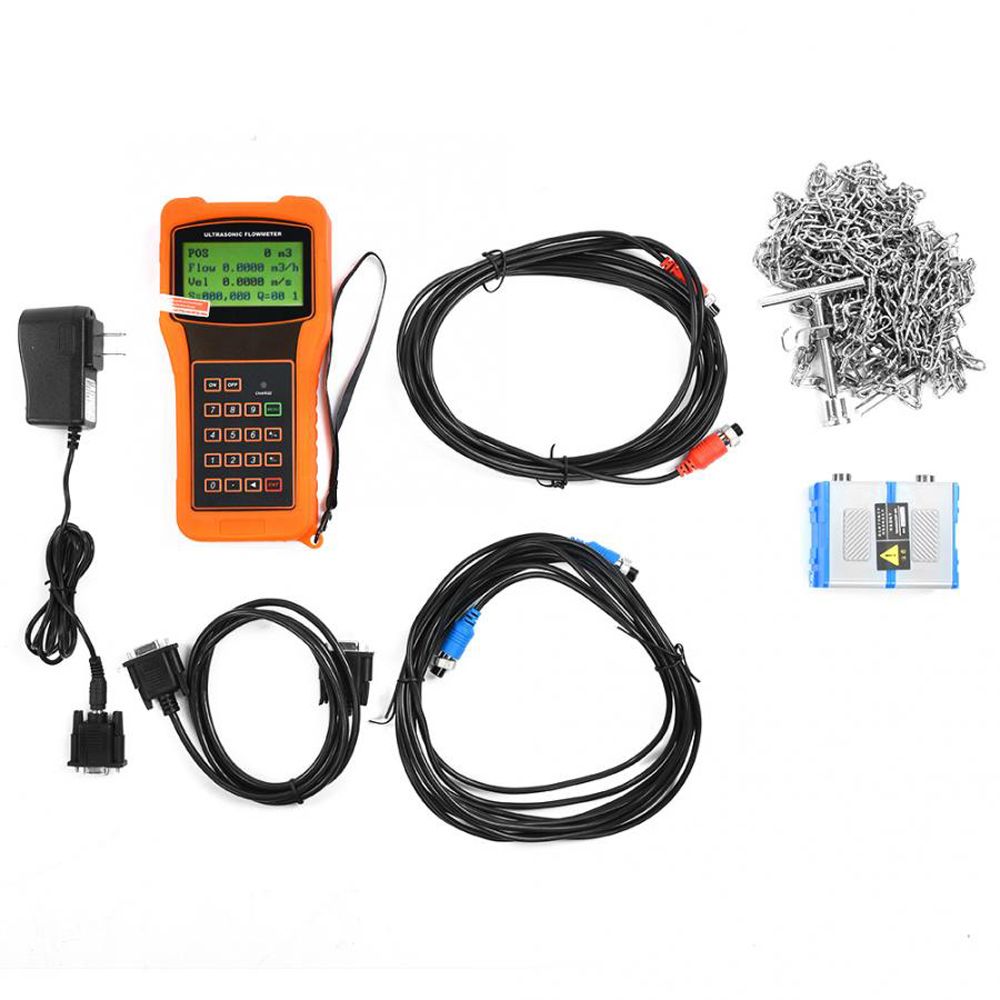

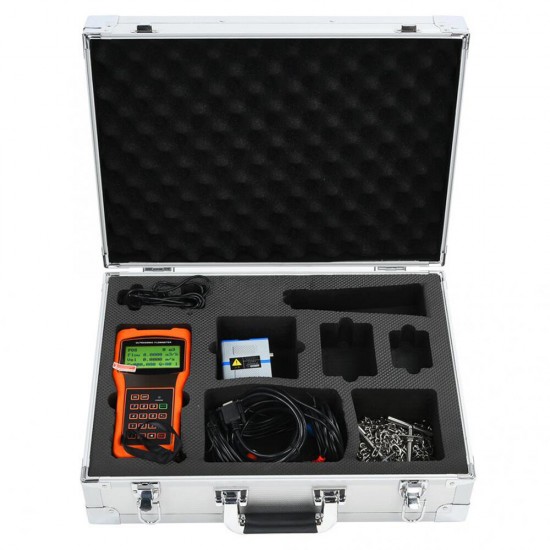

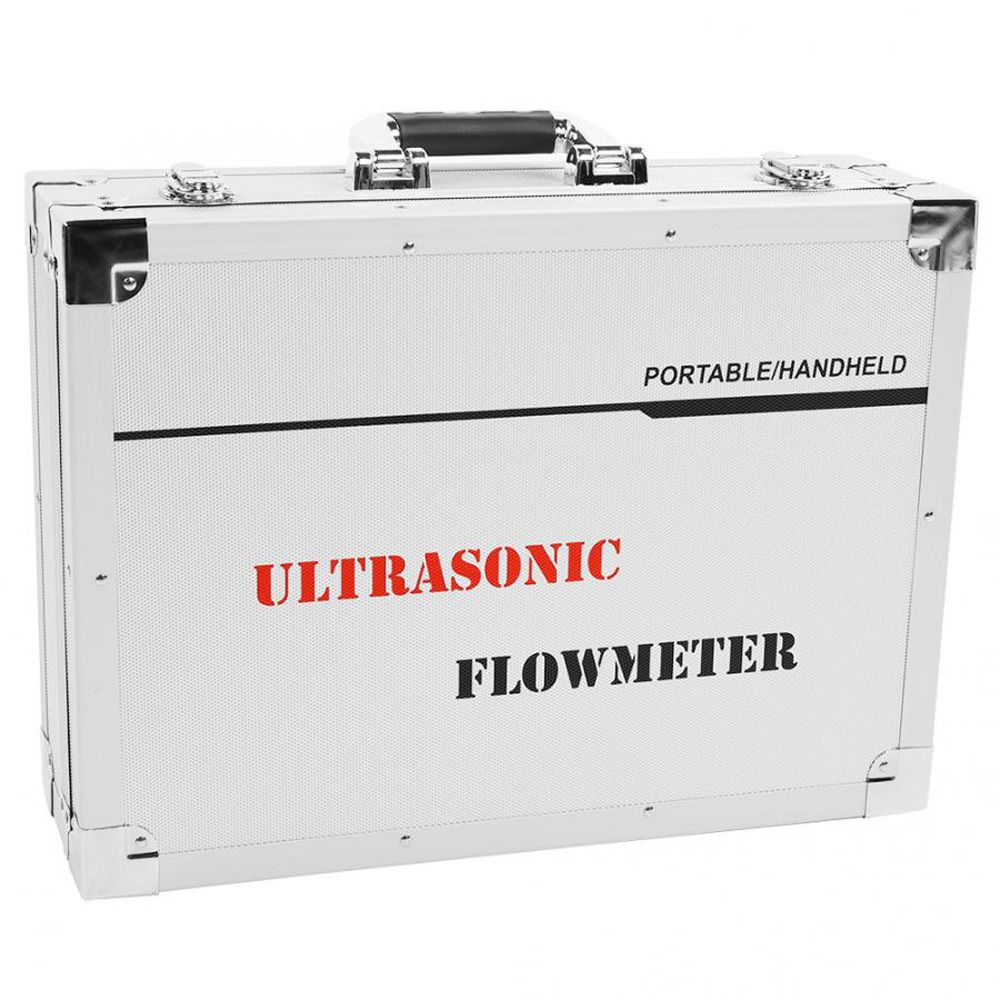

Package Includes:

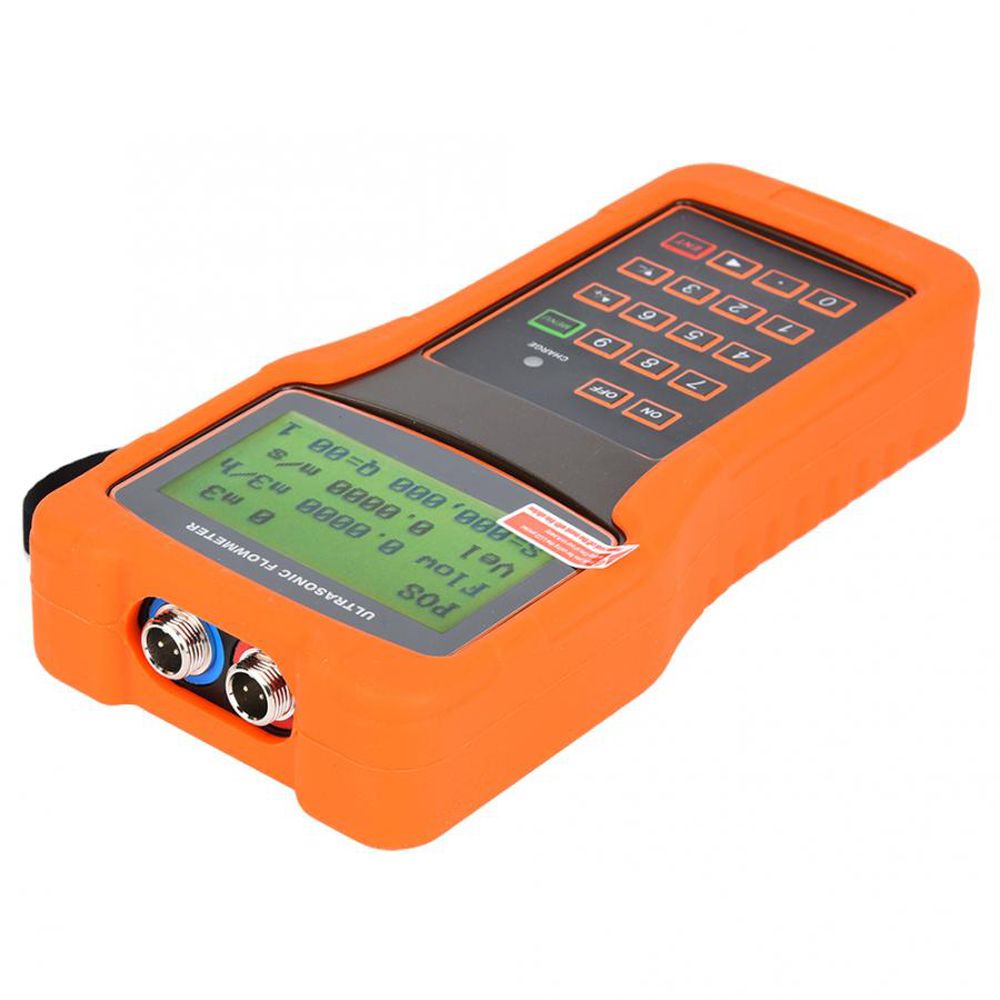

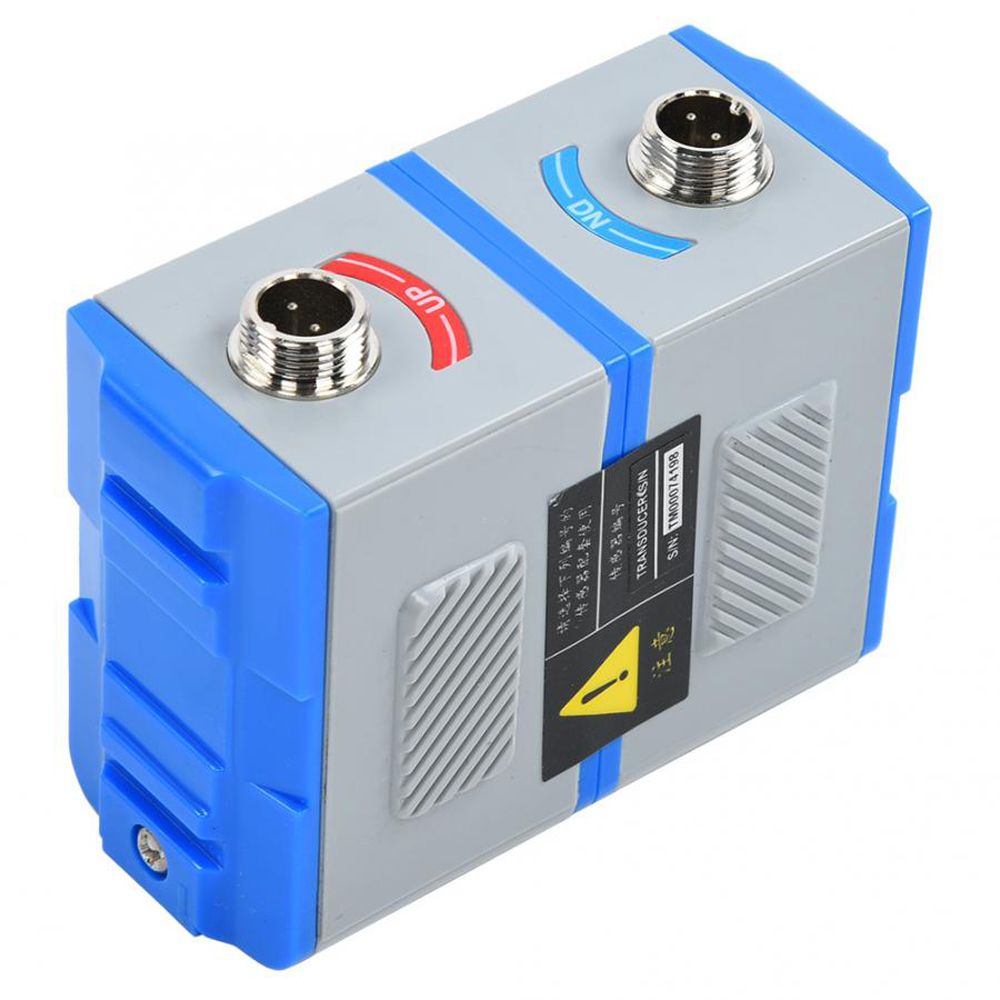

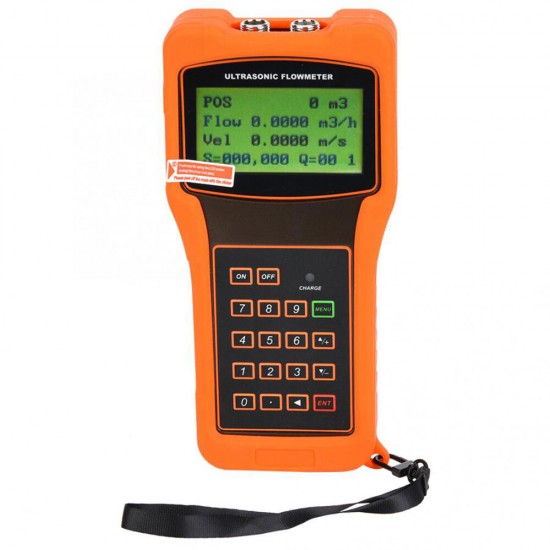

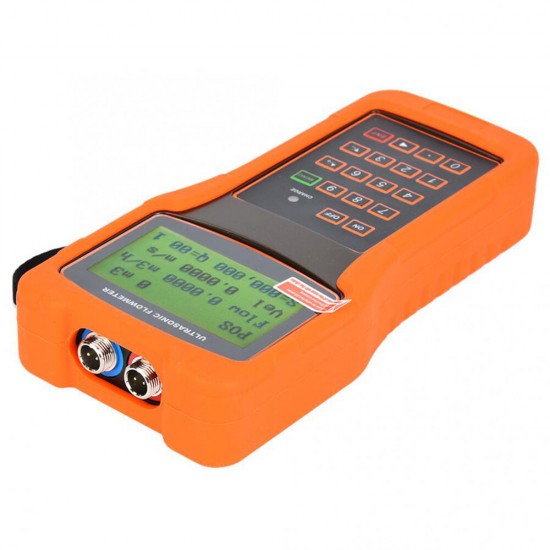

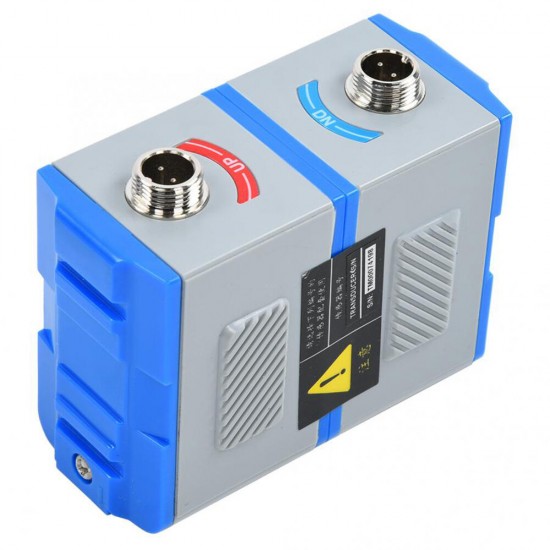

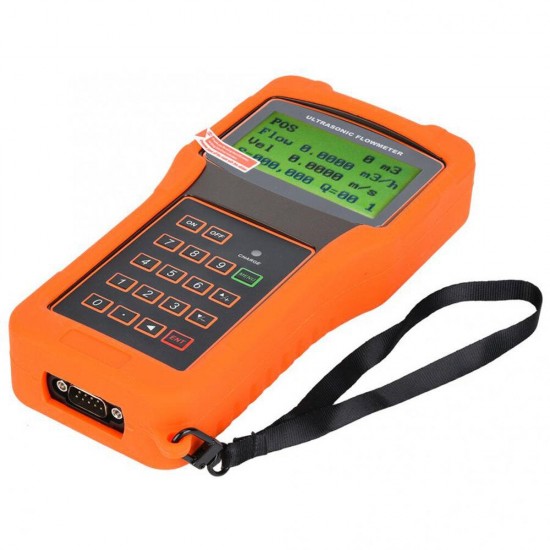

Details Pictures:
